McDonnell FH Phantom

McDonnell FH Phantom
Country	USA
Role	Carrier-based fighter aircraft
First flight	26 January 1945
Built	62

The McDonnell FH Phantom was a twin-engined jet fighter aircraft designed and first flown during World War II for the United States Navy. The Phantom was the first purely jet-powered aircraft to land on an American aircraft carrier and the first jet deployed by the United States Marine Corps. Although with the end of the war, only 62 FH-1s were built, it helped prove the viability of carrier-based jet fighters. As McDonnell’s first successful fighter, leading to the development of the follow-on F2H Banshee, which was one of the two most important naval jet fighters of the Korean War, it would also establish McDonnell as an important supplier of Navy aircraft. When McDonnell chose to bring the name back with the Mach 2–class McDonnell Douglas F-4 Phantom II, it launched what would become the most versatile and widely used western combat aircraft of the Vietnam War era, adopted by the USAF and the US Navy

Source: McDonnell FH Phantom on Wikipedia

McDonnell Douglas FH-1 Phantom Walk Around
Photographer	Cees Hendriks
Localisation	Unknow
Photos	24

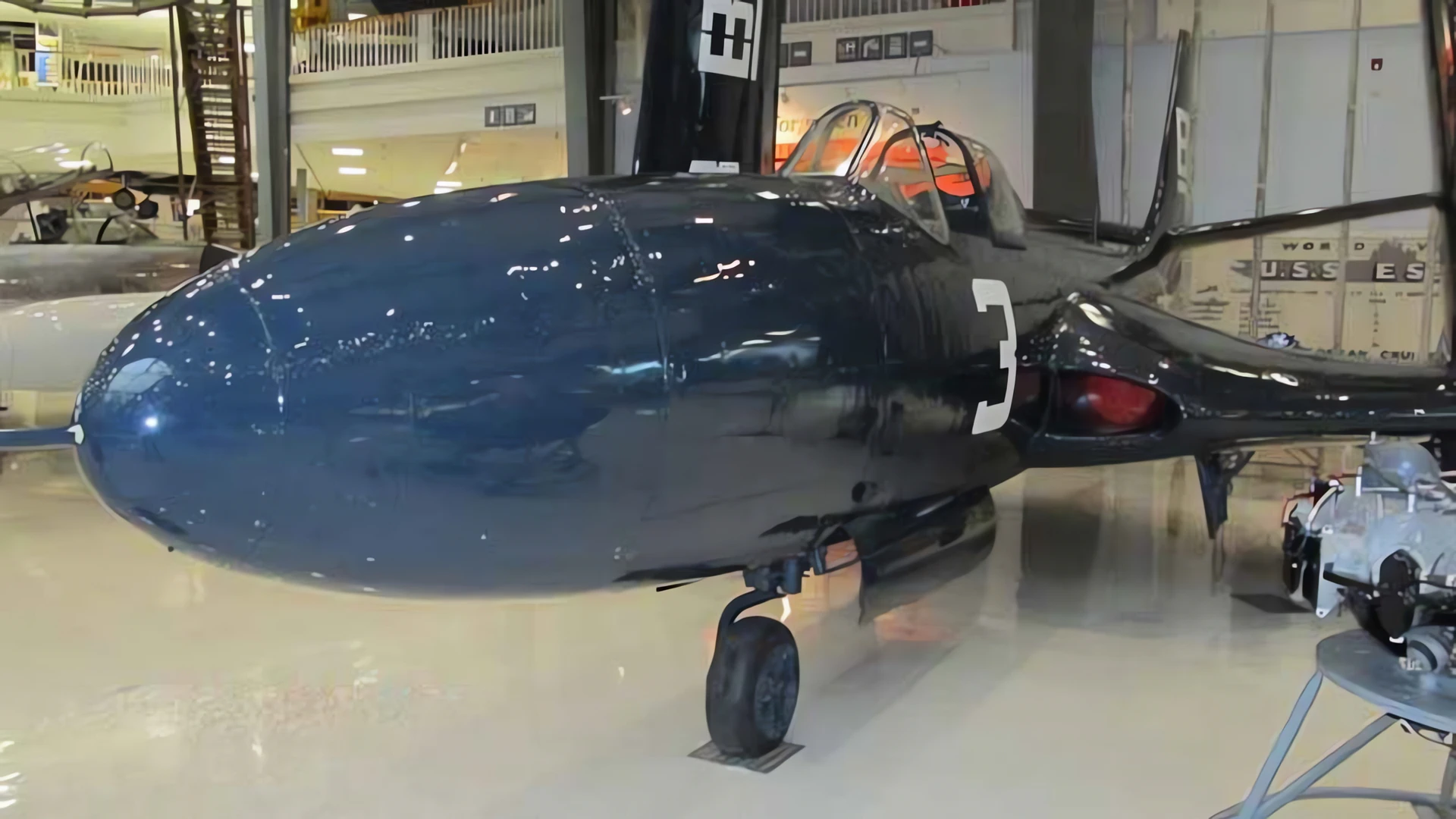

McDonnell Douglas FH-1 Phantom 01

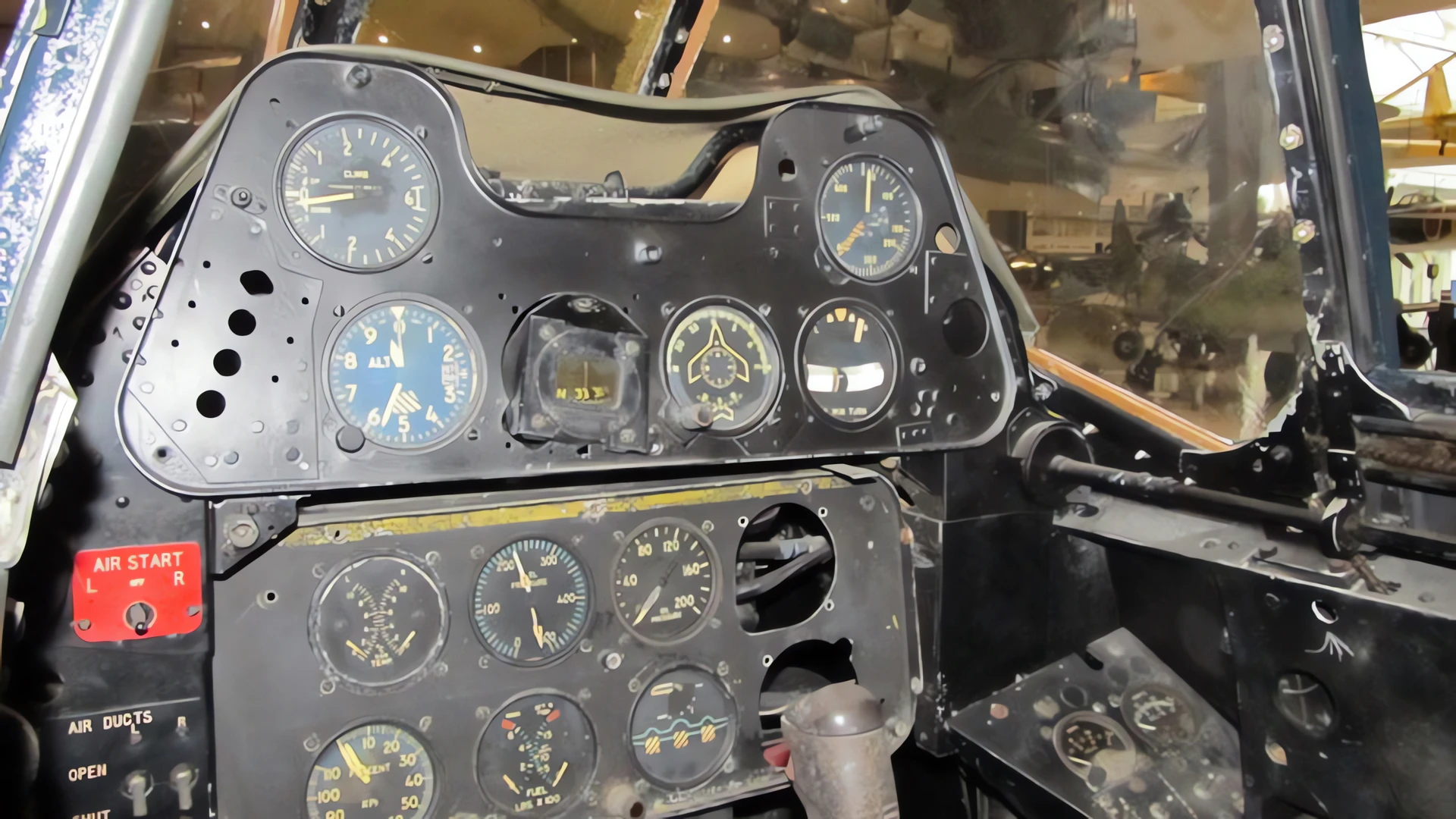

McDonnell Douglas FH-1 Phantom 02

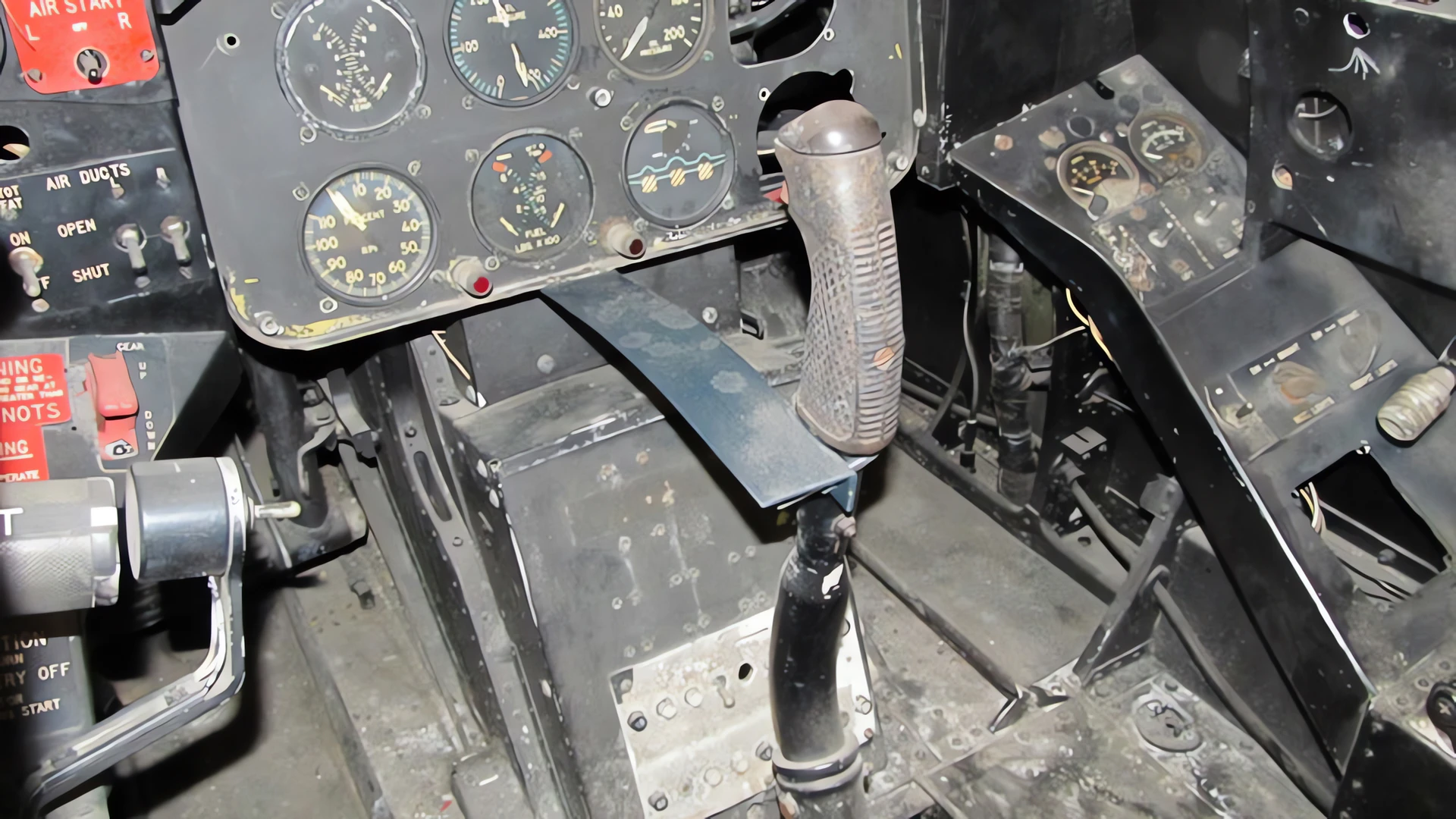

McDonnell Douglas FH-1 Phantom 03

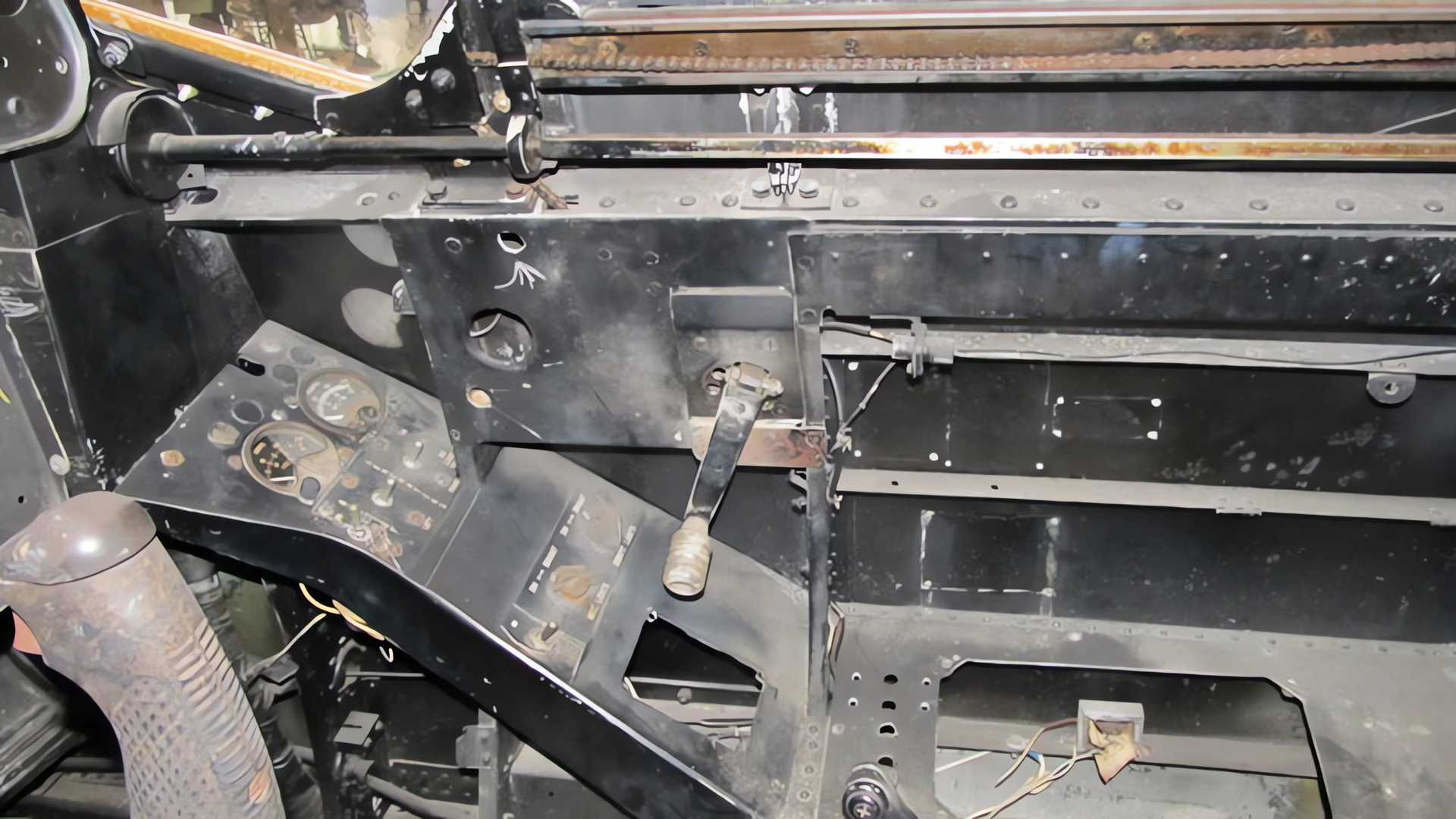

McDonnell Douglas FH-1 Phantom 04

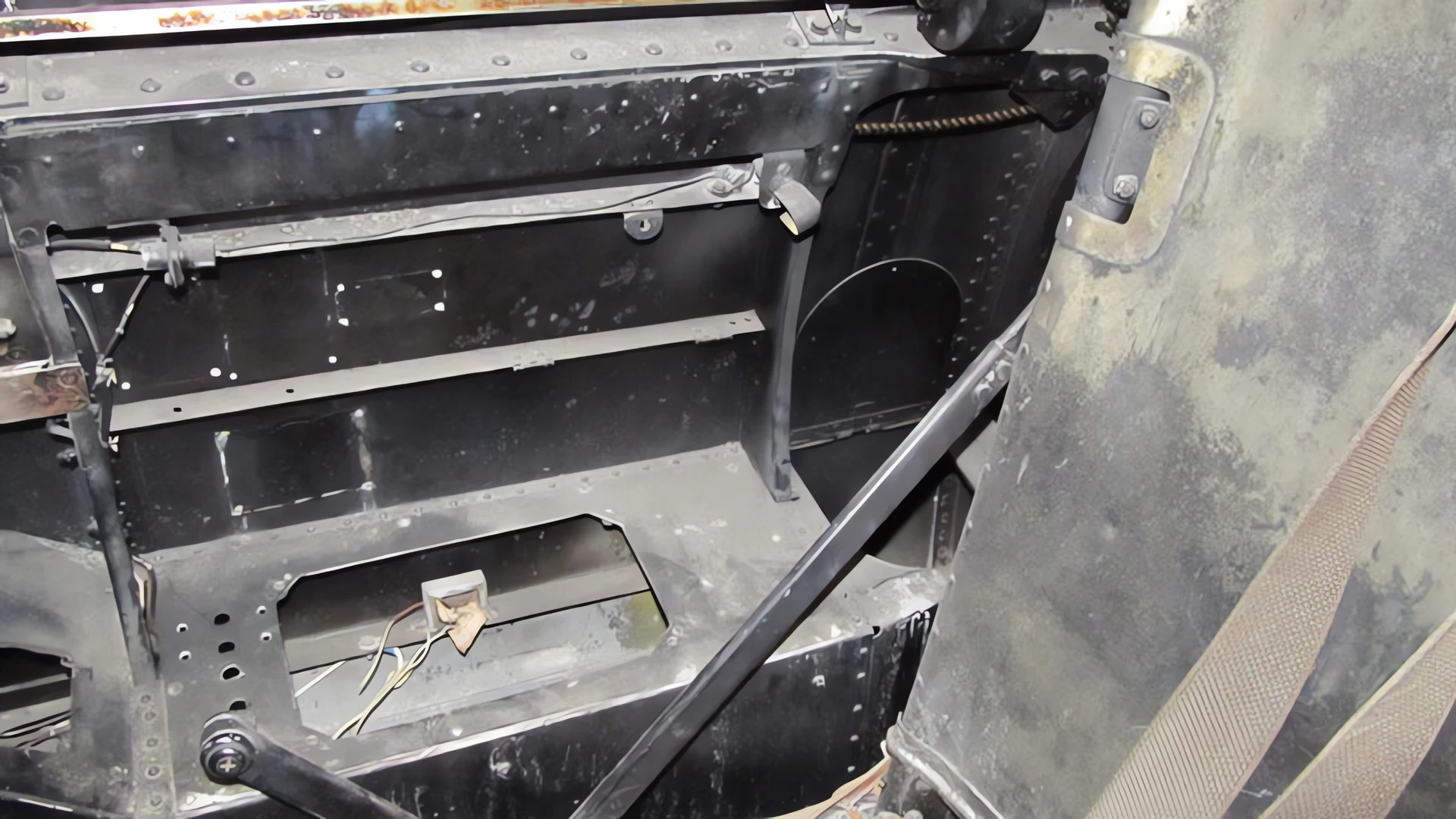

McDonnell Douglas FH-1 Phantom 05

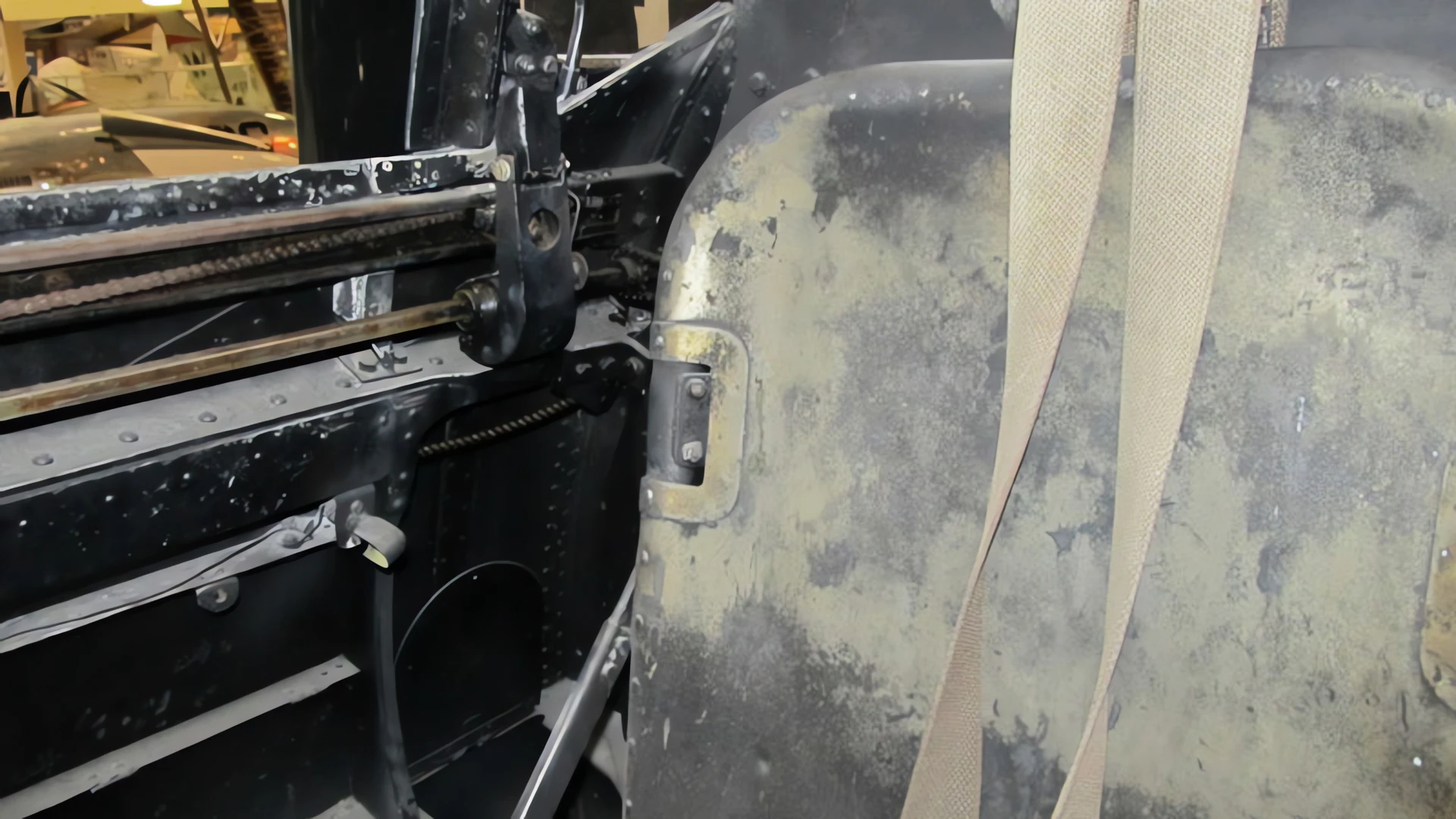

McDonnell Douglas FH-1 Phantom 06

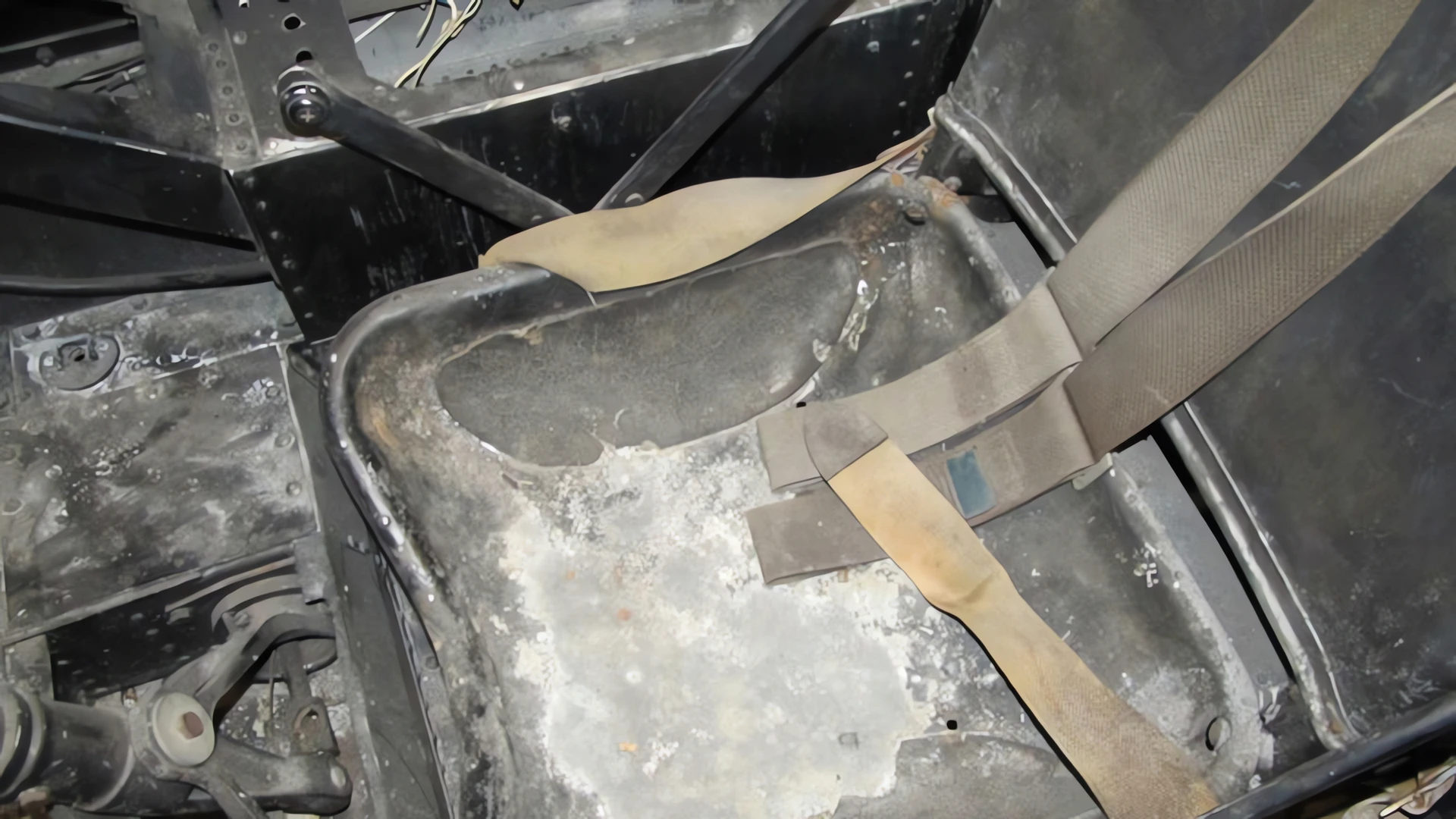

McDonnell Douglas FH-1 Phantom 07

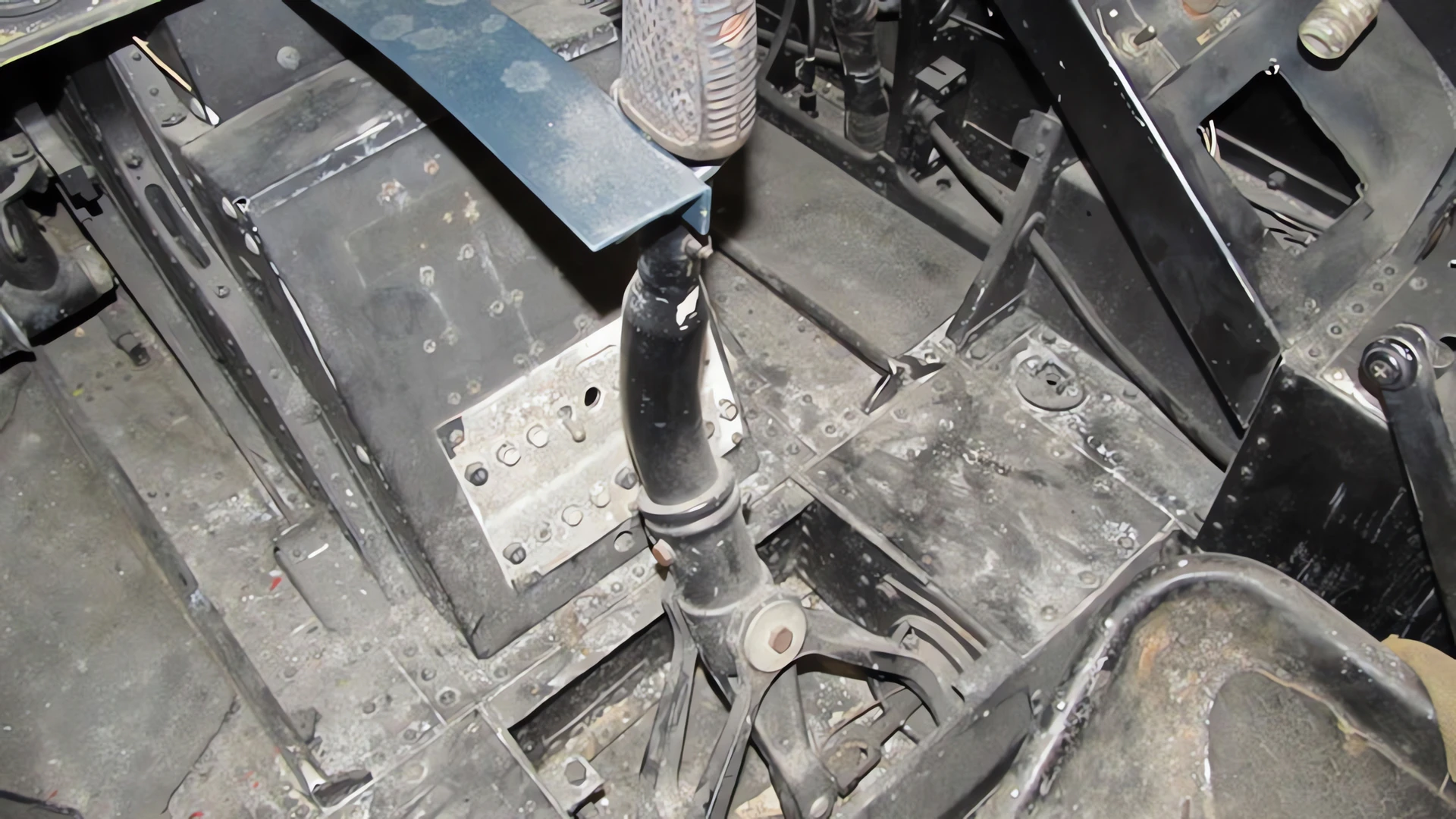

McDonnell Douglas FH-1 Phantom 08

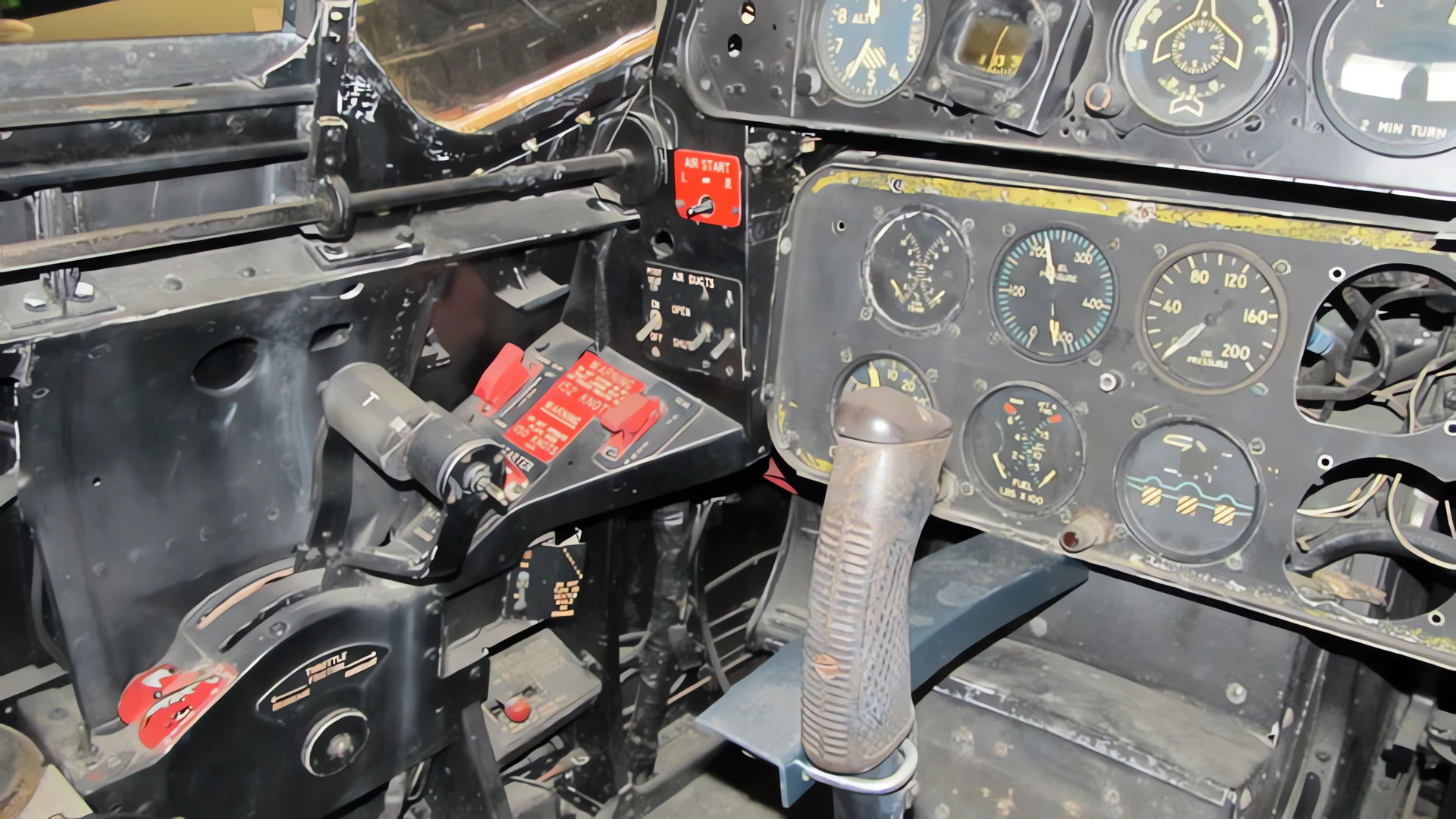

McDonnell Douglas FH-1 Phantom 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching McDonnell FH Phantom for you…

The Navy’s Jet Foundation

The McDonnell FH-1 Phantom (originally designated FD-1) was a twin-engine jet fighter that changed naval aviation forever. Developed in the closing years of WWII, it was designed to prove that pure-jet aircraft could successfully operate from carrier decks without the help of a piston engine. While its production run was small and its service life short, it provided the essential data that allowed the U.S. Navy to transition into the Jet Age, setting the stage for the more famous F2H Banshee and the legendary F-4 Phantom II.

Attribute	Technical Specification (FH-1)
Role	Carrier-based Fighter
Crew	1 (Pilot)
First Flight	January 26, 1945
Powerplant	2 × Westinghouse J30-WE-20 turbojets
Thrust	1,600 lbf (7.1 kN) per engine
Maximum Speed	479 mph (771 km/h)
Rate of Climb	4,230 ft/min (1,289 m/min)
Armament	4 × .50 cal (12.7 mm) M2 Browning machine guns

Clean Lines and Buried Engines

Wing-Root Integration: To minimize frontal area and drag, McDonnell engineers “buried” the small Westinghouse turbojets into the wing roots. This gave the FH-1 a remarkably clean aerodynamic profile compared to the bulky engine pods seen on the German Me 262 or British Meteor.
Straight-Wing Efficiency: At the time, swept wings were still experimental. The FH-1 used a thin, straight wing that provided excellent lift and predictable handling during the low-speed, high-stress environment of a carrier landing.
Tricycle Landing Gear: One of the first naval aircraft to utilize a nosewheel, the FH-1 offered pilots a much better view of the carrier deck during landing compared to traditional “taildraggers.”
Squared-Off Tail: The vertical stabilizer featured a distinctive squared-off top, a design element that became a signature of early McDonnell jet fighters.

A Brief but Historic Career

A Historic Landing: On July 21, 1946, Commander James Davidson made the first-ever landing and takeoff by an all-jet aircraft from a U.S. carrier, the USS Franklin D. Roosevelt, using an FH-1.
The “Phantom Knights”: Marine Fighter Squadron 122 (VMF-122) became the first Marine squadron to be equipped with jets when they received the FH-1 in 1947. They were famously known as the “Phantom Knights” and formed the first Marine jet aerobatic team.
Rapid Obsolescence: Because engine technology was advancing at a breakneck pace, the FH-1 was underpowered by the time it reached full squadron strength. It was quickly replaced by its larger, more powerful successor, the F2H Banshee.
Preservation: Only 62 Phantoms were built. Today, rare survivors can be found at the National Air and Space Museum and the National Museum of Naval Aviation.
