McDonnell Douglas KC-10 Extender

McDonnell Douglas KC-10 Extender
Country	USA
Role	Aerial refueling tanker, multi-role aircraft
First flight	12 July 1980
Built	62

The McDonnell Douglas KC-10 Extender is an aerial refueling tanker aircraft – the military version of the three-engined DC-10 airliner – operated by the United States Air Force (USAF). The KC-10 was developed from the Advanced Tanker Cargo Aircraft Program. It incorporates military-specific equipment for its primary roles of transport and aerial refueling. It was developed to supplement the KC-135 Stratotanker following experiences in Southeast Asia and the Middle East. The KC-10 was the second McDonnell Douglas transport aircraft to be selected by the Air Force following the C-9. A total of 60 KC-10s were produced for the USAF. The Royal Netherlands Air Force operates two similar tankers designated KDC-10 that were converted from DC-10s.

Source: McDonnell Douglas KC-10 Extender on Wikipedia

McDonnell Douglas KDC-10 Walk Around
Photographer	Meindert de Vreeze
Localisation	Unknow
Photos	300

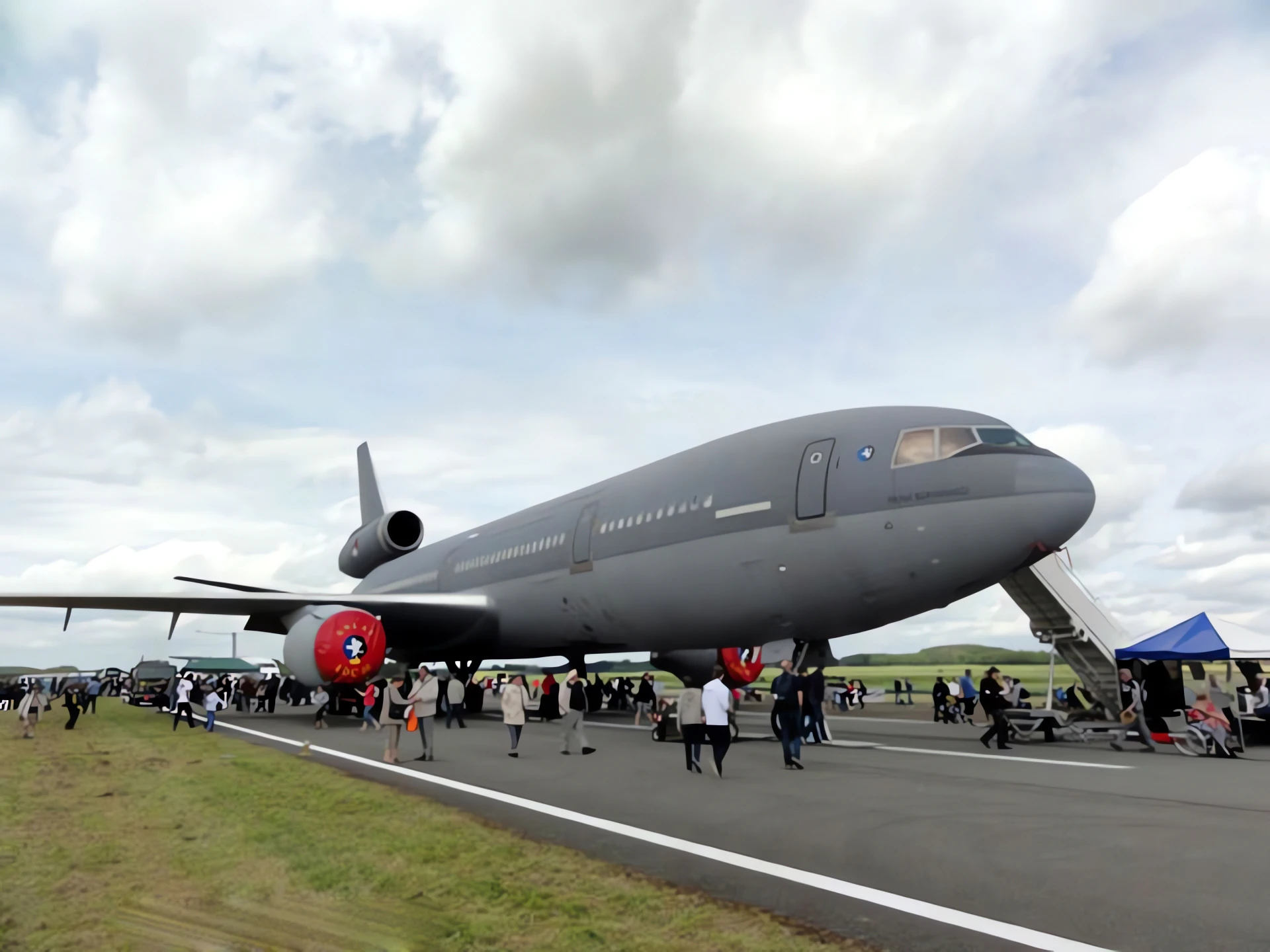

McDonnell Douglas KDC-10 01

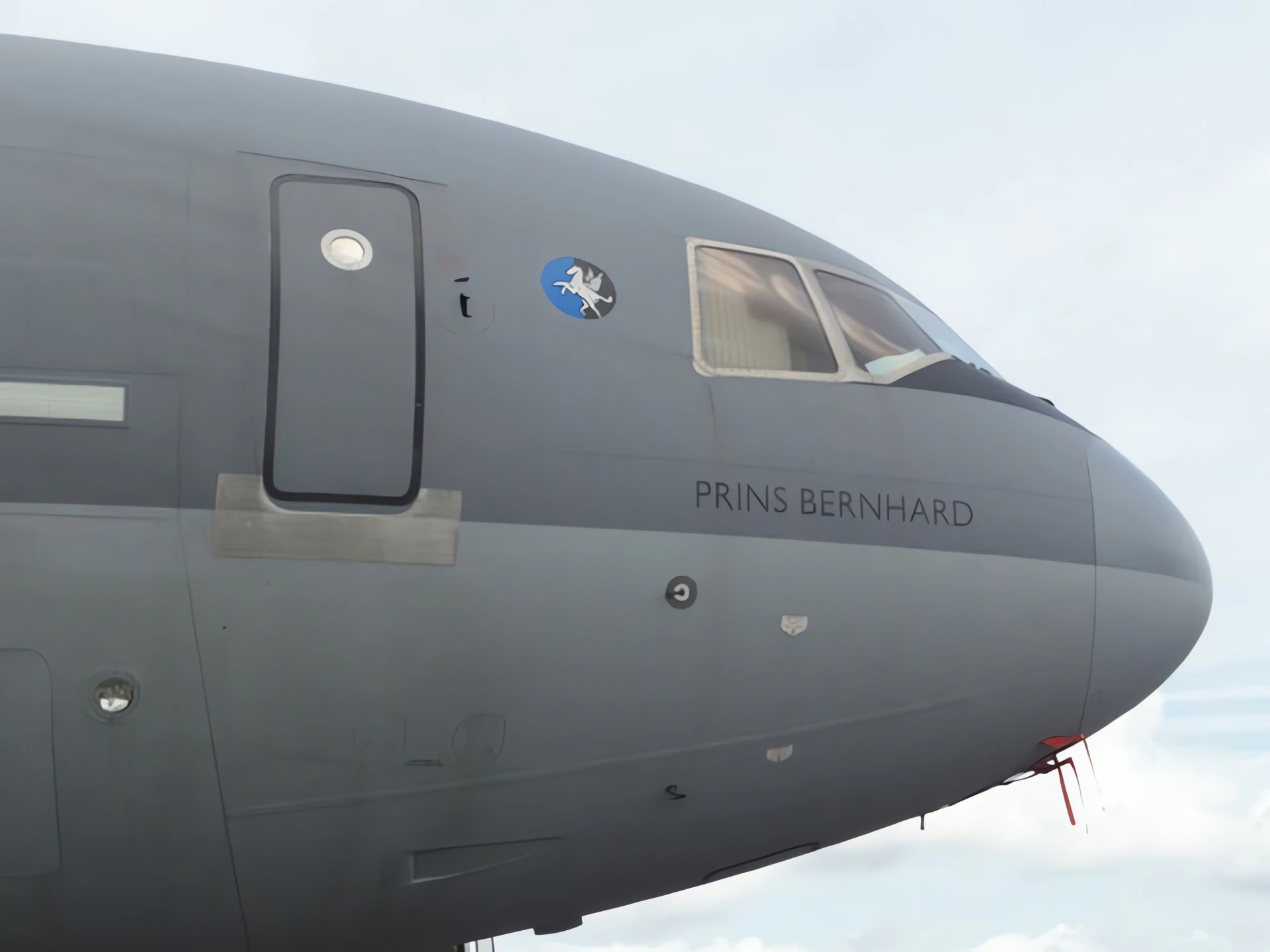

McDonnell Douglas KDC-10 02

McDonnell Douglas KDC-10 03

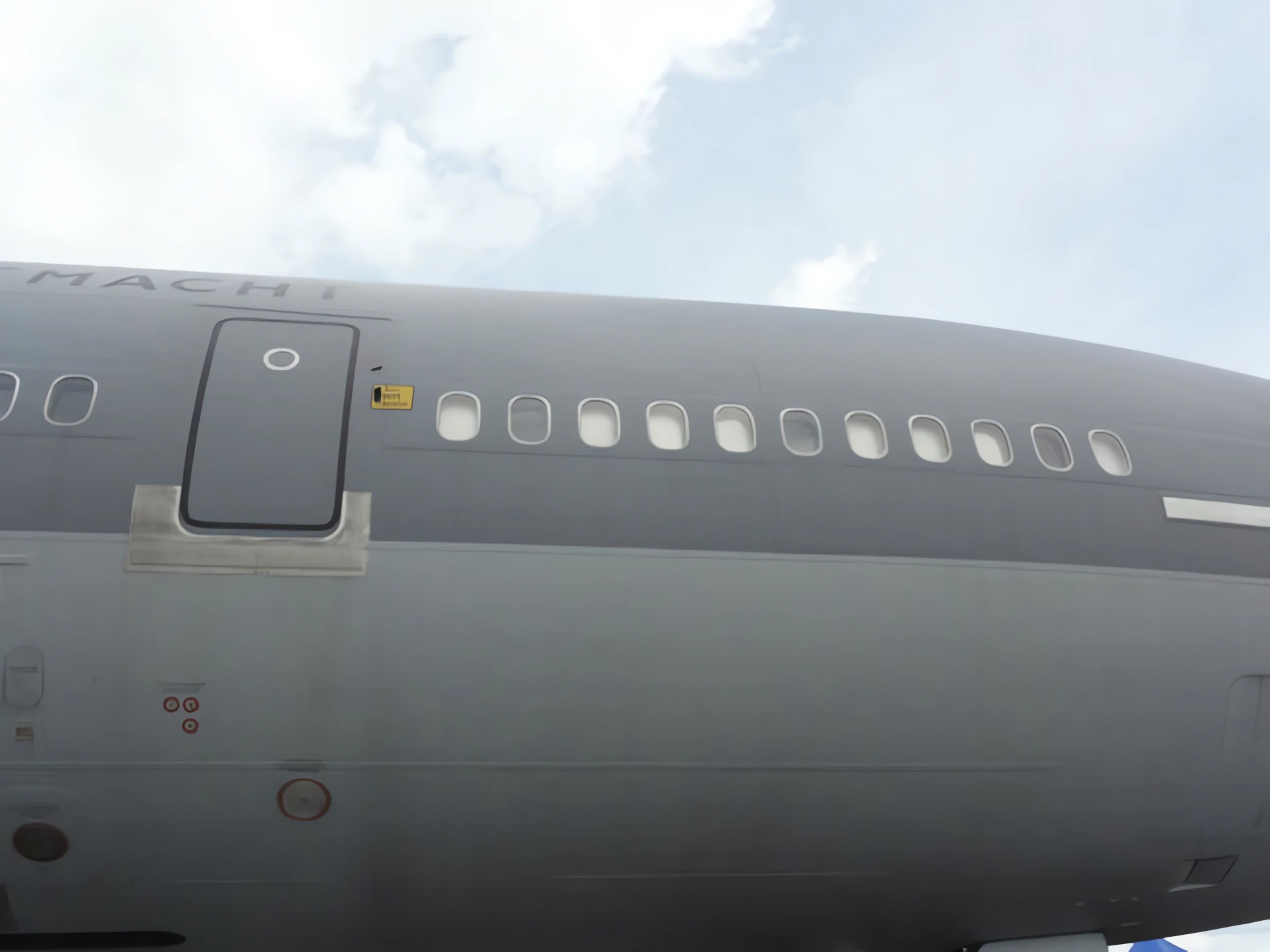

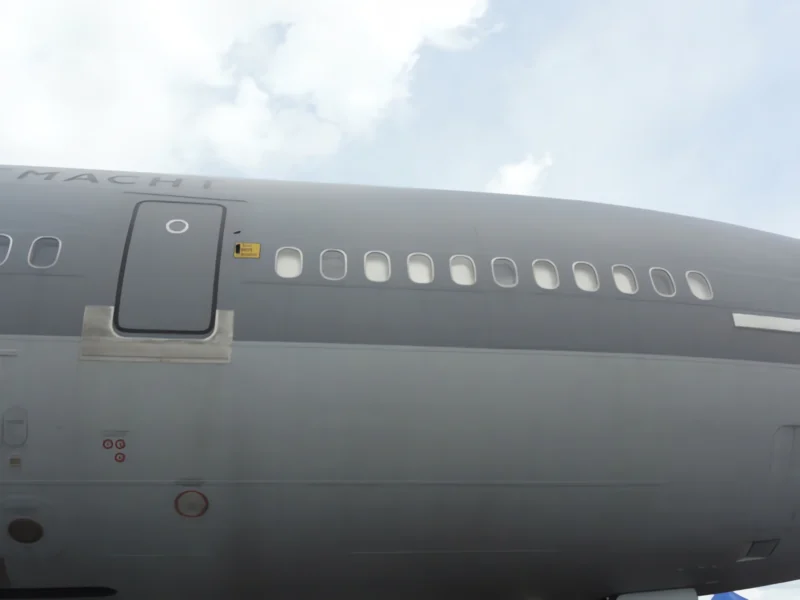

McDonnell Douglas KDC-10 04

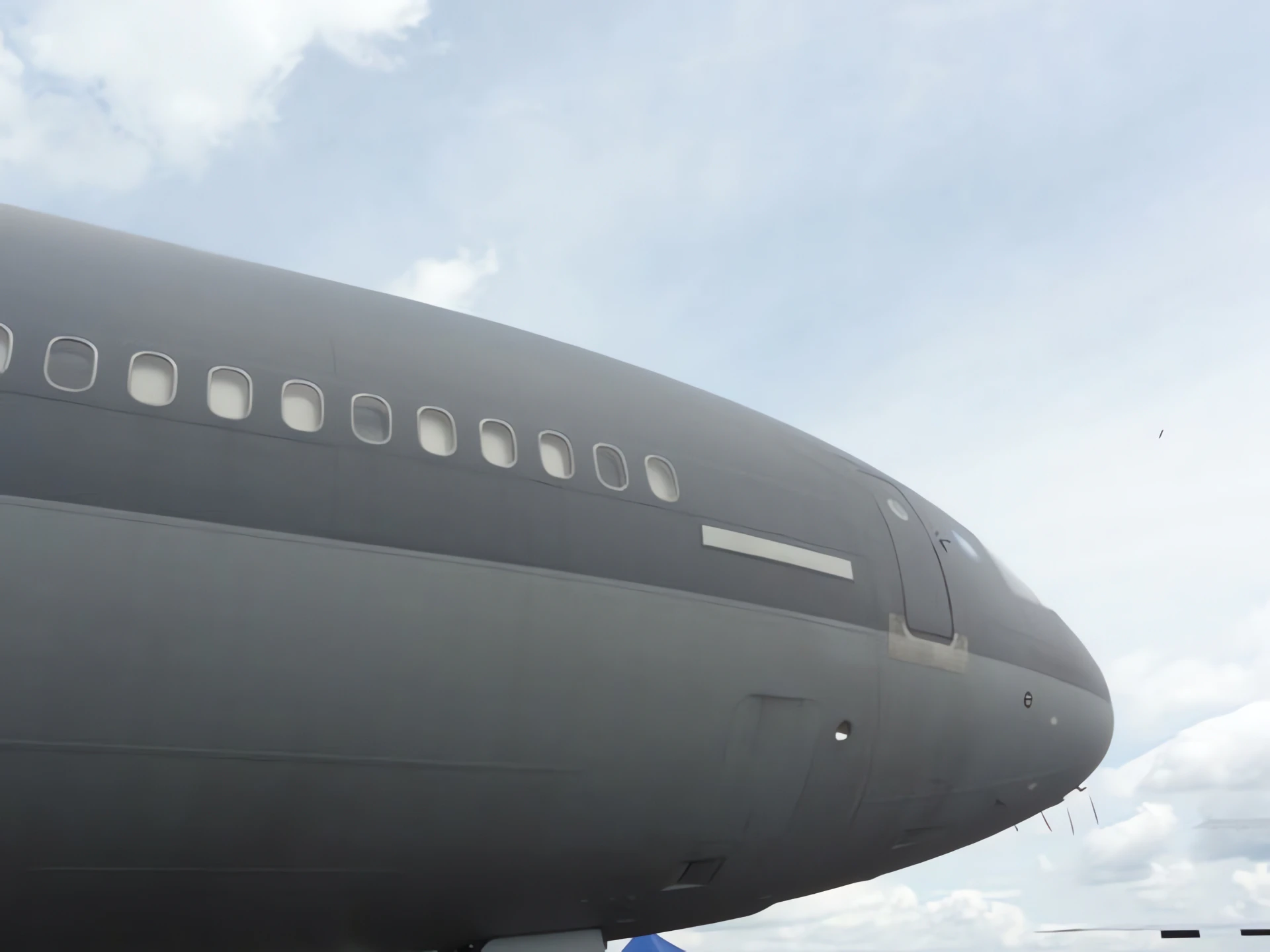

McDonnell Douglas KDC-10 05

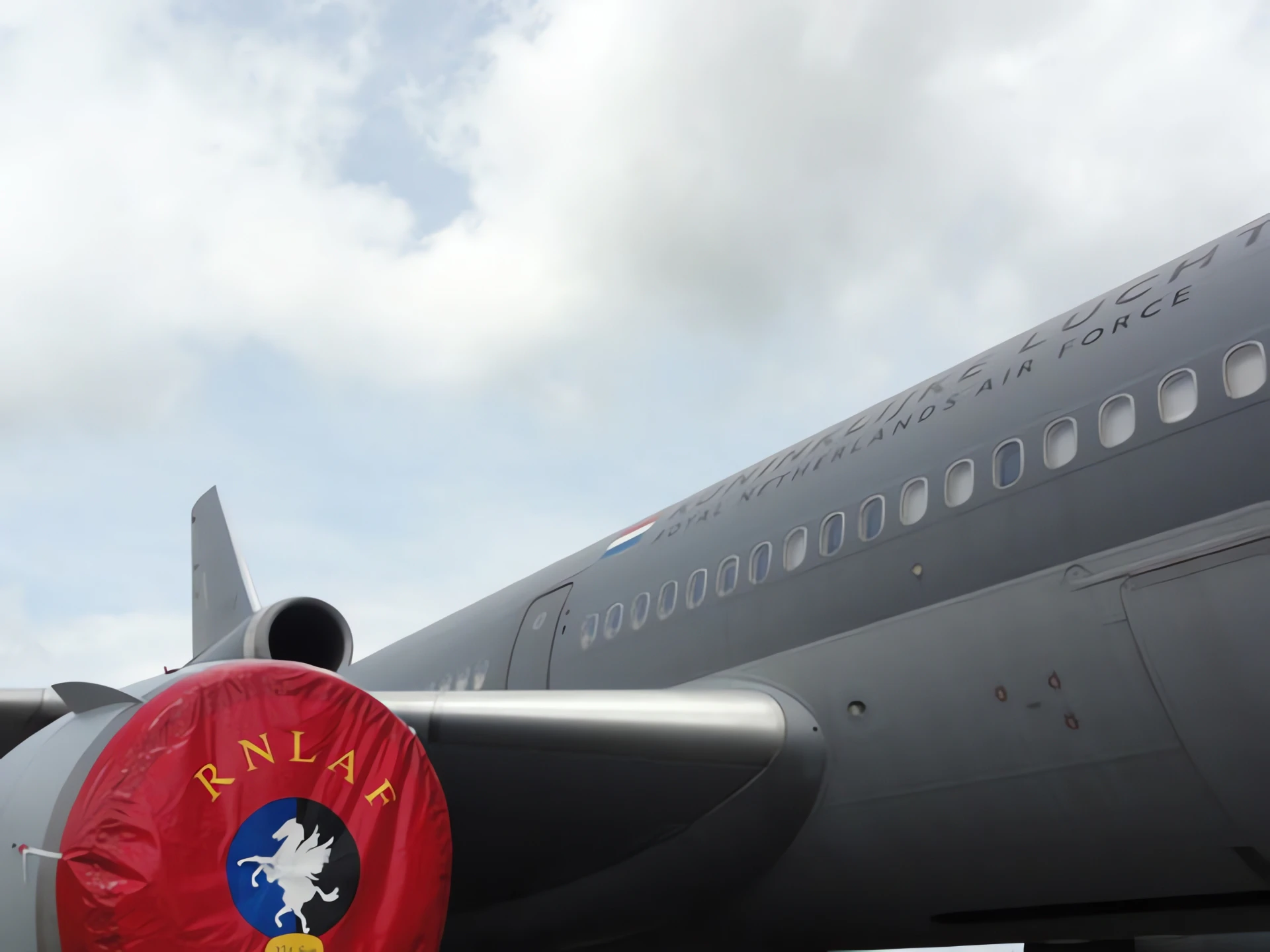

McDonnell Douglas KDC-10 06

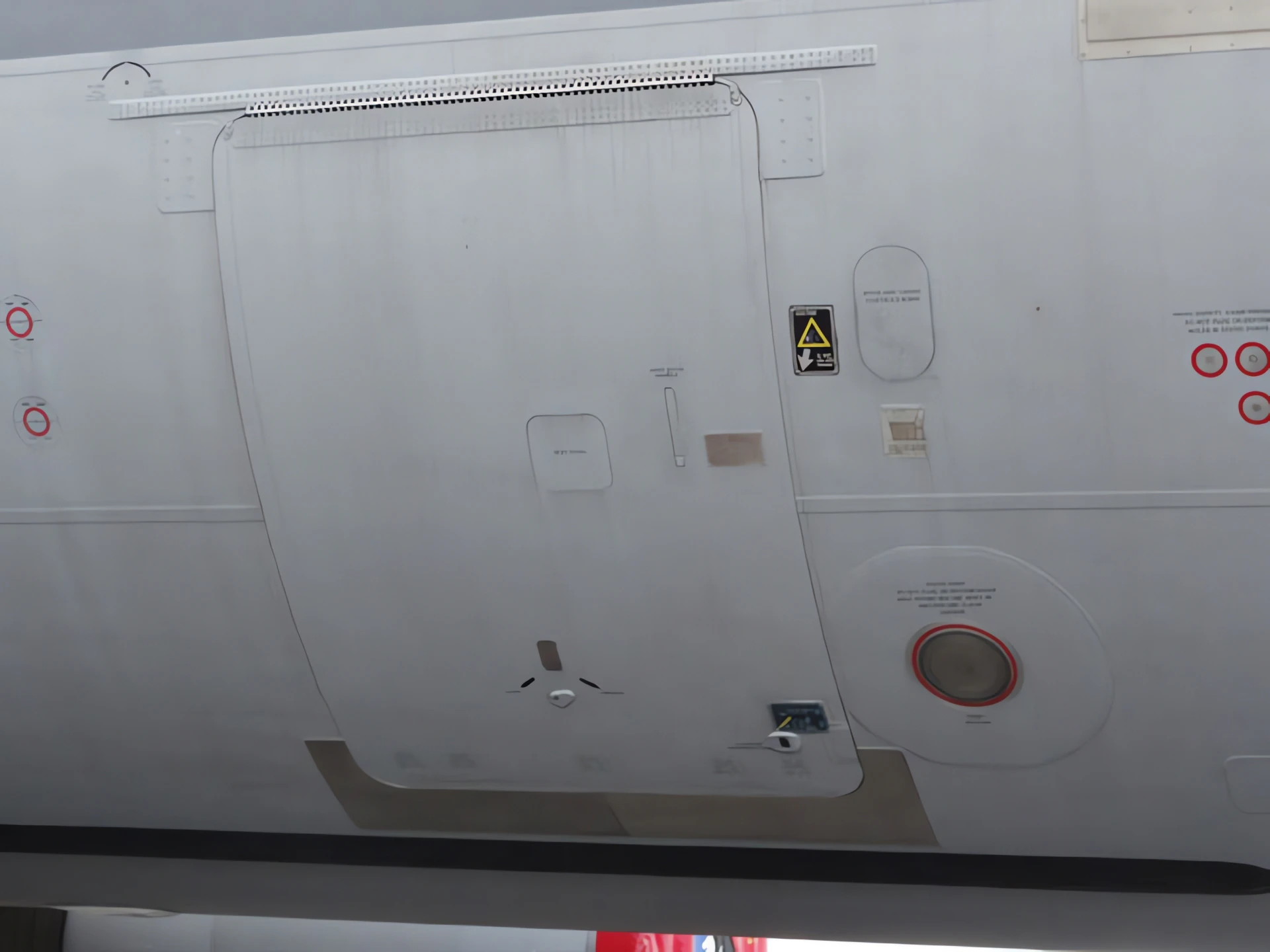

McDonnell Douglas KDC-10 07

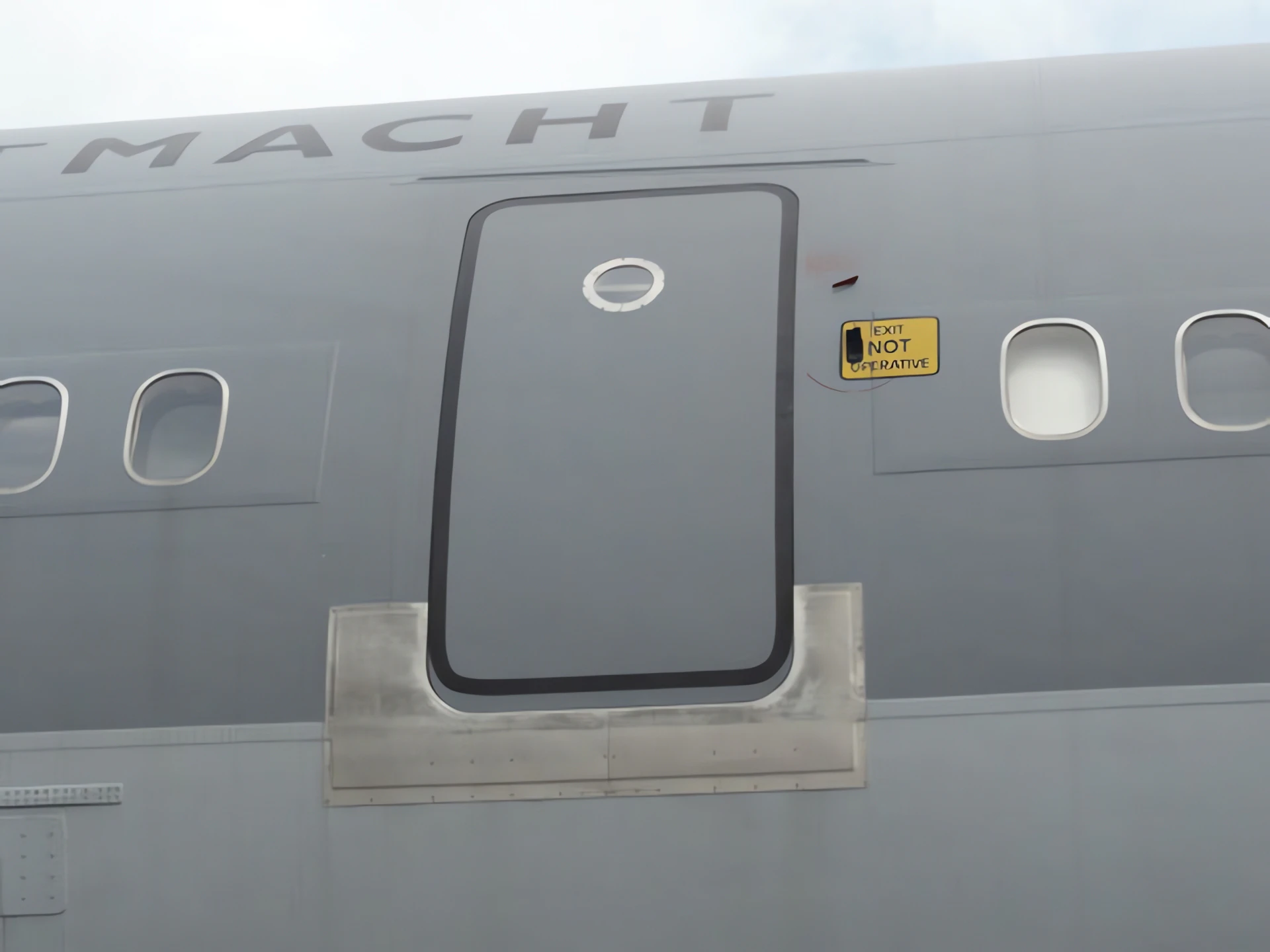

McDonnell Douglas KDC-10 08

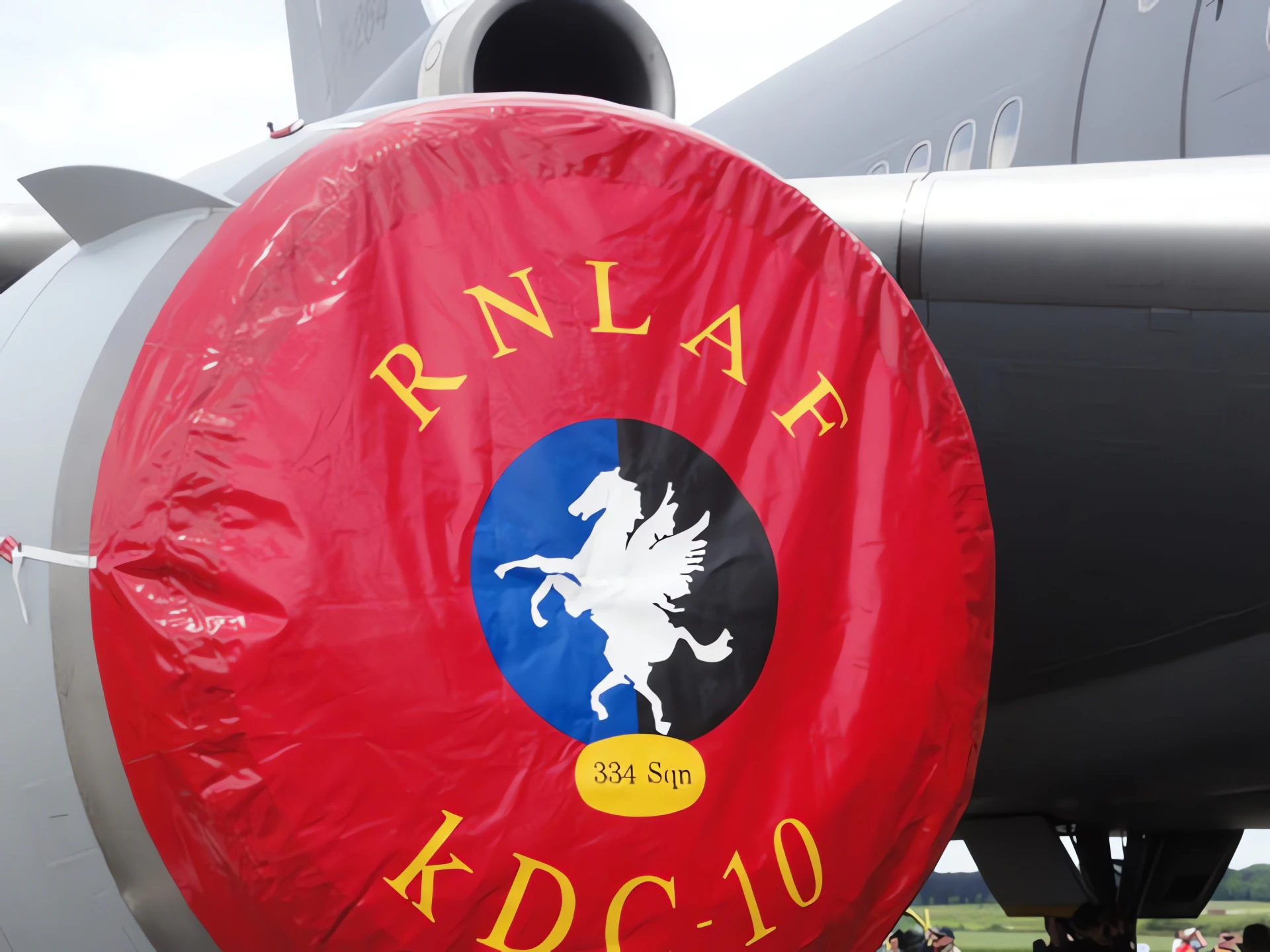

McDonnell Douglas KDC-10 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching McDonnell Douglas KC-10 Extender for you…

McDonnell-Douglas KC-10A Extender Walk Around
Photographer	Vladimir Yakubov
Localisation	Travis Air Expo 2008
Photos	208

General Characteristics and Role

The McDonnell Douglas KDC-10 is an aerial refueling tanker and military transport aircraft used by the Royal Netherlands Air Force (RNLAF). It is a heavily modified version of the commercial DC-10-30CF (Convertible Freighter) airliner. The conversion process involved installing a refueling system, primarily a flying boom system, making it capable of transferring large amounts of fuel to NATO receiver aircraft. The KDC-10’s dual role—refueling tanker and strategic military transport—makes it a versatile asset, allowing it to simultaneously carry cargo (up to 25 tonnes) or personnel (up to 150) along with its substantial fuel load. It provided critical long-range air-to-air refueling support for the RNLAF and other allied forces during various international operations.

Property	Typical Value (KDC-10)
Type	Aerial Refueling Tanker / Strategic Transport
National Origin	Netherlands (Operator), USA (Original Aircraft)
Original Manufacturer	McDonnell Douglas (Modification by Fokker)
Entered Service (RNLAF)	1995
Crew	4 (Pilot, Co-Pilot, Flight Engineer, Boom Operator)
Length	55.5 m (182 ft 3 in)
Wingspan	50.4 m (165 ft 4 in)
Max Takeoff Weight	Approx. 259,450 kg (572,000 lb)

Powerplant and Refueling Systems

Engines: 3 x General Electric CF6-50C2 turbofan engines. The tri-jet configuration is characteristic of the DC-10 family.
Engine Thrust: Approx. 222.4 kN (50,000 lbf) per engine.
Maximum Speed: Approx. 908 km/h (564 mph).
Fuel Capacity: Carries up to 105,000 kg (231,000 lb) of transferrable fuel.
Refueling System: Equipped with a hydraulically operated Advanced Aerial Refueling Boom (AARB) located under the tail, operated by a single airman in the rear compartment.
Secondary System: Can be rapidly configured to carry a drogue basket on the refueling boom or hose-and-drogue pods under the wings for non-boom-equipped aircraft (e.g., Navy and fighter jets).
Range: With a full refueling load, its combat radius is significantly extended. Its large capacity allows it to act as an airborne fuel depot.

Service History and Legacy

Origin: The RNLAF initially acquired two used DC-10s from Martinair, which were then converted into the KDC-10 configuration by the Dutch aerospace company Fokker.
Operational Use: The aircraft supported numerous coalition operations, including NATO operations in Kosovo, Afghanistan, and Iraq, providing vital logistical and refueling capability.
Unusual Variant: The KDC-10 is a relatively rare military conversion of a commercial airliner, alongside the USAF’s KC-10 Extender (based on the DC-10-30), which shares many similarities.
Multinational Role: Due to the RNLAF’s limited fleet, the KDC-10s were often deployed to support air forces across NATO and the EU, showcasing the aircraft’s multinational importance.
Retirement and Transfer: The KDC-10s were retired by the RNLAF in the 2010s. The aircraft were sold and transferred to the Omega Aerial Refueling Services, a private contractor, extending their service life as contracted tankers for the US Navy and allied forces.
