Macchi M.C.72 | |
|---|---|
| 국가 | 이탈리아 |
| 역할 | 수상 비행기 경주용 항공기 |
| 첫 비행 | 1931년 7월 |
| 내장 | 5 |
Tthe 마끼 M.C. 72 이탈리아 항공기 회사 Macchi Aeronautica에서 설계하고 제작한 실험용 수상 비행기입니다. M.C. 72는 5년 동안 모든 항공기에서 세계 속도 기록을 보유하고 있었습니다. 1933 년과 1934 년에는 피스톤 엔진으로 구동되는 수상 비행기의 세계 속도 기록을 세웠습니다. 후자는 여전히 서 있습니다.
| Macchi M72 Walk Around | |
|---|---|
| 사진 작가 | Unknow |
| 로컬라이제이션 | Unknow |
| 사진 | 33 |

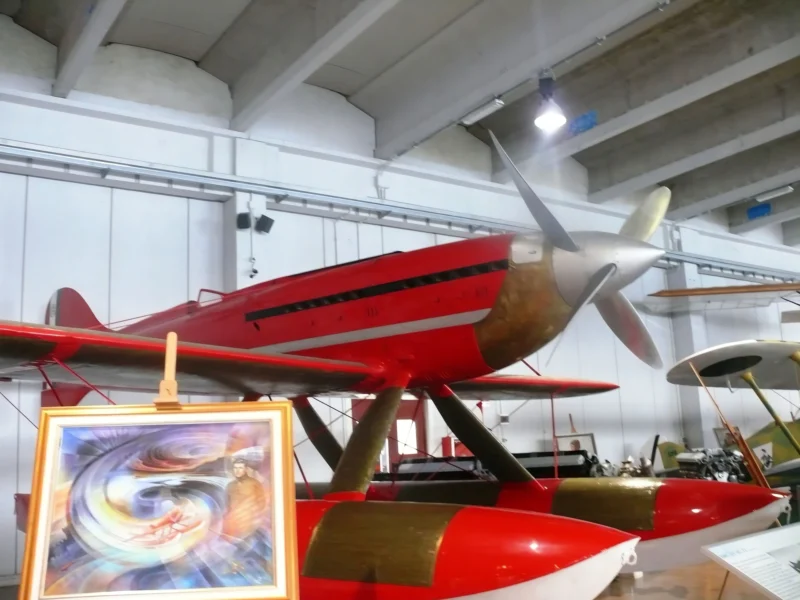

Macchi M72 02

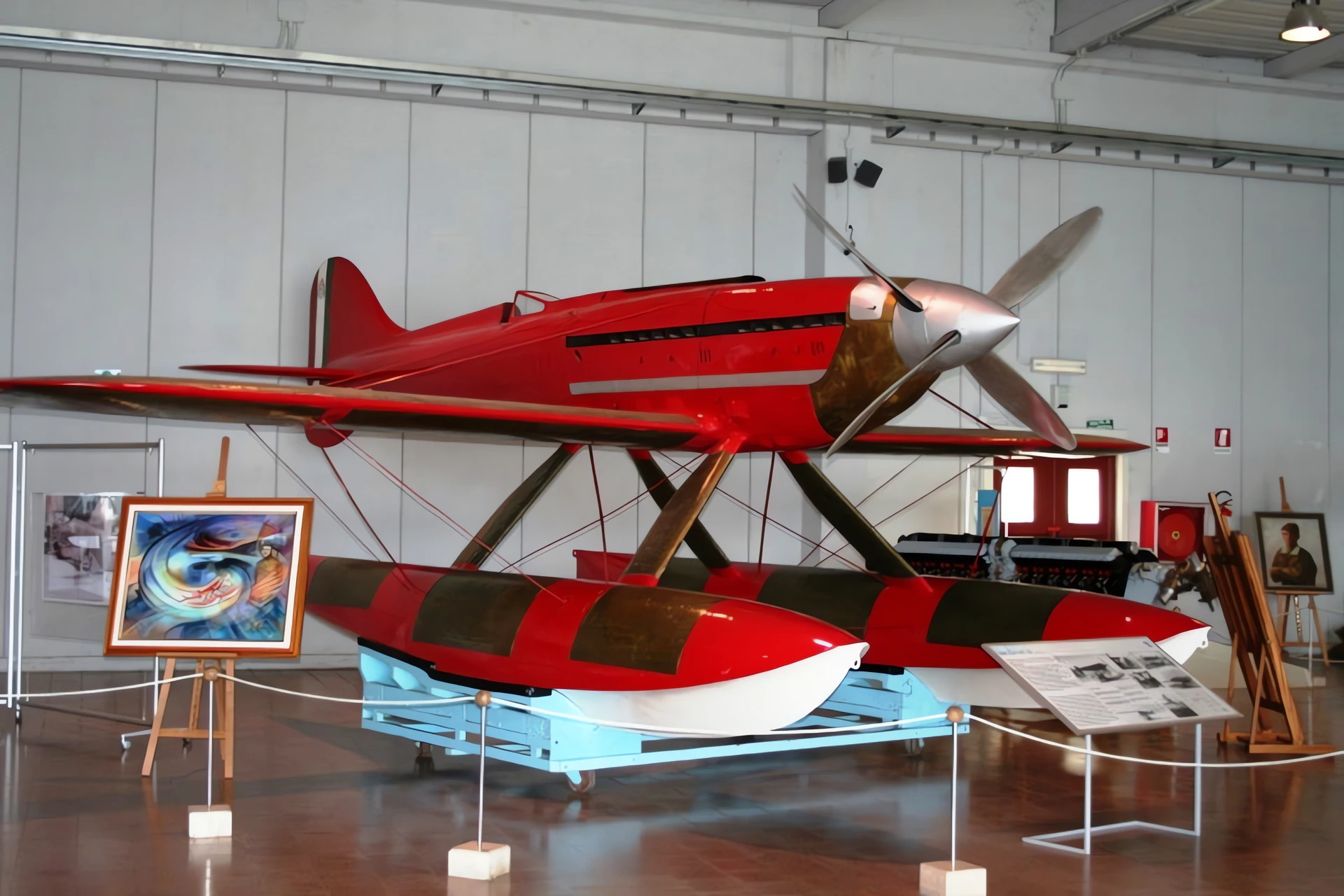

Macchi M72 01

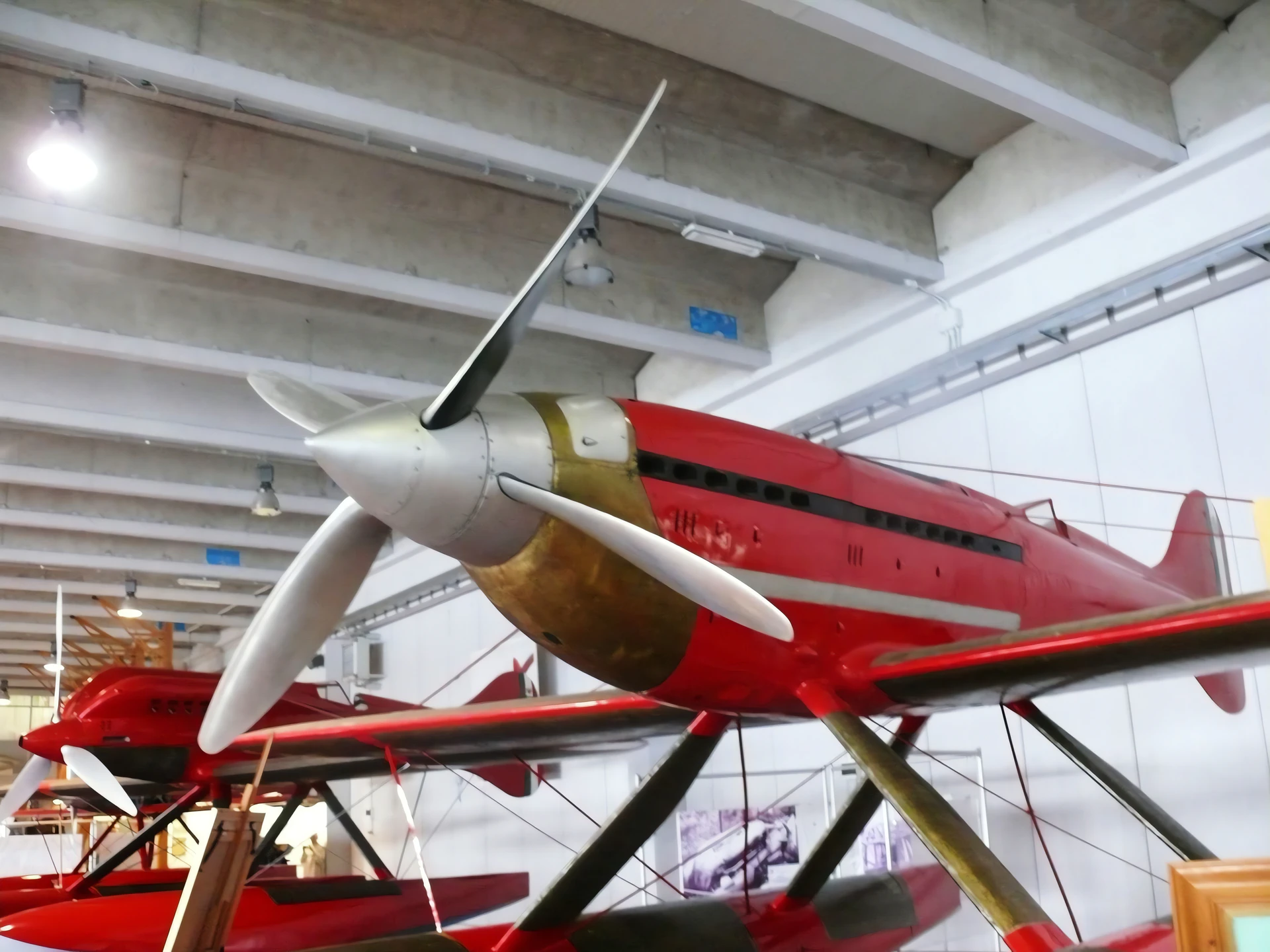

Macchi M72 04

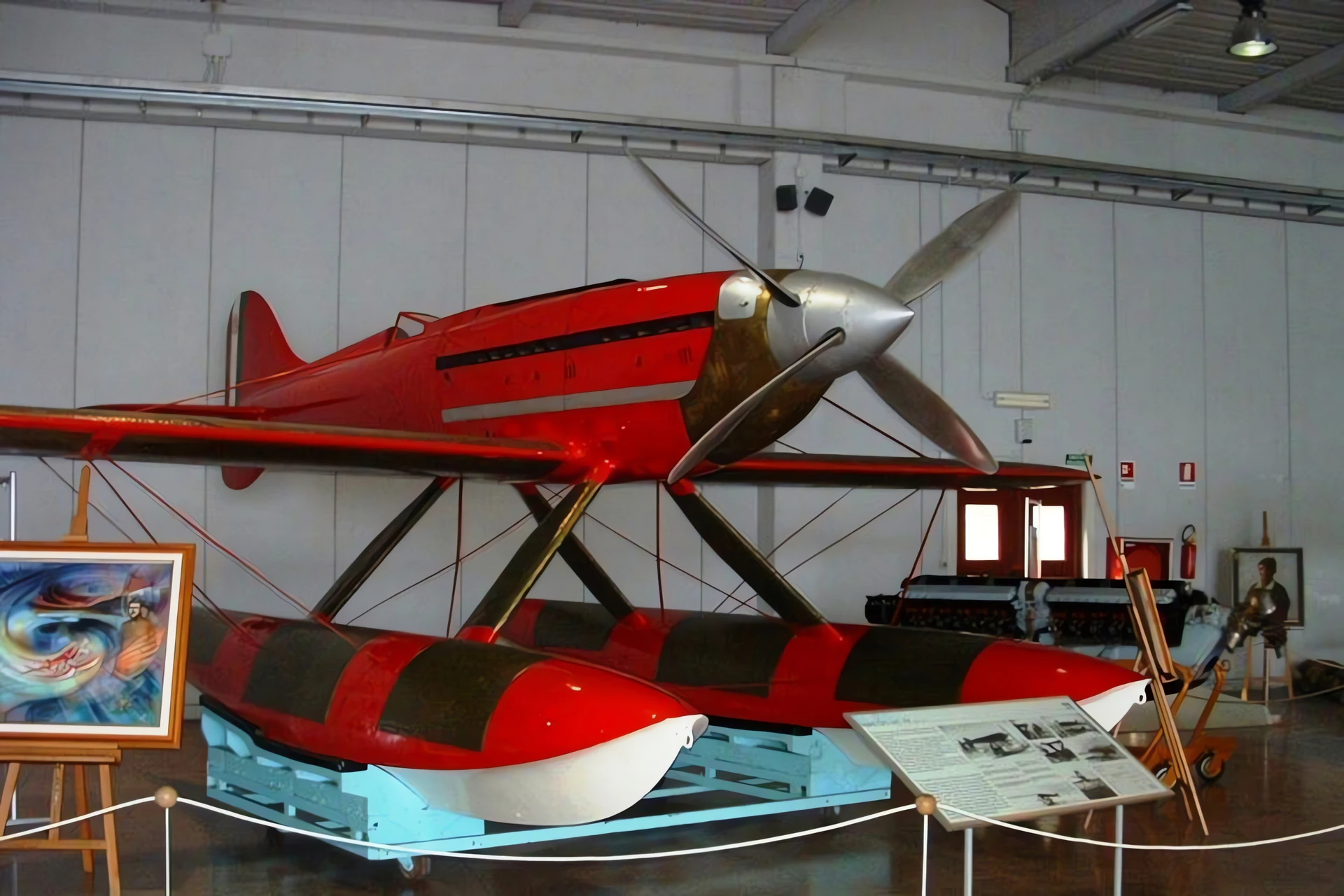

Macchi M72 03

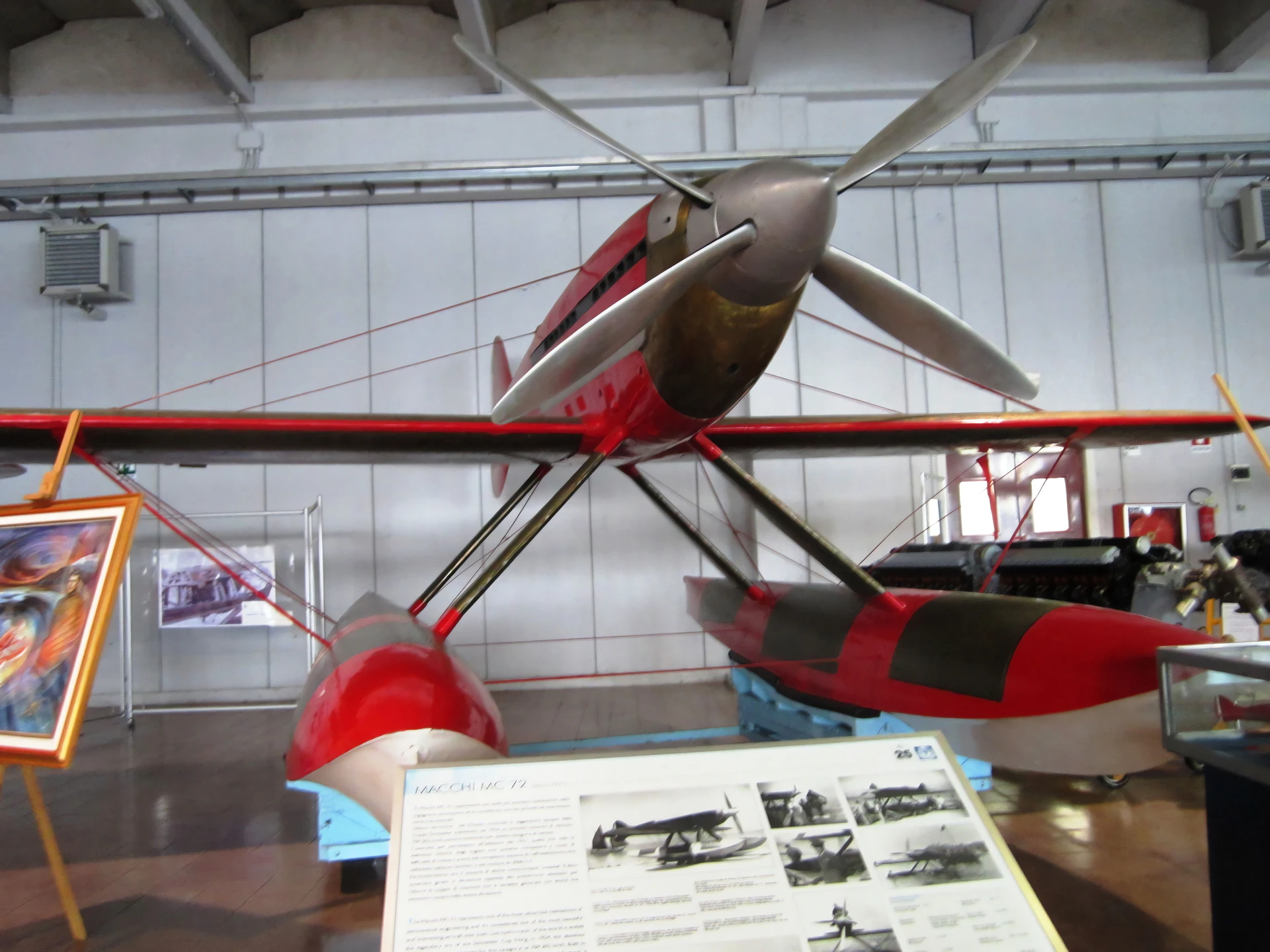

Macchi M72 06

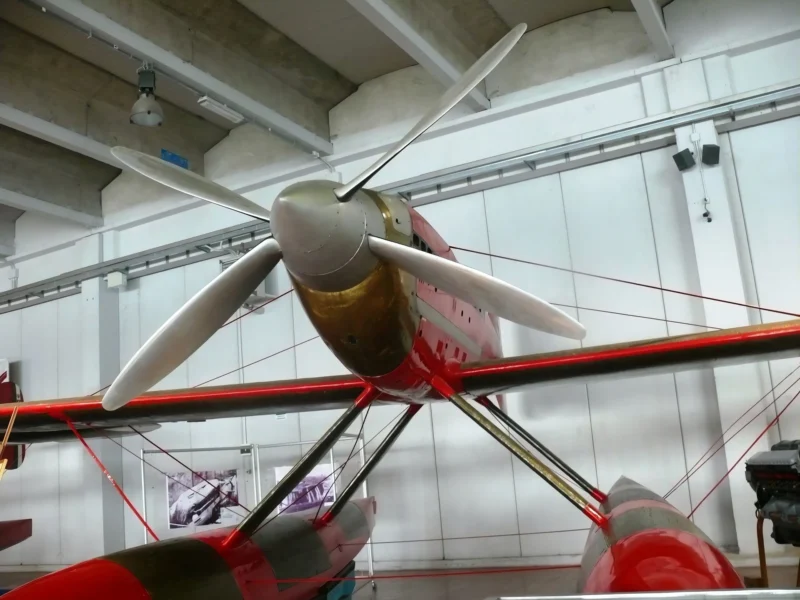

Macchi M72 05

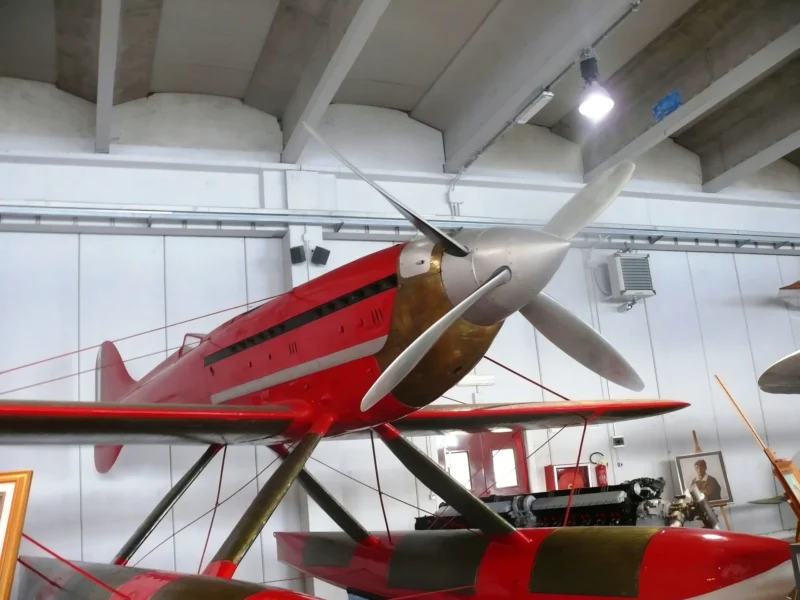

Macchi M72 07

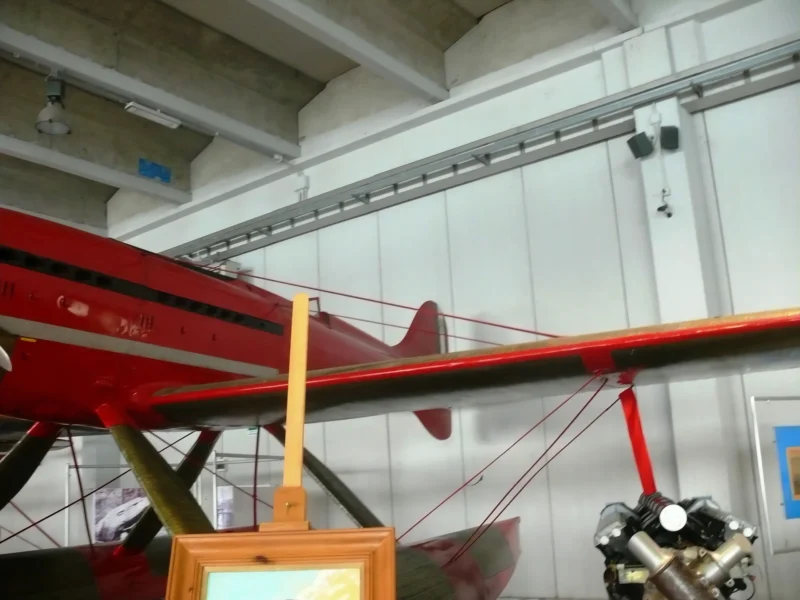

Macchi M72 08

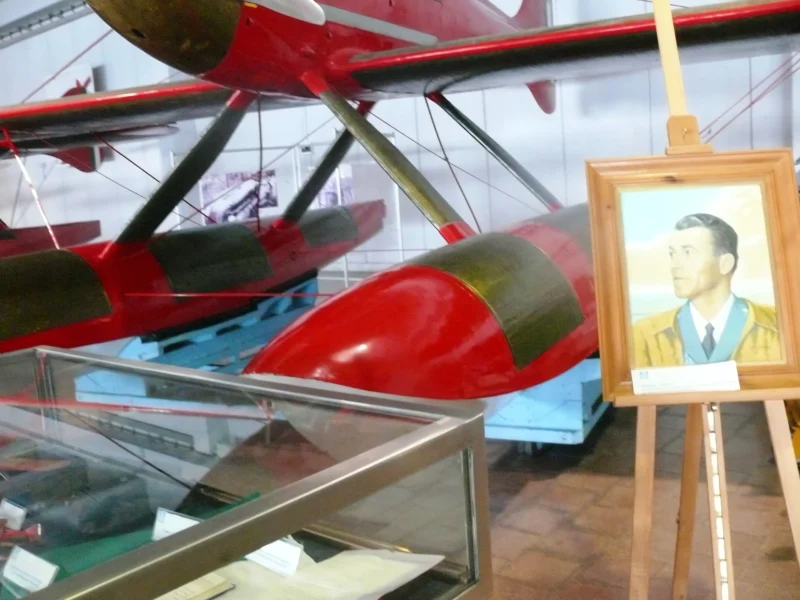

Macchi M72 10
대기,검색 Macchi M.C.72 당신을 위해...
참고 항목:
General Characteristics
The **Macchi M.C.72** was an Italian racing floatplane designed by Mario Castoldi to compete in the Schneider Trophy competition. Though it never raced, it became legendary for setting the **absolute world speed record** for a piston-powered seaplane, a record that **still stands** today.
| Property | Value (Record-Setting Configuration) |
|---|---|
| 역할 | Experimental Racing Seaplane |
| 제조업체 | Aeronautica Macchi |
| First Flight | 1931년 7월 |
| 승무원 | 1 pilot |
| 구성 | Low-wing monoplane, twin floats |
| Maximum Take-Off Weight | Approx. 3,031 kg (6,682 lb) |
| 윙스 팬 | 9.48 m (31 ft 1 in) |
Powerplant and Design
- Engine: One Fiat AS.6 liquid-cooled, supercharged 24-cylinder V-engine.
- Power Output: Approx. 2,126 kW (2,850 hp) to 3,100 hp. The engine was essentially two coupled V-12 units.
- Propellers: Unique contra-rotating fixed-pitch propellers, used to cancel out the massive engine torque.
- Cooling System: Featured a complex system of surface radiators integrated into the wings and floats to minimize drag.
- Construction: The forward fuselage was metal, while the aft fuselage was a monocoque wooden structure.
⚡ Performance and Record
- Absolute Speed Record: 709.209 km/h (440.681 mph), set on October 23, 1934, piloted by Warrant Officer Francesco Agello.
- Status: This remains the fastest speed ever achieved by a piston-engined seaplane.
- Armament: None, as it was a purely experimental racing aircraft.
- Historical Note: The M.C.72 suffered from multiple mechanical defects and the loss of two test pilots before successfully setting the record.
