Bell H-13 Sioux

Bell H-13 Sioux
Šalies	Jav
Vaidmenį	Lengvasis stebėjimo sraigtasparnis
Pirmasis skrydis	8 December 1945
Pastatytas	2400+

2007 Varpas H-13 Sioux was a single-engine single-rotor light helicopter built by Bell Helicopter. Westland Aircraft manufactured the Sioux under license for the British military as the Sioux AH.1 and HT.2.

Šaltinis: Bell H-13 Sioux Vikipedijoje

Bell UH-13H Sioux Walk Around
Photographers	Vladimir Yakubov and Randy Ray
Localisation	Castle AFB Museum, Atwater
Photos	194

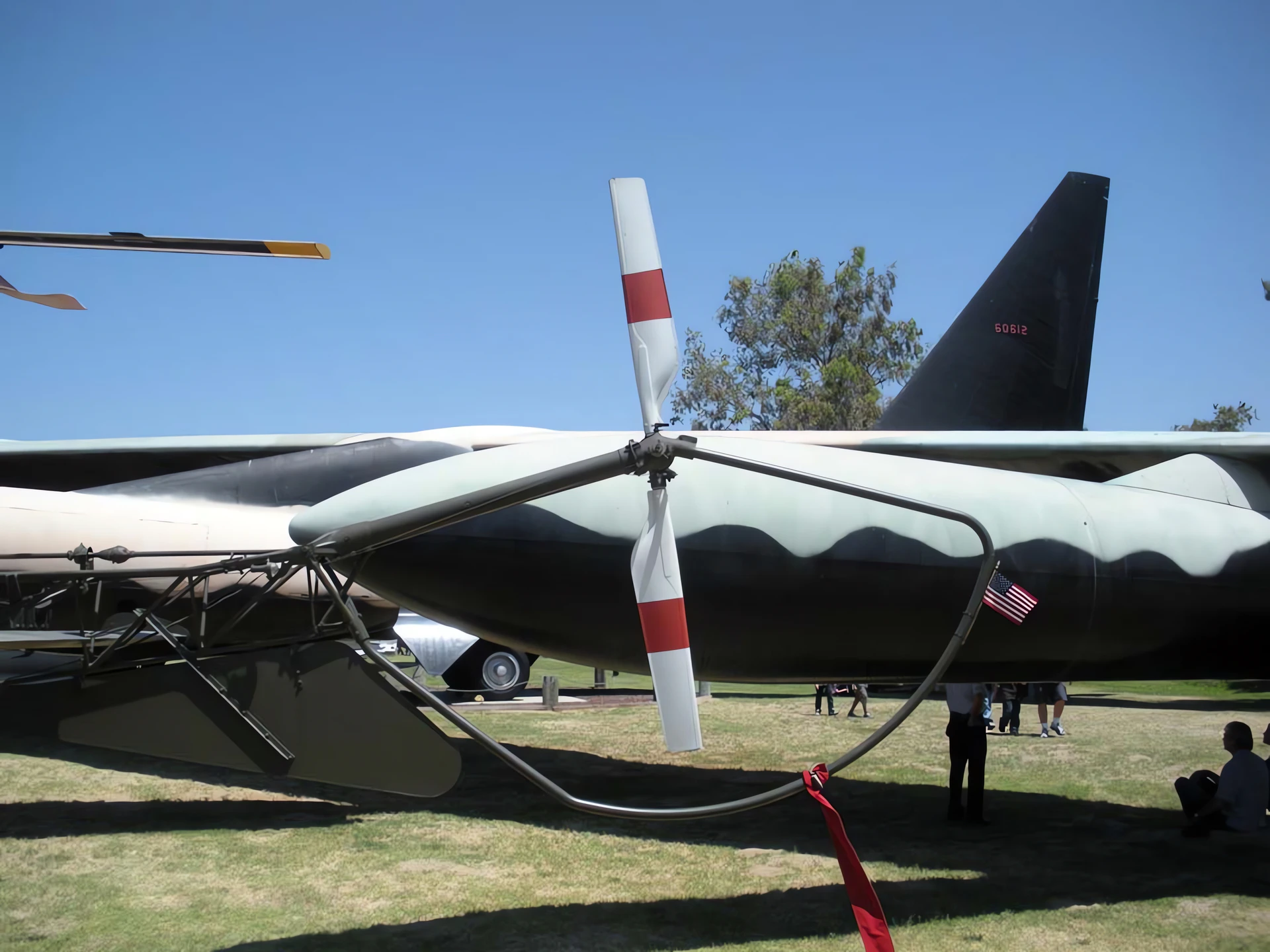

Bell UH-13H Sioux 01

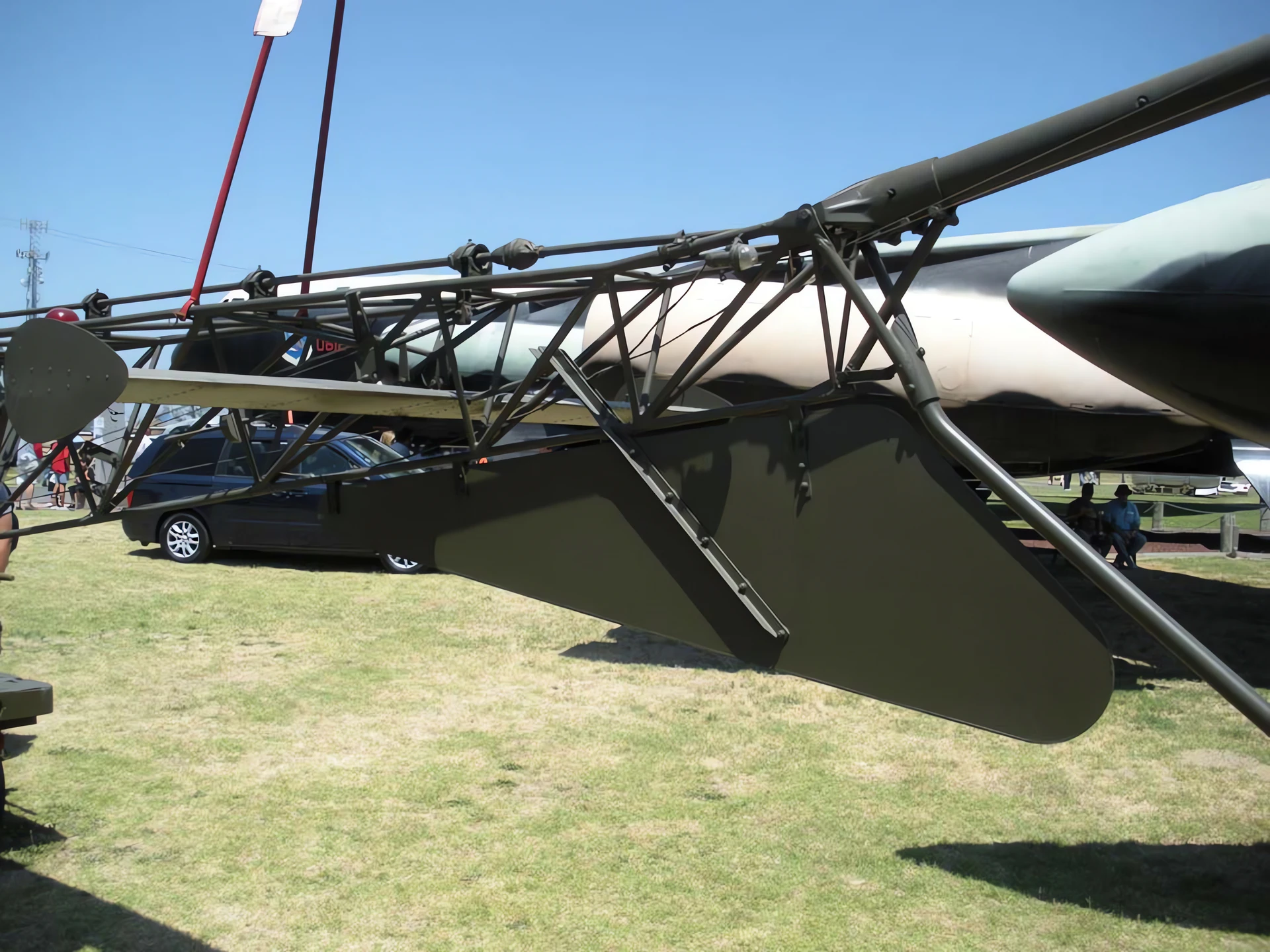

Bell UH-13H Sioux 02

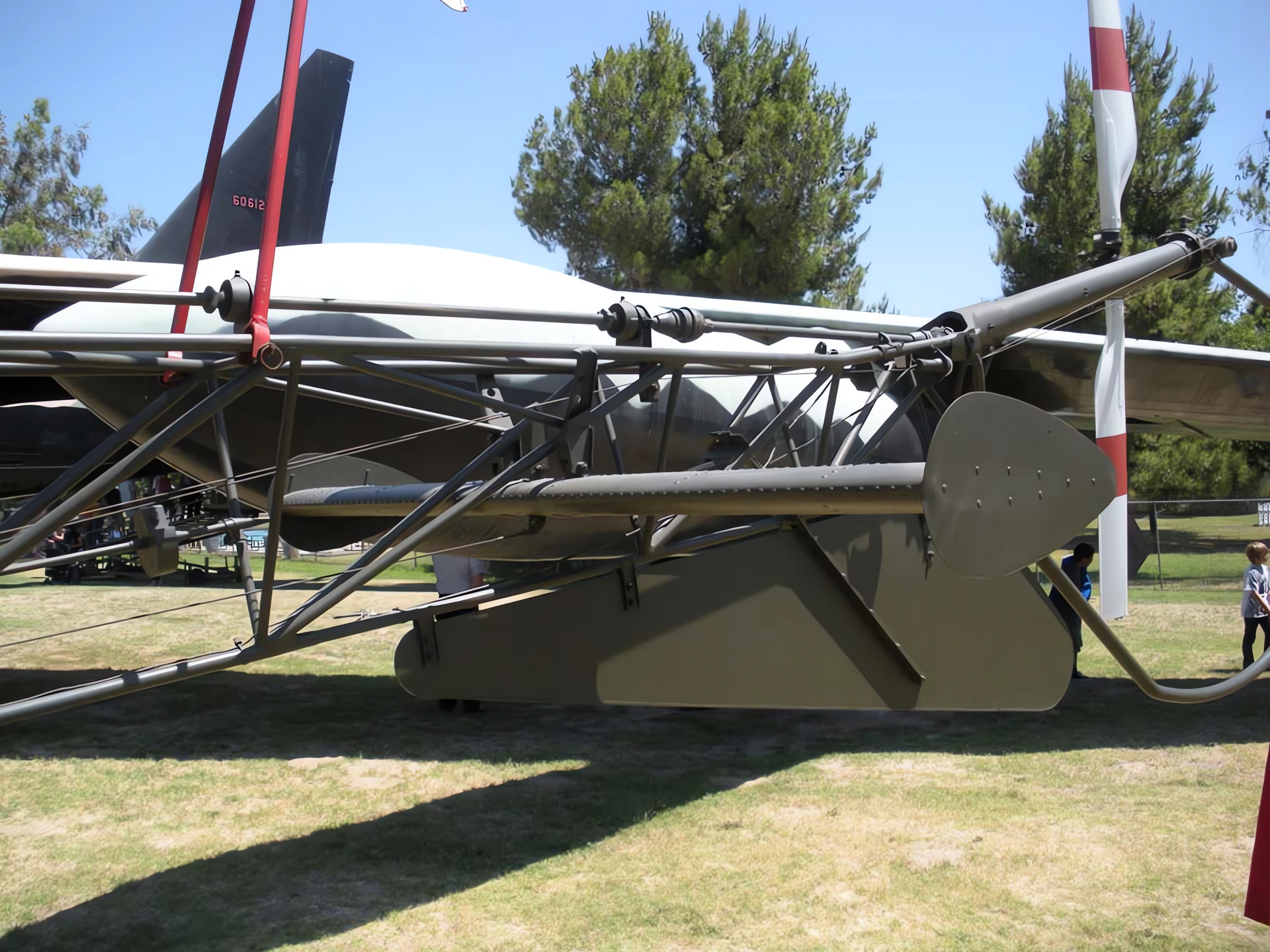

Bell UH-13H Sioux 03

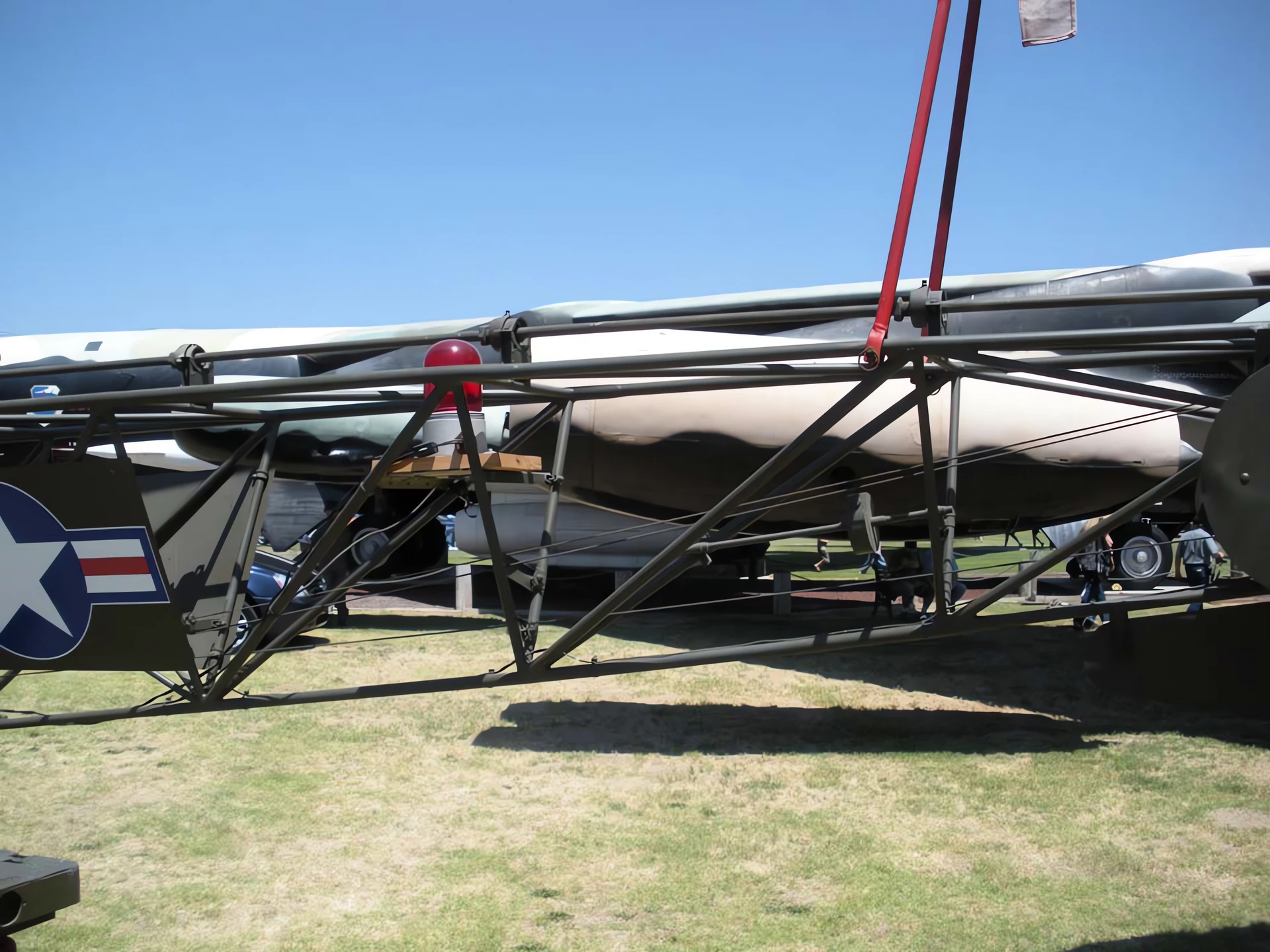

Bell UH-13H Sioux 04

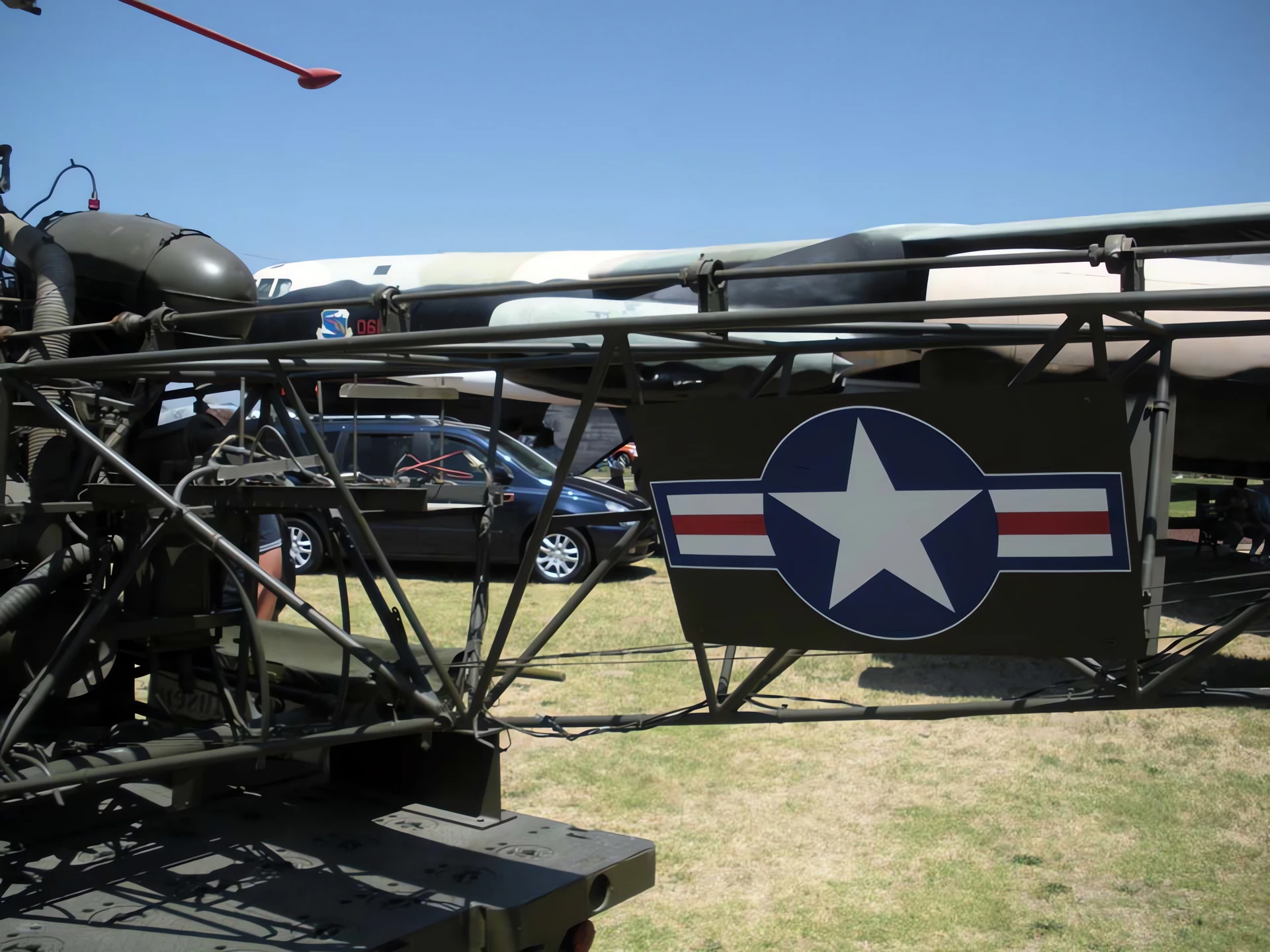

Bell UH-13H Sioux 05

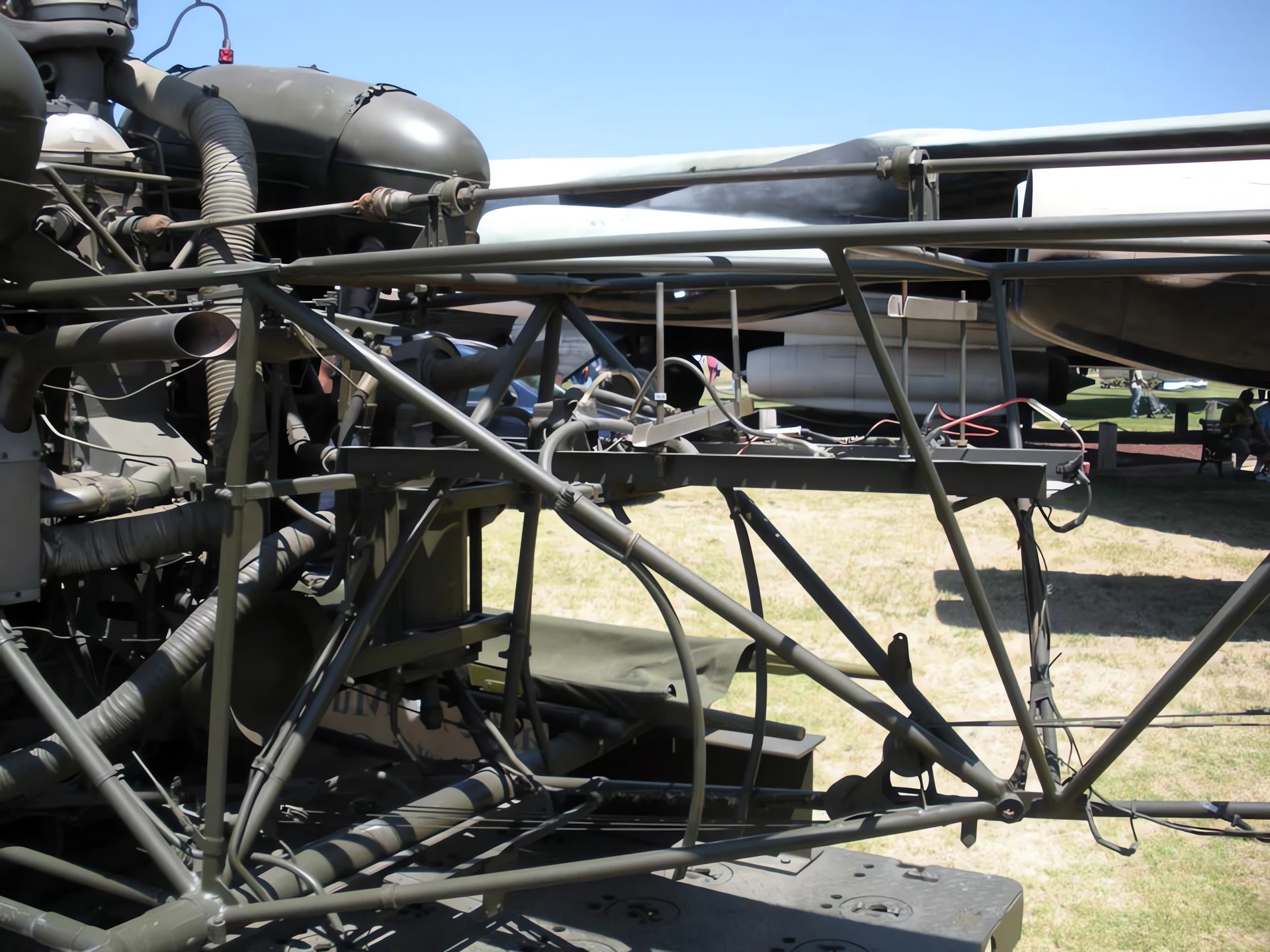

Bell UH-13H Sioux 06

Bell UH-13H Sioux 07

Bell UH-13H Sioux 08

Bell UH-13H Sioux 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching Bell H-13 Sioux for you…

Bell H-13E Sioux Walk Around
Photographer	Vladimir Yakubov
Localisation	US Army Transportation Museum, Fort Eustis,
Photos	65

Bell H-13E Sioux

Įkelti daugiau...

Taip pat žiūrėkite:

General Characteristics and Role

The Bell H-13 Sioux (military designation for the Bell Model 47) was the first helicopter certified for civil use in 1946 and became a highly successful military light utility and observation platform. The UH-13H (originally OH-13H) was one of the later, more powerful variants, based on the commercial Bell 47G-2. It featured a three-seat configuration and was widely used by the U.S. Army and Air Force for training, observation, and forward medical evacuation (MEDEVAC), often featuring iconic external stretcher panniers attached to the skid landing gear. Its exposed welded-tube tail boom and “soap bubble” canopy made it instantly recognizable.

Property	Typical Value (UH-13H)
Tipas	Light Utility / Observation Helicopter
National Origin	Jungtinės Amerikos Valstijos
Gamintojas	Bell Aircraft / Bell Helicopter
Service Entry (H-13 Series)	1946 (H variant c. 1956)
Įgulos	1 Pilot
Pajėgumas	2 Passengers (or 2 external stretchers)
Rotor Diameter	11.32 m (37 ft 0 in)
Length (Fuselage)	9.63 m (31 ft 7 in)
Aukštis	2.95 m (9 ft 8 in)
Gross Weight	Approx. 1,339 kg (2,952 lb)

Powerplant and Performance

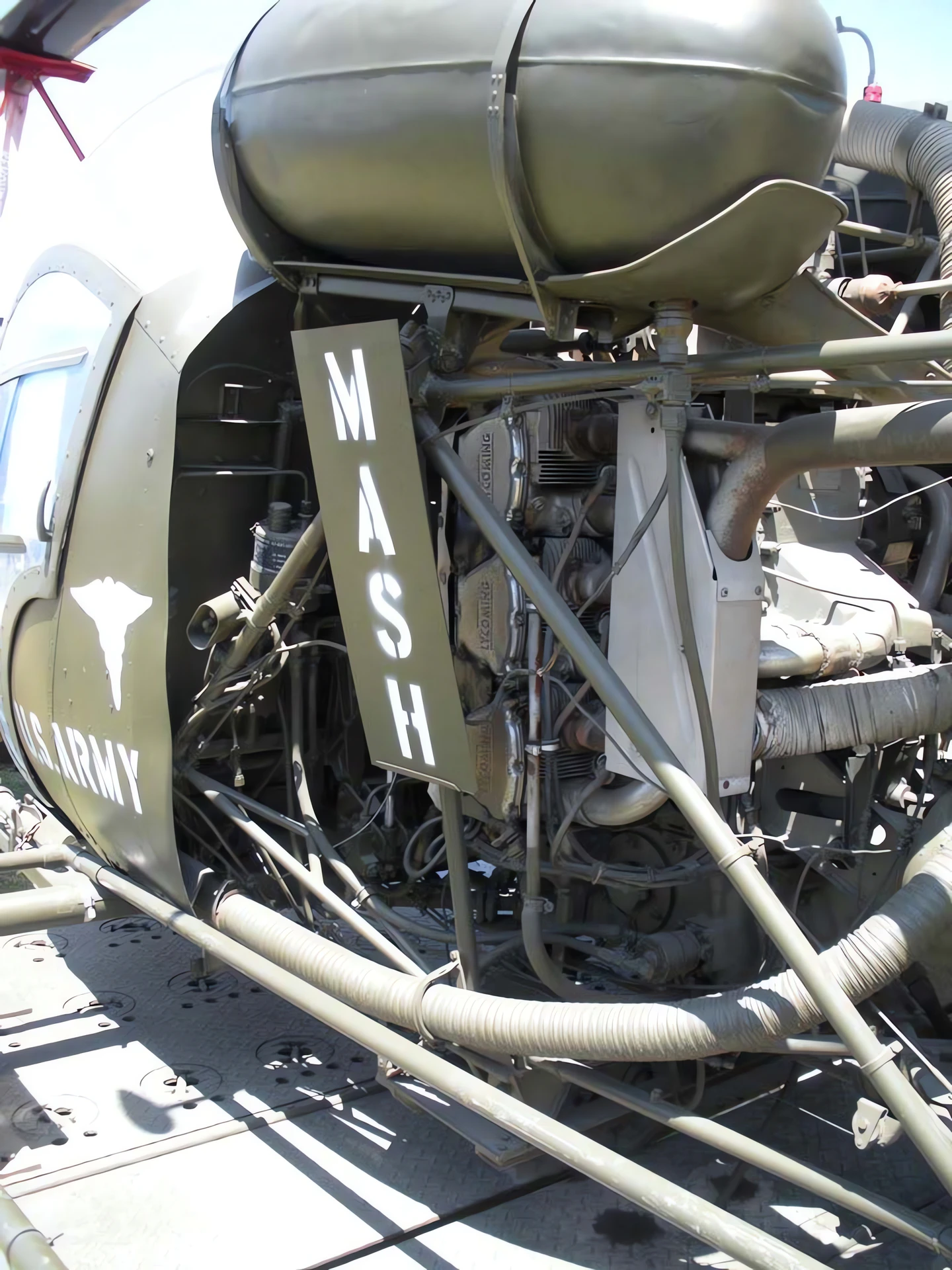

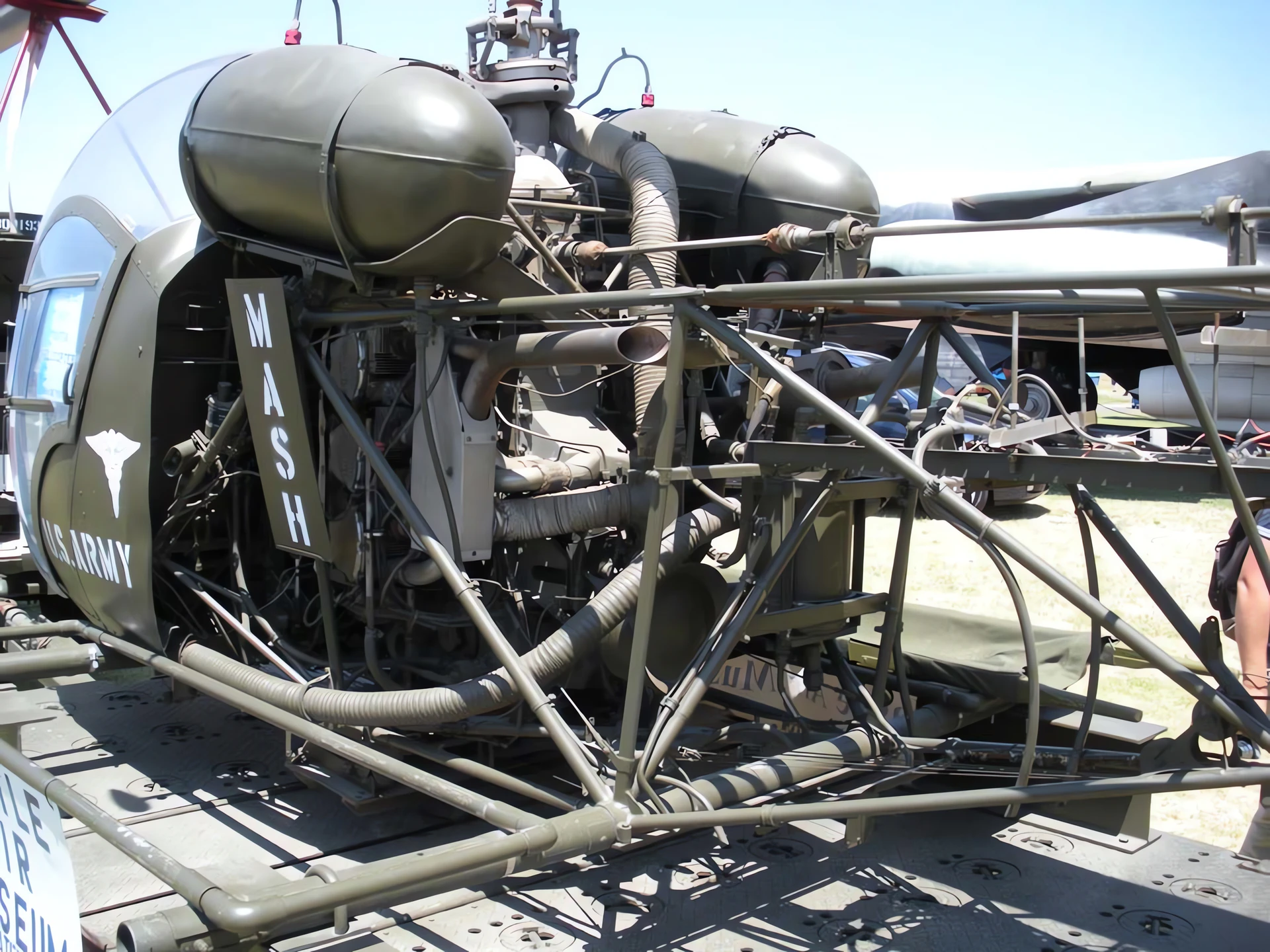

Engine: 1 x Lycoming VO-435 six-cylinder, horizontally opposed piston engine.
Power Output: 250 hp (186 kW).

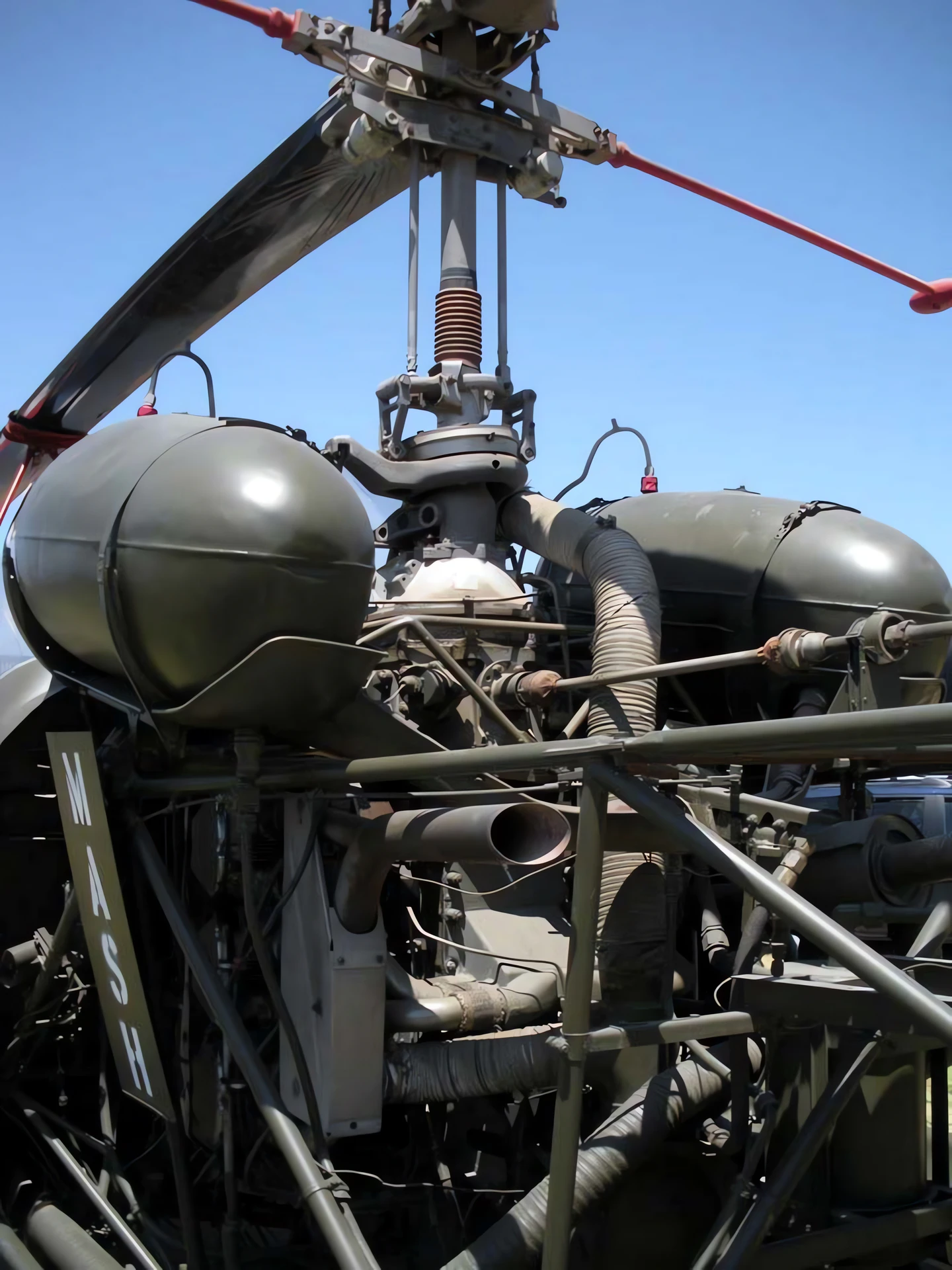

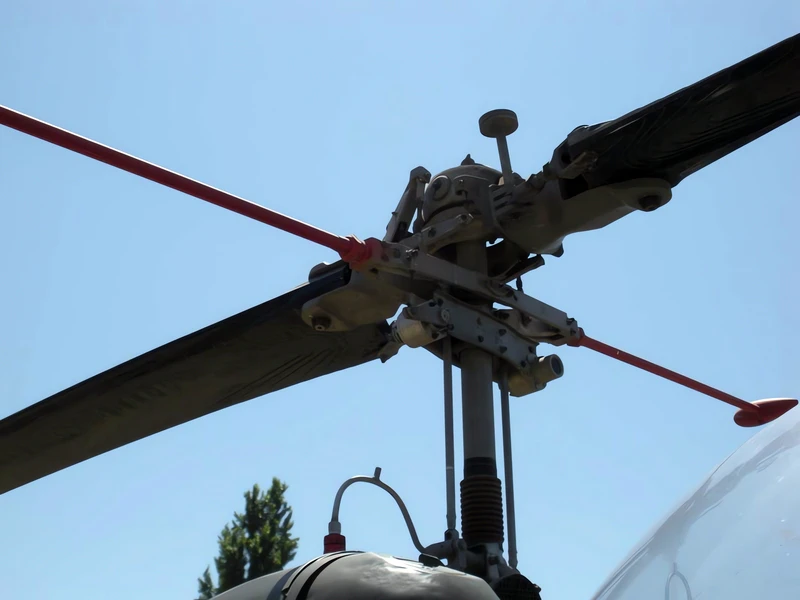

Rotor System: Two-bladed main rotor with a gyro-stabilizer bar for stability.
Maximum Speed: 105 mph (169 km/h).
Cruising Speed: 84 mph (135 km/h).
Service Ceiling: Approx. 4,900 m (16,100 ft).
Range: 439 km (273 mi).

Service and Cultural Impact

Military Use: The H-13 and its variants were integral to US Army operations in the Korean War, primarily for light observation and the rapid transport of wounded soldiers, saving thousands of lives.
MEDEVAC Role: The use of the H-13 for battlefield evacuation pioneered the doctrine of air ambulance operations, demonstrating the helicopter’s crucial role in military medicine.
Cultural Icon: The helicopter achieved immense worldwide fame due to its prominent appearance as the medical evacuation helicopter in the popular television series and movie *MASH* (though the show used later models for filming).
Retirement: The H-13 series was largely replaced in the U.S. Army by the Bell OH-58 Kiowa (military version of the Bell 206) and the Hughes OH-6 Cayuse, but the design continues in use globally.
