Bell H-13 Sioux

Bell H-13 Sioux
Країні	Сша
Роль	Легкий спостережний вертоліт
Перший політ	8 грудня 1945 р.
Побудований	2400+

У 201 Дзвіночок H-13 Sioux Це був одномоторний одномоторний легкий вертоліт, побудований компанією Bell Helicopter. Westland Aircraft виготовила Sioux за ліцензією для британських військових як Sioux AH.1 і HT.2.

Джерело: Bell H-13 Sioux у Вікіпедії

Bell UH-13H Sioux Walk Around
Photographers	Vladimir Yakubov and Randy Ray
Localisation	Castle AFB Museum, Atwater
Photos	194

Bell UH-13H Sioux 01

Bell UH-13H Sioux 02

Bell UH-13H Sioux 03

Bell UH-13H Sioux 04

Bell UH-13H Sioux 05

Bell UH-13H Sioux 06

Bell UH-13H Sioux 07

Bell UH-13H Sioux 08

Bell UH-13H Sioux 09

Click on a photo and use the mouse scroll to view all photos

Зачекай, шукаючи Bell H-13 Sioux для вас ...

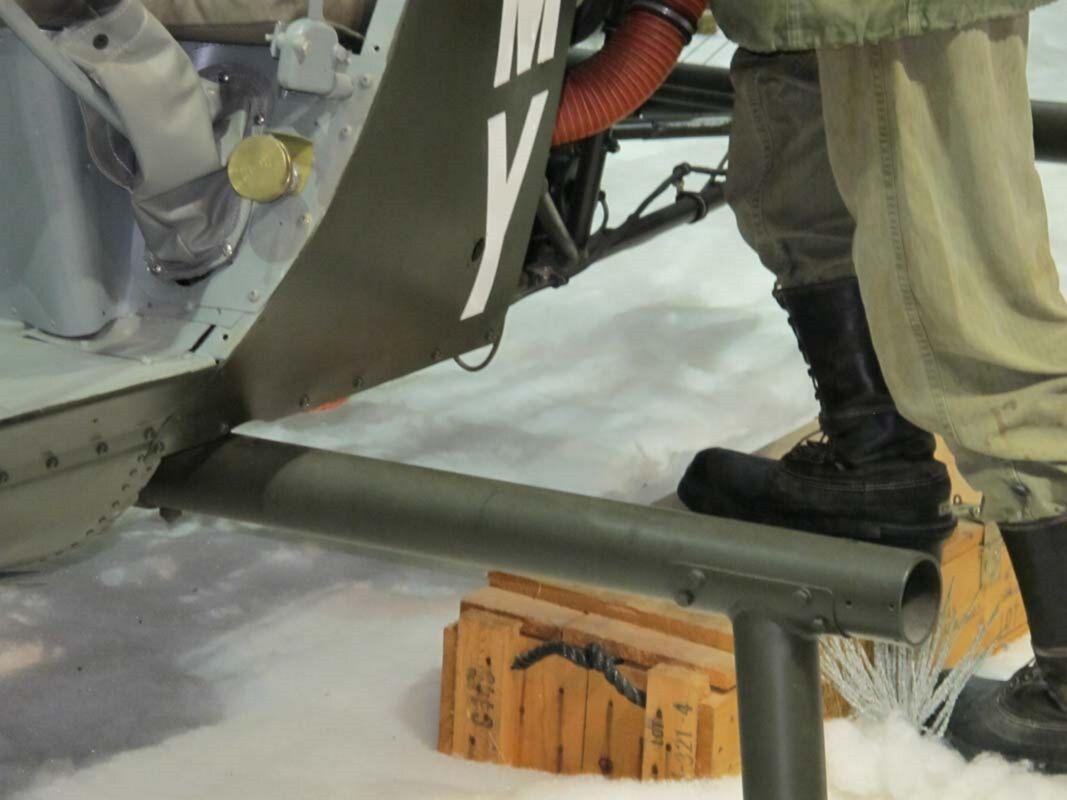

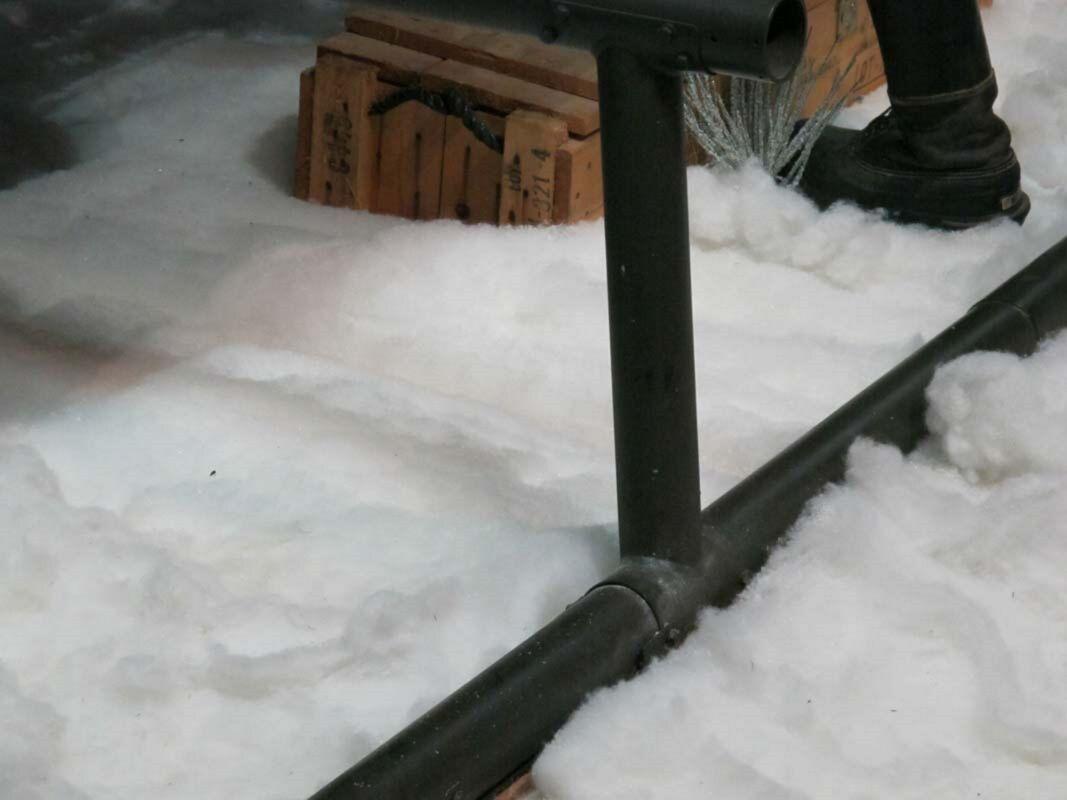

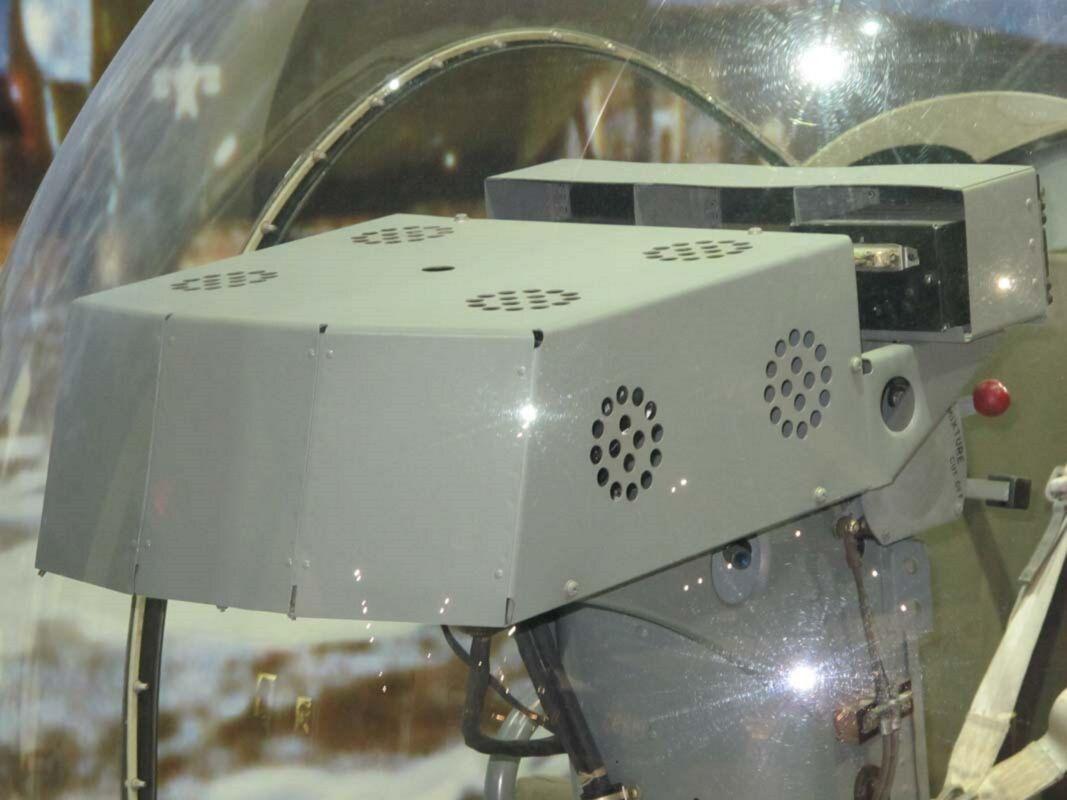

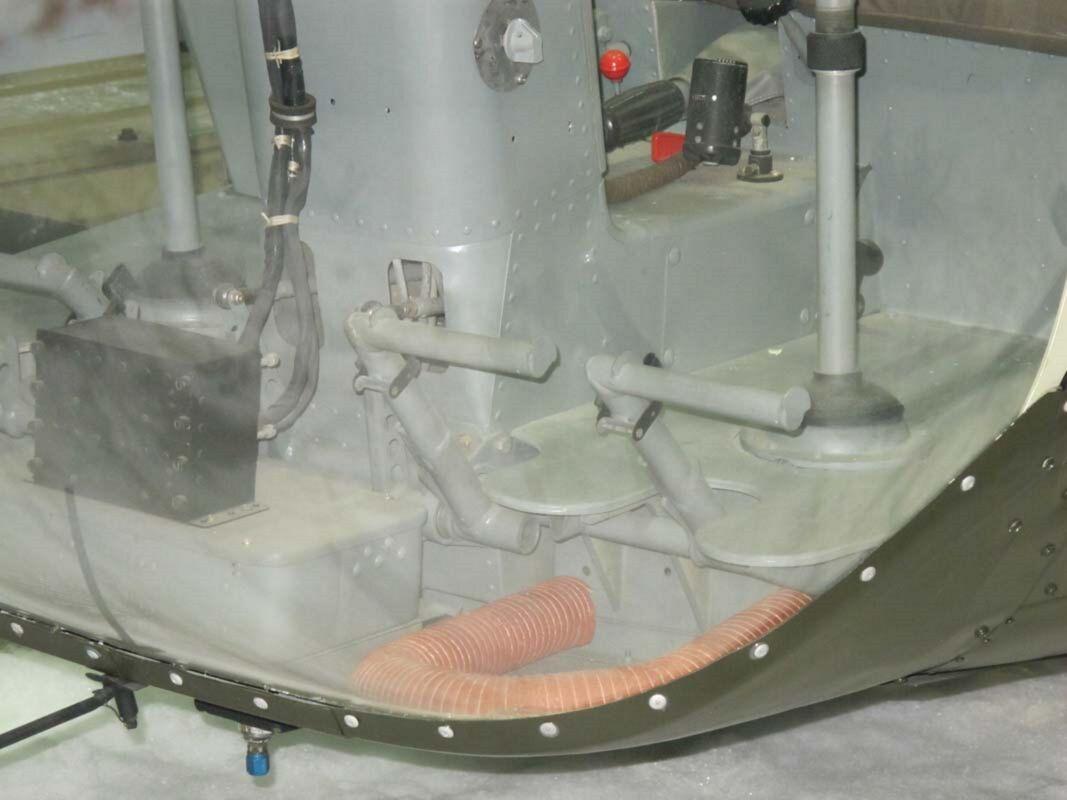

Bell H-13E Sioux Walk Around
Photographer	Vladimir Yakubov
Localisation	US Army Transportation Museum, Fort Eustis,
Photos	65

Bell H-13E Sioux

Завантажити більше...

Читайте також:

General Characteristics and Role

The Bell H-13 Sioux (military designation for the Bell Model 47) was the first helicopter certified for civil use in 1946 and became a highly successful military light utility and observation platform. The UH-13H (originally OH-13H) was one of the later, more powerful variants, based on the commercial Bell 47G-2. It featured a three-seat configuration and was widely used by the U.S. Army and Air Force for training, observation, and forward medical evacuation (MEDEVAC), often featuring iconic external stretcher panniers attached to the skid landing gear. Its exposed welded-tube tail boom and “soap bubble” canopy made it instantly recognizable.

Property	Typical Value (UH-13H)
Тип	Light Utility / Observation Helicopter
National Origin	США
Виробник	Bell Aircraft / Bell Helicopter
Service Entry (H-13 Series)	1946 (H variant c. 1956)
команда	1 Pilot
Capacity	2 Passengers (or 2 external stretchers)
Rotor Diameter	11.32 m (37 ft 0 in)
Length (Fuselage)	9.63 m (31 ft 7 in)
зріст	2.95 m (9 ft 8 in)
Gross Weight	Approx. 1,339 kg (2,952 lb)

Powerplant and Performance

Engine: 1 x Lycoming VO-435 six-cylinder, horizontally opposed piston engine.
Power Output: 250 hp (186 kW).
Rotor System: Two-bladed main rotor with a gyro-stabilizer bar for stability.
Maximum Speed: 105 mph (169 km/h).
Cruising Speed: 84 mph (135 km/h).
Service Ceiling: Approx. 4,900 m (16,100 ft).
Range: 439 km (273 mi).

Service and Cultural Impact

Military Use: The H-13 and its variants were integral to US Army operations in the Korean War, primarily for light observation and the rapid transport of wounded soldiers, saving thousands of lives.
MEDEVAC Role: The use of the H-13 for battlefield evacuation pioneered the doctrine of air ambulance operations, demonstrating the helicopter’s crucial role in military medicine.
Cultural Icon: The helicopter achieved immense worldwide fame due to its prominent appearance as the medical evacuation helicopter in the popular television series and movie *MASH* (though the show used later models for filming).
Retirement: The H-13 series was largely replaced in the U.S. Army by the Bell OH-58 Kiowa (military version of the Bell 206) and the Hughes OH-6 Cayuse, but the design continues in use globally.
