BA-10

BA-10
Krajiny	Sovietsky zväz
Typ	Obrnené auto
Vyrobené	1938-1941
Postavený	3311

Komisia BA-10 Broneavtomobil 10) bol obrnený automobil vyvinutý v Sovietskom zväze v roku 1938 a vyrábaný do roku 1941. Bolo to najvyrábanejšie sovietske ťažké obrnené vozidlo pred rokom 1941 - 3311 bolo postavených v troch verziách. Tieto verzie boli BA-10, BA-10M (vylepšená verzia s novým rádiom) a BA-10ZhD (vybavená pre dvojité železničné / cestné použitie). Základný dizajn BA-10 bol vyvinutý z ťažkých obrnených vozidiel BA-3 a BA-6. Mal vylepšený podvozok GAZ-AAA a vylepšené pancierovanie (až 15 mm vpredu a veže). Zámerom bolo, že BA-10 bude v roku 1941 nahradený BA-11 s dieselovým motorom a sofistikovanejším pancierovým dizajnom, ale vypuknutie vojny zabránilo výrobe BA-11. BA-10 bol v službách Červenej armády až do roku 1945. Značný počet ukoristených BA-10 použilo Fínsko (najmenej 24), Nemecko a ďalšie mocnosti Osi v Európe.

Zdrojový: BA-10 na Wikipédii

Broneavtomobil BA-10 Walk Around
Fotograf	Neznáme
Lokalizácia	Neznáme
Fotografie	14

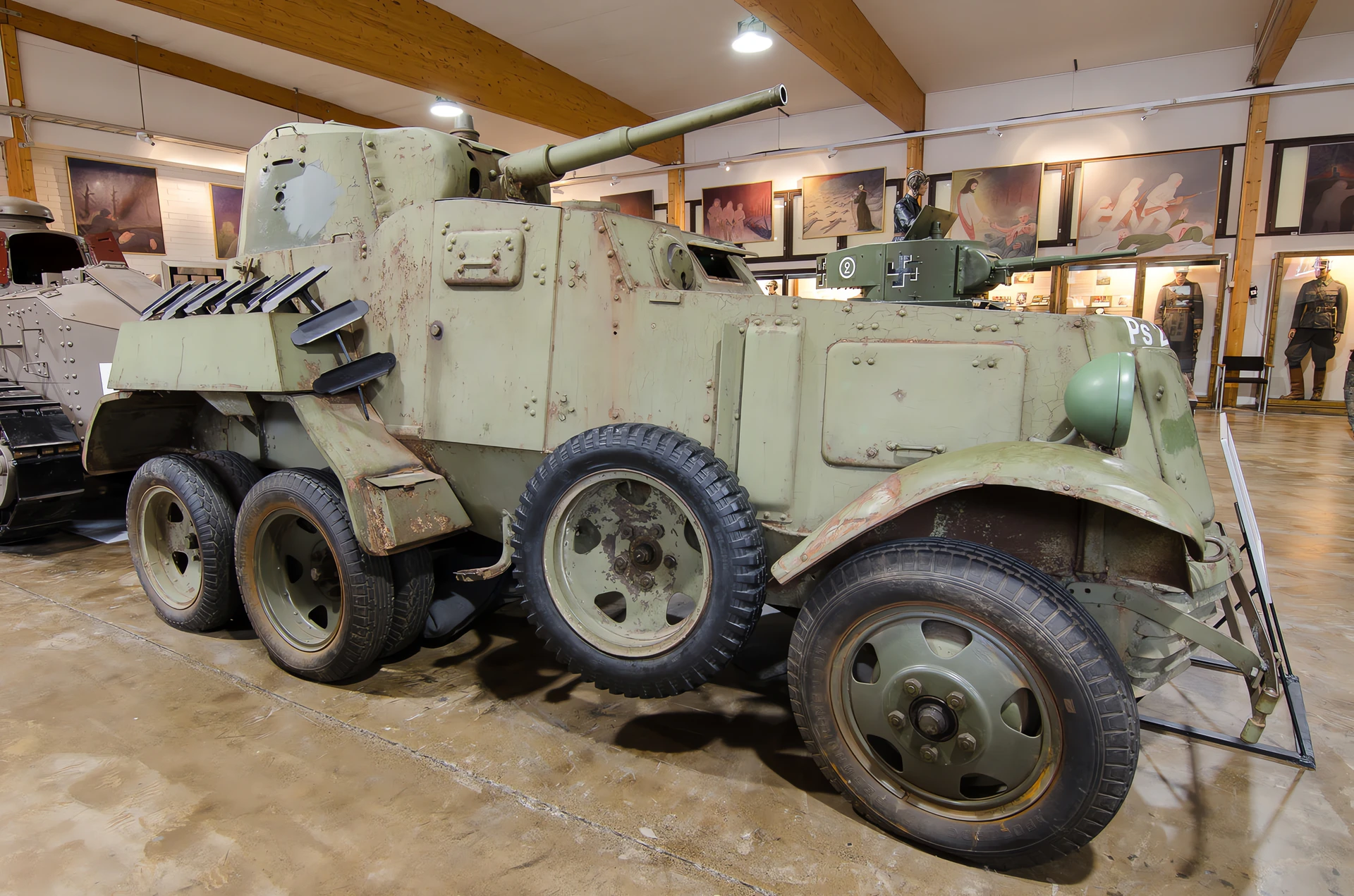

BA-10 Broneavtomobil 2

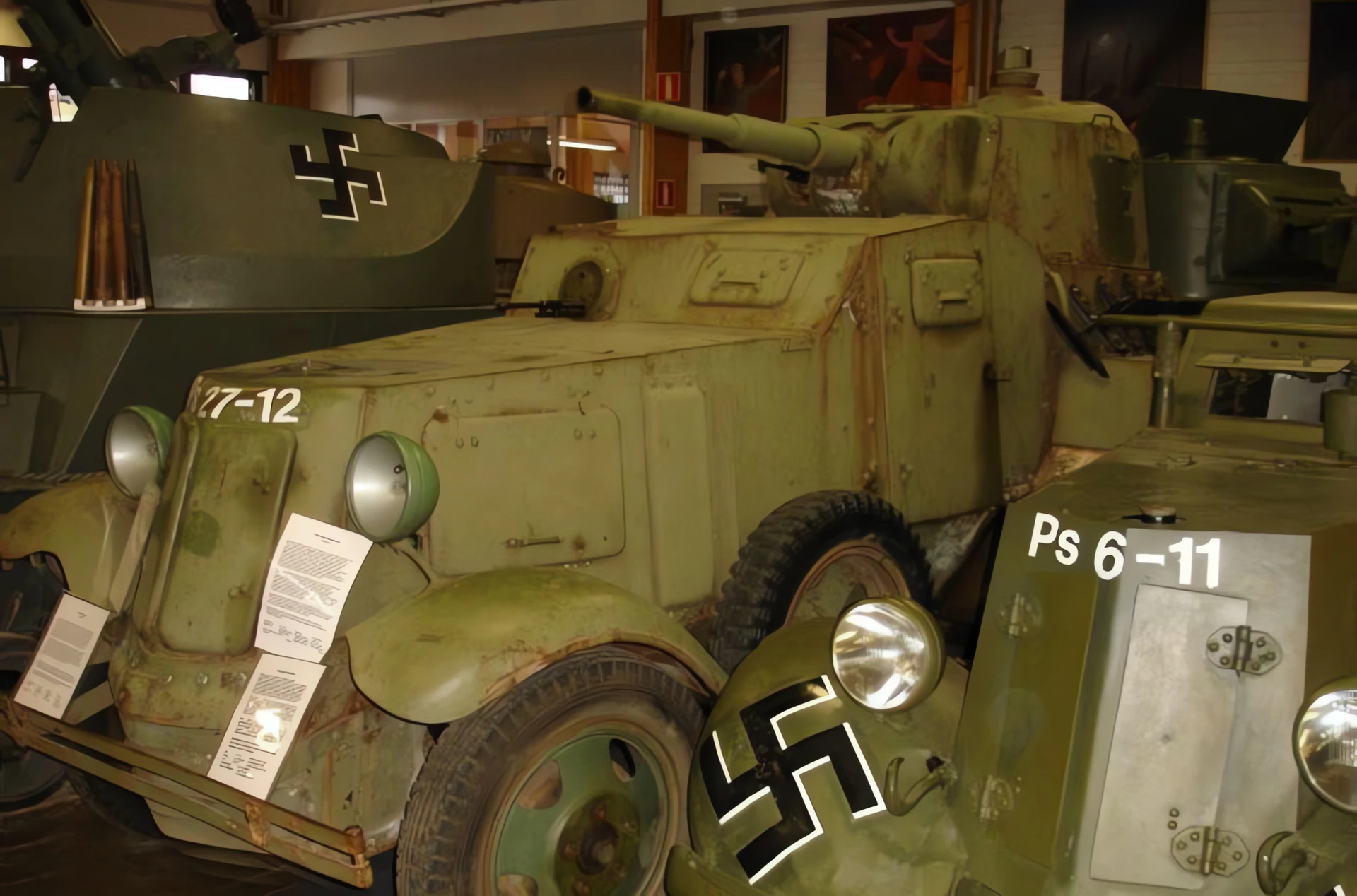

BA-10 Broneavtomobil 1

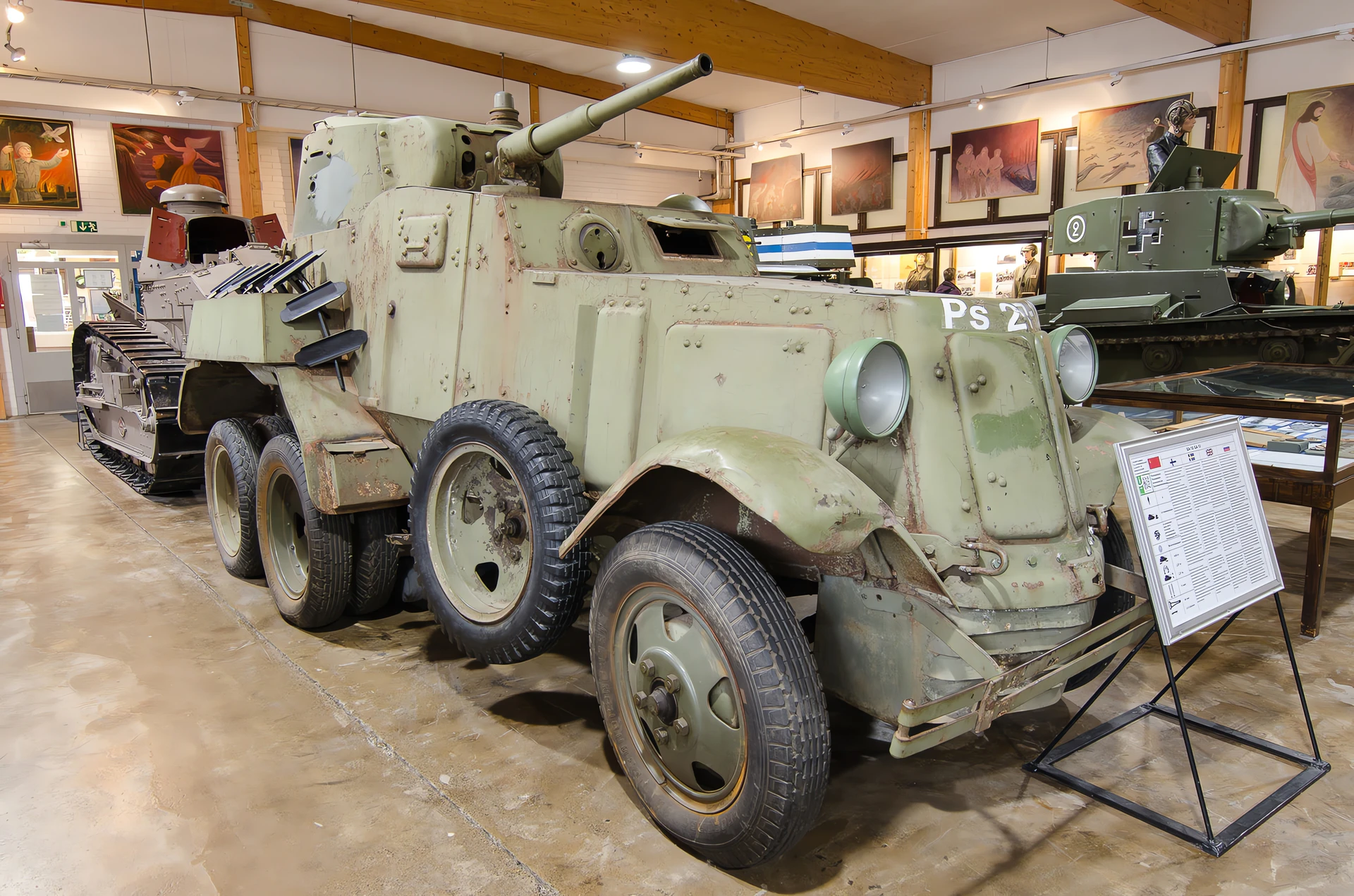

BA-10 Broneavtomobil 4

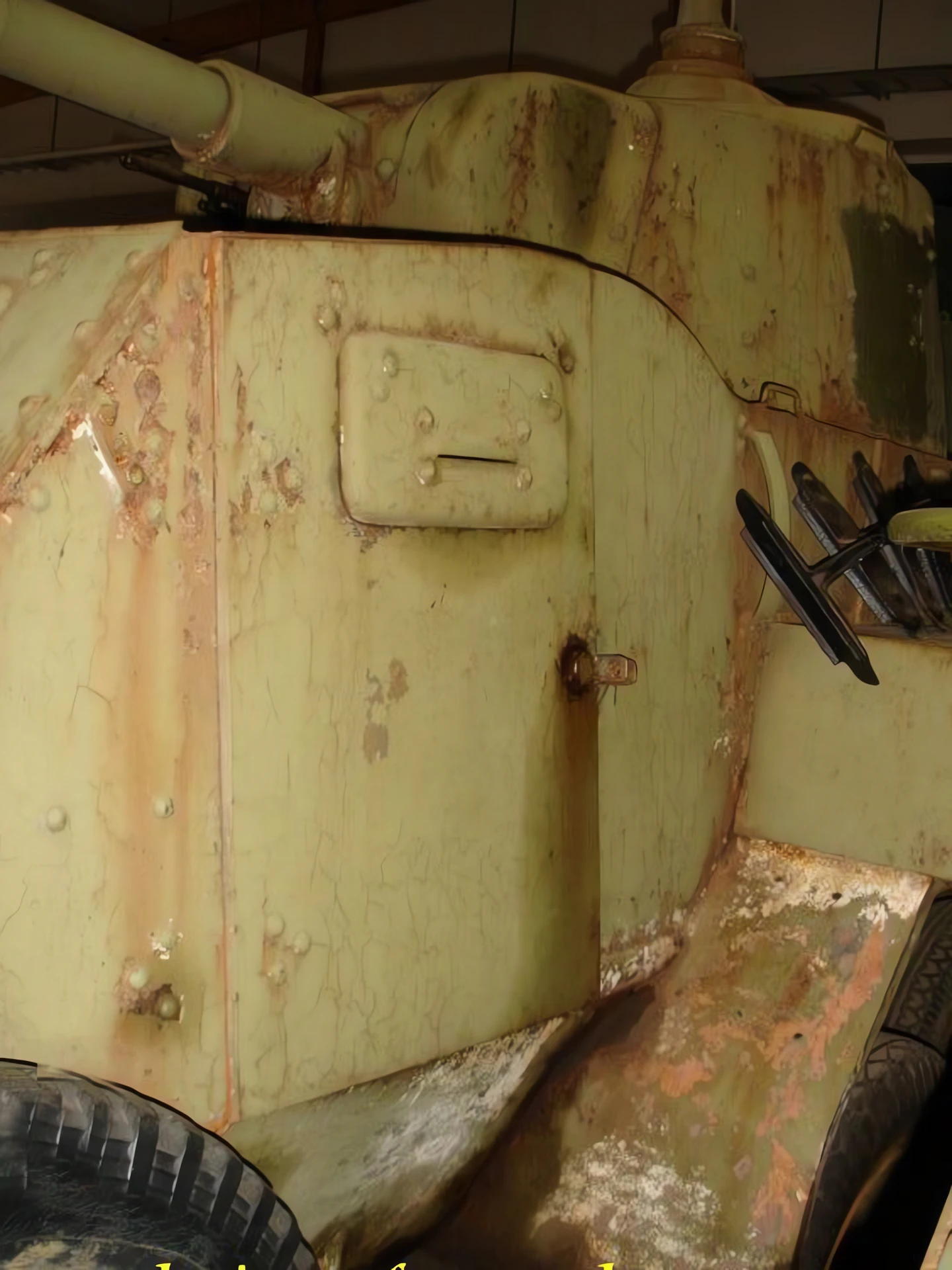

BA-10 Broneavtomobil 3

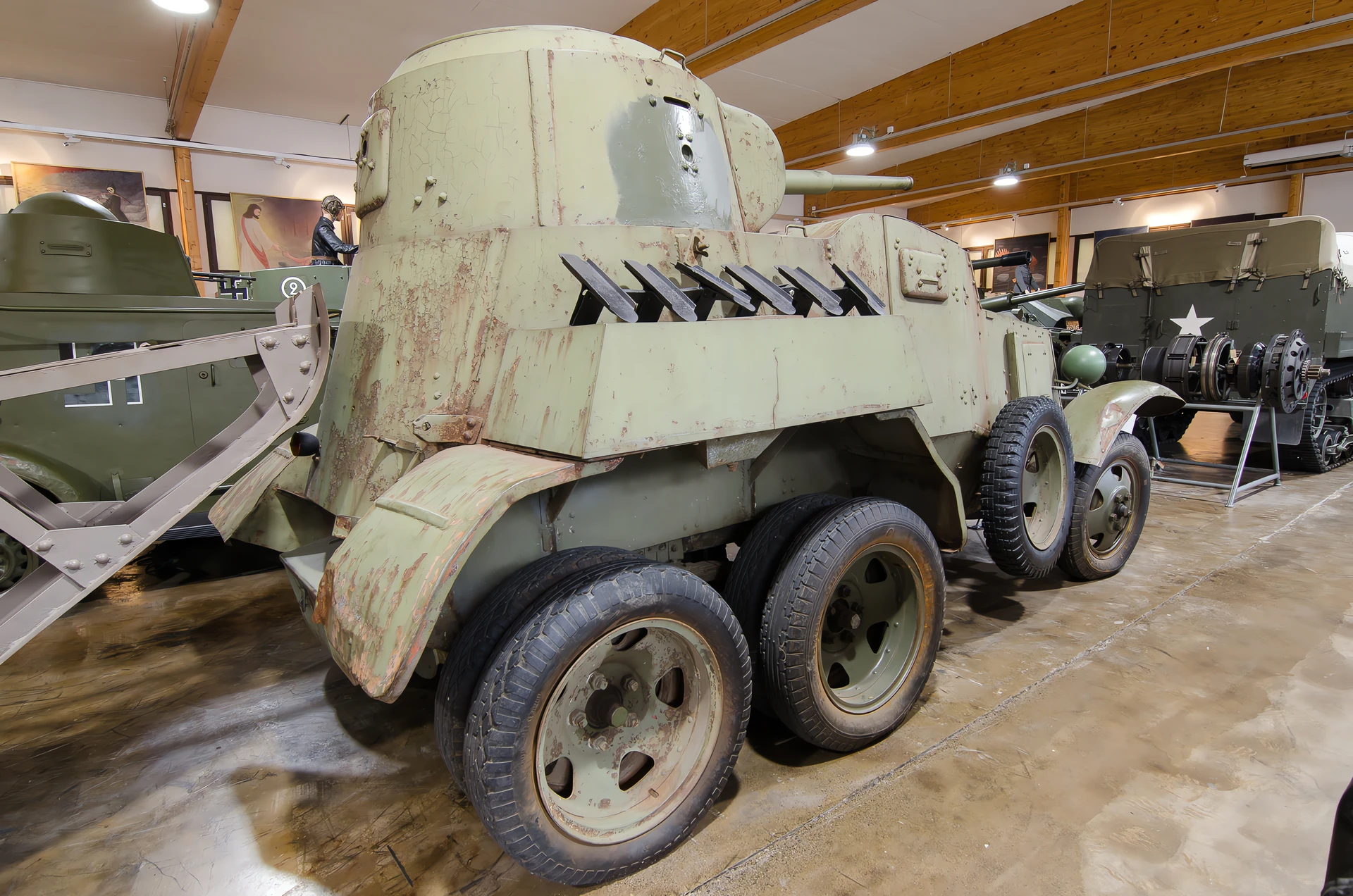

BA-10 Broneavtomobil 6

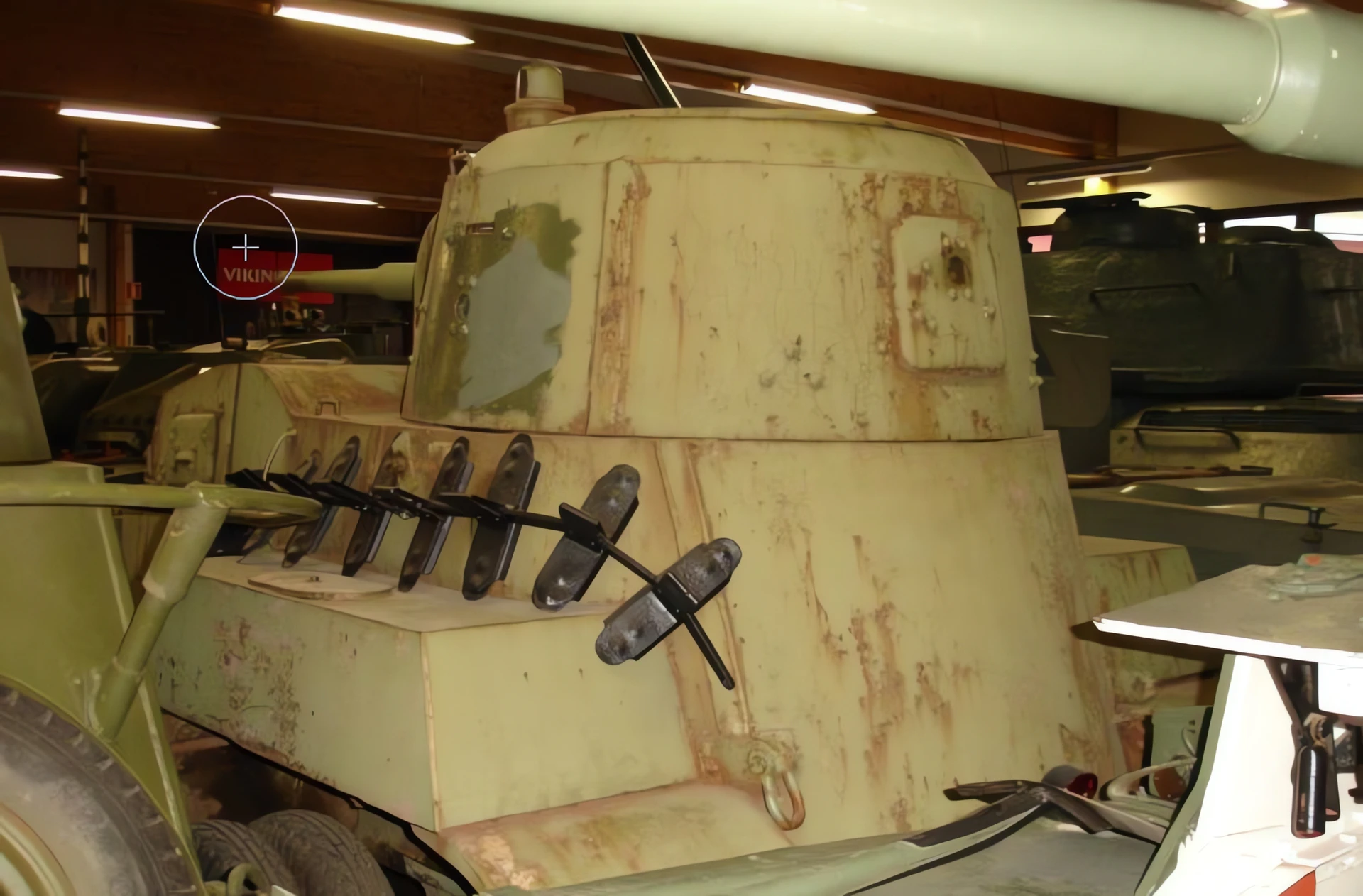

BA-10 Broneavtomobil 5

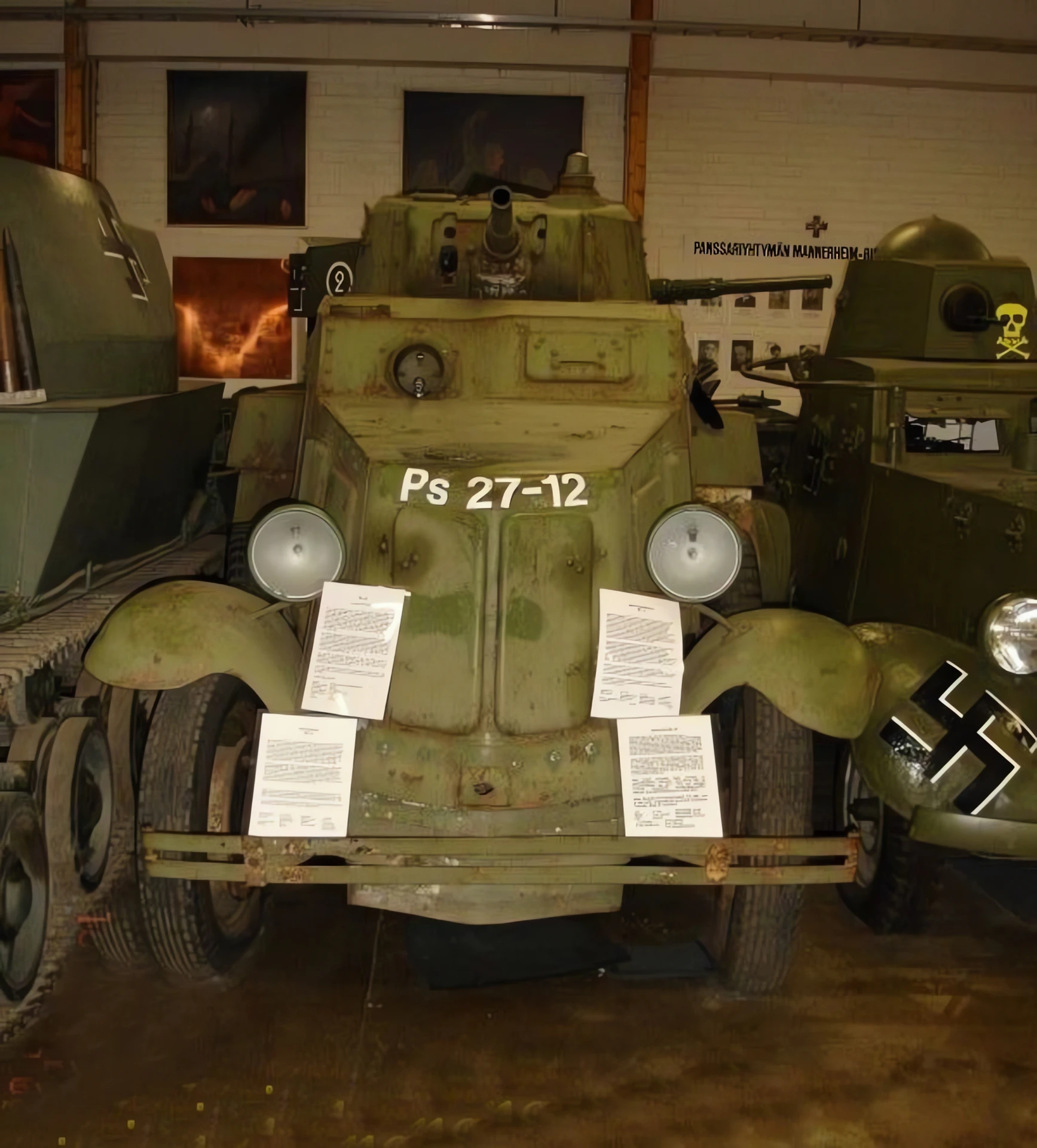

BA-10 Broneavtomobil 8

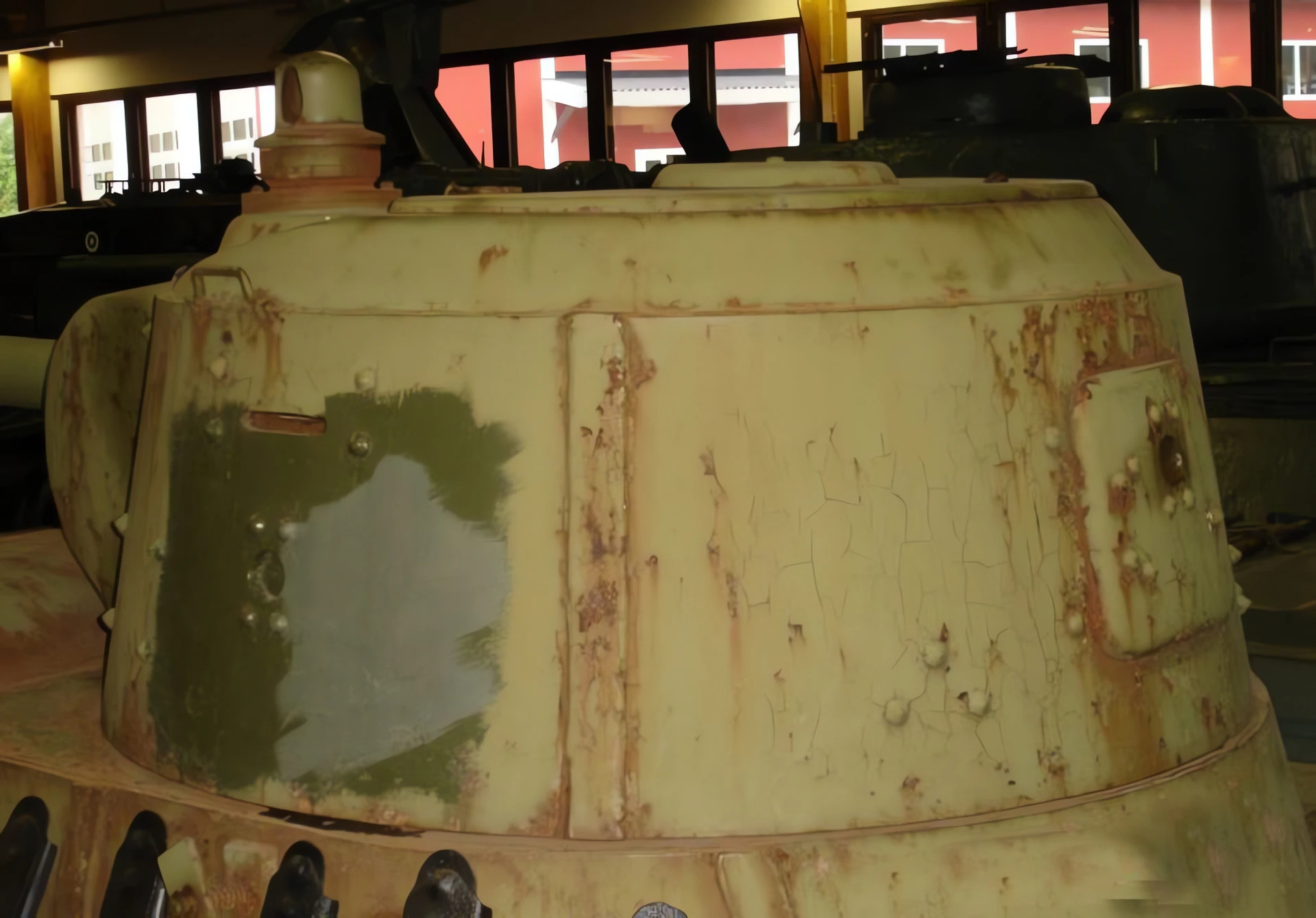

BA-10 Broneavtomobil 7

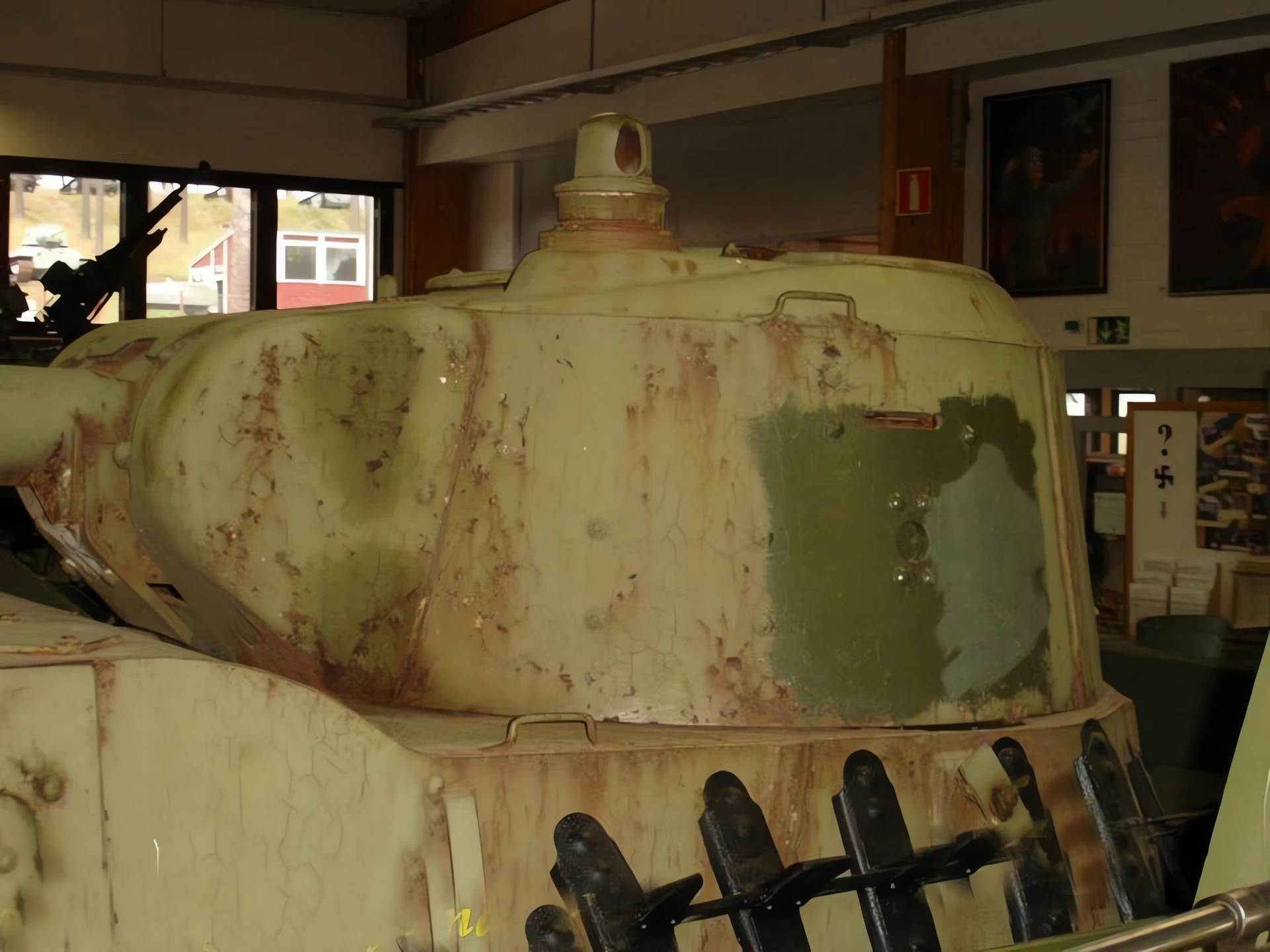

BA-10 Broneavtomobil 9

Click on a photo and use the mouse scroll to view all photos

Počkajte, hľadám pre vás fotografie BA-10 ...

Pozri tiež:

The Evolution of the Heavy Armored Car

Komisia BA-10 was the most produced Soviet heavy armored car of the pre-WWII era. Developed in 1938 at the Izhorsky Plant, it was an improvement over the earlier BA-3 and BA-6 models. By mounting the turret and 45mm gun of a T-26 Alebo BT-5 tank onto a reinforced 6×4 GAZ-AAA truck chassis, the Soviets created a vehicle that possessed the firepower of a light tank but with the operational mobility of a wheeled vehicle. It was the backbone of Soviet motorized units during the invasion of Poland, the Winter War, and the early stages of Operation Barbarossa.

Attribute	Technical Specification (BA-10M)
Úlohu	Heavy Armored Car / Reconnaissance
Posádky	4 (Commander/Gunner, Loader, Driver, Hull Gunner)
Hlavná výzbroj	45 mm 20-K tank gun (49 rounds)
Sekundárna výzbroj	2 × 7.62 mm DT machine guns (Coaxial and Hull)
Armor Thickness	10 mm to 15 mm (Frontal)
Chassis	Modified GAZ-AAA 6×4 truck
Pohonná jednotka	GAZ-M1 4-cylinder petrol (50 hp)
Max Road Speed	52 km/h (approx. 32 mph)
Prevádzkový rozsah	260–300 km (Roads)

Design Features and Off-Road Solutions

The “Overall” Tracks: To compensate for poor off-road performance on soft ground, the BA-10 carried a pair of “Overall” auxiliary tracks stowed over the rear fenders. These could be fitted over the dual rear wheels in about 10 minutes, effectively turning the vehicle into a temporary half-track.
Step-Down Reduction Gear: The BA-10 utilized a specialized 4-speed transmission with a reduction gear, allowing it to crawl through difficult terrain that would stall a standard truck.
Sloped Armor: Unlike earlier boxy designs, the BA-10 featured significantly sloped armor plates on the front and sides, which improved the effective thickness and helped deflect small-arms fire and shell splinters.
Spare Wheels as Rollers: The two spare wheels were mounted on the sides of the hull in a way that allowed them to rotate freely. This helped prevent the vehicle from “high-centering” or bottoming out when crossing trenches or steep crests.

Operational History

Khalkhin Gol (1939): The BA-10 proved highly effective against Japanese armor. Its 45mm gun could easily penetrate Japanese Type 95 light tanks at ranges where the Japanese guns could not retaliate.
The 1941 Catastrophe: Thousands were lost during the German invasion. While its gun remained lethal, its thin armor and high silhouette made it a “glass cannon.” It was easily destroyed by German 3.7cm PaK 36 anti-tank guns.
German Use (Beutepanzer): The Wehrmacht captured hundreds of BA-10s, redesignating them as the Pz.Sp.Wg. 203(r). They were widely used for anti-partisan duties in the rear areas and by the Waffen-SS.
Final Years: By 1942, production shifted toward the smaller, 4×4 BA-64. The surviving BA-10s were relegated to second-line units, training, or had their turrets removed to serve as armored personnel carriers or tractors.
