McDonnell F2H Banshee

McDonnell F2H Banshee
国	米国
役割	艦上戦闘機
初飛行	1947年1月11日
構築	895

ザ マクドネル F2H バンシー ●1948年から1961年にかけてアメリカ海軍とアメリカ海兵隊が配備した単座艦系ジェット戦闘機でした。これは、朝鮮戦争中に使用された主要なアメリカの戦闘機の一つであり、1955年から1962年までRCNにサービスを提供し、カナダ海軍によって配備された唯一のジェット動力戦闘機でした。航空機の名前は、アイルランド神話のバンシーに由来します。

ソース：ウィキペディアのマクドネル F2H バンシー

McDonnell F2H-2 Banshee Walk Around
カメラマン	セス・ヘンドリックス
ローカライズ	知りません
写真	52

McDonnell F2H-2 Banshee 01

McDonnell F2H-2 Banshee 02

McDonnell F2H-2 Banshee 03

McDonnell F2H-2 Banshee 04

McDonnell F2H-2 Banshee 05

McDonnell F2H-2 Banshee 06

McDonnell F2H-2 Banshee 07

McDonnell F2H-2 Banshee 08

McDonnell F2H-2 Banshee 09

Click on a photo and use the mouse scroll to view all photos

待って、検索マクドネルF2Hバンシーあなたのために.

McDonnell F2H-2P Banshee Walk Around
カメラマン	Bill Maloney
ローカライズ	ウィングスオブイーグルスディスカバリーセンター
写真	16

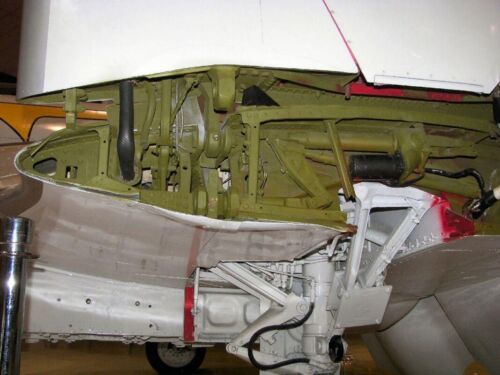

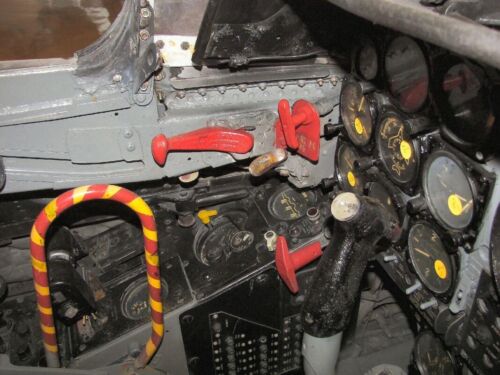

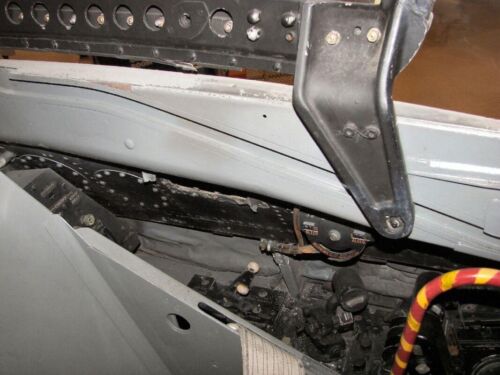

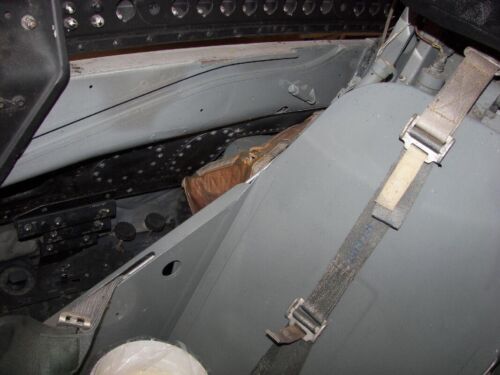

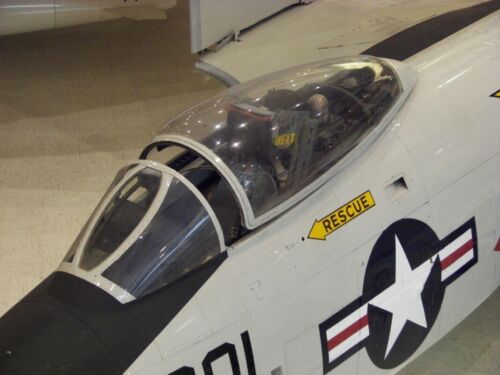

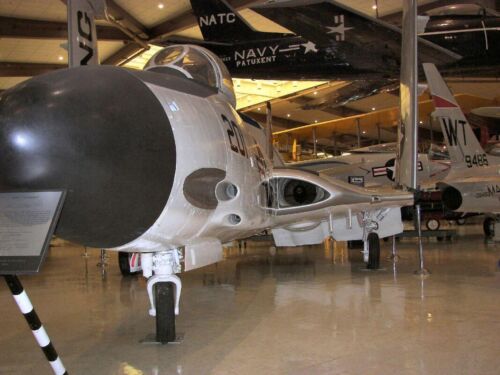

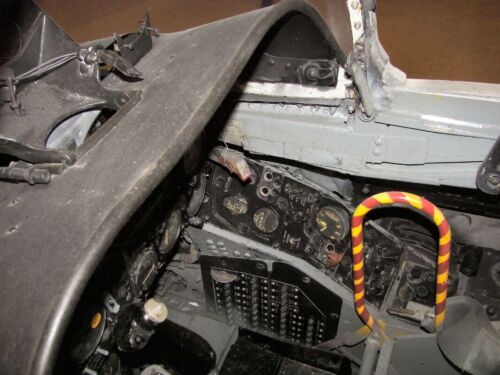

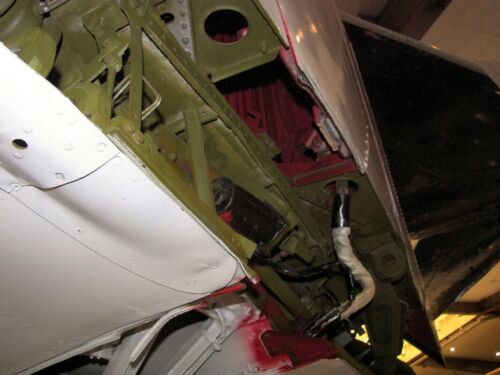

F2H-3 Banshee Walk Around
カメラマン	Michael Fortin
ローカライズ	国立海軍航空博物館
写真	64

F2H-3 バンシー

もっとロード...

The Navy’s Big-Wing Fighter

ザ McDonnell F2H-2 Banshee was a twin-engine carrier-based jet fighter that evolved from the smaller FH-1 Phantom. Entering service just before the Korean War, the F2H-2 was larger, carried more fuel, and possessed significantly more firepower than its predecessor. Known for its exceptional high-altitude performance, it became the primary escort for B-29 bombers and a formidable ground-attack platform for the U.S. Navy and Marine Corps.

Attribute	Technical Specification (F2H-2)
役割	Carrier-based Fighter-Bomber
乗組員	1 (Pilot)
First Flight	January 11, 1947 (XF2H-1)
パワープラント	2 × Westinghouse J34-WE-34 turbojets
Thrust	3,250 lbf (14.5 kN) per engine
最高速度	580 mph (933 km/h)
Service Ceiling	46,000 feet (14,000 m)
武装	4 × 20mm M3 cannons; up to 1,580 lbs of bombs/rockets

Engineering for Vertical Performance

Wing-Root Engine Mounting: Like the FH-1, the Banshee’s engines were buried in the thickened wing roots. This design reduced aerodynamic drag and kept the weight centered, though it made engine maintenance more labor-intensive.
High Aspect-Ratio Wing: The F2H-2 featured long, straight wings that provided massive lift. This allowed the Banshee to out-climb and out-maneuver contemporary jets like the F9F Panther at altitudes above 30,000 feet.
Increased Fuel Capacity: The F2H-2 variant added distinctive 200-gallon wingtip fuel tanks. Unlike the tanks on the FJ-1, these were designed to be aerodynamic “end-plates” that actually improved wing efficiency.
Kneeling Nose Gear: Carried over from early McDonnell designs, the nose gear could “kneel” down, allowing the tail to stick up so other aircraft could be parked partially underneath it on crowded carrier decks.

Combat Service and Specialized Roles

Korea: The High-Altitude Escort: During the Korean War, the Banshee was one of the few naval jets that could operate at the same altitudes as the B-29 Superfortress, making it a vital escort against MiG-15 threats.
F2H-2P Photo-Recon: One of the most successful variants was the unarmed “P” model, which featured an elongated nose packed with six vertical and oblique cameras. It was the premier naval recon aircraft of the early 1950s.
Night Fighting (F2H-2N): A night-fighter version was developed with a radar-equipped nose, though it was produced in smaller numbers than the standard day fighter.
The “Old Banjo” Legacy: The Banshee served until the early 1960s with the Royal Canadian Navy and the U.S. Naval Reserve. It remains a key link in the McDonnell lineage that led to the F3H Demon and the F-4 Phantom II.
