Boeing E-3 Sentry | |
|---|---|
| Land | Usa |
| Rolle | Frühwarnung und -kontrolle in der Luft |
| Erstflug | 9. Februar 1972 |
| Gebaut | 68 |
das Boeing E-3 Wachposten, allgemein bekannt als AWACSist ein von Boeing entwickeltes amerikanisches Luftfahrzeug zur Frühwarn- und Kontrollflugaufsicht (AEW&C). Abgeleitet von der Boeing 707, bietet es Allwetterüberwachung, Führung, Kontrolle und Kommunikation und wird von der United States Air Force, der NATO, der Royal Air Force, der französischen Luftwaffe und der Royal Saudi Air Force eingesetzt. Die E-3 zeichnet sich durch die markante rotierende Radarkuppel über dem Rumpf aus. Die Produktion endete 1992, nachdem 68 Flugzeuge gebaut worden waren.
Quelle: Boeing E-3 Sentry auf Wikipedia
| Boeing E-3B Sentry Walk Around | |
|---|---|
| Fotograf | Wladimir Nikolajewitsch Jakubow |
| Lokalisierung | Travis Air Show |
| Fotos | 167 |
| Sentry AEW.1 Walk Around | |
|---|---|
| Fotograf | Michael Benolkin |
| Lokalisierung | Unbekannter |
| Fotos | 47 |
| E-3A (79-0446) AWACS Walk Around | |
|---|---|
| Fotograf | Pieter Marijnus |
| Lokalisierung | Unbekannter |
| Fotos | 35 |
Siehe auch:
The Strategic Force Multiplier
das Boeing E-3B Wachposten is an Airborne Warning and Control System (AWACS) aircraft that provides all-weather surveillance, command, control, and communications. Based on the Boeing 707-320B airframe, the E-3B is distinguished by its massive rotating radar dome. The “B” model was a significant upgrade in the 1980s, introducing the Block 20 modifications that added more computer consoles, improved jam-resistant communications, and the ability to track maritime targets as well as airborne ones.
| Attribute | Technical Specification (E-3B) |
|---|---|
| Rolle | Airborne Warning and Control System (AWACS) |
| Crew | 4 Flight Crew; 13–19 Mission Specialists |
| First Flight | October 31, 1975 (EC-137D) |
| Triebwerk | 4 × Pratt & Whitney TF33-PW-100A turbofans |
| Thrust | 21,000 lbf (93 kN) per engine |
| Radar Range | Over 250 miles (400 km) for low-flying targets |
| Höchstgeschwindigkeit | 530 mph (853 km/h / Mach 0.69) |
| Endurance | 8+ hours (unrefueled) |
Anatomy of a Rotating Radar

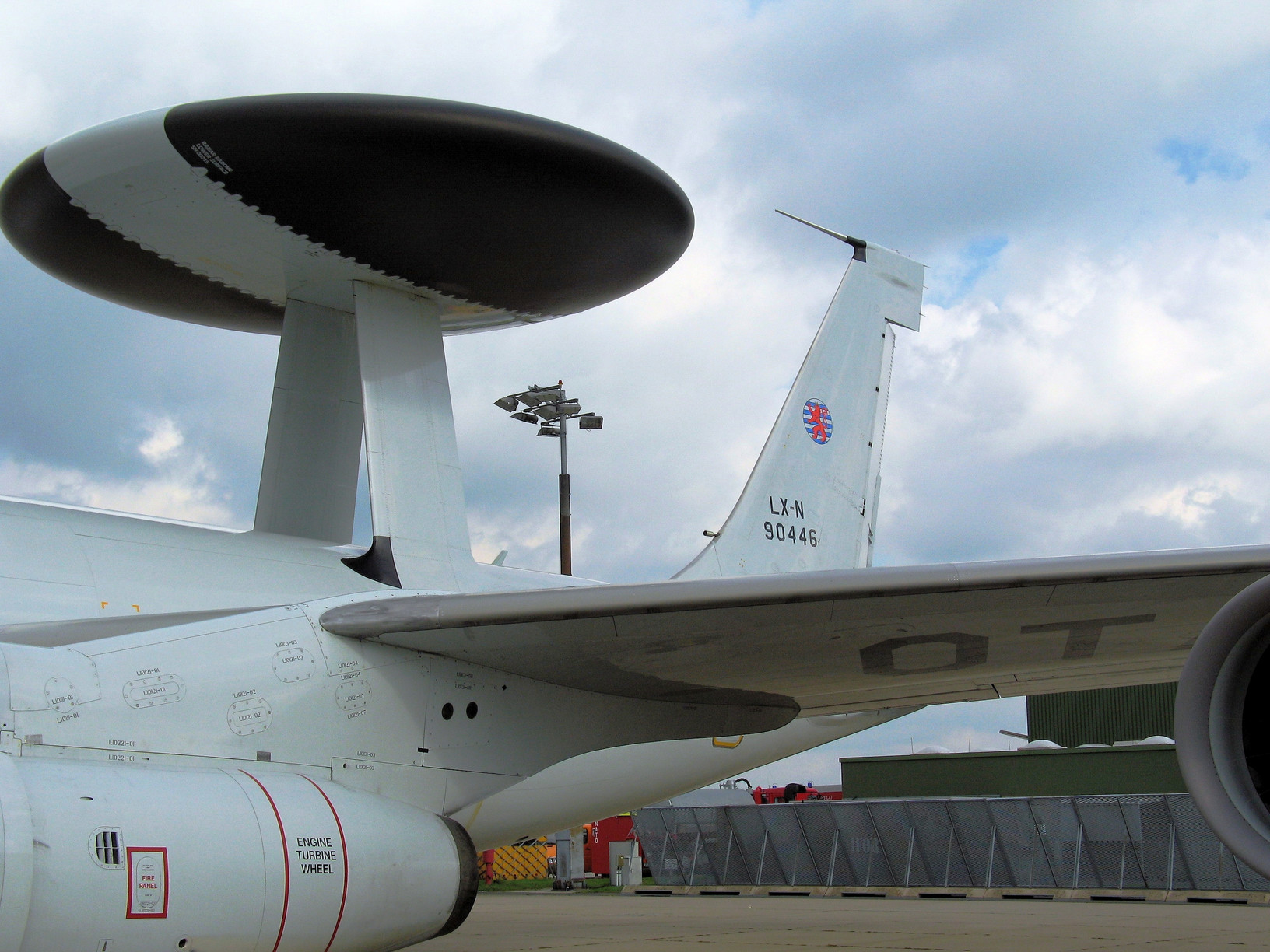

- The Rotodome: The 30-foot diameter circular dome sits 11 feet above the fuselage. It houses the Northrop Grumman APY-1/2 radar. It rotates at 6 RPM during active scanning but is kept at 1/4 RPM when idle to keep the bearings lubricated.
- Pulse-Doppler Radar: Unlike standard radars of its era, the Sentry’s radar can “look down,” distinguishing aircraft from ground clutter. It can track over 600 targets simultaneously across an area larger than 115,000 square miles.
- Mission Crew Compartment: The interior of the 707 airframe is replaced with rows of operator consoles. Each specialist manages a different sector of the air battle, from identifying friendly vs. foe (IFF) to directing strike fighters to their targets.
- In-Flight Refueling: To stay on station for 24 hours or more, the E-3B is equipped with a refueling receptacle above the cockpit, allowing it to take fuel from KC-135 or KC-10 tankers.
The “God’s Eye View” in Combat
- Desert Storm: The E-3B proved its worth in 1991, coordinating the most complex air campaign in history. AWACS crews directed the first kills of the war and provided early warning against Scud missile launches.
- Diplomatic Support: Beyond combat, the Sentry is used for drug interdiction missions and providing security for major events like the Olympic Games and presidential travel.
- NATO Operations: A unique fleet of E-3s is operated by NATO itself, flown by multinational crews and based in Germany, serving as a shared umbrella of protection for member nations.
- The Sunset Era: After nearly 50 years of service, the U.S. Air Force has begun the process of replacing the aging E-3 fleet with the Boeing E-7 Wedgetail, which uses a stationary “fin” radar instead of a rotating dome.
