North American F-100 Super Sabre - Bilder & Video

Nordamerikansk F-100 Super Sabre
Land	Norge , Norge
Rolle	Supersoniske jagerfly
Første flytur	25. mai 1953
Bygget	2294

Den Nordamerikansk F-100 Super Sabre var et amerikansk supersonisk jagerfly som tjenestegjorde i United States Air Force (USAF) fra 1954 til 1971 og med Air National Guard (ANG) frem til 1979. Den første av Century Series av USAF jet jagerfly, det var den første USAF fighter i stand til supersonisk hastighet i nivå fly. F-100 ble designet av North American Aviation som en høyere ytelsesfølge til F-86 Sabre air superiority fighter.

Kilde: Nordamerikansk F-100 Super Sabre på Wiki

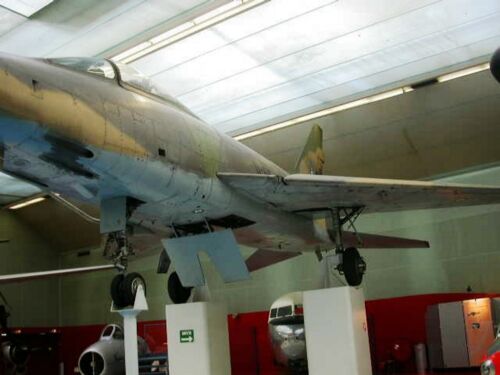

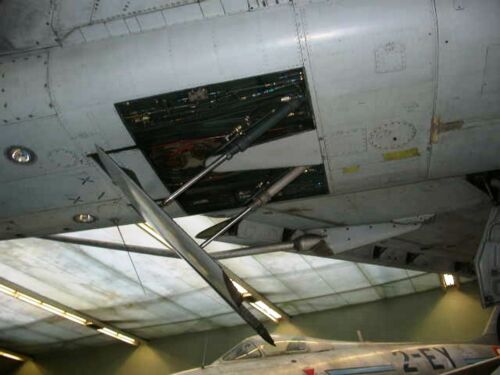

North American F-100 Super Sabre
Fotograf	Vladimir Yakubov
Lokalisering	Palm Springs luftfartsmuseum
Bilder	155

North American F-100 Super Sabre 01

North American F-100 Super Sabre 02

North American F-100 Super Sabre 03

North American F-100 Super Sabre 04

North American F-100 Super Sabre 05

North American F-100 Super Sabre 06

North American F-100 Super Sabre 07

North American F-100 Super Sabre 08

North American F-100 Super Sabre 09

Click on a photo and use the mouse scroll to view all photos

Vent, Søker nordamerikanske F-100 Super Sabre bilder for deg ...

Kjøp meg en kaffe

Les også:

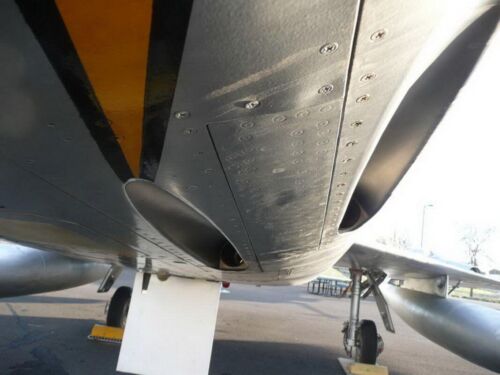

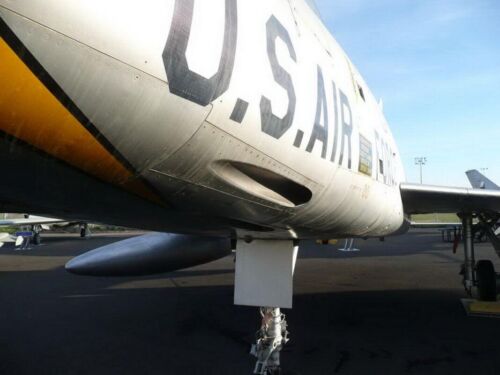

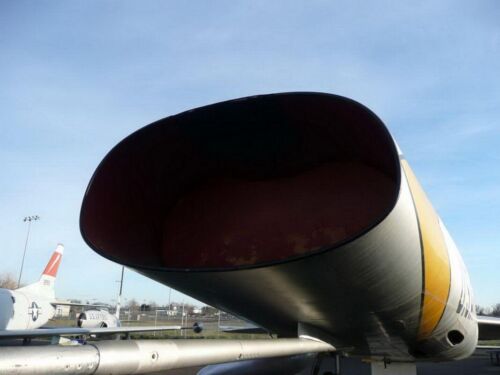

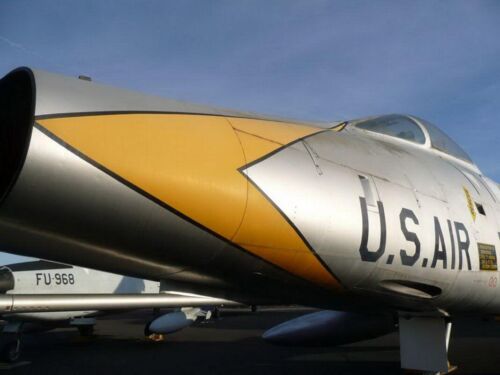

North American F-100D Super Sabre Walk Around
Fotograf	Vladimir Yakubov
Lokalisering	Unknow
Bilder	137

Nordamerikansk F-100D Super Sabre

Last inn mer...

North American F-100C-25 Super Sabre Walk Around
Fotograf	Cees Hendriks
Lokalisering	Unknow
Bilder	31

North American F-100C-25 Super Sabre 01

North American F-100C-25 Super Sabre 02

North American F-100C-25 Super Sabre 03

North American F-100C-25 Super Sabre 04

North American F-100C-25 Super Sabre 05

North American F-100C-25 Super Sabre 06

North American F-100C-25 Super Sabre 07

North American F-100C-25 Super Sabre 08

North American F-100C-25 Super Sabre 09

Click on a photo and use the mouse scroll to view all photo

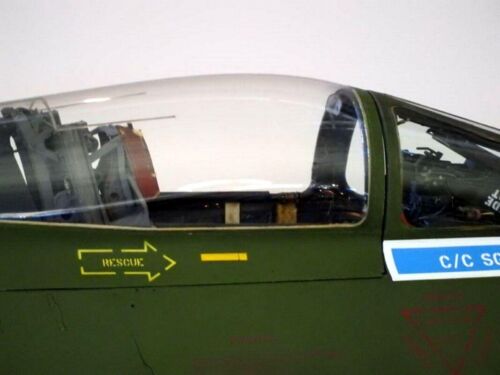

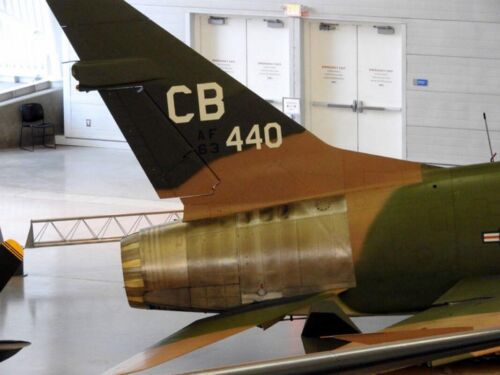

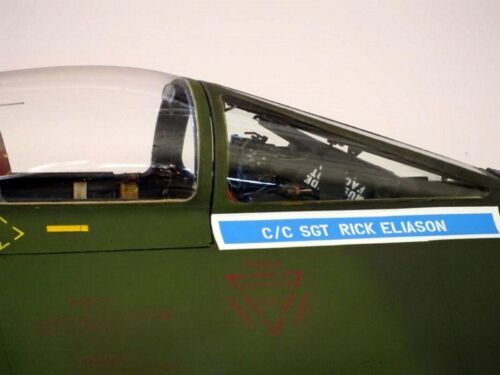

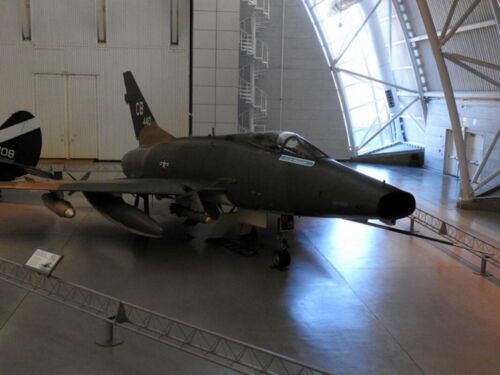

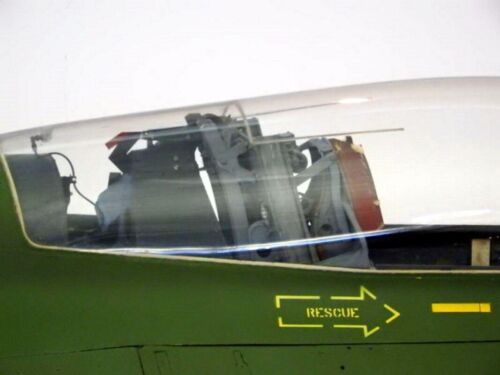

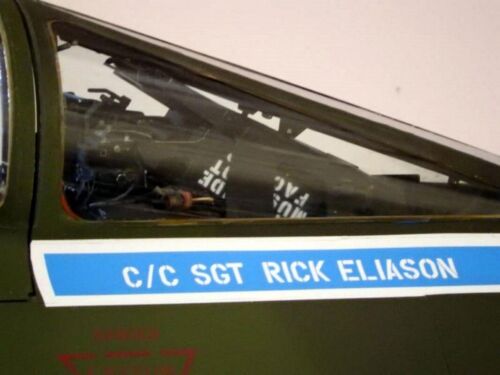

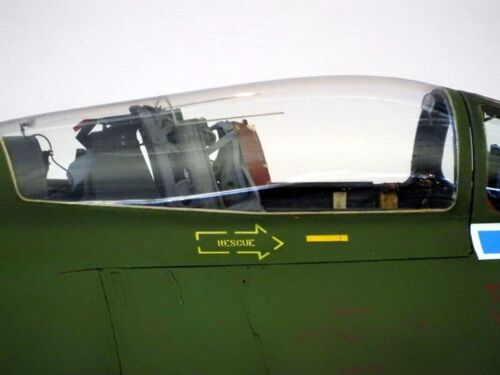

F-100D Super Sabre (various) Walk Around
Fotografer	Cees Hendriks, Meindert de Vreeze
Lokalisering	Unknow
Bilder	96

F-100D Super Sabre

Last inn mer...

North American F-100A Super Sabre Walk Around
Fotograf	Bill Maloney
Lokalisering	New England luftfartsmuseum
Bilder	16

North American F-100A Super Sabre 02

North American F-100A Super Sabre 01

North American F-100A Super Sabre 03

North American F-100A Super Sabre 04

North American F-100A Super Sabre 05

North American F-100A Super Sabre 06

North American F-100A Super Sabre 07

North American F-100A Super Sabre 08

North American F-100A Super Sabre 09

Click on a photo and use the mouse scroll to view all photo

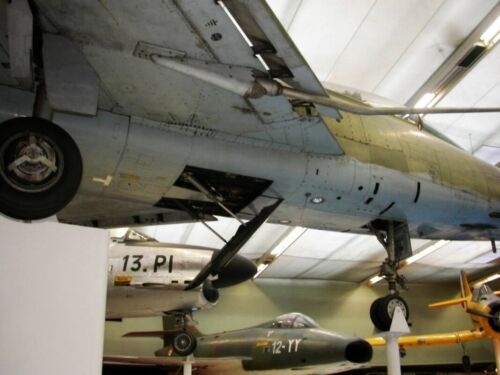

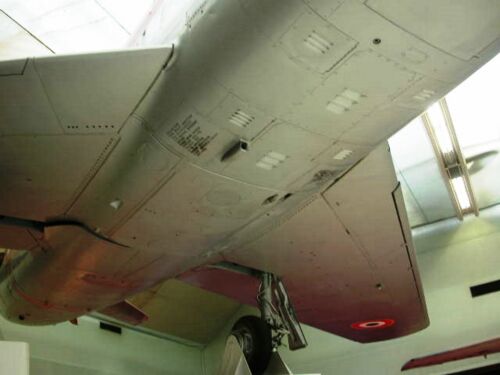

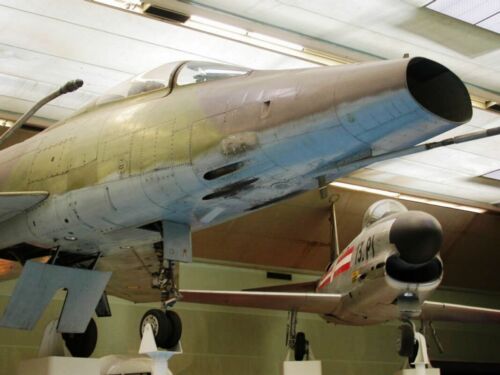

North American F-100 Super Sabre Walk Around
Fotograf	Unknow
Lokalisering	Unknow
Bilder	23

Nordamerikansk F-100 Super Sabre

Last inn mer...

The Supersonic Trailblazer

Den Nordamerikansk F-100 Super Sabre, affectionately known by its pilots as the “Hun” (short for “Hundred”), was a monumental leap in aviation. As the first of the famous “Century Series” fighters, it was the first Western aircraft capable of exceeding Mach 1 in level flight. Derived from the legendary F-86 Sabre, the F-100 featured a radical 45-degree wing sweep and the massive Pratt & Whitney J57 turbojet. While it ushered in the age of supersonic combat, it was a “hot” and unforgiving aircraft that taught the U.S. Air Force hard lessons about high-speed aerodynamics.

Attribute	Technical Specification (F-100D Variant)
Rolle	Fighter-Bomber / Air Superiority
Mannskapet	1 (F-100D) / 2 (F-100F Trainer/FAC)
First Flight	May 25, 1953 (YF-100A)
Kraftverk	1 × Pratt & Whitney J57-P-21A afterburning turbojet
Thrust	10,200 lbf dry / 16,000 lbf (71 kN) with afterburner
Maximum Speed	1,390 km/h (Mach 1.3) at 35,000 ft
Combat Range	965 km (600 mi) internal / 3,170 km ferry range
Bevæpning	4 × 20 mm M39A1 revolver cannons; 7,040 lbs of ordnance

Design Engineering: Titanium and the “Sabre Dance”

The 45° Sweep: To achieve supersonic speeds, North American increased the wing sweep from the F-86’s 35° to a sharp 45°. This reduced wave drag but led to significant stability issues at low speeds.
Titanium Construction: The F-100 was one of the first production aircraft to make extensive use of titanium, particularly in the rear fuselage around the engine, to withstand the immense heat generated by the J57’s afterburner.
All-Moving Tail (Stabilator): To maintain control in the “transonic” region where traditional elevators lose effectiveness, the F-100 utilized a slab tail—the entire horizontal stabilizer moved to control pitch.
The J57 Two-Spool Engine: The J57 was a masterpiece of engineering, being the first 10,000-lb thrust class engine in the US. Its “twin-spool” design allowed for better compressor efficiency across a wide range of speeds.

The Sabre Dance: Because of the high wing sweep and lack of sophisticated flight computers, the F-100 was prone to a dangerous “pitch-up” phenomenon at low speeds. If a pilot pulled too hard during landing, the nose would pitch up violently, stalling the aircraft—a maneuver captured in terrifying historical footage known as the “Sabre Dance.”

Combat History: The Workhorse of Vietnam

Vietnam Longevity: The F-100 flew more sorties in Vietnam than any other US fighter (over 360,000), serving as the primary close air support (CAS) platform until the late 1960s.
Wild Weasel I: The two-seat F-100F was the original “Wild Weasel.” These crews flew incredibly dangerous missions to detect and suppress North Vietnamese Surface-to-Air Missile (SAM) sites using the first primitive radar-homing equipment.
Misty FACs: F-100Fs also served as “Fast FACs” (Forward Air Controllers). Flying under the callsign “Misty,” these pilots flew at high speeds and low altitudes over the Ho Chi Minh Trail to mark targets for other bombers.
The Thunderbirds: The F-100 was the first supersonic mount for the USAF Thunderbirds demonstration team (1956–1968), where its gleaming silver and red-white-blue livery became an icon of American air power.
