Severoamerický F-100 Super Sabre
Země	SPOJENÉ STÁTY
Roli	Nadzvukové proudové stíhací letouny
První let	25. května 1953
Postaven	2294

Tá Severoamerický F-100 Super Sabre byl americký nadzvukový proudový stíhací letoun, který sloužil u letectva Spojených států amerických (USAF) v letech 1954 až 1971 a u Letecké národní gardy (ANG) až do roku 1979. První ze série amerických stíhaček CENTURY series byl prvním stíhacím letounem USAF schopným nadzvukové rychlosti v rovině letu. F-100 byl navržen společností North American Aviation jako vyšší výkon navazovat na stíhačku F-86 Sabre.

Zdroj: Severoamerický F-100 Super Sabre na Wiki

North American F-100 Super Sabre
Fotograf	Vladimir Jakubov
Lokalizace	Letecké muzeum Palm Springs
Fotografie	155

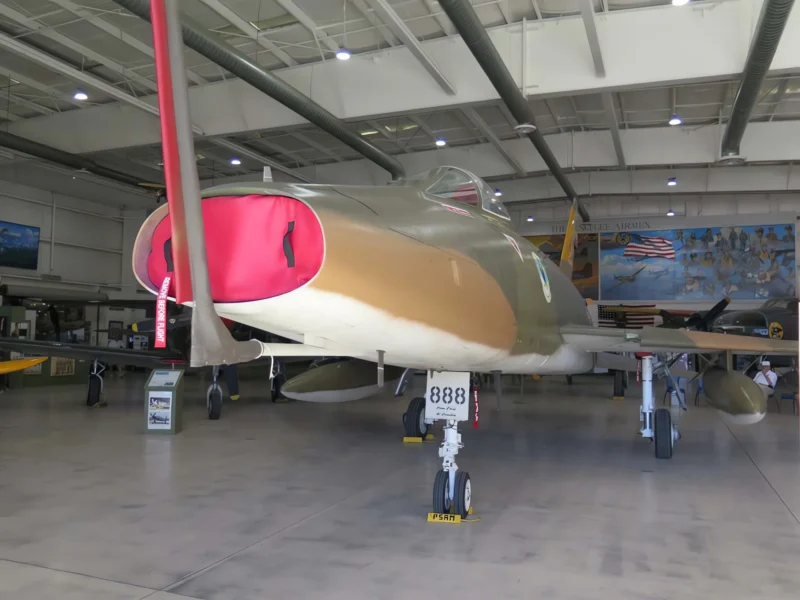

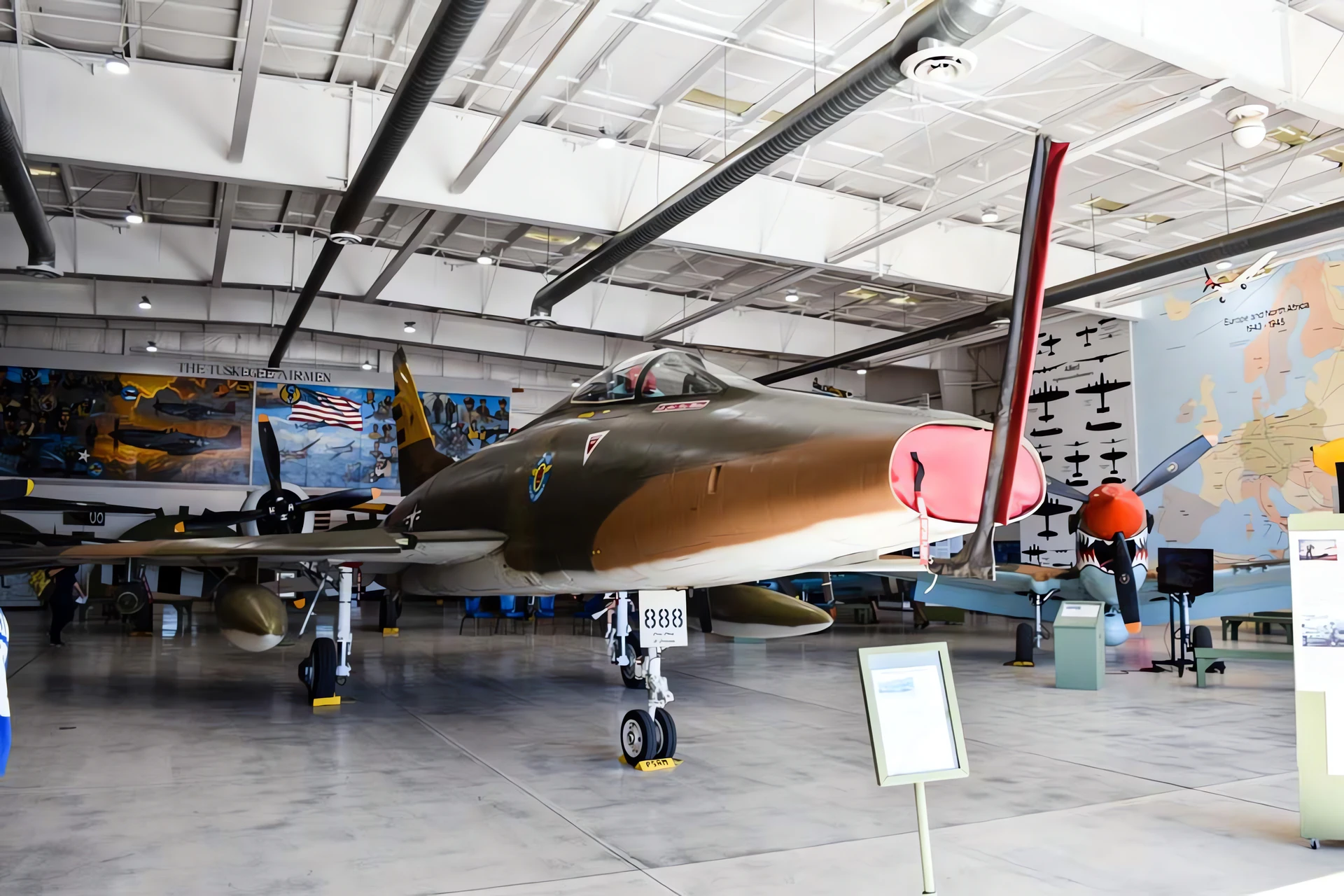

North American F-100 Super Sabre 01

North American F-100 Super Sabre 02

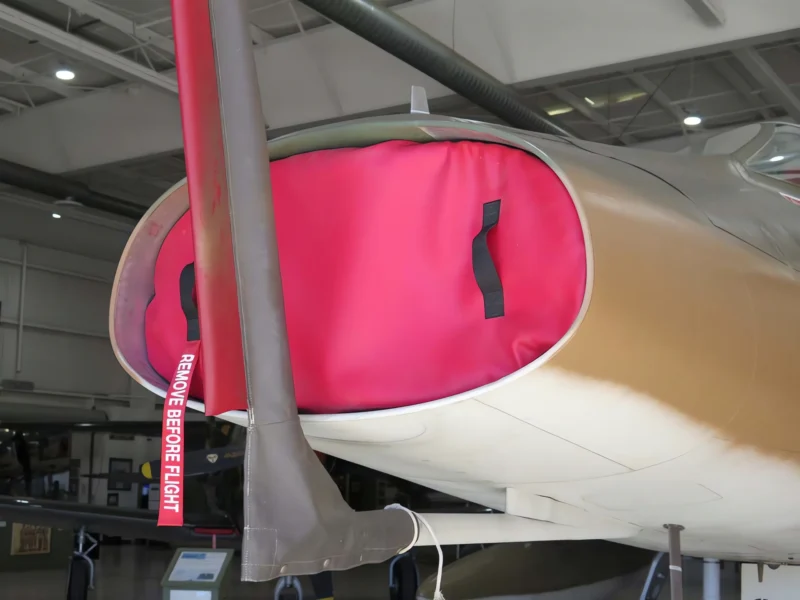

North American F-100 Super Sabre 03

North American F-100 Super Sabre 04

North American F-100 Super Sabre 05

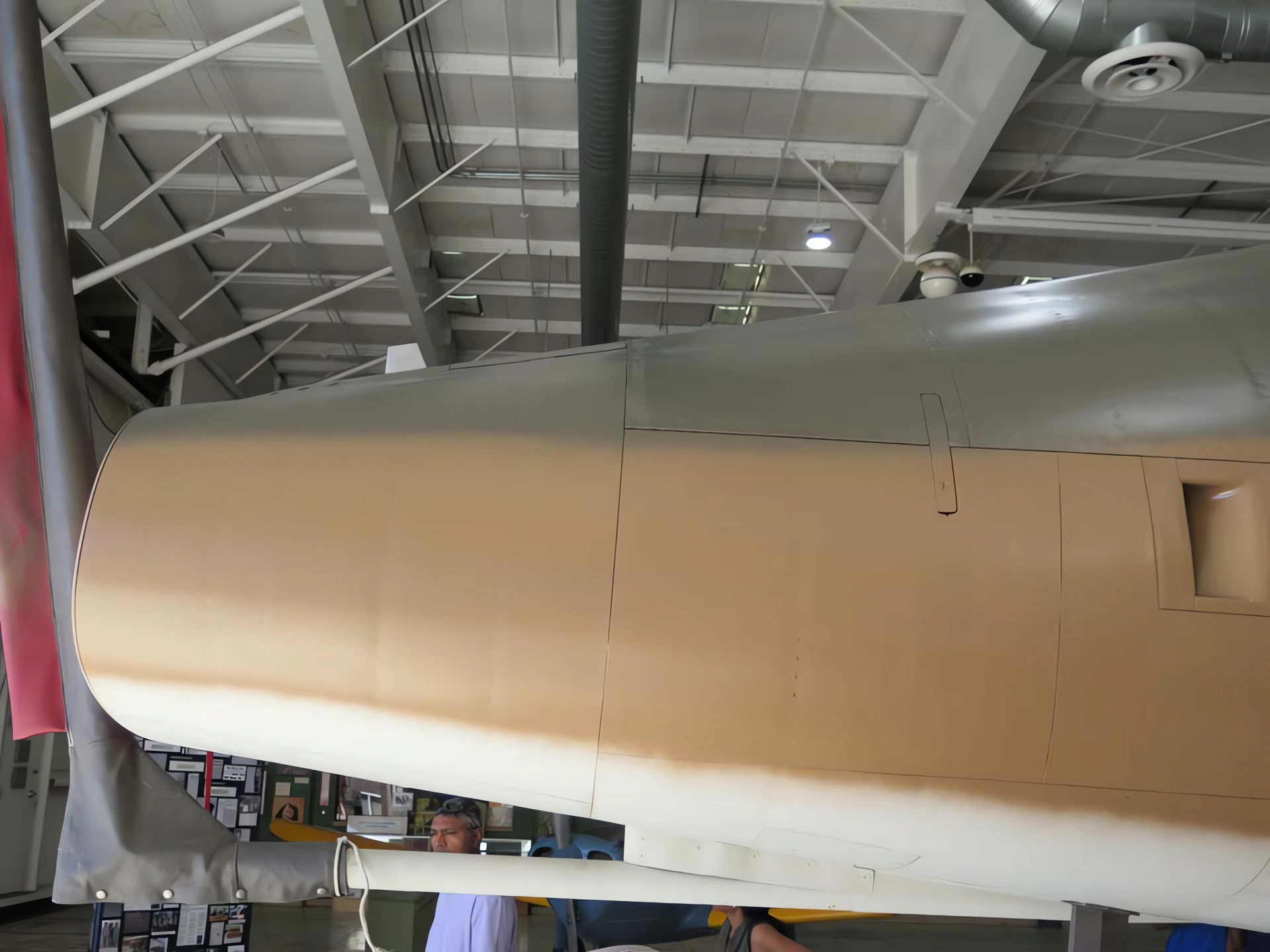

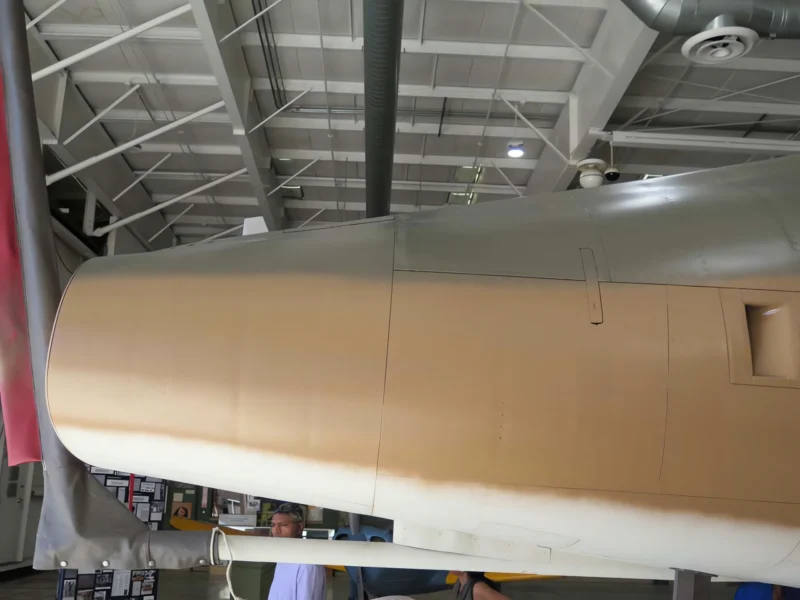

North American F-100 Super Sabre 06

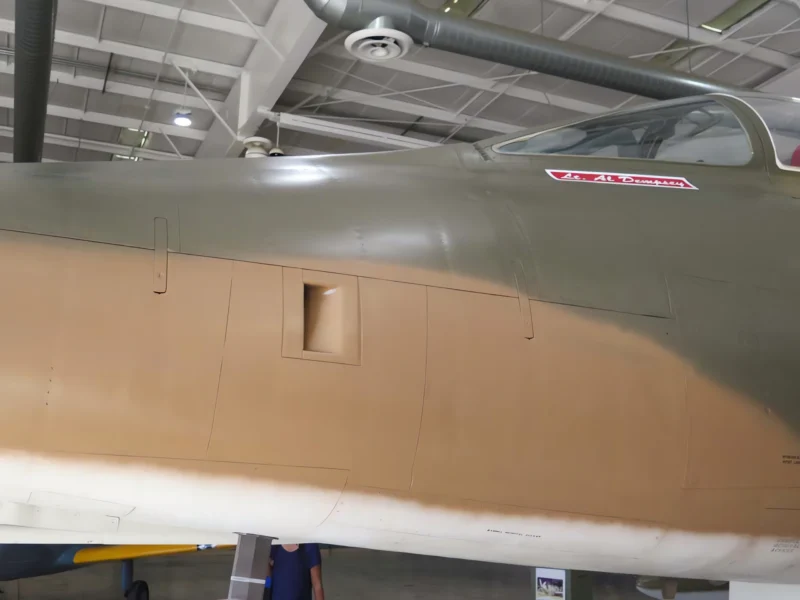

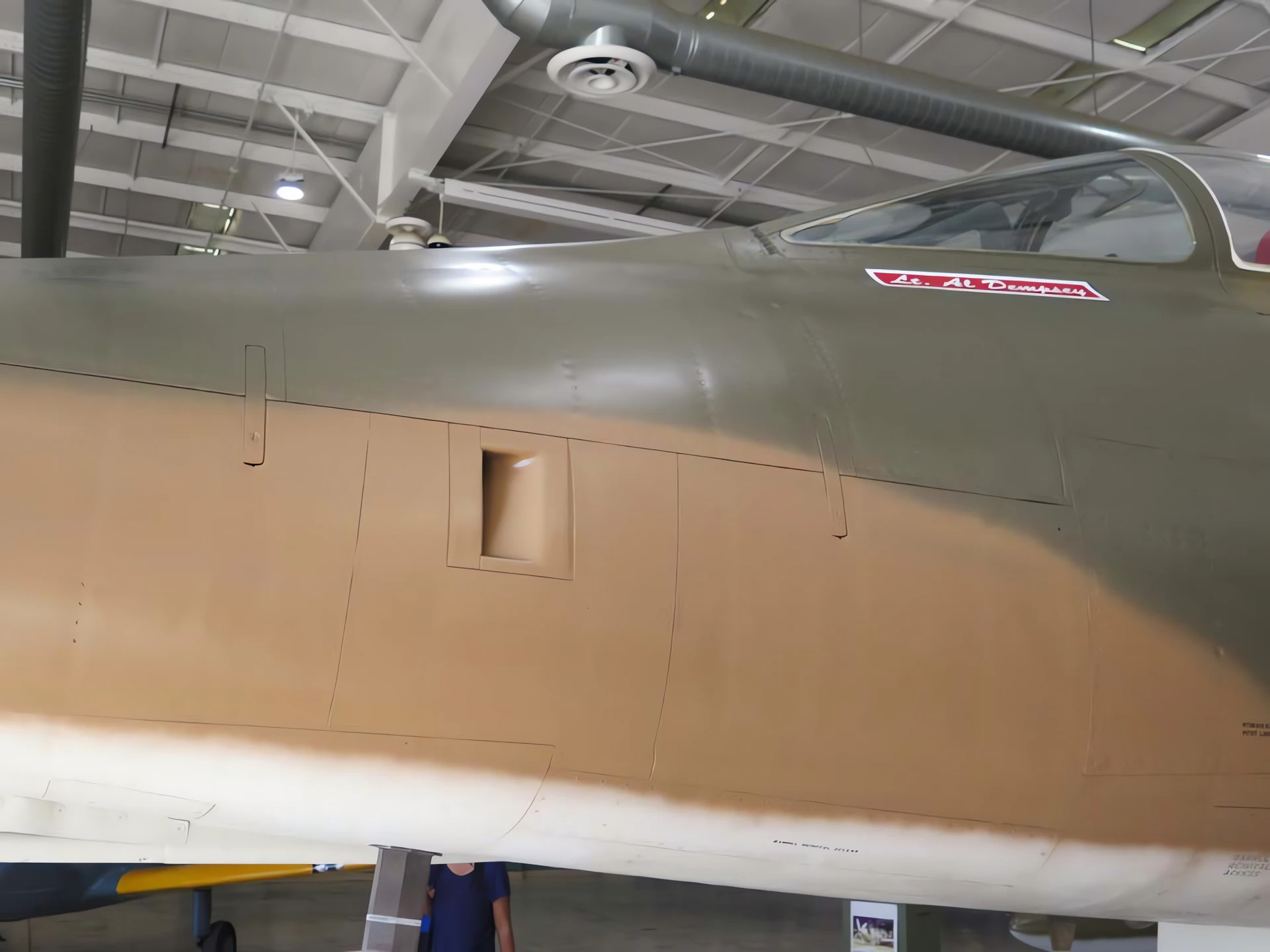

North American F-100 Super Sabre 07

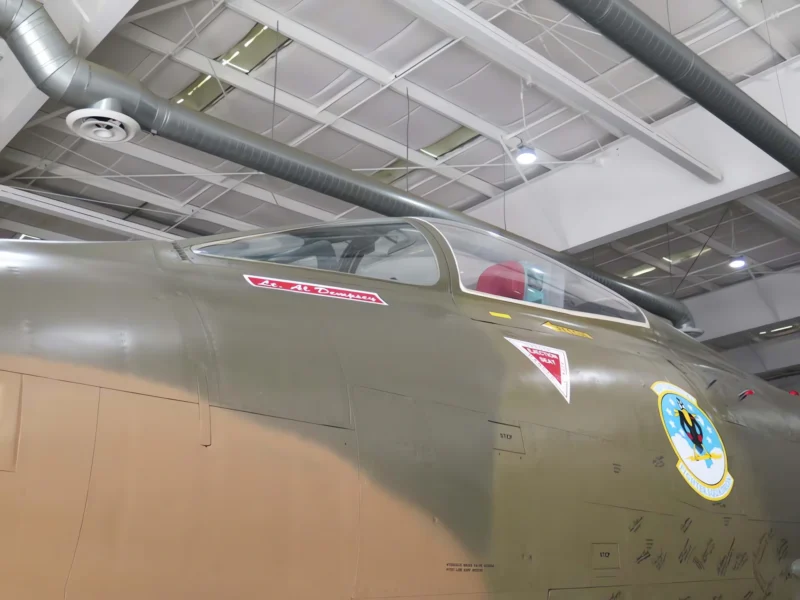

North American F-100 Super Sabre 08

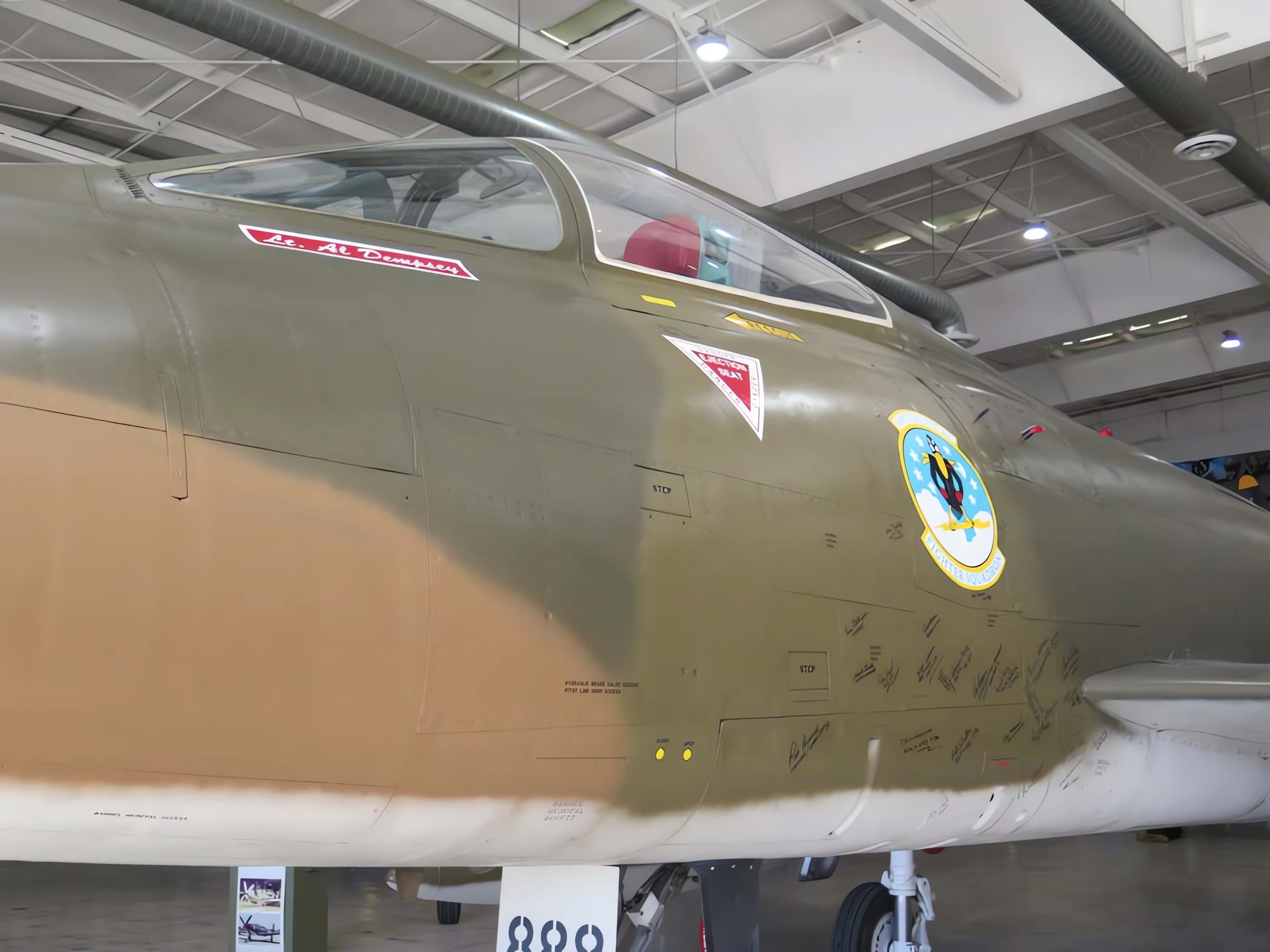

North American F-100 Super Sabre 09

Click on a photo and use the mouse scroll to view all photos

Čekání, Hledání severoamerických F-100 Super Sabre fotografie pro vás...

Kupte mi kávu

Viz také:

North American F-100D Super Sabre Walk Around
Fotograf	Vladimir Jakubov
Lokalizace	Neznámé
Fotografie	137

Severoamerický F-100D Super Sabre

Načíst více...

North American F-100C-25 Super Sabre Walk Around
Fotograf	Cees Hendriks
Lokalizace	Neznámé
Fotografie	31

North American F-100C-25 Super Sabre 01

North American F-100C-25 Super Sabre 02

North American F-100C-25 Super Sabre 03

North American F-100C-25 Super Sabre 04

North American F-100C-25 Super Sabre 05

North American F-100C-25 Super Sabre 06

North American F-100C-25 Super Sabre 07

North American F-100C-25 Super Sabre 08

North American F-100C-25 Super Sabre 09

Click on a photo and use the mouse scroll to view all photo

F-100D Super Sabre (various) Walk Around
Fotografů	Cees Hendriks, Meindert de Vreeze
Lokalizace	Neznámé
Fotografie	96

F-100D Super Sabre

Načíst více...

North American F-100A Super Sabre Walk Around
Fotograf	Bill Maloney
Lokalizace	Letecké muzeum Nové Anglie
Fotografie	16

North American F-100A Super Sabre 02

North American F-100A Super Sabre 01

North American F-100A Super Sabre 03

North American F-100A Super Sabre 04

North American F-100A Super Sabre 05

North American F-100A Super Sabre 06

North American F-100A Super Sabre 07

North American F-100A Super Sabre 08

North American F-100A Super Sabre 09

Click on a photo and use the mouse scroll to view all photo

North American F-100 Super Sabre Walk Around
Fotograf	Neznámé
Lokalizace	Neznámé
Fotografie	23

Severoamerický F-100 Super Sabre

Načíst více...

The Supersonic Trailblazer

Tá Severoamerický F-100 Super Sabre, affectionately known by its pilots as the “Hun” (short for “Hundred”), was a monumental leap in aviation. As the first of the famous “Century Series” fighters, it was the first Western aircraft capable of exceeding Mach 1 in level flight. Derived from the legendary F-86 Sabre, the F-100 featured a radical 45-degree wing sweep and the massive Pratt & Whitney J57 turbojet. While it ushered in the age of supersonic combat, it was a “hot” and unforgiving aircraft that taught the U.S. Air Force hard lessons about high-speed aerodynamics.

Attribute	Technical Specification (F-100D Variant)
Roli	Fighter-Bomber / Air Superiority
Posádky	1 (F-100D) / 2 (F-100F Trainer/FAC)
First Flight	May 25, 1953 (YF-100A)
Pohonná jednotka	1 × Pratt & Whitney J57-P-21A afterburning turbojet
Thrust	10,200 lbf dry / 16,000 lbf (71 kN) with afterburner
Maximum Speed	1,390 km/h (Mach 1.3) at 35,000 ft
Combat Range	965 km (600 mi) internal / 3,170 km ferry range
Zbrojení	4 × 20 mm M39A1 revolver cannons; 7,040 lbs of ordnance

Design Engineering: Titanium and the “Sabre Dance”

The 45° Sweep: To achieve supersonic speeds, North American increased the wing sweep from the F-86’s 35° to a sharp 45°. This reduced wave drag but led to significant stability issues at low speeds.
Titanium Construction: The F-100 was one of the first production aircraft to make extensive use of titanium, particularly in the rear fuselage around the engine, to withstand the immense heat generated by the J57’s afterburner.
All-Moving Tail (Stabilator): To maintain control in the “transonic” region where traditional elevators lose effectiveness, the F-100 utilized a slab tail—the entire horizontal stabilizer moved to control pitch.
The J57 Two-Spool Engine: The J57 was a masterpiece of engineering, being the first 10,000-lb thrust class engine in the US. Its “twin-spool” design allowed for better compressor efficiency across a wide range of speeds.

The Sabre Dance: Because of the high wing sweep and lack of sophisticated flight computers, the F-100 was prone to a dangerous “pitch-up” phenomenon at low speeds. If a pilot pulled too hard during landing, the nose would pitch up violently, stalling the aircraft—a maneuver captured in terrifying historical footage known as the “Sabre Dance.”

Combat History: The Workhorse of Vietnam

Vietnam Longevity: The F-100 flew more sorties in Vietnam than any other US fighter (over 360,000), serving as the primary close air support (CAS) platform until the late 1960s.
Wild Weasel I: The two-seat F-100F was the original “Wild Weasel.” These crews flew incredibly dangerous missions to detect and suppress North Vietnamese Surface-to-Air Missile (SAM) sites using the first primitive radar-homing equipment.
Misty FACs: F-100Fs also served as “Fast FACs” (Forward Air Controllers). Flying under the callsign “Misty,” these pilots flew at high speeds and low altitudes over the Ho Chi Minh Trail to mark targets for other bombers.
The Thunderbirds: The F-100 was the first supersonic mount for the USAF Thunderbirds demonstration team (1956–1968), where its gleaming silver and red-white-blue livery became an icon of American air power.
