垃圾 F.13 | |
|---|---|
| 国家 | 德国 |
| 作用 | 小型客运 |
| 首次飞行 | 1919年6月25日 |
| 建立 | 322 |

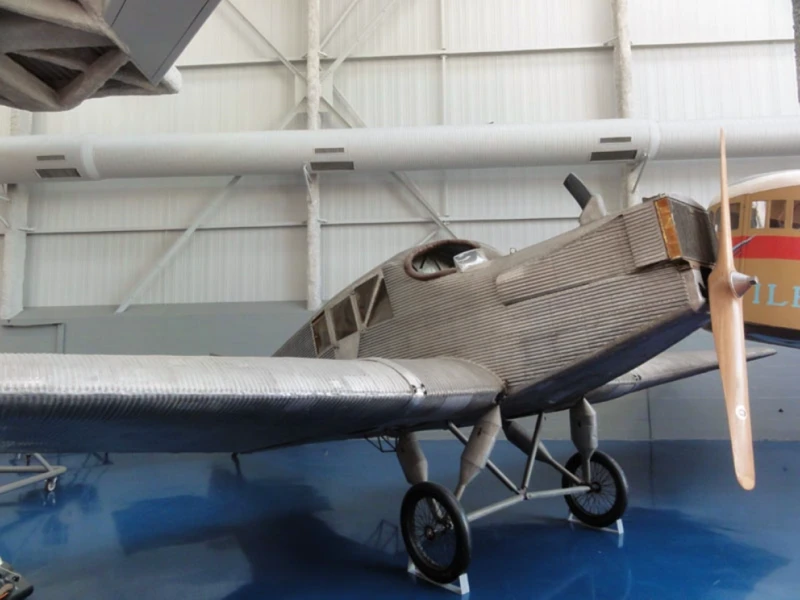

这 垃圾 F.13 （也称为F13）是世界上第一架全金属运输机，在第一次世界大战结束时在德国研制。这是一架先进的悬臂翼单翼飞机，为四名乘客提供封闭式住宿。售出了300多张。它生产了十三年，在商业服务中生产了近二十年。
| 垃圾 F.13 四处走动 | |
|---|---|
| 摄影师 | 明德·德·弗瑞泽 |
| 本地化 | 未知 |
| 照片 | 22 |
Junkers F.13 01
Junkers F.13 02
Junkers F.13 03
Junkers F.13 04
Junkers F.13 05
Junkers F.13 06
Junkers F.13 07
Junkers F.13 08
Junkers F.13 09
等等，为您搜索垃圾F.13照片。。。
| 垃圾 F.13 四处走动 | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 23 |
Junkers F.13 01
Junkers F.13 02
Junkers F.13 03
Junkers F.13 04
Junkers F.13 05
Junkers F.13 06
Junkers F.13 07
Junkers F.13 08
Junkers F.13 09
另请参阅：
A Revolution in Civil Aviation
这 垃圾 F.13 was a landmark in aviation history. Developed immediately after WWI by Hugo Junkers, it was the first aircraft designed specifically as a commercial passenger plane rather than a converted bomber. While other 1919-era planes were made of wood and fabric, the F.13 was built entirely of duralumin. Its cantilever wing design—meaning it had no drag-inducing external struts or wires—set the template for every modern airliner flying today.
| Attribute | Technical Specification (F.13ge) |
|---|---|
| 作用 | Civil Passenger / Transport Aircraft |
| 船员 | 2 (Open cockpit) |
| 能力 | 4 Passengers (Enclosed cabin) |
| First Flight | June 25, 1919 |
| 动力装置 | 1 × BMW IV 6-cylinder water-cooled inline |
| Horsepower | 250 hp (186 kW) |
| 最高速度 | 106 mph (170 km/h) |
| 范围 | 870 miles (1,400 km) |
Corrugated Strength & Comfort
- Corrugated Duralumin Skin: The F.13’s most famous feature is its “washboard” skin. The corrugation provided immense structural rigidity without adding significant weight, making the aircraft incredibly durable in harsh environments from the Arctic to the Tropics.
- The Cantilever Wing: Unlike biplanes of the era, the F.13’s wing was internally braced. This “clean” wing allowed for much higher efficiency and speed, a direct result of Hugo Junkers’ pioneering research into aerodynamics.
- Luxury for Passengers, Elements for Pilots: In a strange twist of 1920s logic, the passengers sat in a heated, upholstered, and enclosed cabin with large windows. Meanwhile, the pilots sat in an open-air cockpit just behind the engine, exposed to the wind and rain.
- Modular Landing Gear: The F.13 was designed to be versatile. It could be fitted with standard wheels, large wooden skis for snow, or twin duralumin floats for water operations.
A Global Legacy
- Founding of Airlines: The F.13 was the primary aircraft used to establish many of the world’s early airlines, including Lufthansa (Germany), SCADTA (Colombia), and Ad Astra Aero (Switzerland).
- Longevity: Over 300 F.13s were built. Because of their metal construction, they outlasted their wooden competitors by decades, with some remaining in commercial service well into the late 1940s.
- The American Connection: John Larsen imported F.13s to the US as the “JL-6.” One of these was used by the US Post Office to pioneer transcontinental airmail routes.
- Modern Rebirth: The design is so legendary that a Swiss team (RIMOWA) built a 1:1 flying replica of the F.13 in 2016, using the original drawings to bring the “Annelise” back to the skies.
