Stout Bushmaster 2000 | |
|---|---|
| Kraju | Stany Zjednoczone Ameryki |
| Roli | Samolot |
| Pierwszy lot | 1964 |
| Buily (Buily) | 2 |
Tthe Bushmaster 2000 Był małym samolotem podmiejskim zbudowanym w Stanach Zjednoczonych w celu ożywienia projektu Forda Trimotora. Prace rozpoczęły się w 1953 roku, testując vintage Trimotor i w 1954 Bill Stout zakupił prawa do projektowania oryginalnego Trimotor. Ze względu na problemy licencyjne "Ford Tri-Motor", Ford 15-AT-D otrzymał nazwę Bushmaster 2000. 15 stycznia 1955 roku Stout i jego partner Robert Hayden z Hayden Aircraft Corporation ogłosili, że planują budowę 1000 nowych bushmasterów, ale minęło jedenaście lat, zanim pierwszy prototyp nowego projektu poleciał.
Źródła: Stout Bushmaster 2000 na Wikipedii

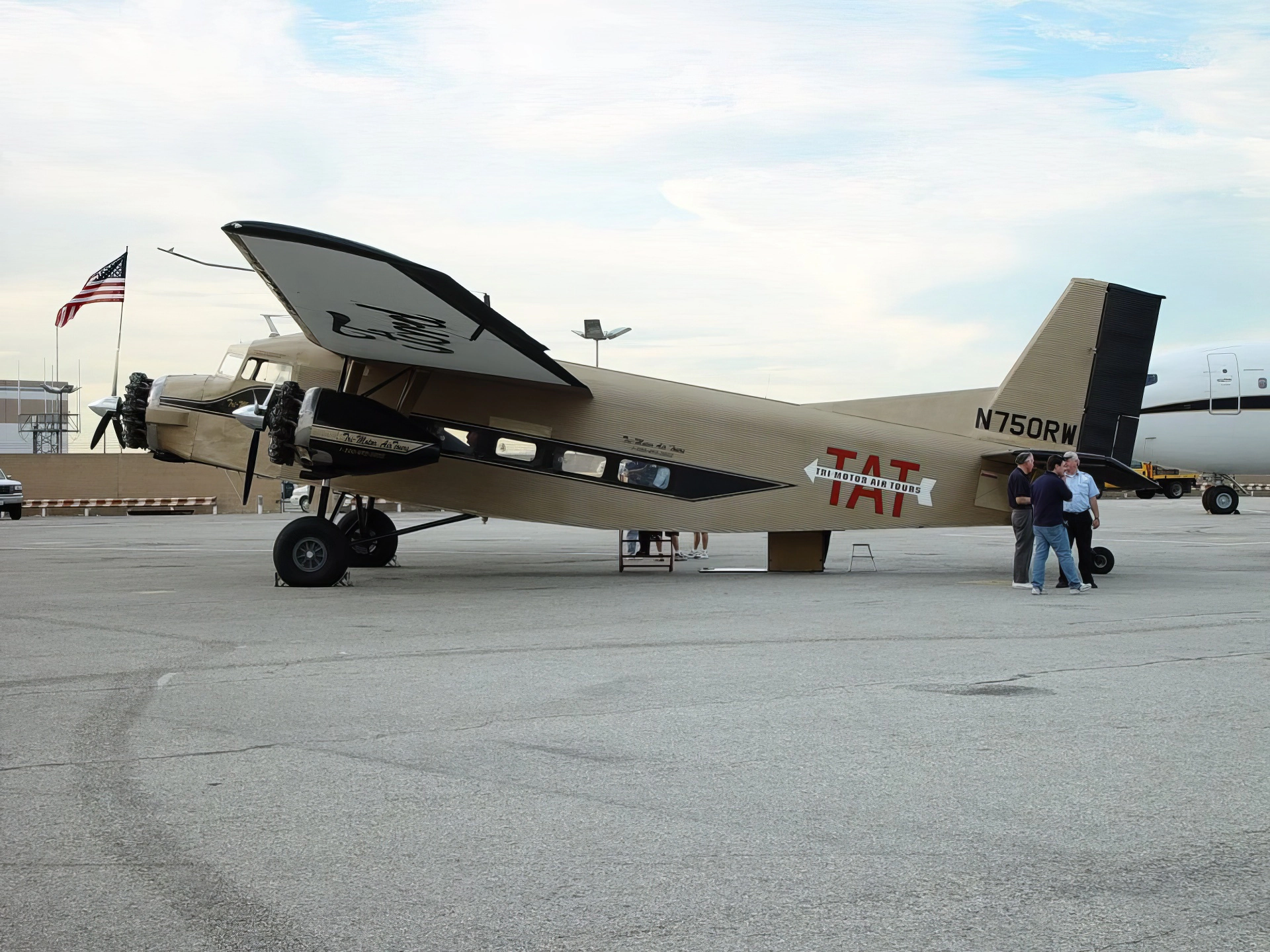

| Bushmaster 2000 Walk Around | |
|---|---|
| Fotograf | Michał Benolkin |
| Lokalizacja | Niewiedzy |
| Zdjęcia | 18 |
Zobacz też:
autorstwa William T. Larkins
168 stron · 1992
General Characteristics and Design

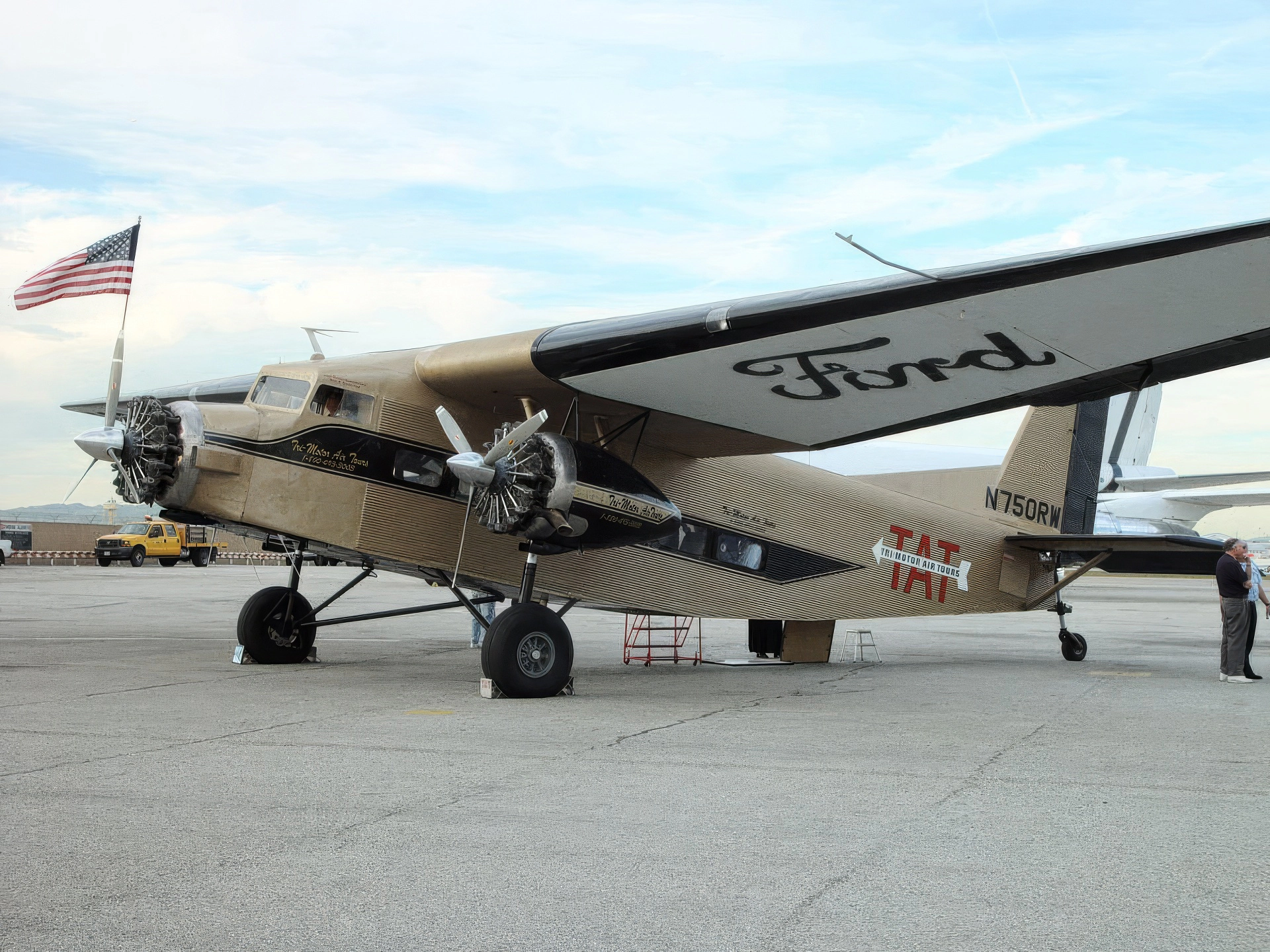

The Stout Bushmaster 2000 was a small commuter airliner built in the United States during the 1960s and 1980s. It was an ambitious, modernized attempt to revive the design of the famous Ford Tri-Motor (“Tin Goose”) from the 1920s. Bill Stout, the original designer of the Tri-Motor, bought back the design rights with the intent to produce a simple, rugged, and economical transport aircraft for the “bush flying” market. Although the Bushmaster 2000 featured modern engines, hydraulic brakes, larger windows, and a lighter aluminum-alloy skin, only two examples were ever completed due to competition from contemporary designs and financial issues.
| Property | Typical Value |
|---|---|
| Roli | Commuter Airliner / Utility Transport |
| National Origin | Stany Zjednoczone |
| Producent | Bushmaster Aircraft / Aircraft Hydro-Forming |
| First Flight | 1964 |
| Liczba zbudowanych | 2 |
| Załogi | Dwa |
| Pojemność | 23 passengers (high density) |
| Długość | 15.44 m (50 ft 8 in) |
| Rozpiętość | 23.75 m (77 ft 11 in) |
| Empty Weight | 3,402 kg (7,500 lb) |
| Gross Weight | 5,670 kg (12,500 lb) |
Powerplant and Performance

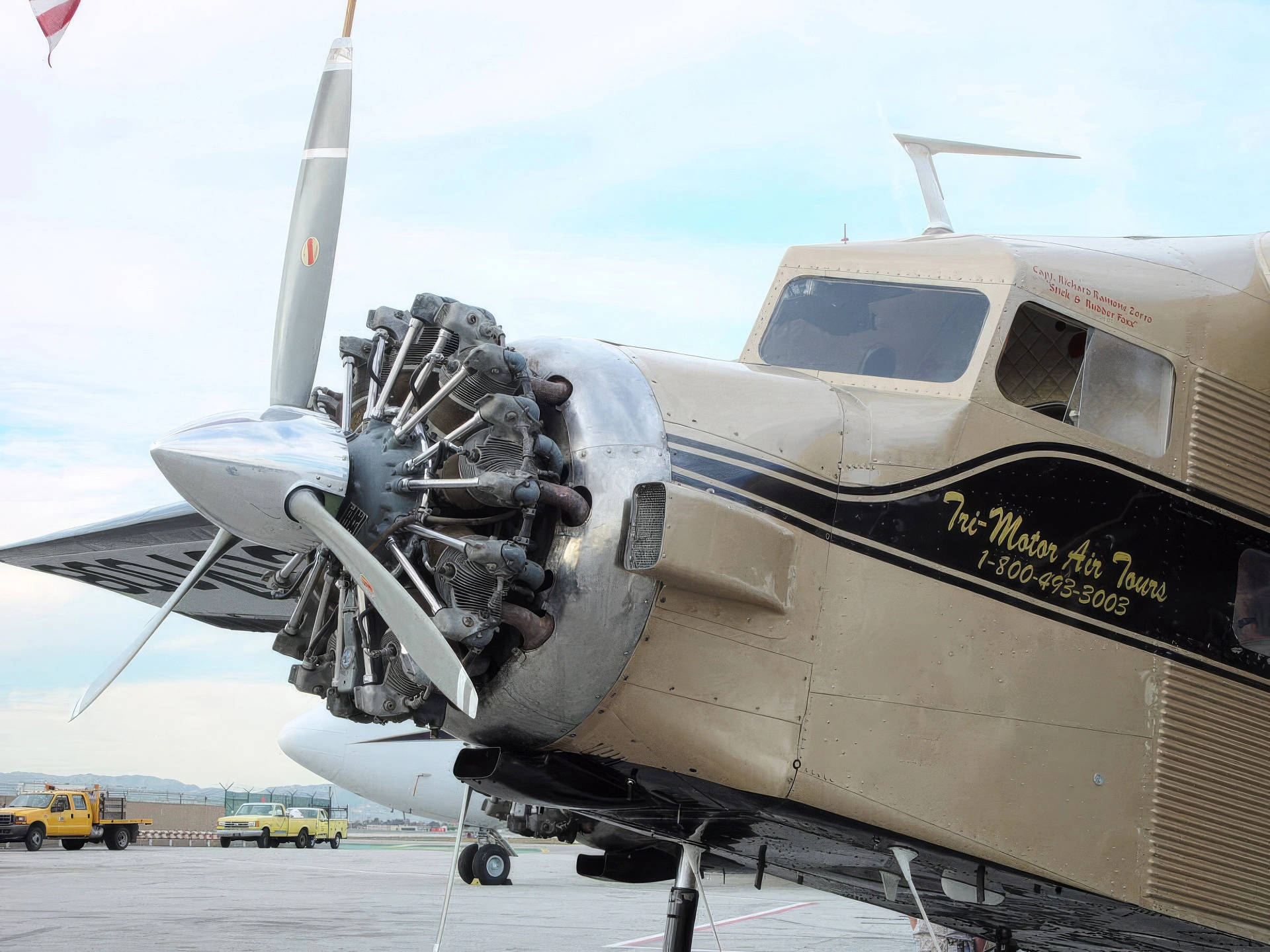

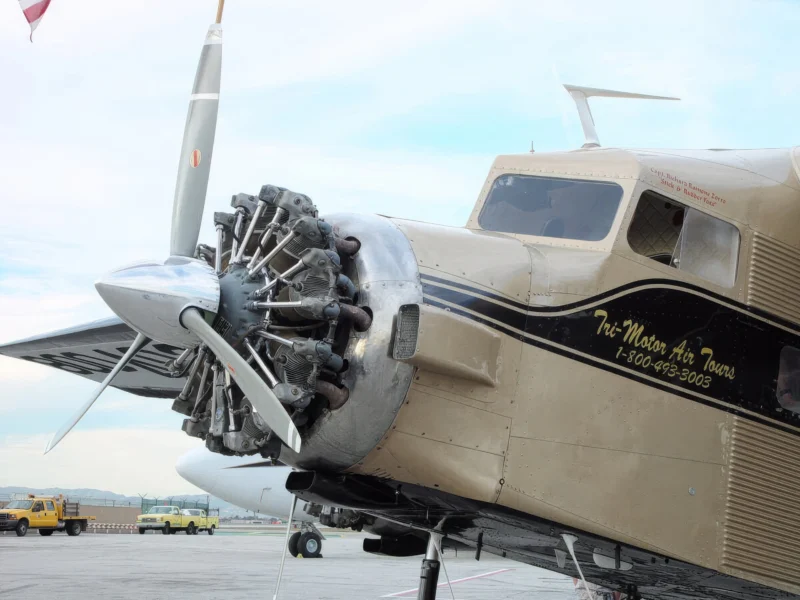

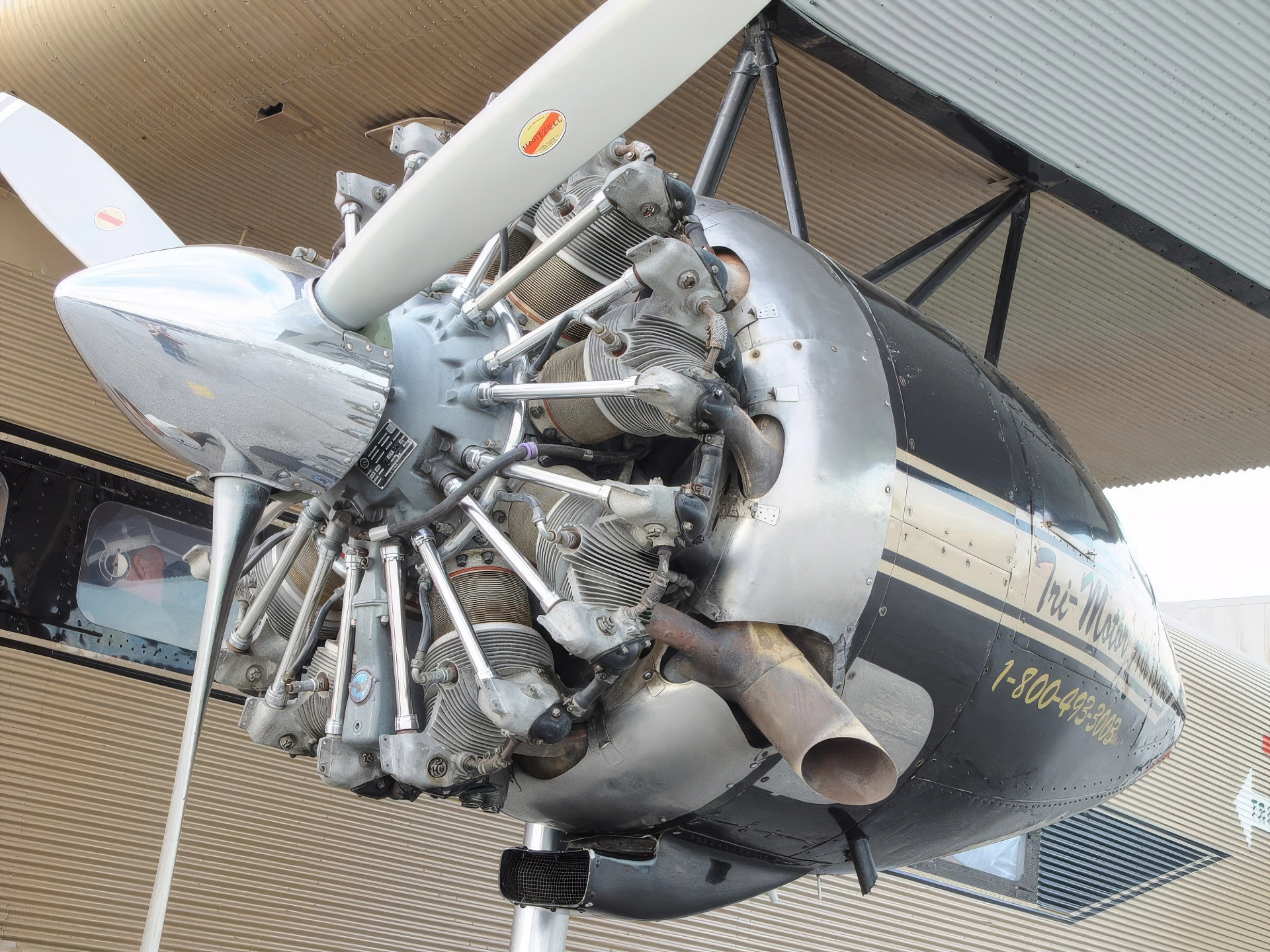

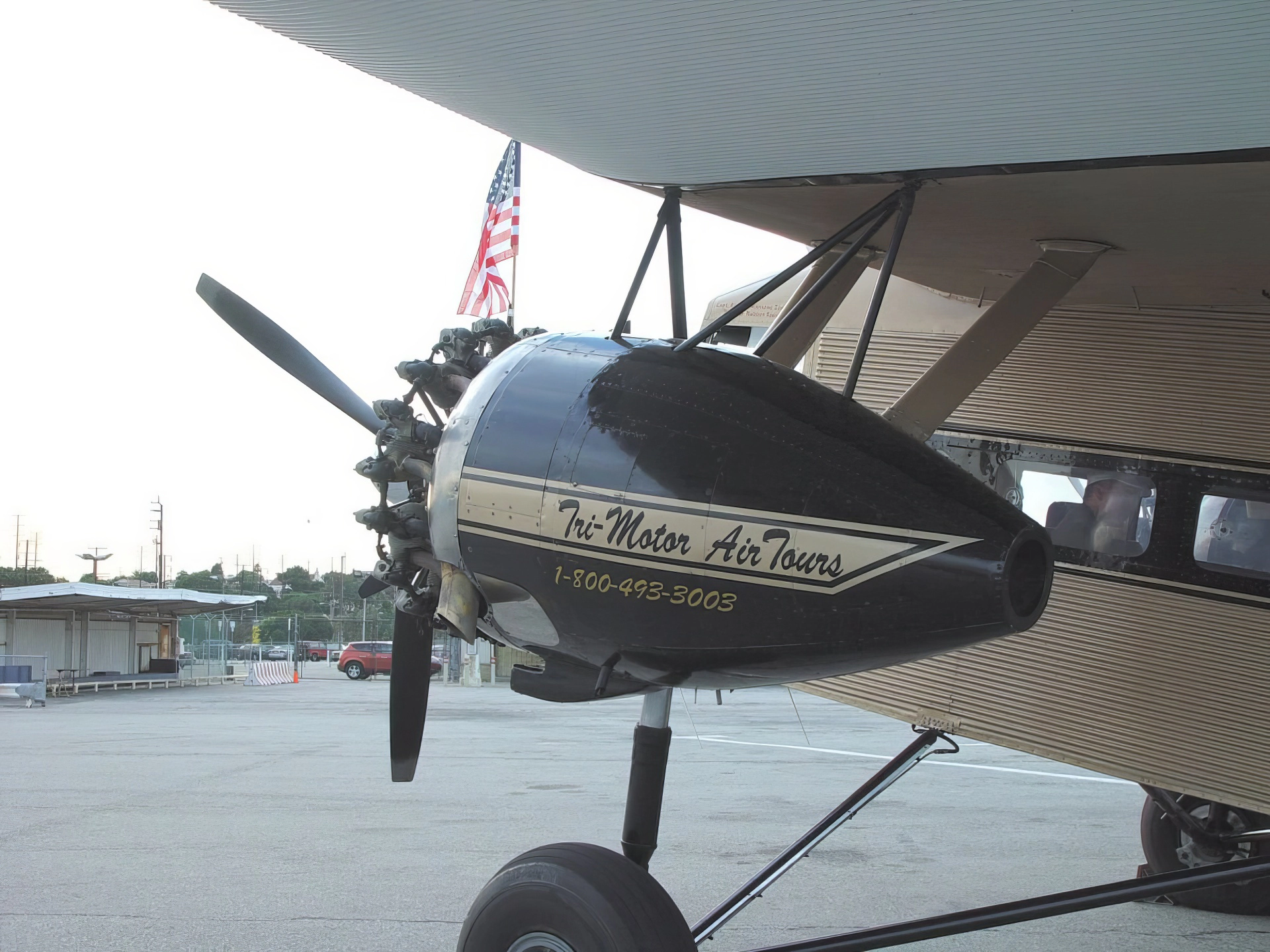

- Engines: 3 x Pratt & Whitney R-985-AN-1 Wasp Junior nine-cylinder, air-cooled radial engines.
- Power Output (Each): 336 kW (450 hp).
- Maximum Speed: 206 km/h (128 mph; 111 kn) Indicated Airspeed (IAS).
- Cruise Speed: Approx. 185 km/h (115 mph).
- Range: 1,127 km (700 mi; 610 nmi).
- Stall Speed: 89 km/h (55 mph; 48 kn).
Key Modernization Features
- Propellers: Used Hartzell HC-B3R30-2E fully-feathering three-blade constant-speed propellers—a significant upgrade from the original Ford Tri-Motor.

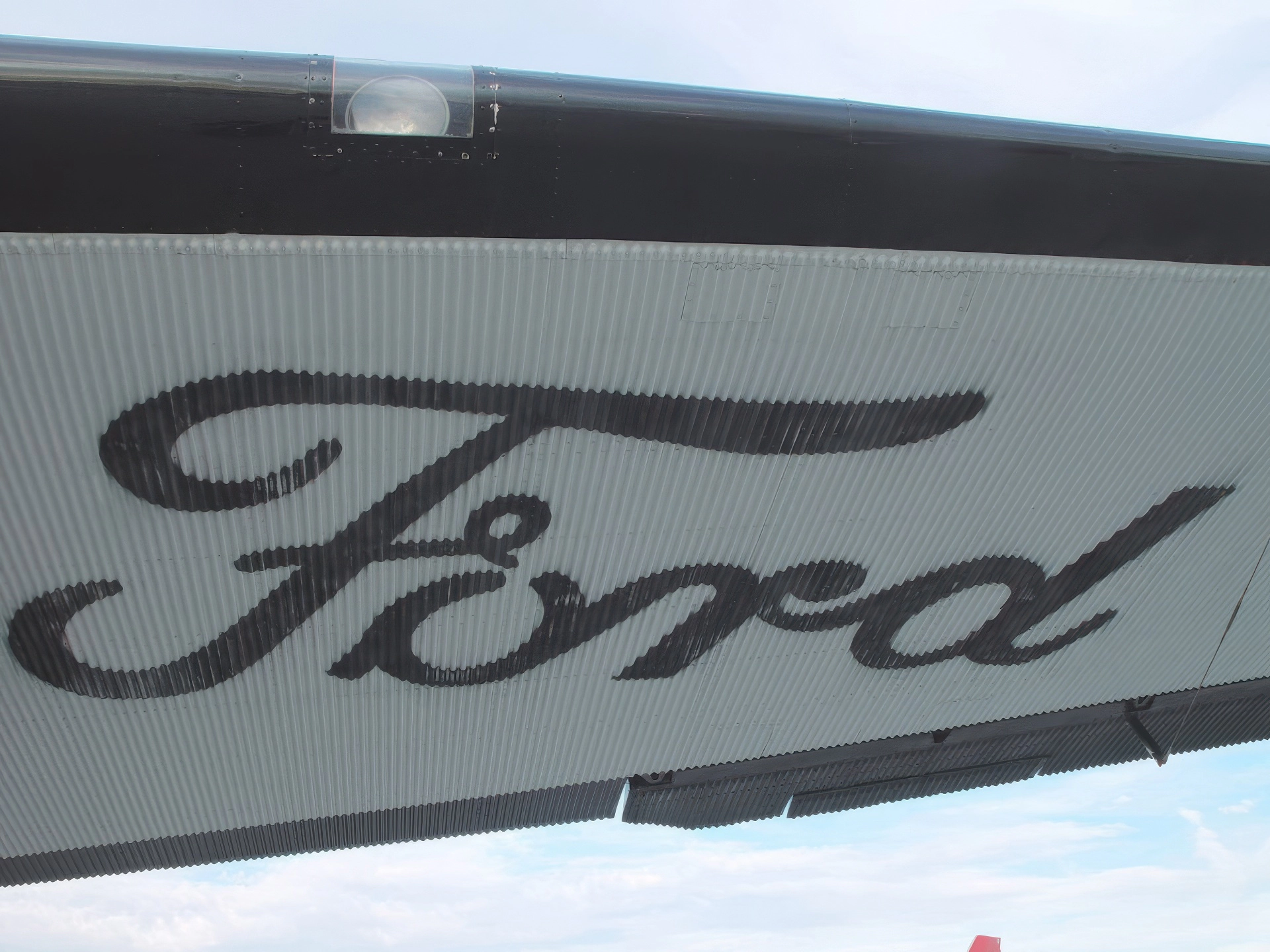

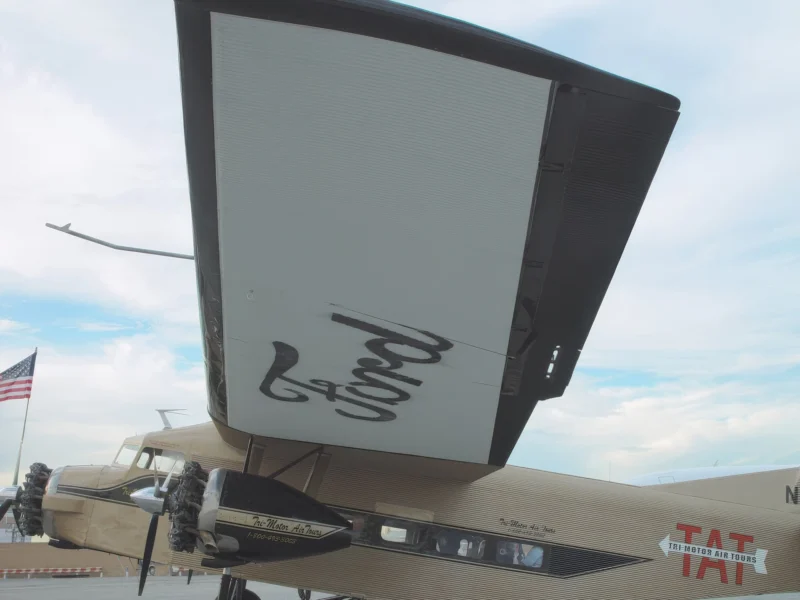

- Construction: Retained the classic corrugated aluminum skin, but used new, lighter, and stronger aluminum sheet and improved riveting.
- Brakes: Replaced the original aircraft’s unique hand-operated “Johnny Brake” system with a modern foot-operated hydraulic brake system.

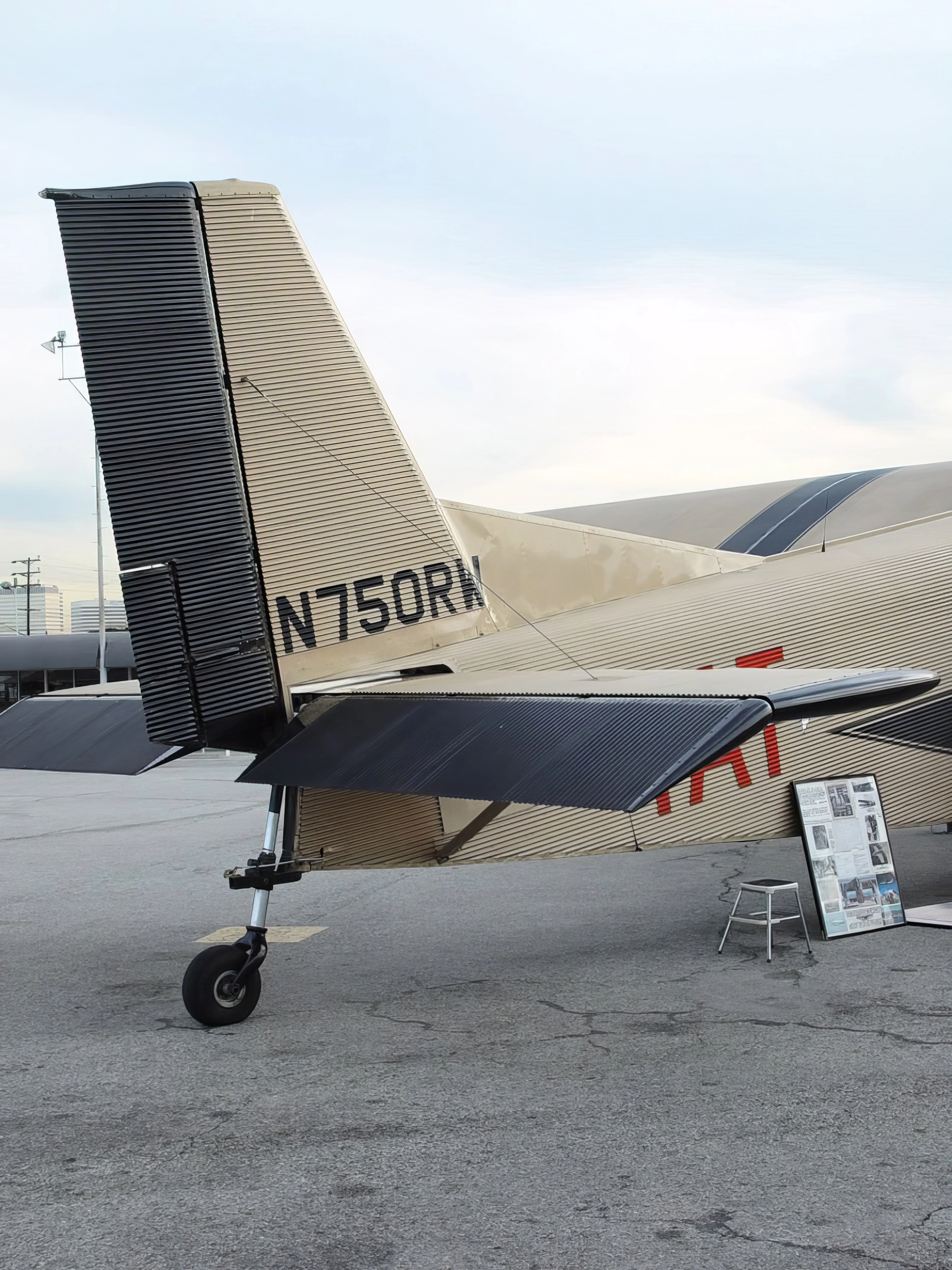

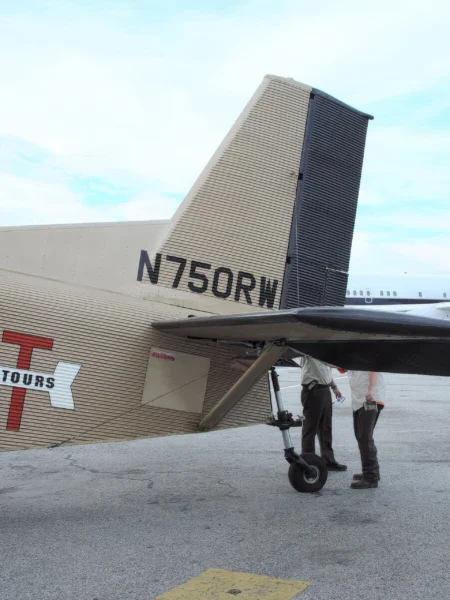

- Flight Controls: Control cables were rerouted internally, and the vertical stabilizer was made taller with a dorsal fin to improve stability and reduce yaw.
- Landing Gear: Features included Goodrich single-disc brake main wheels and tubeless tires, with the option for floats or skis.
