Loyd Carrier

Loyd Carrier
Riik	Uk
Rolli	Soomuspersonali kandja
Kasutuses	1939-1960ndad
Ehitatud	26000+

2007 Loyd Carrier oli üks paljudest väikestest roomiksõidukitest, mida Briti ja Rahvaste Ühenduse väed teises maailmasõjas kasutasid varustuse ja meeste transportimiseks lahinguväljal. Breni, Scouti ja Kuulipildujate kandjate kõrval liigutasid nad ka jalaväe tugirelvi.

Allikas: Loyd Carrier Vikipeedias

CATI 90 mm Walk Around
Fotograaf	Unknow
Lokaliseerimine	Teadmata
Fotod	68

CATI 90 mm 01

CATI 90 mm 02

CATI 90 mm 04

CATI 90 mm 03

CATI 90 mm 05

CATI 90 mm 06

CATI 90 mm 07

CATI 90 mm 08

CATI 90 mm 09

Click on a photo and use the mouse scroll to view all photos

Oodake, Otsides Loyd Carrieri fotosid teie jaoks...

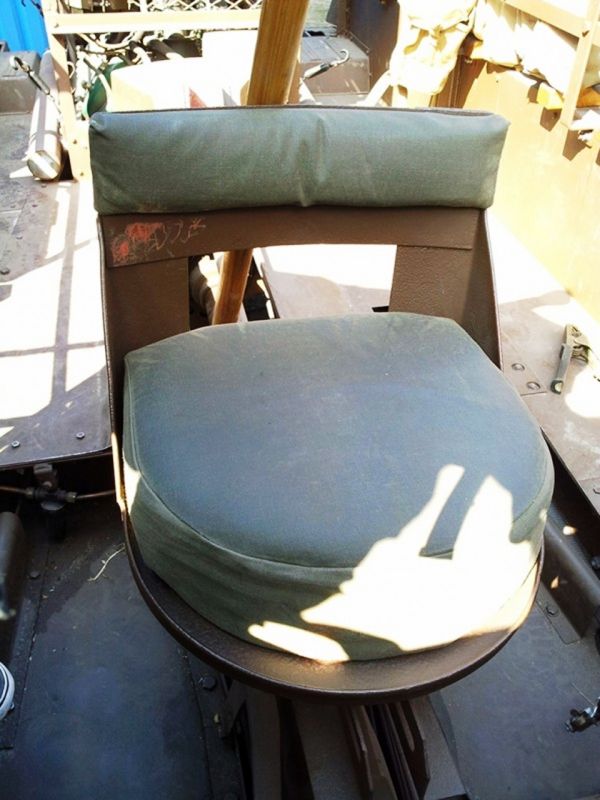

Loyd Carrier Walk Around
Fotograaf	Robert Blokker
Lokaliseerimine	Teadmata
Fotod	119

Loyd Carrier

Laadige rohkem...

Oodake, Otsides Loyd Carrieri fotosid teie jaoks...

Vaata ka:

General Characteristics

The Loyd Carrier, officially the ‘Carrier, Tracked, Personnel Carrying’ (TPC) or ‘Tracked Towing’ (TT), was a British light tracked vehicle used extensively by British and Commonwealth forces during World War II. Designed by Captain Vivian Loyd (co-designer of the Carden Loyd tankette), it was intended as an **artillery tractor** and general-purpose vehicle to transport personnel and materials across the battlefield, particularly for towing anti-tank guns and mortars. Its design prioritized simplicity and low cost, utilizing many components from the **Fordson 7V 15 cwt truck**, including the engine and gearbox. It was a utilitarian, reliable vehicle, with over 26,000 units built.

Property	Typical Value (Loyd Carrier TT/TPC)
Rolli	Artillery Tractor, Personnel Carrier, Liaison
National Origin	Ühendkuningriik
disainer	Vivian Loyd
Service Entry	1939
No. Built (Total)	~26,000
Meeskonna	1 (Driver) + up to 5/6 passengers/gun crew
Combat Weight	~4.5 tonnes (4.43 long tons)
pikkus	4.24 m (13 ft 11 in)
laius	2.06 m (6 ft 9 in)
Height (Hull Top)	1.42 m (4 ft 8 in)

Powerplant and Mobility

Engine: Ford V8-cylinder, liquid-cooled, side-valve petrol engine.
Power Output: 63 kW (85 hp) (British or Canadian) or 67 kW (90 hp) (US).
Transmission: Ford 4-speed, manual gearbox.
Maximum Speed (Road): 48 km/h (30 mph).
Operational Range: 200–220 km (125–137 miles).
Suspension: Horstmann suspension units (same as Universal Carrier).
Steering: Controlled by two levers which activated brakes on the front drive sprockets and rear idlers to slow or stop one track.
Design Note: The engine and radiator were mounted in the **rear** of the vehicle, with the drive shaft running forward to the front-mounted drive sprockets.

Armor and Variants

Armour: Light, sloped mild steel plate (often known as ‘BP Plate’ – Bullet Proof) was bolted to the front and upper sides of the hull, offering protection only against small arms fire and shrapnel.
- Thickness: Up to 7 mm.
- The hull was open-topped and open at the rear, though a canvas cover was a standard fitment.
Armament: Generally unarmed in production roles, though a single Bren Light Machine Gun was often carried for crew defense.
Key Variants:
- Tracked Towing (TT): Most common version, used to tow the 2-pounder and 6-pounder anti-tank guns and 4.2-inch mortars, carrying the gun crew and ammunition.
- Tracked Personnel Carrier (TPC): Equipped with bench seating for personnel.
- Tracked Starting and Charging (TS&C): Fitted with generators and batteries to jump-start other armored vehicles.
- Tracked Cable Layer Mechanical (TCLM): Used by Royal Signals for laying cables.
