洛伊德·开利 | |
|---|---|
| 国家 | 英国 |
| 作用 | 装甲运兵车 |
| 在服务中 | 1939-1960年代 |
| 建立 | 26000+ |
这 洛伊德·开利 是英国和英联邦军队在第二次世界大战中用来运送战场上装备和人员的小型履带车辆之一。除了布伦，童子军和机枪航母，他们还移动步兵支援武器。
源： 维基百科上的洛伊德运营商
| CATI 90 mm Walk Around | |
|---|---|
| 摄影师 | Unknow |
| 本地化 | 未知 |
| 照片 | 68 |
| Loyd Carrier Walk Around | |
|---|---|
| 摄影师 | Robert Blokker |
| 本地化 | 未知 |
| 照片 | 119 |
另请参阅：
General Characteristics

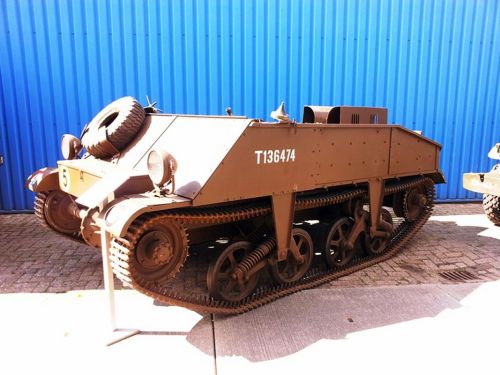

The Loyd Carrier, officially the ‘Carrier, Tracked, Personnel Carrying’ (TPC) or ‘Tracked Towing’ (TT), was a British light tracked vehicle used extensively by British and Commonwealth forces during World War II. Designed by Captain Vivian Loyd (co-designer of the Carden Loyd tankette), it was intended as an **artillery tractor** and general-purpose vehicle to transport personnel and materials across the battlefield, particularly for towing anti-tank guns and mortars. Its design prioritized simplicity and low cost, utilizing many components from the **Fordson 7V 15 cwt truck**, including the engine and gearbox. It was a utilitarian, reliable vehicle, with over 26,000 units built.
| Property | Typical Value (Loyd Carrier TT/TPC) |
|---|---|
| 作用 | Artillery Tractor, Personnel Carrier, Liaison |
| National Origin | 英国 |
| 设计师 | Vivian Loyd |
| Service Entry | 1939 |
| No. Built (Total) | ~26,000 |
| 船员 | 1 (Driver) + up to 5/6 passengers/gun crew |
| Combat Weight | ~4.5 tonnes (4.43 long tons) |
| 长度 | 4.24 m (13 ft 11 in) |
| 宽度 | 2.06 m (6 ft 9 in) |
| Height (Hull Top) | 1.42 m (4 ft 8 in) |
Powerplant and Mobility

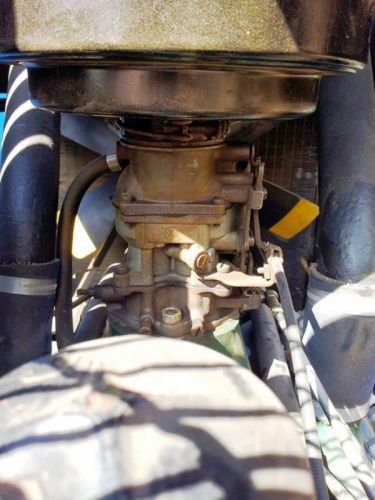

- Engine: Ford V8-cylinder, liquid-cooled, side-valve petrol engine.
- Power Output: 63 kW (85 hp) (British or Canadian) or 67 kW (90 hp) (US).
- Transmission: Ford 4-speed, manual gearbox.
- Maximum Speed (Road): 48 km/h (30 mph).
- Operational Range: 200–220 km (125–137 miles).

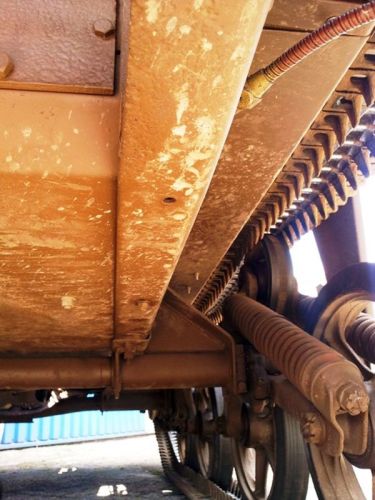

- Suspension: Horstmann suspension units (same as Universal Carrier).
- Steering: Controlled by two levers which activated brakes on the front drive sprockets and rear idlers to slow or stop one track.

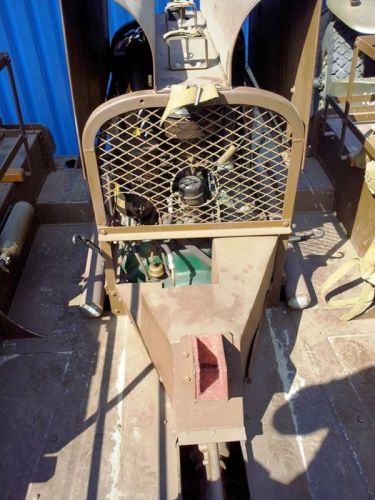

- Design Note: The engine and radiator were mounted in the **rear** of the vehicle, with the drive shaft running forward to the front-mounted drive sprockets.
Armor and Variants
- Armour: Light, sloped mild steel plate (often known as ‘BP Plate’ – Bullet Proof) was bolted to the front and upper sides of the hull, offering protection only against small arms fire and shrapnel.
- Thickness: Up to 7 mm.
- The hull was open-topped and open at the rear, though a canvas cover was a standard fitment.
- Armament: Generally unarmed in production roles, though a single Bren Light Machine Gun was often carried for crew defense.
- Key Variants:
- Tracked Towing (TT): Most common version, used to tow the 2-pounder and 6-pounder anti-tank guns and 4.2-inch mortars, carrying the gun crew and ammunition.
- Tracked Personnel Carrier (TPC): Equipped with bench seating for personnel.
- Tracked Starting and Charging (TS&C): Fitted with generators and batteries to jump-start other armored vehicles.
- Tracked Cable Layer Mechanical (TCLM): Used by Royal Signals for laying cables.
