Ford AT-5 Tri-Motor

Ford AT-5 Tri-motor
Land	Usa
Rolle	Transportflugzeuge
Einleitung	1926
Gebaut	199

das Ford Trimotor "The Tin Goose" ist ein US-amerikanisches dreimotoriges Transportflugzeug. Die Produktion begann 1925 durch die Firmen von Henry Ford und endete am 7. Juni 1933. Insgesamt wurden 199 Ford Trimotoren hergestellt. Es wurde für den zivilen Luftfahrtmarkt konzipiert, wurde aber auch bei militärischen Einheiten eingesetzt.

Quelle: Ford AT-5 Tri-motor auf Wikipedia

Ford AT-5 Tri-motor Walk Around
Fotograf	Cees Hendriks
Lokalisierung	Unbekannter
Fotos	26

Ford AT-5 Tri-motor 01

Ford AT-5 Tri-motor 02

Ford AT-5 Tri-motor 03

Ford AT-5 Tri-motor 06

Ford AT-5 Tri-motor 04

Ford AT-5 Tri-motor 05

Ford AT-5 Tri-motor 07

Ford AT-5 Tri-motor 08

Ford AT-5 Tri-motor 09

Click on a photo and use the mouse scroll to view all photos

Warten Sie, Suche Ford AT-5 Tri-Motor Fotos für Sie ...

Ford 5-AT-B Tri-Motor Walk Around
Fotograf	Wladimir Nikolajewitsch Jakubow
Lokalisierung	Hayward, Kalifornien
Fotos	188

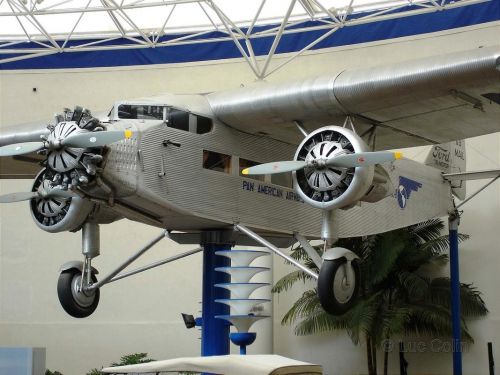

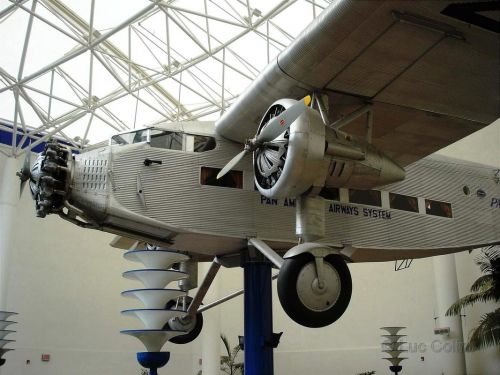

Ford 5-AT-B Trimotor
Fotograf	Luc Colin
Lokalisierung	Unbekannter
Fotos	28

Ford 5-AT-B Trimotor

Mehr laden...

Siehe auch:

Ford 5-AT-B Trimotor
Fotograf	Wladimir Nikolajewitsch Jakubow
Lokalisierung	Evergreen Air & Space Museum
Fotos	155

The Masterpiece of Corrugated Metal

das Ford Tri-Motor, specifically the larger and more powerful 5-AT series, was the aircraft that made transcontinental air travel a reality in the United States. Inspired by the all-metal designs of Hugo Junkers, Henry Ford applied his mass-production philosophy to aviation. The result was a loud, slow, but incredibly sturdy machine. Its corrugated aluminum skin and three-engine reliability gave the public the confidence to step off trains and into the skies for the first time.

Attribute	Technical Specification (Ford 5-AT-B)
Rolle	Commercial Airliner / Cargo Transport
Crew	3 (Pilot, Co-pilot, Flight Attendant)
Fassungsvermögen	Up to 15 Passengers
First Flight (5-AT)	July 21, 1928

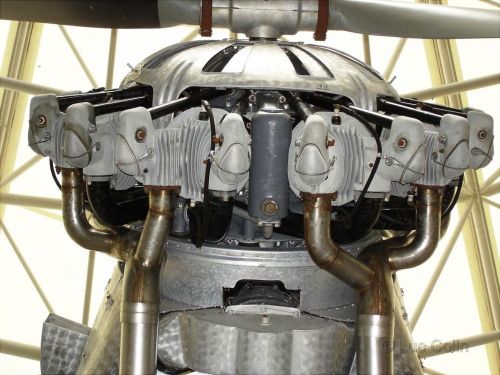

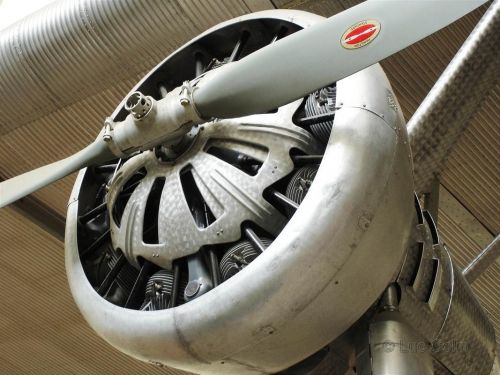

Triebwerk	3 × Pratt & Whitney R-1340 Wasp radial engines
Horsepower	420 hp (313 kW) each
Höchstgeschwindigkeit	150 mph (241 km/h)
Service Ceiling	18,500 feet (5,640 m)

Industrial Strength Engineering

The “Tin Goose” Skin: Like the Junkers F.13, the Ford used Alclad (corrugated aluminum alloy). This provided exceptional structural strength and corrosion resistance, though it created significant drag that limited the aircraft’s top speed.

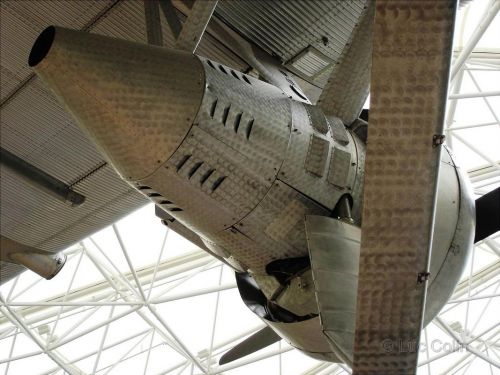

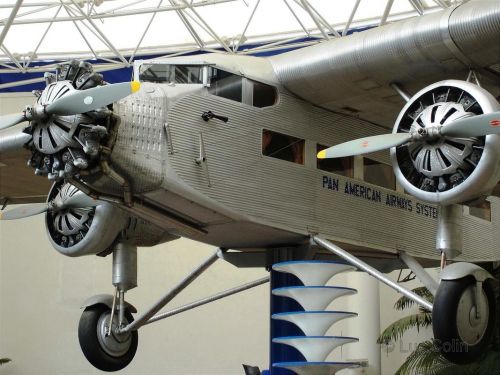

Engine Configuration: One engine was mounted in the nose, and two were suspended beneath the wings. This layout ensured that even if one engine failed, the aircraft could safely maintain altitude or even climb.

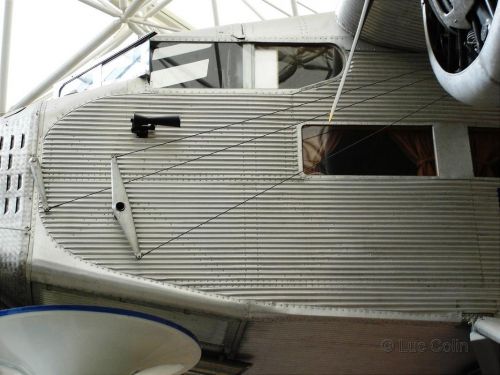

External Control Cables: In a design that seems primitive today, the control cables for the rudder and elevators ran along the outside of the fuselage. This made maintenance and inspection remarkably easy for mechanics in the field.
Cabin Luxury: For the late 1920s, the 5-AT was the height of luxury. It featured wicker seats (to save weight), cabin heaters that utilized engine exhaust, and even primitive bathrooms.

Cultural Icon and Utility

Transcontinental Air Transport (TAT): Working with Charles Lindbergh, Ford helped establish the “The Lindbergh Line,” which used a combination of trains at night and Tri-Motors by day to cross the U.S. in just 48 hours.
The Antarctic Expedition: In 1929, Rear Admiral Richard E. Byrd used a 4-AT variant (the Floyd Bennett) to make the first flight over the South Pole, proving the Tri-Motor’s extreme reliability in sub-zero conditions.
Bush Flying Legend: Because of its high lift and rugged landing gear, the Tri-Motor was used for decades after it left airline service to carry heavy machinery into the remote mines of Alaska and South America.
A Living Legend: Remarkably, several Ford Tri-Motors are still airworthy today. The Experimental Aircraft Association (EAA) and Liberty Aviation Museum regularly tour the country, allowing passengers to experience the roaring engines of the 1920s first-hand.
