Focke-Wulf Fw 44

Focke-Wulf Fw 44
Страна	Германия
Роля	Тренажор за биплан
Производители	Focke-Wulf FMA
Първи полет	1932

1. Фоке-Вулф ФВ 44 е немски двуместен биплан от 30-те години на миналия век, известен като Stieglitz ("Голдфинч"). Ранен дизайн от Kurt Tank, той е произведен от компанията Focke-Wulf като пилотско обучение и спортен летящ самолет. Също така в крайна сметка е построен по лиценз в няколко други страни.

Източник: Focke-Wulf Fw 44 в Уикипедия

Focke-Wulf Fw 44 Stieglitz Walk Around
Фотограф	Unknow
Локализация	Не знам
Снимки	20

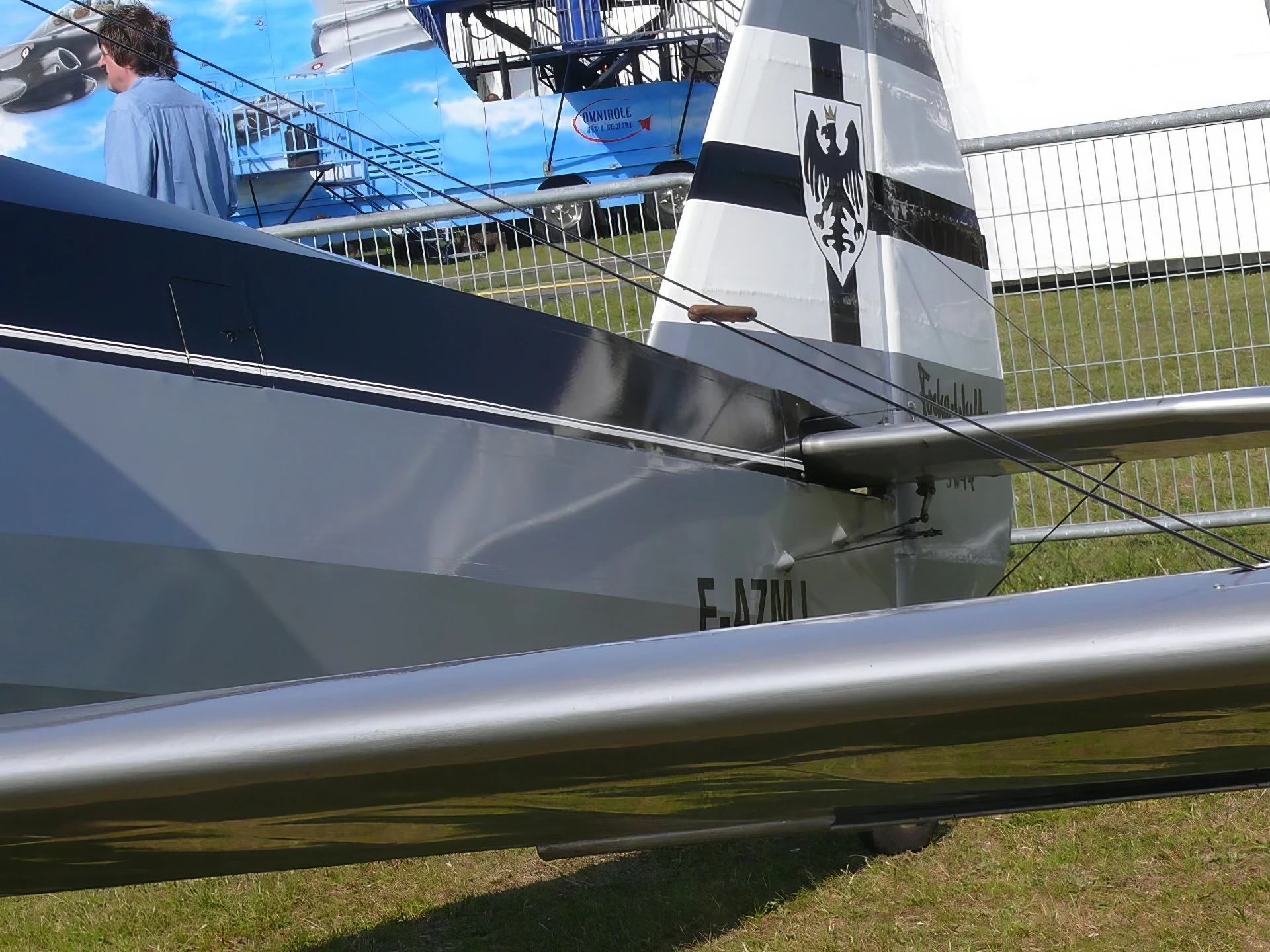

Focke-Wulf Fw 44 Stieglitz 01

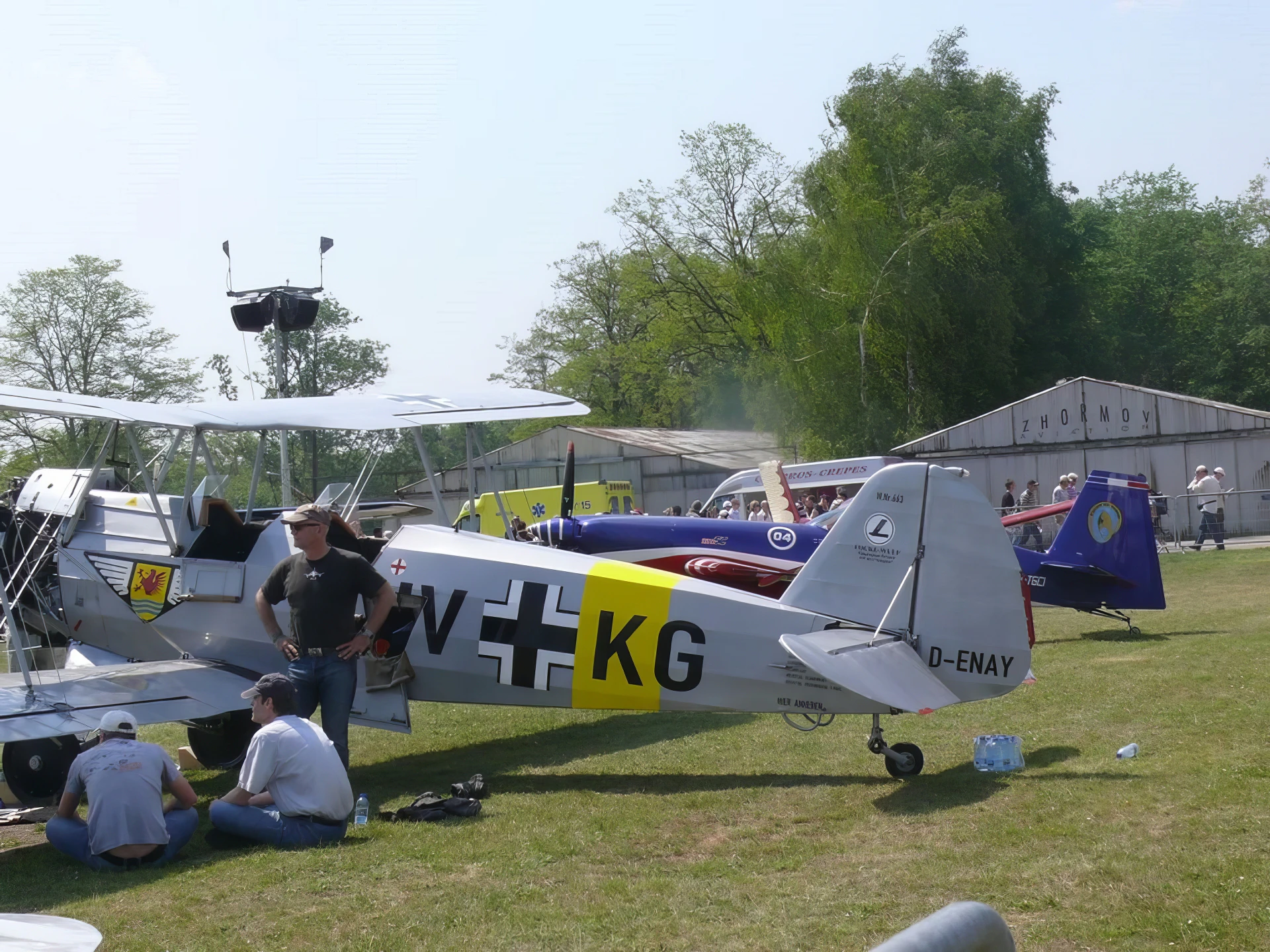

Focke-Wulf Fw 44 Stieglitz 02

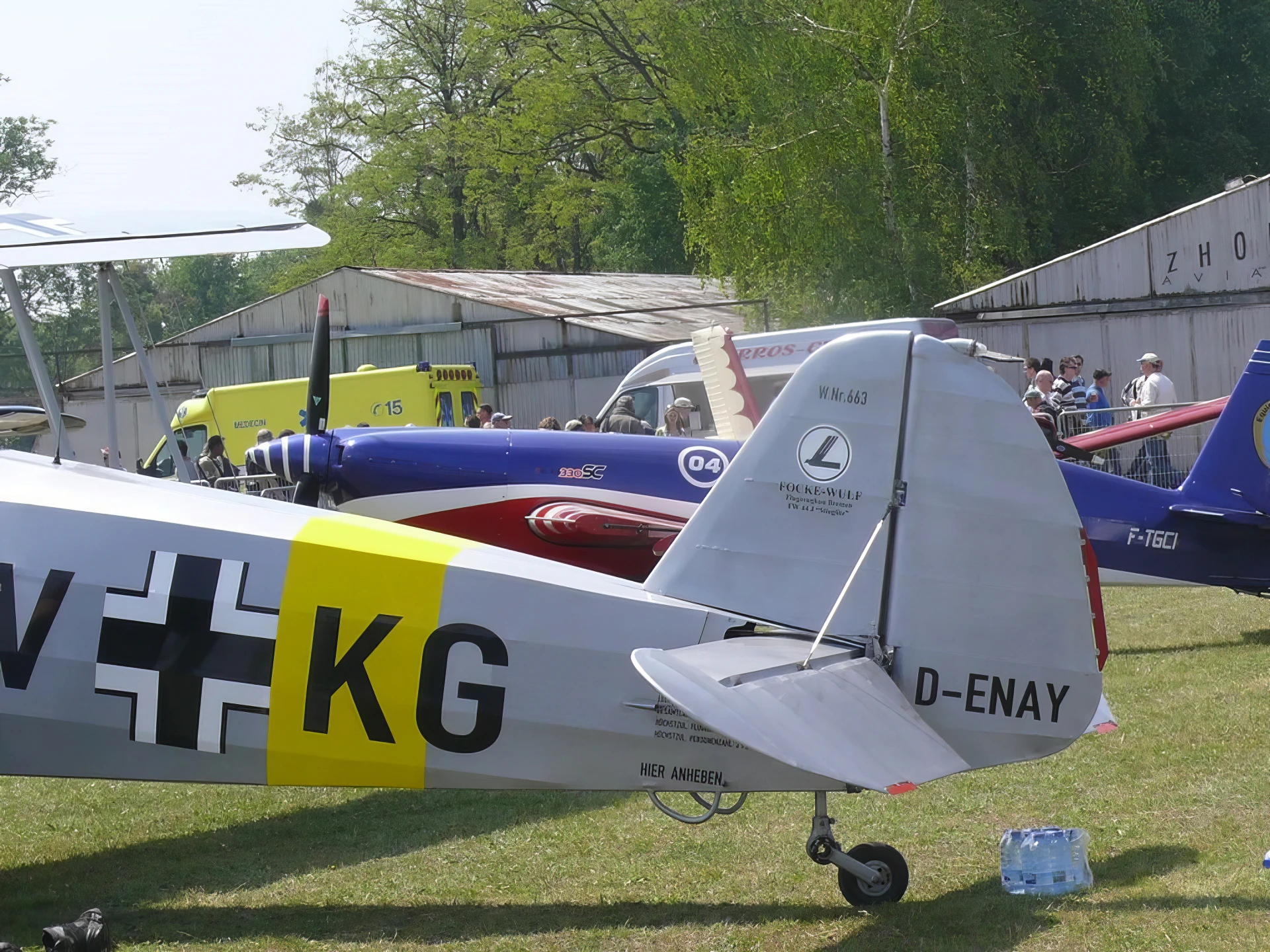

Focke-Wulf Fw 44 Stieglitz 03

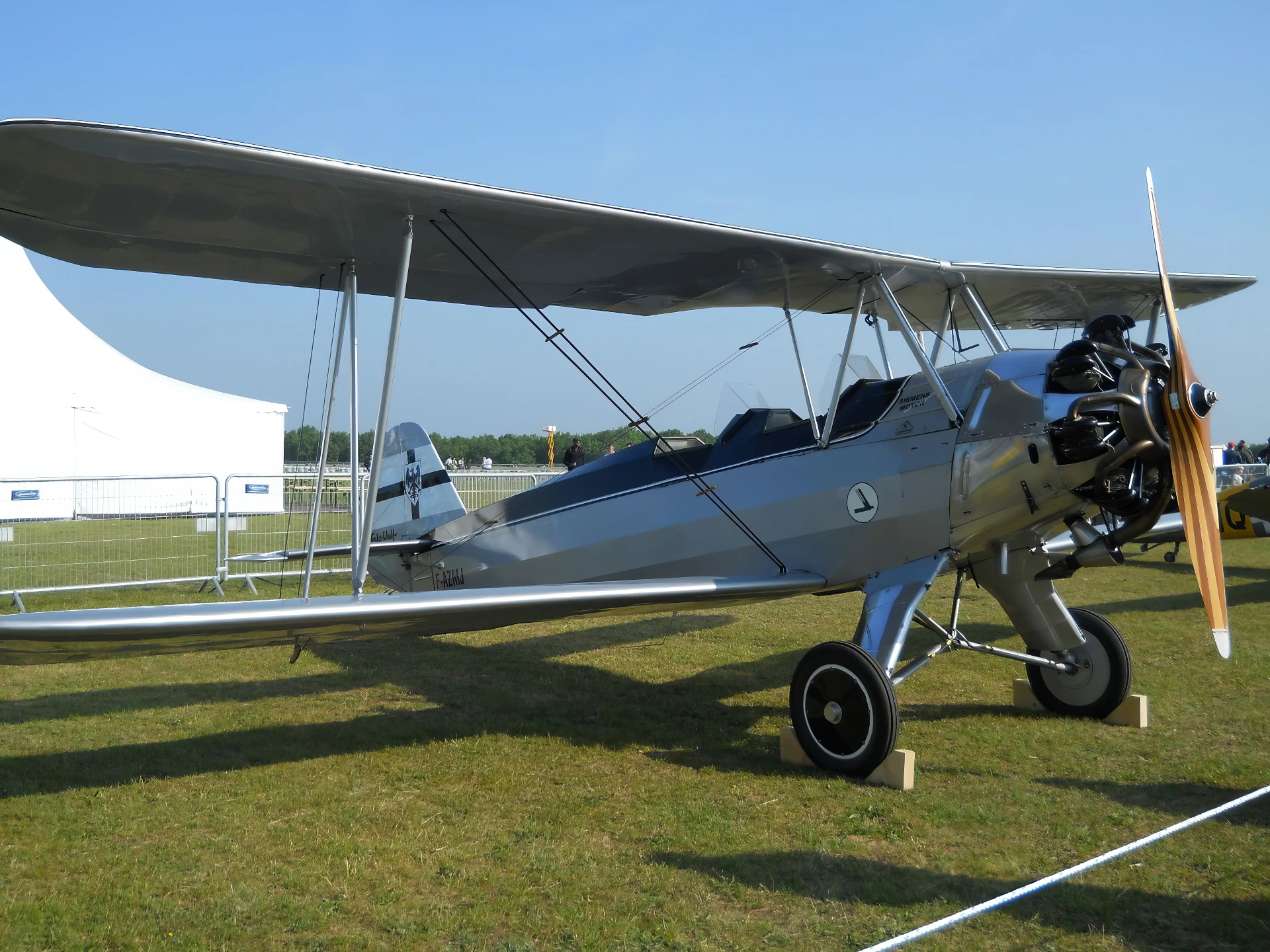

Focke-Wulf Fw 44 Stieglitz 04

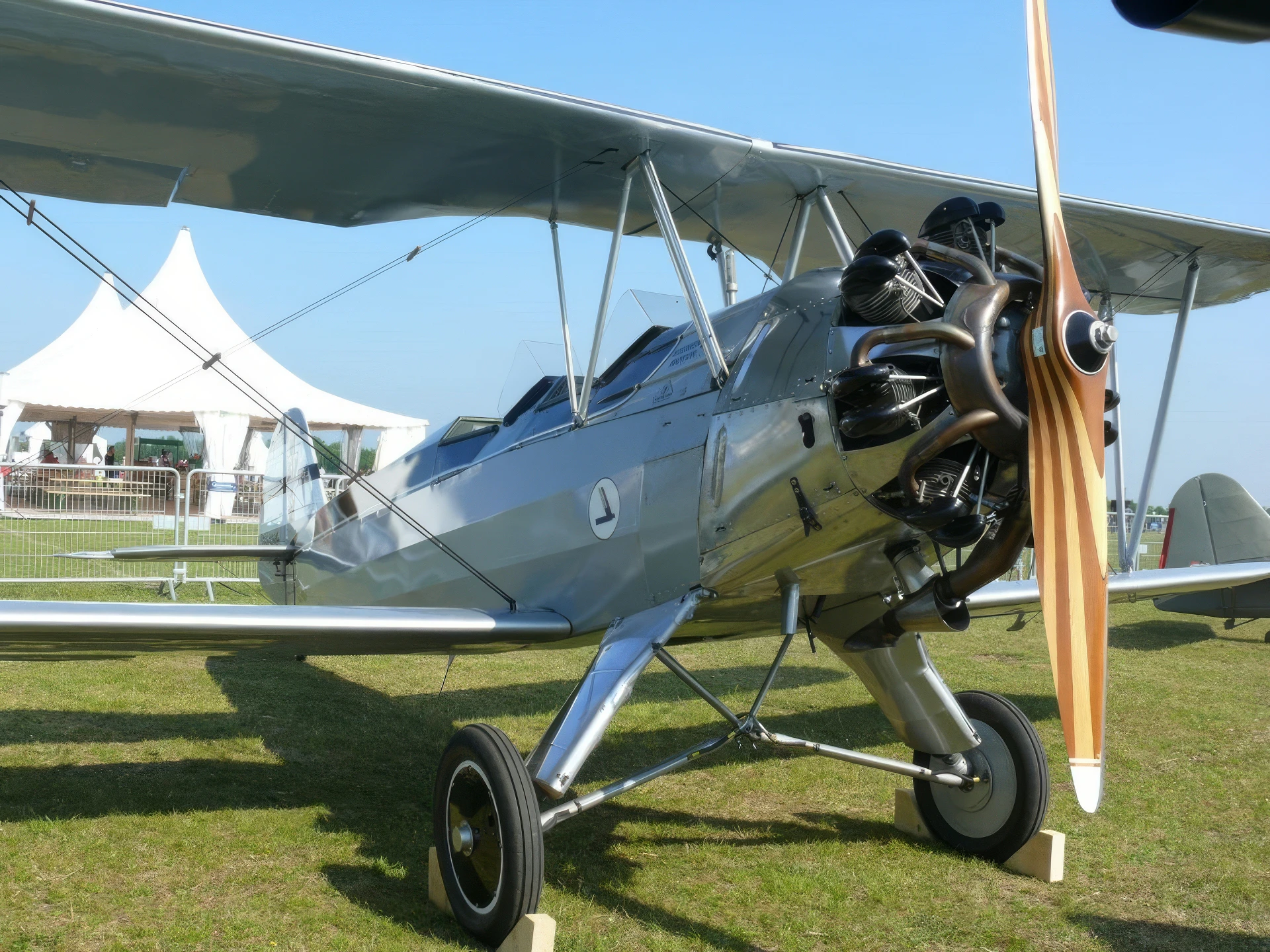

Focke-Wulf Fw 44 Stieglitz 05

Focke-Wulf Fw 44 Stieglitz 06

Focke-Wulf Fw 44 Stieglitz 07

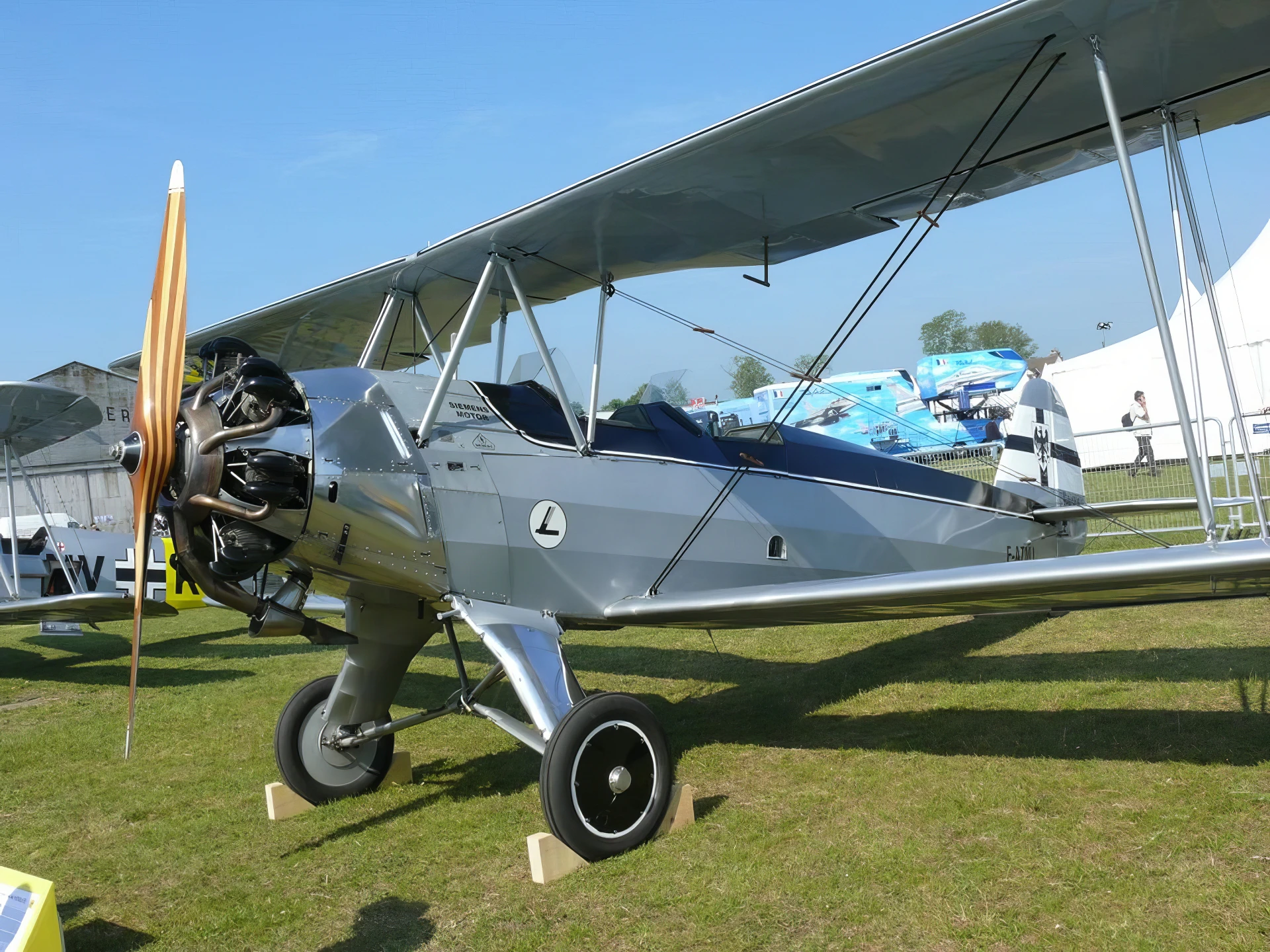

Focke-Wulf Fw 44 Stieglitz 08

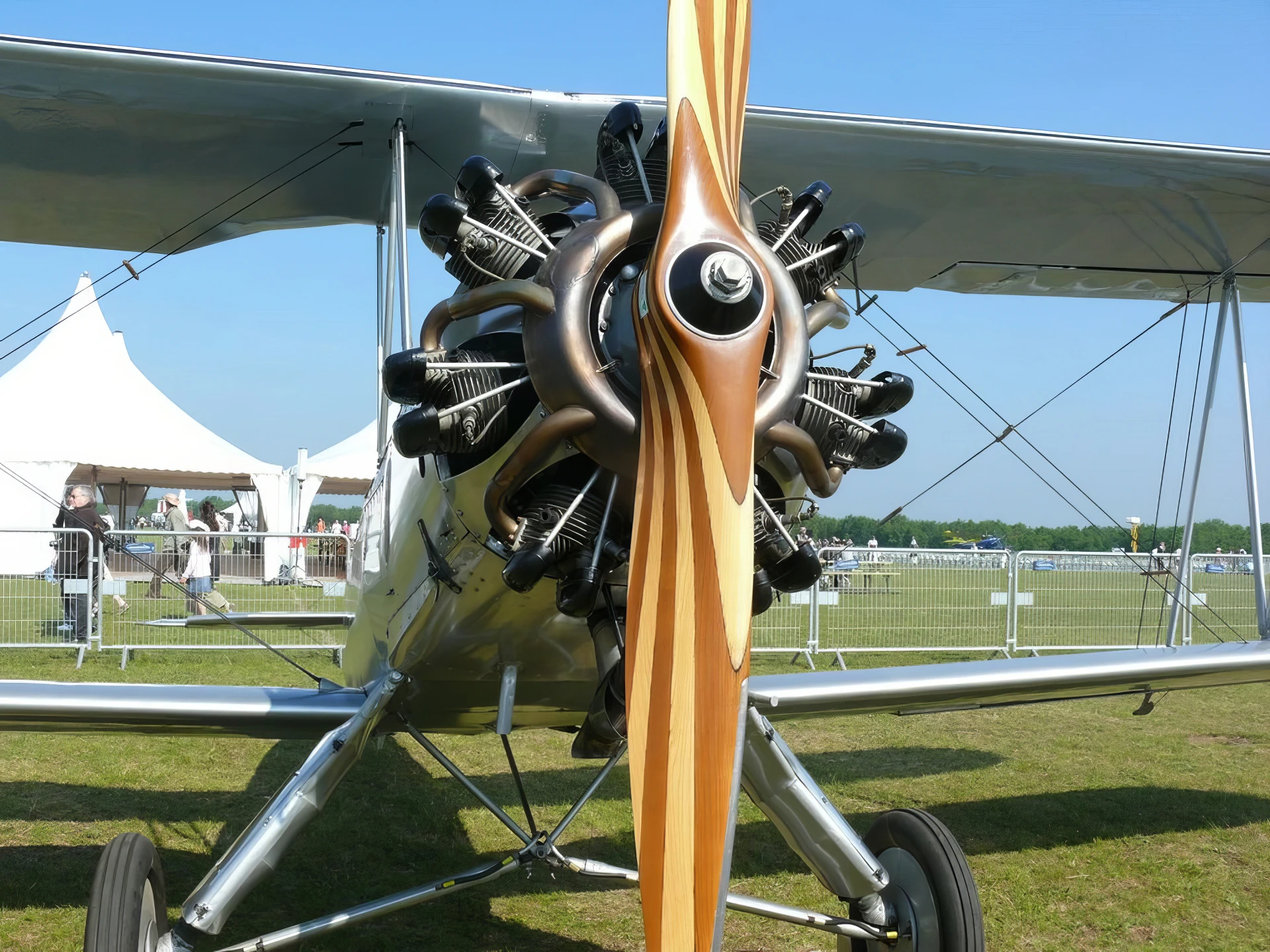

Focke-Wulf Fw 44 Stieglitz 09

Click on a photo and use the mouse scroll to view all photos

Изчакайте, Търсене Focke-Wulf Fw 44 за вас...

Вижте също:

The Foundation of the Luftwaffe

1. Фоке-Вулф Фв 44 Стиглиц (Goldfinch) was a 1930s-era two-seat biplane that served as the primary basic trainer for the re-emerging German Luftwaffe. Designed by the legendary Kurt Tank, it was a conventional but exceptionally well-balanced aircraft. Its fame came not just from training pilots, but from its incredible aerobatic capabilities. It was the aircraft of choice for world-renowned pilots like Ernst Udet and Gerd Achgelis, who used it to perform maneuvers that were previously thought impossible for a biplane of its class.

Attribute	Standard Specification (Fw 44J)
Роля	Primary Trainer / Aerobatic Aircraft
Екипажа	2 (Tandem open cockpits)
First Flight	1932
Силова установка	1 × Siemens-Halske Sh 14A 7-cylinder radial
Horsepower	150 hp (112 kW)
Maximum Speed	185 km/h (115 mph)
Размах	9 meters (29 ft 6 in)
Empty Weight	565 kg (1,246 lb)

Design Refinement & Handling

Staggered Biplane Wings: The upper wing was positioned slightly forward of the lower wing. This “stagger” improved the pilot’s upward visibility and provided better stall characteristics, as the two wings would stall at slightly different angles of attack.

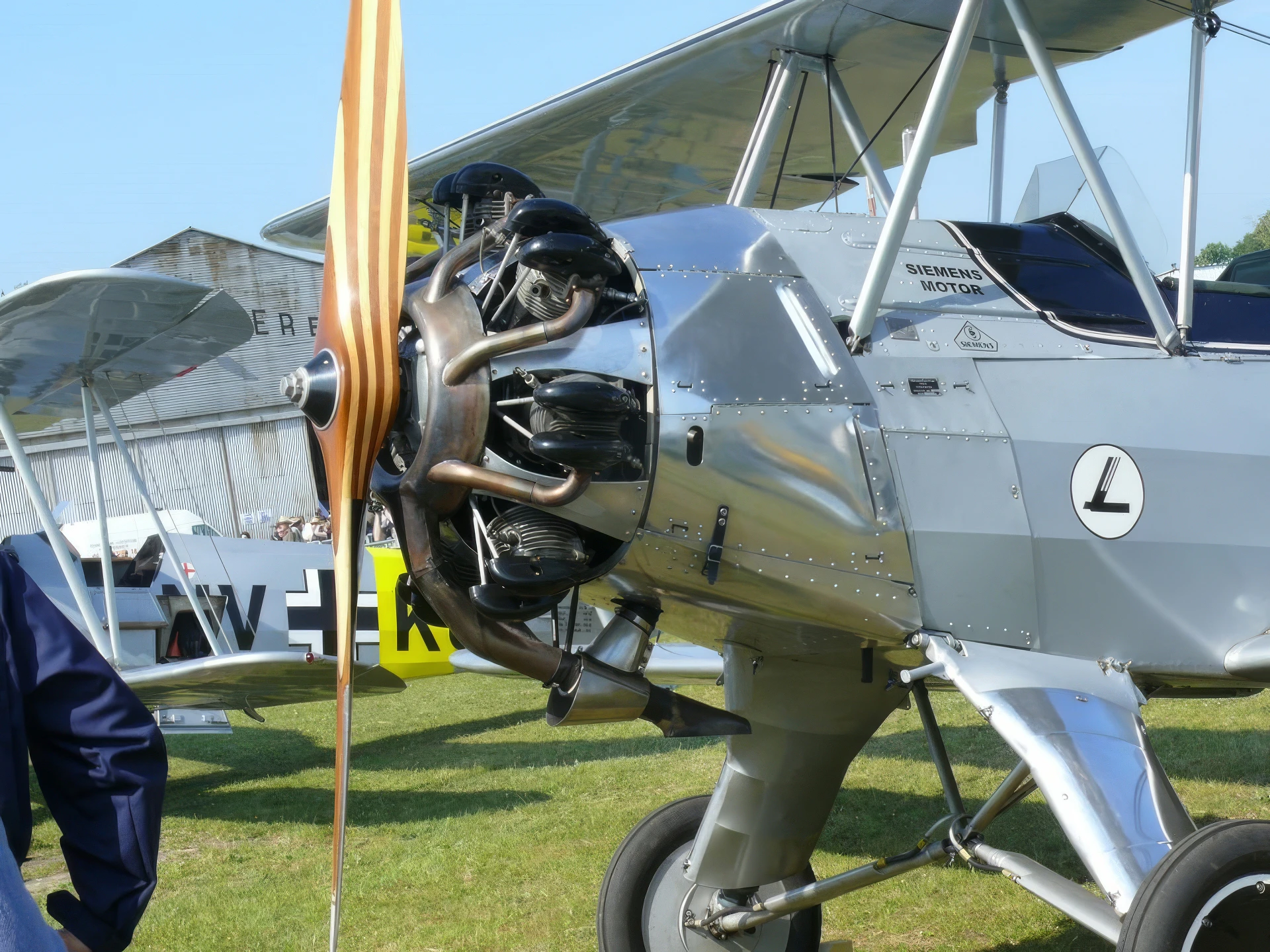

The Sh 14 Radial: The Siemens-Halske Sh 14 radial engine was famous for its reliability and smooth power delivery. Crucially for aerobatics, it featured a specialized carburetor system that allowed the engine to run while the aircraft was flying inverted (upside down).
Steel-Tube Fuselage: Unlike many contemporary wooden trainers, the Fw 44 used a welded steel-tube fuselage covered in fabric. This gave the aircraft the structural rigidity needed to withstand high G-loads during extreme aerobatic maneuvers.
Four-Aileron System: To ensure rapid roll rates, the Stieglitz featured ailerons on both the upper and lower wings, connected by push-rods. This gave the pilot immense “authority” over the plane’s movements.

International Success

Global Trainer: The Fw 44 was an export sensation, sold to or built under license by Argentina, Austria, Brazil, Bulgaria, China, Finland, Romania, Sweden, and Turkey.
Finnish Service: In Finland, the aircraft was used for decades and was nicknamed the Stigu. It was instrumental in training the Finnish fighter aces who would later fly the Brewster Buffalo and Bf 109.
Aerobatic Legend: During the 1936 Berlin Olympics, the Fw 44 was used in massive aerobatic displays to showcase German aviation prowess to the world.
Longevity: Because of its robust construction and delightful handling, many Fw 44s survived the war and continued flying in civilian hands as late as the 1960s and 70s.
