General Dynamics F-111C

General Dynamics F-111C
Paese	Usa
Ruolo	Cacciabombardardi e aerei da ricognizione
Primo volo	Luglio 1968
Costruito	28

Le General Dynamics F-111C (soprannominato "Pig") è una variante dell'F-111 Aardvark interdictor e aereo da attacco tattico, sviluppato dalla General Dynamics per soddisfare i requisiti australiani. Il design era basato sul modello F-111A, ma includeva ali più lunghe e carrello rinforzato. Il governo australiano ordinò a 24 F-111C di equipaggiare la Royal Australian Air Force (RAAF) nel 1963, ma l'aereo non fu consegnato fino al 1973 a causa di problemi tecnici di lunga data.

fonte: General Dynamics F-111C su Wikipedia

F-111C Walk Around
Fotografo	Fotios Rouch
Localizzazione	Inconsapevole
Foto	54

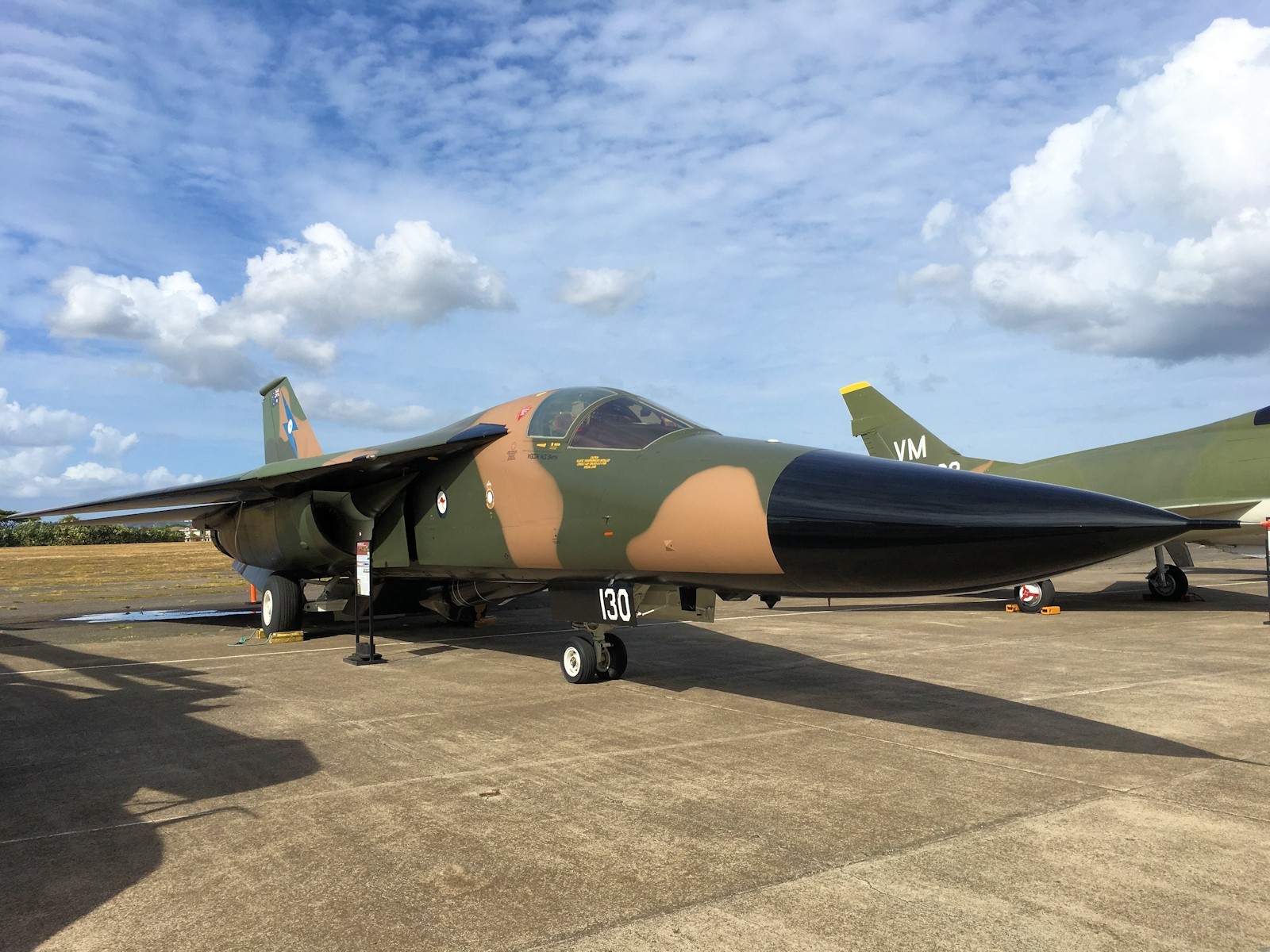

F-111C 01

F-111C 02

F-111C 03

F-111C 04

F-111C 05

F-111C 06

F-111C 07

F-111C 08

F-111C 09

Click on a photo and use the mouse scroll to view all photos

Aspetta, cerca foto General Dynamics F-111C per te ...

Vedi anche:

General Characteristics and Role

The General Dynamics F-111C is a variant of the F-111 Aardvark swing-wing interdictor and tactical strike aircraft, specifically developed for the Royal Australian Air Force (RAAF). It combined the F-111A’s fuselage with the larger, longer-span wings of the FB-111A strategic bomber, along with a strengthened undercarriage to handle heavier weights. Known affectionately as the “Pig” by RAAF crews for its long snout and terrain-following capability, the F-111C served as Australia’s primary long-range strike and reconnaissance platform from 1973 until its retirement in 2010. Its key features were the variable-sweep wings, terrain-following radar, and an escape crew capsule.

Property	Typical Value
Ruolo	Tactical Strike, Interdiction, Reconnaissance (RF-111C)
National Origin	United States (Variant for Australia)
Produttore	Dinamica generale
Service Entry (RAAF)	1973
Equipaggio	2 (Pilot and Weapon Systems Officer, side-by-side)
Lunghezza	22.41 m (73 ft 6 in)
Wingspan (Extended/Max Sweep)	19.2 m (63 ft) / 9.73 m (31 ft 11 in)
Maximum Takeoff Weight	Approx. 41,504 kg (91,500 lb)

Powerplant and Performance

Engines: Two Pratt & Whitney TF30-P-100/109RA afterburning turbofans.
Maximum Thrust (P-100/P-109RA): Approx. 80 kN dry / 112 kN afterburner (P-100); 92.7 kN dry / 121 kN afterburner (P-109RA).
Maximum Speed (High Altitude): Mach 2.5 (2,655 km/h / 1,650 mph).
Maximum Speed (Sea Level): Mach 1.2 (1,390 km/h / 865 mph).
Combat Radius (Hi-Lo-Hi): Approx. 2,140 km (1,330 mi) with combat load.
Ferry Range (Max Fuel): Approx. 6,115 km (3,800 mi).
Key Technology: Terrain-Following Radar (TFR) coupled to the autopilot for automatic, high-speed, low-level flight penetration.

Armament and Avionics

Internal Weapons Bay: Could carry two M117 750 lb bombs, one nuclear weapon, auxiliary fuel, or the 20 mm M-61A1 Vulcan rotary cannon (seldom fitted).
External Hardpoints: 9 total (8 under-wing, 1 under-fuselage).
- Capacity: Up to 14,288 kg (31,500 lb) of ordnance.
- Swiveling Pylons: Four underwing pylons pivot with the wing sweep to maintain alignment.
Armament Capability:
- Conventional Bombs: General purpose bombs (Mk-82, Mk-84).
- Guided Munitions: Laser-Guided Bombs (LGBs) using the AN/AVQ-26 Pave Tack pod (fitted in the weapons bay).
- Missiles: AGM-84 Harpoon anti-ship missile, AGM-142 Stand-Off Weapon, and AIM-9 Sidewinder air-to-air missiles for self-defense.
Reconnaissance Role: Four aircraft were converted to the RF-111C variant, carrying a pallet of cameras and sensors (like the panoramic KA-56E and AN/AAD-5 Infrared Linescanner) in the weapons bay.
