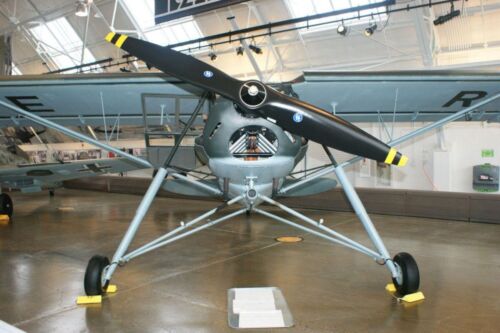

Lla Fieseler Fi 156 Storch (Anglais: Stork) était un petit avion de liaison allemand construit par Fieseler avant et pendant la Seconde Guerre mondiale. La production s’est poursuivie dans d’autres pays dans les années 1950 pour le marché privé. Il reste célèbre pour son excellente performance STOL; Français ultérieures construites à l’extérieur apparaissent souvent lors de spectacles aériens.
Attendez, la recherche Fieseler Fi 156 pour vous ...

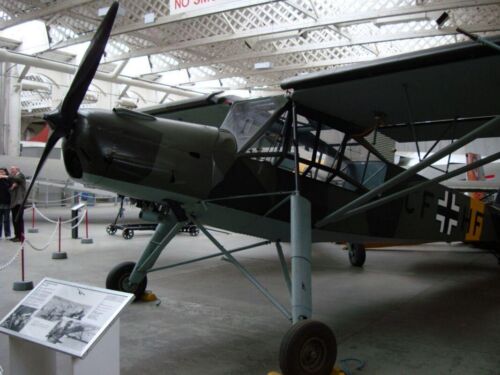

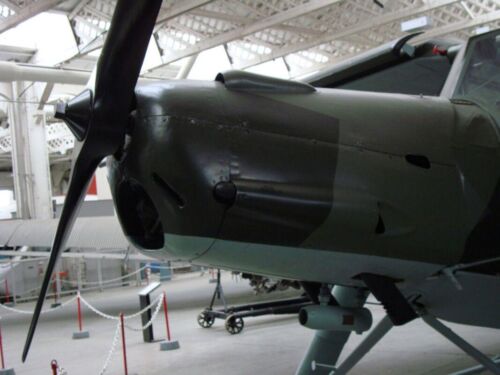

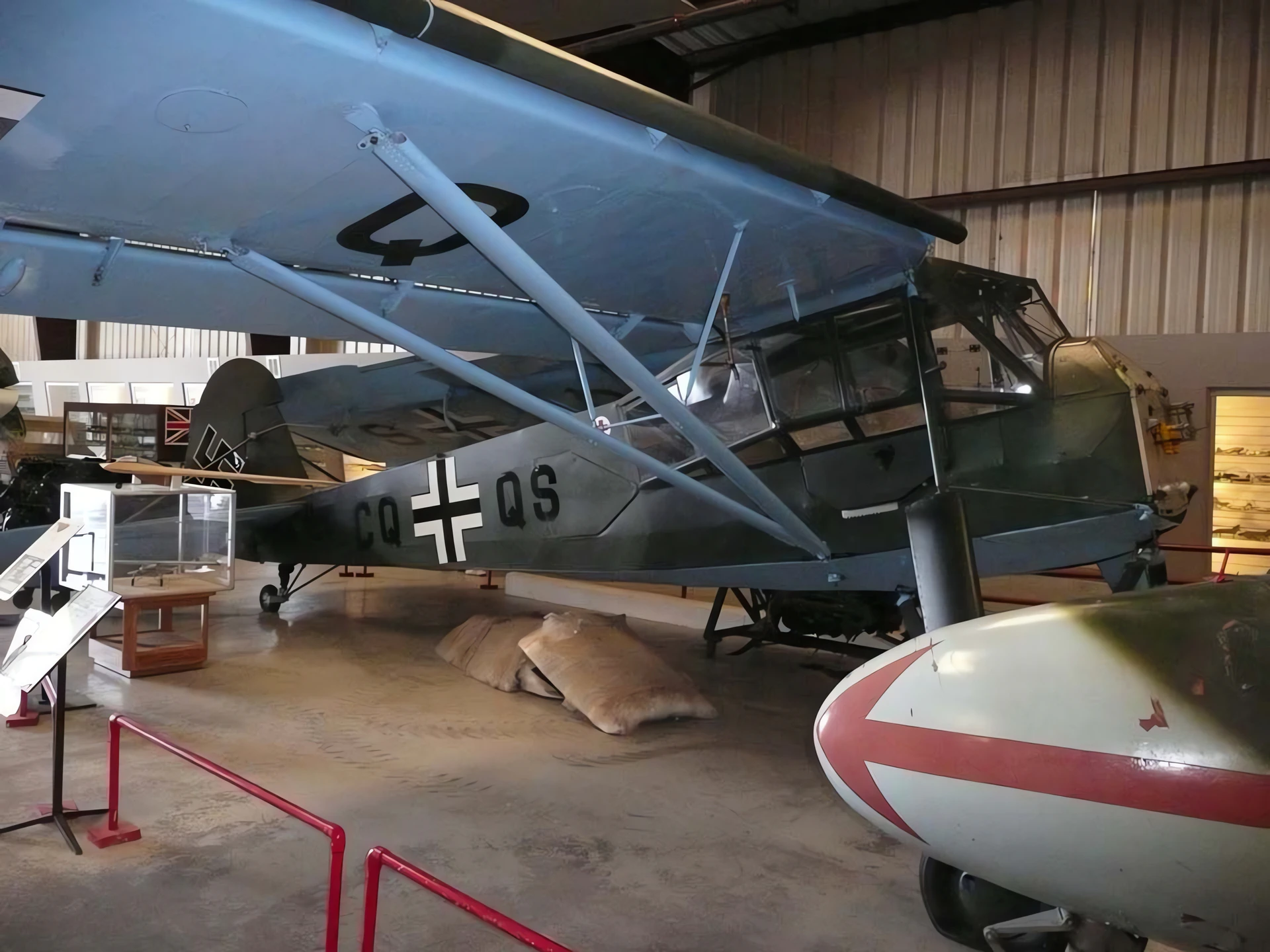

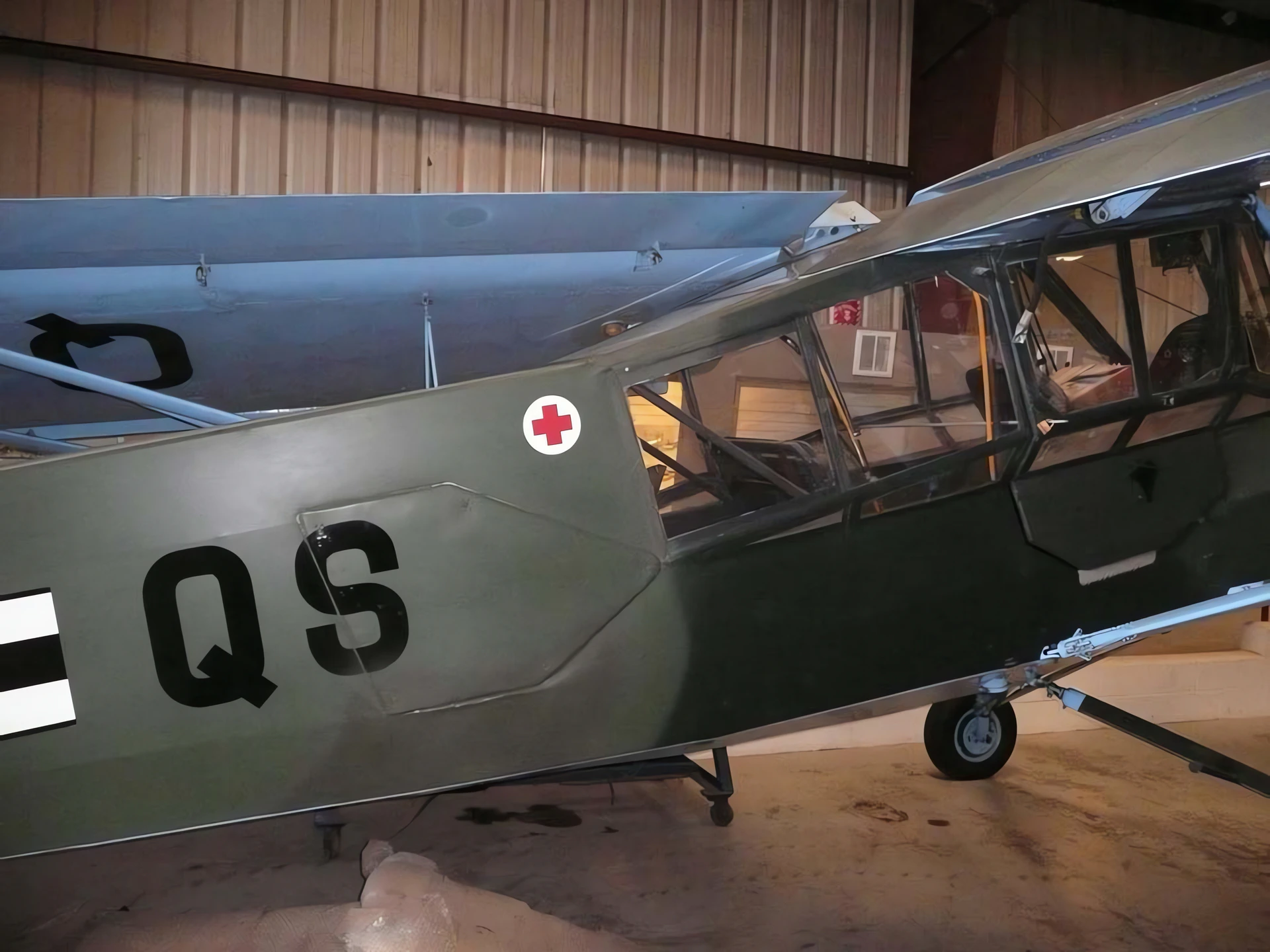

Fieseler Fi 156 Storch Walk Around
Photographe
Unknow
Localisation
Inconnu
Photos
44

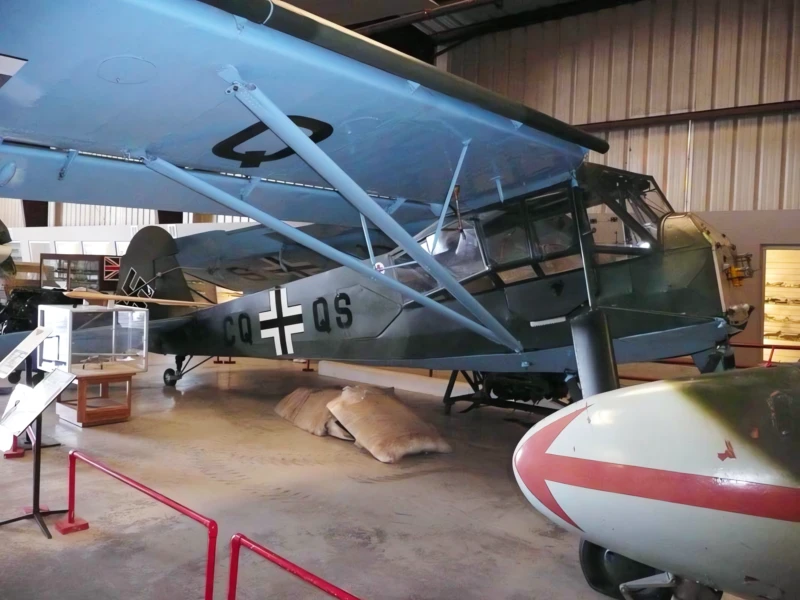

Fieseler Fi-156-C7 Storch Walk Around
Photographe
Randy Ray
Localisation
Musée de la Royal Air Force Cosford
Photos
16
Voir aussi :

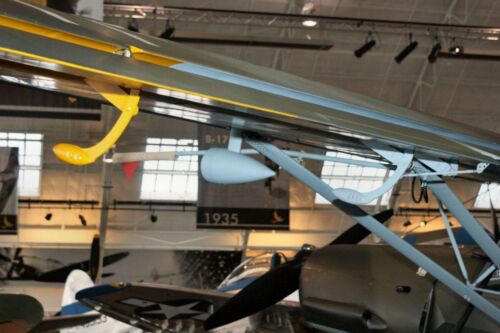

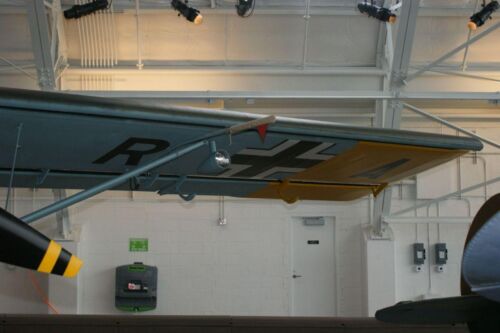

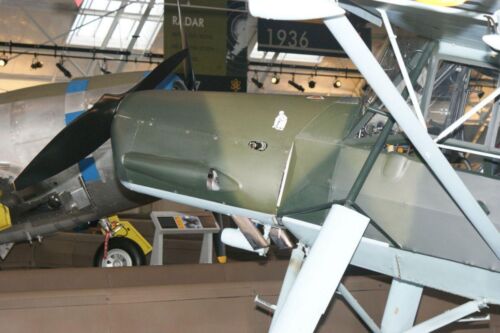

Feiseler Fi-156 Storch Walk Around
Photographe
Vladimir Yakubov
Localisation
Flying Heritage Collection
Photos
49

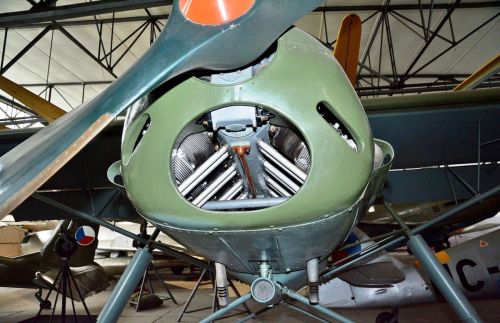

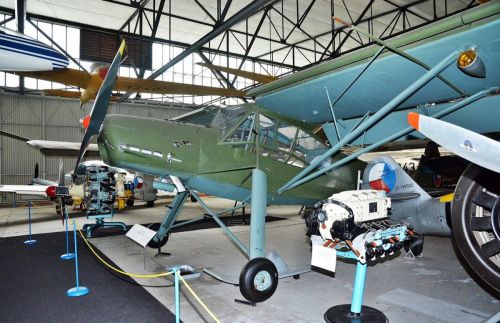

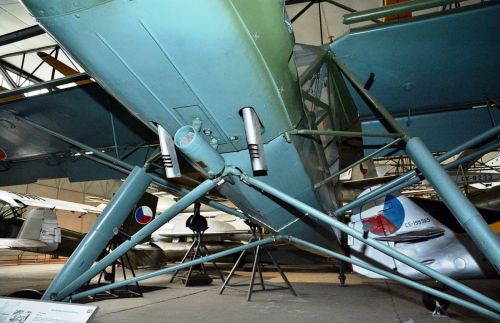

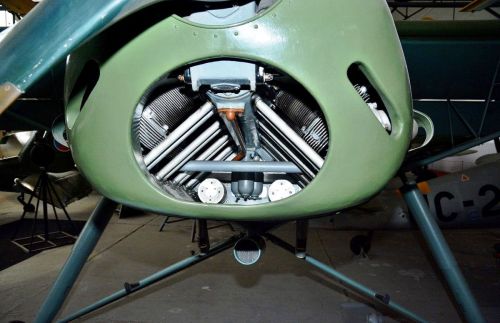

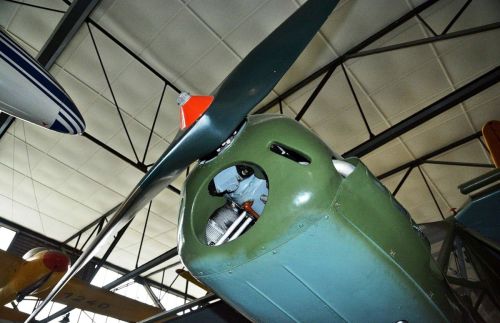

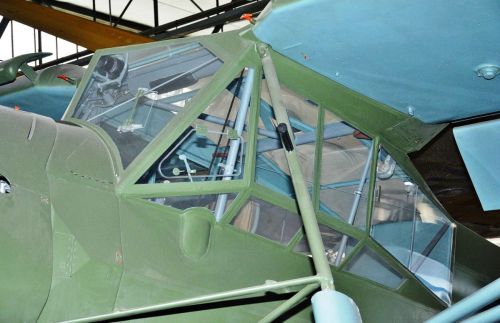

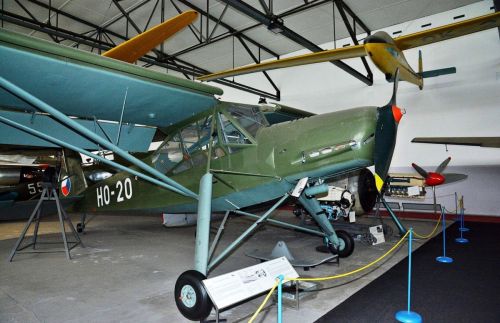

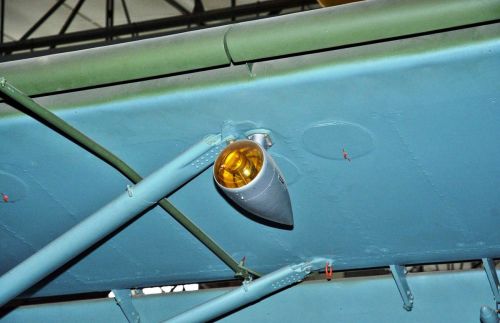

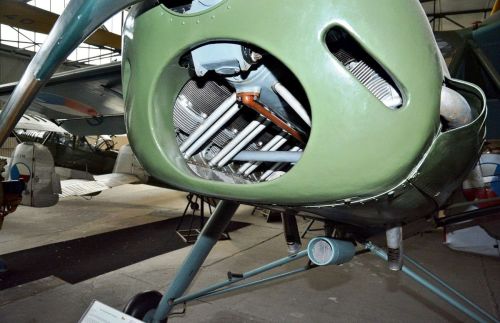

Mraz K-65 ‘Cap’ Walk Around
Photographe
Pavel Senk
Localisation
Inconnu
Photos
11
The Master of Slow Flight
Lla Fieseler Fi 156 Storchwas a legendary German liaison and observation aircraft of WWII. Named for its spindly, long-stroke landing gear that resembled the legs of a stork, it was the world’s first trueSTOL(Short Take-Off and Landing) aircraft. Its ability to take off into a stiff breeze in just 150 feet and land in even less made it indispensable for high-stakes rescue missions and front-line reconnaissance. It was so slow-flying that in a headwind, it could practically hover or even fly backward relative to the ground.

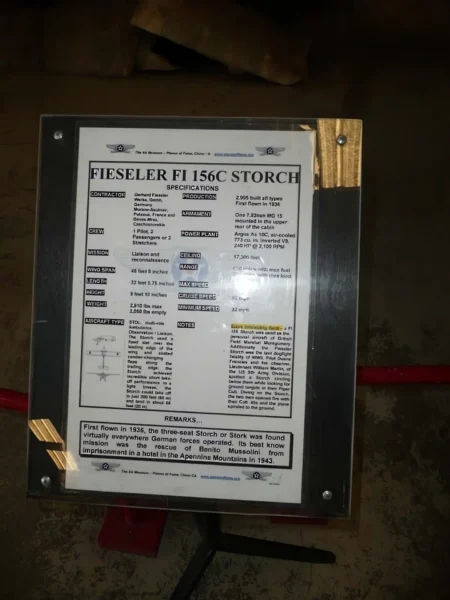

Attribute
Technical Specification (Fi 156C-3)
Rôle
Liaison / Observation / Air Ambulance
Crew
2 or 3
First Flight
May 24, 1936
Groupe motopropulseur

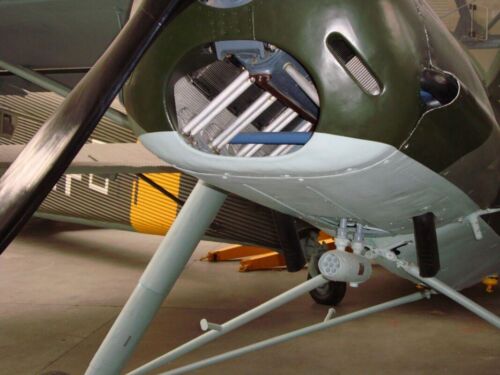

1 × Argus As 10C inverted V-8 air-cooled engine
Horsepower
240 hp (179 kW)
Vitesse maximale
109 mph (175 km/h)
Minimum Speed
31 mph (50 km/h)
Armement
1 × 7.92mm MG 15 machine gun (Rear-facing)
Aerodynamic Magic
Fixed Leading-Edge Slats:The Storch featured fixed slats along the entire leading edge of its wings. These slats directed air over the top of the wing at high angles of attack, preventing stalls at incredibly low speeds.

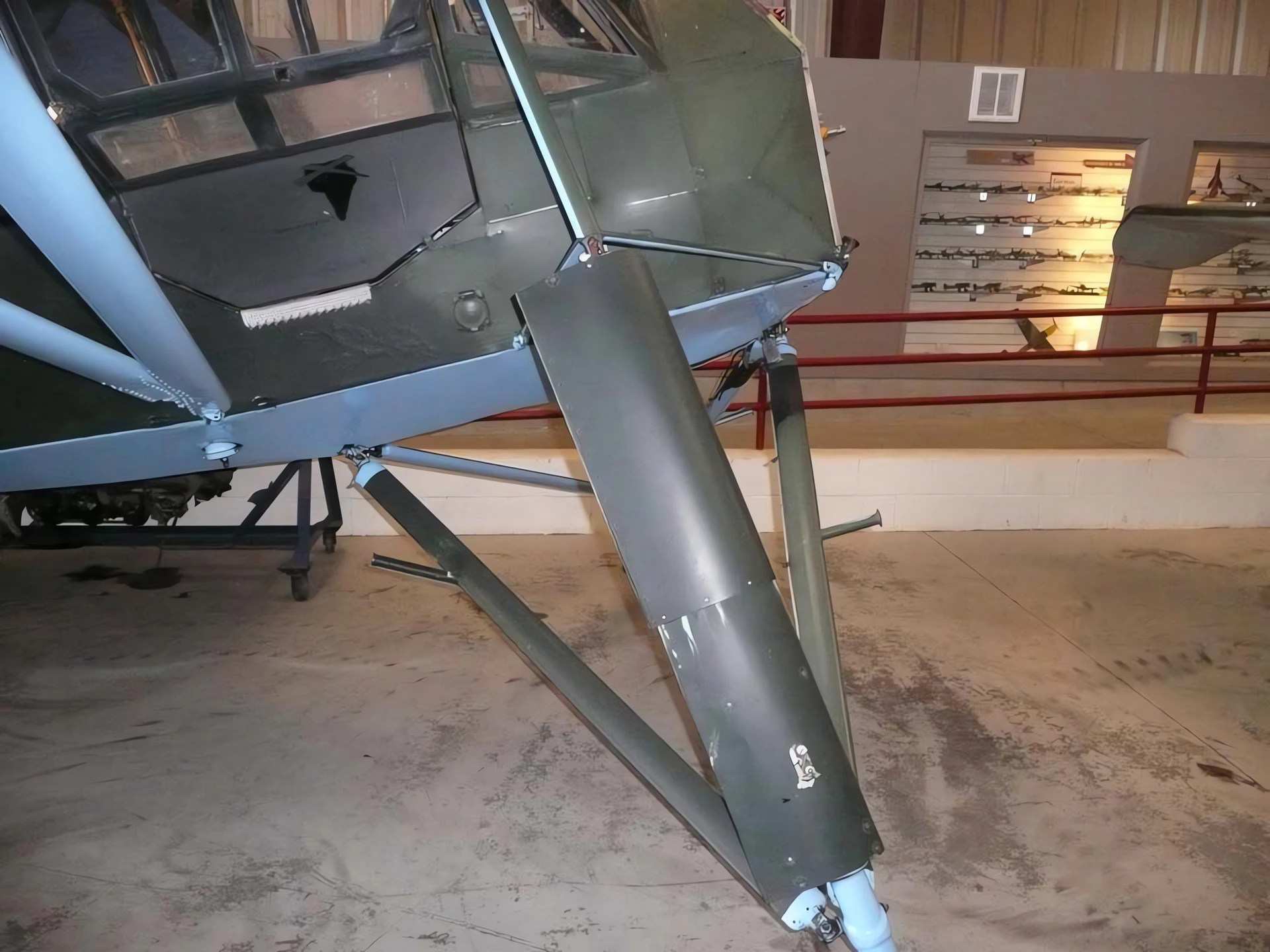

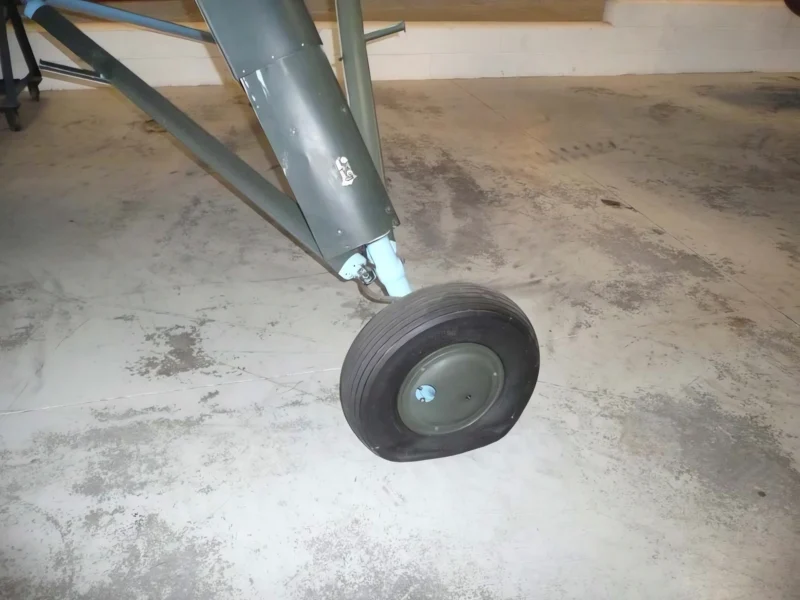

Long-Stroke Landing Gear:The massive oil-and-spring shock absorbers were designed to absorb the impact of a « drop-in » landing on rough, unprepared ground, allowing the pilot to plant the aircraft exactly where needed.
Folding Wings:For transport by truck or storage in small barns near the front lines, the Storch’s wings could be folded back against the fuselage, a rare feature for a land-based aircraft of that size.

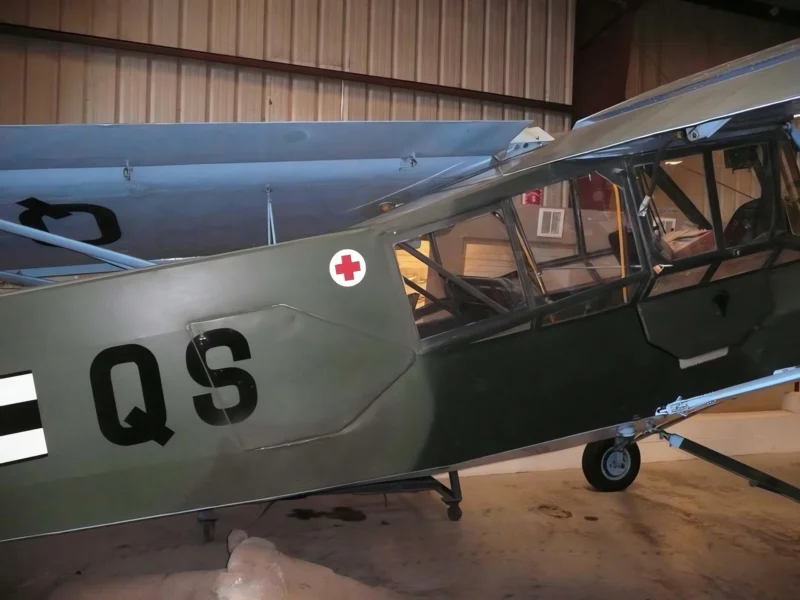

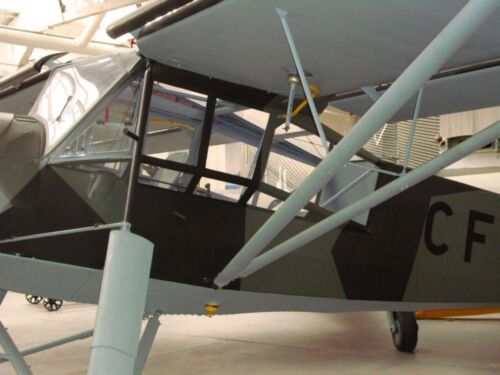

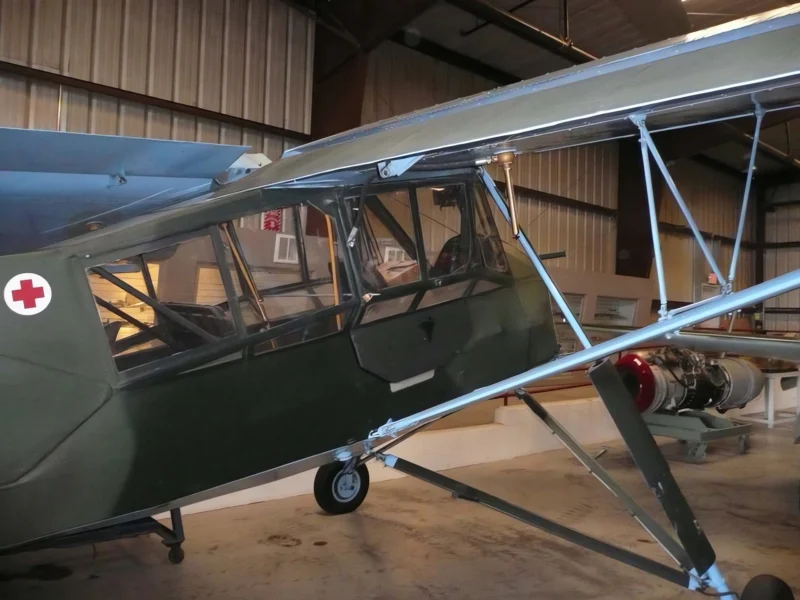

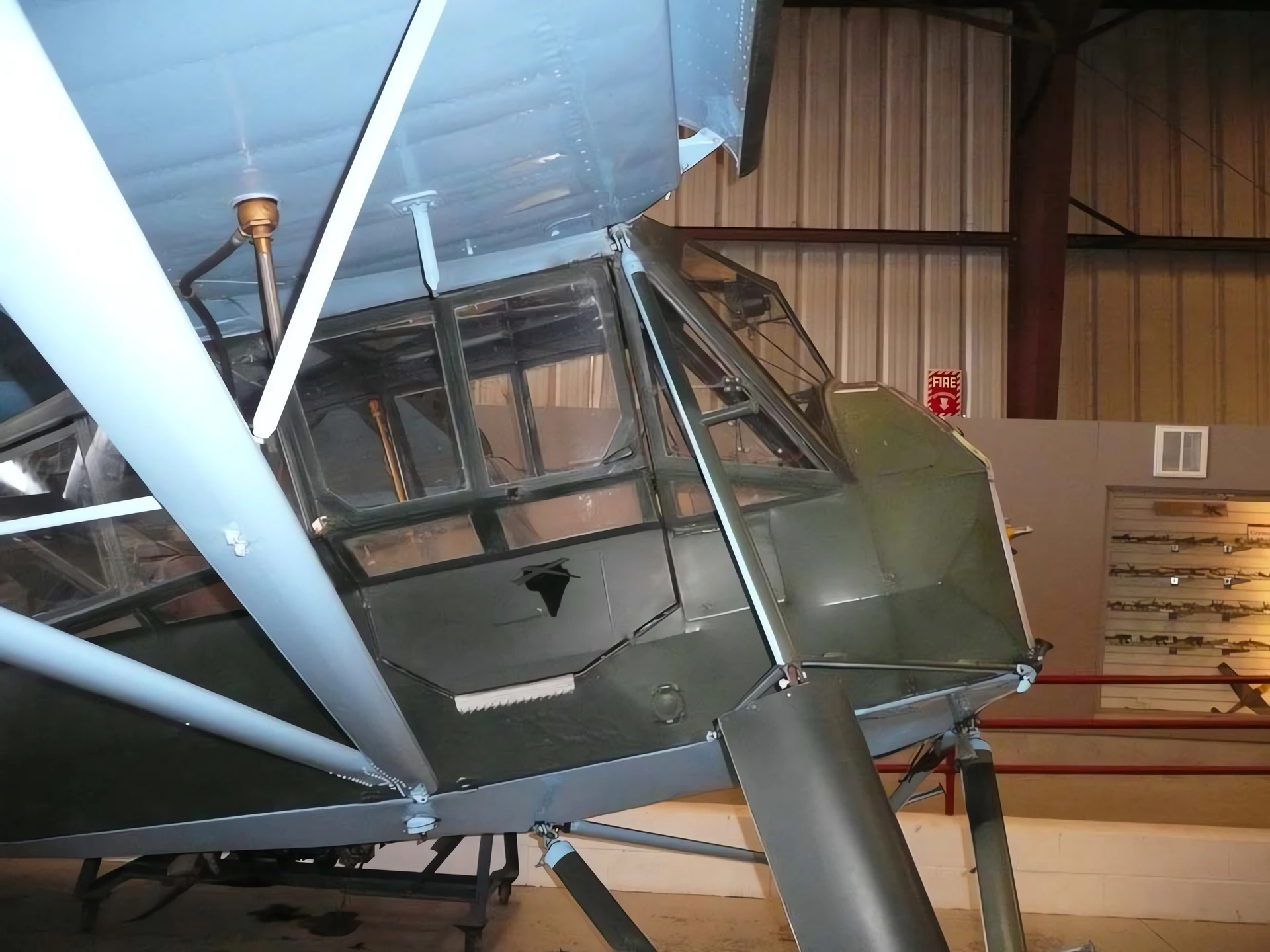

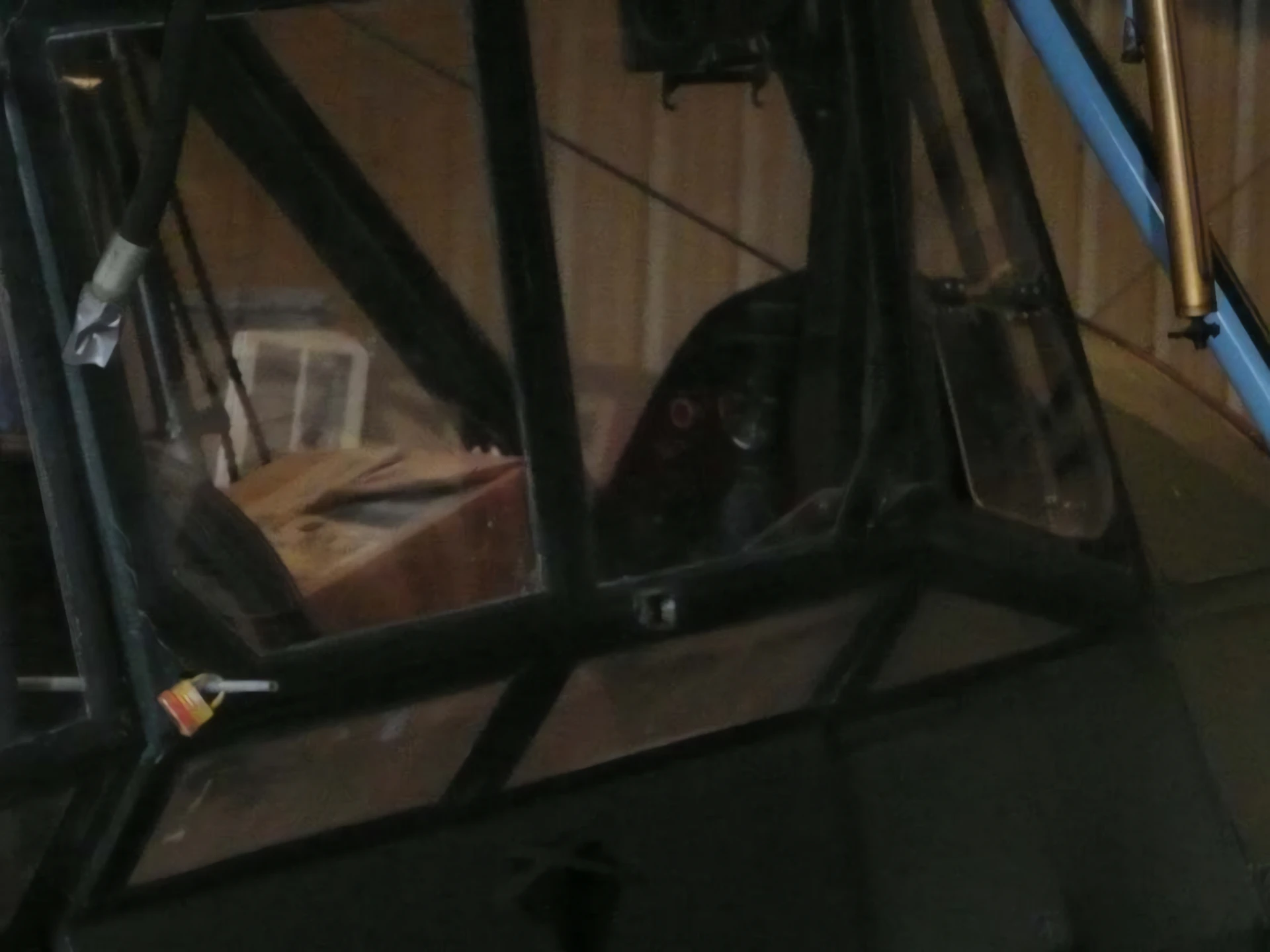

Unrivaled Visibility:The cockpit featured extensive « Serre » glazing that bulged out from the sides, allowing the pilot and observer to look directly downward to spot enemy positions or pick a landing spot.
Historic Missions and Legacy
The Gran Sasso Raid:The Storch’s most famous moment came in 1943, when a pilot landed an Fi 156 on a tiny, boulder-strewn mountain ledge to rescue the deposed Italian dictatorBenito Mussolini.
The Last Flight into Berlin:In the final days of the war, test pilotHanna Reitschflew a Storch into the heart of a besieged Berlin, landing on a makeshift strip near the Brandenburg Gate under heavy Soviet fire.
Post-War Production:Because the design was so effective, production continued long after the war. In France, it was built as theMorane-Saulnier Criquet, which saw extensive service in the First Indochina War.
Preservation:Due to its ruggedness, many Storchs survive in flying condition today, frequently appearing at airshows where they amaze crowds with their « walking speed » flight paths.
