K1 Tip 88 - Fotografije i video zapisi

Tip K1 88
Zemlje	Južna Koreja
Ulogu	Glavni borbeni tenk
U službi	1987–present
Izgradio	1400+

Čaj K1 je južnokorejski glavni borbeni tenk u upotrebi sa Oružanim snagama Republike Koreje, koji je razvio Hyundai Precision (kasnije Hyundai Rotem). Rani dizajnerski radovi vozila bazirani su na M1 Abramsu generala Dynamicsa, sa nekim primetnim razlikama, uključujući kombinovani sistem hidropneumatskog vešanja i torzionih šipki, kao i pribor za fording preko reke, kako bi se zadovoljila potrebna operativna sposobnost koja je specifična za borbene operacije na planinskom i močvarnom terenu Korejskog poluostrva. K1A1 je ušao u servis 1999. Hyundai Rotem je proizveo 1.511 tenkova K1 i K1A1 između 1985.

Izvor: K1 Tip 88 na Vikipediji

K1 Type 88 Walk Around
Fotograf	Unknow
Lokalizacija	Nepoznato
Fotografije	13

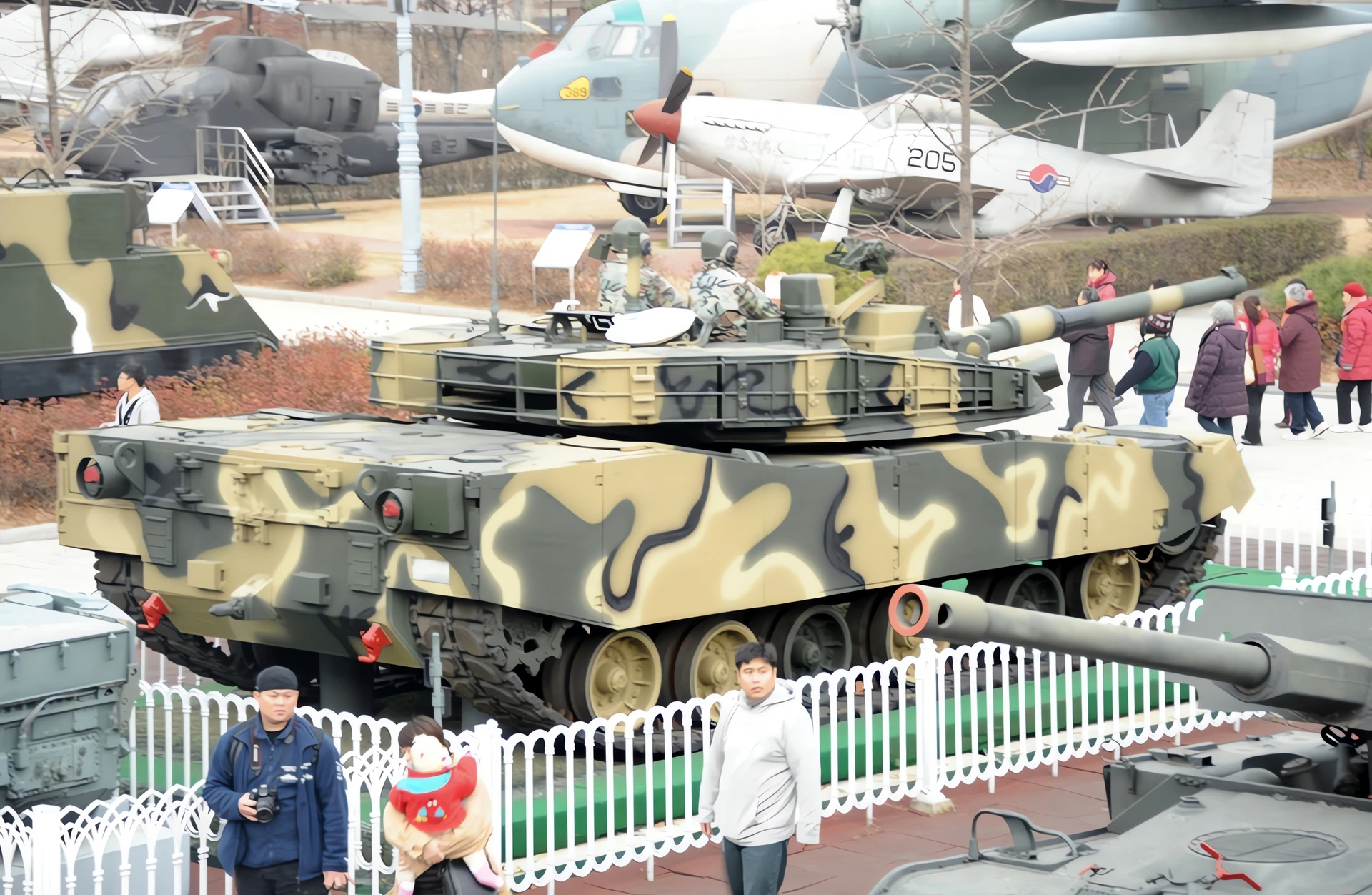

K1 Type 88 1

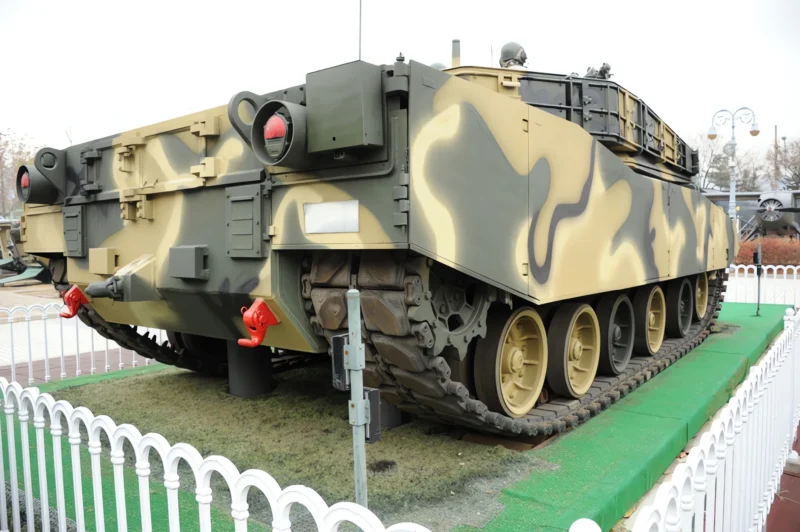

K1 Type 88 2

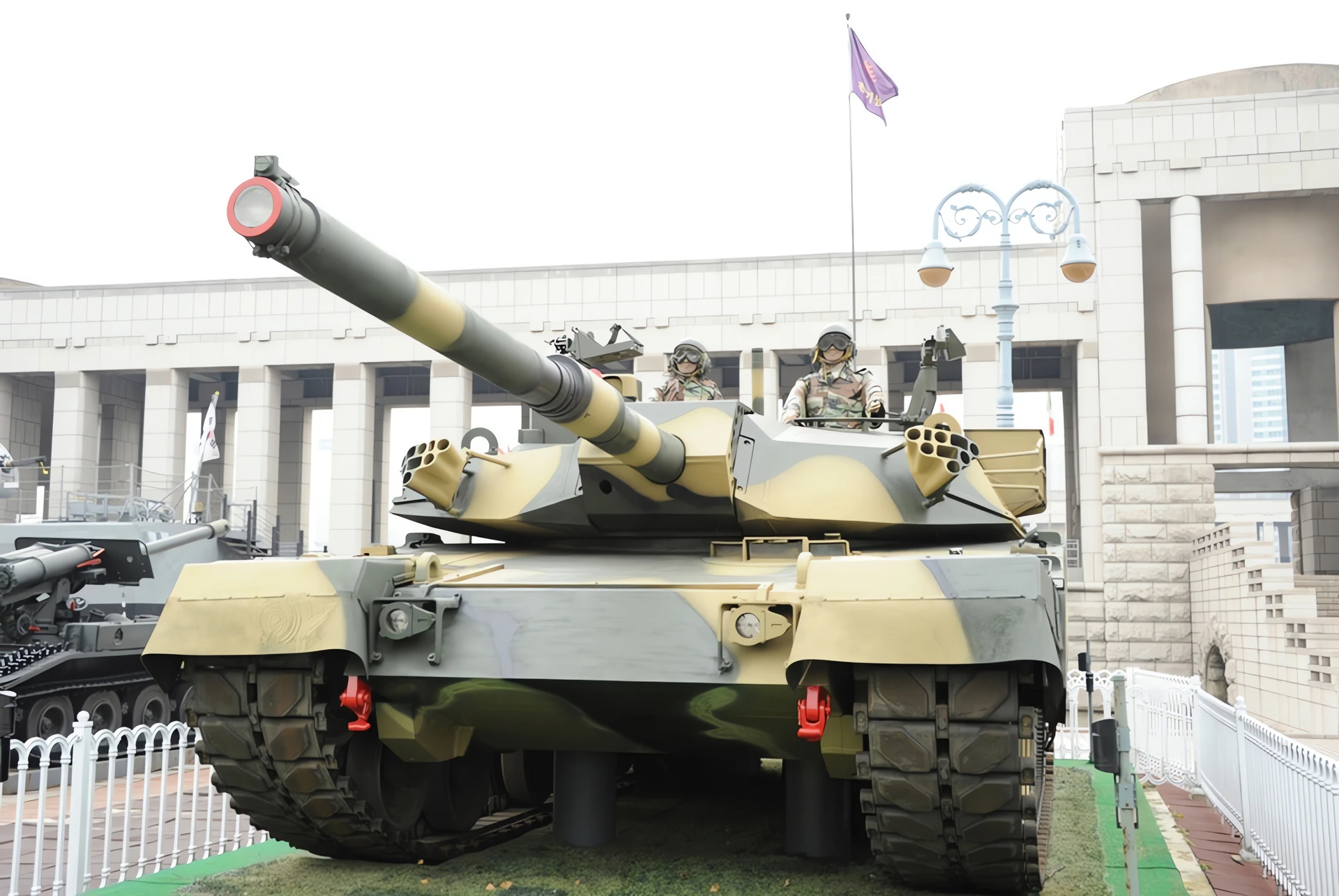

K1 Type 88 3

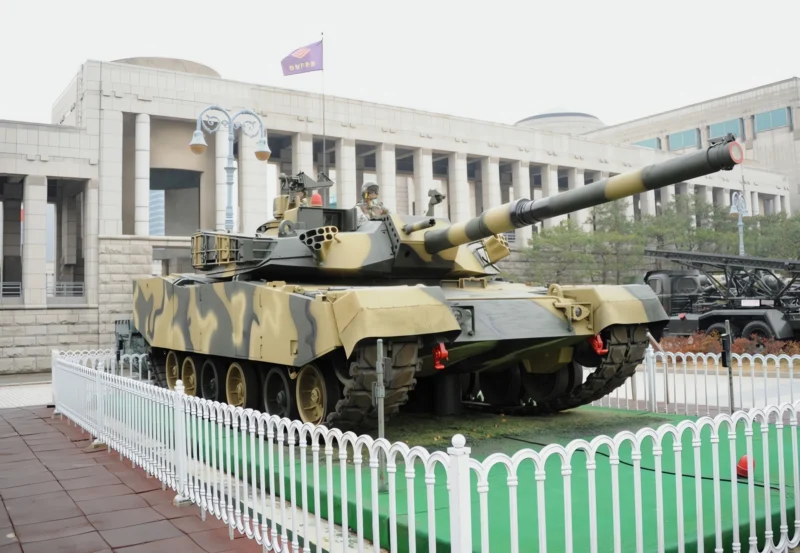

K1 Type 88 4

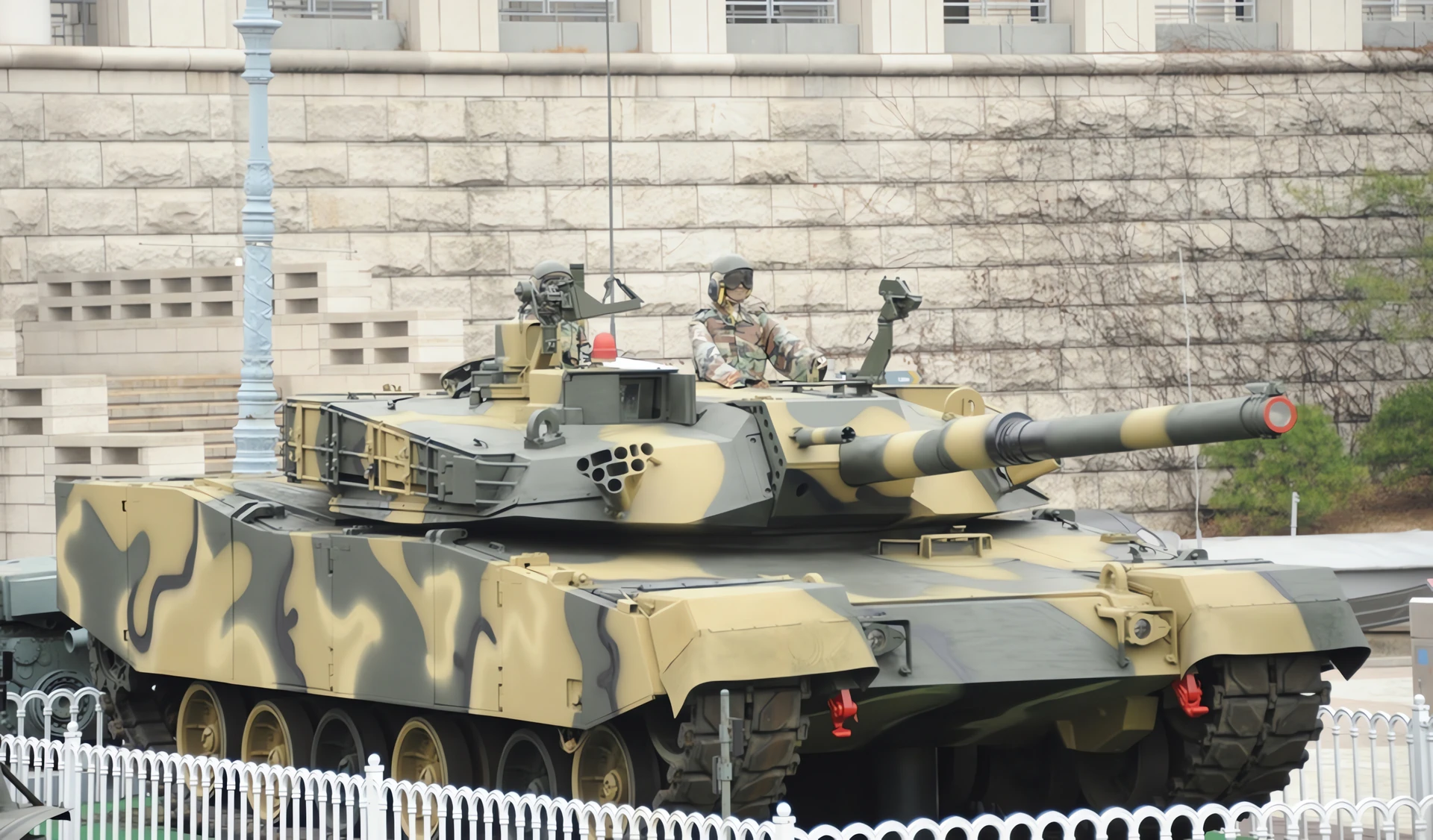

K1 Type 88 5

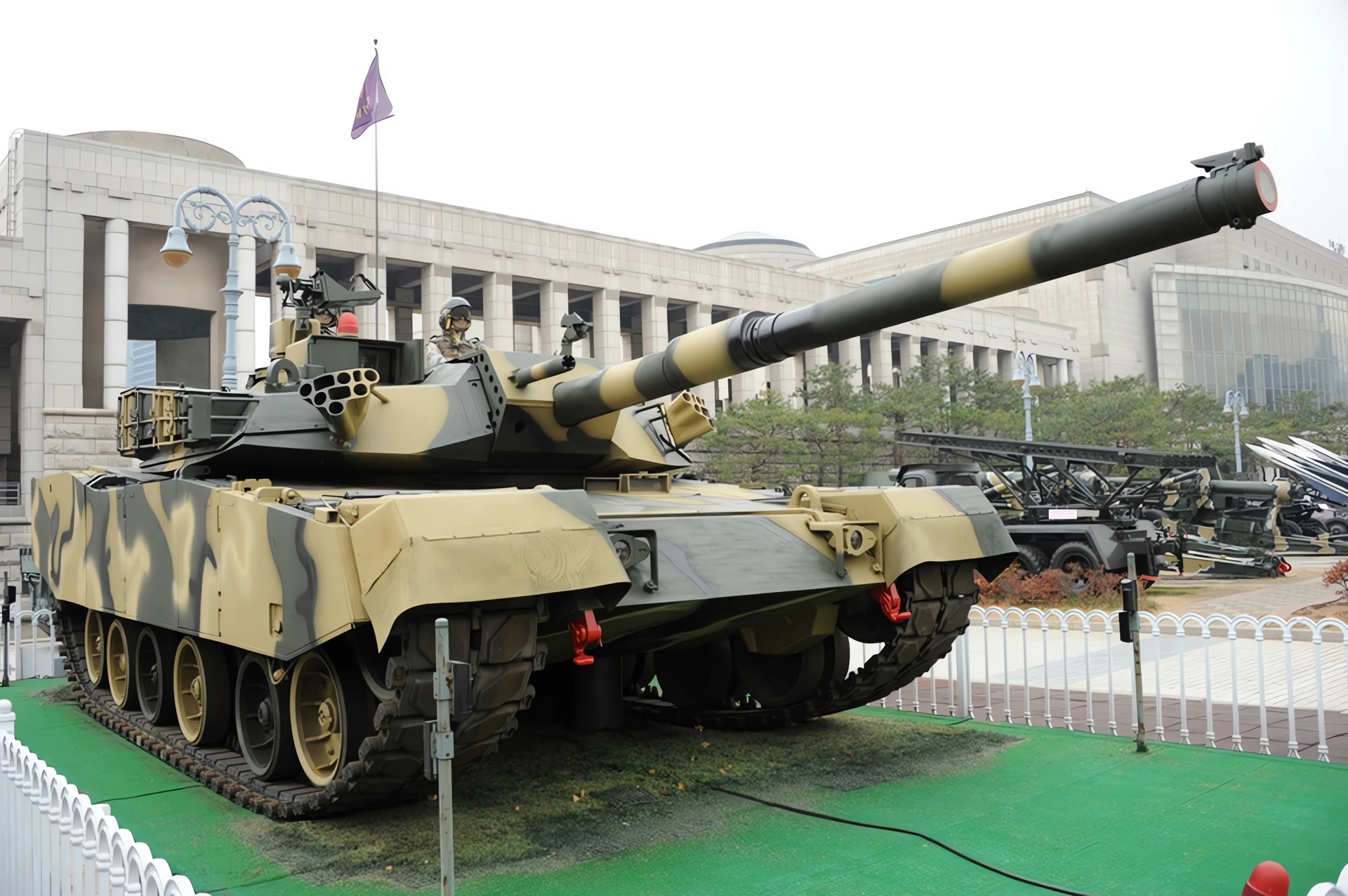

K1 Type 88 6

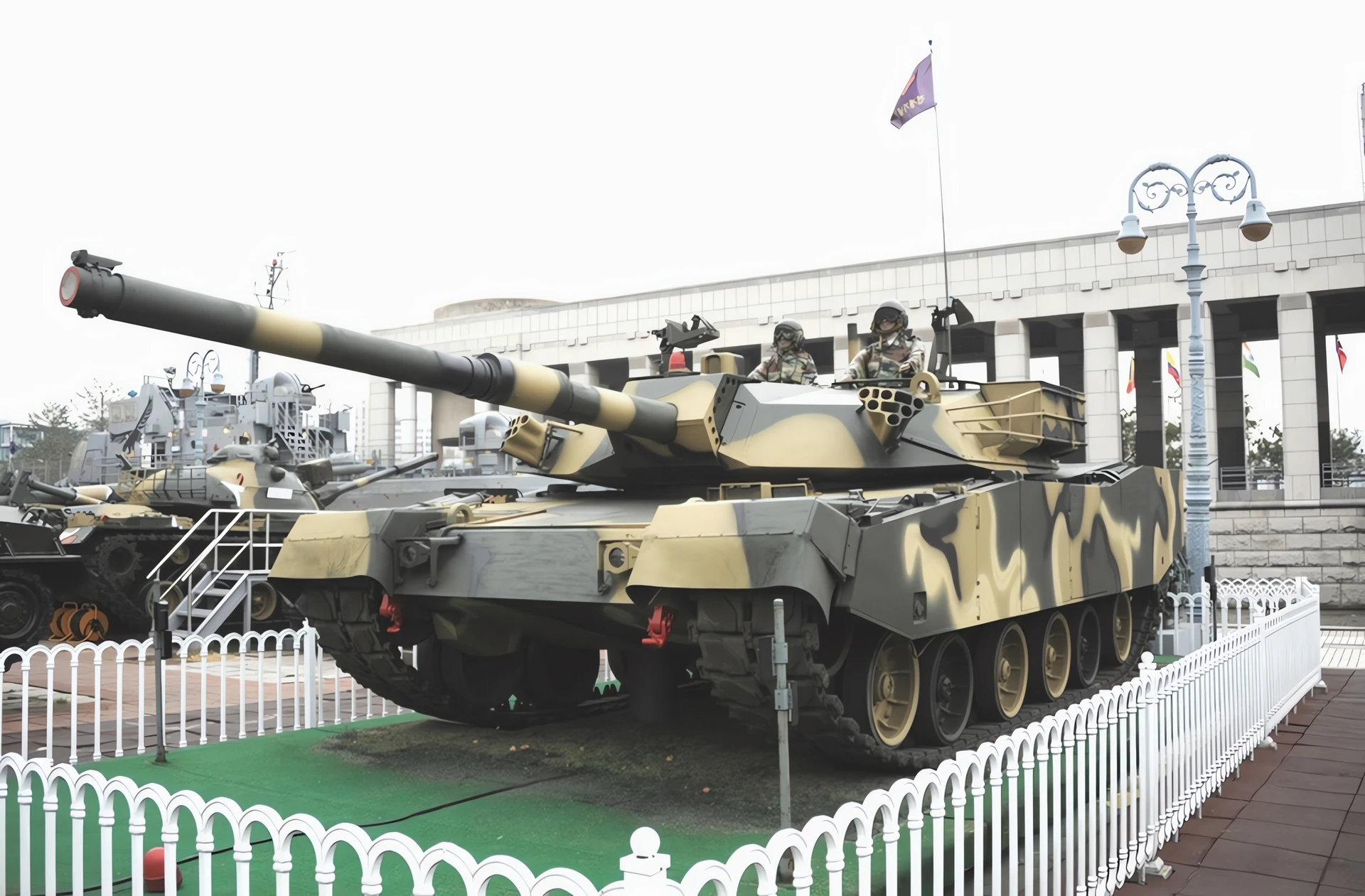

K1 Type 88 7

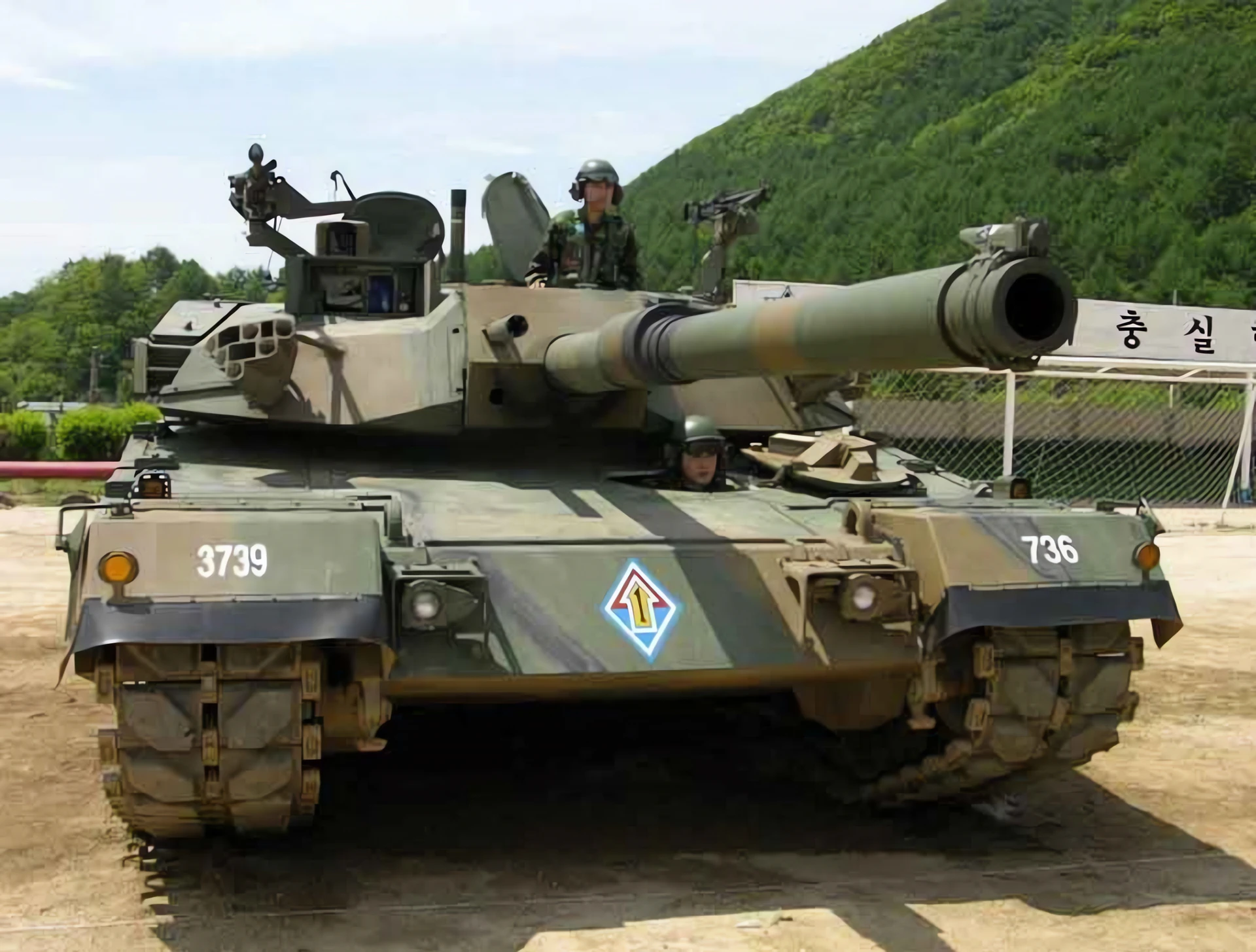

K1 Type 88 9

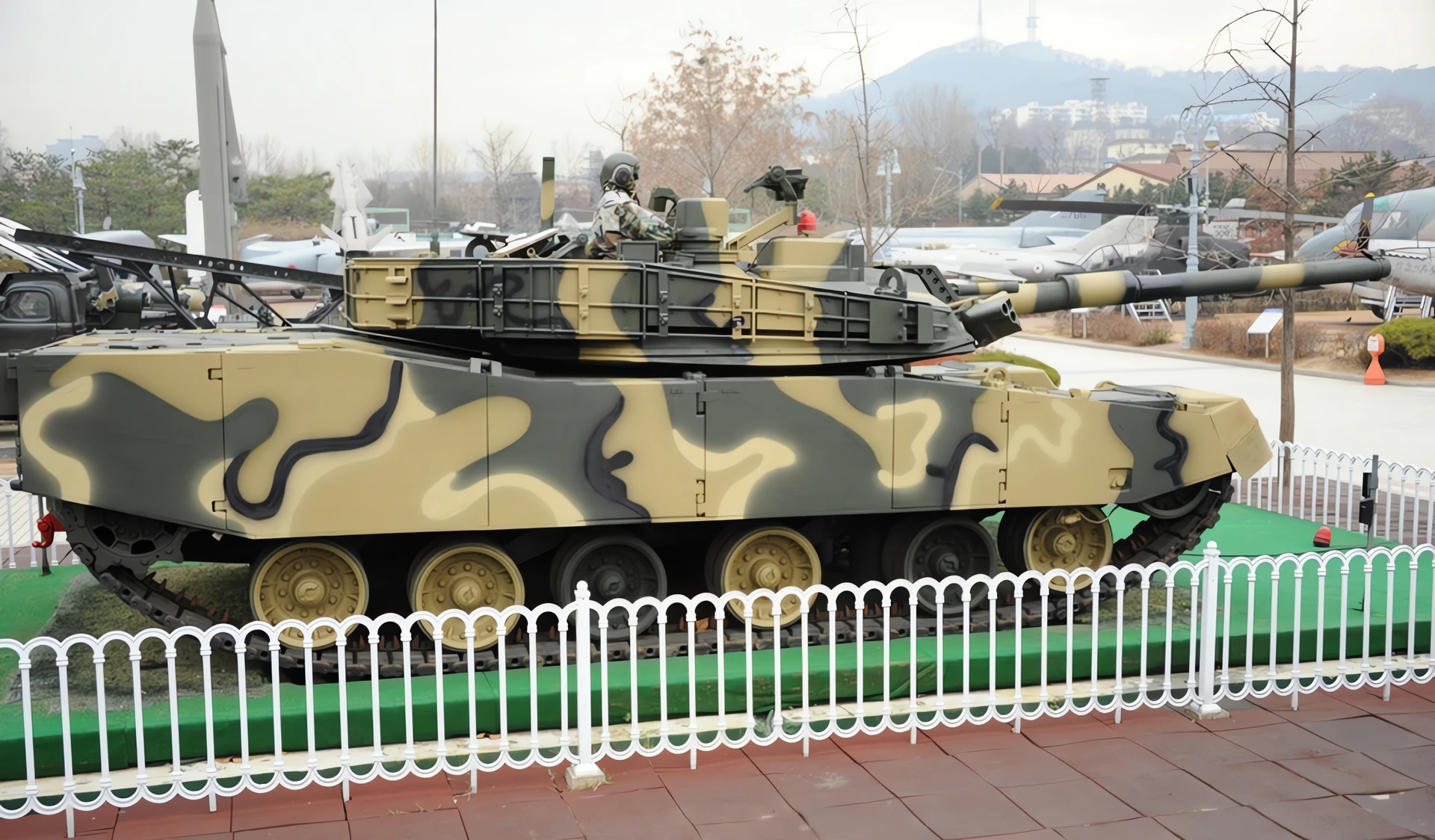

K1 Type 88 8

Click on a photo and use the mouse scroll to view all photos

Wait, Searching K1 Type 88 photos for you...

Pogledajte i:

General Characteristics

The K1 Main Battle Tank, also referred to as the Type 88 (88 전차), was the first domestically developed tank of the Republic of Korea Army (ROKA). Its design, which began in the early 1980s, was heavily influenced by the US M1 Abrams, but was modified to suit South Korea’s specific operational requirements, particularly its mountainous terrain. This led to unique features like the hybrid hydropneumatic and torsion bar suspension system and a lower profile than the M1 Abrams. The K1 series remains the backbone of the ROKA’s armored forces.

Property	Typical Value (K1 Base Model)
Ulogu	Main Battle Tank (MBT)
National Origin	Južna Koreja
Proizvođača	Hyundai Rotem (formerly Hyundai Precision Industry)
U usluzi	1987–Present
Posada	4 (Commander, Gunner, Loader, Driver)
Combat Weight	51.1 tonnes
Length (Gun Forward)	9.67 m (31 ft 9 in)
Visina	2.25 m (7 ft 5 in)

Armament and Fire Control

Main Armament (K1): 1 x 105 mm KM68A1 rifled gun (licensed production of the US M68A1), manually loaded.
Main Armament (K1A1/A2 Upgrade): 1 x 120 mm KM256 smoothbore gun (licensed production of the US M256).
Ammunition Capacity: 47 rounds (105 mm) or 32 rounds (120 mm).
Secondary Armament:
- 1 x 12.7 mm K6 heavy machine gun (commander’s).
- 1 x 7.62 mm M60D machine gun (loader’s).
- 1 x 7.62 mm M60E2-1 coaxial machine gun.
Fire Control System: Computerized FCS with a Nd:YAG or later CO2 laser rangefinder, allowing for high first-round hit probability while on the move (hunter-killer capability enabled by commander’s panoramic sight).

Protection and Mobility

Armor: Classified composite armor, closely related to the British Chobham armor technology used on the M1 Abrams.
Engine: MTU MB 871 Ka-501 8-cylinder water-cooled diesel engine.
Engine Power: 1,200 hp (890 kW).
Power-to-Weight Ratio: Approx. 23.4 hp/tonne.
Maximum Speed (Road): 65 km/h (40 mph).
Operational Range: 500 km (310 mi).
Suspension: Hybrid system combining hydropneumatic units (front and rear roadwheels) with torsion bars (center roadwheels), which allows the driver to adjust the tank’s posture for better gun depression/elevation in hilly terrain.
Fording Capability: Can ford 1.2 m unprepared or 2.2 m with preparation (snorkel kit).
