Harbin SH-5 | |
|---|---|
| Šalies | Kinijos Liaudies #8217;Respublika |
| Vaidmenį | Jūrų patrulių varliagyvių / oro ir jūros gelbėjimas |
| Pirmasis skrydis | 1976 m. balandžio 3 d. |
| Pastatytas | 6+1 |
2007 Harbinas SH-5 yra Kinijos jūrų patruliavimo amfibinis orlaivis, skirtas įvairioms pareigoms, įskaitant gaisrų gesinimą iš oro, karą prieš povandeninį laivą (ASW) ir gelbėjimą ore ir jūroje (ASR). Buvo pastatytas vienas prototipas ir šeši gamybos orlaiviai.
Šaltinis: Harbin SH-5 Vikipedijoje

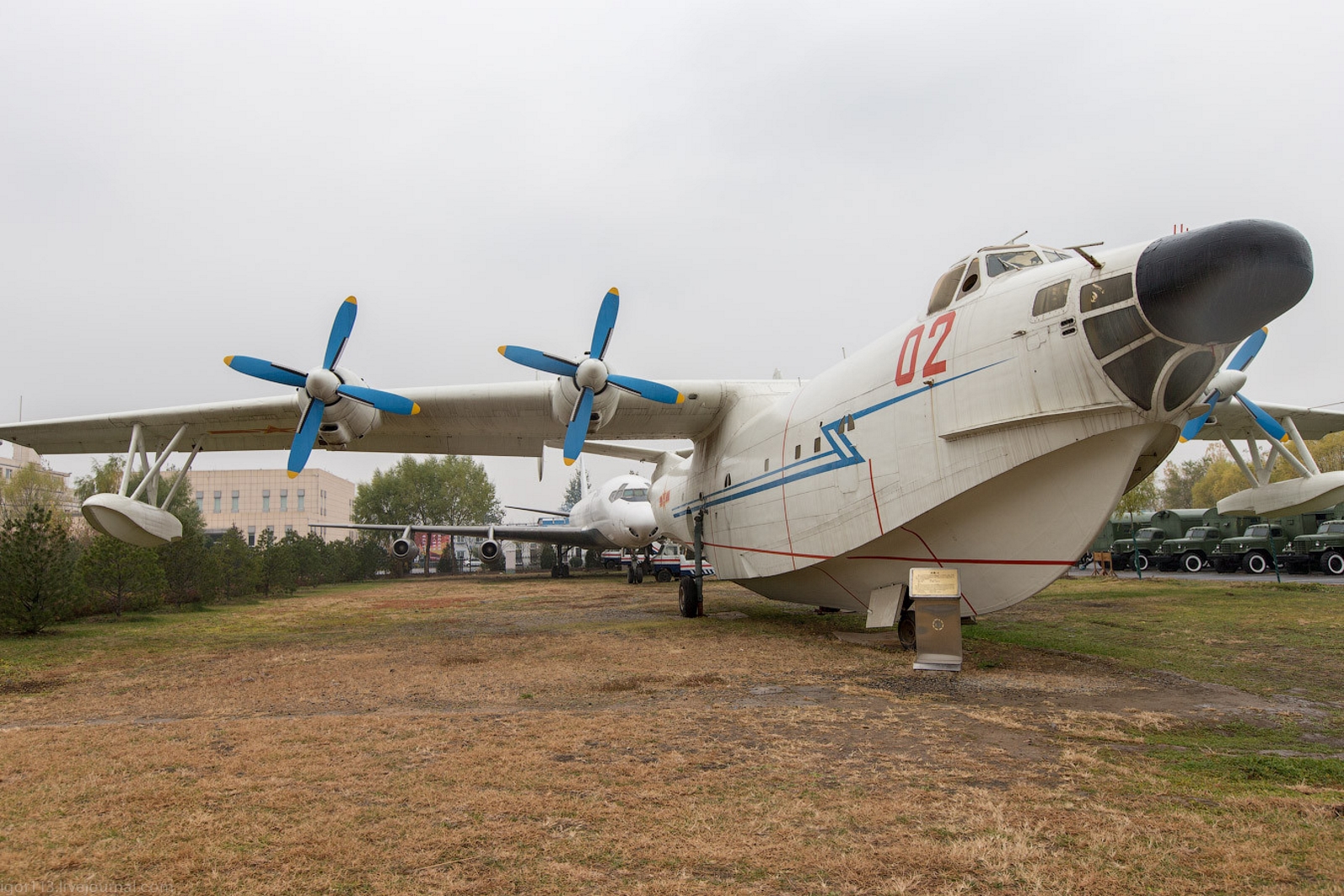

| Harbin SH-5 Walk Around | |
|---|---|
| Fotografas | Igoris Kolokolovas |
| Lokalizavimo | Nežinoti |
| Nuotraukos | 29 |
Taip pat žiūrėkite:
General Characteristics
The Harbin SH-5 (Water Bomber Type 5) is a large, Chinese maritime patrol amphibious aircraft designed by the Harbin Aircraft Manufacturing Corporation. Developed in the 1970s to replace the aging Soviet Beriev Be-6 flying boats, it is intended for a wide range of duties including anti-submarine warfare (ASW), anti-ship warfare, air-sea rescue (ASR), and aerial firefighting. It is characterized by its large hull, high-mounted wings, and four turboprop engines.
| Property | Typical Value |
|---|---|
| Vaidmenį | Maritime Patrol Amphibian/Air-Sea Rescue |
| Gamintojas | Harbin Aircraft Manufacturing Corporation (HAMC) |
| First Flight | April 3, 1976 |
| Tarnyboje | 1986–Present (Limited use) |
| No. Built | 7 (1 prototype, 6 production) |
| Įgulos | 8 (Pilot, Co-pilot, Flight Engineer, Navigator, Operators) |
| Ilgis | 38.9 m (127 ft 7 in) |
| Sparnų ilgis | 36.0 m (118 ft 1 in) |
| Max Takeoff Weight | 45,000 kg (99,208 lb) |
Powerplant and Performance
- Engine: 4 x Dongan WJ5A turboprop engines.
- Power Output (each): 2,350 kW (3,150 hp).
- Propellers: 4-bladed constant speed reversible propellers.
- Maximum Speed: 556 km/h (345 mph).
- Cruise Speed (Max): 450 km/h (280 mph).
- Range: 4,756 km (2,955 mi).
- Endurance: Up to 15 hours (on two engines).
- Take-off Run (Water): 548 m (1,798 ft).
- Service Ceiling: 10,250 m (33,630 ft).
Equipment and Armament
- Primary Systems: Equipped with a Doppler search radar in the nose radome and a Magnetic Anomaly Detector (MAD) boom extending from the tail for anti-submarine missions.
- Weapons Payload: 6,000 kg (13,000 lb) maximum weapons load.
- Hardpoints: 4 underwing hardpoints for external ordnance.
- Internal Stores: A bomb bay in the hull can carry depth charges, mines, or sonobuoys.
- Defensive Armament: 2 x Type 23-1 23 mm cannons in a dorsal turret.
- Role Capacity: Can carry 10,000 kg (22,000 lb) of cargo for transport duties.
