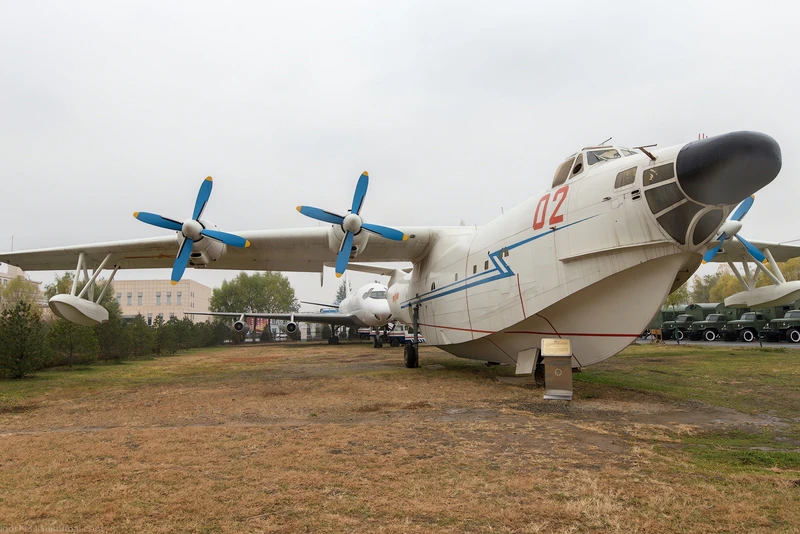

Harbin SH-5 | |
|---|---|
| Страна | Народно #8217;с.Китай |
| Роля | Морски патрул земноводни/въздушно-морски спасителни операции |
| Първи полет | 3 април 1976 г. |
| Построен | 6+1 |
1. Харбин SH-5 е китайски морски патрул амфибиен самолет, предназначен за широк спектър от задължения, включително въздушни престрелка, противоводна война (ASW) и въздушно-морски спасяване (ASR). Изградени са един прототип и шест производствени самолета.
Източник: Харбин SH-5 в Уикипедия
| Harbin SH-5 Walk Around | |
|---|---|
| Фотограф | Игор Колоколов |
| Локализация | Не знам |
| Снимки | 29 |
Вижте също:
General Characteristics
The Harbin SH-5 (Water Bomber Type 5) is a large, Chinese maritime patrol amphibious aircraft designed by the Harbin Aircraft Manufacturing Corporation. Developed in the 1970s to replace the aging Soviet Beriev Be-6 flying boats, it is intended for a wide range of duties including anti-submarine warfare (ASW), anti-ship warfare, air-sea rescue (ASR), and aerial firefighting. It is characterized by its large hull, high-mounted wings, and four turboprop engines.
| Property | Typical Value |
|---|---|
| Роля | Maritime Patrol Amphibian/Air-Sea Rescue |
| Производителя | Harbin Aircraft Manufacturing Corporation (HAMC) |
| First Flight | April 3, 1976 |
| В експлоатация | 1986–Present (Limited use) |
| No. Built | 7 (1 prototype, 6 production) |
| Екипажа | 8 (Pilot, Co-pilot, Flight Engineer, Navigator, Operators) |
| Дължина | 38.9 m (127 ft 7 in) |
| Размах | 36.0 m (118 ft 1 in) |
| Max Takeoff Weight | 45,000 kg (99,208 lb) |
Powerplant and Performance
- Engine: 4 x Dongan WJ5A turboprop engines.
- Power Output (each): 2,350 kW (3,150 hp).
- Propellers: 4-bladed constant speed reversible propellers.
- Maximum Speed: 556 km/h (345 mph).
- Cruise Speed (Max): 450 km/h (280 mph).
- Range: 4,756 km (2,955 mi).
- Endurance: Up to 15 hours (on two engines).
- Take-off Run (Water): 548 m (1,798 ft).
- Service Ceiling: 10,250 m (33,630 ft).
Equipment and Armament
- Primary Systems: Equipped with a Doppler search radar in the nose radome and a Magnetic Anomaly Detector (MAD) boom extending from the tail for anti-submarine missions.
- Weapons Payload: 6,000 kg (13,000 lb) maximum weapons load.
- Hardpoints: 4 underwing hardpoints for external ordnance.
- Internal Stores: A bomb bay in the hull can carry depth charges, mines, or sonobuoys.
- Defensive Armament: 2 x Type 23-1 23 mm cannons in a dorsal turret.
- Role Capacity: Can carry 10,000 kg (22,000 lb) of cargo for transport duties.
