LTV A-7 Corsair II | |
|---|---|
| 国 | 米国 |
| 役割 | 攻撃機 |
| 初飛行 | 1965年9月26日 |
| 構築 | 1169 |
ザ LTV A-7 コルセアII は、ダグラス A-4 スカイホークを置き換えるために Ling-Temco-Vought (LTV) によって製造されたアメリカのキャリア対応亜音速軽攻撃機です。その機体のデザインは超音速ヴォートF-8クルセイダーのやや小さなバージョンです。コルセアIIは当初、ベトナム戦争中にアメリカ海軍(USN)に就航しました。その後、空軍(USAF)が、航空州兵(ANG)を含むダグラスA-1スカイレイダーと北米F-100スーパーセイバーに代わるものとして採用されました。航空機はまた、1970年代にギリシャに輸出され、1980年代後半にポルトガルに輸出されました。●USAFとUSNは1991年、1993年にANG、1999年にポルトガル空軍、2014年にギリシャ空軍を退役しました。
ソース： ウィキペディアの LTV A-7 コルセア II

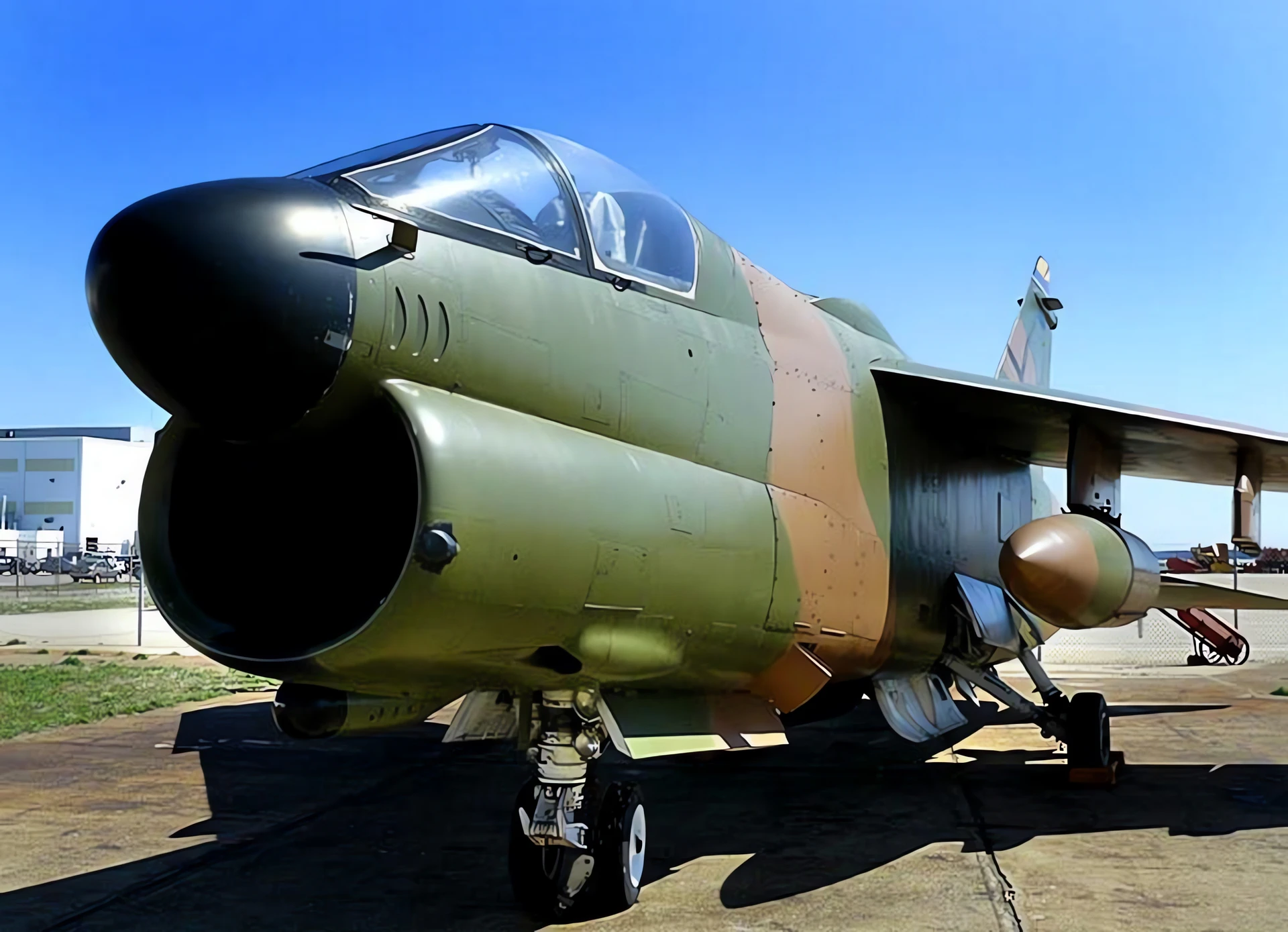

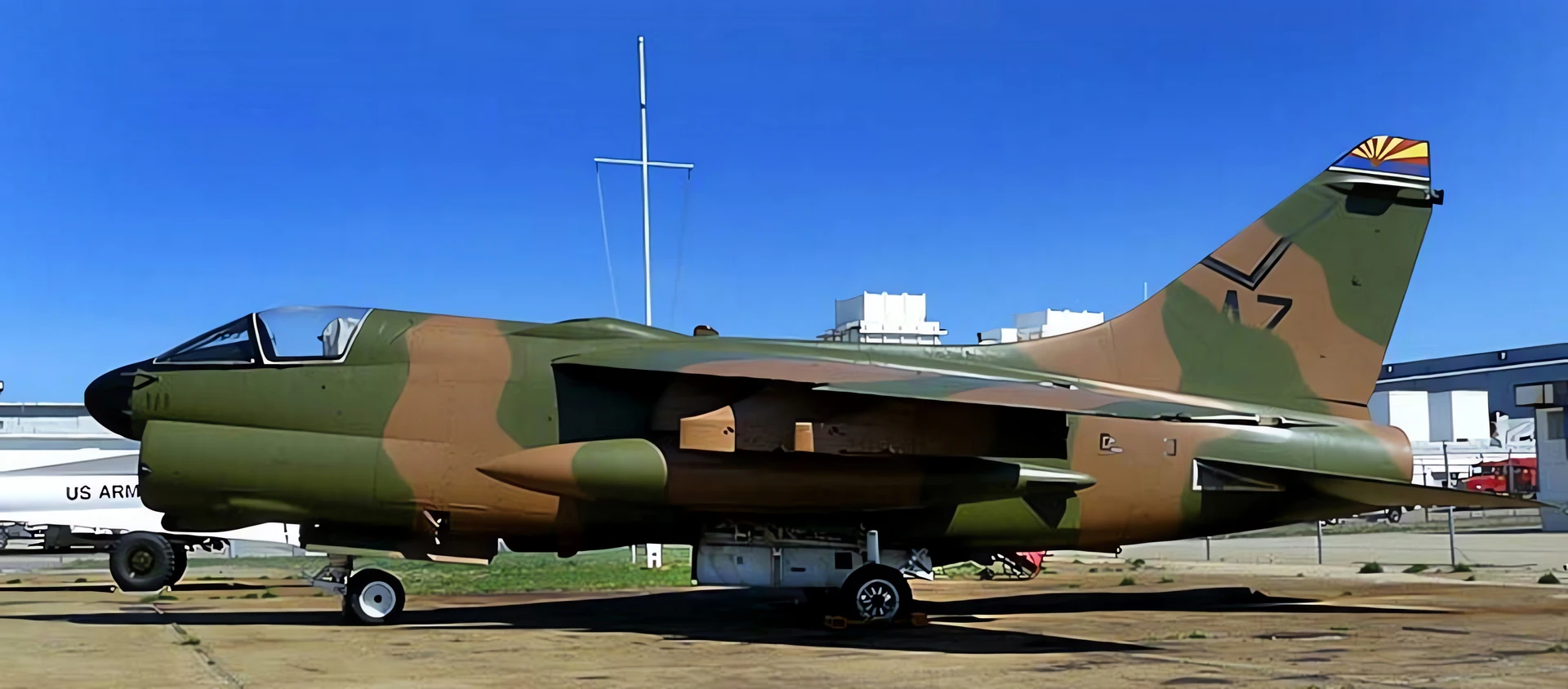

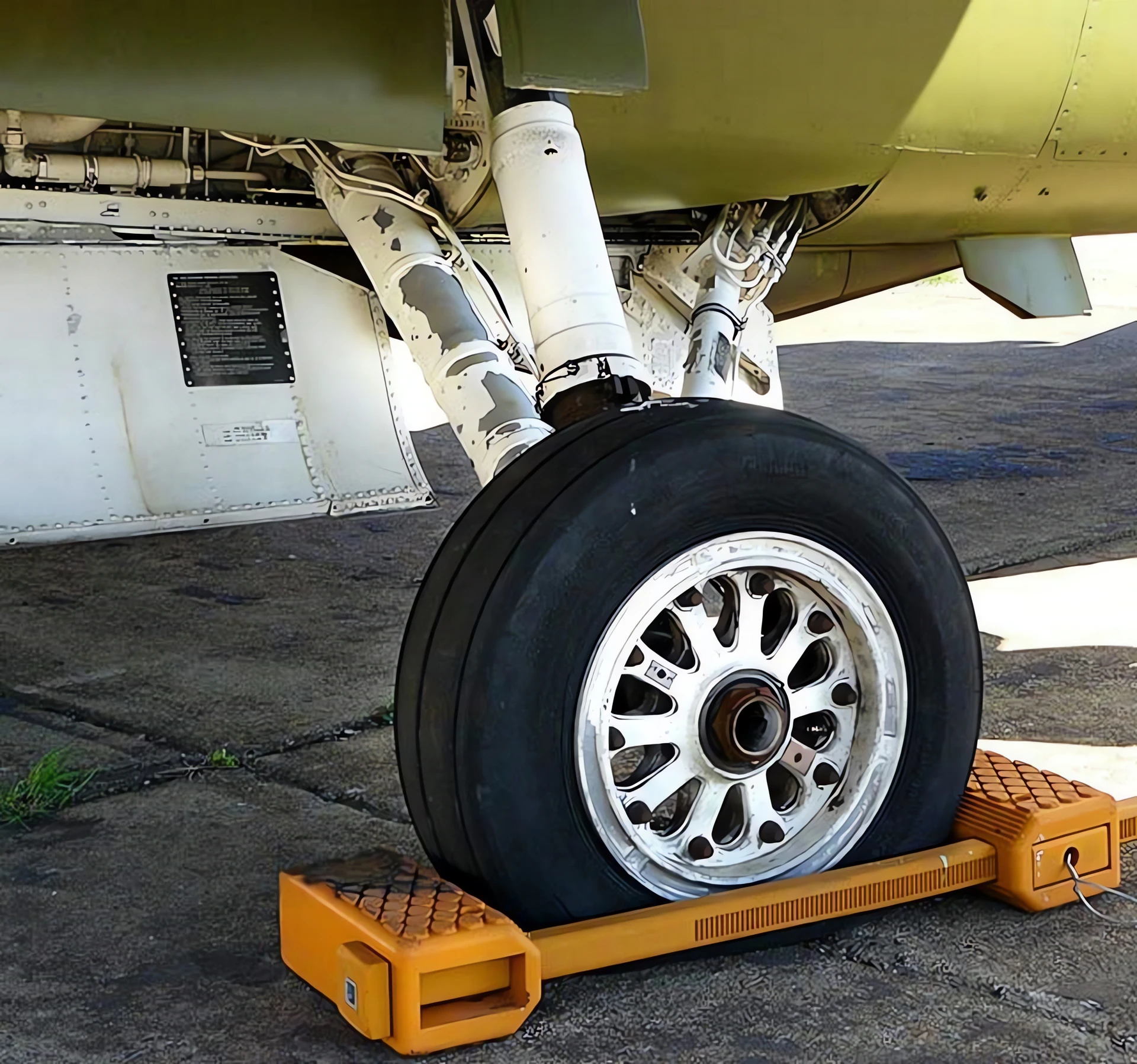

| LTV A-7D Corsair II Walk Around | |
|---|---|
| Photographer | Bill Maloney |
| Localisation | Unknow |
| Photos | 20 |
関連項目:
| LTV A-7D Corsair II Walk Around | |
|---|---|
| Photographer | Bill Maloney |
| Localisation | Wings of Eagles Discovery Center |
| Photos | 18 |

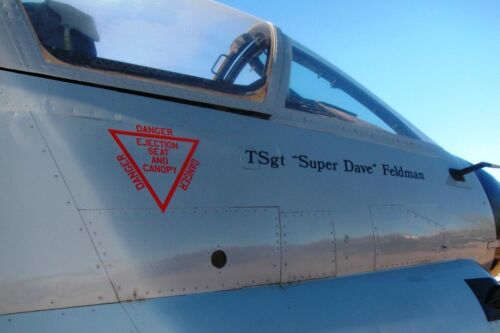

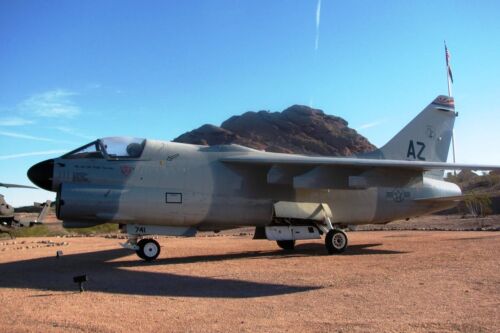

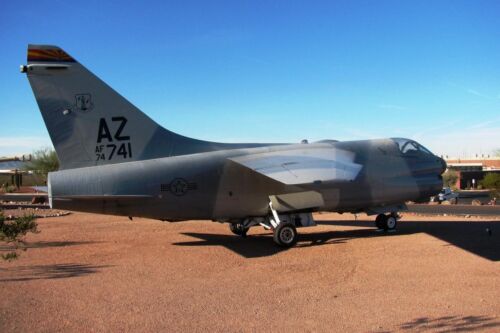

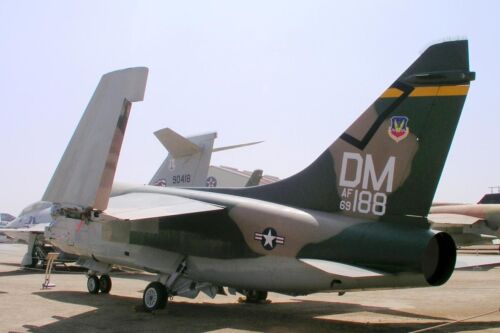

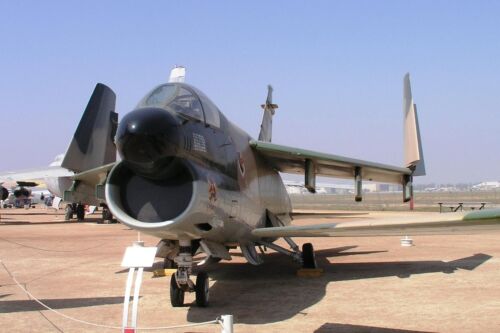

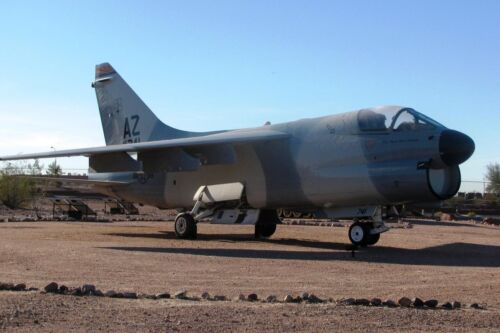

| Ling-Temco-Vought A-7D Corsair II Walk Around | |
|---|---|
| Photographer | Unknow |
| Localisation | Unknow |
| Photos | 36 |
General Characteristics and Role
The LTV A-7D Corsair II was a dedicated carrier-capable, subsonic, light attack aircraft developed for the US Navy and later adapted for the US Air Force (USAF), becoming the A-7D variant. The A-7D was a significant modernization of the naval A-7, featuring the switch from the Navy’s Pratt & Whitney turbofan to the more powerful Allison TF41-A-1 turbofan engine, an entirely new computerized navigation and weapons delivery system, and the replacement of the twin 20 mm cannons with a single 20 mm M61 Vulcan rotary cannon. The A-7D became the standard attack aircraft for the Tactical Air Command (TAC) during the Vietnam War, valued for its accuracy and extremely high payload capacity relative to its size. It was nicknamed the “SLUF” (Short Little Ugly Fella).
| Property | Typical Value (A-7D) |
|---|---|
| 役割 | Light Attack (Close Air Support and Interdiction) |
| National Origin | 米国 |
| メーカー | Ling-Temco-Vought (LTV) |
| First Flight (A-7D) | 26 September 1968 |
| 乗組員 | 1 (Pilot) |
| 長さ | 14.00 m (45 ft 11 in) |
| 翼 | 11.80 m (38 ft 9 in) |
| 高さ | 4.90 m (16 ft 1 in) |
| Empty Weight | 8,676 kg (19,128 lb) |
| Max Takeoff Weight | 19,050 kg (42,000 lb) |
Powerplant and Performance

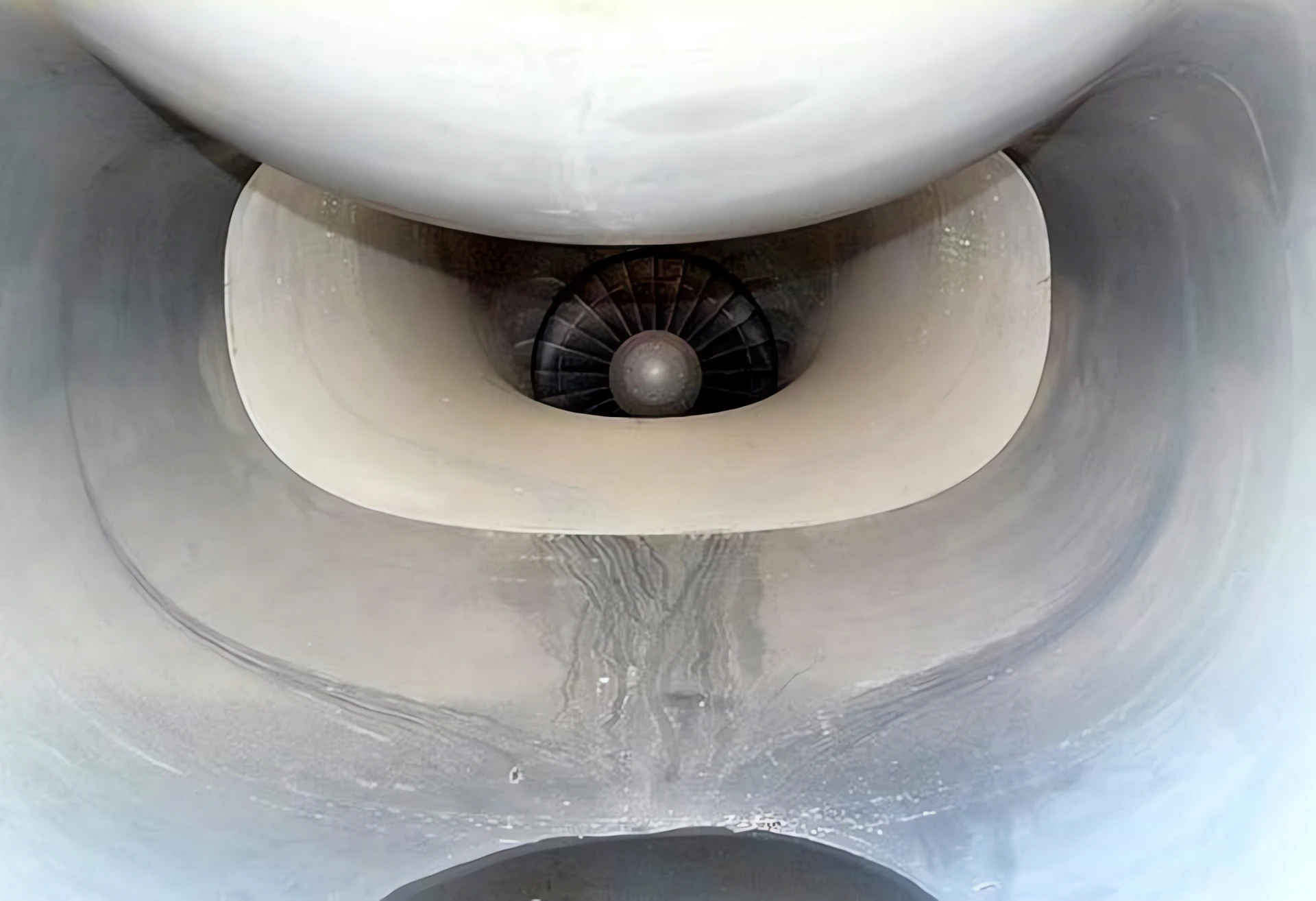

- Engine: 1 x Allison TF41-A-1 (Rolls-Royce Spey derivative) turbofan engine.
- Thrust: 64.5 kN (14,500 lbf) (non-afterburning).
- Maximum Speed: 1,110 km/h (690 mph; 600 kn) at sea level (subsonic).
- Combat Radius: 1,127 km (700 mi; 608 nmi) (clean configuration).
- Ferry Range: 4,600 km (2,860 mi).
- Service Ceiling: 12,800 m (42,000 ft).
Armament and Avionics
- Fixed Armament: 1 x 20 mm M61A1 Vulcan Gatling cannon in the fuselage (USAF requirement).
- Hardpoints: 6 x wing pylons and 2 x fuselage stations for a total external load of up to 6,800 kg (15,000 lb).
- Typical Ordnance: Carried a vast array of air-to-ground ordnance, including conventional bombs (up to 12 x 500 lb bombs), rocket pods, AGM-65 Maverick, and Paveway laser-guided bombs (LGBs).
- Avionics: Featured a Head-Up Display (HUD) and an integrated inertial navigation system (INS) which gave the A-7D phenomenal bombing accuracy, far superior to many contemporary fighters.
