ロイドキャリア | |
|---|---|
| 国 | 英国 |
| 役割 | 装甲兵員輸送車 |
| サービス中 | 1939年~1960年代 |
| 構築 | 26000+ |
ザ ロイドキャリア 戦場に関する装備と男性を輸送するために第二次世界大戦でイギリス軍と英連邦軍が使用した多数の小型トラック車両の1つでした。ブレン、スカウト、マシンガンのキャリアと並んで、彼らはまた、歩兵支援武器を移動しました。
ソース： ウィキペディアのロイドキャリア

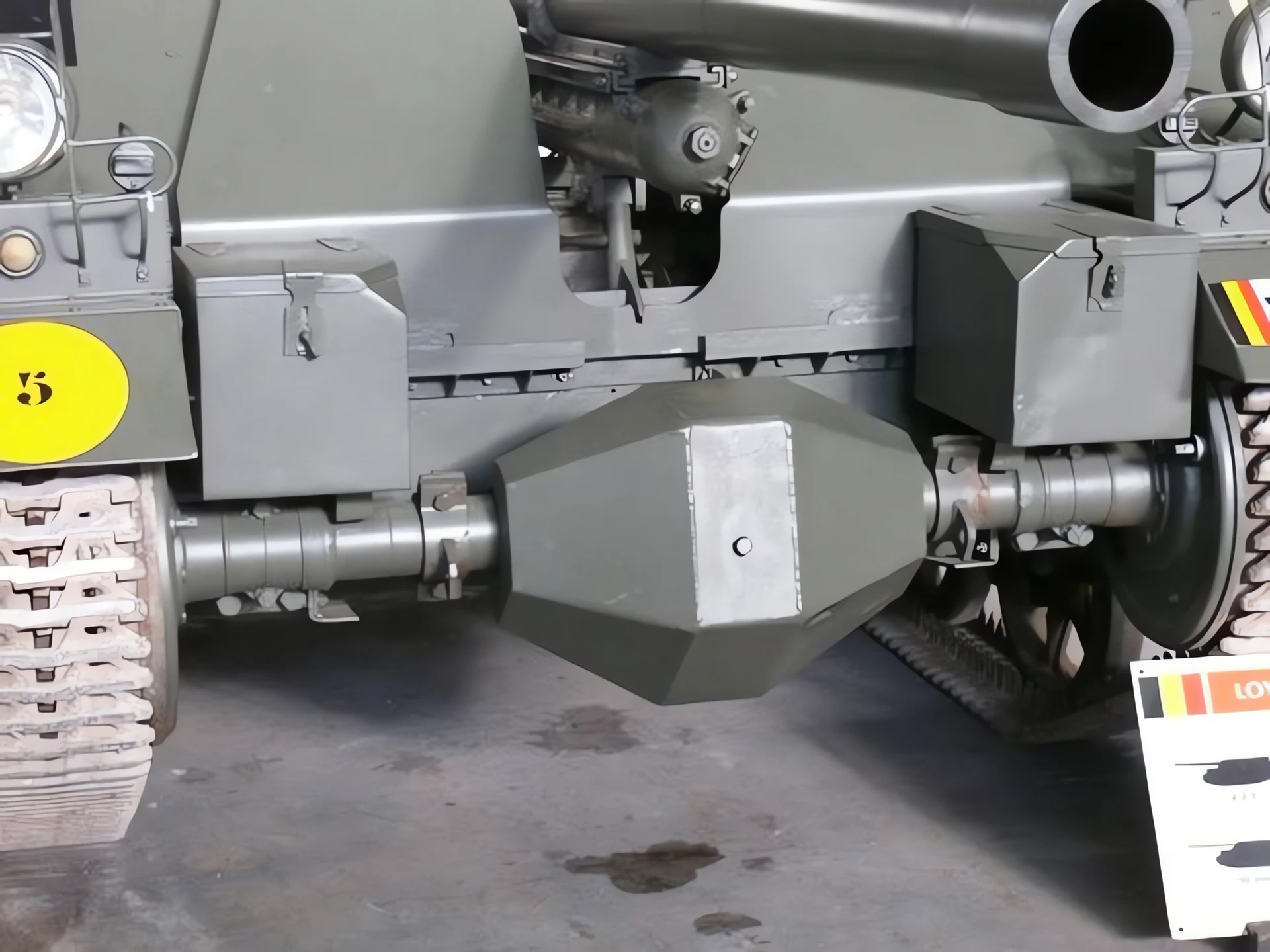

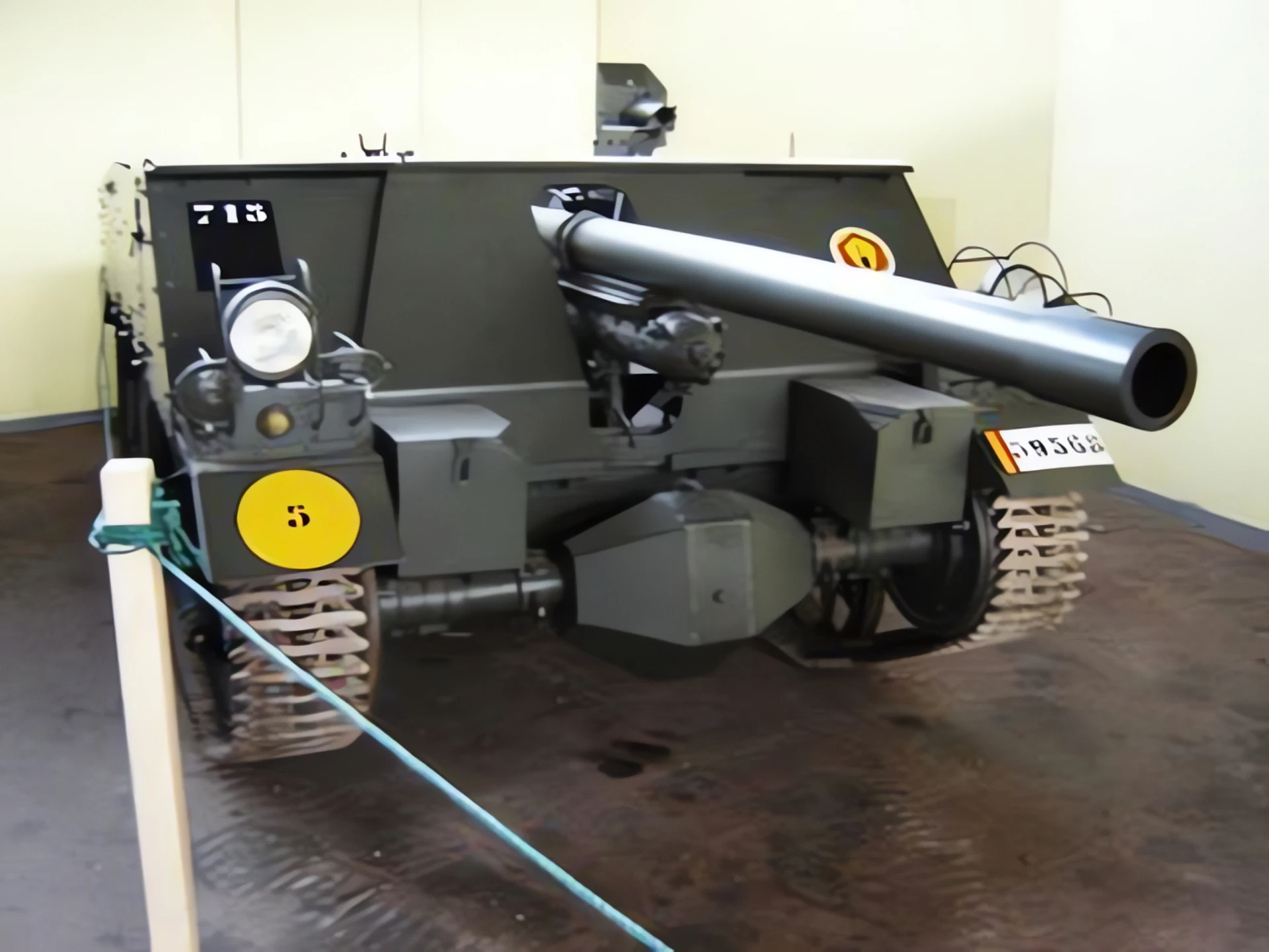

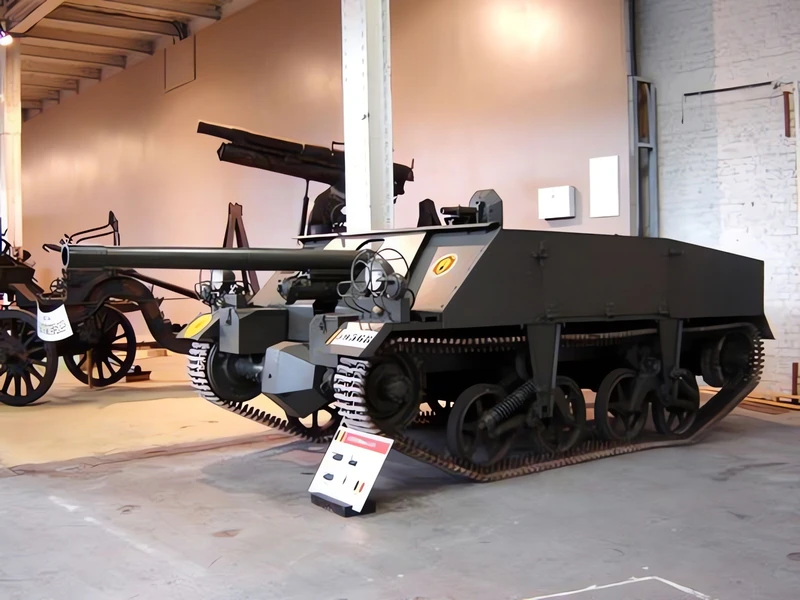

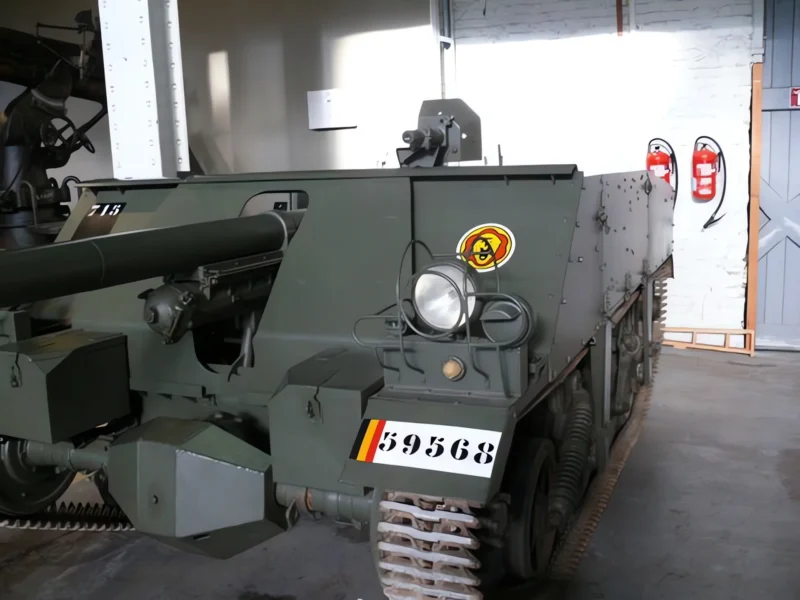

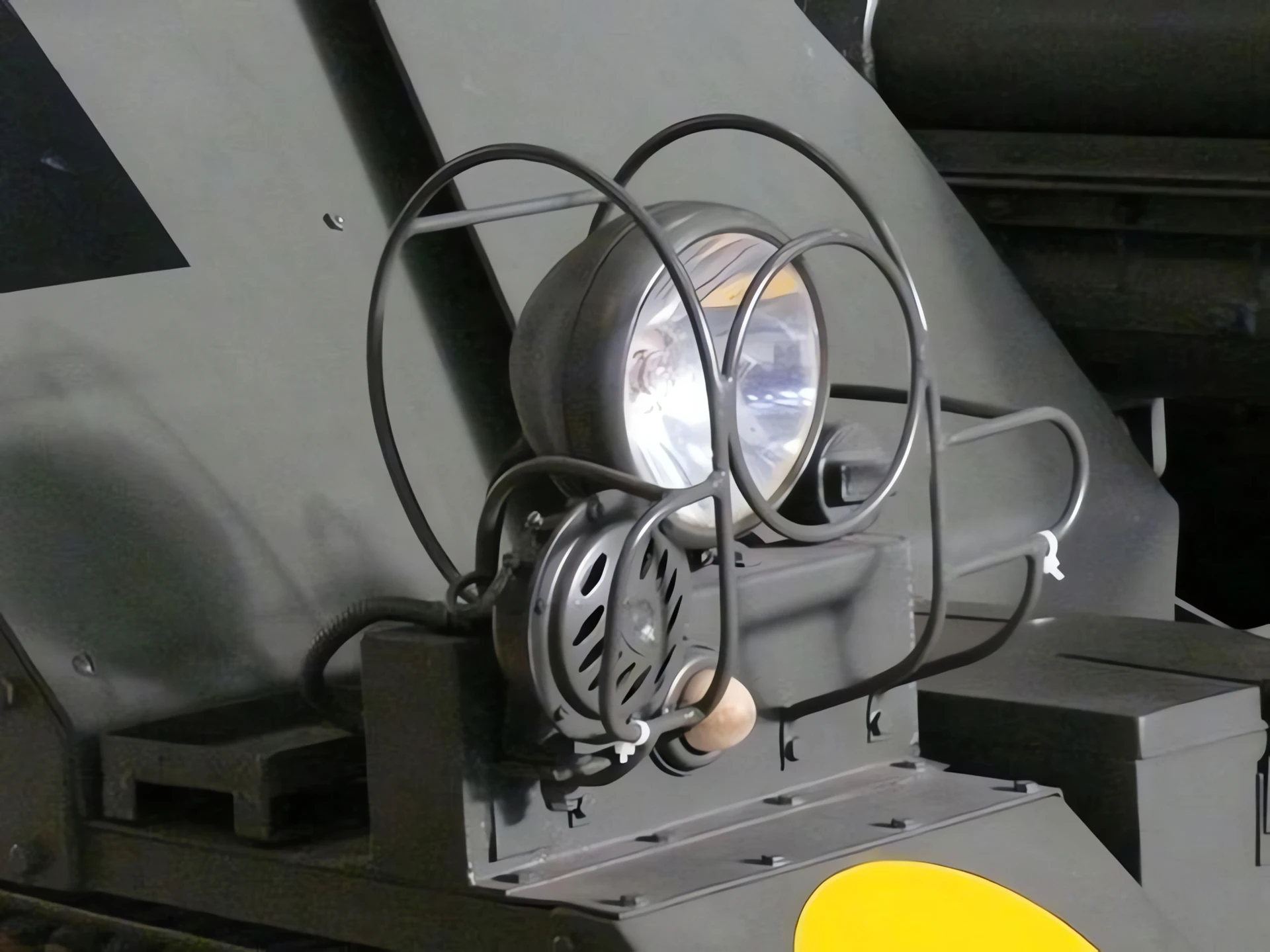

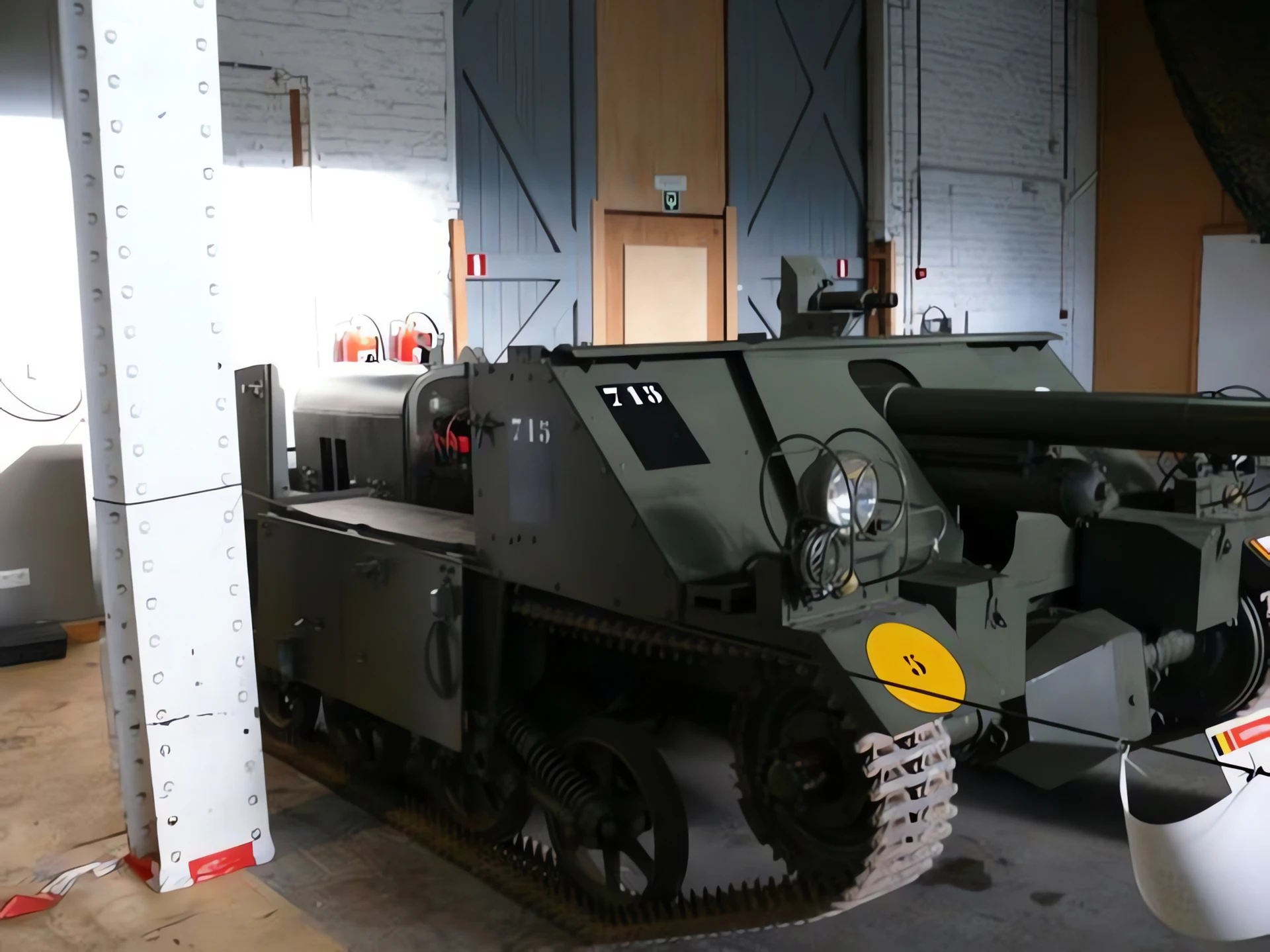

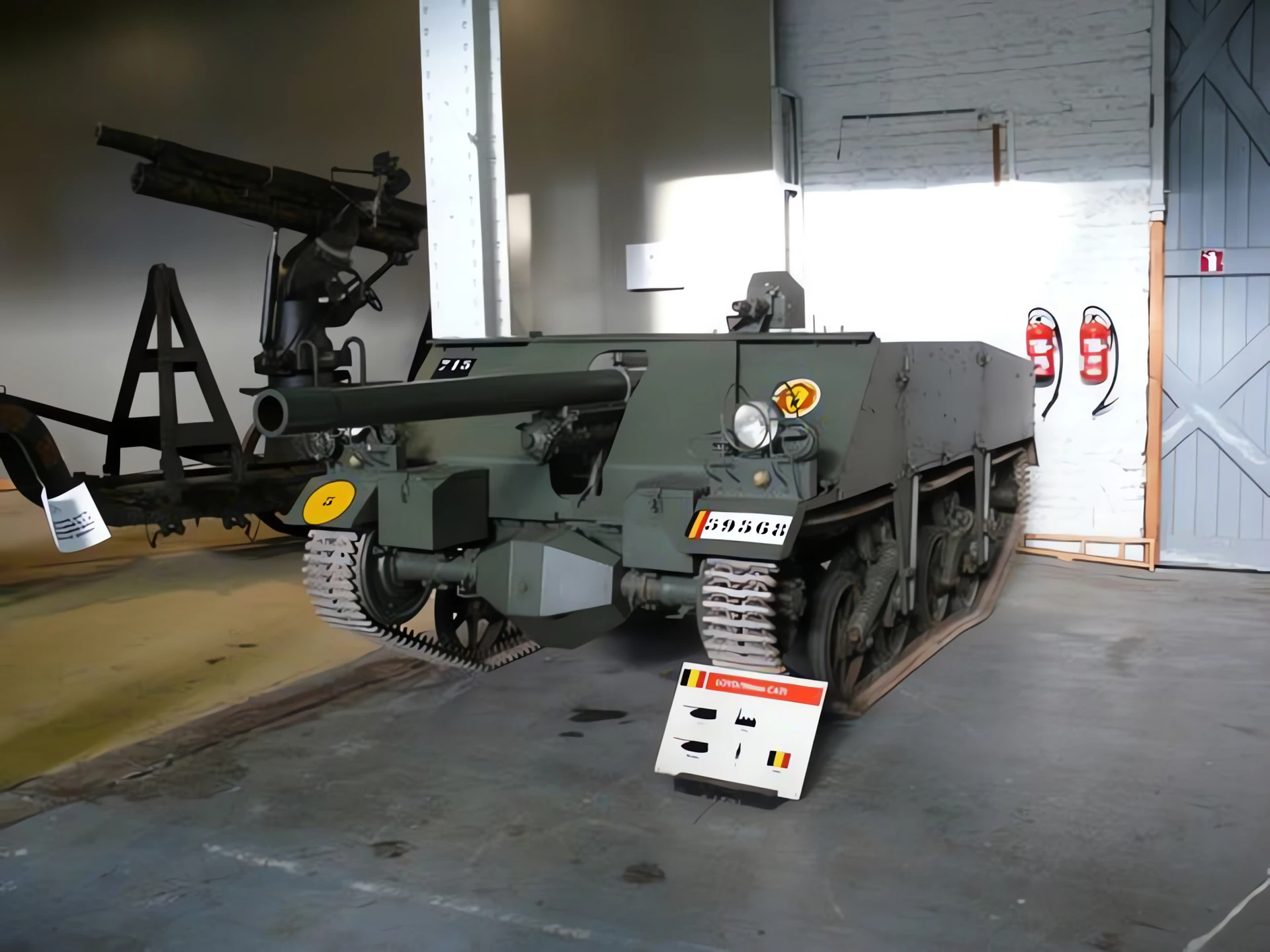

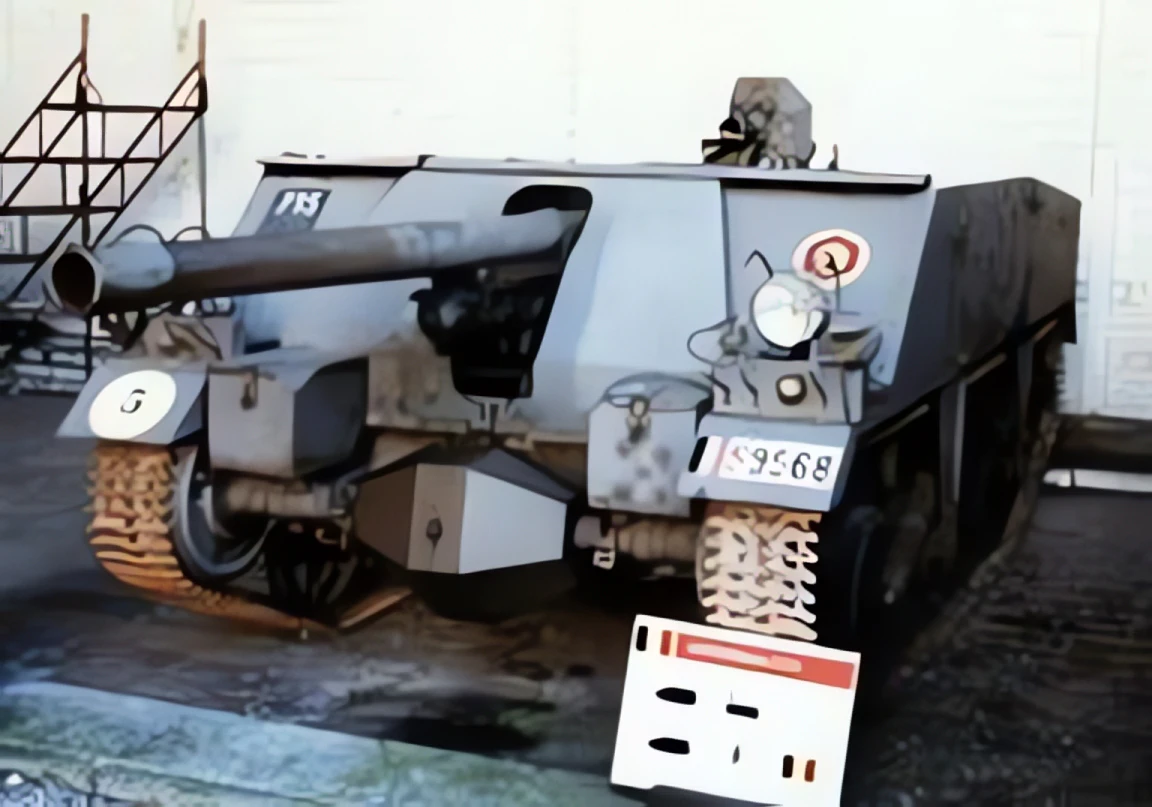

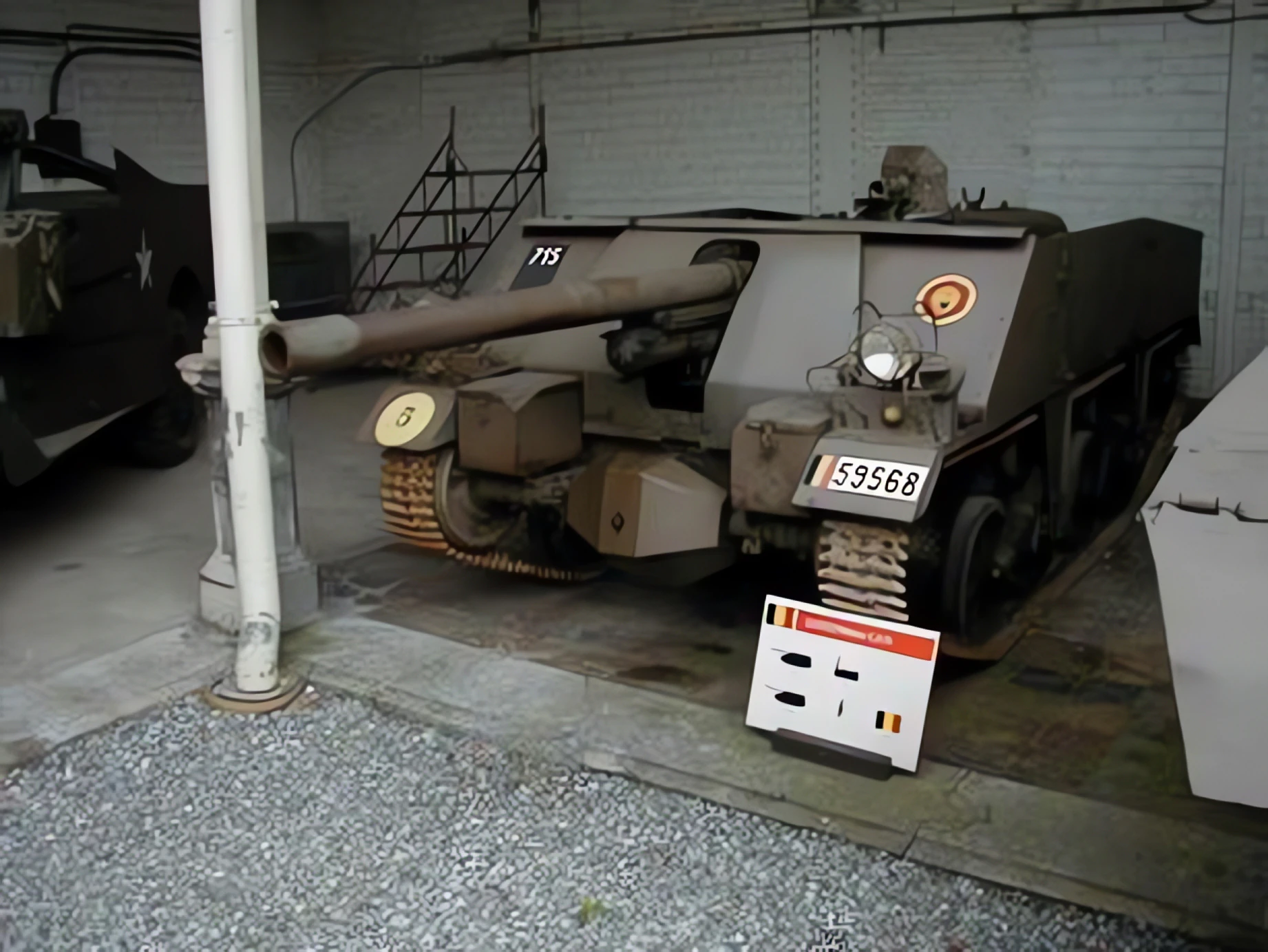

| CATI 90 mm Walk Around | |
|---|---|
| カメラマン | Unknow |
| ローカライズ | 知りません |
| 写真 | 68 |
| Loyd Carrier Walk Around | |
|---|---|
| カメラマン | Robert Blokker |
| ローカライズ | 知りません |
| 写真 | 119 |
関連項目:
General Characteristics
The Loyd Carrier, officially the ‘Carrier, Tracked, Personnel Carrying’ (TPC) or ‘Tracked Towing’ (TT), was a British light tracked vehicle used extensively by British and Commonwealth forces during World War II. Designed by Captain Vivian Loyd (co-designer of the Carden Loyd tankette), it was intended as an **artillery tractor** and general-purpose vehicle to transport personnel and materials across the battlefield, particularly for towing anti-tank guns and mortars. Its design prioritized simplicity and low cost, utilizing many components from the **Fordson 7V 15 cwt truck**, including the engine and gearbox. It was a utilitarian, reliable vehicle, with over 26,000 units built.
| Property | Typical Value (Loyd Carrier TT/TPC) |
|---|---|
| 役割 | Artillery Tractor, Personnel Carrier, Liaison |
| National Origin | 英国 |
| デザイナー | Vivian Loyd |
| Service Entry | 1939 |
| No. Built (Total) | ~26,000 |
| 乗組員 | 1 (Driver) + up to 5/6 passengers/gun crew |
| Combat Weight | ~4.5 tonnes (4.43 long tons) |
| 長さ | 4.24 m (13 ft 11 in) |
| 幅 | 2.06 m (6 ft 9 in) |
| Height (Hull Top) | 1.42 m (4 ft 8 in) |
Powerplant and Mobility
- Engine: Ford V8-cylinder, liquid-cooled, side-valve petrol engine.
- Power Output: 63 kW (85 hp) (British or Canadian) or 67 kW (90 hp) (US).
- Transmission: Ford 4-speed, manual gearbox.
- Maximum Speed (Road): 48 km/h (30 mph).
- Operational Range: 200–220 km (125–137 miles).
- Suspension: Horstmann suspension units (same as Universal Carrier).
- Steering: Controlled by two levers which activated brakes on the front drive sprockets and rear idlers to slow or stop one track.
- Design Note: The engine and radiator were mounted in the **rear** of the vehicle, with the drive shaft running forward to the front-mounted drive sprockets.
Armor and Variants
- Armour: Light, sloped mild steel plate (often known as ‘BP Plate’ – Bullet Proof) was bolted to the front and upper sides of the hull, offering protection only against small arms fire and shrapnel.
- Thickness: Up to 7 mm.
- The hull was open-topped and open at the rear, though a canvas cover was a standard fitment.
- Armament: Generally unarmed in production roles, though a single Bren Light Machine Gun was often carried for crew defense.
- Key Variants:
- Tracked Towing (TT): Most common version, used to tow the 2-pounder and 6-pounder anti-tank guns and 4.2-inch mortars, carrying the gun crew and ammunition.
- Tracked Personnel Carrier (TPC): Equipped with bench seating for personnel.
- Tracked Starting and Charging (TS&C): Fitted with generators and batteries to jump-start other armored vehicles.
- Tracked Cable Layer Mechanical (TCLM): Used by Royal Signals for laying cables.
