das BM-21 "Grad" ist ein sowjetischer 122-mm-Raketenwerfer. Das Waffensystem und die M-21OF-Rakete, die sie abfeuert, entwickelten sich in den frühen 1960er Jahren und sahen ihren ersten Kampfeinsatz im März 1969 während des sinosowjetischen Grenzkonflikts. BM steht für boyevaya mashina (russisch: " – Kampffahrzeug), und der Spitzname grad bedeutet "Hagel". Das komplette System mit der Trägerrakete BM-21 und der M-21OF-Rakete ist als M-21-Feldraketensystem

Quelle: BM-21 Grad auf Wikipedia

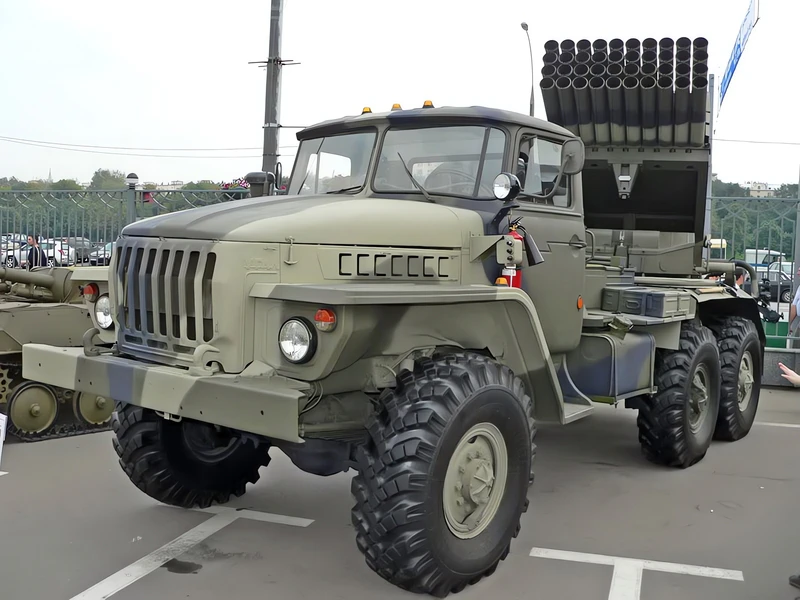

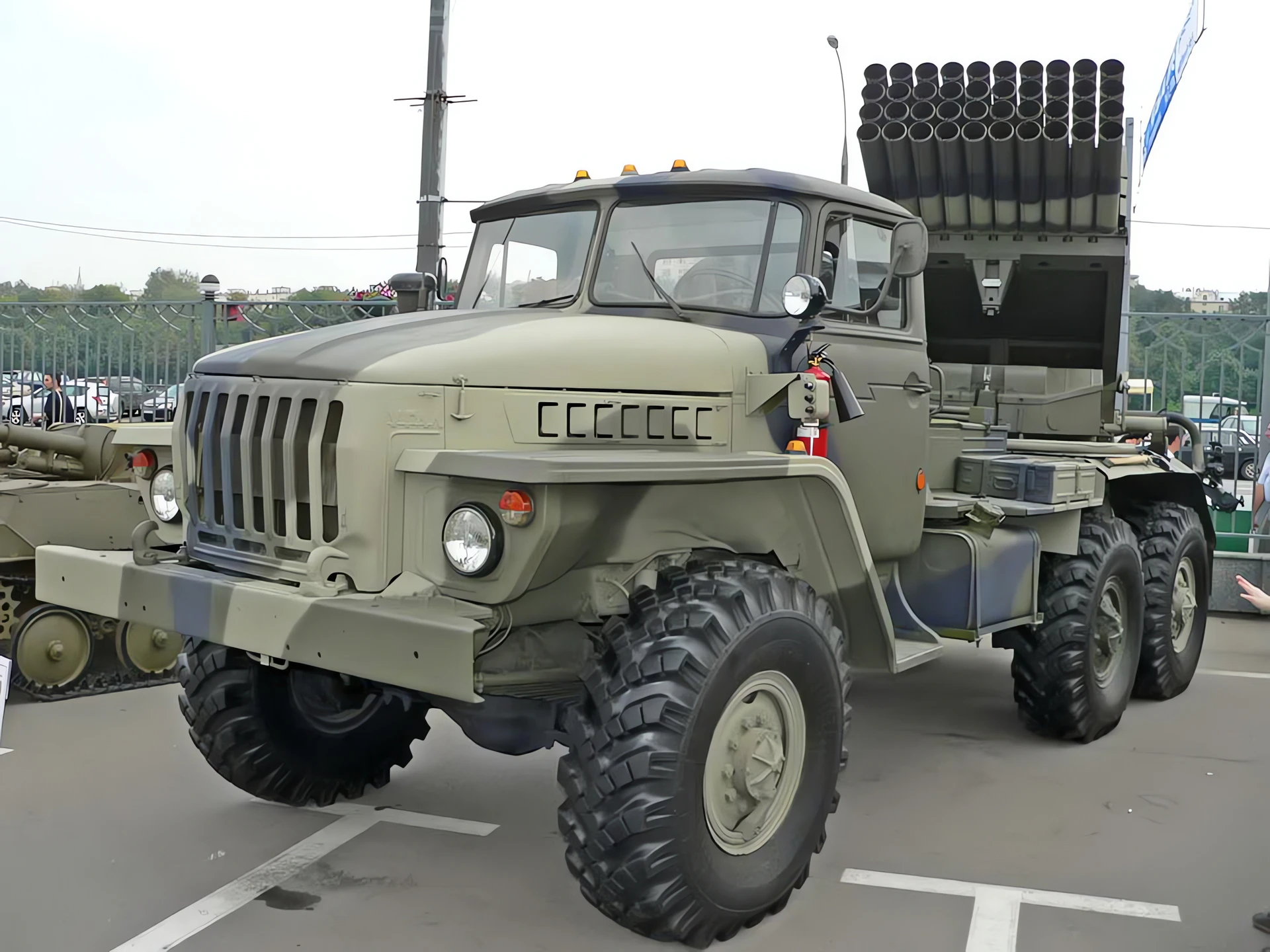

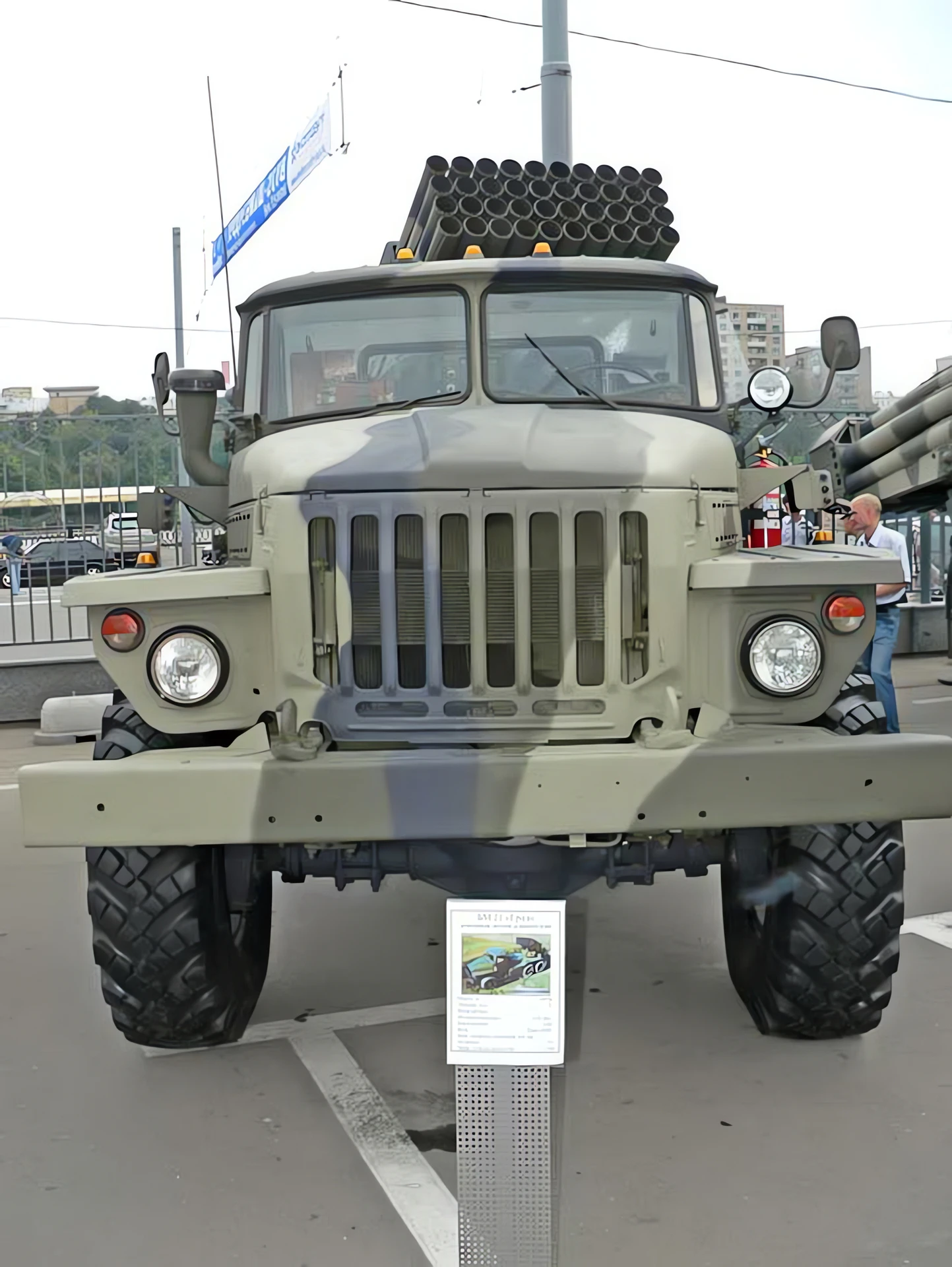

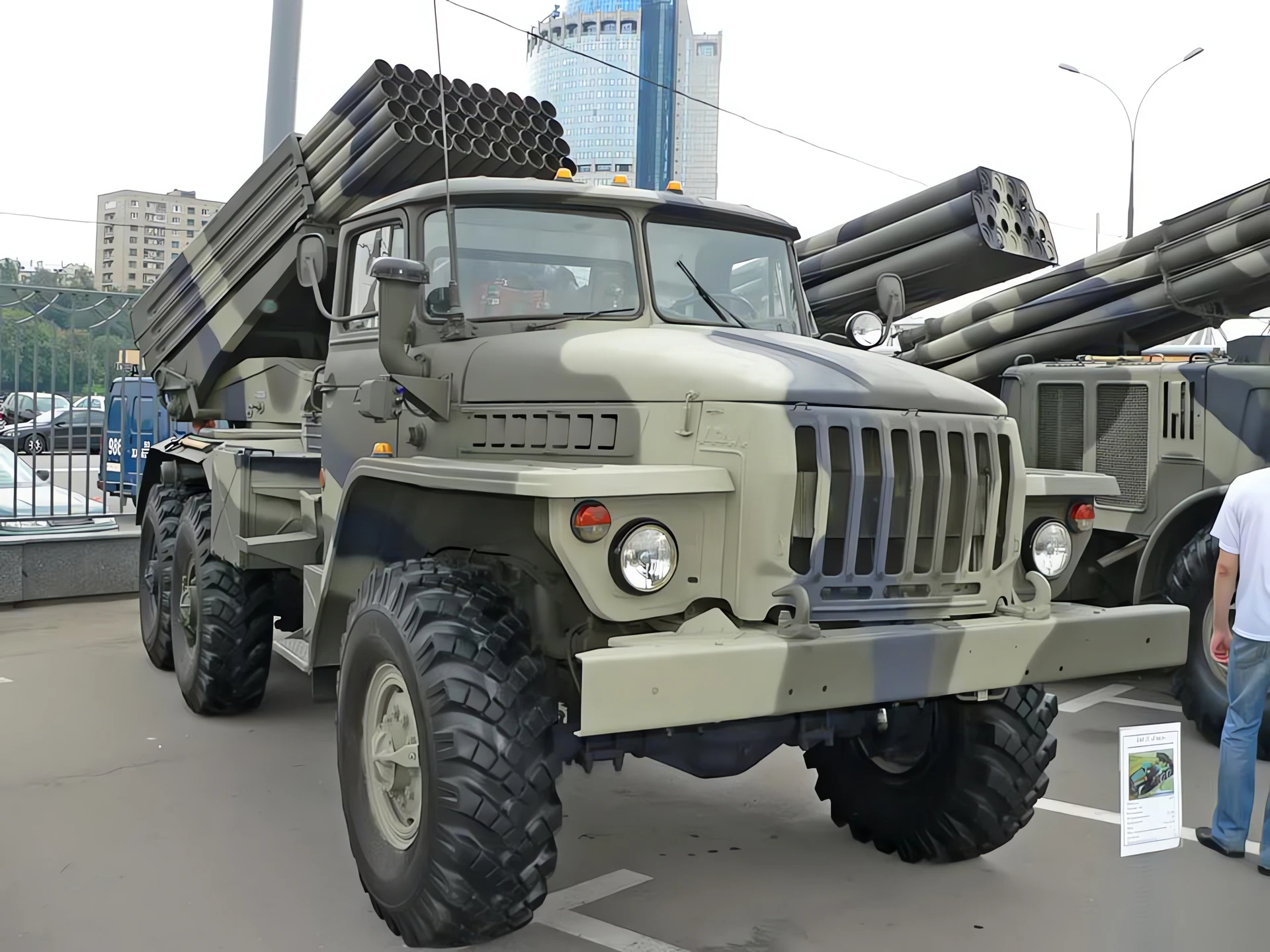

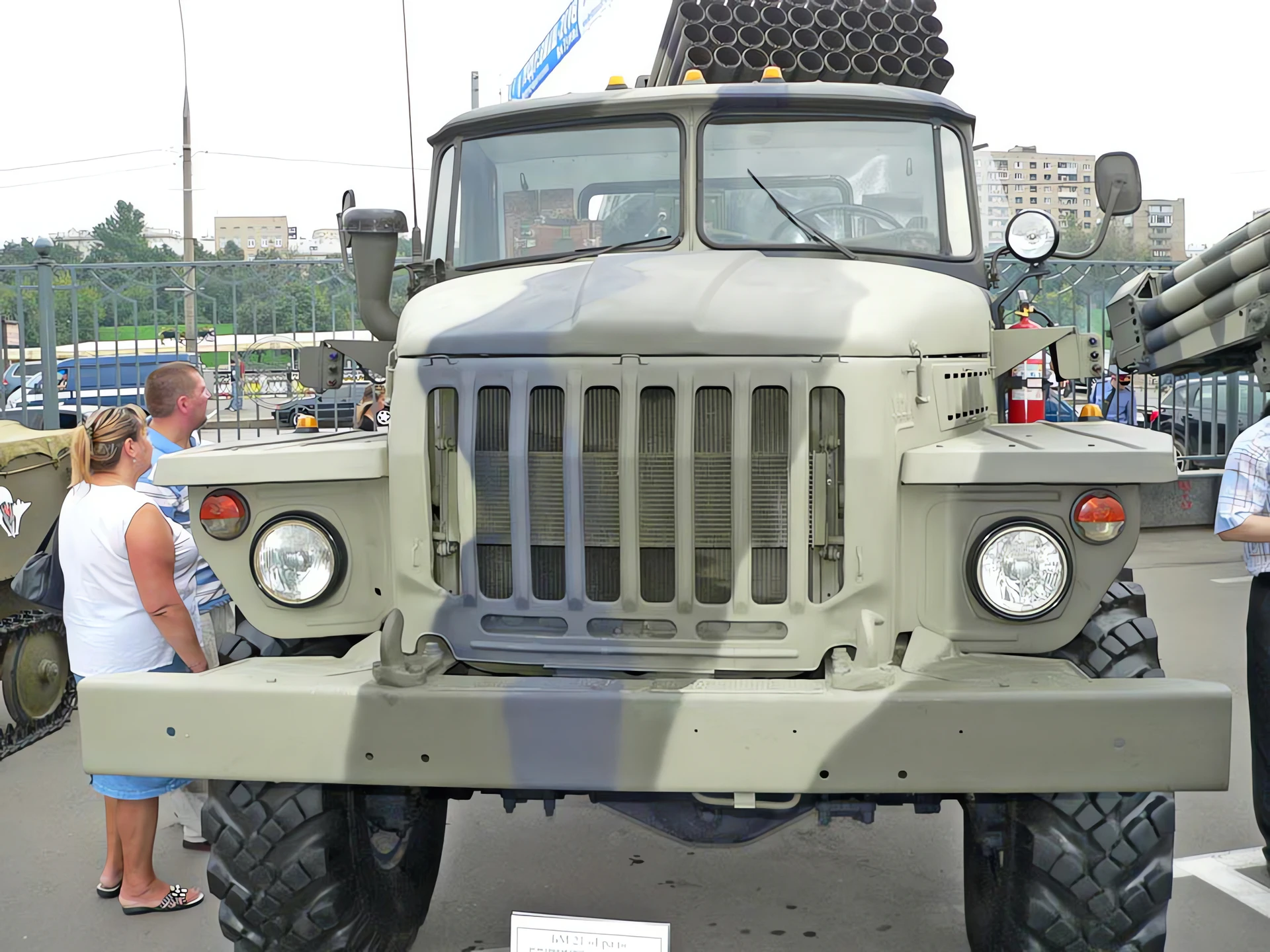

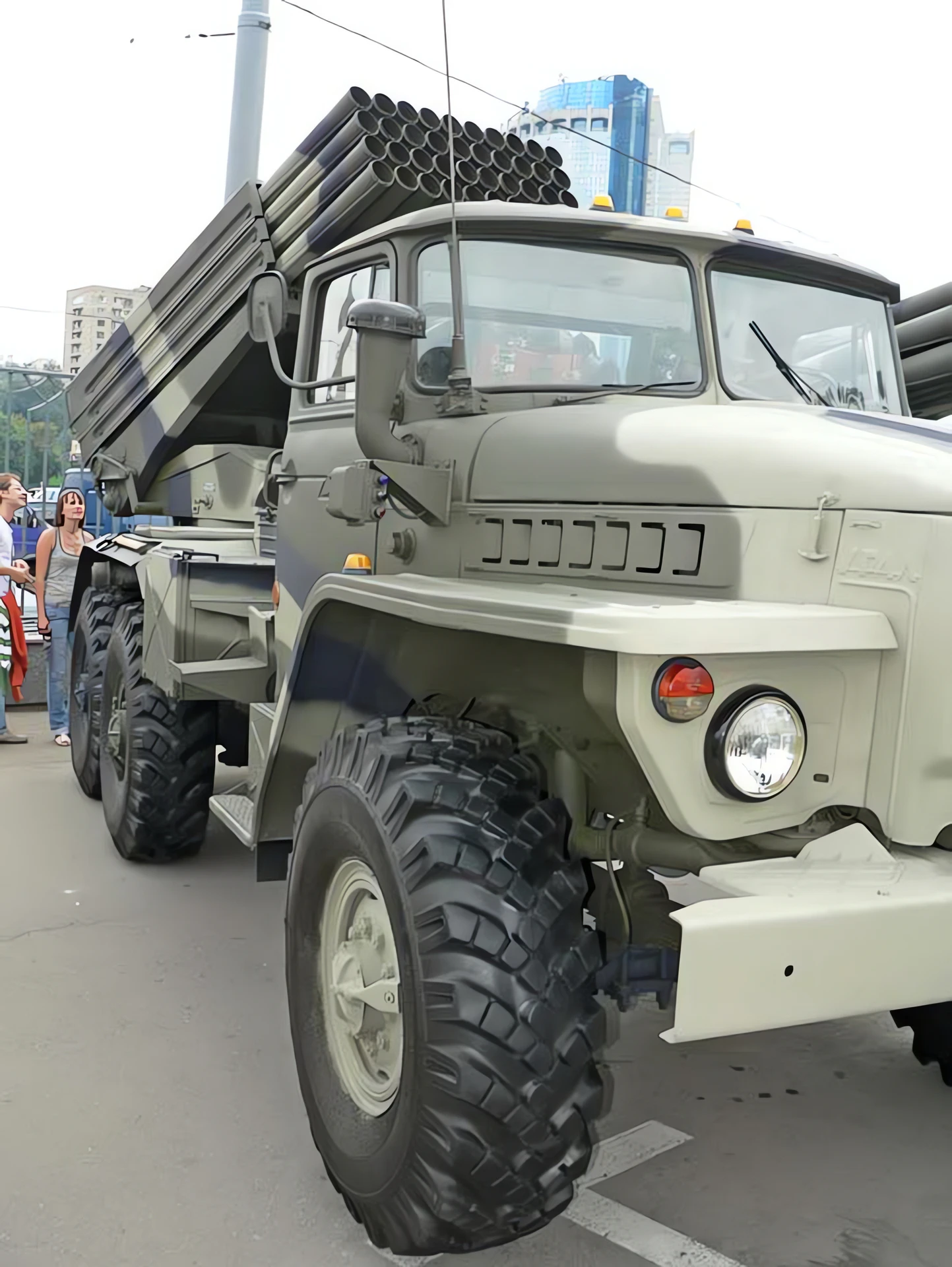

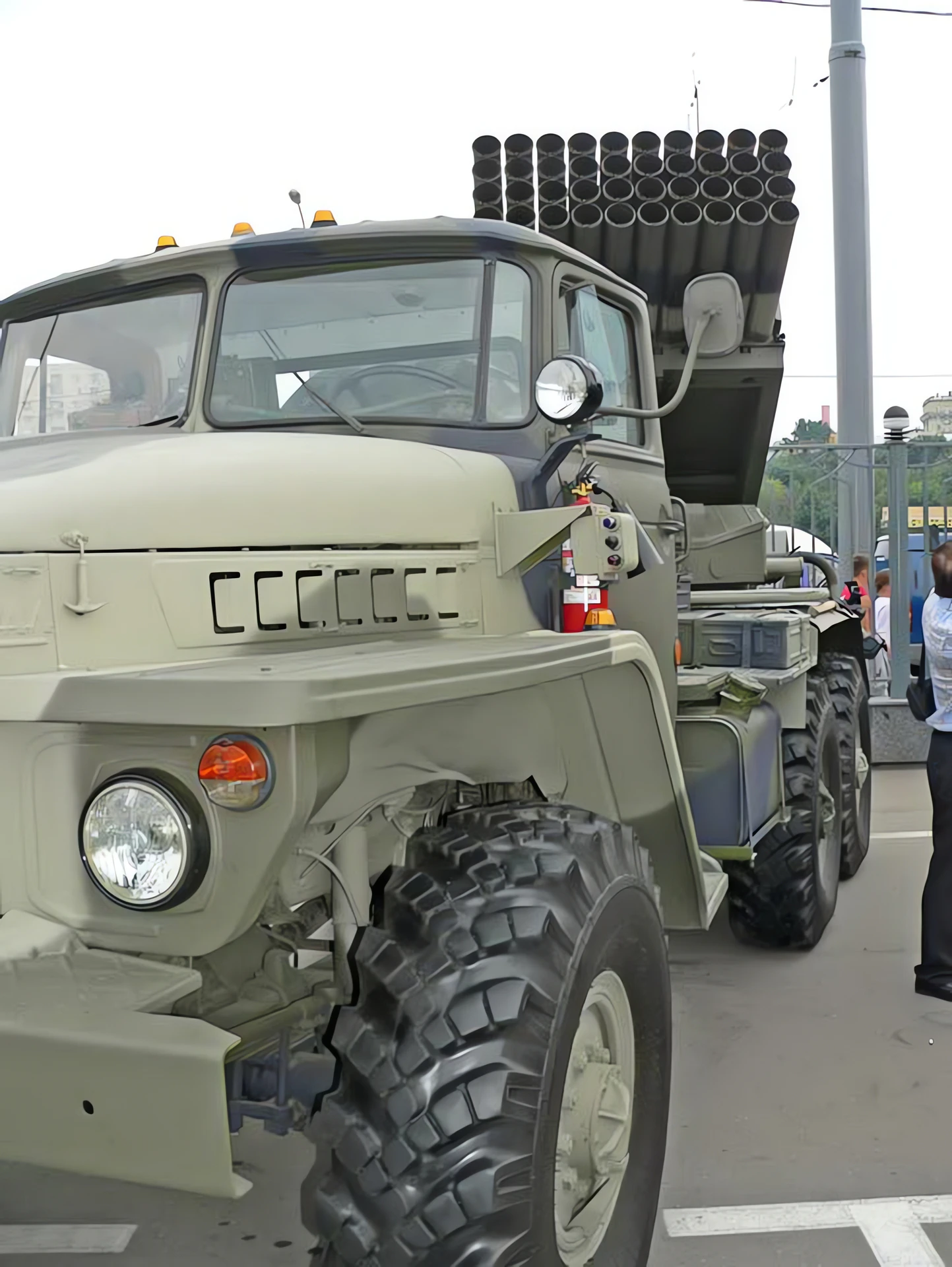

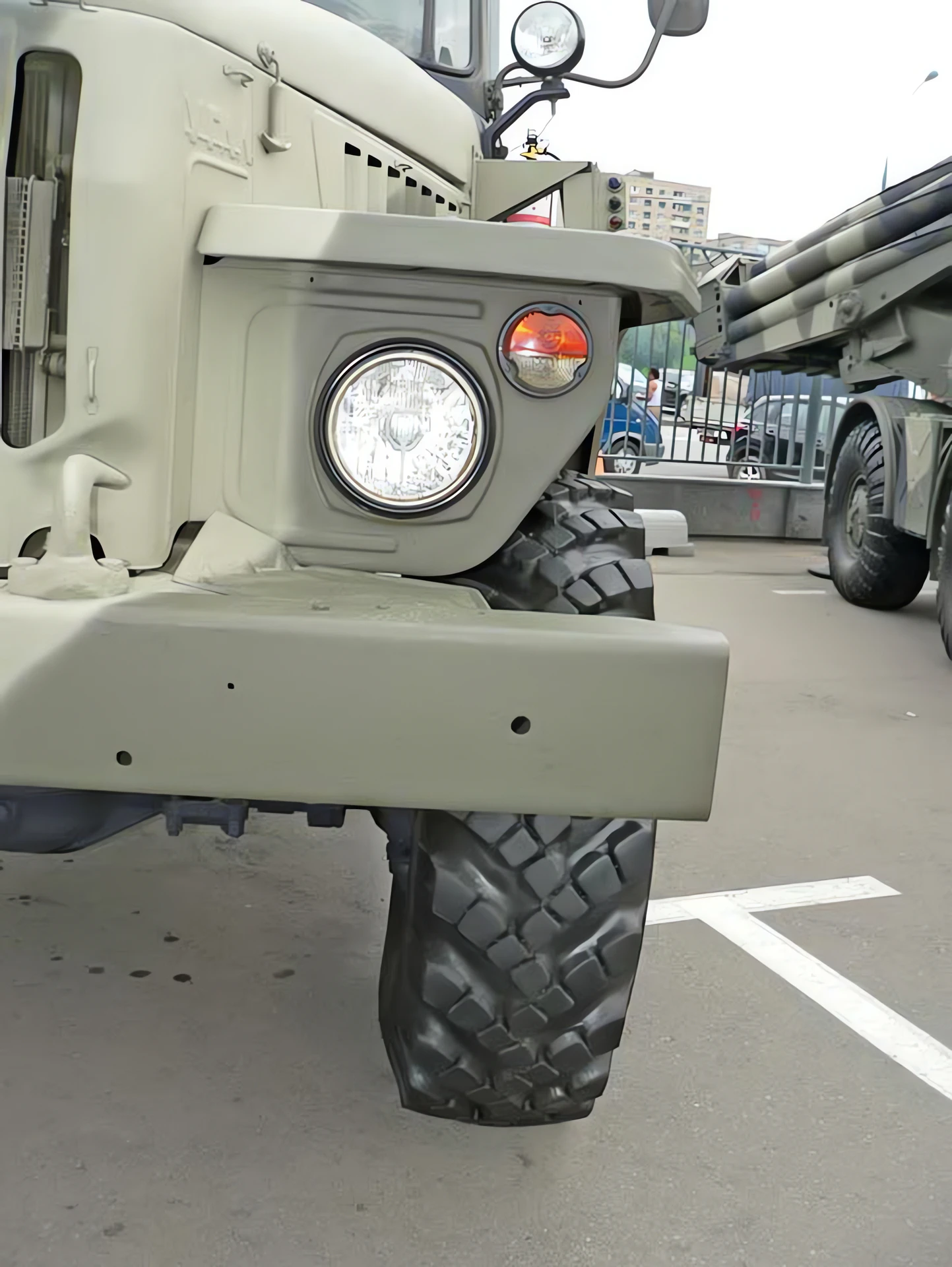

BM-21 Grad on URAL 4320 Chassis Walk Around
Fotograf	Juri Pasholok
Lokalisierung	Unbekannter
Fotos	120

Click on a photo and use the mouse scroll to view all photos

Warten Sie, BM-21 Grad für Sie suchen ...

Siehe auch:

Warten Sie, Auf der Suche nach mehreren Raketenwerfern für Sie...

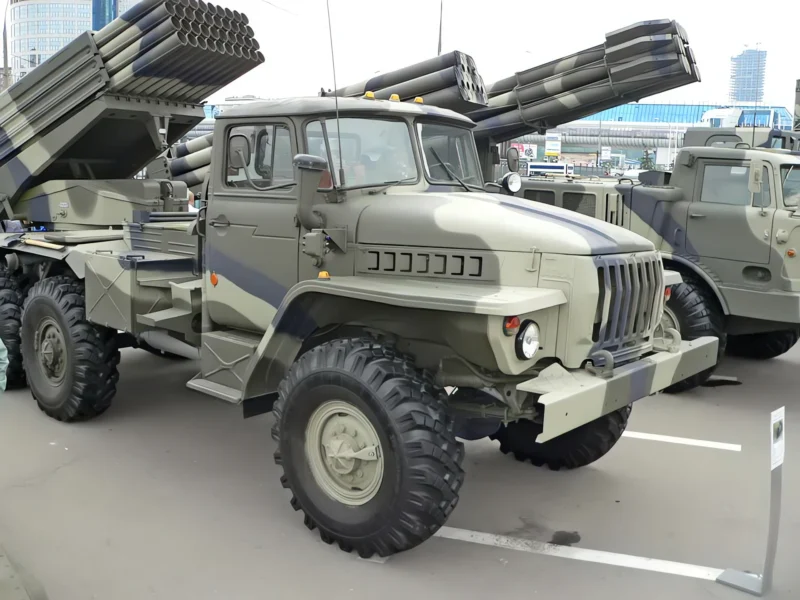

General Characteristics and Role

The BM-21 “Grad” (Russian for “hail”) is a Soviet-era 122 mm multiple launch rocket system (MLRS) designed to deliver large volumes of fire against enemy infantry, armored vehicles, artillery positions, and command posts. The system is mounted on a highly mobile Ural-4320 6×6 cross-country truck chassis. The combination is robust, relatively inexpensive to produce, and simple to operate, making it one of the most widely exported and utilized MLRS systems globally. It is designed to saturate a target area quickly, providing massive destructive power over a wide zone.

Property	Typical Value (BM-21 on Ural-4320)
Typ	Multiple Launch Rocket System (MLRS)
National Origin	Soviet Union (currently Russia)
Service Entry	1963 (Original BM-21)
Fahrgestell	Ural-4320 6×6 Military Truck
Crew	3-5 (Varies by user/version)
Length (Vehicle)	7.35 m (24 ft 1 in)
Width (Vehicle)	2.69 m (8 ft 10 in)
Height (Launcher Stowed)	3.09 m (10 ft 2 in)
Weight (Combat Loaded)	Approx. 13.7 metric tons

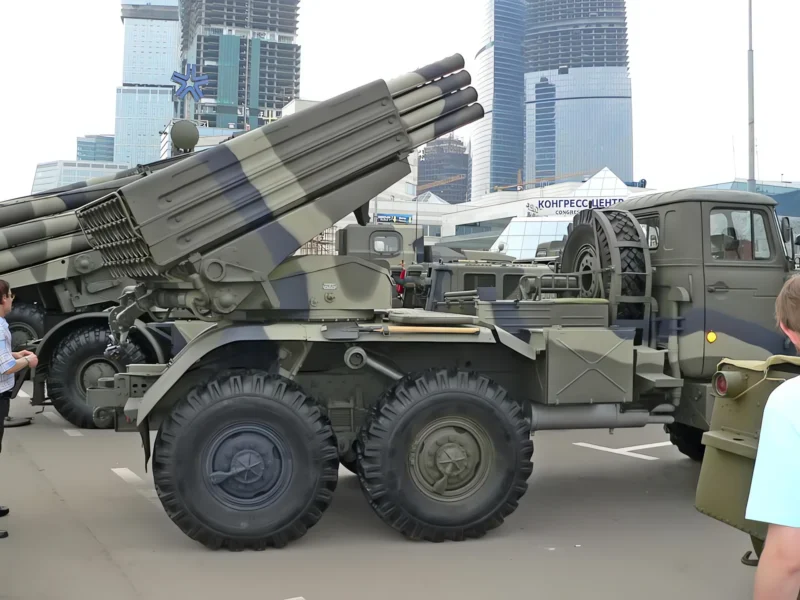

Launch System and Performance

Launcher: 40 launch tubes (4 rows of 10) mounted on the rear of the truck.
Rocket Caliber: 122 mm.
Maximum Range: Standard rockets range from about 20 km to 27 km (12.4 to 17 miles), though modern variants can reach up to 40 km.
Firing Rate: A full salvo of 40 rockets can be fired in about 20 seconds.
Re-load Time: Manual reloading typically takes 5 to 10 minutes by a trained crew.
Engine (Ural-4320): KAMAZ-740.10 V8 diesel engine or similar.
Road Speed: Up to 85 km/h (53 mph).
Cross-Country Mobility: Excellent, thanks to the 6×6 all-wheel drive and high ground clearance of the Ural truck.

Ammunition and Impact

Standard Ammunition: High-Explosive Fragmentation (HE-Frag) rockets (9M22 family).
Specialized Rounds: Can fire rounds with chemical, smoke, illumination, incendiary, and anti-tank mine-laying warheads.
Salvo Area: The 40-round salvo of a single BM-21 can effectively saturate a target area of approximately 700 meters by 700 meters, or about 32 acres.
Operational Doctrine: Typically deployed in batteries, where multiple launchers fire simultaneously to achieve devastating area saturation.
