ZIL-135 | |
|---|---|
| Страна | Съветски съюз |
| Роля | Artillery truck |
| Произведени | 1959-1963 (ЗИЛ) |
| 1963-1994 г. (BAZ) | |
| Построен | Не знам |
ZIL-135 е голям, 8-колесен военен транспорт и самоходен артилерийски камион, произвеждан по време на Студената война от Съветския съюз, започващ през 1959. Целта му е да се извърши и изстреля артилерийска ракета, по-специално FROG-7, от повърхността до повърхността. ZIL-135 е широко изнесен в други комунистически страни, най-вече Северна Корея, където тя е обща гледка във филми и военни маршове. Той също така служи като TEL за ракетната система BM-27 Uragan.
Източник: ЗИЛ-135 в Уикипедия

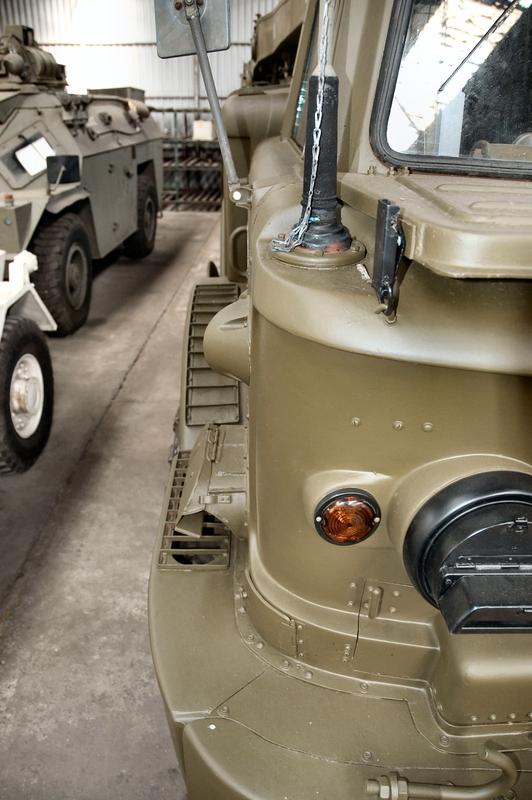

| FROG-7 Luna on BAZ-135 Walk Around | |
|---|---|
| Фотограф | Робърт Де Крекер |
| Локализация | Не знам |
| Снимки | 121 |
Вижте също:
General Characteristics and Role
The ZIL-135 is a Soviet/Russian high-mobility, eight-wheeled (8×8) military truck developed by the Likhaev Automobile Plant (ZIL). Designed specifically to carry heavy loads and traverse extremely difficult terrain, it became famous primarily as the transporter and launcher for the BM-27 Uragan and BM-30 Smerch multiple rocket launcher systems (MRLS). Its unusual and highly capable design featured a long, flat cargo area, a distinctive forward-control cab, and a unique engine and transmission setup for optimal off-road performance. It was a staple of Soviet and later Russian missile artillery forces for decades.
| Property | Typical Value (ZIL-135LM) |
|---|---|
| Роля | Heavy Artillery/Missile Transporter and Launcher |
| National Origin | Soviet Union (USSR) |
| Производителя | Zavod imeni Likhachova (ZIL) |
| Service Entry | 1963 |
| Екипажа | 4 (Driver, Commander, 2 Gunners/Operators) |
| Payload Capacity | 9,000 kg (20,000 lb) |
| Length Overall | 9.27 m (30 ft 5 in) |
| Ширина | 2.80 m (9 ft 2 in) |
| Височина | 2.53 m (8 ft 4 in) (Cab Top) |
| Weight (Mass) | Approx. 12,000 kg (Empty) |
Powerplant and Unique Drivetrain
- Engines: 2 x ZIL-375YA V8 petrol engines. (Located directly behind the cab).
- Power Output (Total): 270 kW (360 hp) (180 hp from each engine).
- Drivetrain: A unique setup where each engine drives only one side of the vehicle (one engine for the left-side wheels, one for the right-side wheels), improving off-road capability and reliability.
- Driven Axles: All 8 wheels are driven (8×8).
- Steering: Only the front two axles and the rear two axles are steerable, allowing for a tight turning radius despite the vehicle’s length. The two central axles are fixed.
- Maximum Speed: 65 km/h (40 mph) on road.
- Operational Range: 500 km (310 mi).
Military Systems and Variants
- Primary Role: Transporter/Launcher for MRLS, including:
- BM-27 Uragan (Hurricane) 220 mm MRLS.
- BM-30 Smerch (Tornado) 300 mm MRLS.
- Missile Transport: Also used as the mobile chassis for the Luna-M (Frog-7) tactical ballistic missile system.
- Tire System: Equipped with a Central Tire Inflation System (CTIS), allowing the driver to adjust tire pressure for optimal traction on different surfaces.
- Варианти:
- ZIL-135E: Prototype featuring electrical transmission (electric motors in the hubs).
- ZIL-135K: Prototype for missile transport (never mass-produced).
- ZIL-135LM: Mass-produced model with manual transmission (most common version).
- ZIL-135LN: Variant with a crane and recovery equipment.
