Vought F4U Korzár | |
|---|---|
| Krajiny | Spojené štáty americké |
| Úlohu | Nosný stíhací bombardér |
| Vyrobené | 1942–53 |
| Počet vstavaných | 12571 |
Komisia Vought F4U Korzár je americké stíhacie lietadlo, ktoré slúžilo predovšetkým v druhej svetovej vojne a kórejskej vojne. Dopyt po lietadlách čoskoro prevýšil výrobné kapacity spoločnosti Vought, čo viedlo k výrobe spoločnosťami Goodyear a Brewster: Corsairy vyrobené spoločnosťou Goodyear boli označené ako FG a lietadlá F3A vyrobené spoločnosťou Brewster. Od prvej dodávky prototypu americkému námorníctvu v roku 1940 až po konečnú dodávku v roku 1953 Francúzom bolo vyrobených 12 571 lietadiel F4U Corsair, v 16 samostatných modeloch, v najdlhšej výrobnej sérii akejkoľvek stíhačky s piestovým motorom v histórii USA (1942-53)
Zdrojový: Vought F4U Corsair na Wiki
| Vought F4U-1A Corsair chodí okolo | |
|---|---|
| Fotograf | Vladimír Jakubov |
| Lokalizácia | Stroje snov na tichomorskom pobreží 2014 |
| Fotografie | 98 |
| FG-1D Corsair Walk Around | |
|---|---|
| Fotograf | Cees Hendriks |
| Lokalizácia | Neznáme |
| Fotografie | 106 |
| F4U-1D Corsair | |
|---|---|
| Fotograf | Cees Hendriks |
| Lokalizácia | Neznáme |
| Fotografie | 51 |
| F4U-5N Corsair Walk Around | |
|---|---|
| Fotograf | Cees Hendriks |
| Lokalizácia | Neznáme |
| Fotografie | 47 |
| Chance Vought F4U-4 Corsair Walk Around | |
|---|---|
| Fotograf | Neznáme |
| Lokalizácia | Neznáme |
| Fotografie | 62 |
Pozri tiež:
The Legend of the Gull Wing
Komisia F4U-1A Korzár was the first major refinement of Vought’s revolutionary fighter. While the initial F4U-1 “Birdcage” was plagued by visibility issues that made carrier landings nearly impossible, the 1A introduced the raised “bubble” canopy and a taller tail wheel. These changes, along with a simplified engine cowling, finally allowed the Corsair to transition from a land-based Marine Corps fighter to the dominant carrier-based interceptor of the U.S. Navy. Its distinctive silhouette and the screaming sound of its oil coolers earned it a fearful reputation among Japanese pilots.
| Attribute | Technical Specification (F4U-1A) |
|---|---|
| Úlohu | Carrier-based Fighter / Fighter-Bomber |
| Posádky | 1 (Pilot) |
| First Flight (F4U-1) | May 29, 1940 |

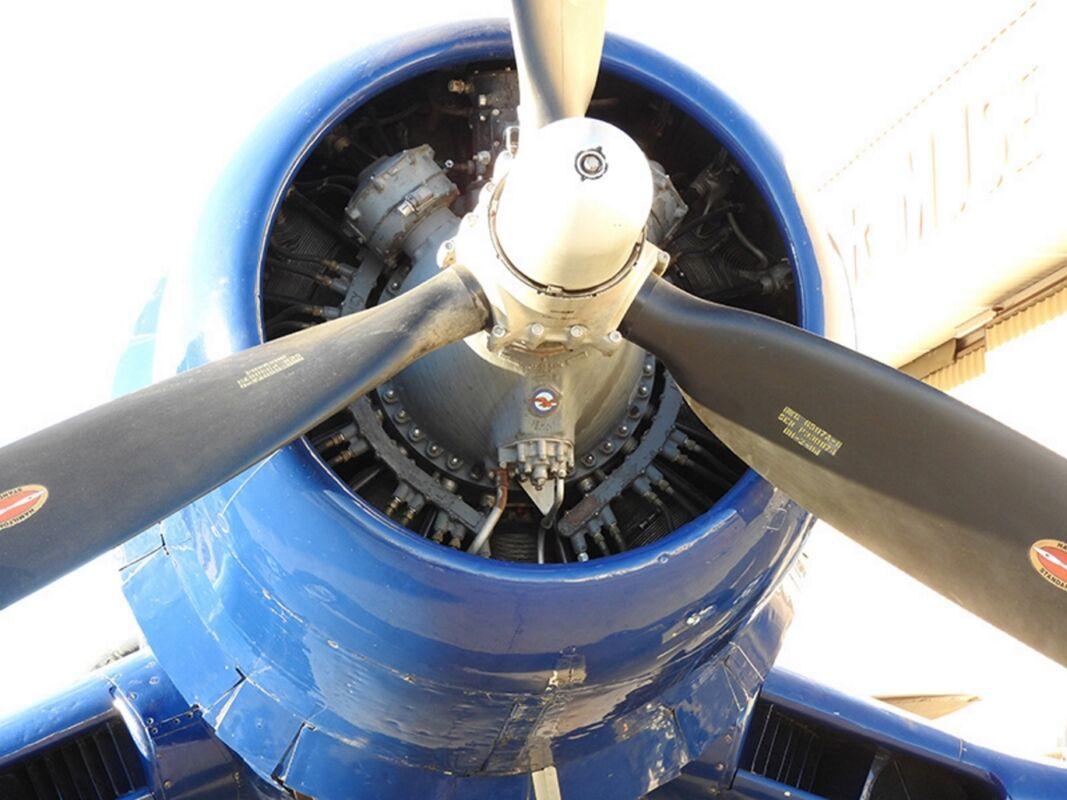

| Pohonná jednotka | 1 × Pratt & Whitney R-2800-8 (B) Double Wasp radial |
| Horsepower | 2,000 hp (1,491 kW) |
| Maximálna rýchlosť | 417 mph (671 km/h) |
| Service Ceiling | 36,900 feet (11,247 m) |
| Výzbroj | 6 × .50 cal (12.7 mm) M2 Browning machine guns |
Engineering Excellence: Why the Bent Wing?

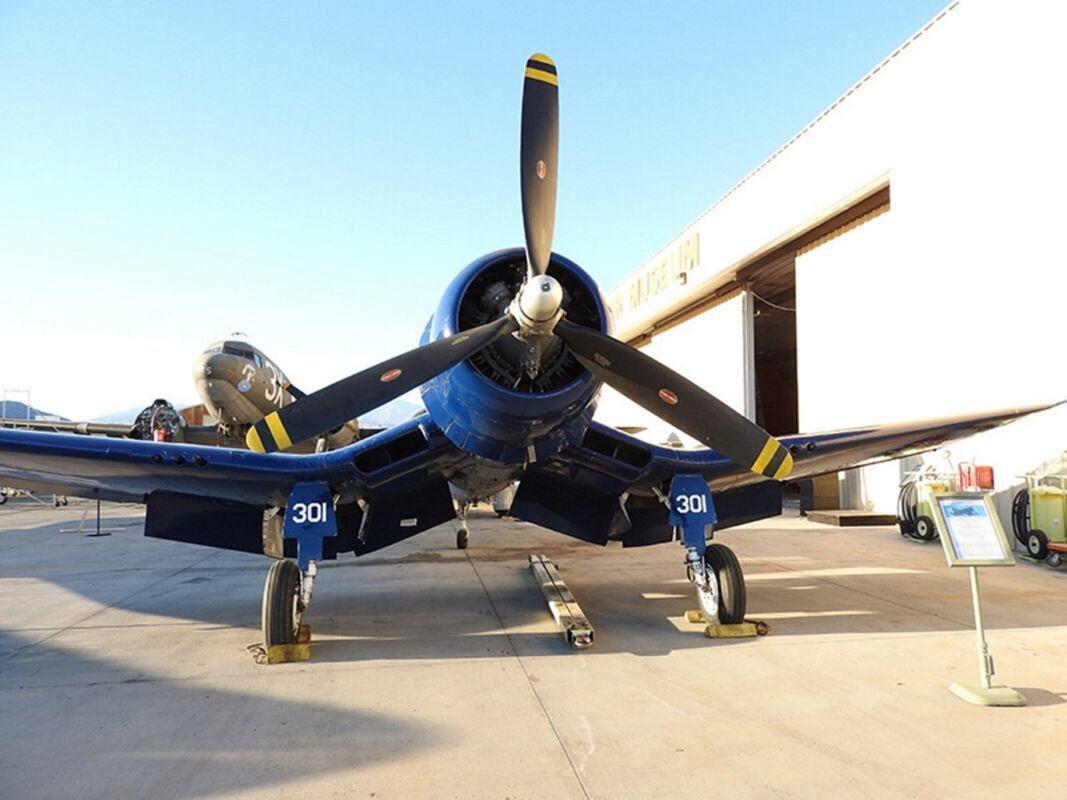

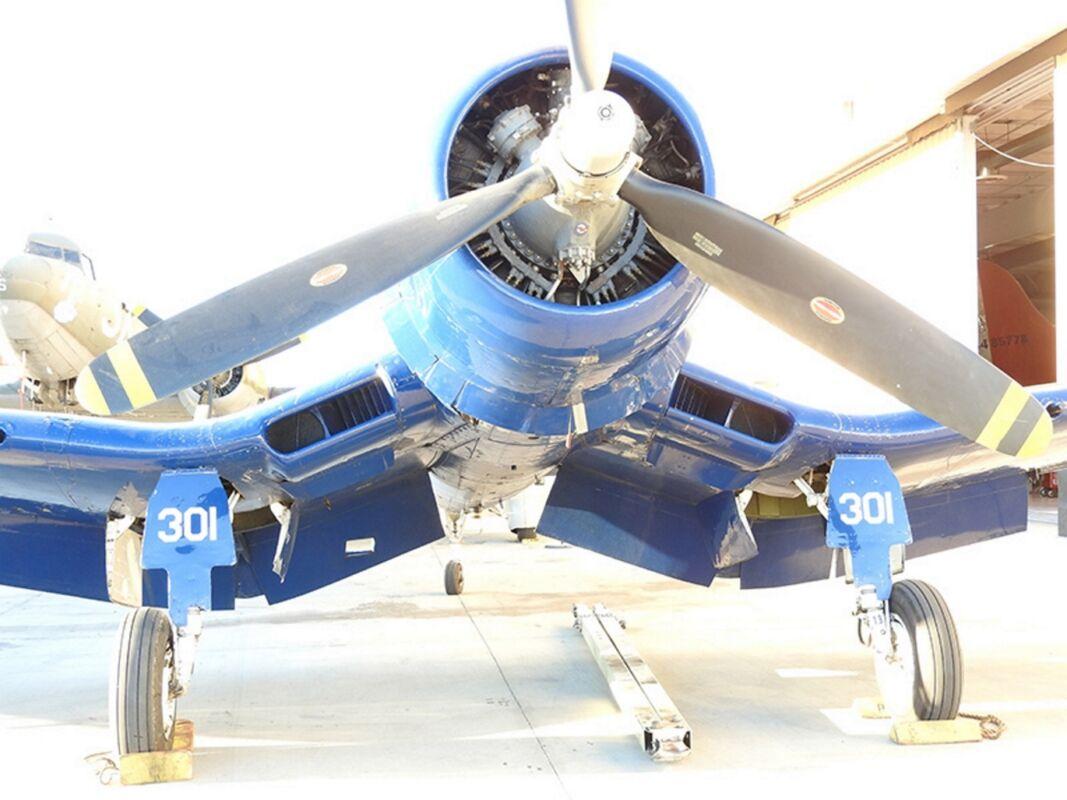

- The Inverted Gull Wing: To harness the 2,000 hp of the R-2800 engine, Vought needed a massive 13-foot propeller. To provide enough ground clearance for this prop without using dangerously long, spindly landing gear, the wings were bent downward and then up.
- Raised Pilot Seating: The 1A variant raised the pilot’s seat by 7 inches and replaced the multi-framed “birdcage” canopy with a clearer, blown-glass version. This vastly improved the pilot’s view over the long nose during the tricky curved approach to a carrier deck.

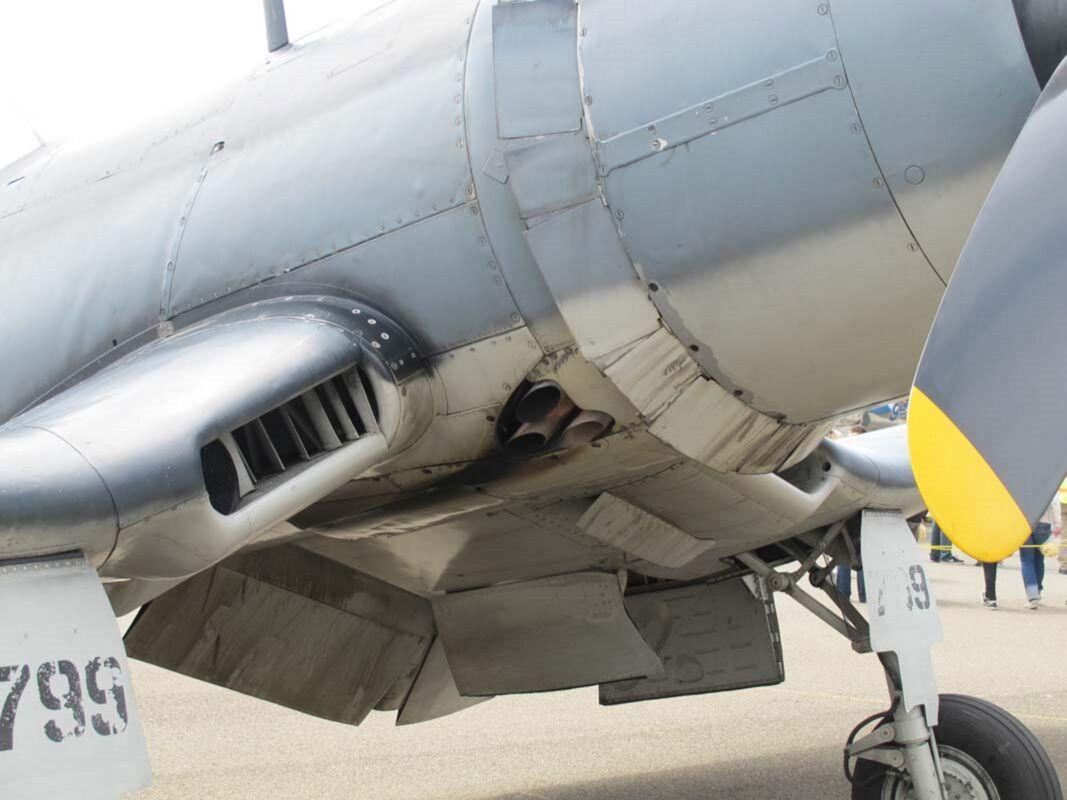

- Intercooler Air Intakes: The air for the engine’s intercoolers was drawn through slots in the leading edge of the wing roots. At high speeds, the air rushing through these slots created a high-pitched moan, leading the Japanese to nickname the aircraft “Whistling Death.”

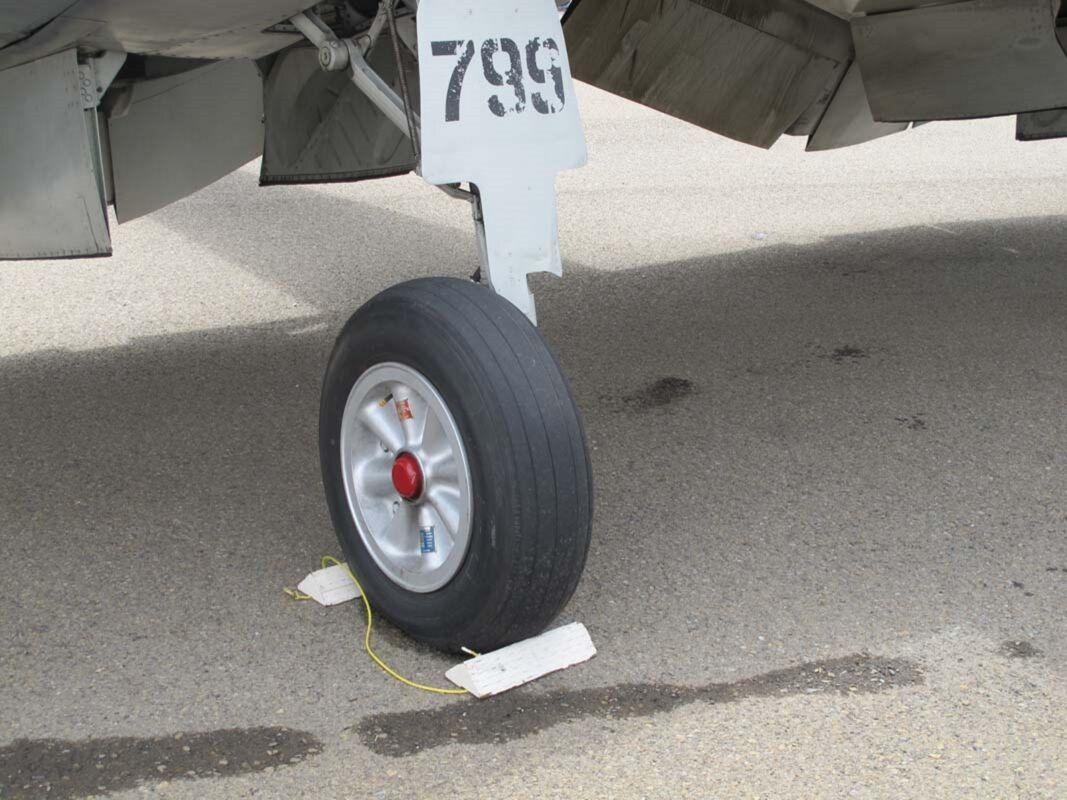

- The “Oleostrut” Fix: The 1A introduced a simplified landing gear oleo strut that didn’t bounce as violently upon landing, solving one of the primary reasons the Navy had initially rejected the Corsair for carrier use.
Combat Record and “Black Sheep”
- Pappy Boyington and VMF-214: The F4U-1A is most famously associated with Major Greg “Pappy” Boyington and the “Black Sheep” squadron. Operating from island bases like Guadalcanal, they used the Corsair’s superior speed and climb to dominate the Mitsubishi Zero.
- 11:1 Kill Ratio: By the end of WWII, the Corsair had flown over 64,000 sorties and achieved an astonishing kill-to-loss ratio of 11:1 in aerial combat.
- Ground Attack Power: Beyond its air-superiority role, the Corsair became a devastating ground-attack aircraft. It could carry a heavier bomb load than many twin-engine medium bombers, earning it the nickname “Mudfighter” among ground troops.
- Longest Production Run: The Corsair remained in production until 1953, serving with distinction through the Korean War as both a night fighter and a rugged close-air-support platform.
