Fotogaléria Northrop Grumman E-2 Hawkeye, The Grumman E-2 Hawkeye je americké lietadlo schopné letovej včasnej výstrahy (AEW) schopné letovej lode. Toto dvojmotorové turbovrtuľové lietadlo bolo navrhnuté a vyvinuté koncom 50-tych a začiatkom 60-tych rokov spoločnosťou Grumman Aircraft Company pre námorníctvo Spojených štátov ako náhrada za skorší E-1 Tracer, ktorý sa rýchlo stal zastaraný. Výkon lietadla bol vylepšený o verzie E-2B a E-2C, kde sa väčšina zmien radarovej a rádiovej komunikácie urobila v dôsledku pokroku v elektronických integrovaných obvodoch a inej elektronike. Štvrtou verziou Hawkeye je E-2D, ktorý prvýkrát letel v roku 2007. E-2 bolo od začiatku prvým lietadlom určeným na to, aby bolo lietadlom AEW, na rozdiel od úpravy existujúceho rámu lietadla, ako je E-3.
Počkajte, Hľadanie Northrop Grumman E-2 Hawkeye fotografie pre vás...

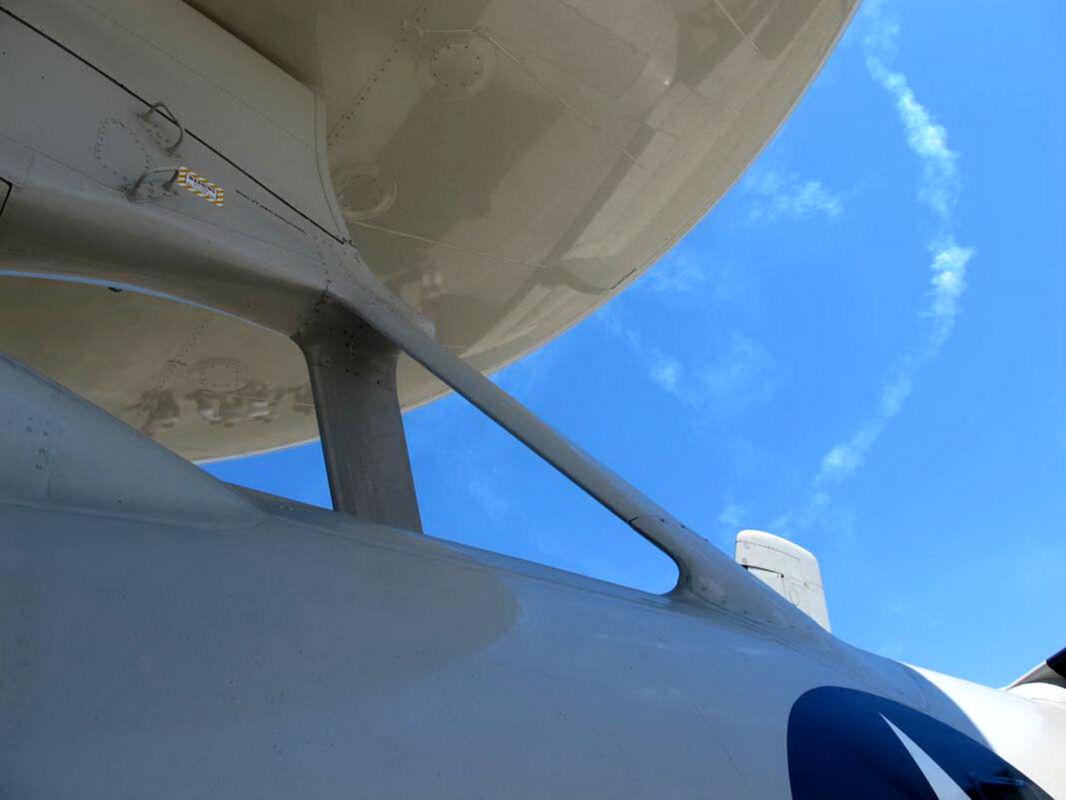

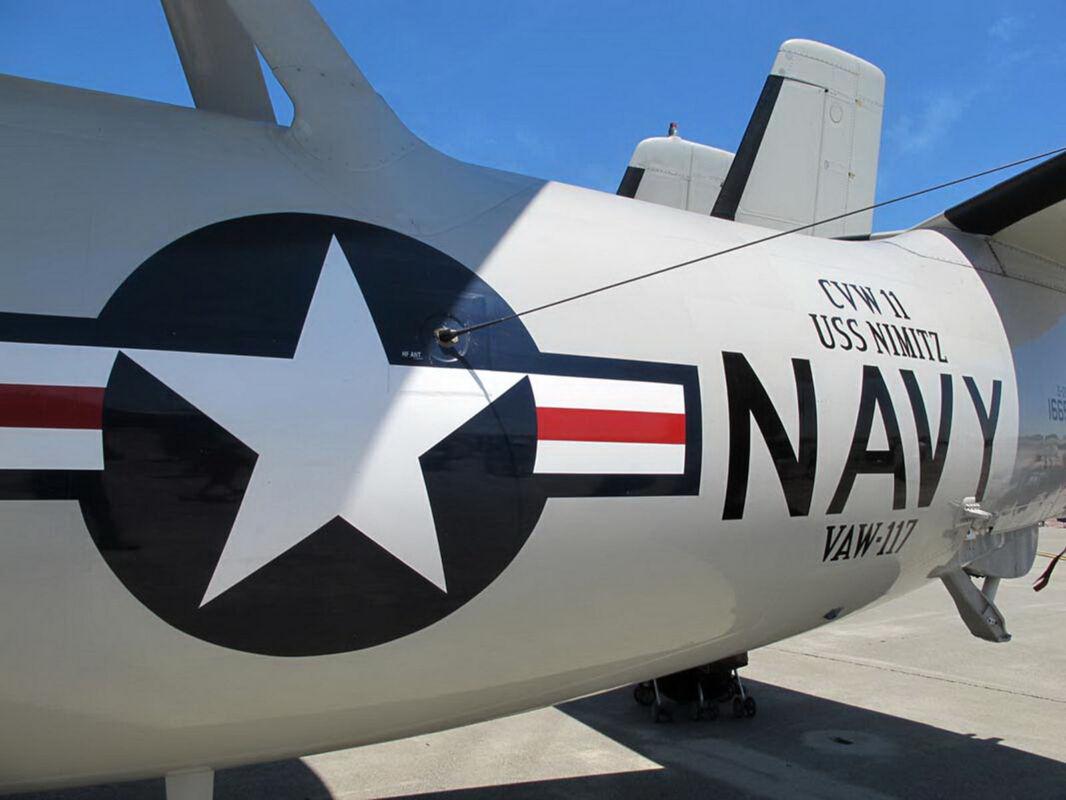

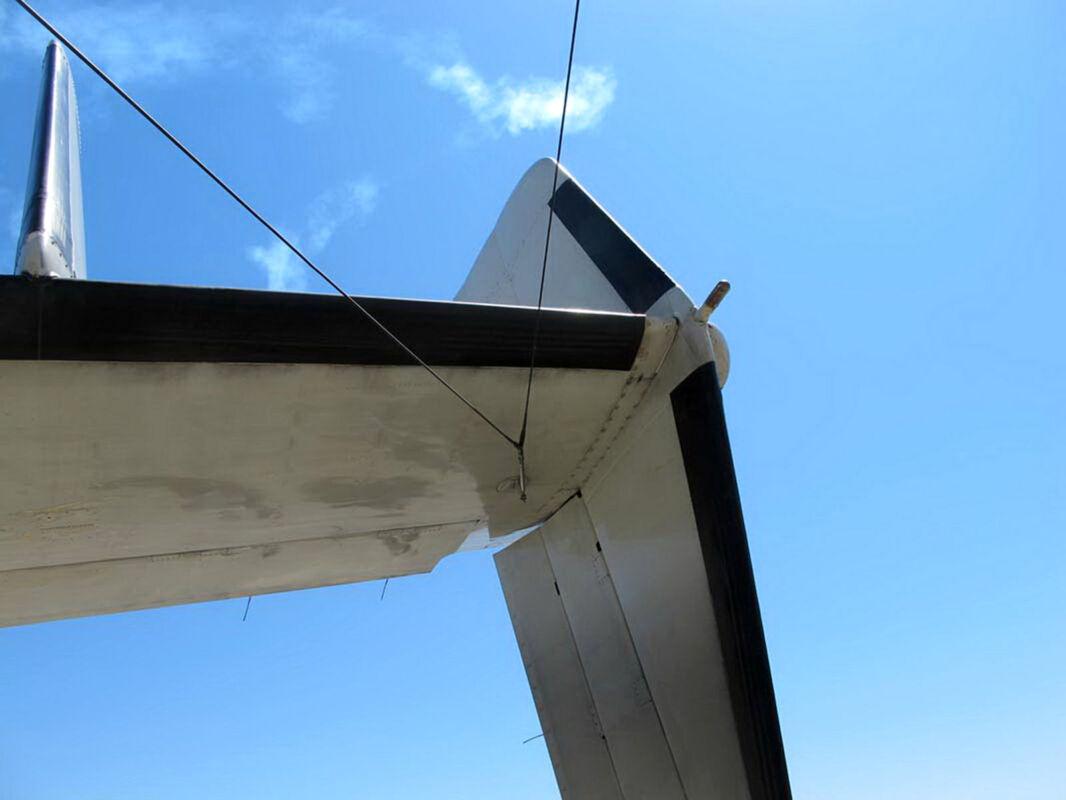

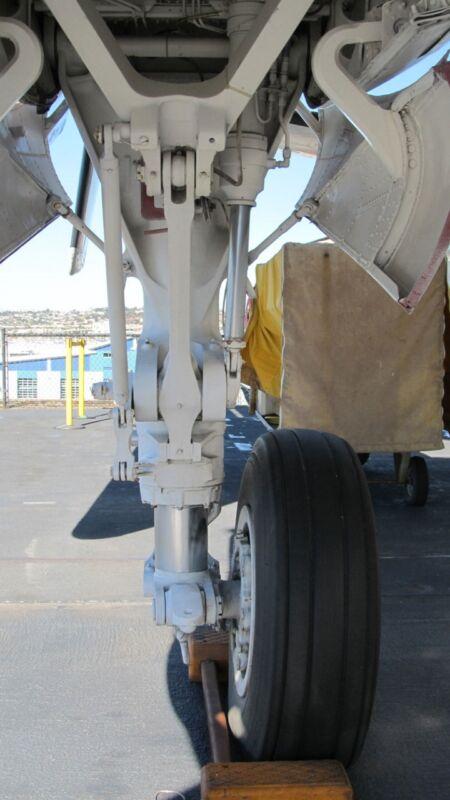

Grumman E-2C Hawkeye Chodiť
Fotograf
Cees Hendriks
Lokalizácia
Neznáme
Fotografie
88

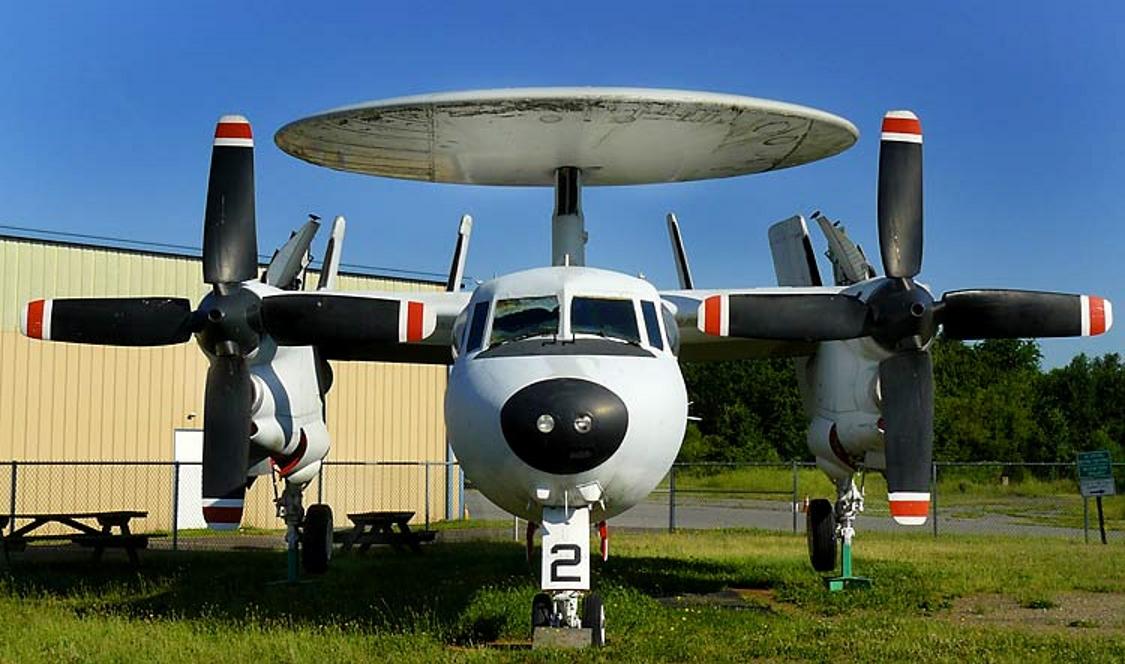

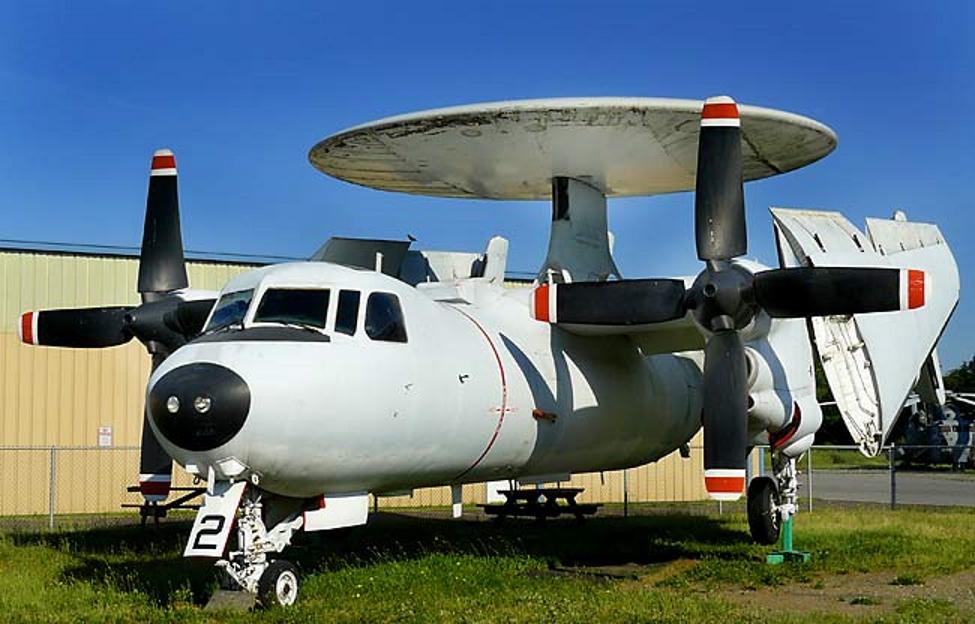

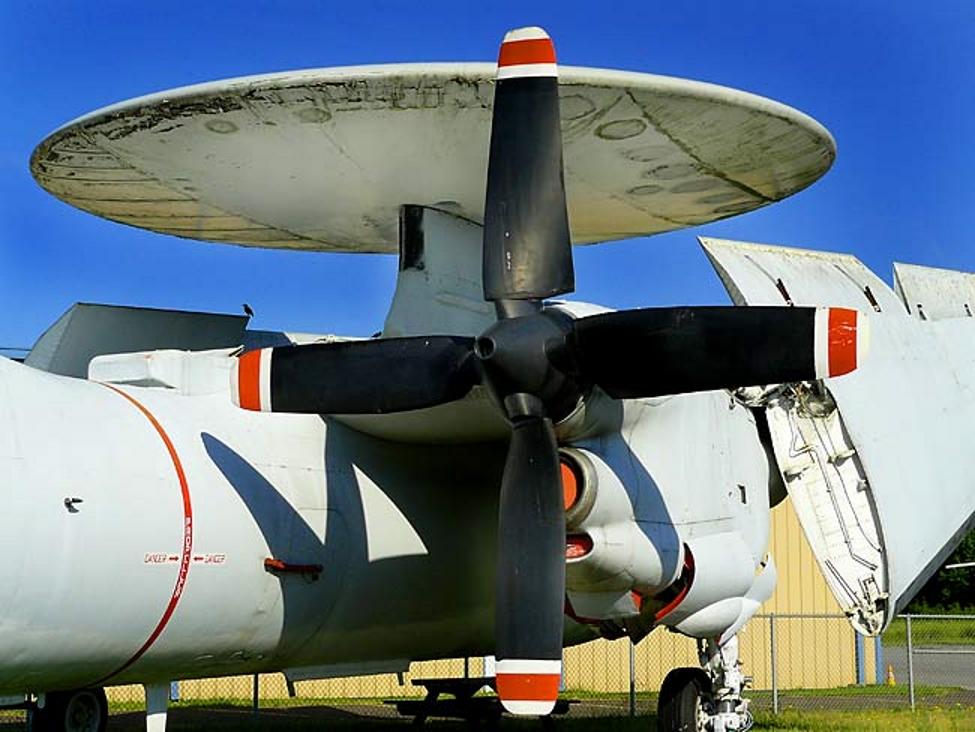

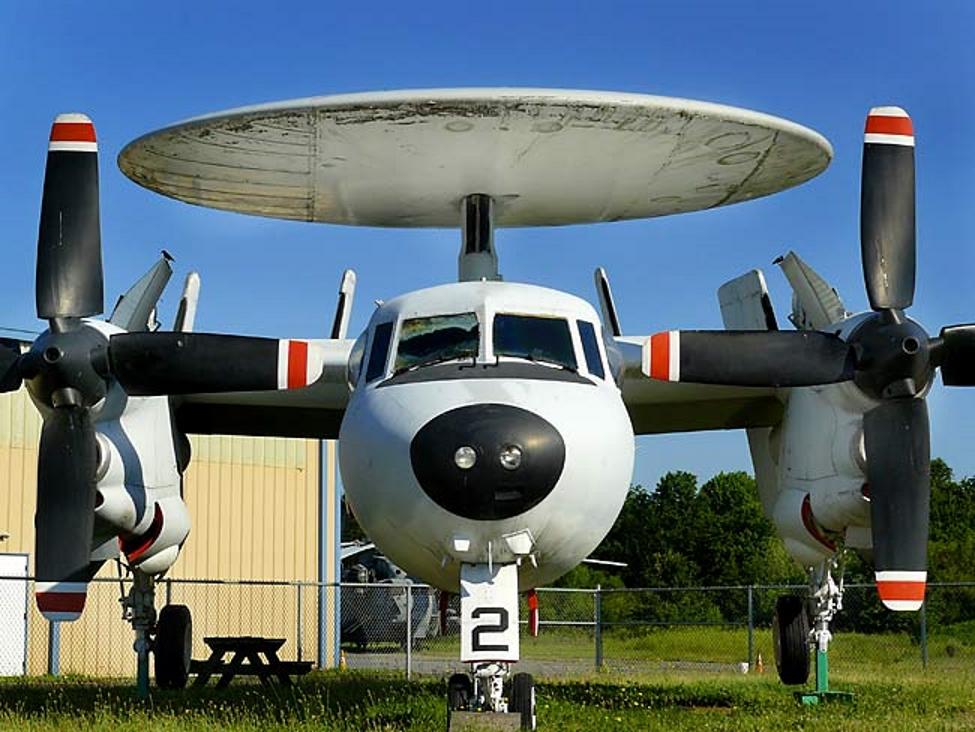

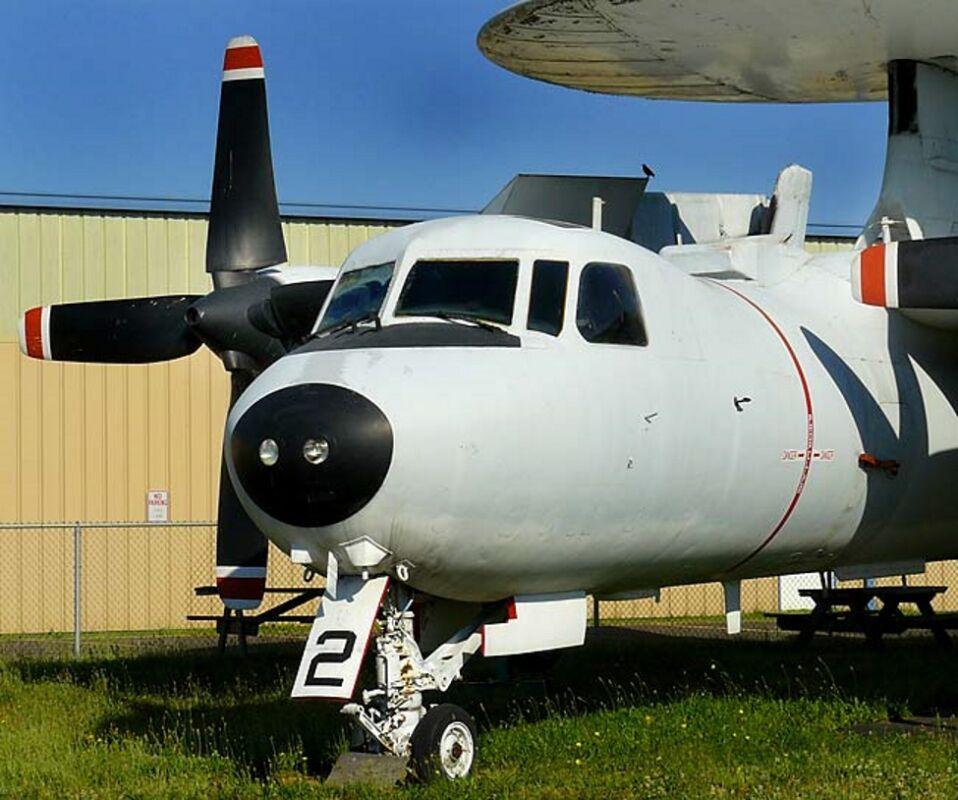

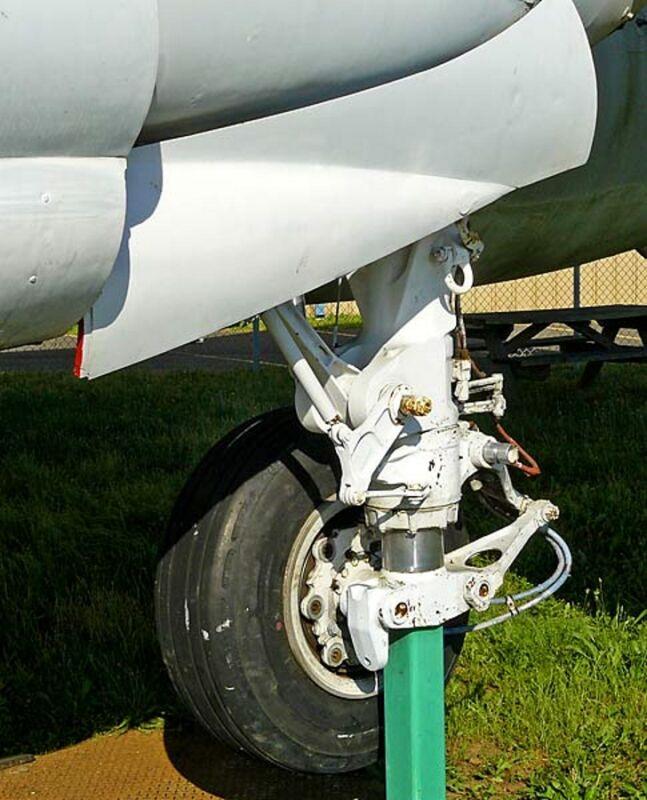

Grumman E-2B Hawkeye Chodiť
Fotograf
Bill Maloney
Lokalizácia
Múzeum air victory
Fotografie
28
Počkajte, hľadám Grumman pre vás...

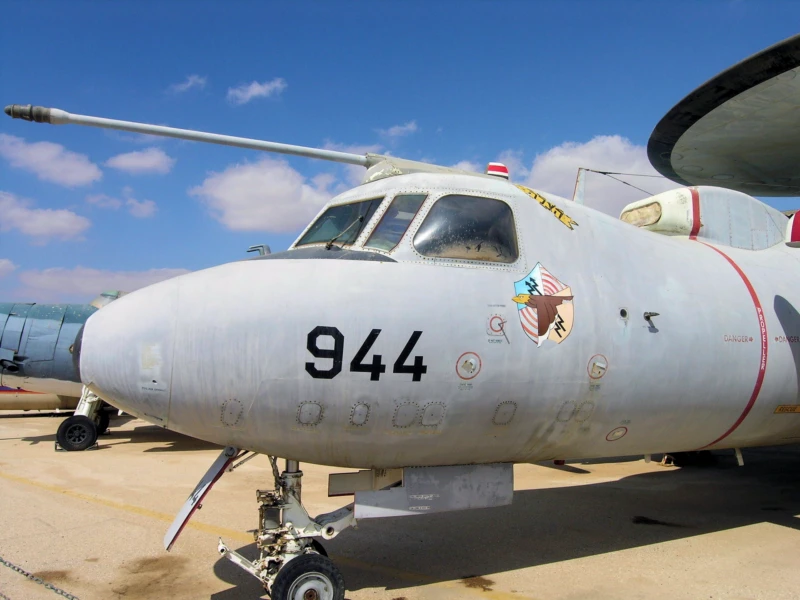

Grumman E-2C Hawkeye Chodiť
Fotograf
Neznáme
Lokalizácia
Neznáme
Fotografie
20
Pozri tiež:

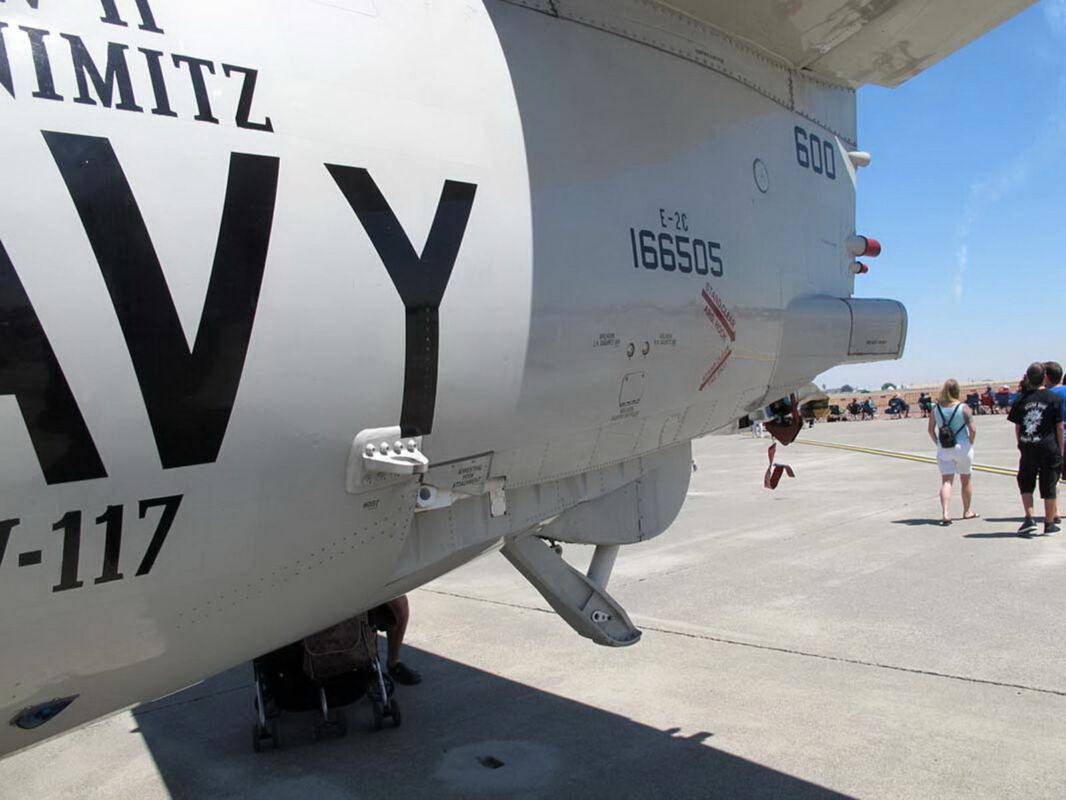

E-2C Hawkeye Walk Around
Fotograf
Isaac Gershman
Lokalizácia
Neznáme
Fotografie
121
General Characteristics and Role
The Northrop Grumman E-2 Hawkeye is an American all-weather, carrier-capable tactical airborne early warning and control (AEW&C) aircraft. It was developed to replace the E-1 Tracer and has become the US Navy’s primary AEW platform. Distinctive for its massive 24-foot (7.3 m) diameter rotating radar dome, or rotodome, mounted above the fuselage, the E-2 is often referred to as “the eyes of the fleet.” Its primary mission is to provide wide-area surveillance of the sea and air, detecting hostile aircraft and cruise missiles at long range. The E-2 acts as a flying command and control center, directing friendly fighter aircraft, managing air traffic, and coordinating search and rescue operations. It is essential for extending the defensive and offensive capabilities of a carrier strike group far beyond the ship’s own radar horizon.
Property
Typical Value (E-2C/D Series)
Typ
Carrier-Based Airborne Early Warning & Control (AEW&C)
National Origin
Spojené štáty americké
Výrobca
Grumman (Original) / Northrop Grumman
Entered Service (E-2A)
1964
Posádky
5 (Pilot, Co-Pilot, Combat Information Center Officer, Air Control Officer, Radar Operator)
Dĺžka
17.60 m (57 ft 9 in)
Rozpätie krídel
24.56 m (80 ft 7 in)
Max Takeoff Weight
Approx. 26,000 kg (57,500 lb)
Powerplant and Sensor Systems

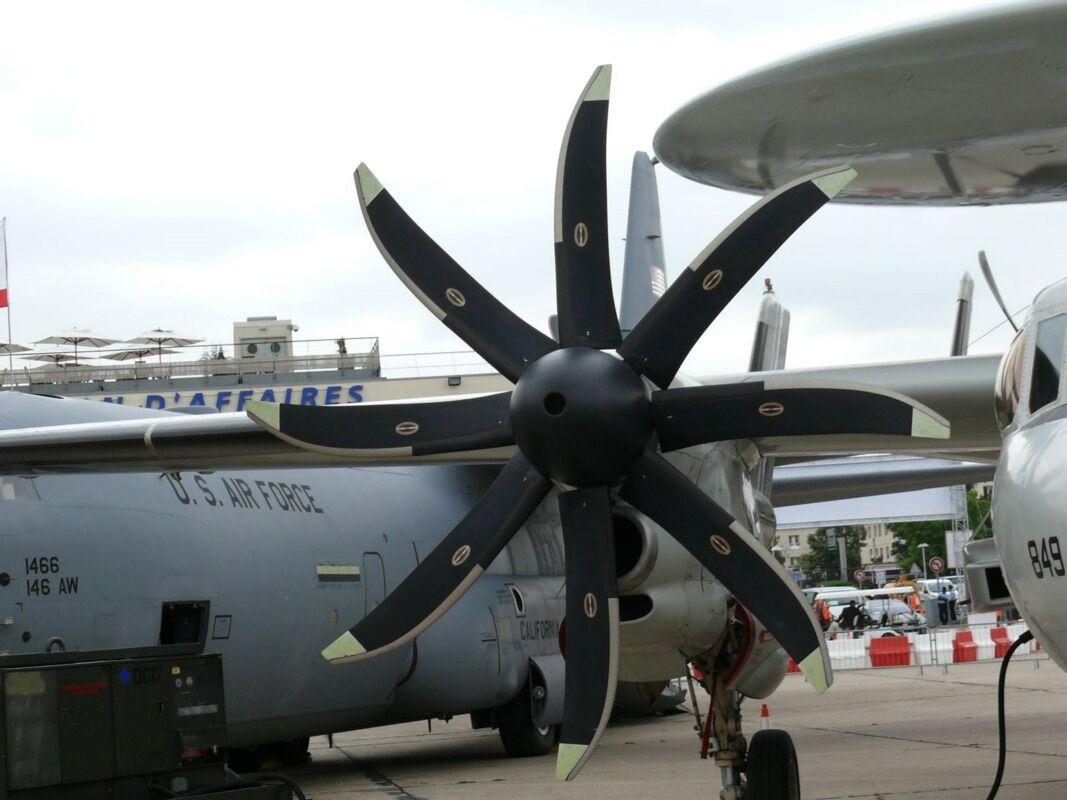

Engines: 2 x Rolls-Royce T56-A-427A turboprop engines (E-2D model uses the -427A).
Engine Power: Approx. 5,100 shp (3,800 kW) per engine.
Maximum Speed: Approx. 648 km/h (403 mph).
Endurance: Over 6 hours on station.
Radar System: The E-2C utilized the APS-145 radar; the E-2D Advanced Hawkeye uses the significantly more capable AN/APY-9 radar. The radar provides 360-degree coverage and can track hundreds of targets simultaneously.

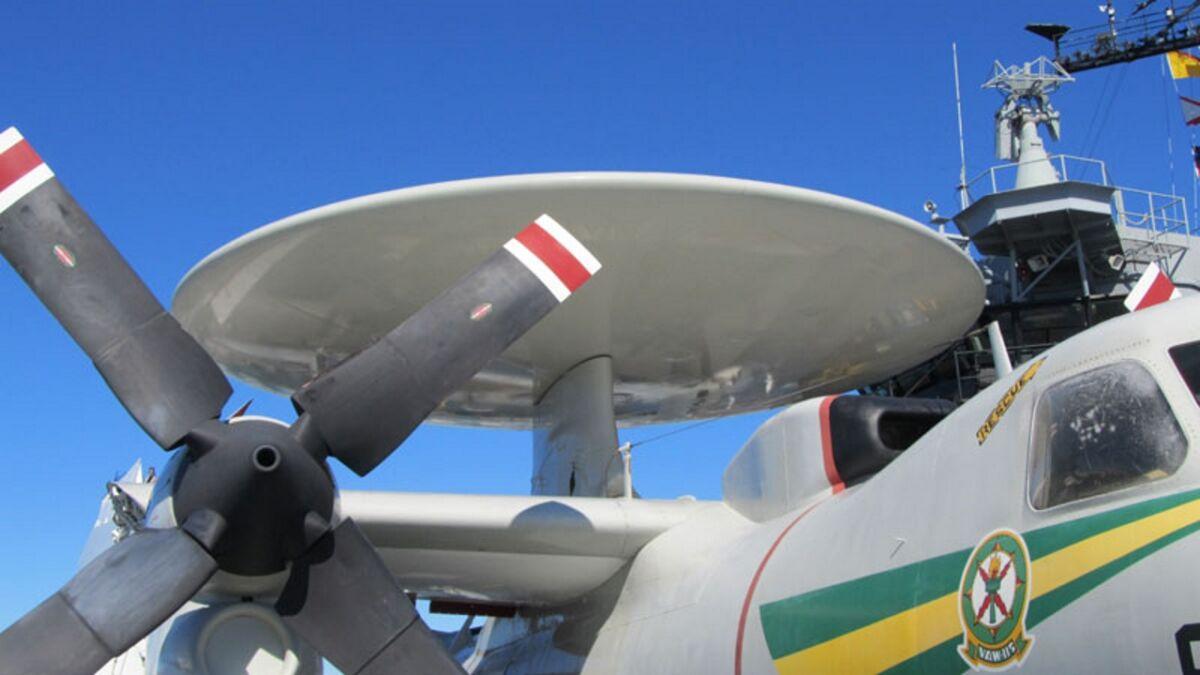

Rotodome: The rotodome is hydro-mechanically rotated at 6 RPM during flight, providing continuous scanning.

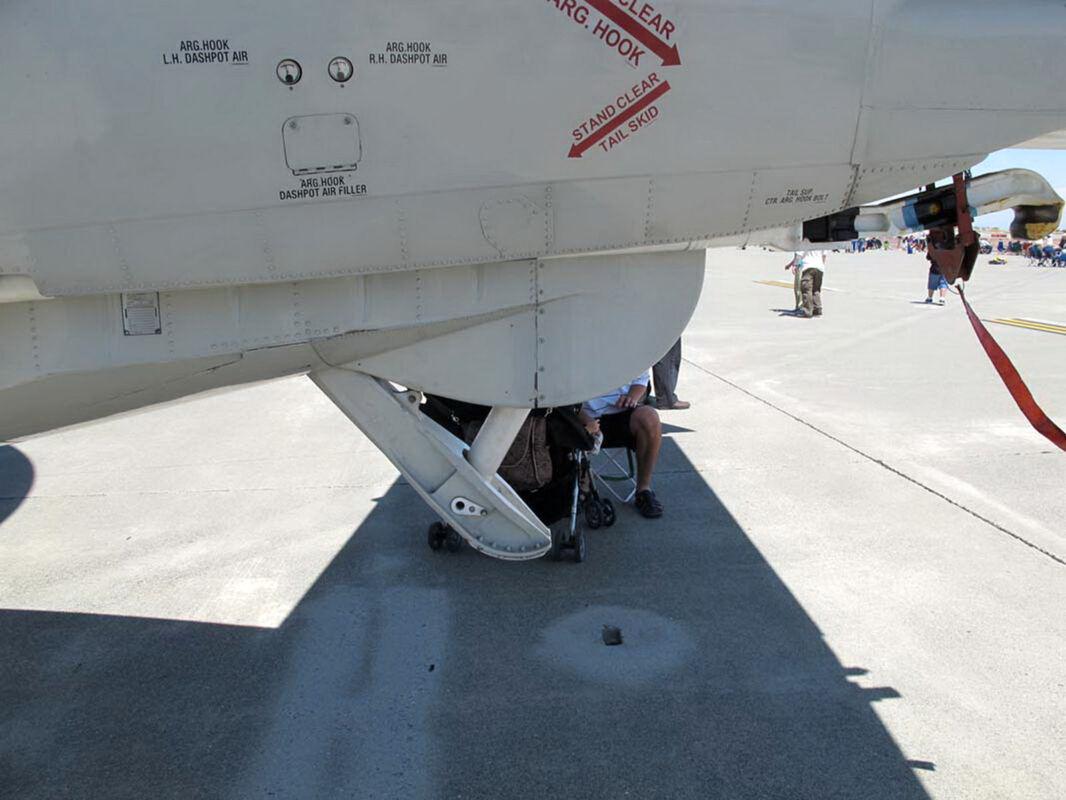

Carrier Features: Equipped with hydraulically folding outer wing panels and a strong arrestor hook for shipboard operations.
Service History and Legacy
Modernization: The E-2 has undergone continuous modernization, culminating in the current E-2D Advanced Hawkeye, which features a “glass cockpit,” aerial refueling capability, and the revolutionary AN/APY-9 radar.
Export: The Hawkeye has been exported to several key US allies, including France (used on their nuclear-powered aircraft carrier, Charles de Gaulle), Japan, Israel (now retired), Egypt, and Taiwan.
Operational Importance: It is one of only two turboprop aircraft currently operating from US Navy supercarriers (the other being the C-2 Greyhound, based on the same airframe).
Key Events: E-2s have played crucial roles in numerous conflicts, including the Vietnam War, the Gulf War, and operations in Iraq and Afghanistan, primarily by controlling air space and guiding aircraft.
C-2 Greyhound: The Hawkeye airframe was the basis for the C-2 Greyhound carrier-on-board delivery (COD) transport aircraft, highlighting the versatility of the original design.
Jedna myšlienka na "Northrop Grumman E-2 Hawkeye – WalkAround"

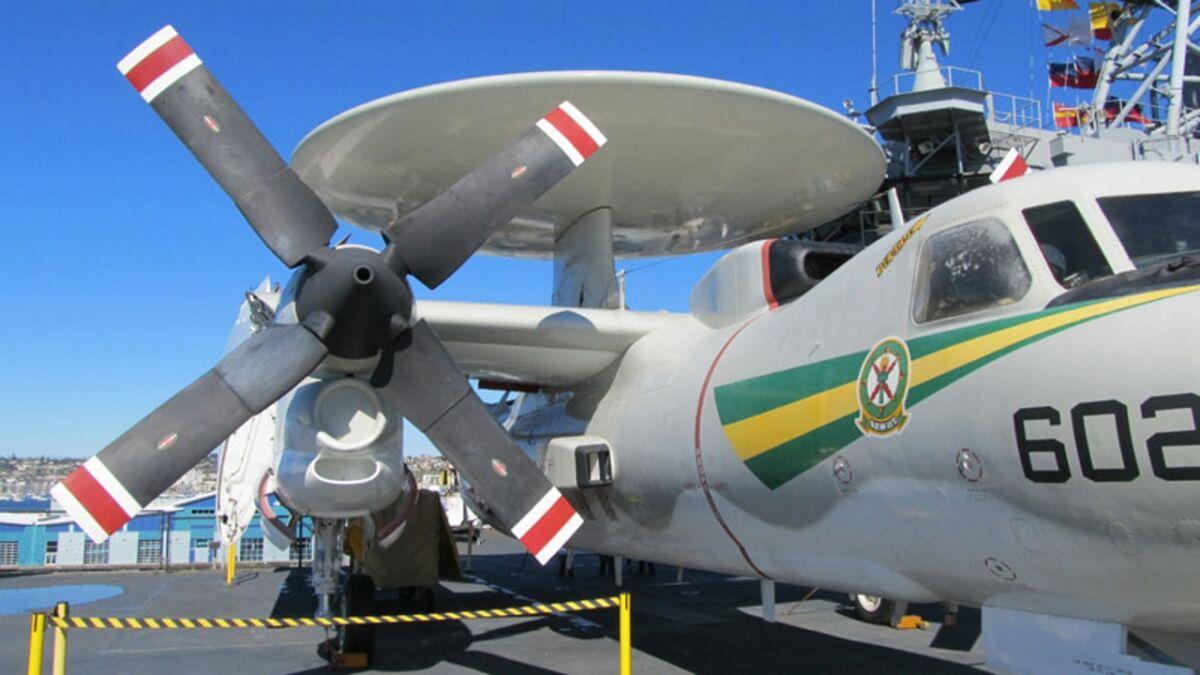

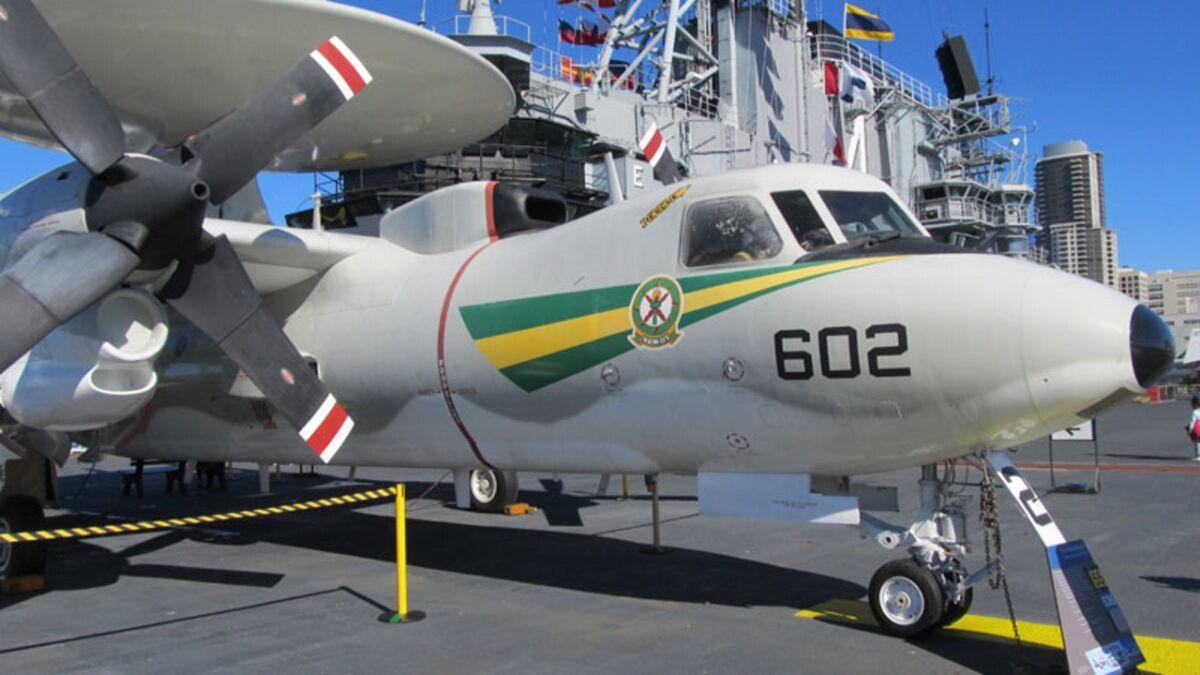

Grumman E-2C Hawkeye Walk Around s plutvami, ktoré vzal Cees hendriks, je z Midway Museum v San Diegu. :)) Viem, pretože som tam bol trikrát a mám veľa obrázkov múzea na polceste. Ak sa pozriete za lietadlo, uvidíte #41 USS Midway.
