The Yakovlev Yak-28 was a swept wing, turbojet-powered combat aircraft used by the Soviet Union. Produced initially as a tactical bomber, it was also manufactured in reconnaissance, electronic warfare, interceptor, and trainer versions, known by the NATO reporting names Brewer, Firebar, and Maestro respectively. Based on the Yak-129 prototype first flown on 5 March 1958, it began to enter service in 1960.
Role :
-Medium bomber
-Reconnaissance
-Electronic warfare
-Interceptor
National origin : Soviet Union
Manufacturer : Yakovlev
First flight : 5 March 1958
Introduction : 1960
Retired : 1992 (Russia)
Primary users:
-Soviet Air Forces
-Soviet Air Defence Forces
-Russian Air Force
-Ukrainian Air Force
Number built : 1.180
Tthe 야코블레프 야크-28was one of the most versatile and visually striking Soviet aircraft of the Cold War. While the bomber versions were nicknamed “Brewer” by NATO, theYak-28P “Firebar”was a dedicated long-range, all-weather interceptor. With its slender fuselage, sharply swept wings, and engines slung in massive pods, it looked more like a science-fiction craft than a frontline fighter. It was tasked with patrolling the vast, lonely frontiers of the USSR, designed to hunt down NATO bombers before they could reach Soviet airspace.
Attribute
Technical Specification (Yak-28P)
역할
Long-Range All-Weather Interceptor
승무원
2 (Pilot and Radar Operator in tandem)
엔진
2 × Tumansky R-11F2-300 afterburning turbojets
Max Speed
1,840 km/h (1,140 mph / Mach 1.5)
Service Ceiling
16,750 m (54,950 ft)
주무장
2 × R-98 (AA-3 ‘Anab’) Air-to-Air Missiles
보조 무장
2 × K-13 (AA-2 ‘Atoll’) Missiles (later variants)
Unique Layout

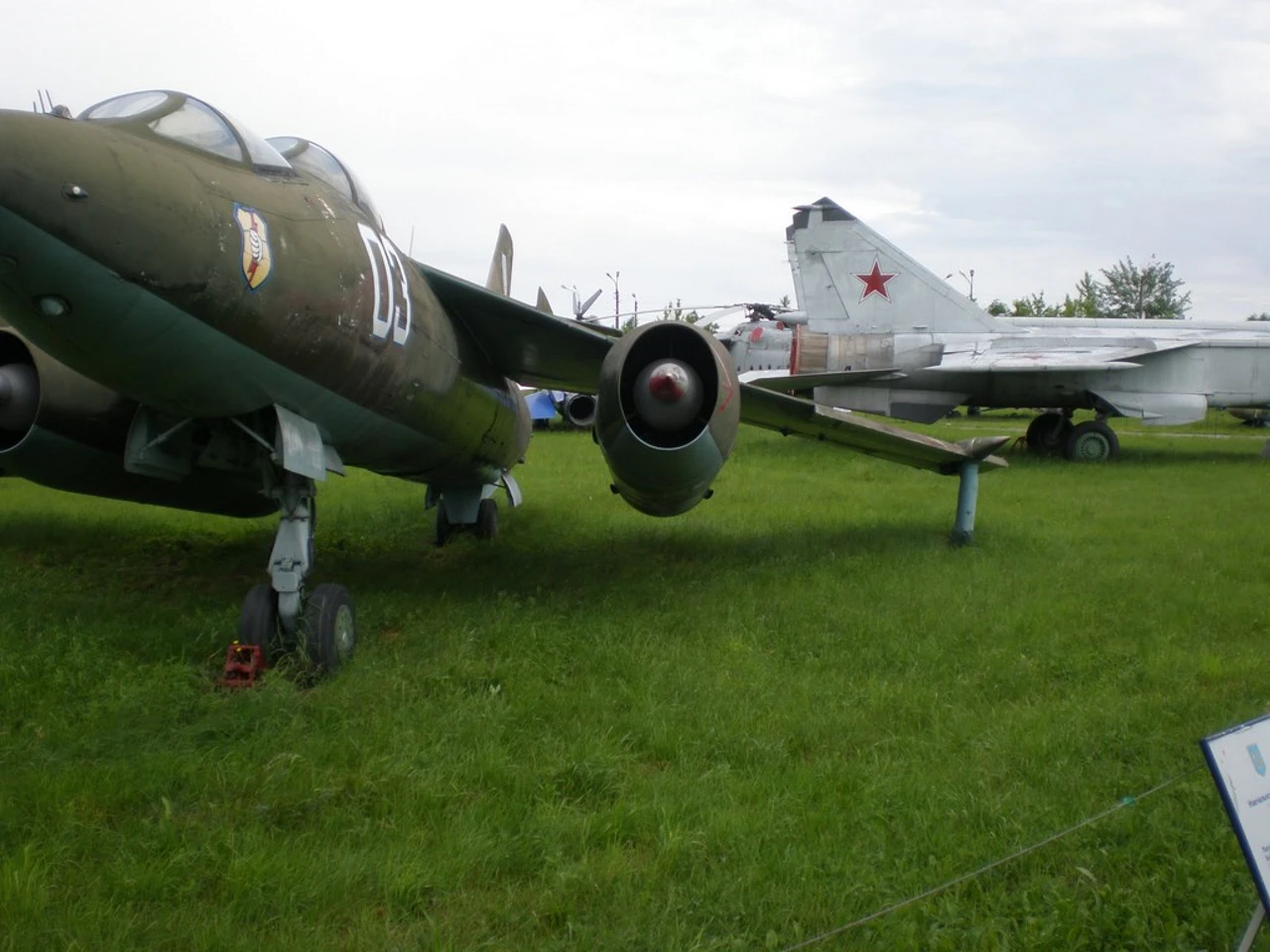

Bicycle-style landing gear with wingtip outriggers
Design Engineering: High Risk, High Thrust
Bicycle Landing Gear:To keep the fuselage clear for a large internal bomb bay (on bomber variants) or massive fuel tanks (on the interceptor), Yakovlev used a “bicycle” gear: two main wheel sets under the fuselage and tiny outrigger wheels on the wingtips. This made landings notoriously difficult, requiring a perfectly level touch-down to avoid “shaving the tail” or dragging a wing.

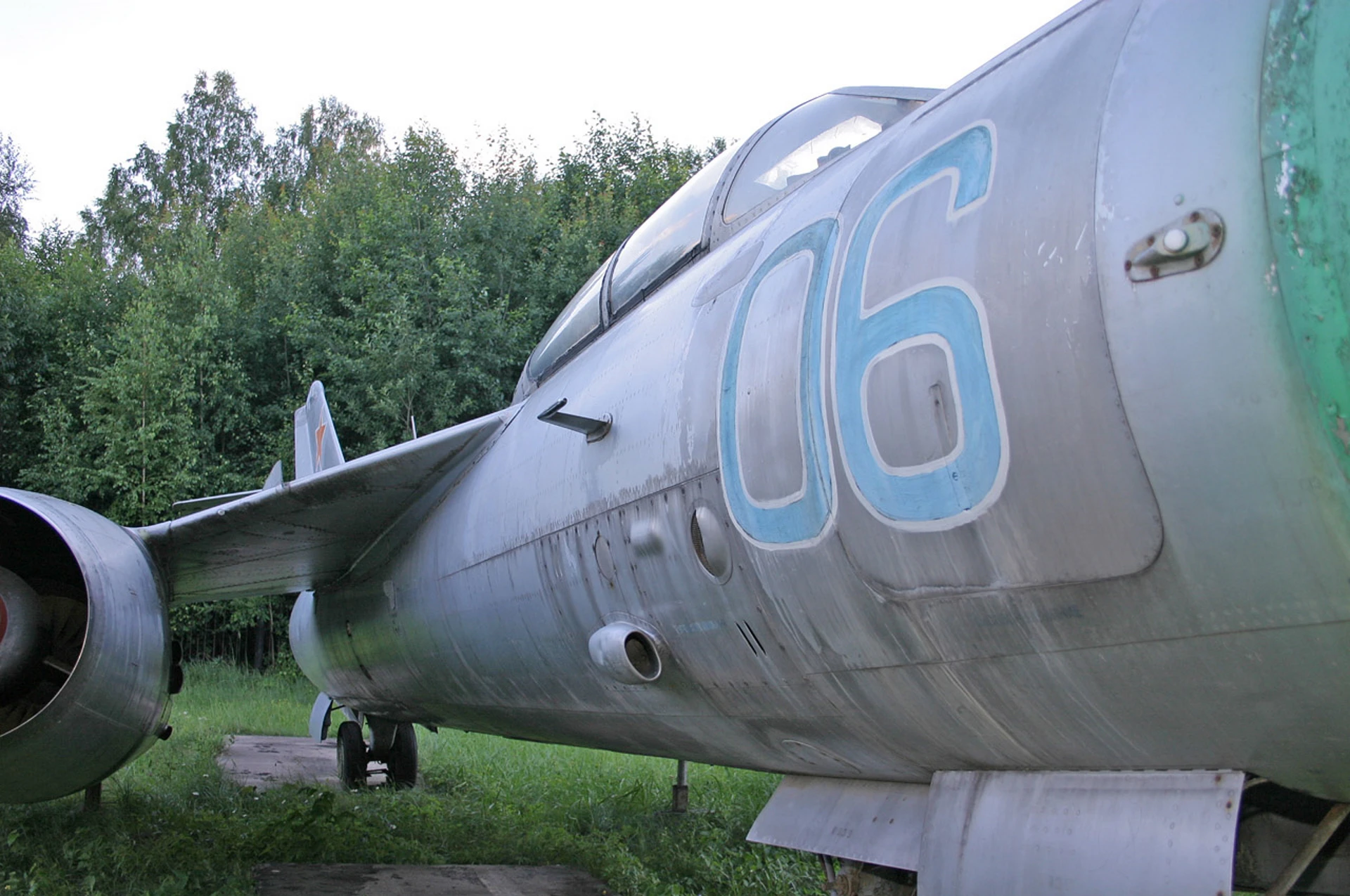

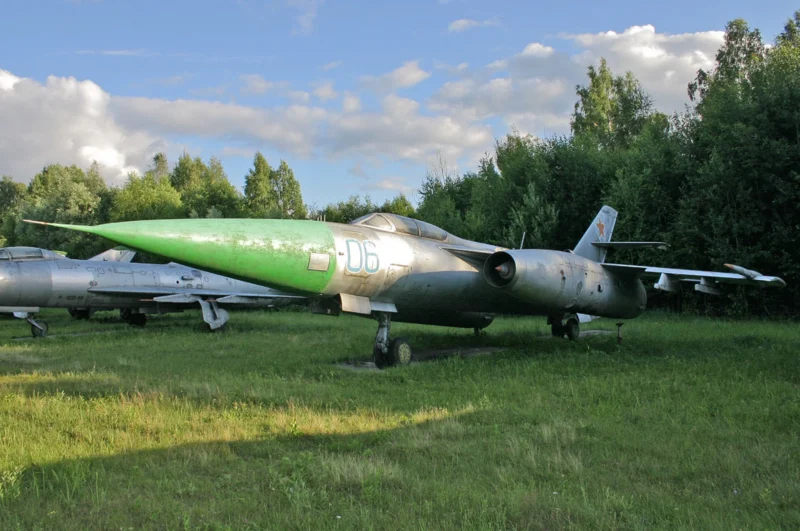

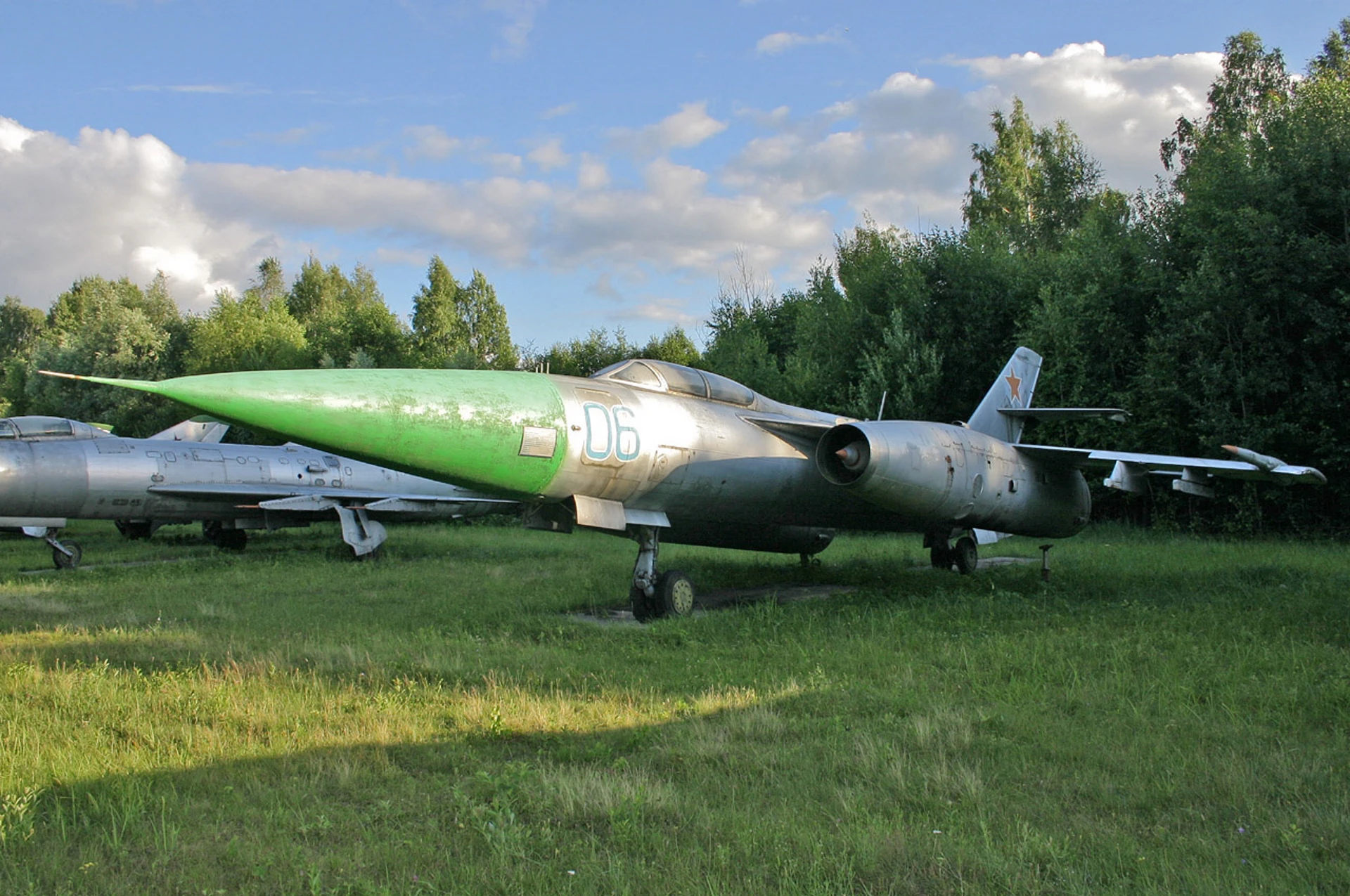

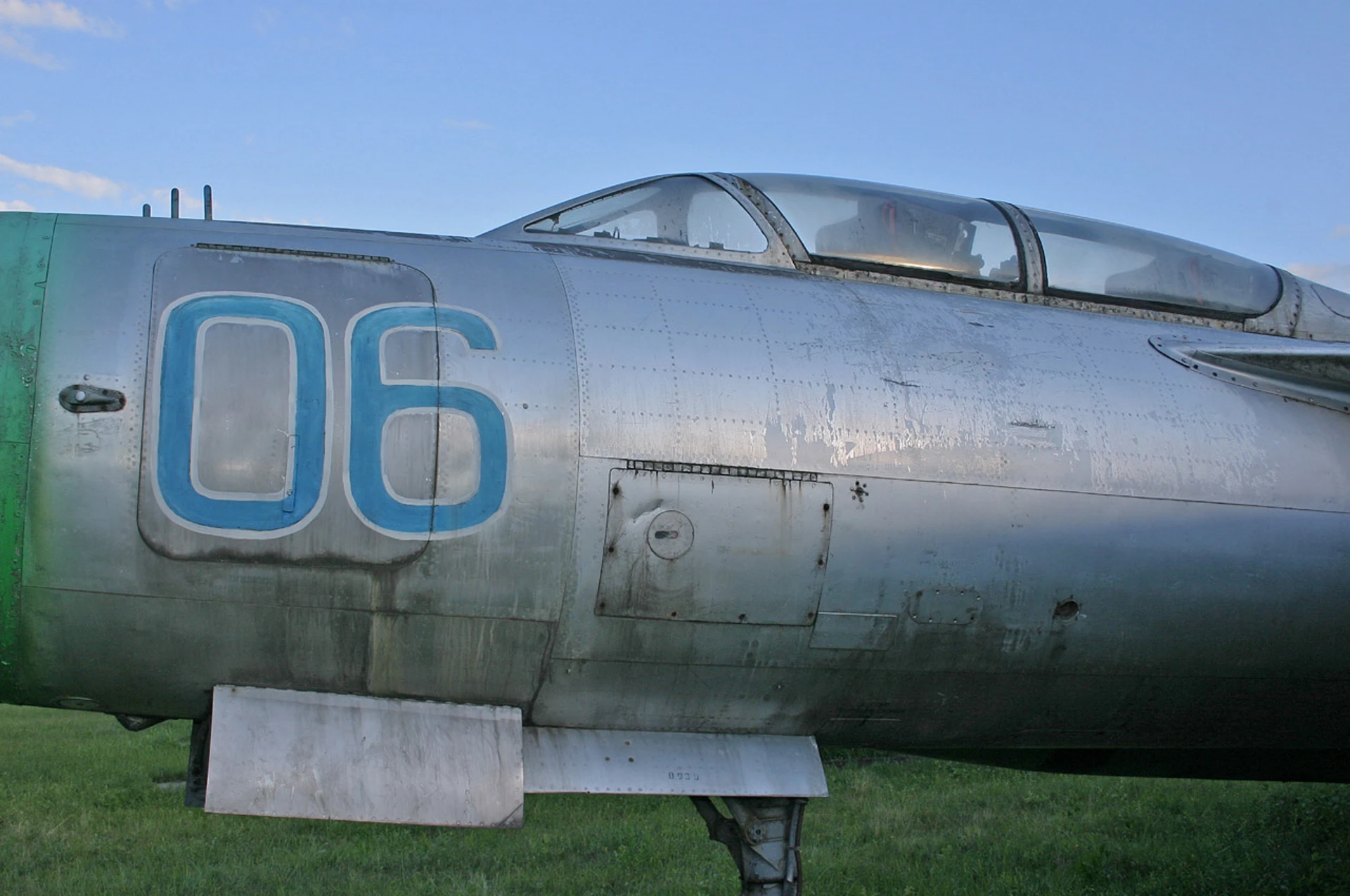

The “Firebar” Nose:Unlike the bomber versions which had a glass “greenhouse” nose for the navigator, the Firebar featured a long, pointed radome housing theOriol-Dradar. Late-model Firebars had an even longer, sharper conical nose to improve supersonic aerodynamics.

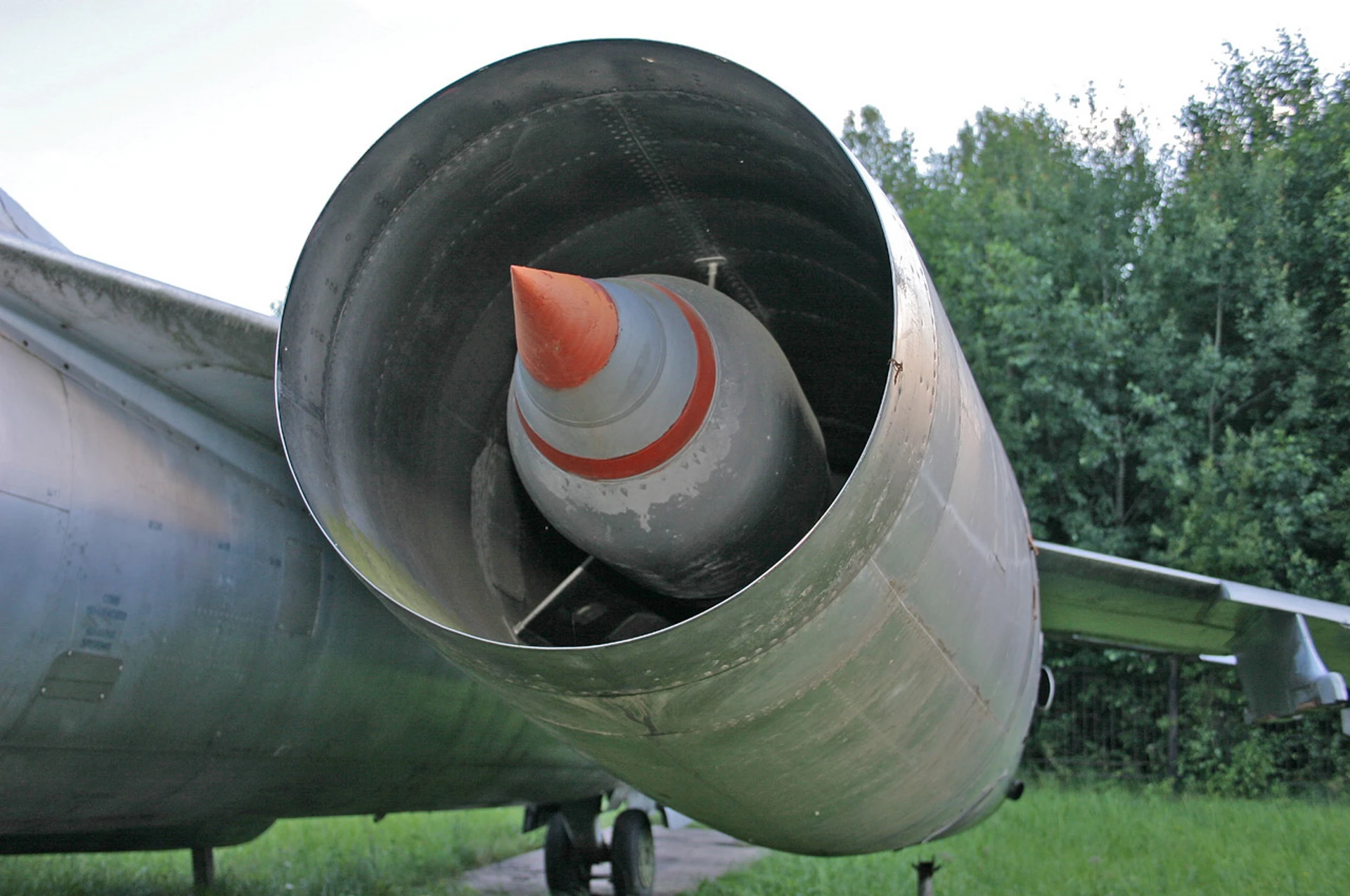

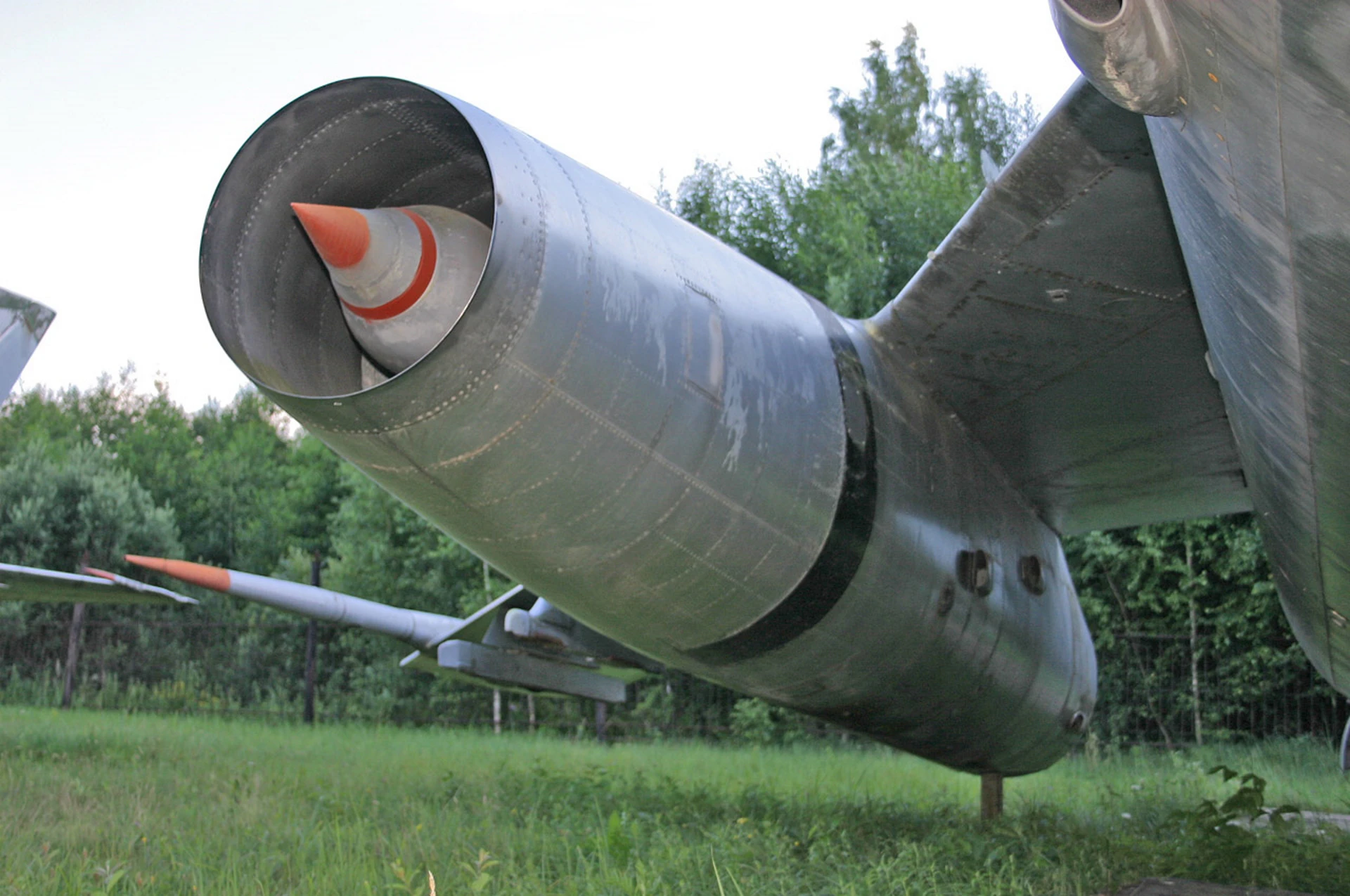

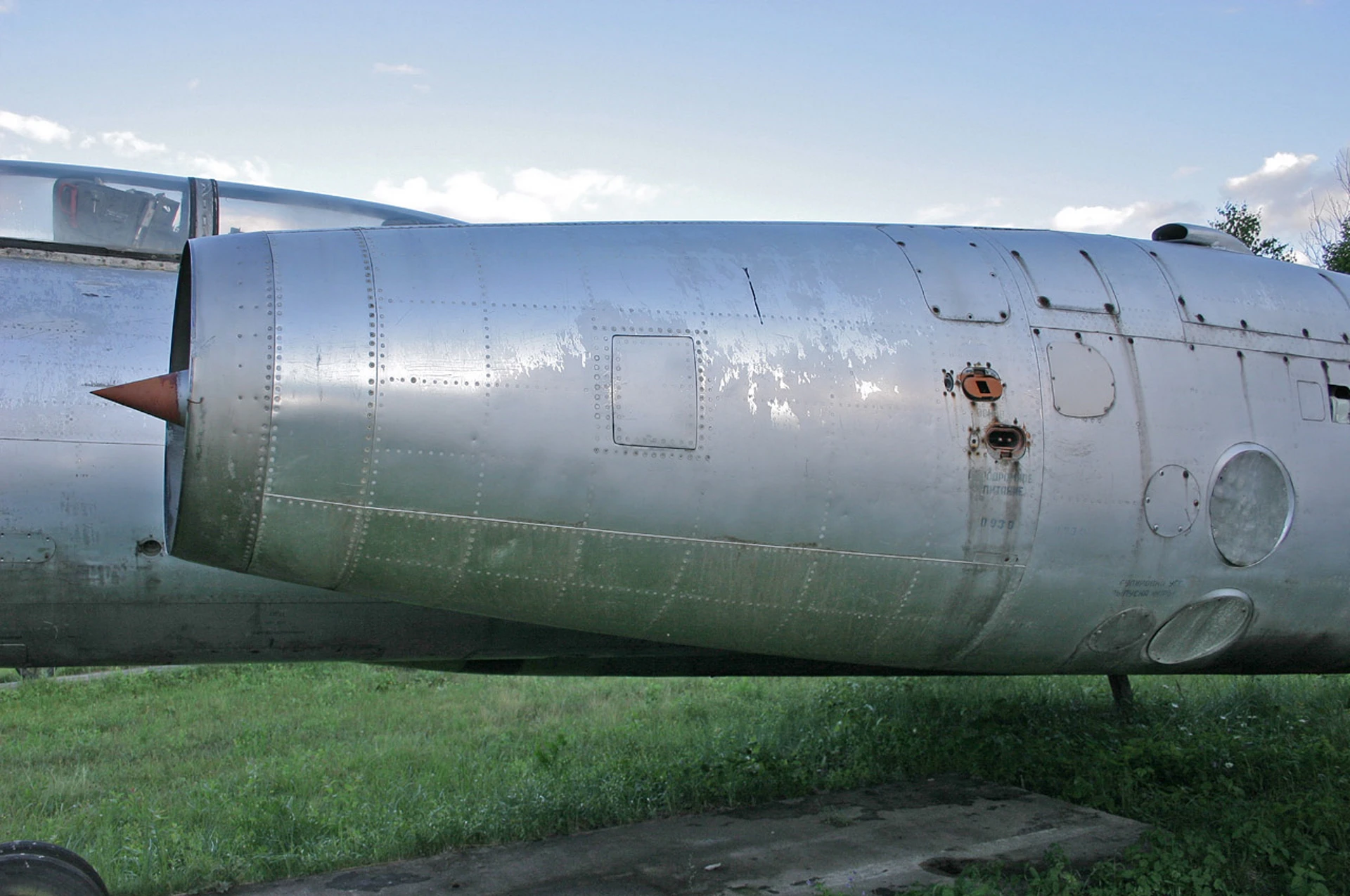

The Engine Asymmetry Problem:The R-11 engines were powerful (the same used in the MiG-21), but their placement in underwing pods was dangerous. If one engine failed during takeoff, the massive asymmetric thrust would often flip the plane over before the pilot could react—a flaw that led to many early accidents.
No Gun:The Yak-28P was a “pure” interceptor. It carried no internal cannon, relying entirely on its large R-98 missiles. The standard loadout was one radar-guided and one infrared-guided missile, fired together to maximize the chance of a kill against a maneuvering target.
Operational History: The Silent Sentry
The PVO Workhorse:The Firebar served almost exclusively with thePVO(Soviet Air Defense Forces). Because of its long range, it was the primary protector of the Siberian and Arctic frontiers throughout the 1960s and 70s.
The “Brewer” Cousins:The Yak-28 airframe was so adaptable that while the Firebar was intercepting intruders, theYak-28PP “Brewer-E”was acting as the Soviet’s first dedicated electronic jamming aircraft, and theYak-28R “Brewer-D”was taking high-speed reconnaissance photos.
The 1966 Berlin Heroics:In April 1966, a Yak-28 suffered double engine failure over West Berlin. The pilots, Boris Kapustin and Yuri Yanov, stayed with the aircraft to steer it away from residential areas and a hospital, crashing into Lake Stößensee. They were posthumously honored for their bravery in avoiding civilian casualties.
Retirement:The Firebar remained in service until the late 1980s. It was eventually phased out by the much more powerful and stable수호이 수-15 그리고 미코얀 미지-31, though it remains a cult favorite among aviation enthusiasts for its unique, aggressive silhouette.
