로얄 항공기 공장 S.E.5 | |
|---|---|
| 국가 | 영국 |
| 역할 | 복엽비행기 전투기 |
| 첫 비행 | 1916년 11월 22일 |
| 내장 | 5205 |
사진 갤러리 로얄 항공기 공장 S.E.5, The Royal Aircraft Factory S.E.5 was a British biplane fighter aircraft of the First World War. It was developed by the Royal Aircraft Factory by a team consisting of Henry Folland, John Kenworthy and Major Frank Goodden. It was one of the fastest aircraft of the war, while being both stable and relatively manoeuvrable. According to aviation author Robert Jackson, the S.E.5 was: “the nimble fighter that has since been described as the ‘Spitfire of World War One'”.
| Royal Aircraft Factory S.E.5 | |
|---|---|
| 사진 작가 | 장 토마스 렘버트 |
| 로컬라이제이션 | Unknow |
| 사진 | 38 |

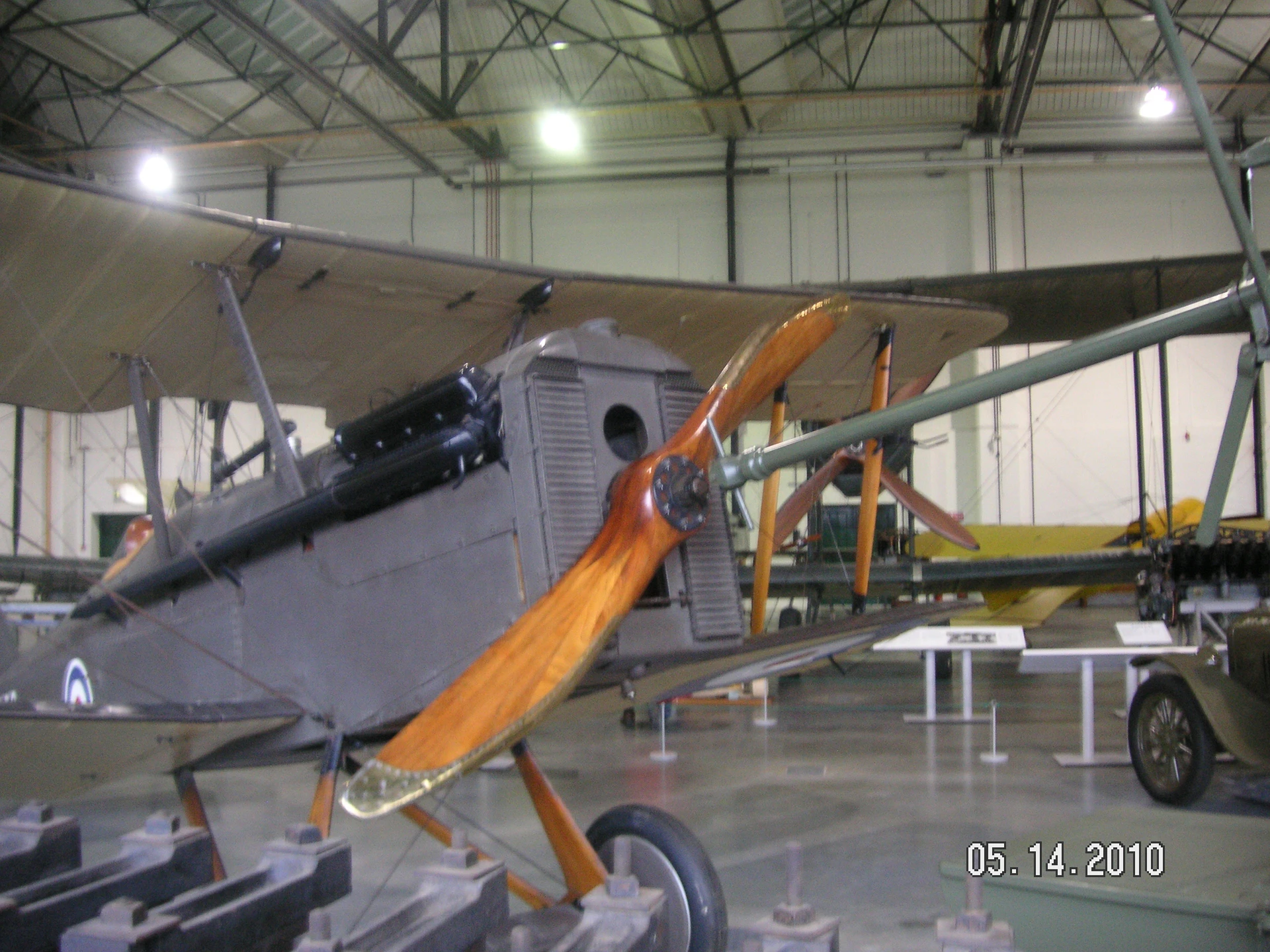

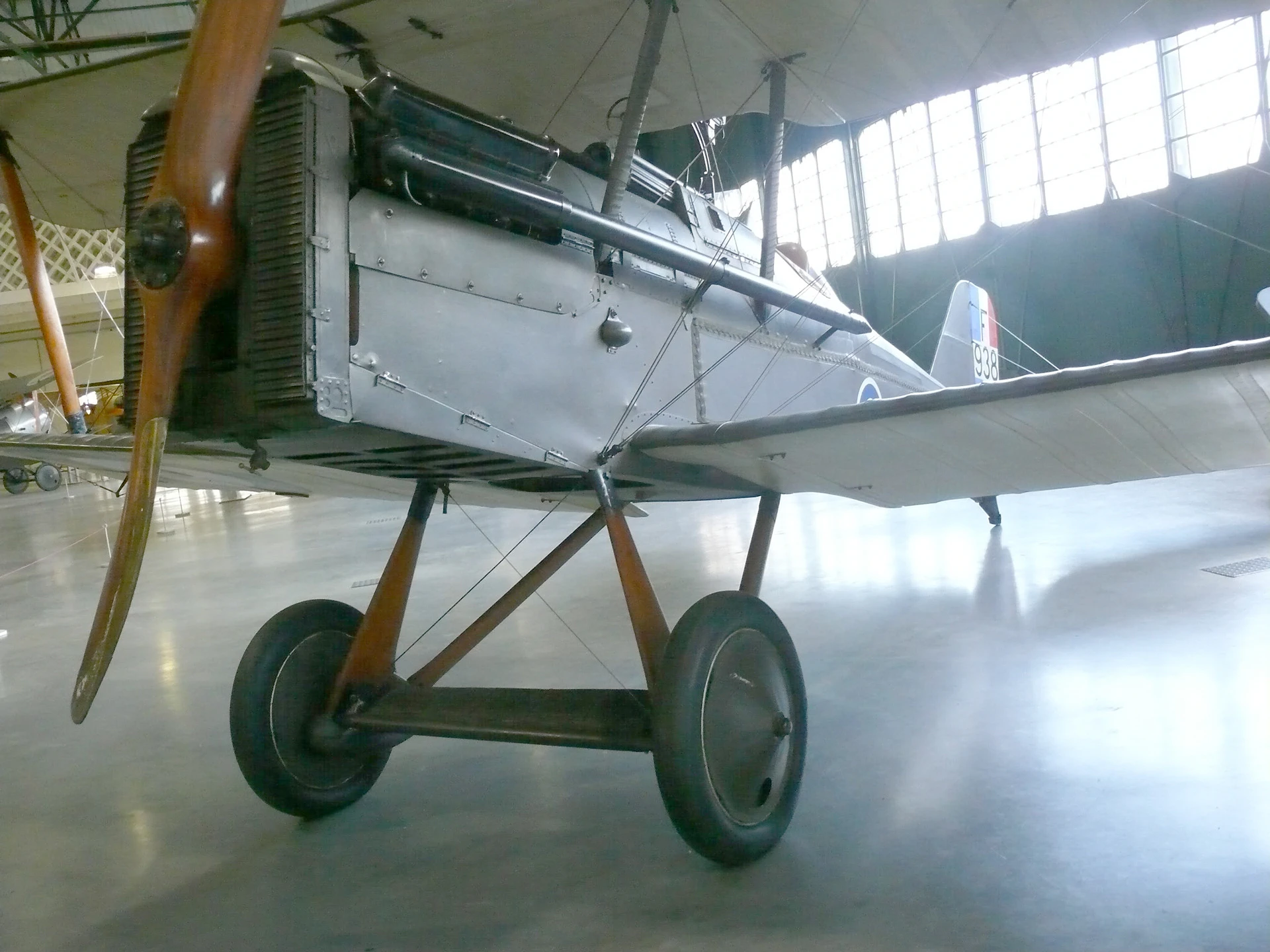

| Royal Aircraft Factory S.E.5a Walk Around | |
|---|---|
| 사진 작가 | Unknow |
| 로컬라이제이션 | |
| 사진 | 17 |
참고 항목:
The Pilot’s Gun Platform
Tthe S.E.5 (Scout Experimental 5) was a British biplane fighter that, alongside the Sopwith Camel, was instrumental in regaining Allied air superiority in 1917. Designed by Henry Folland and his team at the Royal Aircraft Factory, it was the antithesis of the twitchy, rotary-engined Camel. The S.E.5 was built for speed, stability, and high-altitude performance. It was exceptionally strong and famously easy to fly, making it the preferred mount for many of the British Empire’s greatest aces, including Albert Ball and Mick Mannock.
| Attribute | Technical Specification (S.E.5a) |
|---|---|
| 역할 | Fighter Aircraft / Scout |
| 승무원 | 1 (Pilot) |
| First Flight | November 22, 1916 |
| 동력 장치 | 1 × Hispano-Suiza 8 or Wolseley Viper V8 |
| Horsepower | 200 hp (150 kW) |
| 최대 속도 | 138 mph (222 km/h) |
| Service Ceiling | 17,000 feet (5,185 m) |
| 군비 | 1 × .303 Vickers (synchronized); 1 × .303 Lewis (over wing) |
Design Engineering: Stable and Lethal
- The Foster Mount: Because early synchronization gear for firing through the propeller was unreliable, the S.E.5 featured a Lewis gun mounted on a curved rail above the top wing. This “Foster Mount” allowed the pilot to pull the gun down to change drums or fire upwards into the belly of an enemy aircraft.

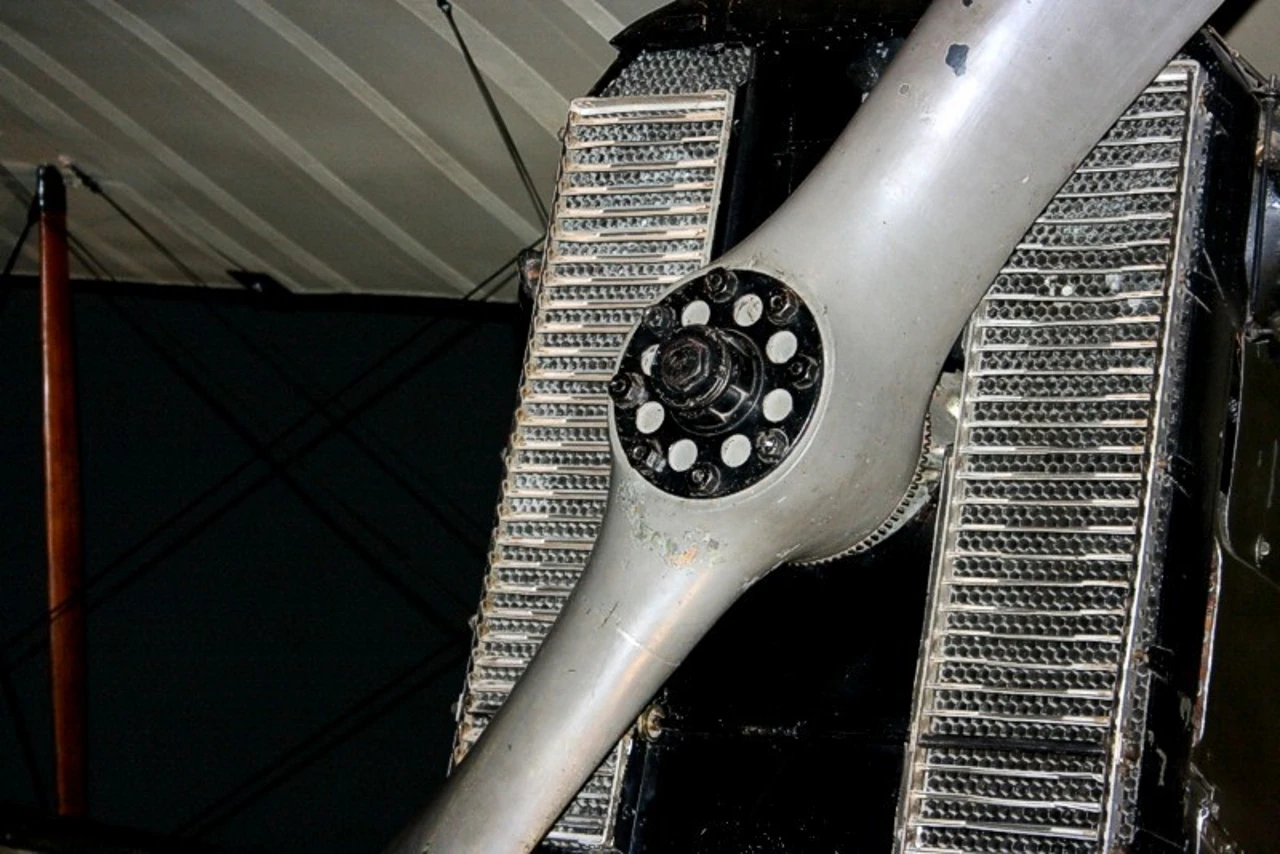

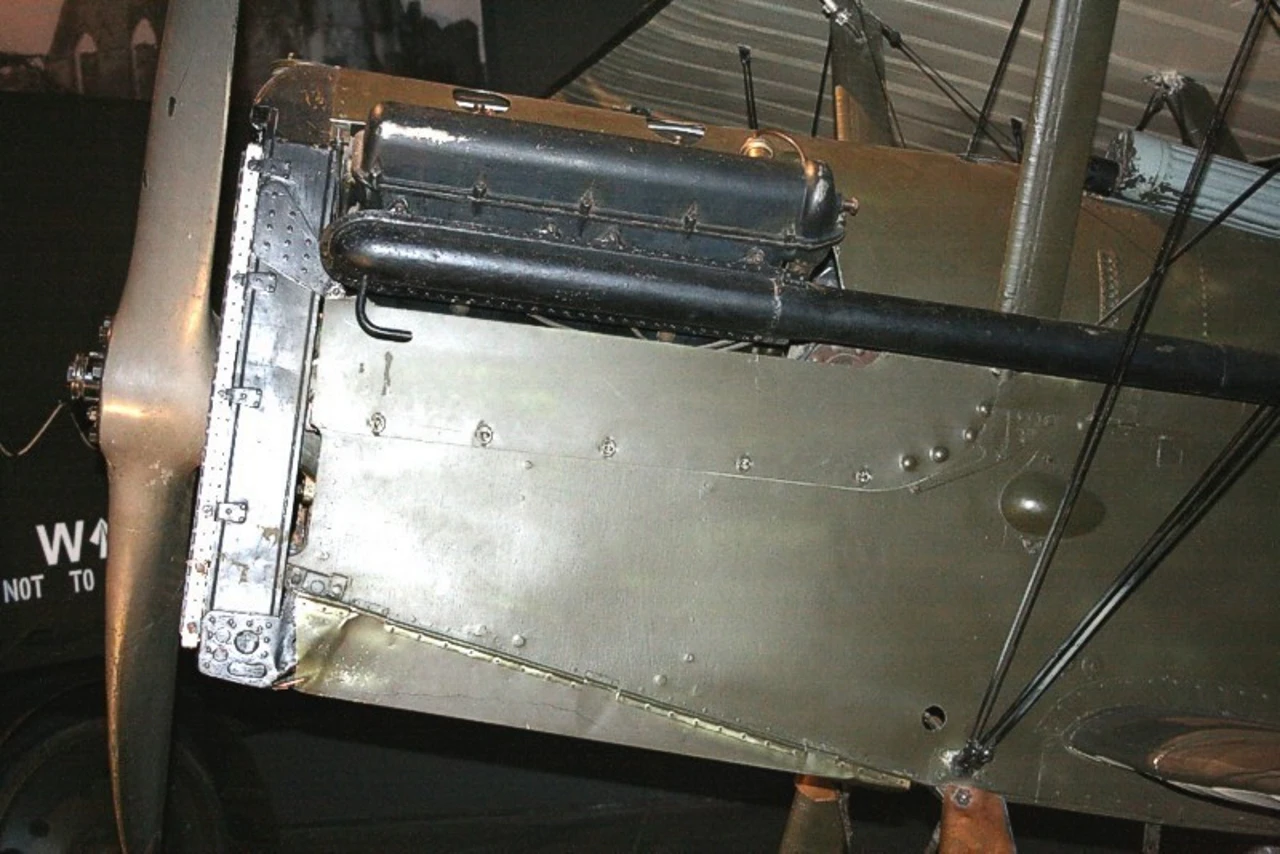

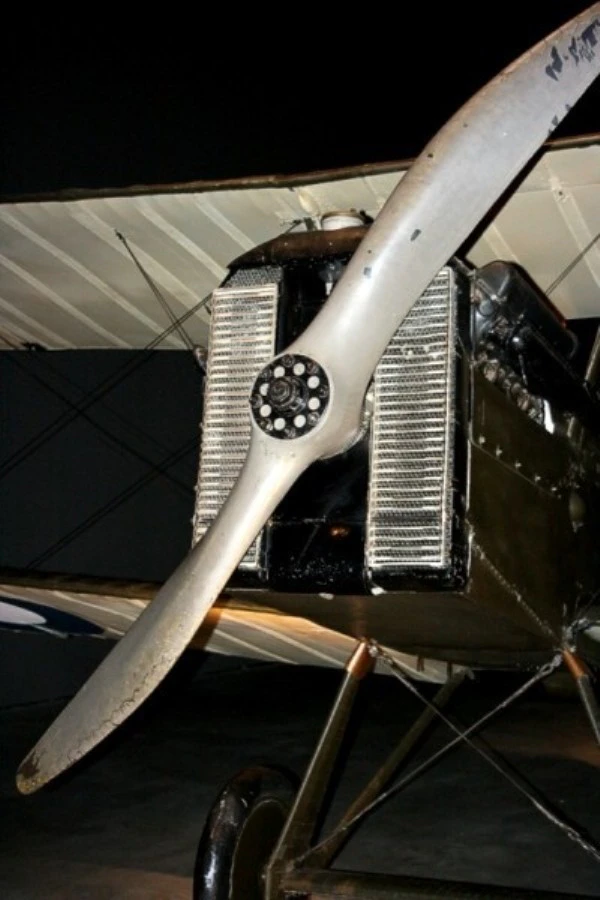

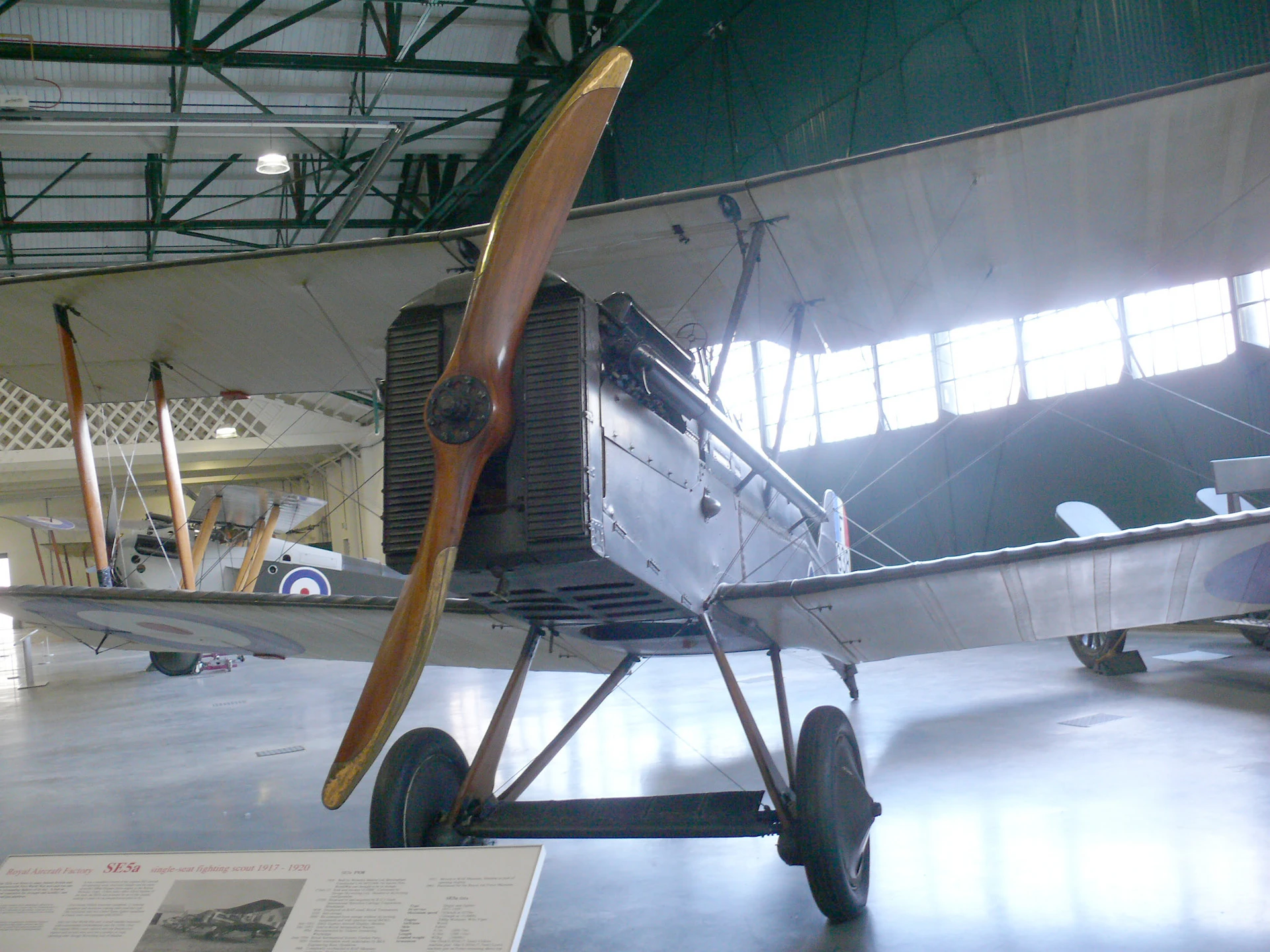

- The V8 Engine: Unlike the rotating “rotary” engines of the era, the S.E.5 used a stationary, water-cooled V8. This eliminated the massive gyroscopic effect that made other fighters difficult to turn, resulting in a rock-steady gun platform.

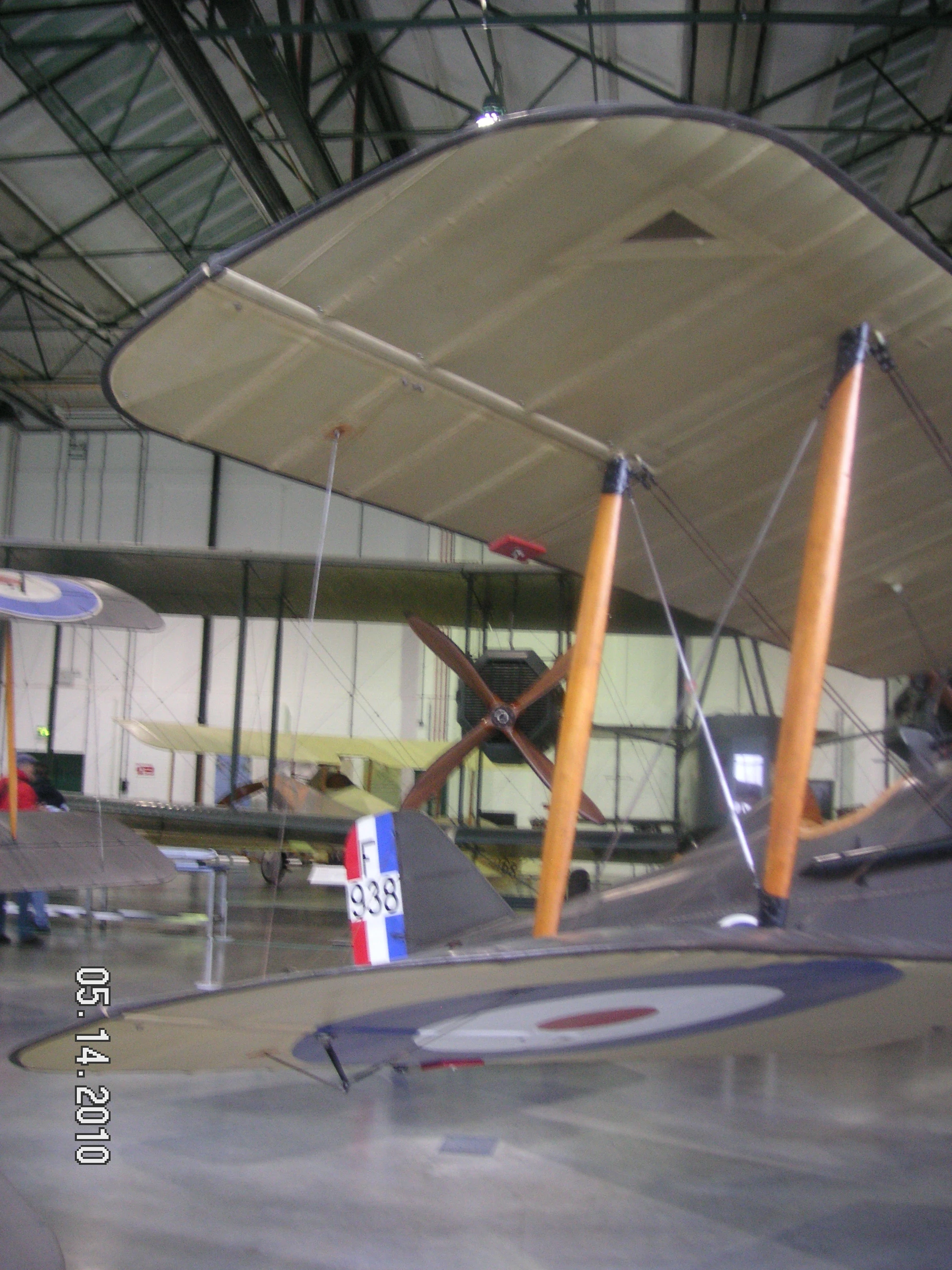

- Square-Cut Wings: The wing design was simple and robust, with a constant chord and square tips. While it lacked the “pretty” curves of French designs, it was incredibly strong, allowing the S.E.5 to survive high-speed dives that would tear the wings off a contemporary Albatros.

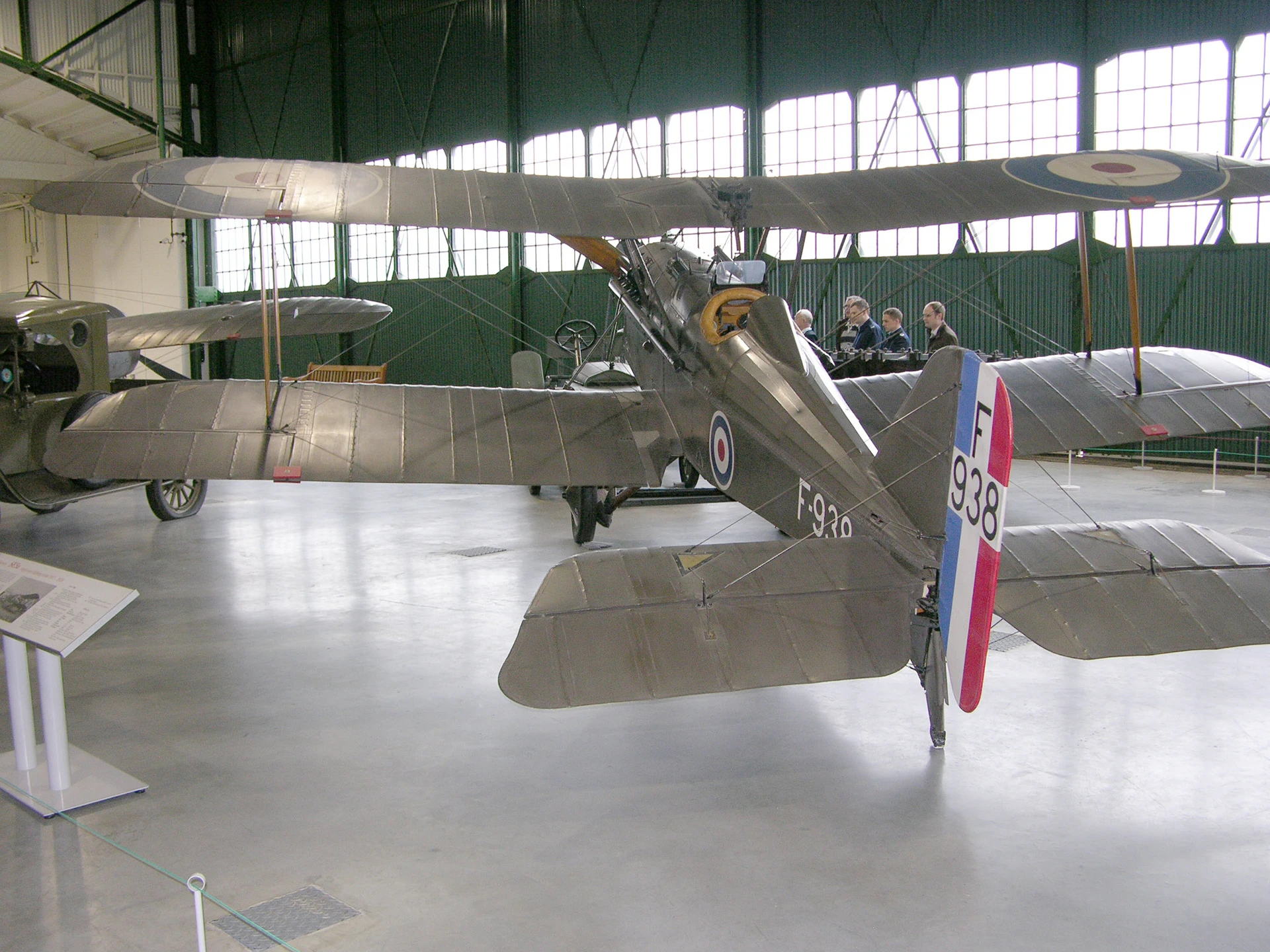

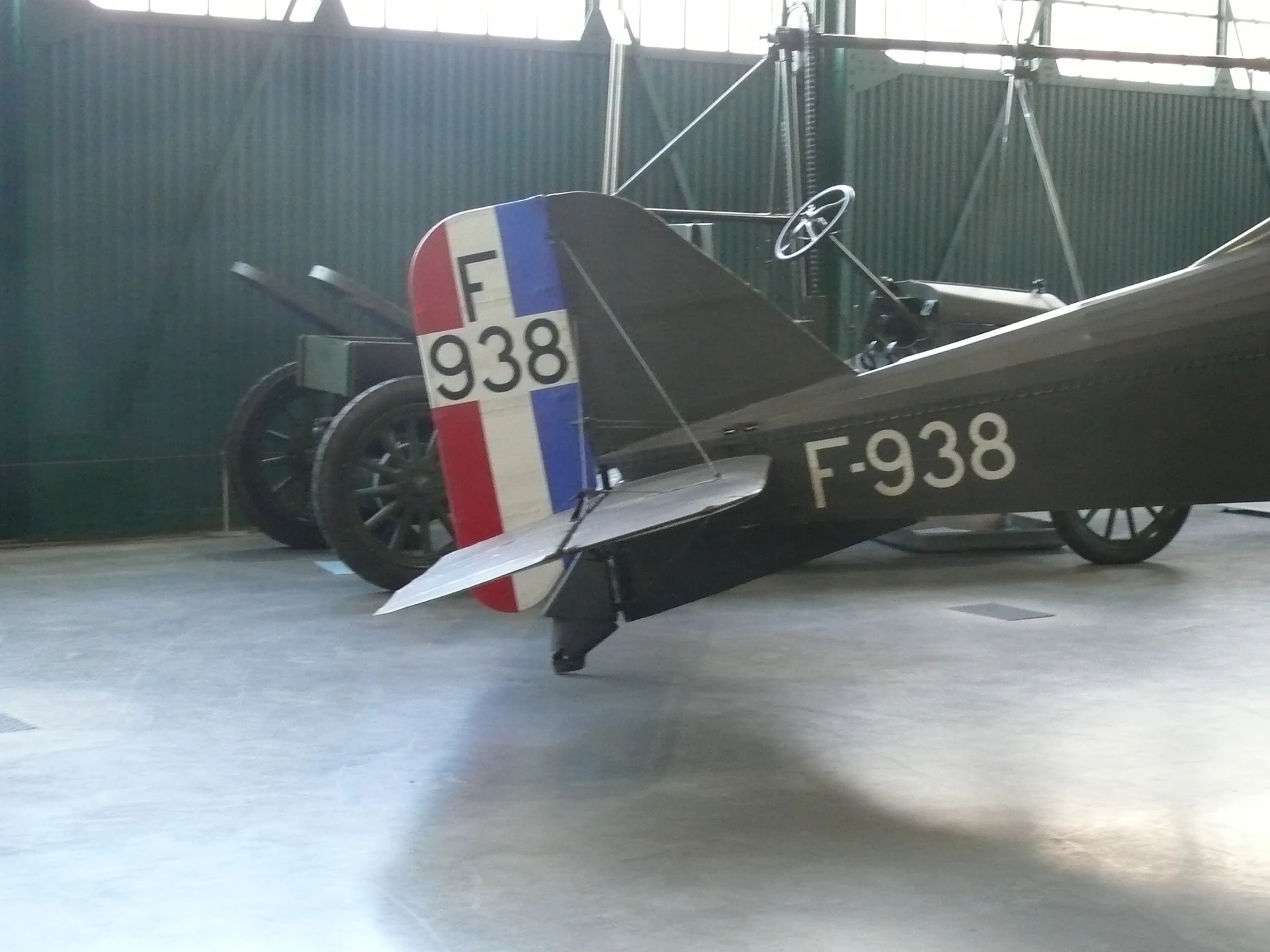

- Adjustable Tailplane: The pilot could adjust the angle of the horizontal stabilizer in flight using a handwheel. This allowed the pilot to trim the aircraft for “hands-off” flight at different speeds, reducing fatigue during long patrols.
The Ace Maker
- Albert Ball’s Influence: Legendary ace Albert Ball was involved in the early testing. He initially disliked the aircraft because it was “too stable,” but he eventually used its high speed and the Foster Mount’s upward-firing capability to devastating effect.
- The “Wolf” of the Skies: While the Sopwith Camel was a better dogfighter in a “turning bee,” the S.E.5a was the master of “zoom and boom.” It could dive on an enemy, fire a lethal burst, and use its superior speed to climb back to safety before the enemy could react.
- Industrial Reliability: The move to the 200hp Wolseley Viper engine (a simplified version of the Hispano-Suiza) solved many early reliability issues, making the S.E.5a one of the most dependable fighters on the Western Front.
- Post-War Utility: Many S.E.5as were used after the war for skywriting and as early air-racers. Its ruggedness meant that several examples survived into the modern era, and it remains a favorite for high-end reproductions today.
