Gulfstream G100

Gulfstream G100
Land	Usa
Rolle	Forretningsfly
Produceret	1985–2017
Bygget	Unknow

Den Gulfstream G100, formerly known as the IAI Astra SPX, is an Israel Aerospace Industries-manufactured twin-engine business jet, that was produced for Gulfstream Aerospace. Deliveries began in 1986. The United States Navy employs the aircraft as the C-38A Courier. A later derivative known as the G150 was launched in 2002. Gulfstream announced the final sale of the G150 in September 2016 and the last delivery by mid-2017

Kilde: Gulfstream G100 på Wikipedia

IAI 1125 Astra Walk Around
Photographers	Vladimir Yakubov
Localisation	Hayward Airport Open House 2012
Photos	131

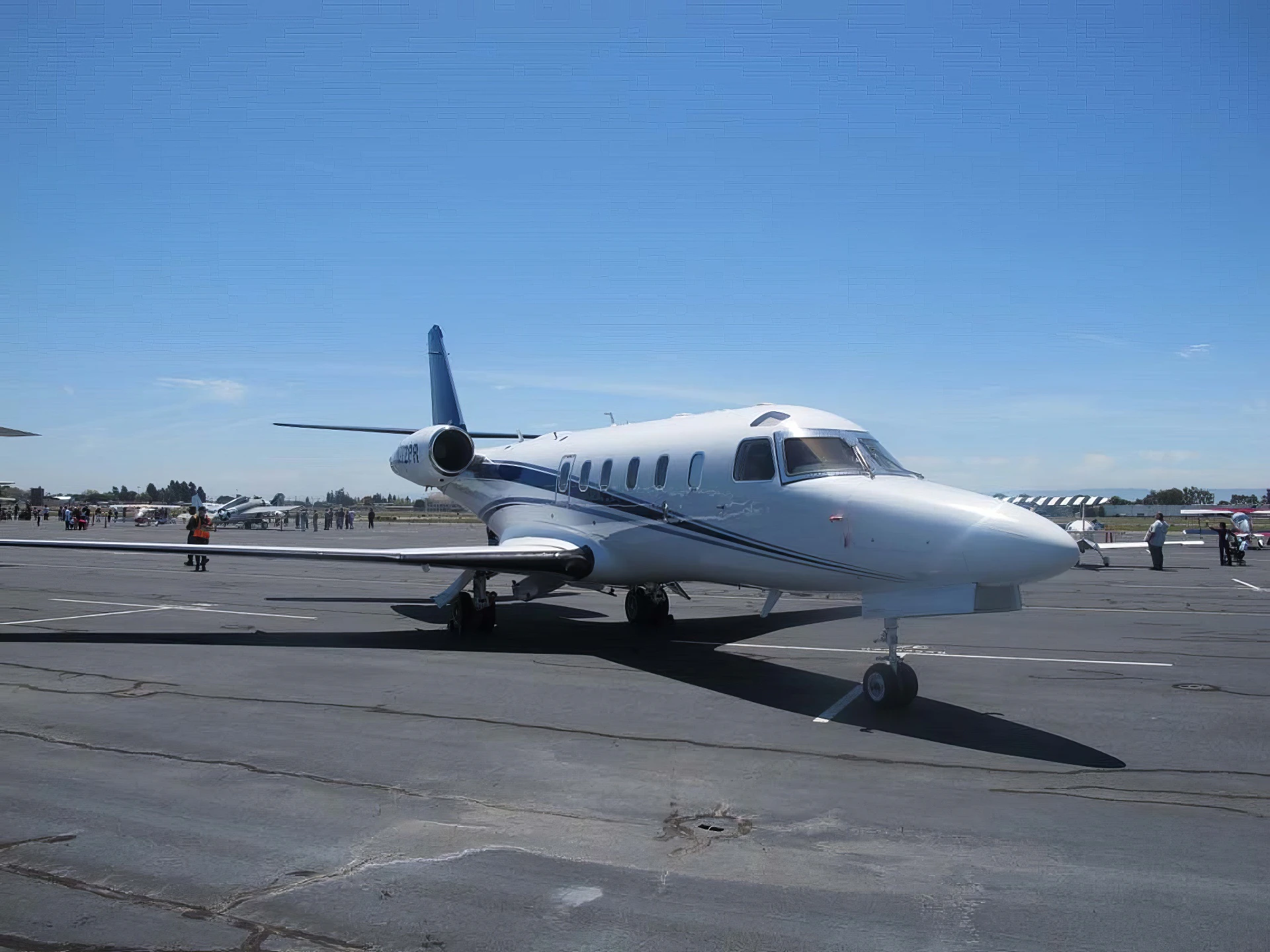

IAI 1125 Astra 01

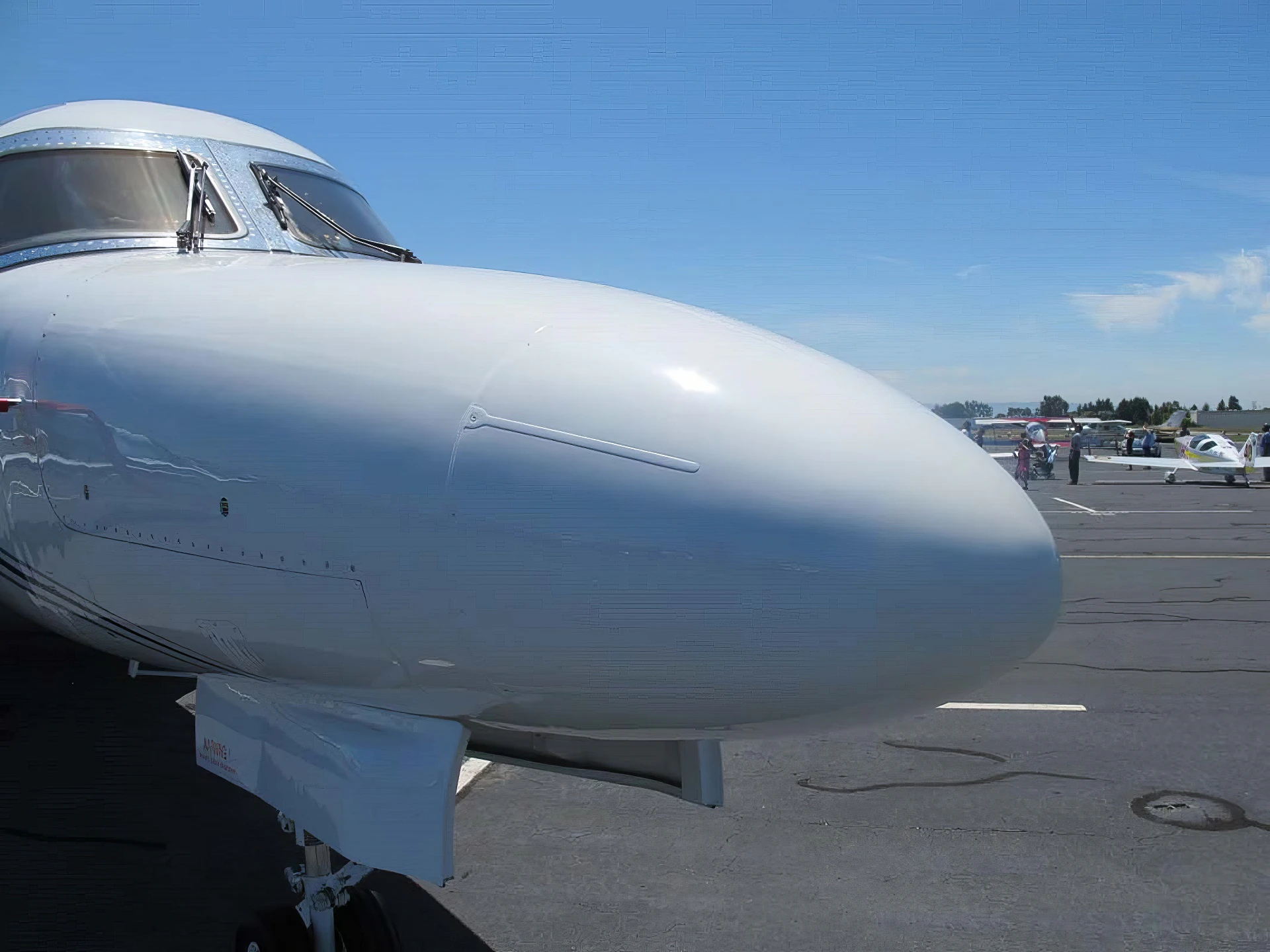

IAI 1125 Astra 02

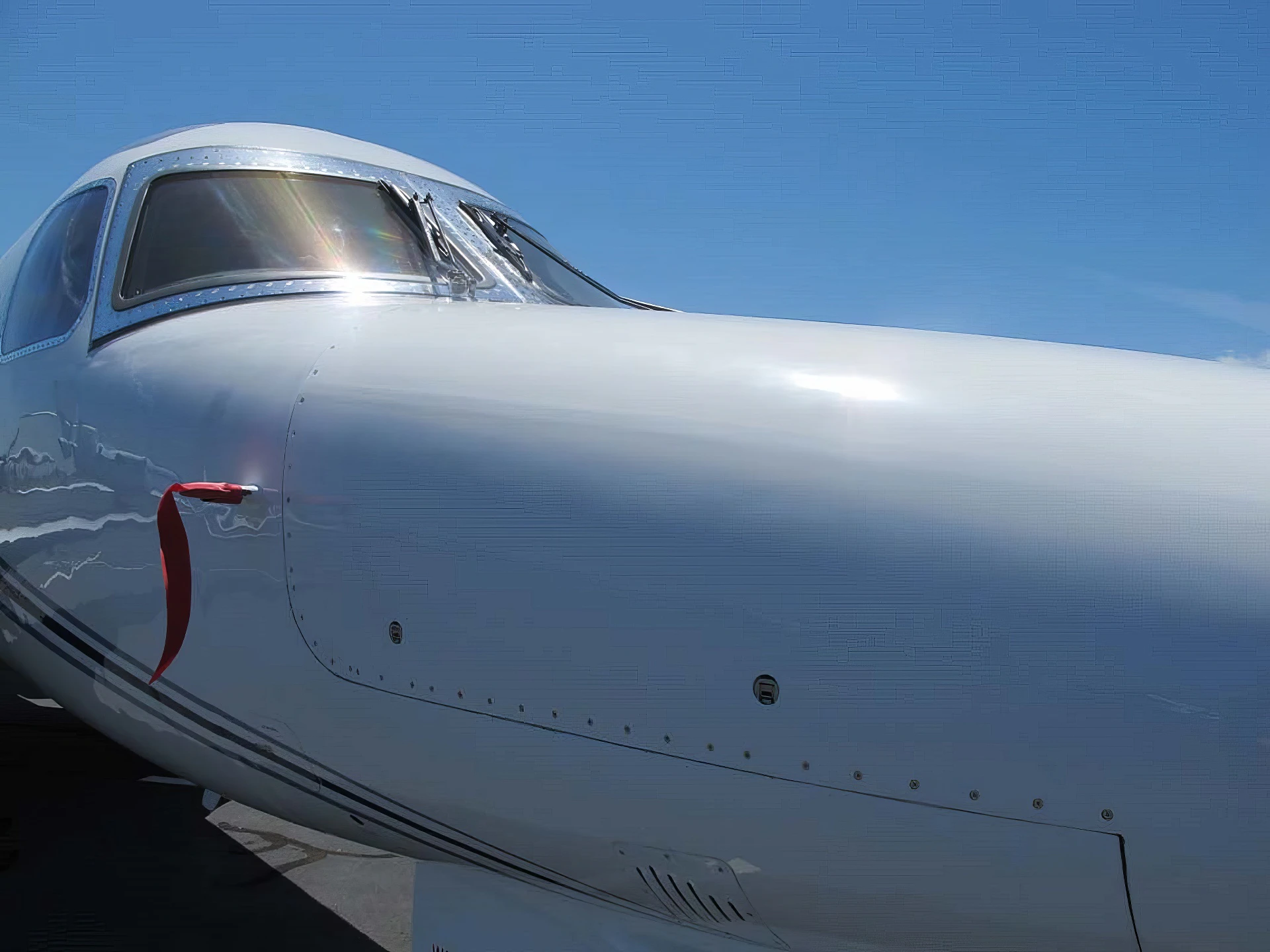

IAI 1125 Astra 03

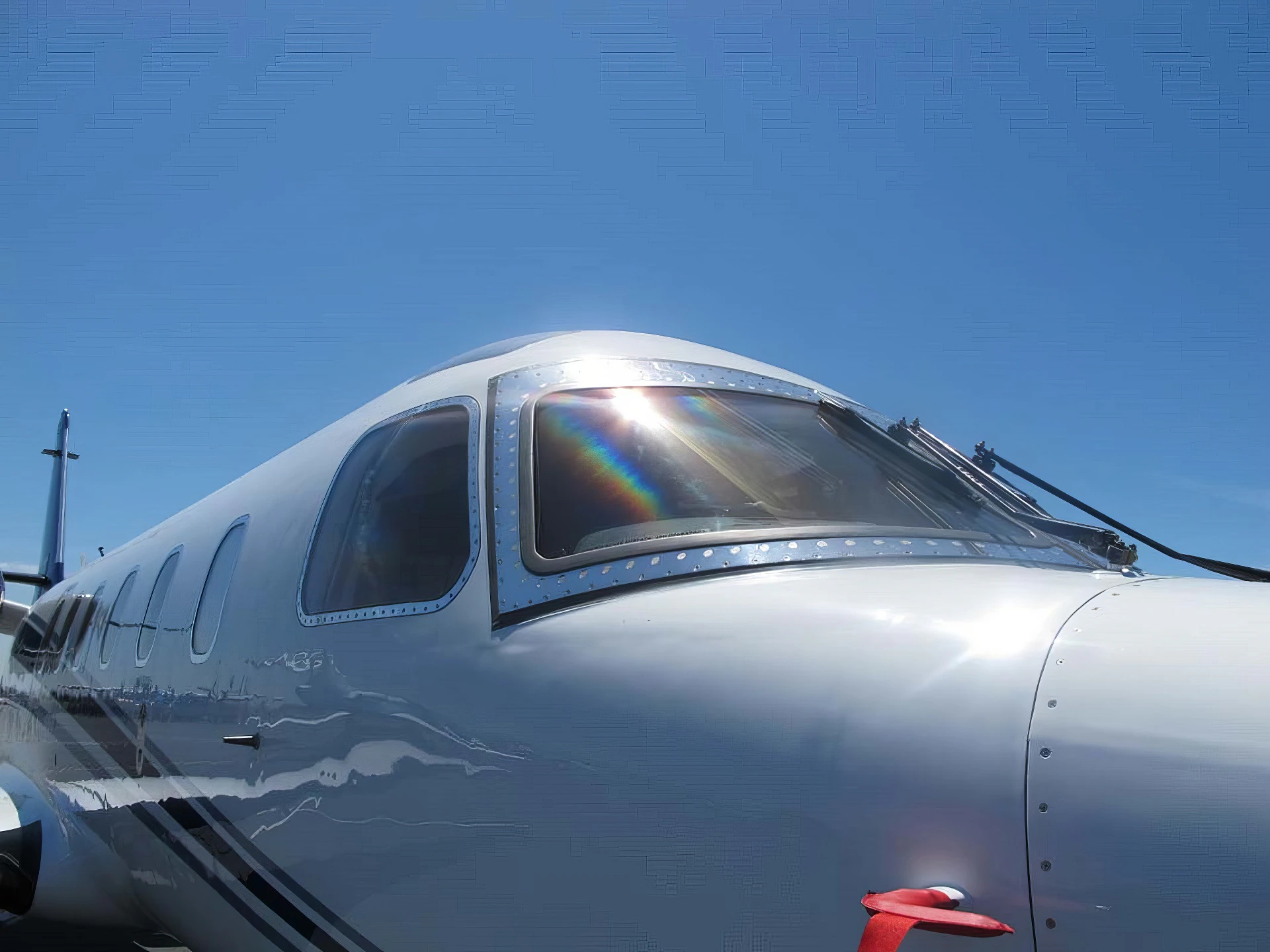

IAI 1125 Astra 04

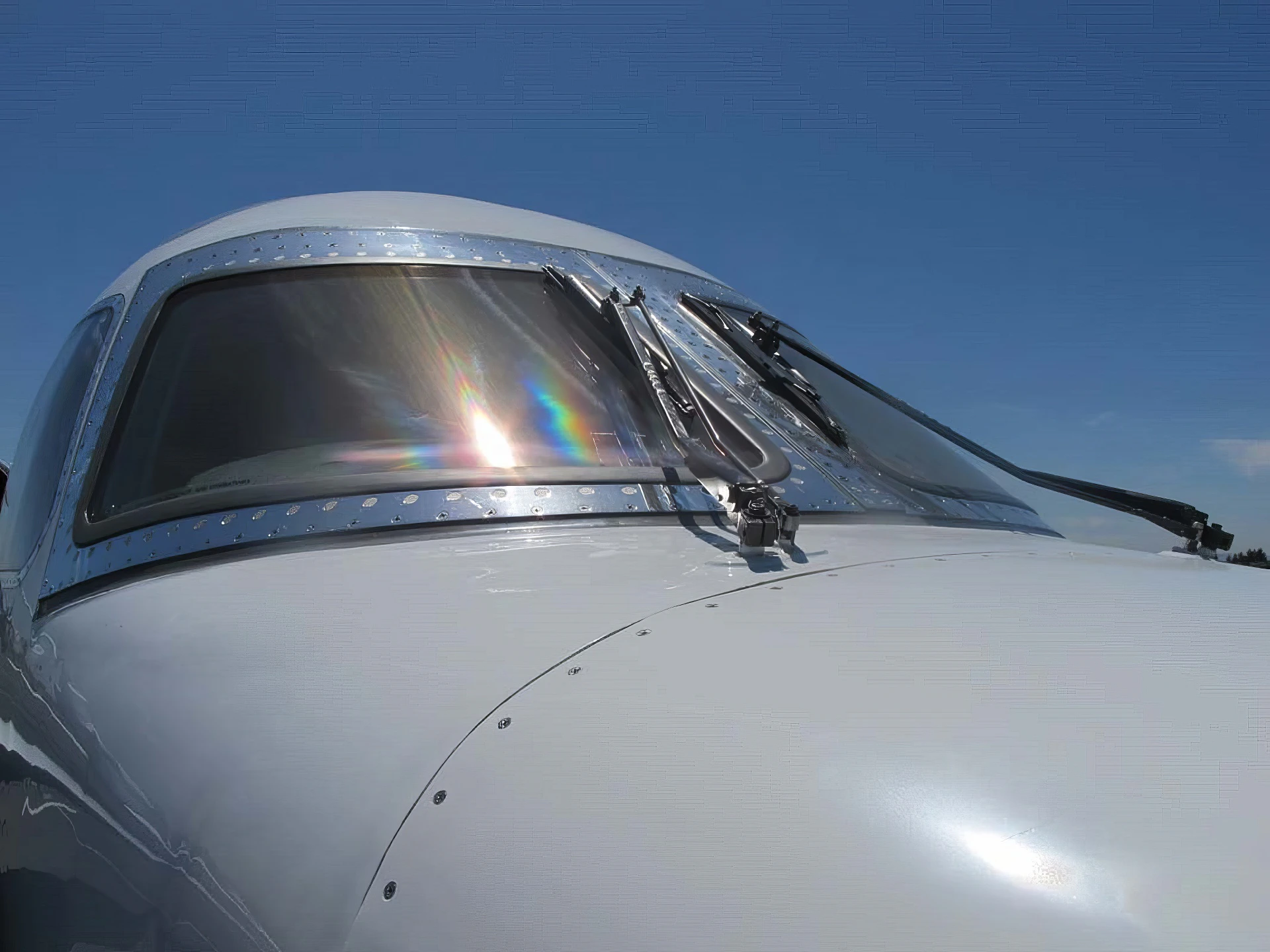

IAI 1125 Astra 05

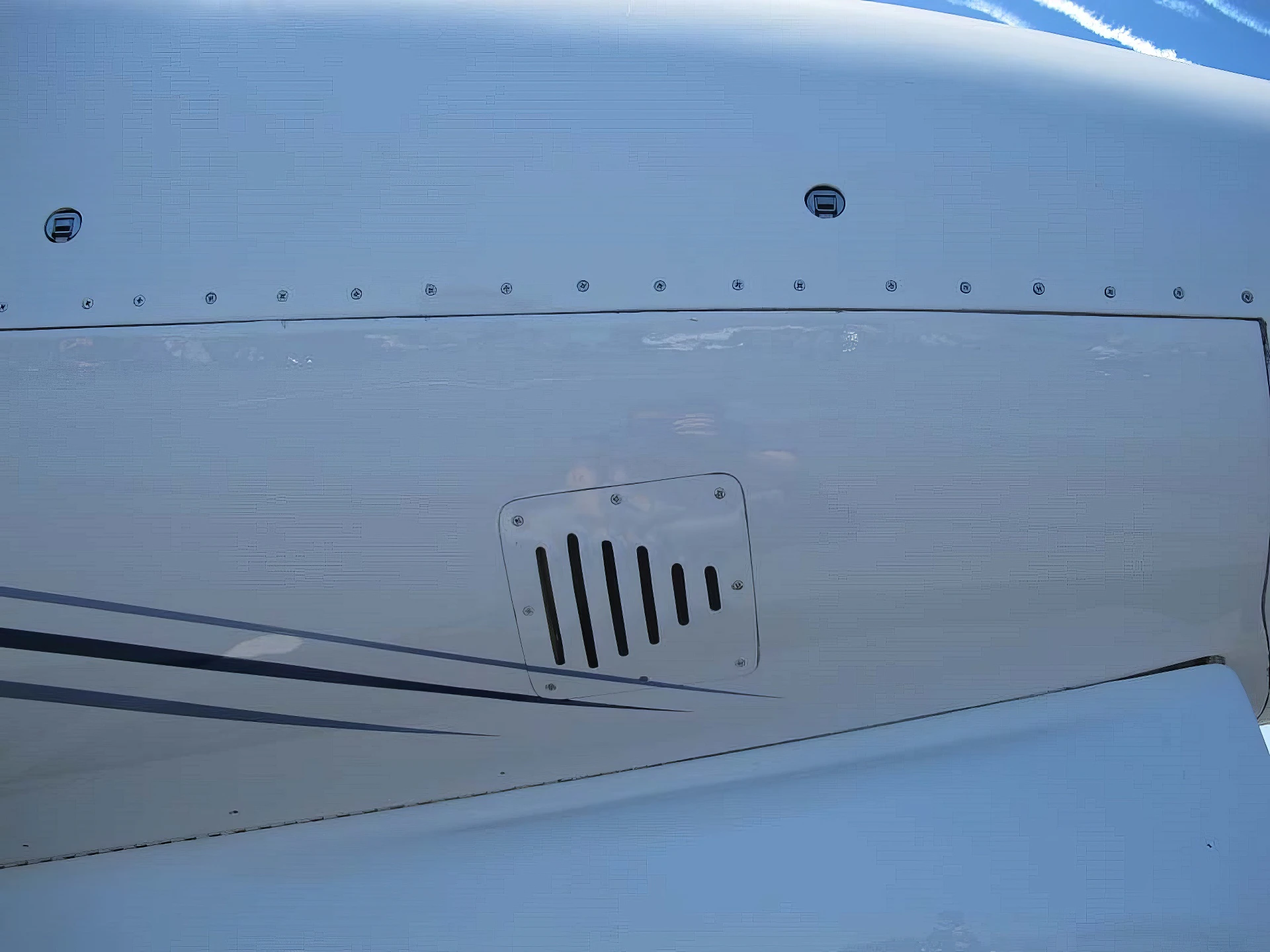

IAI 1125 Astra 06

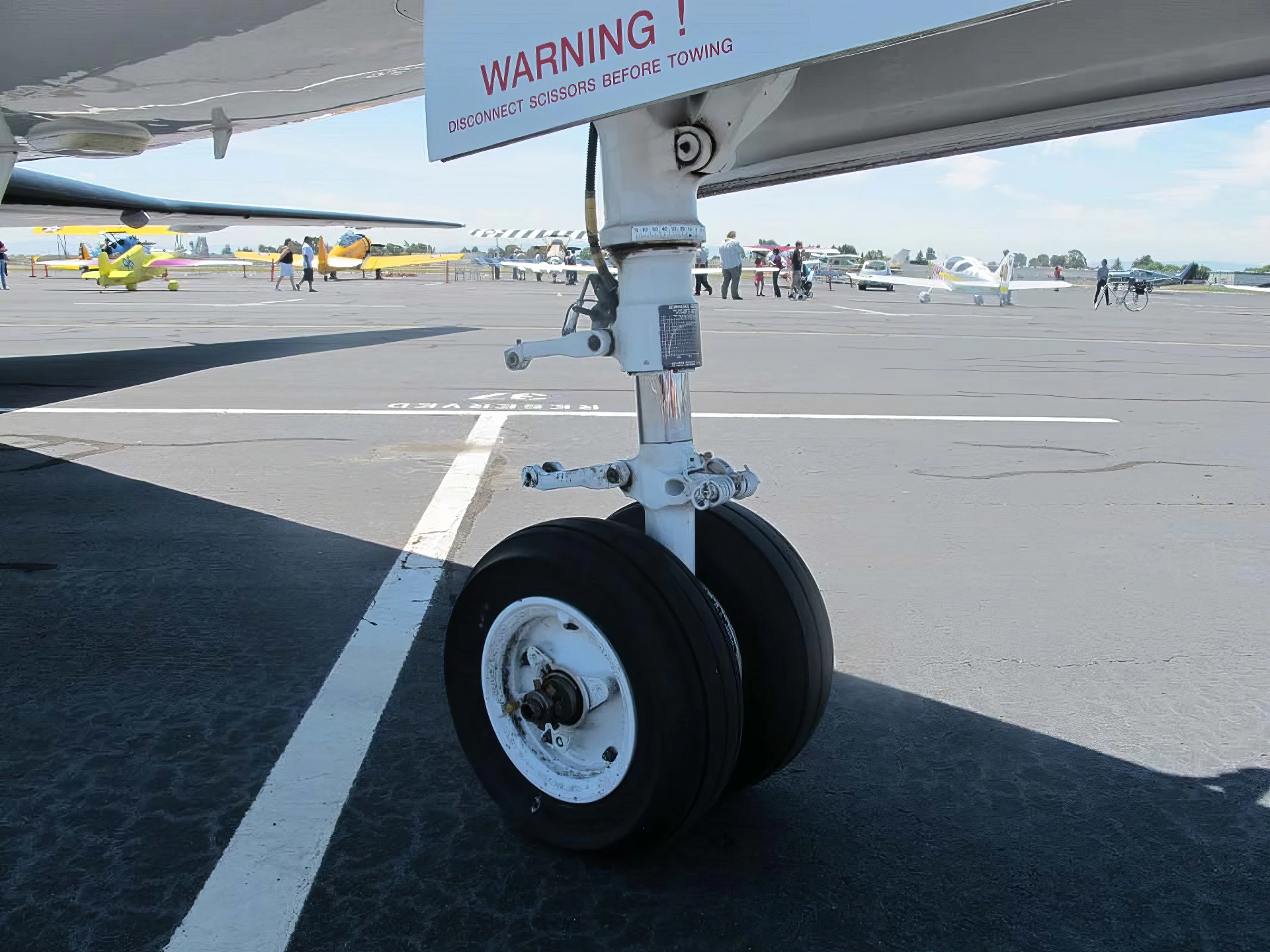

IAI 1125 Astra 07

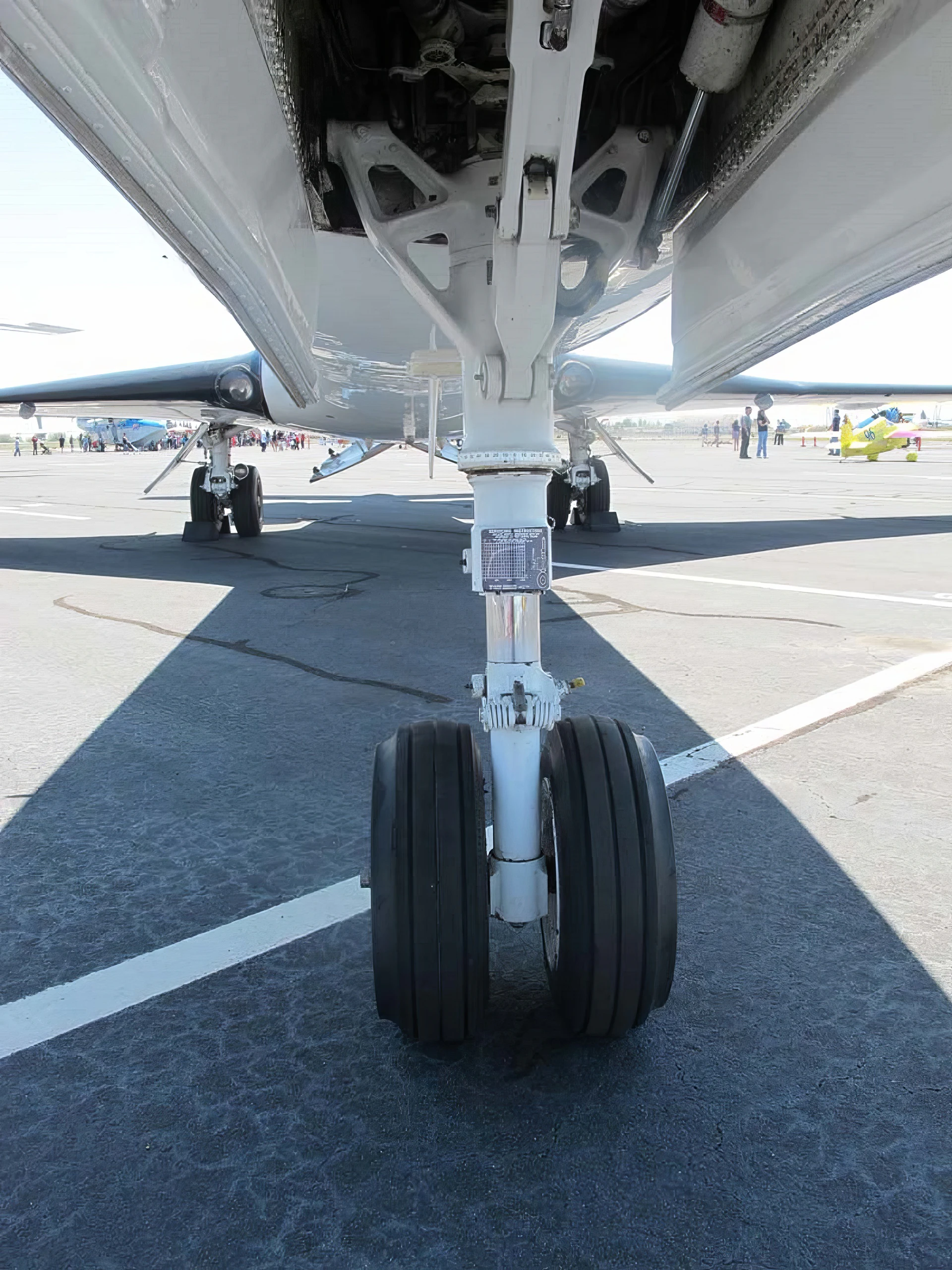

IAI 1125 Astra 09

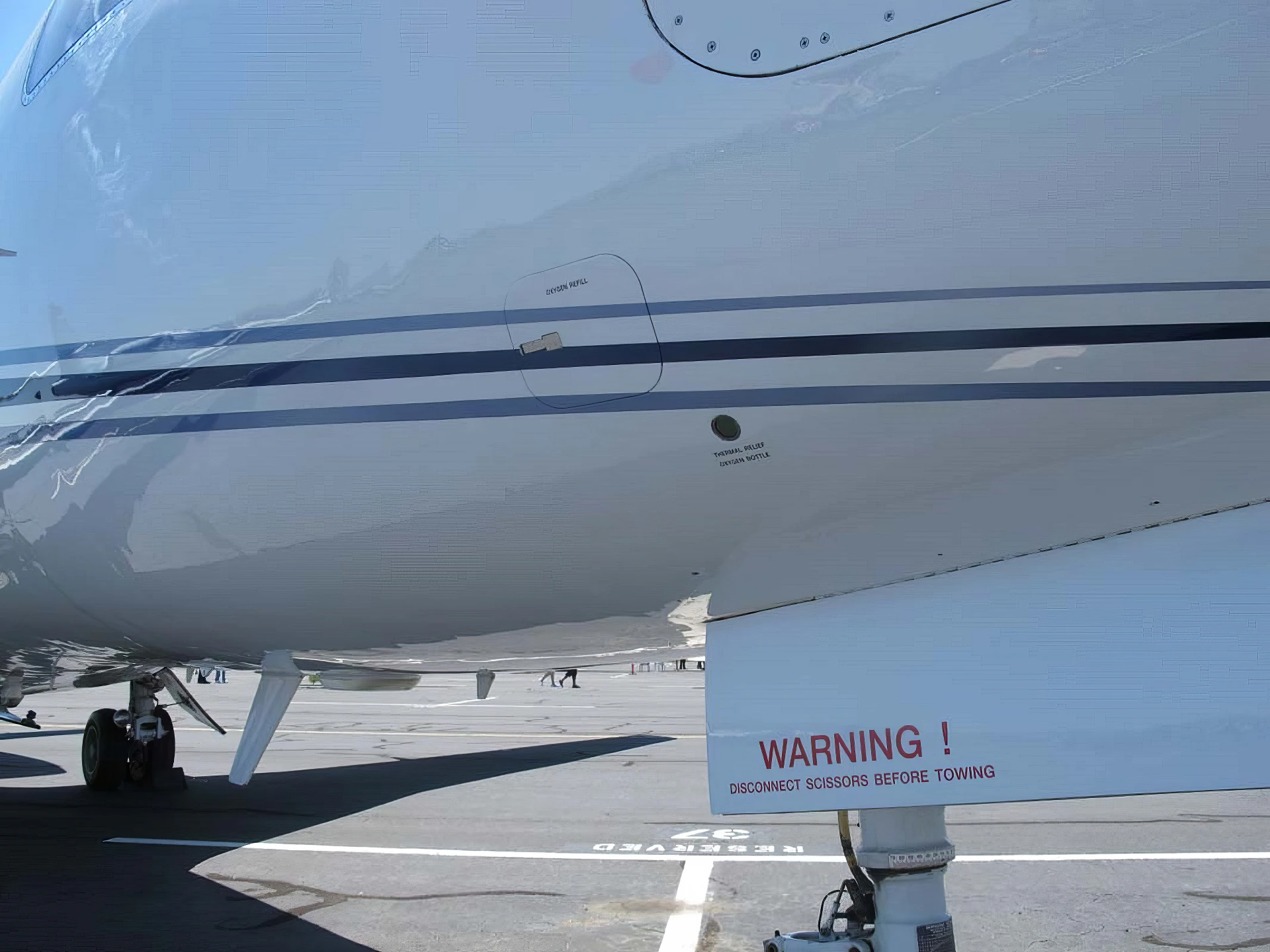

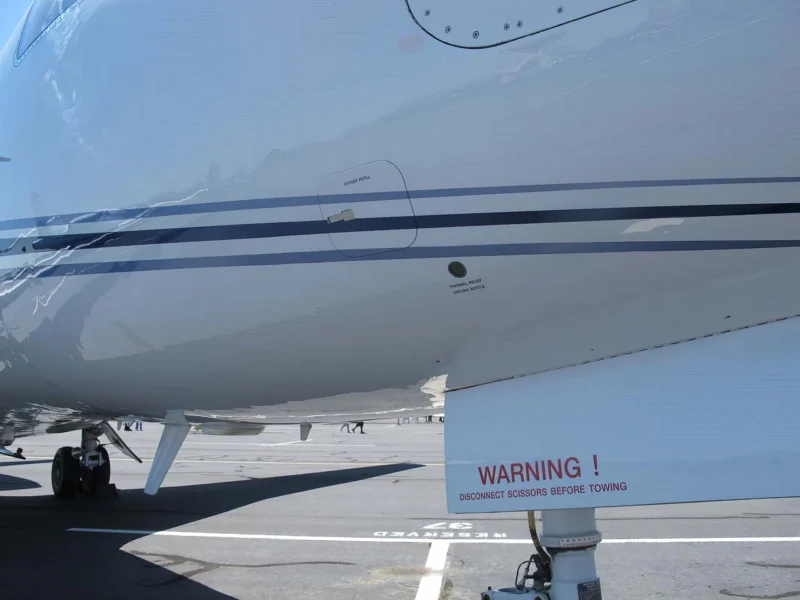

IAI 1125 Astra 08

Click on a photo and use the mouse scroll to view all photos

Wait, Searching Gulfstream G100 for you…

Se også:

General Characteristics

The IAI 1125 Astra is a twin-engine, mid-size corporate jet developed by Israel Aerospace Industries (IAI) as a significant evolution of the earlier Westwind series. It introduced a new, high-speed swept wing and a more spacious pressurized cabin, establishing a reputation for high speed and long transcontinental range.

Property	Typical Value (Original Astra/SP Variant)
Rolle	Mid-size Corporate/Executive Transport
Producent	Israel Aerospace Industries (IAI)
First Flight	March 19, 1984
Besætning	2 pilots
Kapacitet	6 to 9 passengers
Vingefang	16.05 m (52 ft 8 in)
Længde	16.94 m (55 ft 7 in)
Max Takeoff Weight	10,660 kg (23,500 lb)

Design and Powerplant

Engines: Two Honeywell (Garrett) TFE731-3 turbofan engines.
Thrust: Approximately 16.5 kN (3,700 lbf) per engine (upgraded to 4,250 lbf on the SPX variant).
Engine Placement: Engines are mounted in nacelles on the sides of the rear fuselage.
Wing Design: Features a newly designed, moderately swept low-wing which allows for higher cruising speeds compared to its predecessor.
Cabin: Equipped with a pressurized cabin, offering a comfortable environment at high altitudes. Cabin height is typically 1.71 m (5 ft 7 in).

Performance and Evolution

Maximum Cruise Speed: Up to Mach 0.82 (approx. 465 knots or 860 km/h).
Maximum Range: Up to 5,760 km (3,110 nautical miles) with four passengers and reserves (original Astra).
Service Ceiling: 13,715 m (45,000 ft).
Key Variants:
- Astra SP (Special Performance): Introduced minor aerodynamic refinements and upgraded avionics, slightly increasing range.
- Astra SPX (later Gulfstream G100): Introduced more powerful TFE731-40R engines and distinctive winglets, significantly increasing speed and range (up to 2,900+ nm).
Current Designation: The Astra SPX variant was acquired and rebranded by Gulfstream Aerospace as the Gulfstream G100.
Military Use: The US Air Force utilizes a military transport version of the Astra SPX/G100 under the designation C-38A Courier.
