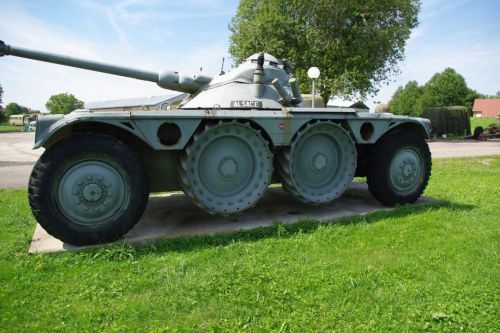

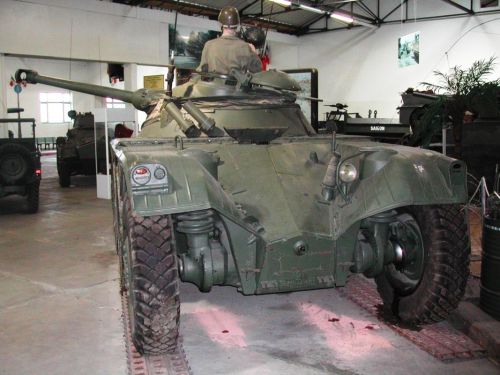

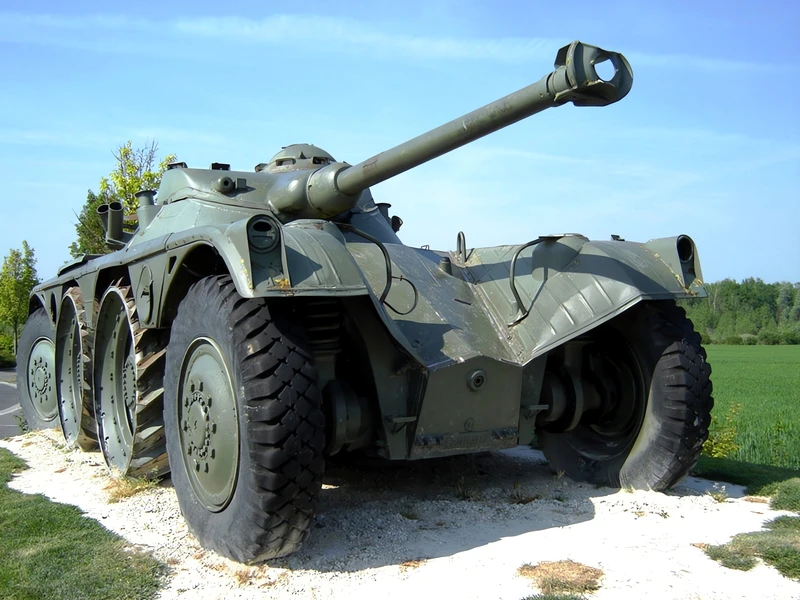

The Panhard EBR was a heavy armored car designed for the French Army immediately after World War II to serve a reconnaissance role. It is famous for its unique 8×8 configuration, symmetrical hull, and the ability to be driven in either direction. The FL-11 designation refers to the specific Fives-Lille oscillating turret used on this variant.

Unique Design and Mobility

The EBR featured a highly innovative design focused on speed and survivability.

• Crew: 4 (Commander, Gunner, Front Driver, Rear Driver).

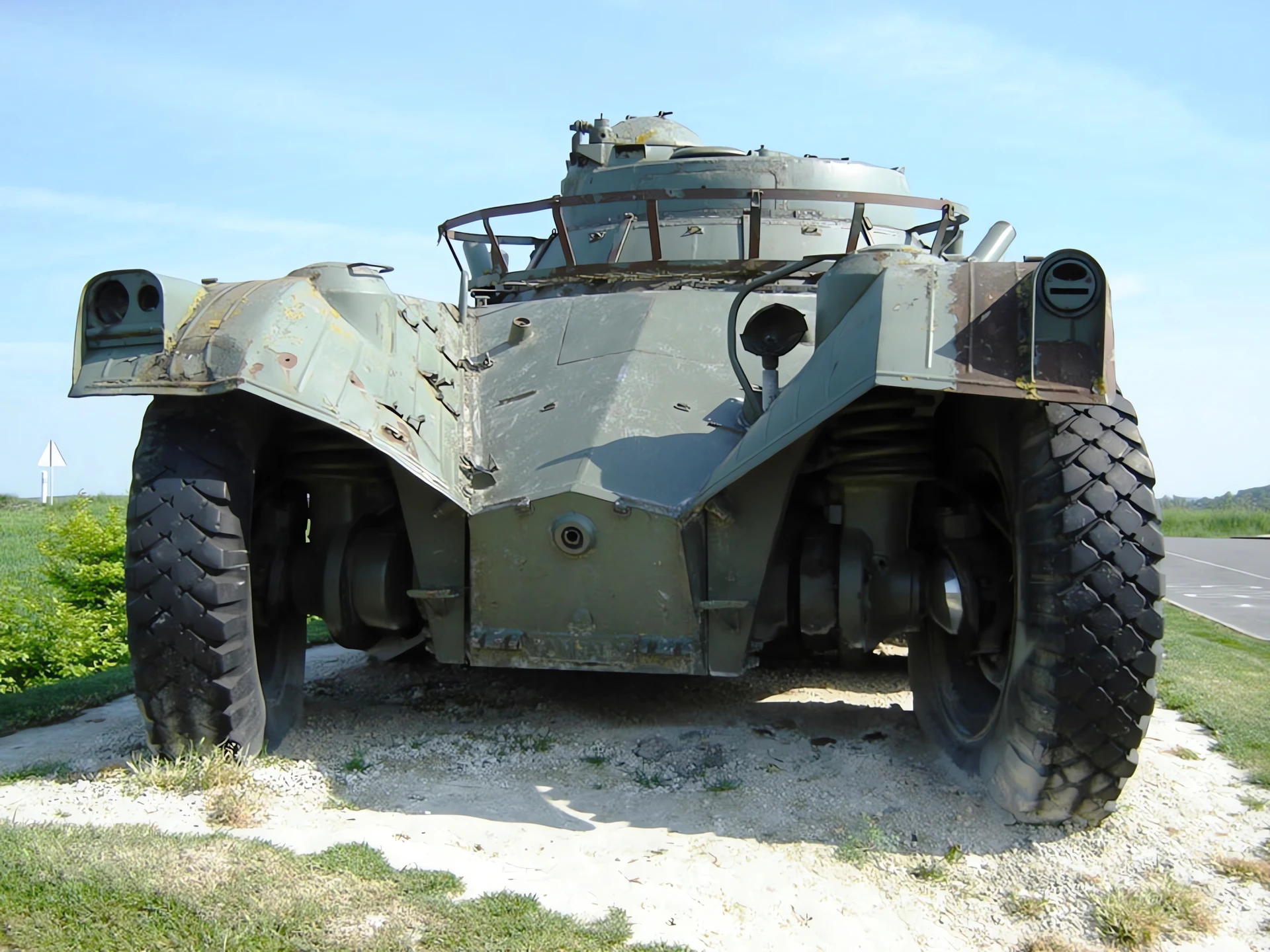

• Bi-directional Drive: The vehicle had two driving positions (one at the front, one at the rear) and a symmetrical hull, allowing it to rapidly reverse without turning around.

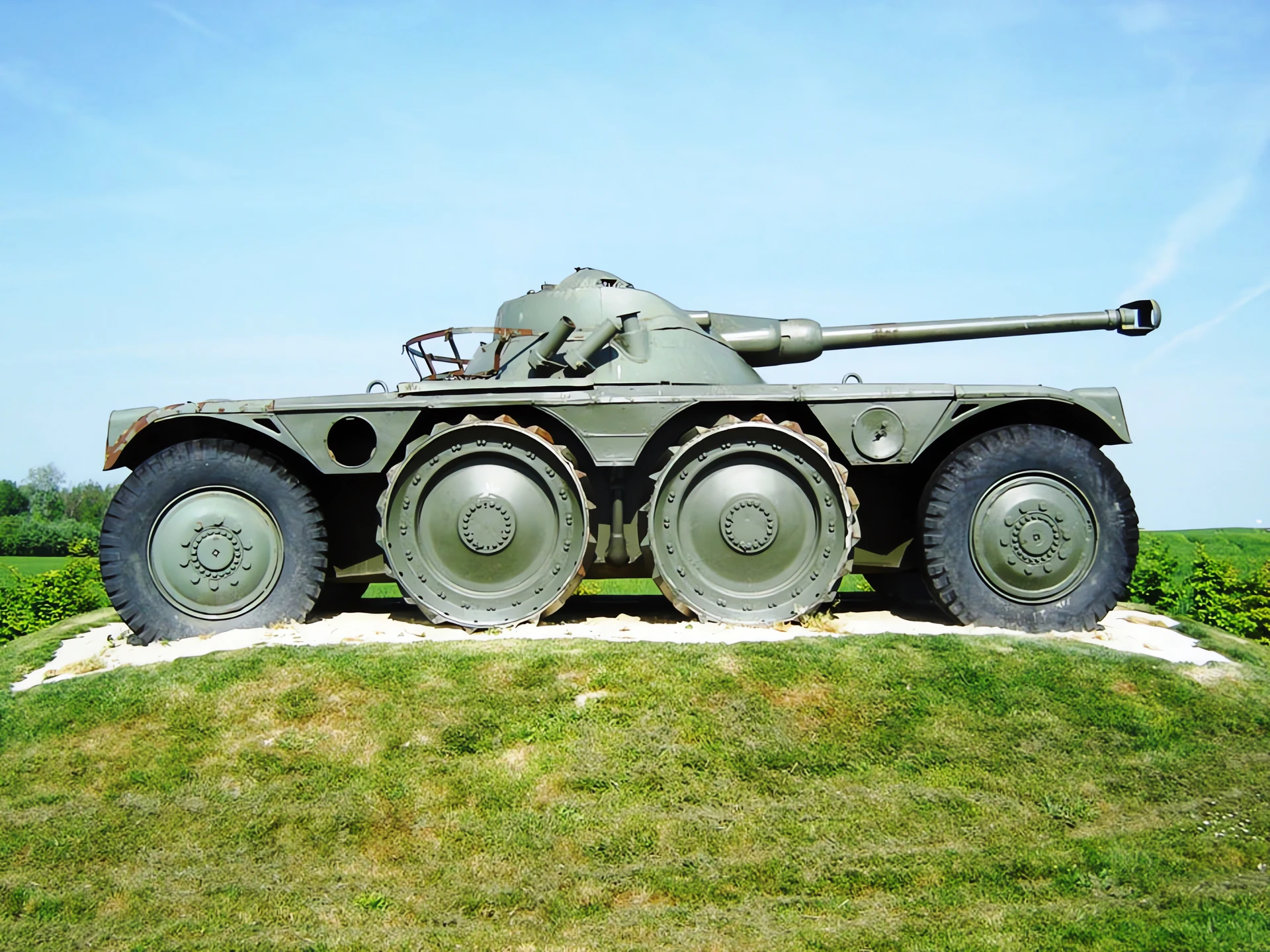

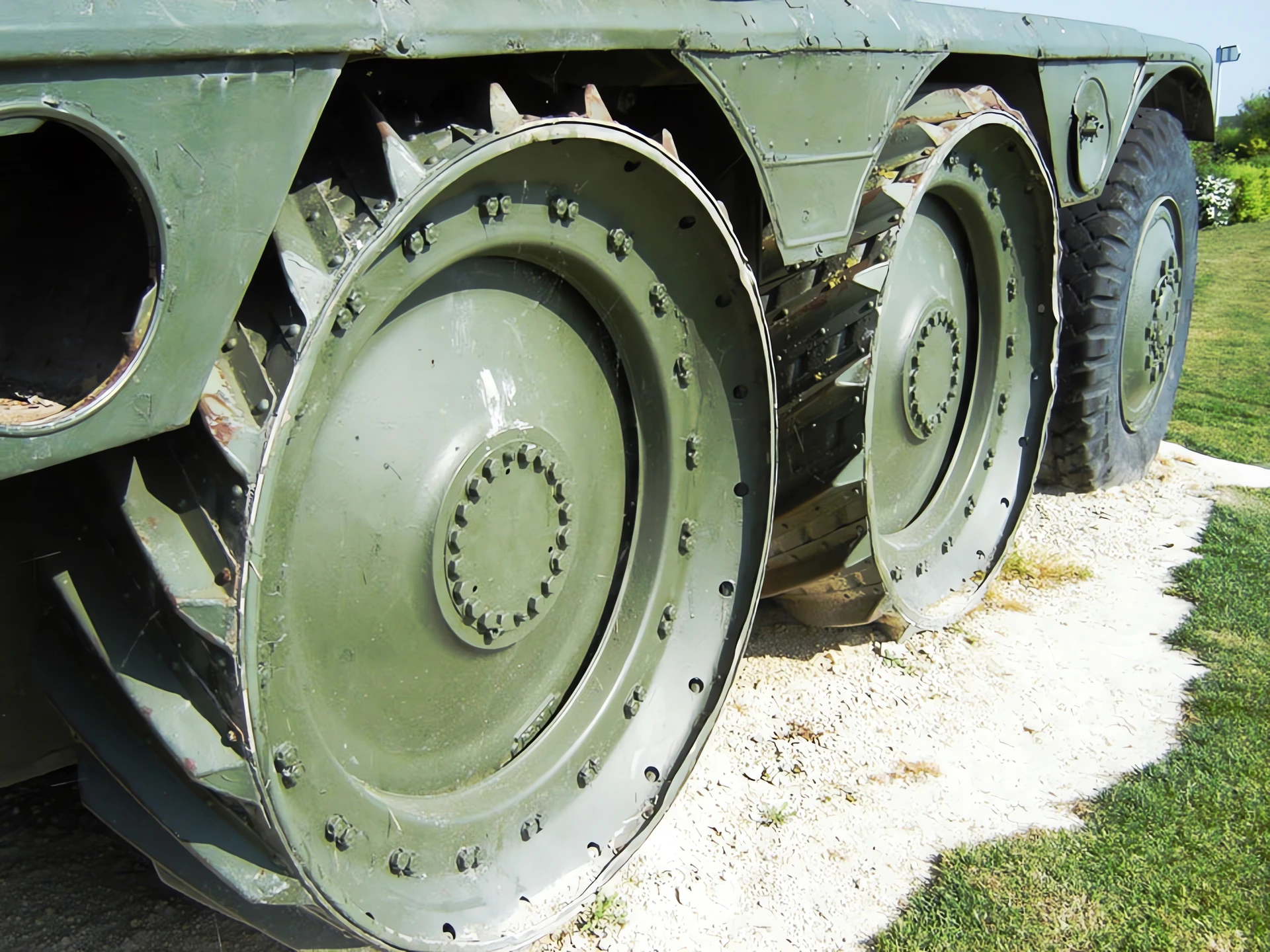

• Wheel Configuration: 8×8 drive. The four central metal wheels could be raised for high-speed road travel and lowered for better traction off-road, particularly on soft ground.
• Engine Placement: The flat-twelve cylinder engine was located directly under the fighting compartment, improving protection but making major maintenance difficult (requiring turret removal).

Specifications (Model 1951 with FL-11 Turret)

Property	Vrednost
Vrsta	Armored Car / Reconnaissance Vehicle
Mass (Combat Weight)	13 tonnes
Dolžina	6.15 m (20 ft 2 in)
Širina	2.42 m (7 ft 11 in)
Višina	2.24 m (7 ft 4 in)
Motor	Panhard 12H 6000 S Flat-Twelve Gasoline
Engine Power	200 hp
Maximum Speed	Up to 115 km/h (71 mph) on road
Operational Range	~700 km (430 mi)

Armament and Turret

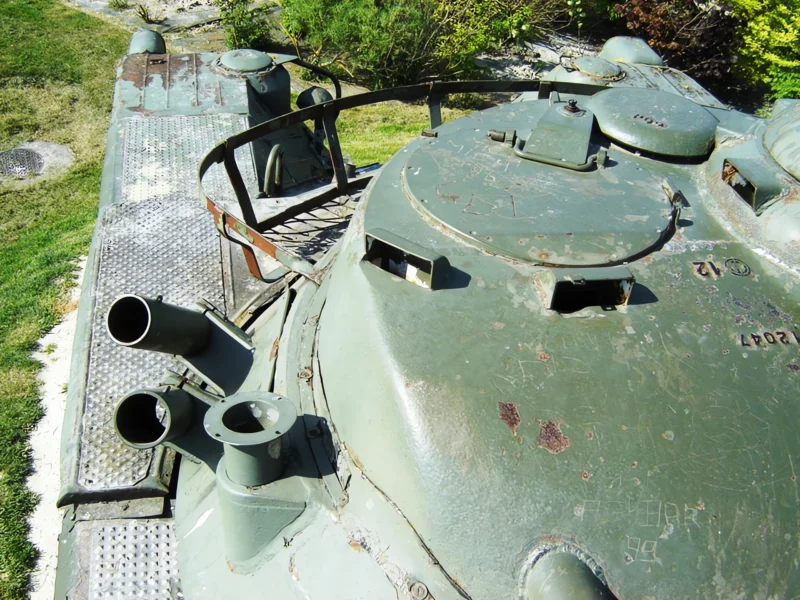

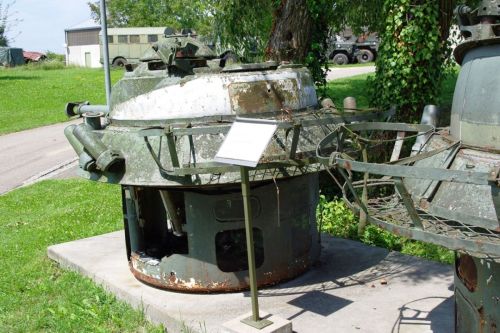

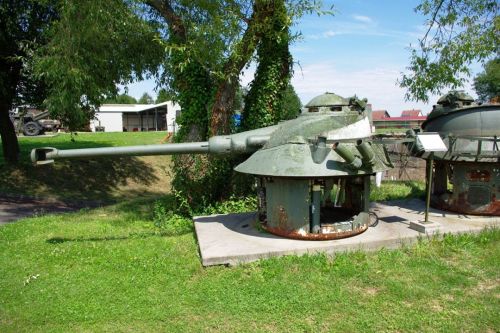

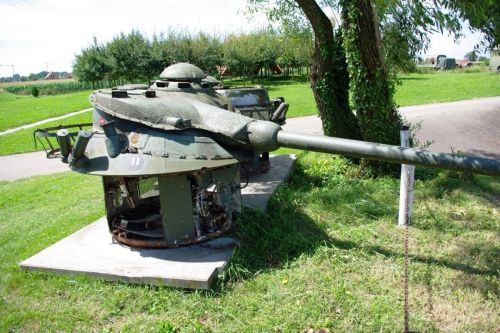

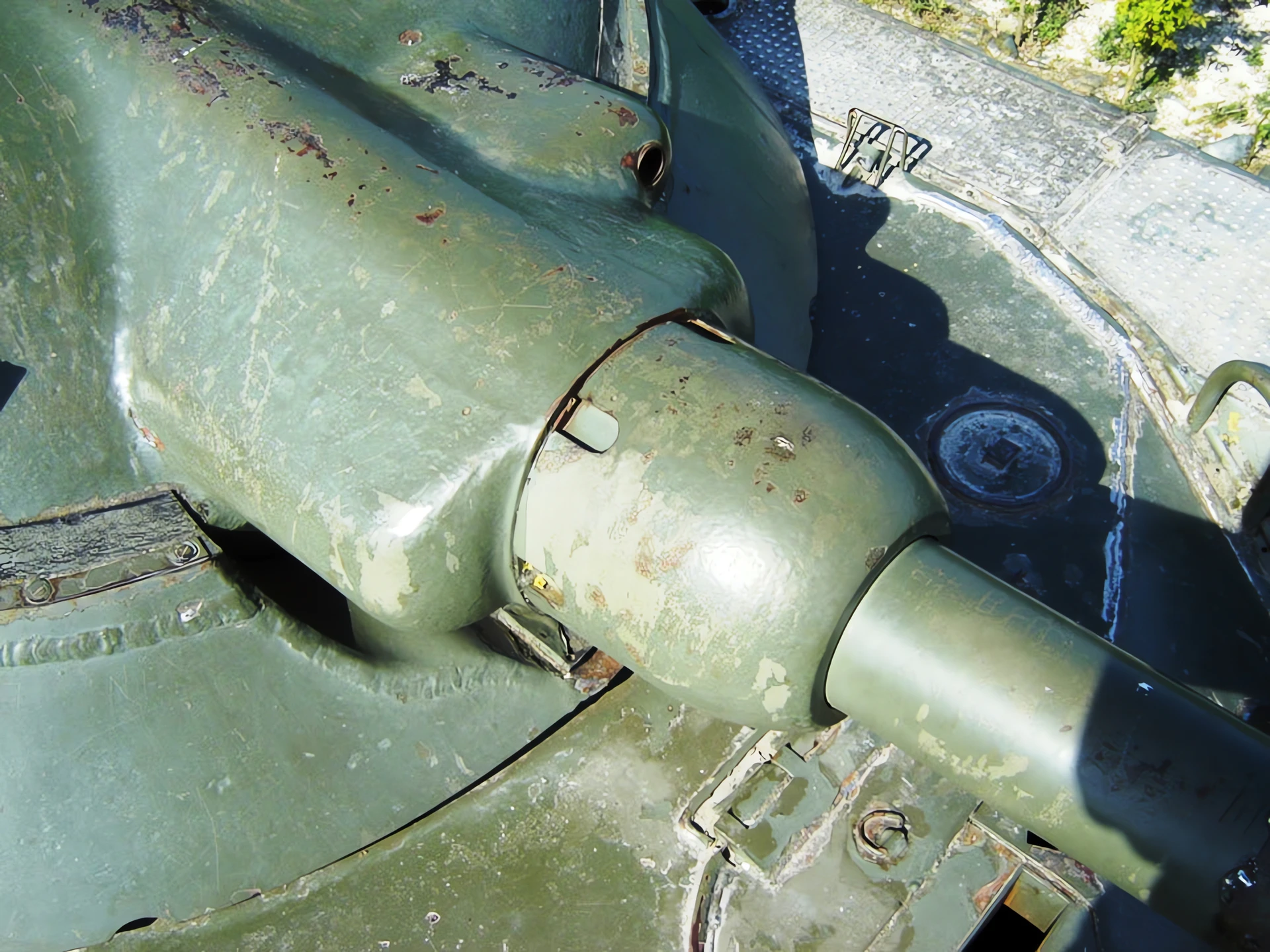

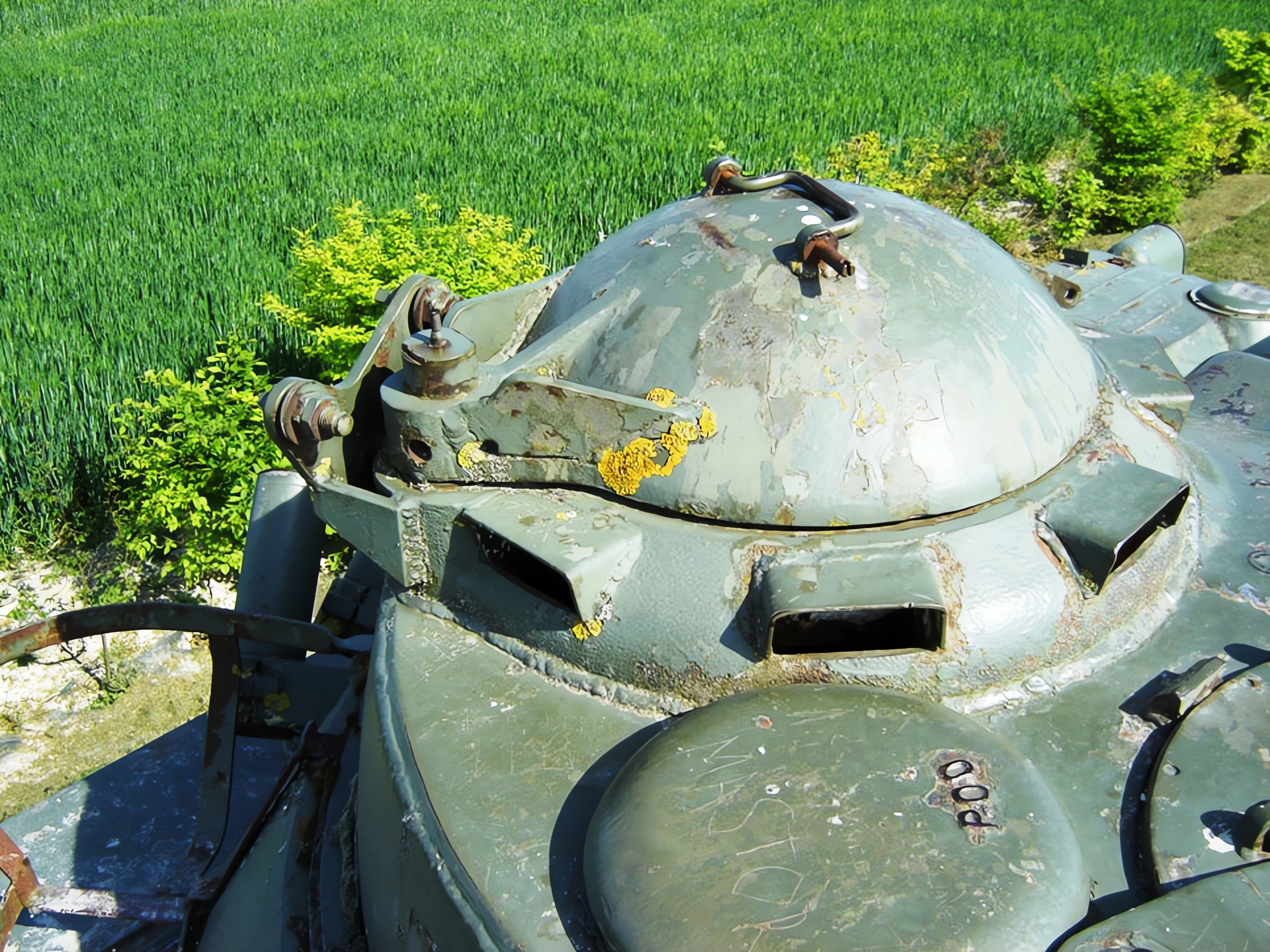

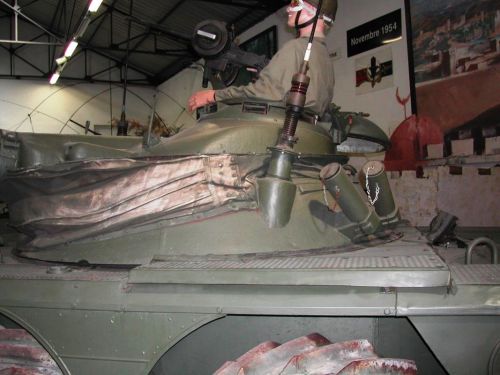

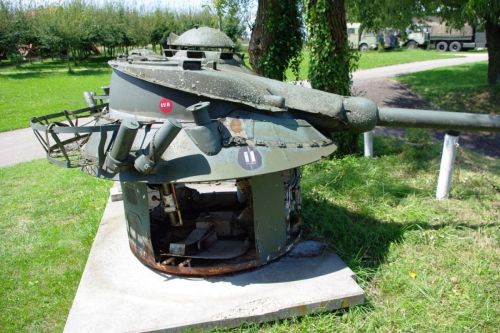

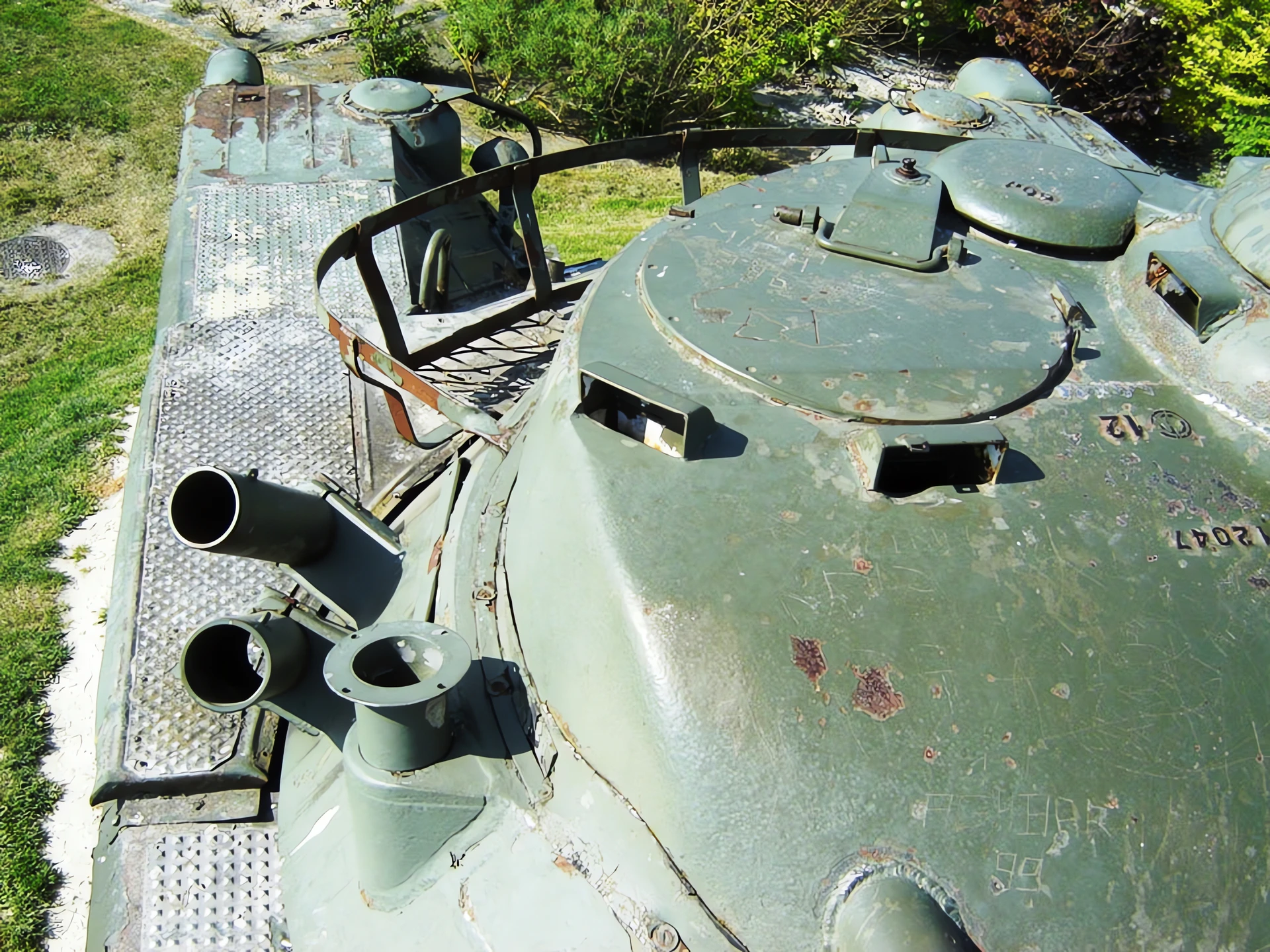

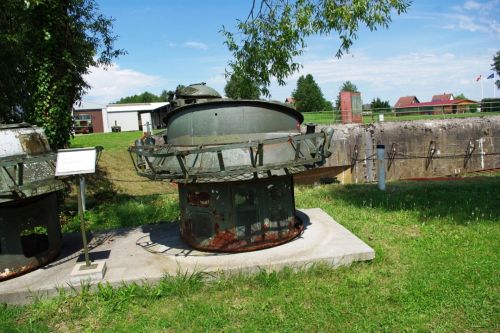

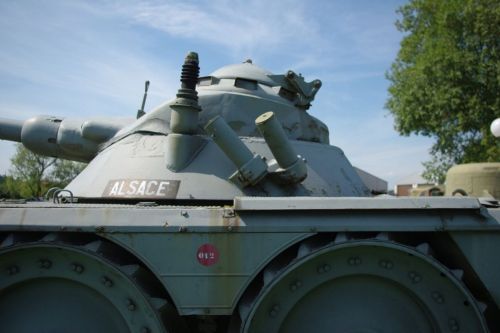

• Turret Type: FL-11 Oscillating Turret. This design separates the gun and the upper section from the lower turret ring, simplifying the incorporation of an autoloader or a larger gun caliber.

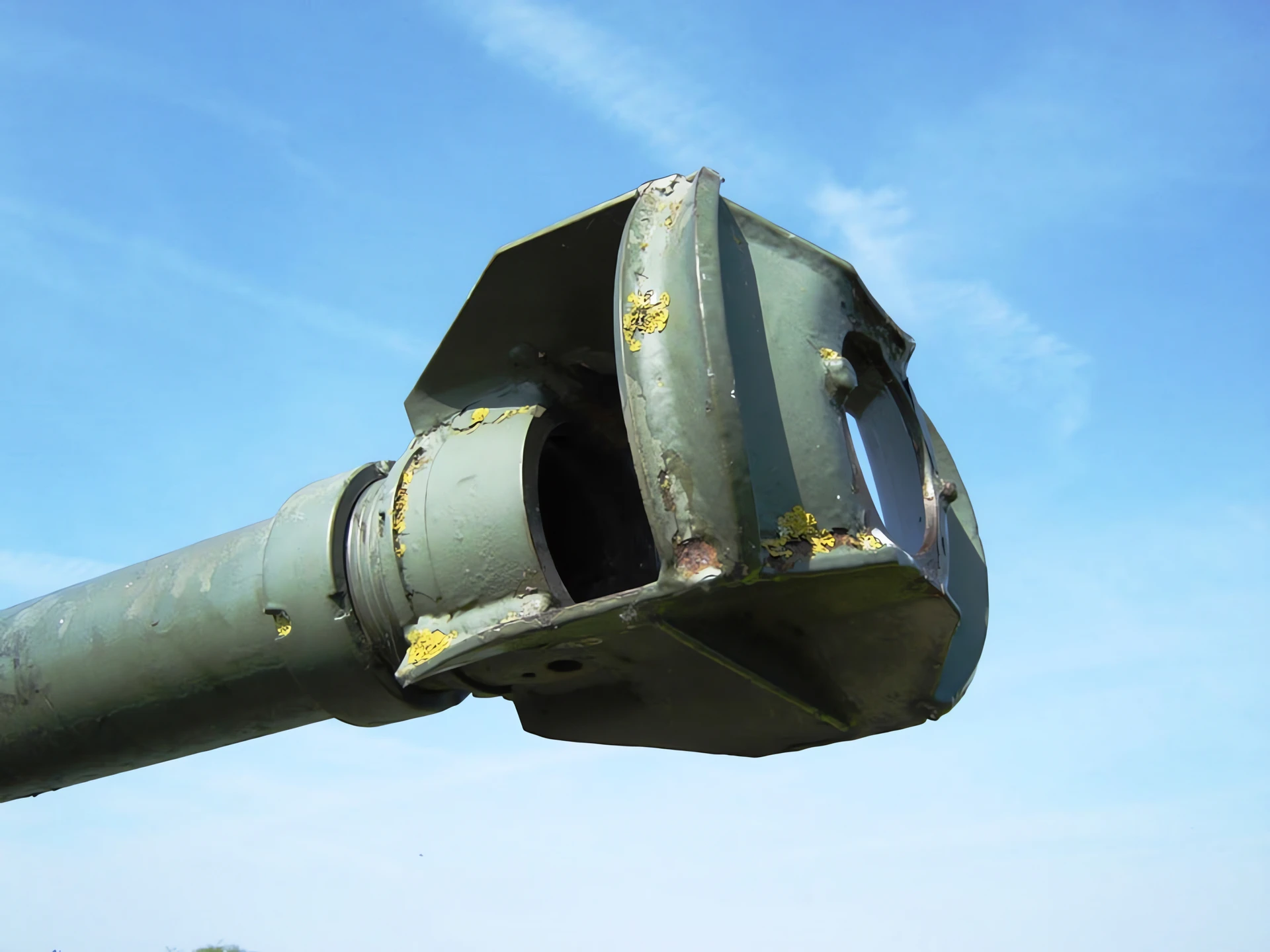

• Initial Main Armament: 75 mm SA 49 rifled gun (Model 1951).
• Upgraded Main Armament: Many FL-11 variants were later refitted with the more powerful 90 mm CN 90 F2 low-pressure gun (from 1964).

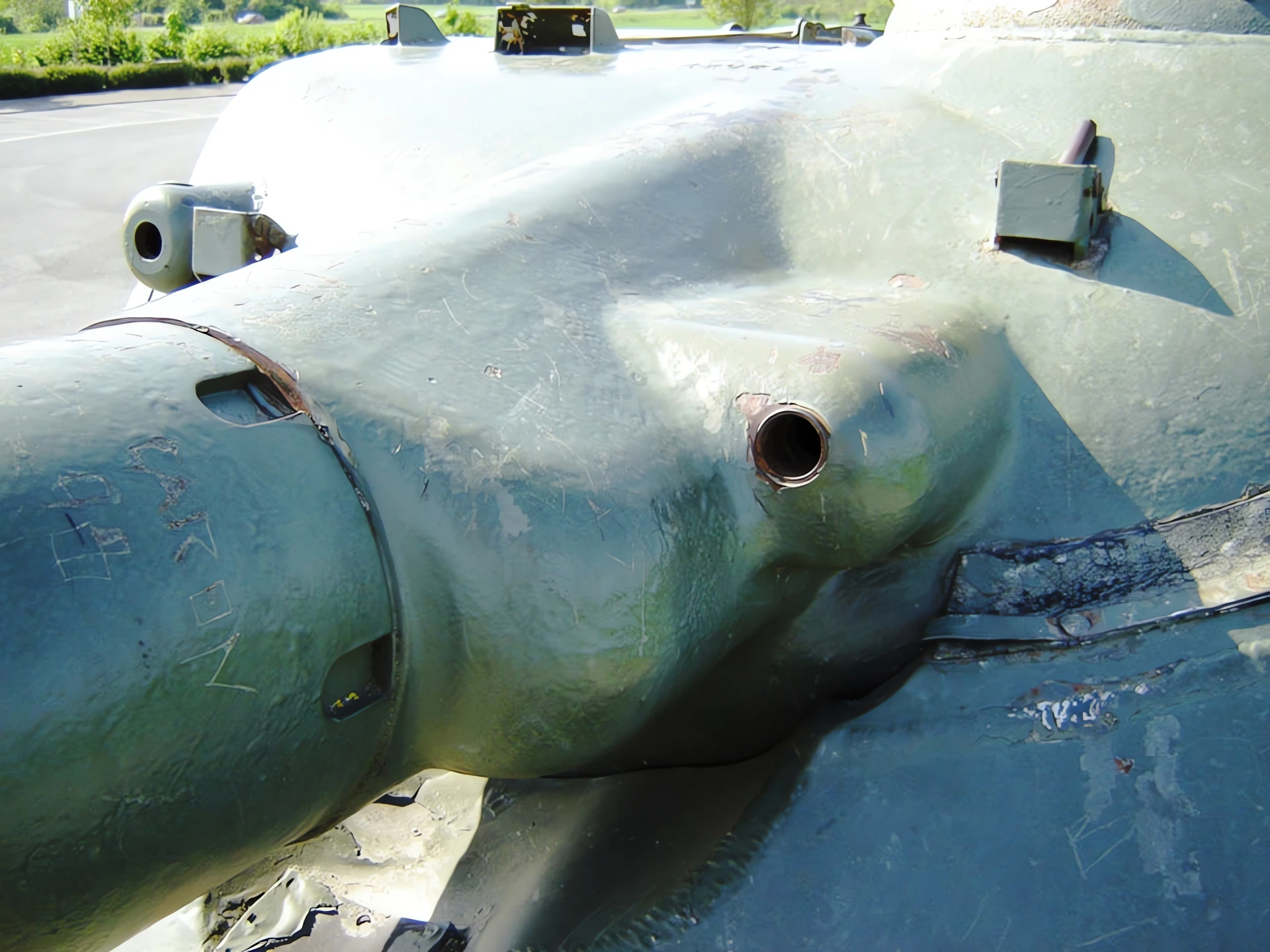

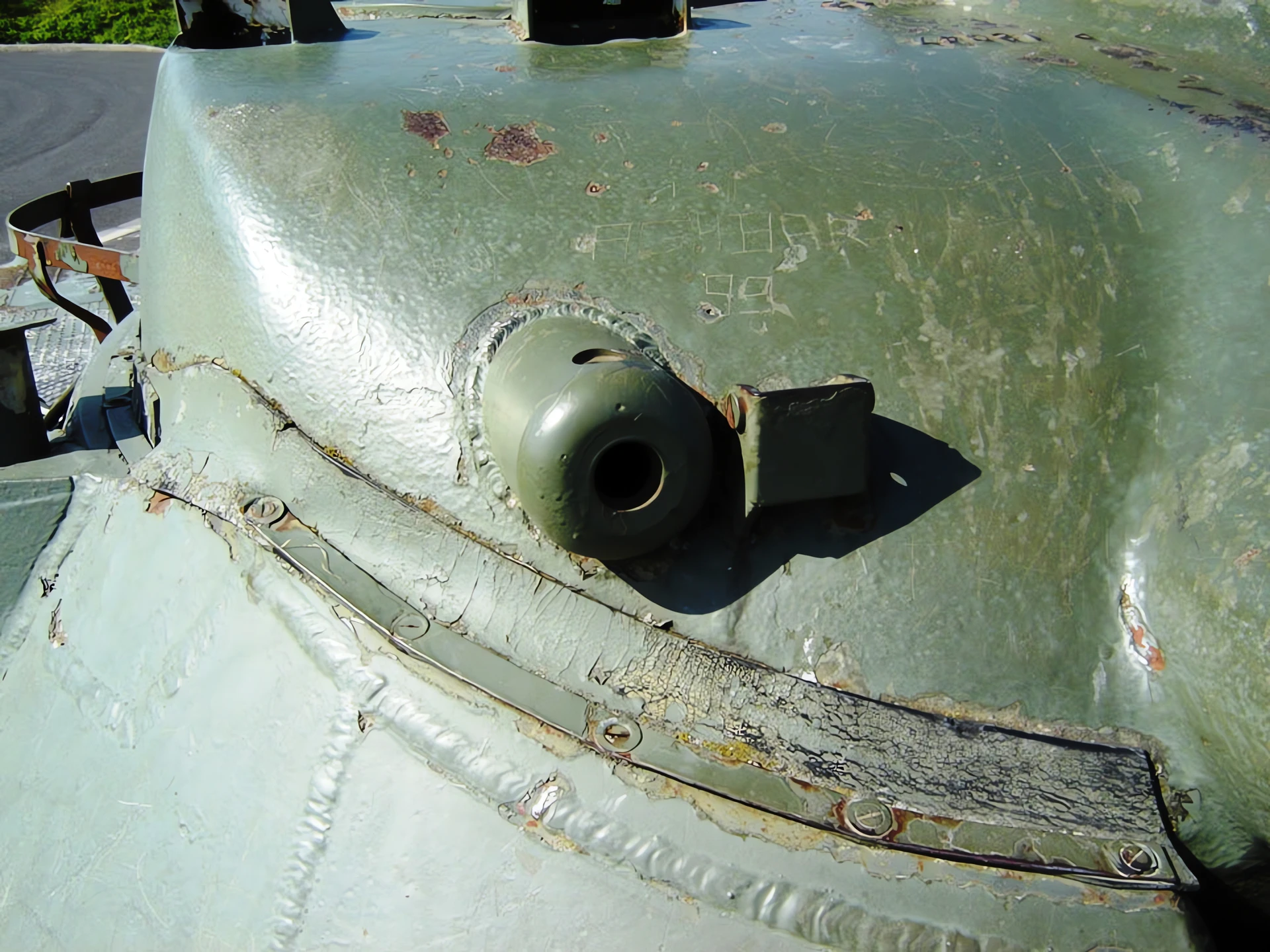

• Secondary Armament: Typically three 7.5 mm MAC 31 Reibel machine guns (one coaxial, one in the front hull, and one in the rear hull), with an optional fourth on the commander’s hatch.
• Armor: Light (maximum 40 mm on the sloped turret front) but concentrated on the front and rear to protect the drivers, supporting its hit-and-run role.

---
