Boeing X-45

Boeing X-45
País	Eua
Papel	Veículo Aéreo de Combate Não Tripulado
Primeiro voo	22 de Maio de 2002
Construído	2

O Boeing X-45 O veículo aéreo de combate não tripulado é um demonstrador de conceito para uma próxima geração de aeronaves militares completamente autônomas, desenvolvidas pela Phantom Works da Boeing. Fabricado pela Boeing Integrated Defense Systems, o X-45 fez parte do projeto J-UCAS da DARPA.

Fonte: Boeing X-45 na Wikipédia

Boeing X-45A anda por aí
Fotógrafo	Vladimir Yakubov
Localização	Museu Nacional do Ar e do Espaço, Washington DC
Fotos	46

Boeing X-45A 01

Boeing X-45A 02

Boeing X-45A 03

Boeing X-45A 04

Boeing X-45A 05

Boeing X-45A 06

Boeing X-45A 07

Boeing X-45A 08

Boeing X-45A 09

Click on a photo and use the mouse scroll to view all photos

Espere, Procurando Boeing X-45 para você ...

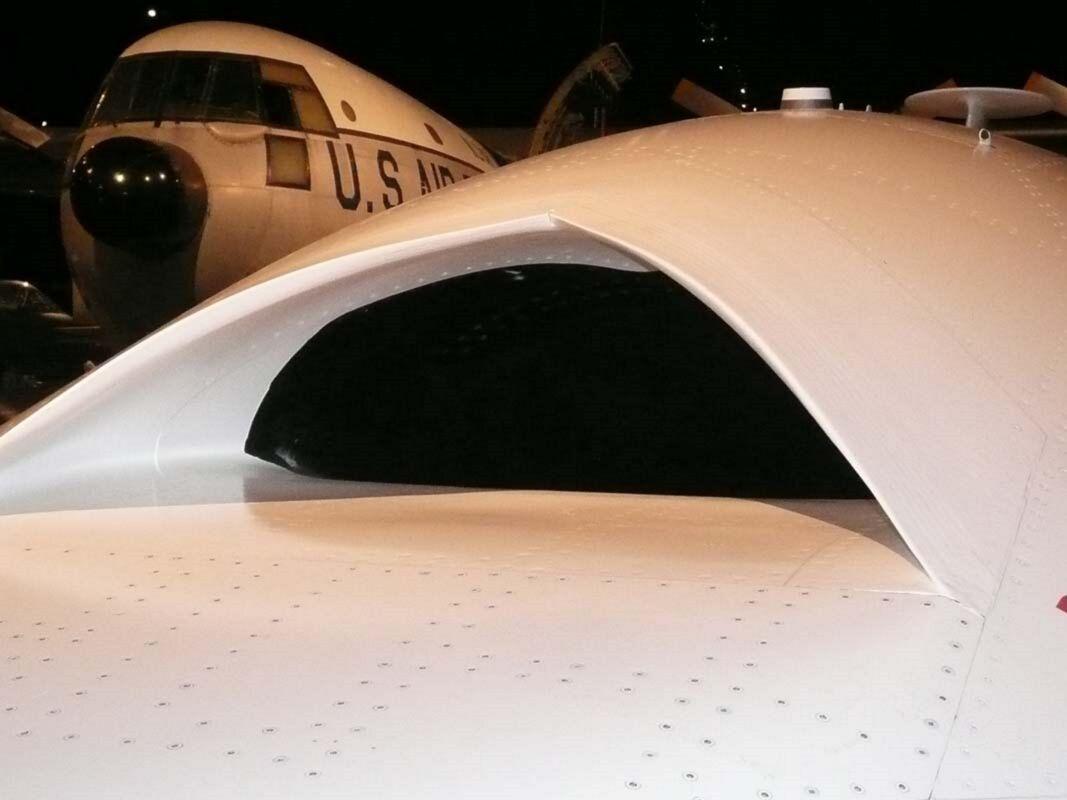

Boeing X-45A J-UCAS ANDA POR AÍ
Fotógrafo	Vladimir Yakubov
Localização	Museu Nacional da USAF
Fotos	43

Boeing X-45A J-UCAS

Carregar mais...

Veja também:

General Characteristics and Role

The Boeing X-45 was a series of experimental unmanned combat air vehicles (UCAV) developed by Boeing Phantom Works for the Defense Advanced Research Projects Agency (DARPA) and the U.S. Air Force. The primary role of the X-45 program was to demonstrate the feasibility of an autonomous, highly survivable, and affordable aircraft capable of performing deep strike and suppression of enemy air defense (SEAD) missions. It pioneered technologies essential for future uncrewed, stealthy strike platforms, specifically focusing on autonomous flight and combat operation. The X-45A was the initial subscale technology demonstrator, paving the way for the larger X-45C variant.

Property	Typical Value (X-45A Demonstrator)
Papel	Experimental Unmanned Combat Air Vehicle (UCAV)
National Origin	Estados Unidos
Fabricante	Boeing Phantom Works
First Flight (X-45A)	22 de Maio de 2002
tripulação	0 (Autonomous or Ground-Controlled)
comprimento	8.08 m (26 ft 6 in)
Envergadura	10.31 m (33 ft 10 in)
Maximum Takeoff Weight	5,528 kg (12,187 lb)
Configuração	Tailless, flying wing (stealth optimization)

Powerplant and Key Technologies

Engine: 1 x Honeywell F124-GA-100 turbofan engine.
Thrust: Approx. 28.2 kN (6,340 lbf).
Stealth Design: The tailless, swept-wing, and blended-body configuration was optimized to minimize radar cross-section, similar to later stealth designs.
Control System: Full fly-by-wire system, capable of completely autonomous mission execution, including detection, attack (simulated), and return to base, with human oversight.
Weapons Bay: The X-45A was equipped with an internal weapons bay capable of carrying 450 kg (1,000 lb) class precision-guided munitions (PGMs).
Maximum Speed: High subsonic (approx. Mach 0.75).

Program Milestones and Legacy

Key Achievement: The X-45A successfully demonstrated several “firsts” for an autonomous combat vehicle, including the successful simulated destruction of a target after receiving a command from a remote controller and the coordination of two X-45A vehicles to autonomously attack targets.
X-45C Variant: The subsequent, larger X-45C was designed with a single large internal bay and a wingspan of 15 m (49 ft), intended to directly compete for the U.S. Navy’s future carrier-based UCAV.
Cancellation: The Joint Unmanned Combat Air System (J-UCAS) program, which encompassed the X-45 (and Northrop Grumman’s X-47), was restructured and canceled in 2006, leading to the X-45 program’s termination.
Influence: Despite its cancellation, the X-45 program’s technological achievements profoundly influenced subsequent U.S. Navy and Air Force unmanned programs, including the Boeing Loyal Wingman and the classified UCAV efforts.
