Panhard SPHINX

Panhard SPHINX
Country	France
Type	Armored reconnaissance vehicle
Built	Unknow

The SPHINX (Secret Project for High Intensity and New Conflicts) was developed by Panhard as a private venture to meet a French Army EBCR (Engine Blinde de Reconnaissance et de Combat) requirement. The EBRC stands for armored vehicle for reconnaissance and combat. A new armored vehicle is intended to replace the ageing AMX-10RC and ERC-90 Sagaie.

Source: Panhard SPHINX on #

Panhard Sphinx Walk Around
Photographer	Unknow
Localisation	Unknow
Photos	13

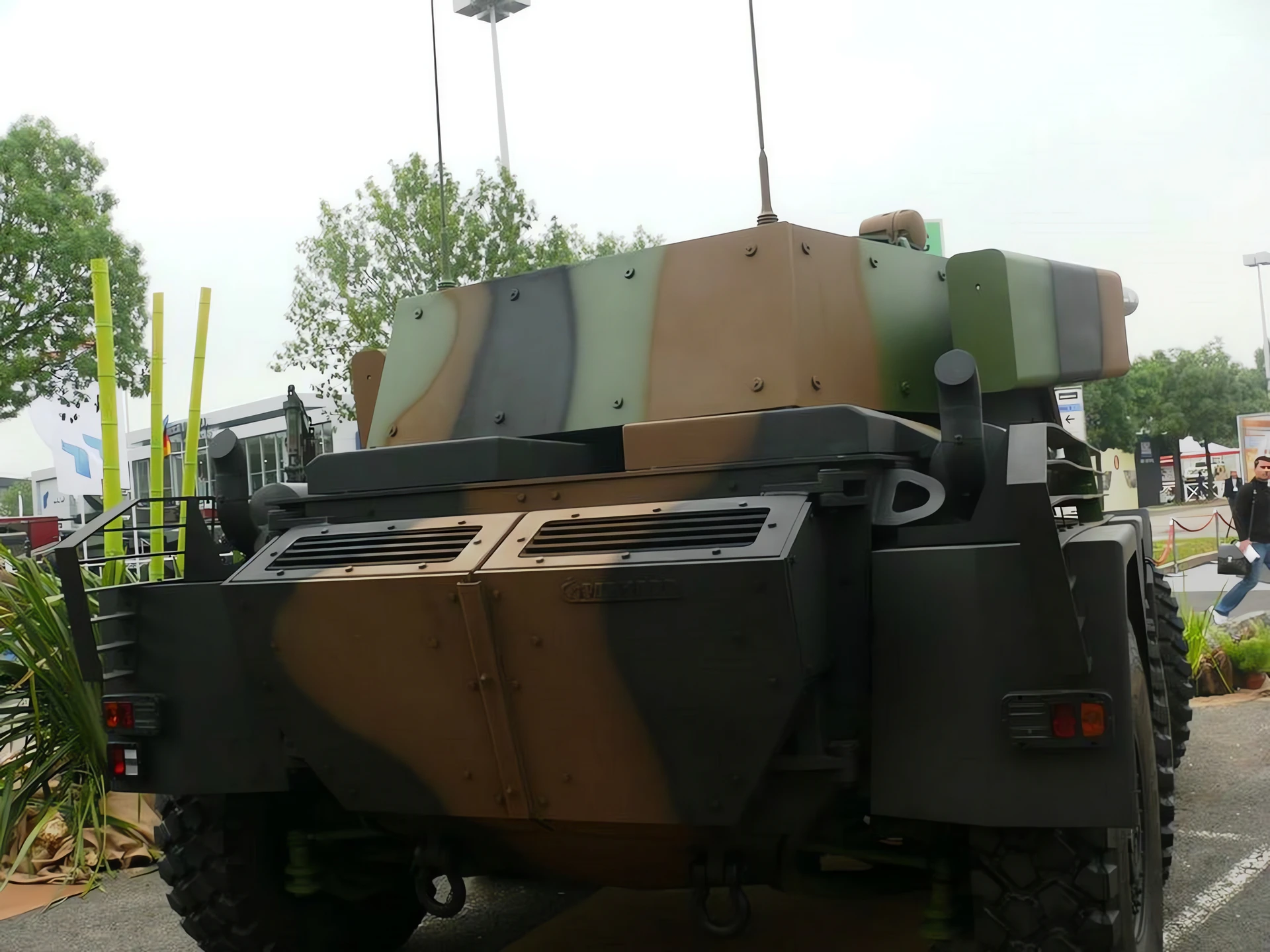

Panhard Sphinx 1

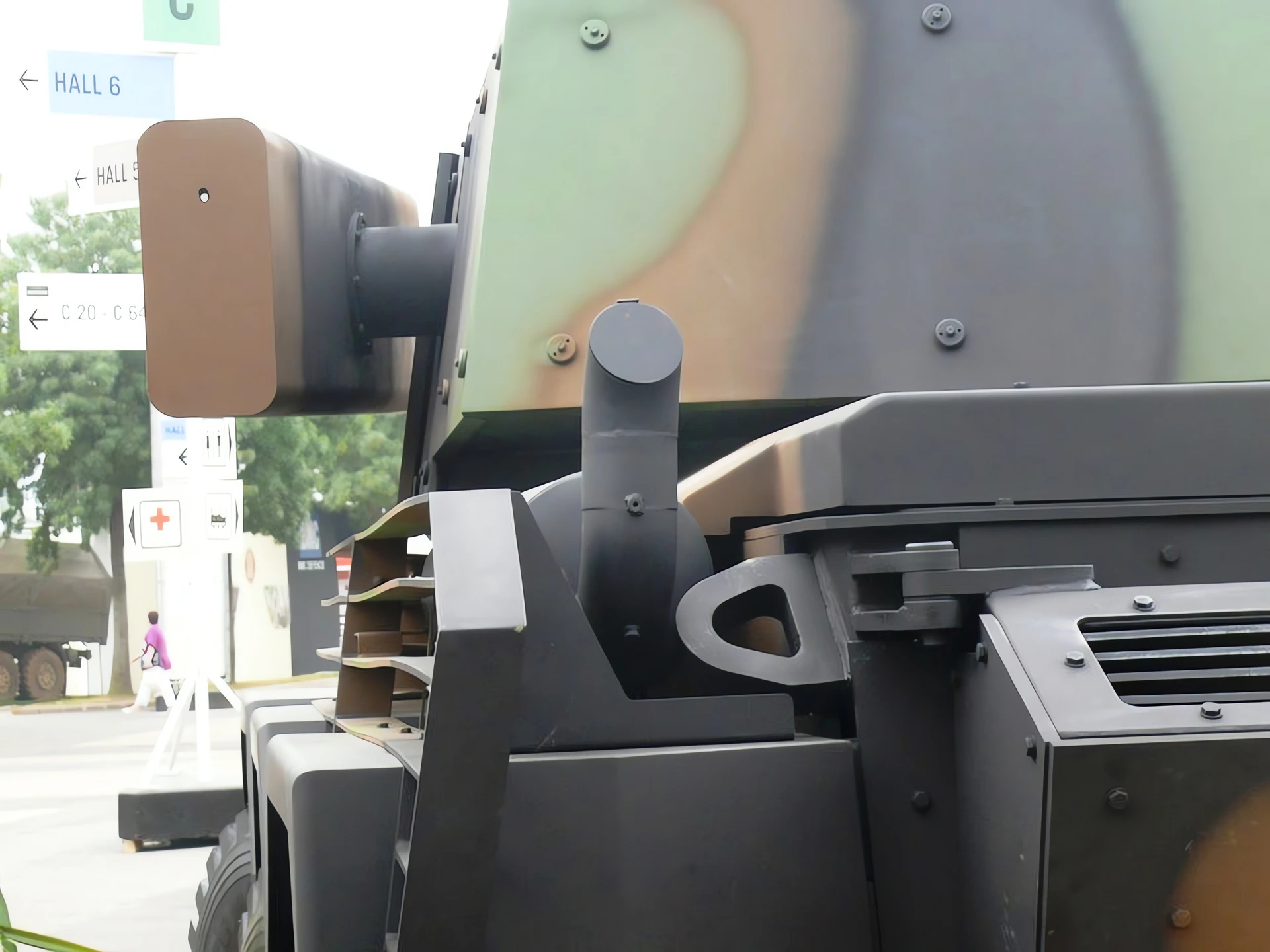

Panhard Sphinx 2

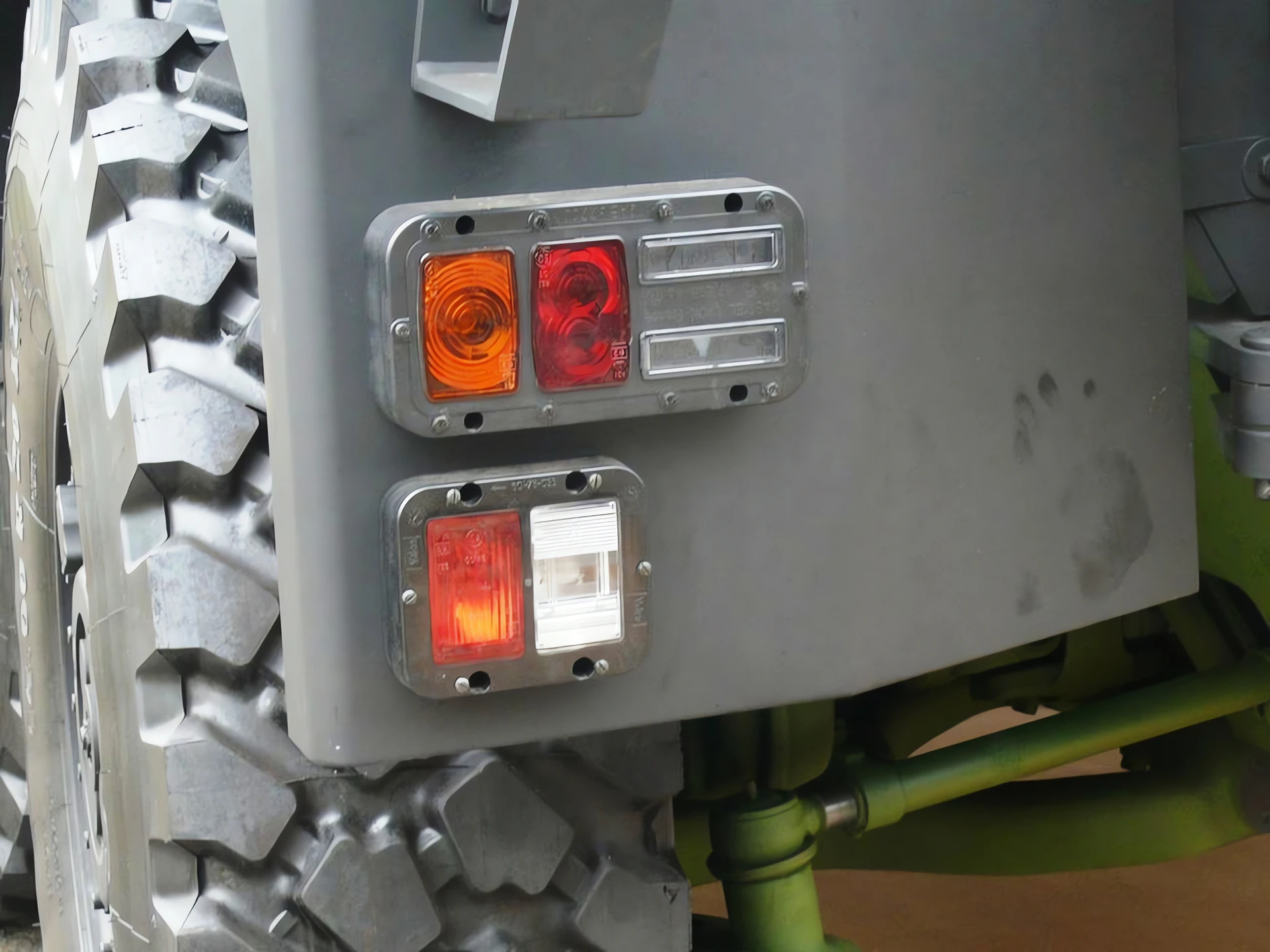

Panhard Sphinx 3

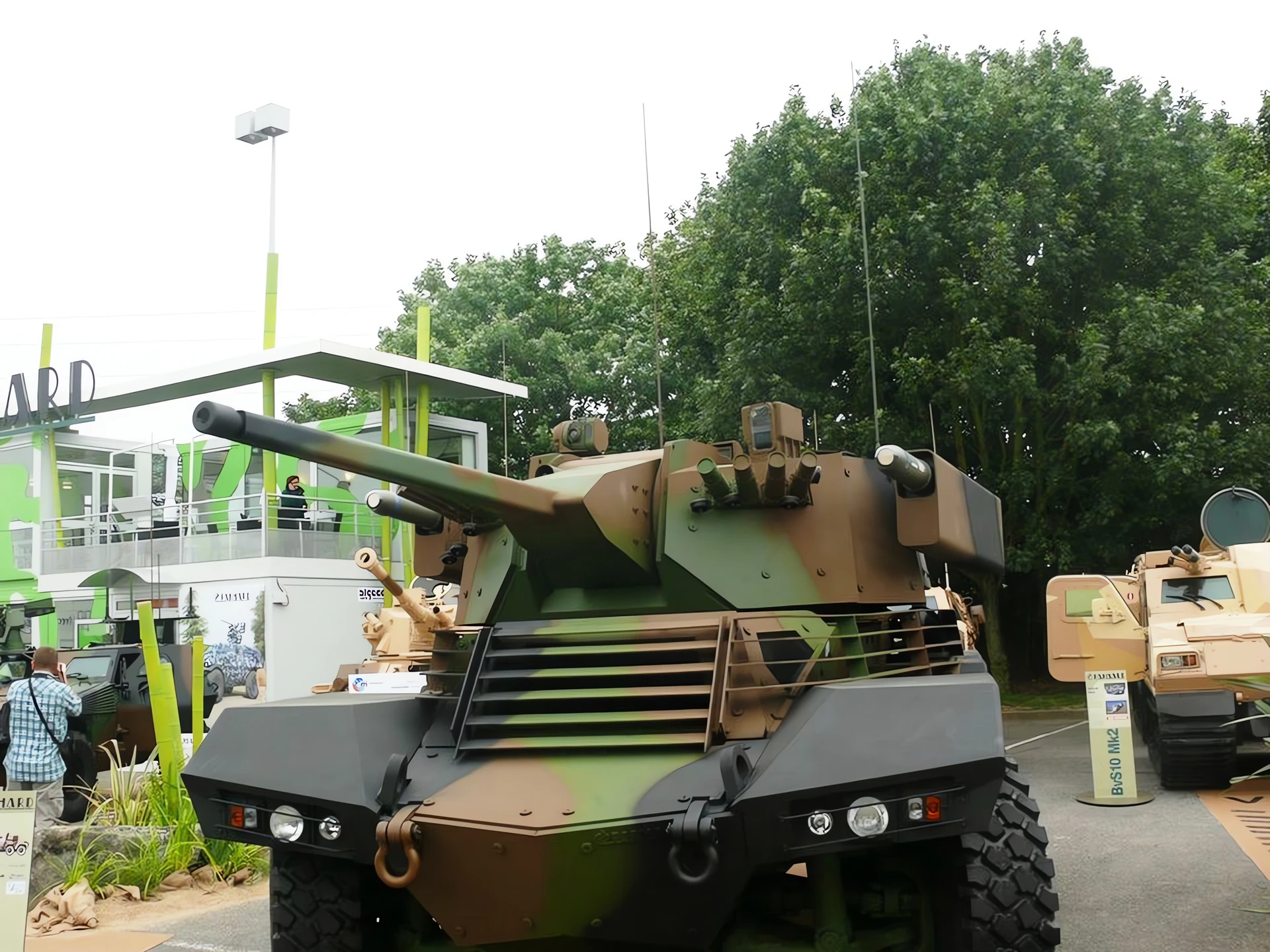

Panhard Sphinx 4

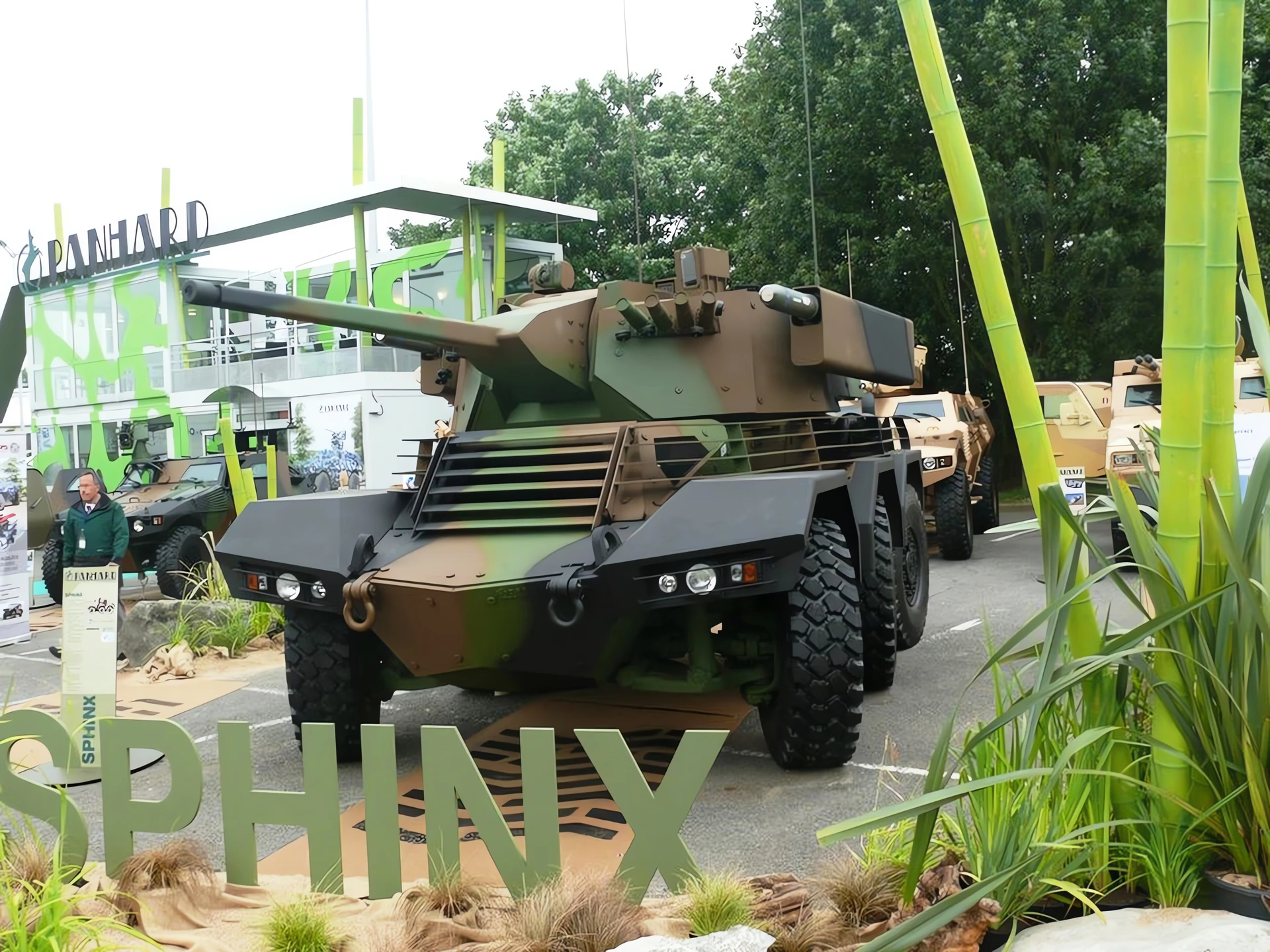

Panhard Sphinx 5

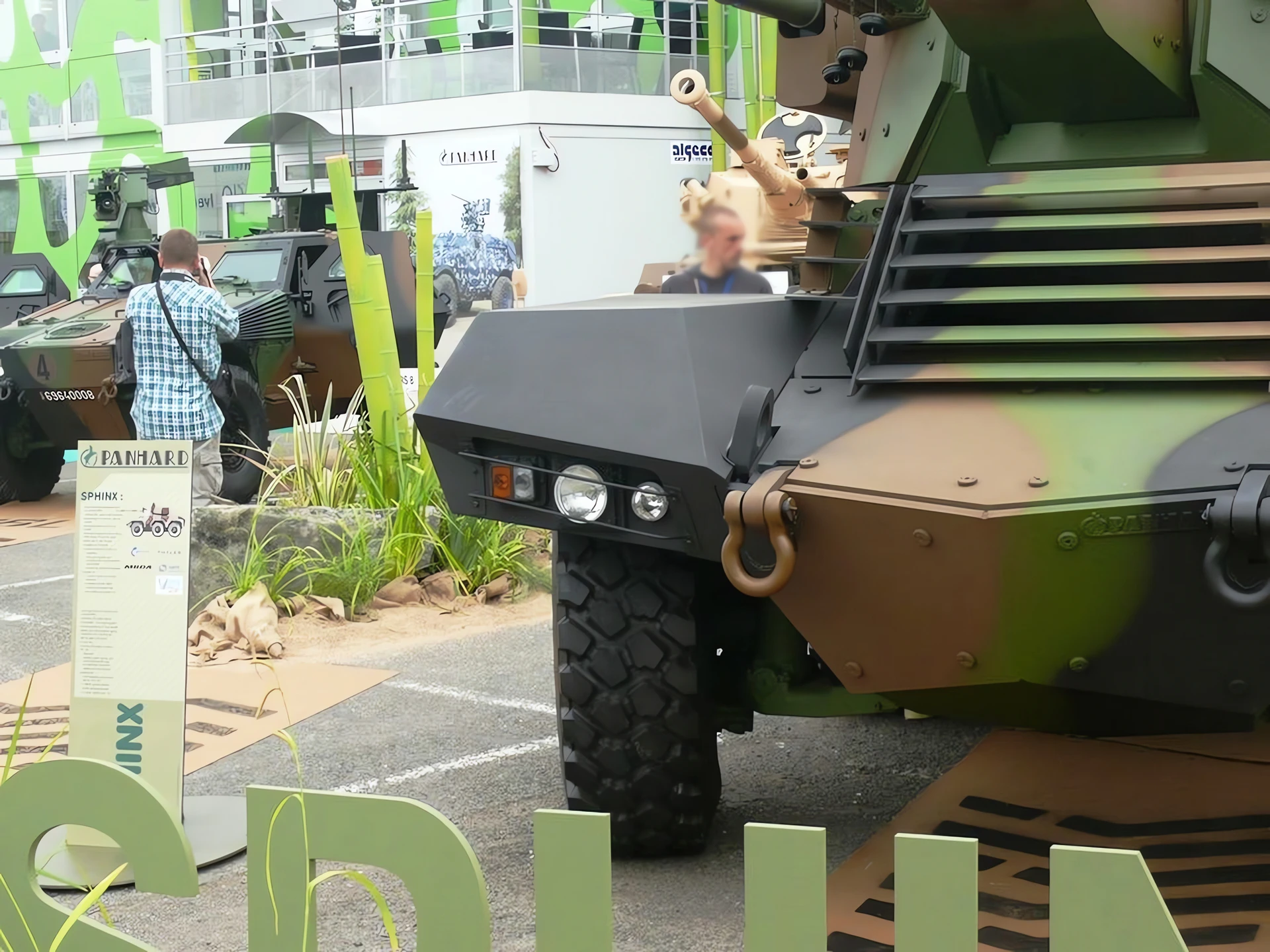

Panhard Sphinx 6

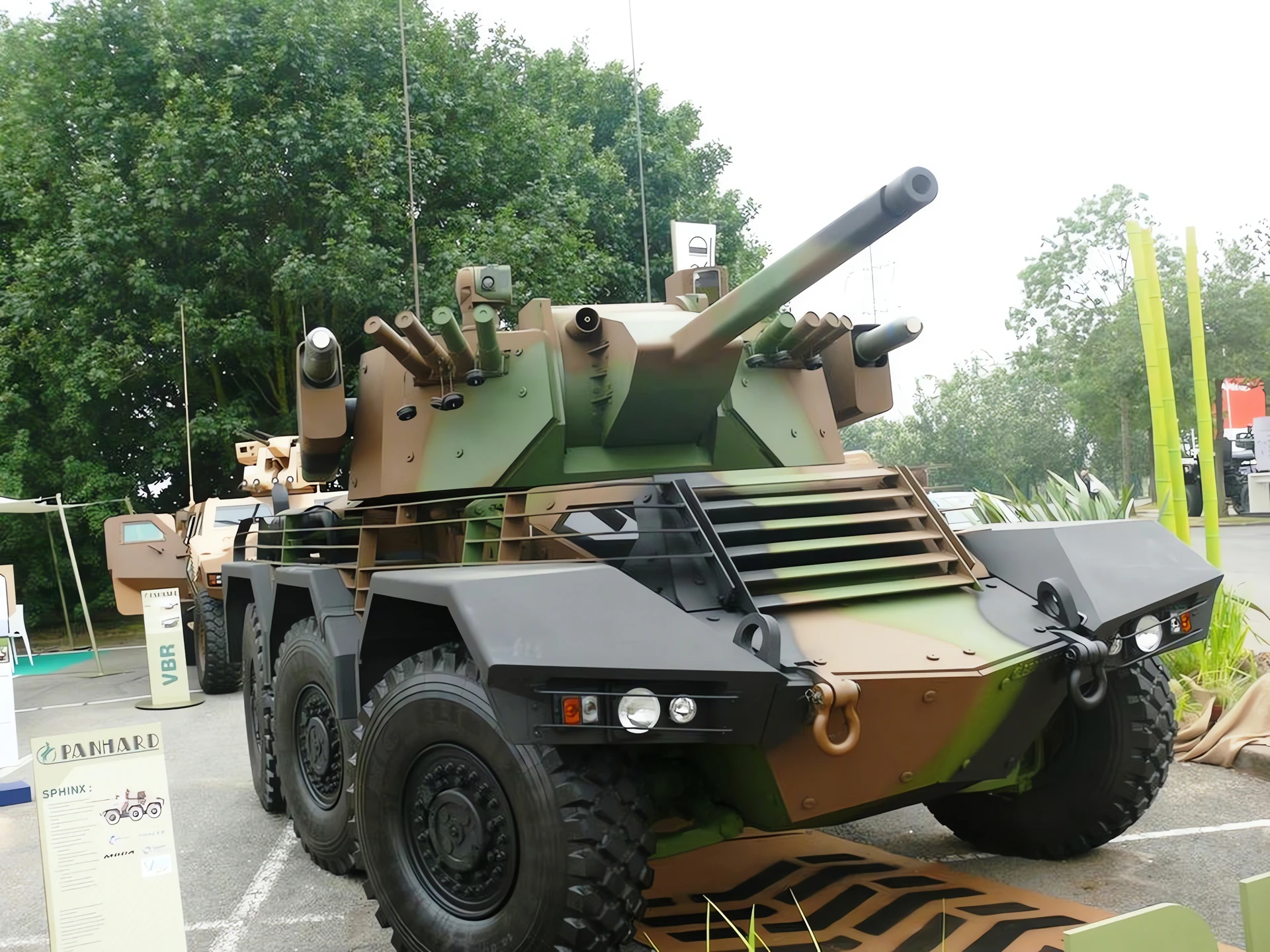

Panhard Sphinx 7

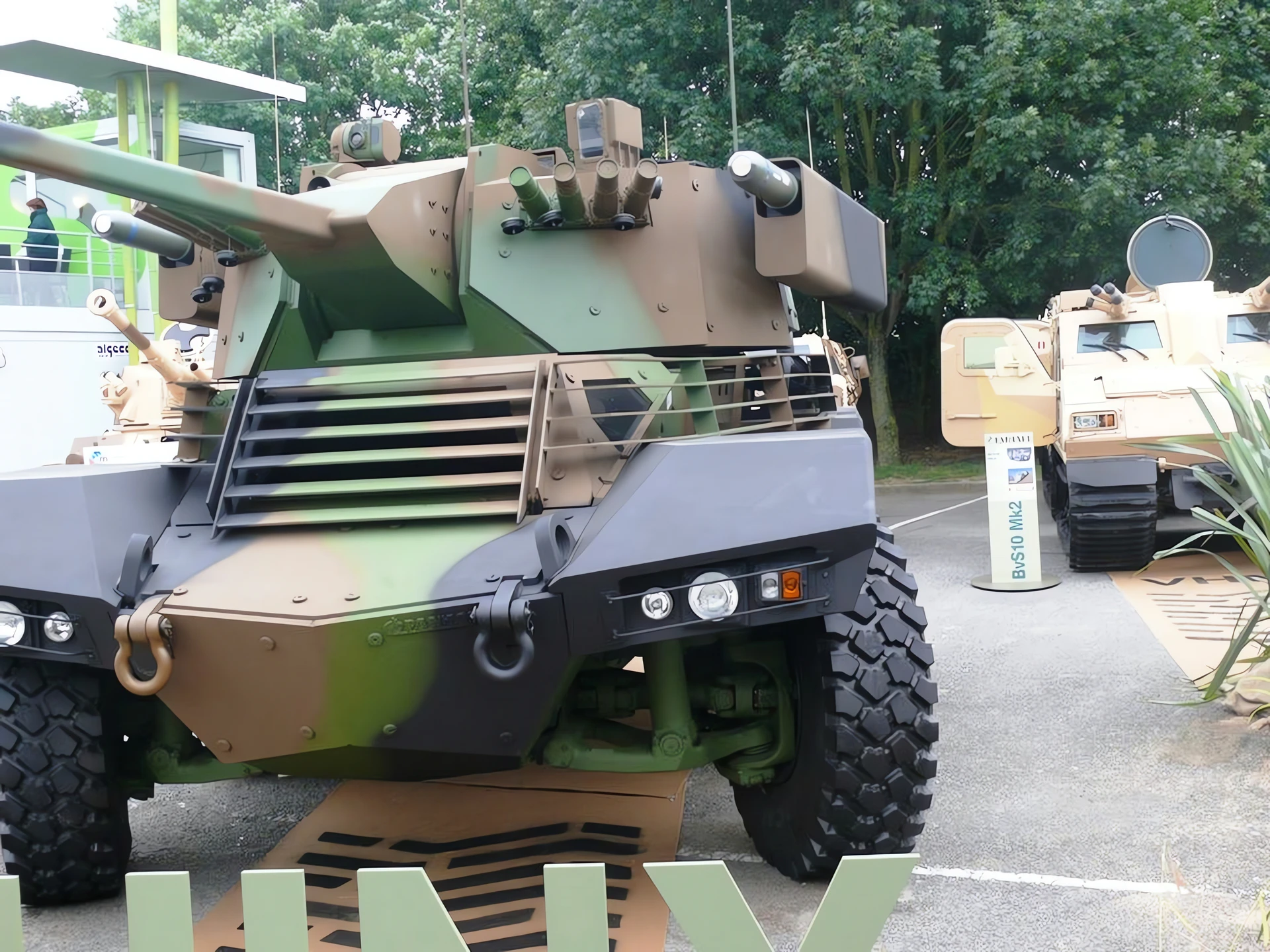

Panhard Sphinx 8

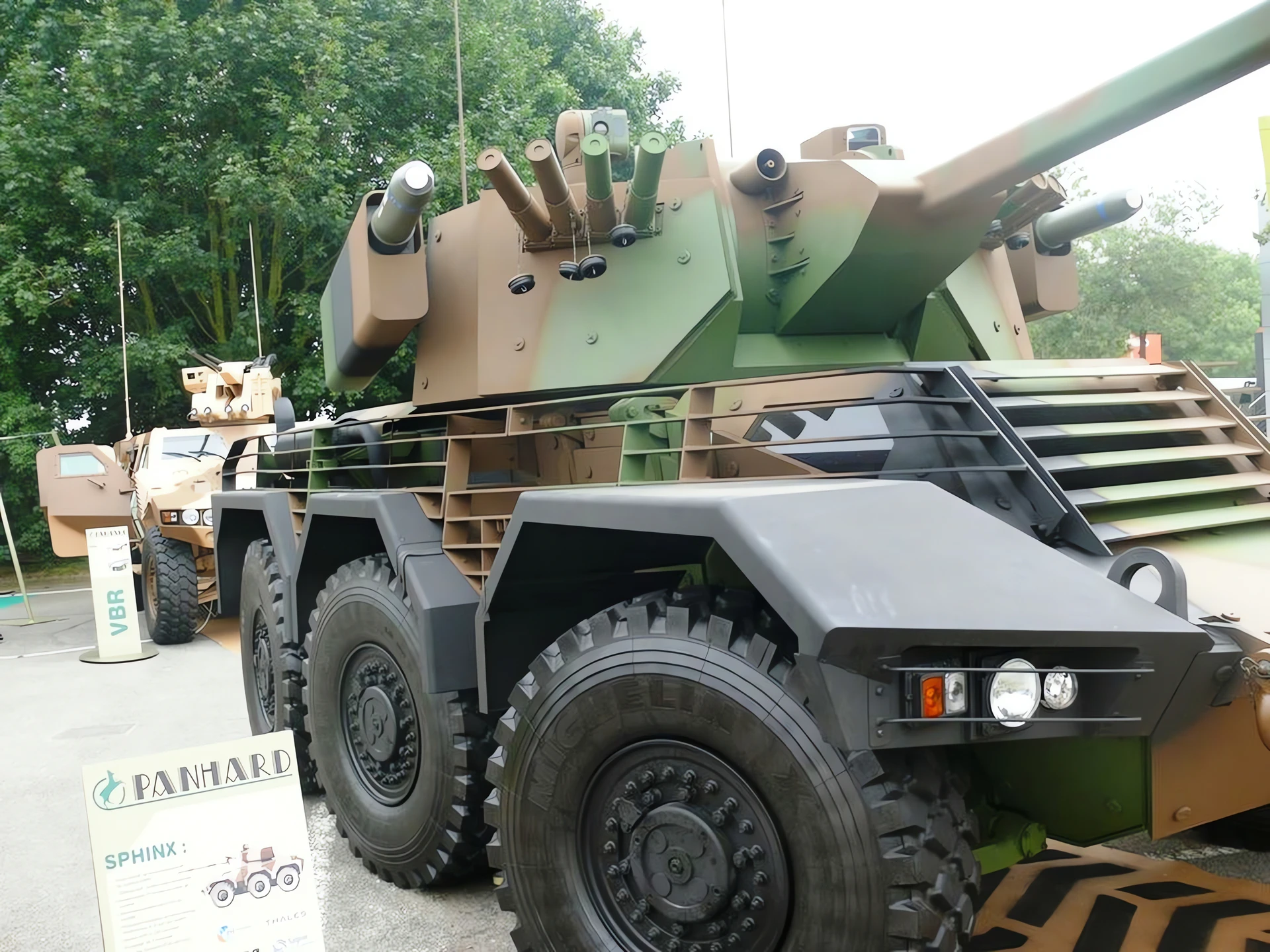

Panhard Sphinx 9

Click on a photo and use the mouse scroll to view all photos

Wait, Searching EBRC Jaguar photos for you…

Panhard Sphinx Tourelle CTAI 40mm Walk Around
Photographer	Unknow
Localisation	Unknow
Photos	13

Panhard Sphinx Tourelle CTAI 40mm

Wait, Searching Reconnaissance vehicle for you…

General Characteristics (EBRC Program Submission)

The SPHINX was a 6×6 armored vehicle concept developed by Panhard (now Arquus) as a private venture and a candidate for the French Army’s EBRC (Armoured Vehicle for Reconnaissance and Combat) program, aimed at replacing the older ERC-90 Sagaie.

Property	Value (Concept Specifications)
Role	Armored Reconnaissance, Fire Support, Rapid Intervention
Manufacturer	Panhard General Defence (Arquus)
Unveiled	Eurosatory 2010
Configuration	6×6 Wheeled Vehicle
Crew	3 (Commander, Gunner, Driver)
Combat Weight	Approx. 17 tonnes (Maximum 18 t)

Armament and Protection

Main Armament: One 40 mm CTA (Case Telescoped Ammunition) Automatic Cannon.
Secondary Armament:
- One 7.62 mm coaxial machine gun.
- Two launchers for long-range Anti-Tank Guided Missiles (ATGM), typically MBDA MMP or MLP.
Ballistic Protection: Designed to meet STANAG 4569 Level 4, with potential for upgrade to Level 5 (protection against 25 mm APDS-T rounds).
Mine Protection: Features a V-shaped hull design for enhanced resistance against mines and Improvised Explosive Devices (IEDs), achieving STANAG Level 3a/3b protection.
Air Transport: Designed to be transportable by air in a C-130 or Airbus A400M.

Powerplant and Mobility

Engine: Turbocharged V12 diesel engine (e.g., Mercedes or Steyr unit).
Power Output: Approx. 600 hp (447 kW).
Power-to-Weight Ratio: Over 35 hp/ton, offering high acceleration and off-road capability.
Maximum Road Speed: Up to 110 km/h (68 mph).
Steering: All six wheels are steerable for superior maneuverability.
Operational Range: Approximately 600 km (370 miles).
