Sikorsky MH-60 Jayhawk |
|
|---|---|
| 국가 | 미국 |
| 역할 | 중거리 복구 헬리콥터 |
| 첫 비행 | 1989년 8월 8일 |
| 내장 | 40+ |
Tthe 시코르스키 MH-60T 제이호크 수색 및 구조, 법 집행, 군사 준비 태세 및 해양 환경 보호 임무를 위해 미국 해안 경비대가 운영하는 다중 임무, 쌍발 엔진, 중거리 헬리콥터입니다. 원래는 HH-60J로 지정되었다가 2007년부터 업그레이드 및 재지정되었습니다
소스: Sikorsky MH-60 Jayhawk 위키피디아
| MH-60J (6003) 산책 | |
|---|---|
| 사진 작가 | Unknow |
| 로컬라이제이션 | Unknow |
| 사진 | 61 |

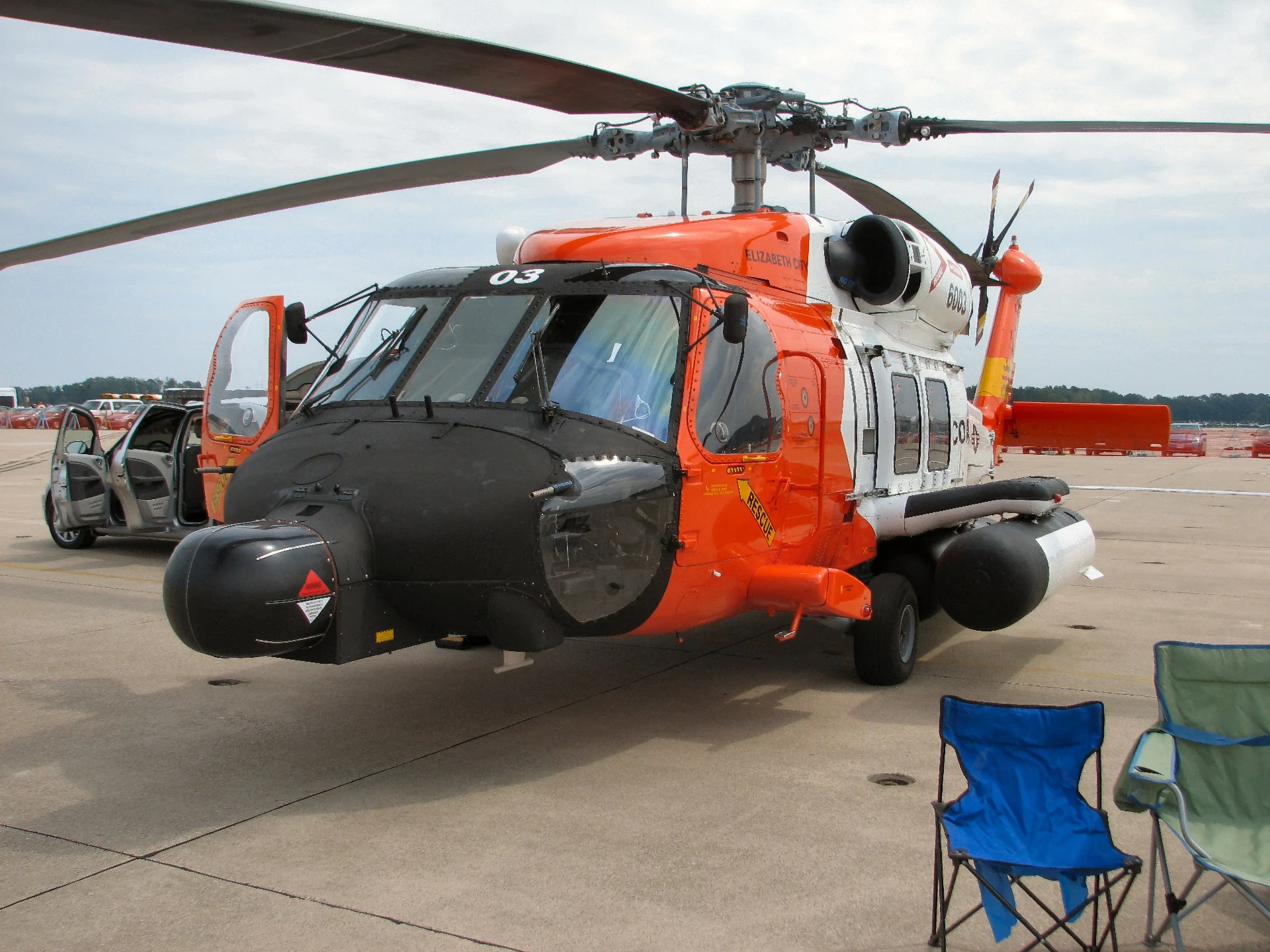

Sikorsky MH-60J 01

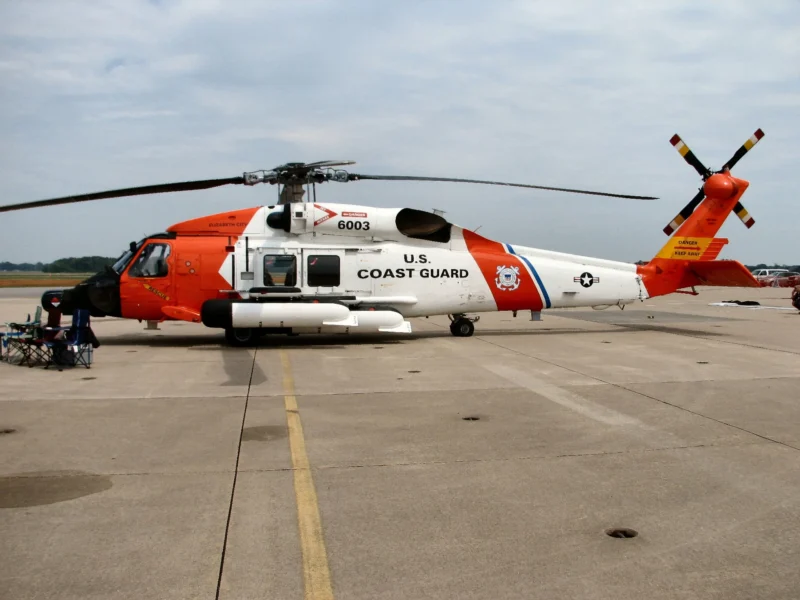

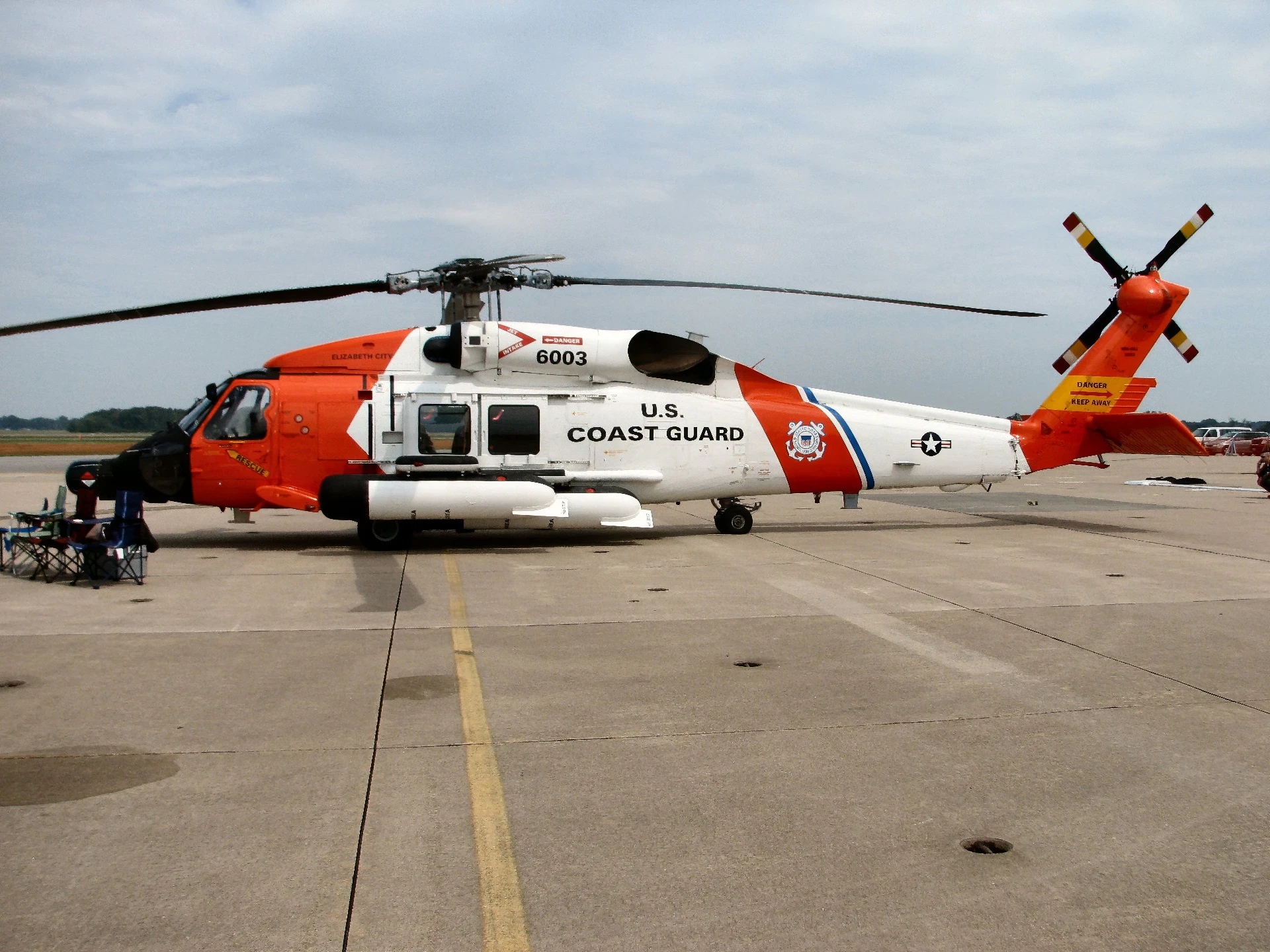

Sikorsky MH-60J 02

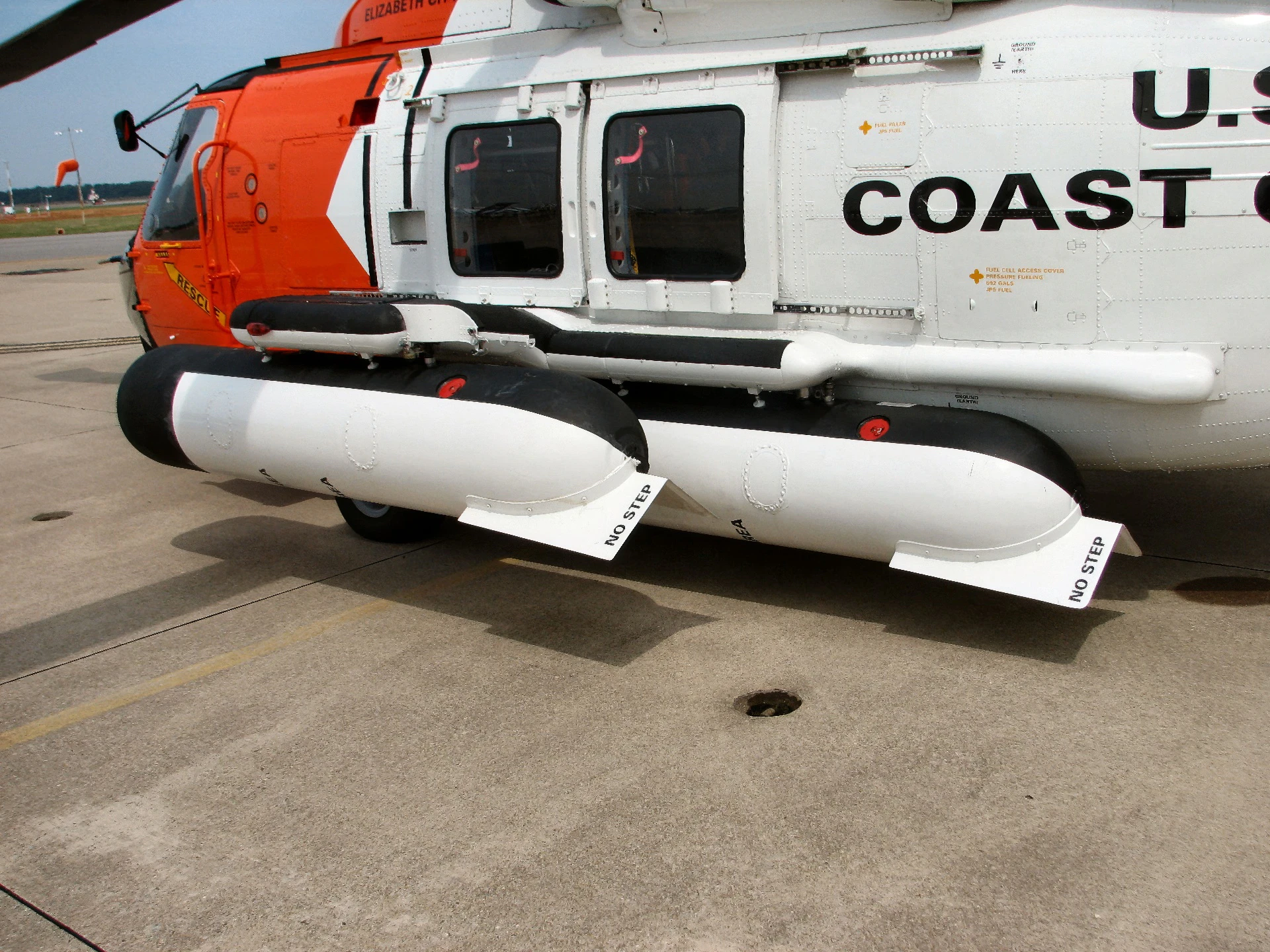

Sikorsky MH-60J 03

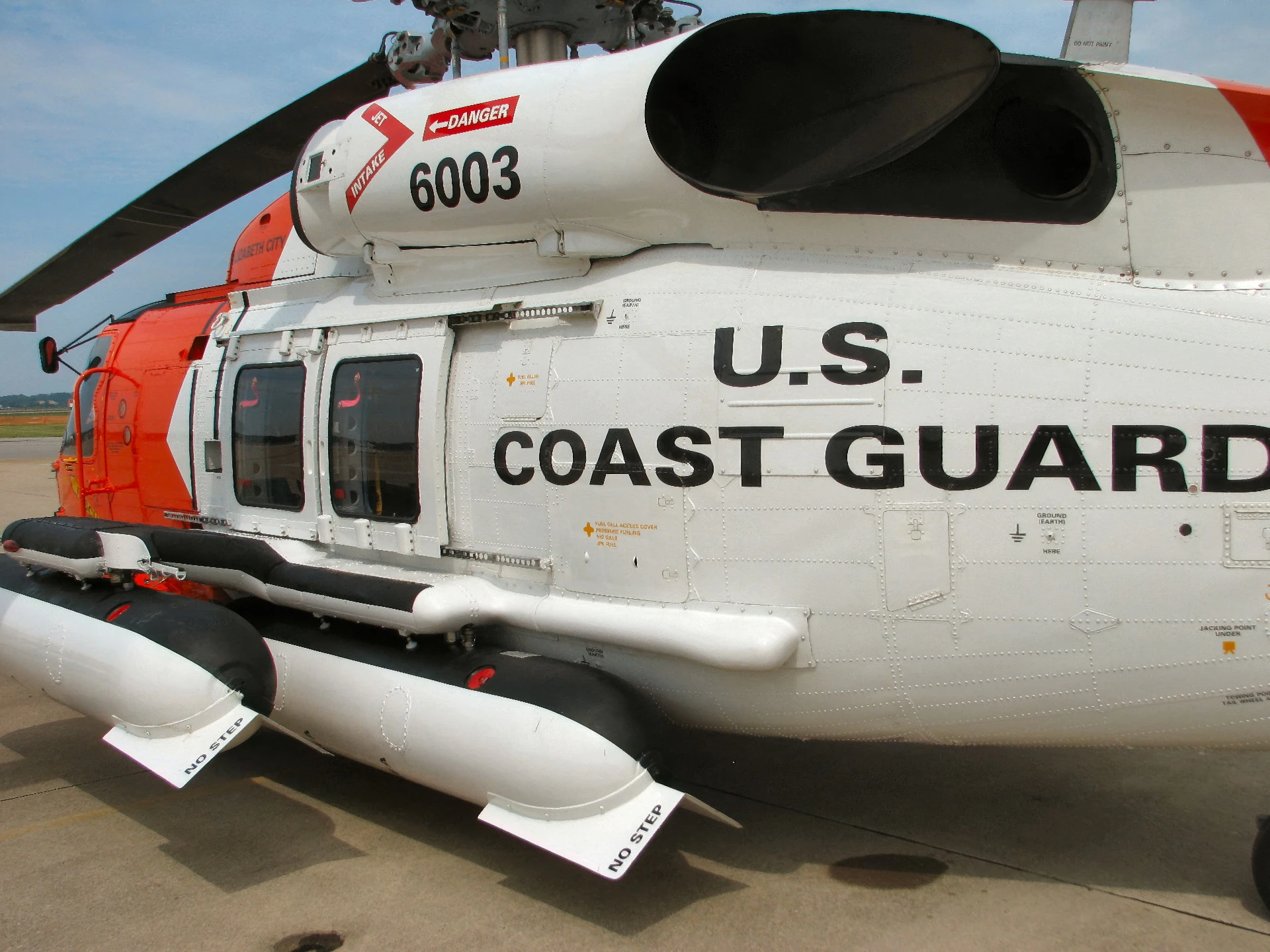

Sikorsky MH-60J 04

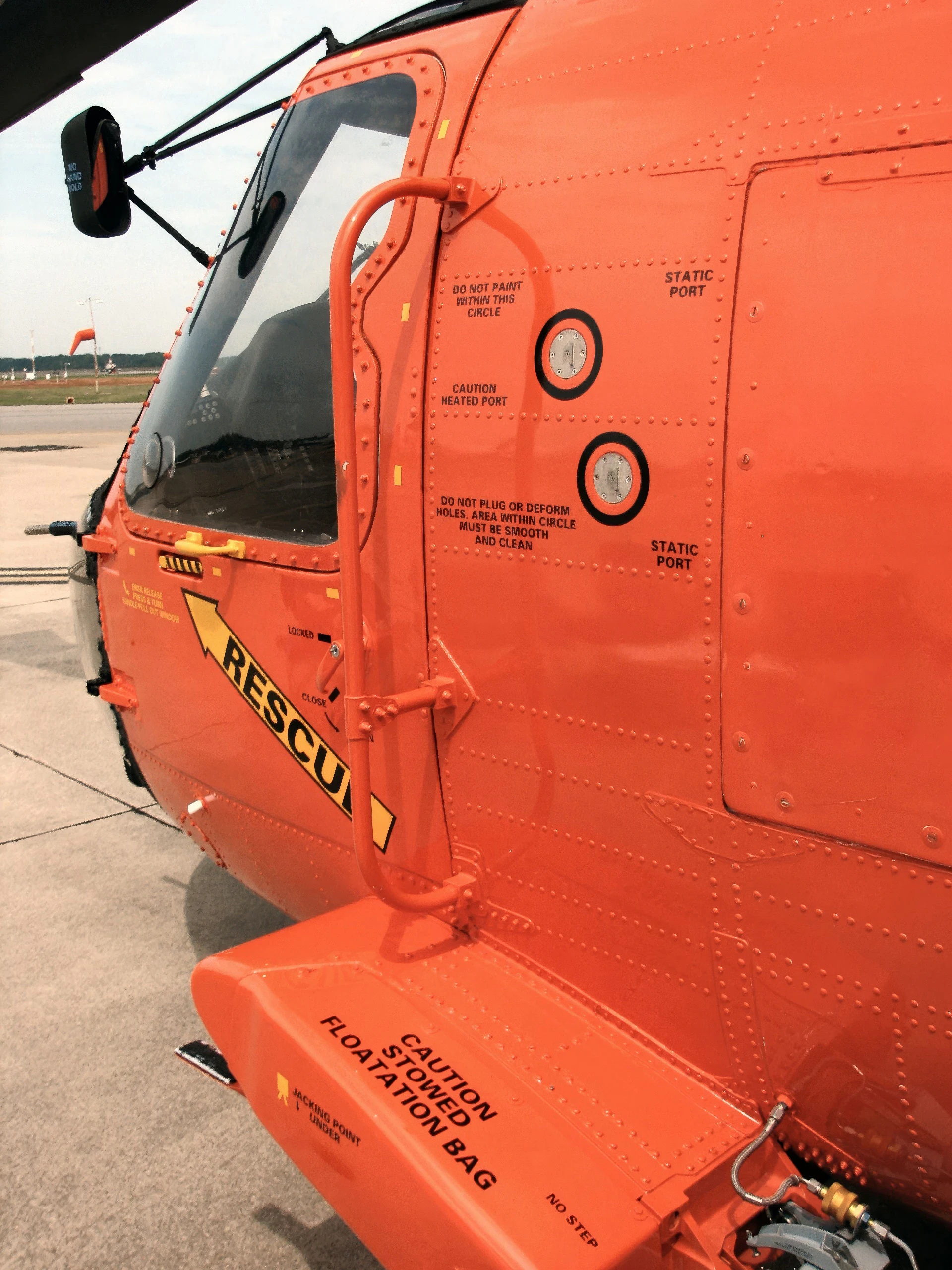

Sikorsky MH-60J 05

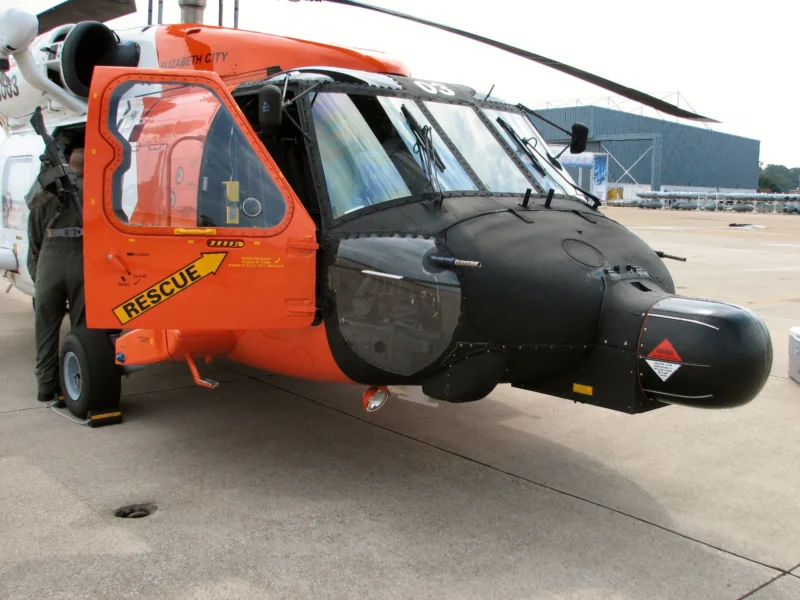

Sikorsky MH-60J 06

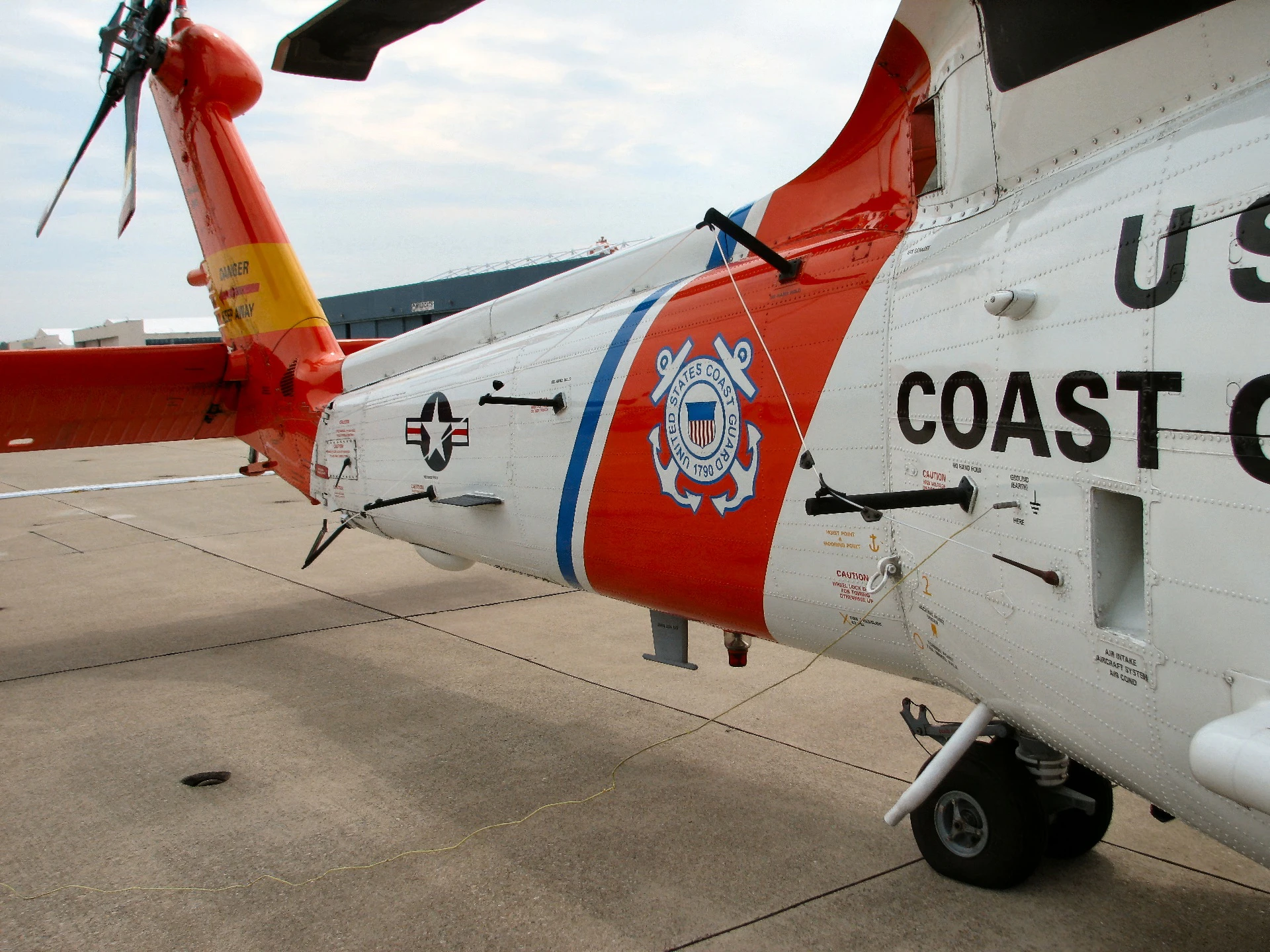

Sikorsky MH-60J 07

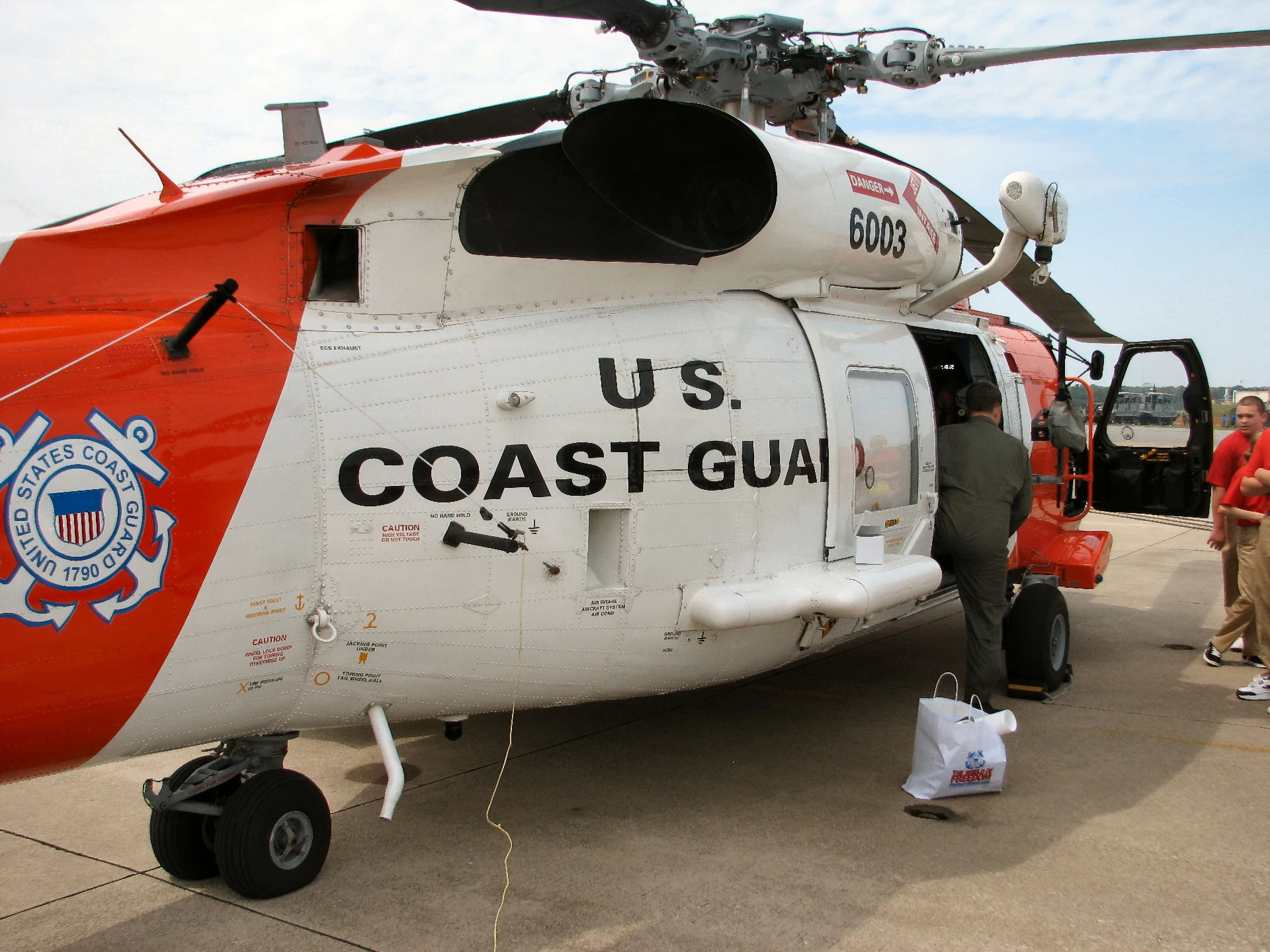

Sikorsky MH-60J 08
Sikorsky MH-60J 09
대기,검색 시 코르 스키 MH-60 제이호크 당신을 위해...
참고 항목:
General Characteristics (US Coast Guard)
The Sikorsky MH-60 Jayhawk (originally HH-60J) is the United States Coast Guard’s multi-mission, twin-engine, medium-range recovery (MRR) helicopter. It is based on the Navy’s SH-60 Seahawk and is primarily used for search and rescue (SAR), law enforcement, and military readiness missions.
| Property | Typical Value (MH-60T Variant) |
|---|---|
| 역할 | Medium Range Recovery (SAR, Law Enforcement) |
| 제조업체 | Sikorsky Aircraft (Lockheed Martin) |
| Entered Service (Initial J model) | 1990 |
| 승무원 | 4 (Pilot, Co-pilot, two Flight Crew) |
| Rotor Diameter | 16.36 m (53 ft 8 in) |
| Length (Overall) | 19.76 m (64 ft 10 in) |
| Max Takeoff Weight | 9,926 kg (21,884 lb) |
Design and Powerplant
- Engines: Two General Electric T700-GE-401C turboshaft engines.
- Power Output: Approximately 1,410 kW (1,890 shp) each.
- Performance Metric: Designed to fly a crew of four up to 300 nautical miles offshore, hoist up to 6 people, remain on-scene for 45 minutes, and return to base with reserve fuel.
- Rescue Equipment: Equipped with a 600-pound capacity rescue hoist mounted above the starboard door, typically with 61 meters (200 ft) of cable.

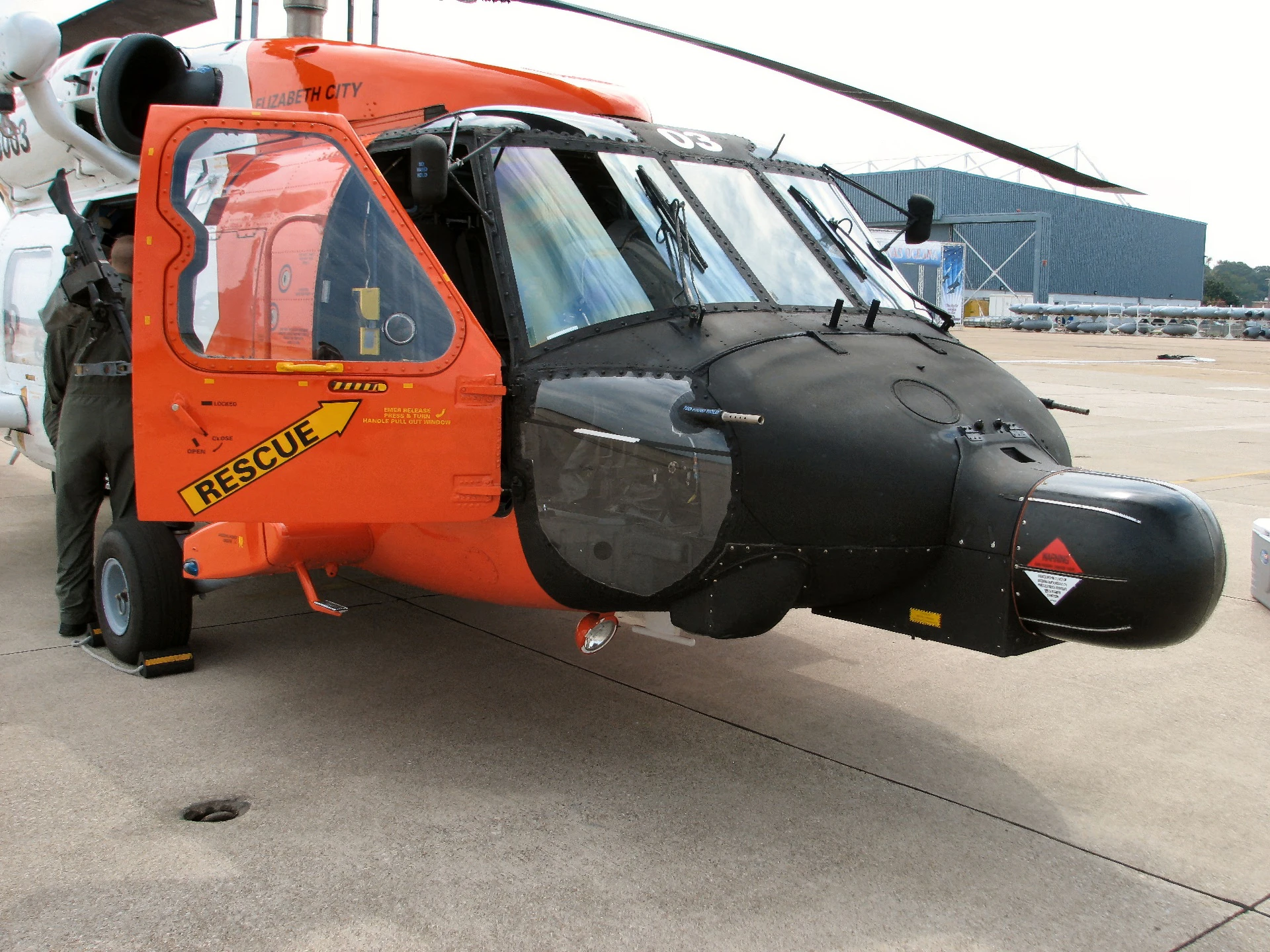

- Sensors: Features a distinctive nose-mounted radar for search/weather and an integrated Electro-Optical/Infrared (EO/IR) sensor turret for night/fog missions.
Performance and Armament
- Maximum Speed: Up to 333 km/h (180 knots) for short durations.
- Cruise Speed: 259 km/h (140 knots).
- Maximum Range: Approximately 1,300 km (700 nautical miles).
- Ceiling: Service Ceiling is typically stated at around 3,960 m (13,000 ft) but hovering performance is limited to around 1,520 m (5,000 ft) for recovery missions.
- MH-60T Upgrade: The ‘T’ designation reflects an avionics and capability upgrade (2007–2014), including a Common Avionics Architecture System (CAAS) glass cockpit.

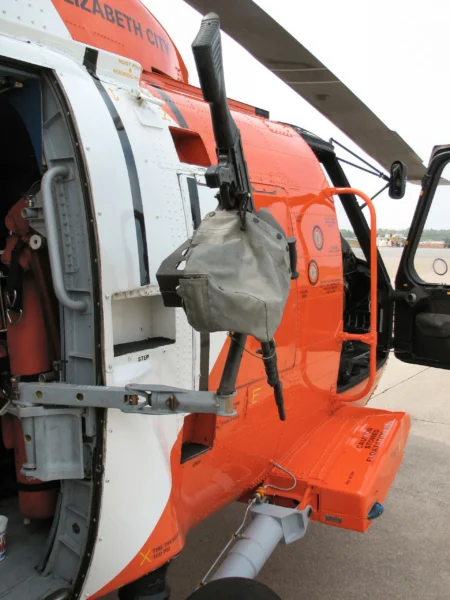

- Airborne Use of Force (AUF): The MH-60T variant includes an AUF package for law enforcement, featuring a 7.62 mm M240H machine gun and a .50 caliber Barrett M82 semi-automatic rifle for warning/disabling shots.
