Ambrosini S.7

Ambrosini S.7
País	Italia
Papel	Aviones de carreras
Primer vuelo	Julio de 1939
Construido	12 + 147

el Ambrosini SAI.7 fue un avión de carreras italiano volado antes de la Segunda Guerra Mundial que entró en producción como entrenador militar (designado simplemente S.7) después de la guerra. Era de configuración convencional, construido en madera, con un tren de rodaje de rueda de cola. La potencia era proporcionada por un motor en línea invertido refrigerado por aire, el alfa-Romeo modelo 115 con 225 caballos de fuerza.

Fuente: Ambrosini S.7 en Wikipedia

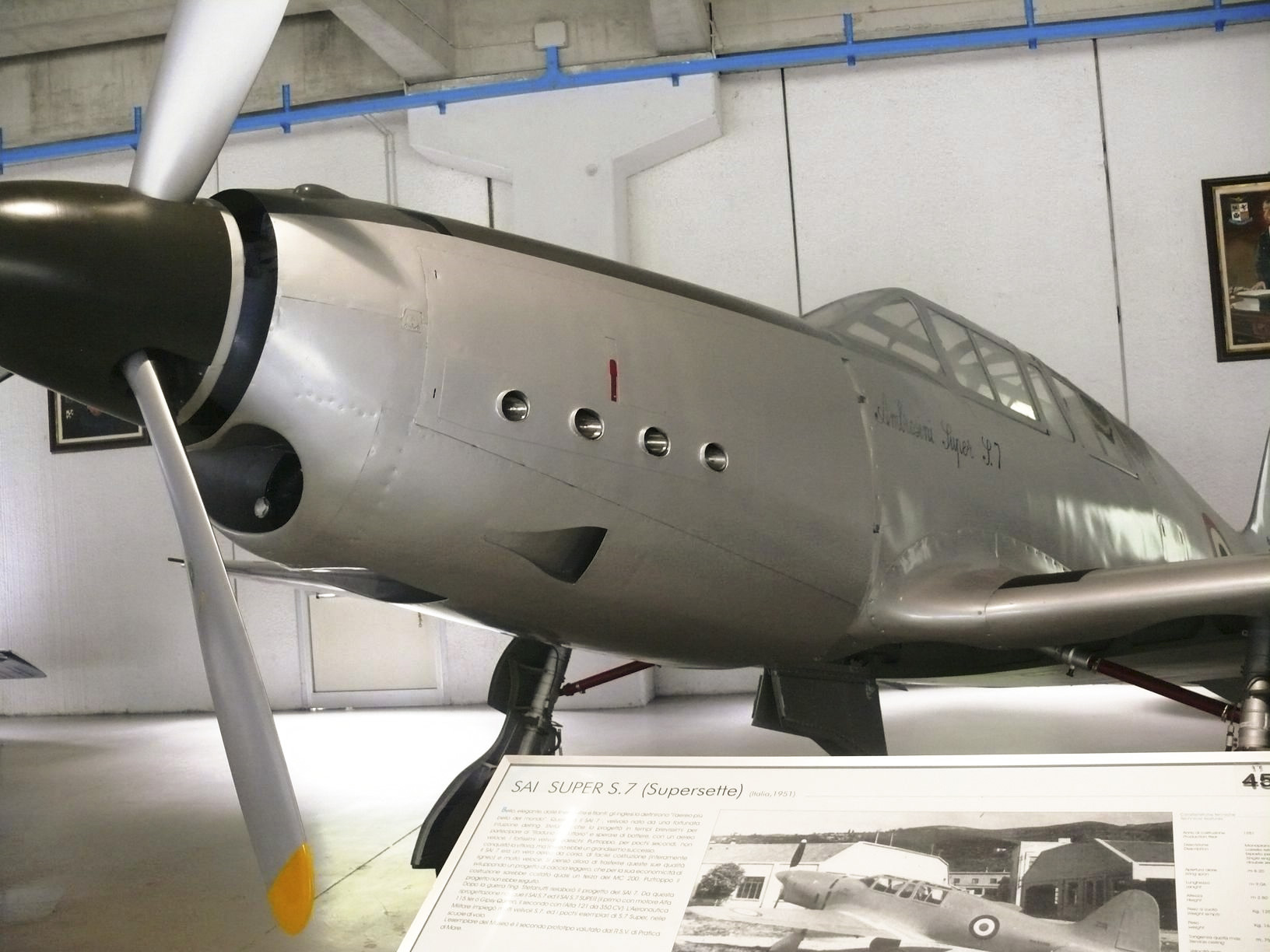

SAI Super S.7 Walk Around
Fotógrafo	Unknow
Localización	Unknow
Fotos	20

SAI Super S.7 1

SAI Super S.7 2

SAI Super S.7 4

SAI Super S.7 3

SAI Super S.7 5

SAI Super S.7 6

SAI Super S.7 8

SAI Super S.7 7

SAI Super S.7 9

Click on a photo and use the mouse scroll to view all photos

Espera, Buscando Royal Aircraft Factory R.E.8 fotos para usted...

Ver también:

General Characteristics

The Ambrosini S.7 was an Italian single-engine, low-wing monoplane developed from the pre-war SAI.7 racing aircraft designed by Sergio Stefanutti. After World War II, the S.7 entered large-scale production as the primary basic and advanced trainer for the reformed Italian Air Force (Aeronautica Militare Italiana). Known for its sleek, all-wooden construction and excellent performance, it was prized for its high speed, even with relatively low engine power, and was used to set several international airspeed records in its class. The S.7 design later served as the foundation for a series of experimental light fighters and jet prototypes, including the SAI.207 and the Sagittario (Arrow), making it a significant bridge between Italy’s wartime piston-engine designs and its post-war jet programs.

Property	Typical Value (Post-War S.7 Production)
Papel	Basic/Advanced Trainer, Racing Aircraft
National Origin	Italia
Fabricante	SAI Ambrosini
First Flight (SAI.7 prototype)	Julio de 1939
Service Entry (Post-War)	1949
No. Built (Post-War S.7)	~145
Equipo	2 (Pilot and Pupil, in tandem seating)
Longitud	8.17 m (26 ft 10 in)
Envergadura	8.79 m (28 ft 10 in)
Max Takeoff Weight	1,317 kg (2,903 lb)

Powerplant and Performance

Engine: 1 x Alfa Romeo 115-ter 6-cylinder air-cooled, inverted inline piston engine.
Power Output: 168 kW (225 hp).
Maximum Speed: 358 km/h (222 mph).
Cruise Speed (Economic): 264 km/h (164 mph).
Range: 1,000 km (621 mi).
Service Ceiling: 5,250 m (17,220 ft).
Key Feature: The aircraft featured fully retractable main landing gear (a feature often omitted on contemporary trainers) and an all-wood structure, contributing to its sleek, high-speed profile.

Variants and Legacy

Primary Role: Used for ab initio (basic) and advanced flight training in the Aeronautica Militare Italiana until the mid-1950s.
Armament: Unarmed in its standard two-seat trainer configuration.
Wartime Variant (SAI.7T): Ten militarized two-seat trainer versions were ordered in 1942, but few were delivered before the 1943 Armistice.
Development Line: The S.7 airframe was crucial in testing high-performance features:
- SAI.107 / SAI.207: Lightweight single-seat fighter prototypes with up to 750 hp engines, achieving impressive speeds.
- Ambrosini Sagittario (Super S.7): A single S.7 modified with swept wings, and later a jet engine, serving as a testbed for the subsequent Aerfer Sagittario 2 jet fighter.

Vistas: 653
