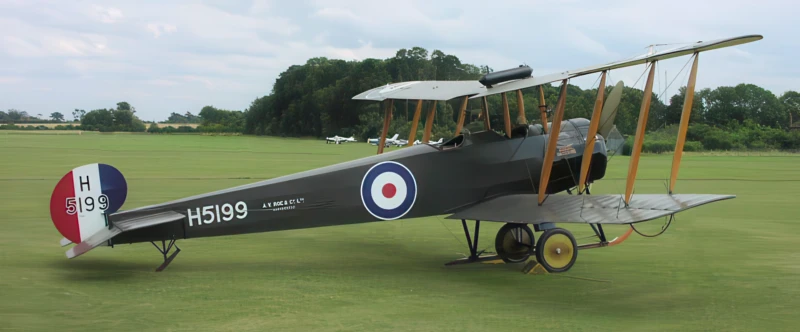

Avro 504

Avro 504
Land	Uj
Rolle	Trainer, Kämpfer, Bomber
Erstflug	18. September 1913
Gebaut	11303

das Avro 504 war ein Doppeldeckerflugzeug aus dem Ersten Weltkrieg, das von der Avro-Flugzeuggesellschaft unter Lizenz von anderen hergestellt wurde. Die Produktion während des Krieges belief sich auf 8.970 und dauerte fast 20 Jahre, was es zum meistproduzierten Flugzeug aller Art machte, das während des Ersten Weltkriegs in jeder militärischen Kapazität diente. Mehr als 10.000 wurden von 1913 bis zum Ende der Produktion 1932 gebaut.

Quelle: Avro 504 auf Wikipedia

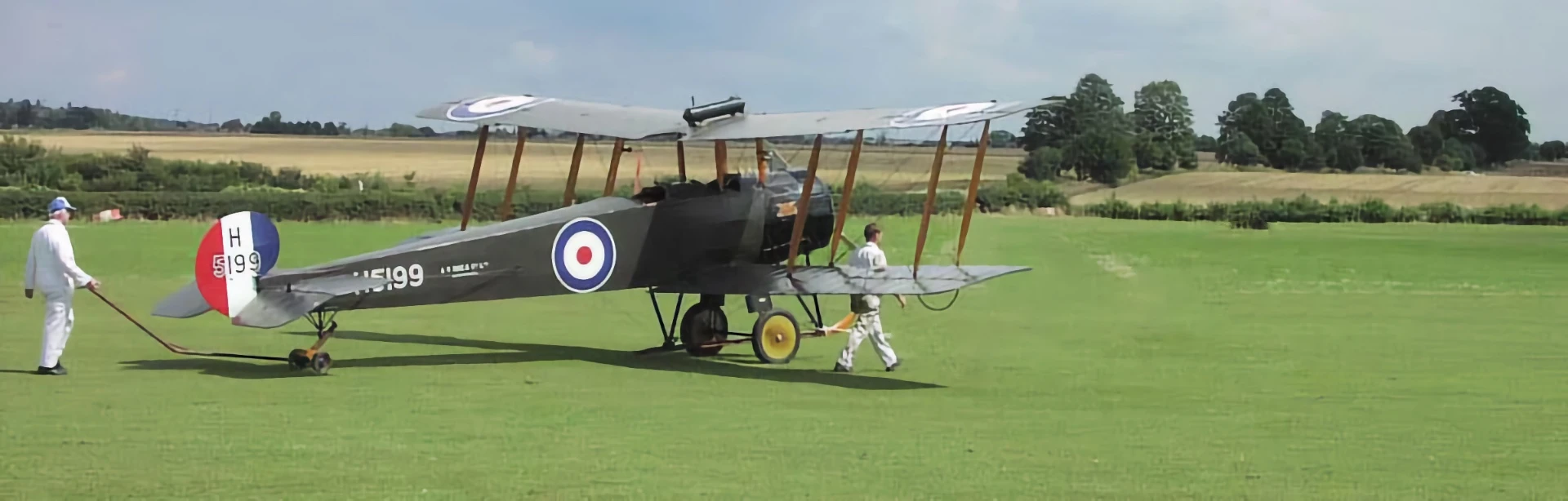

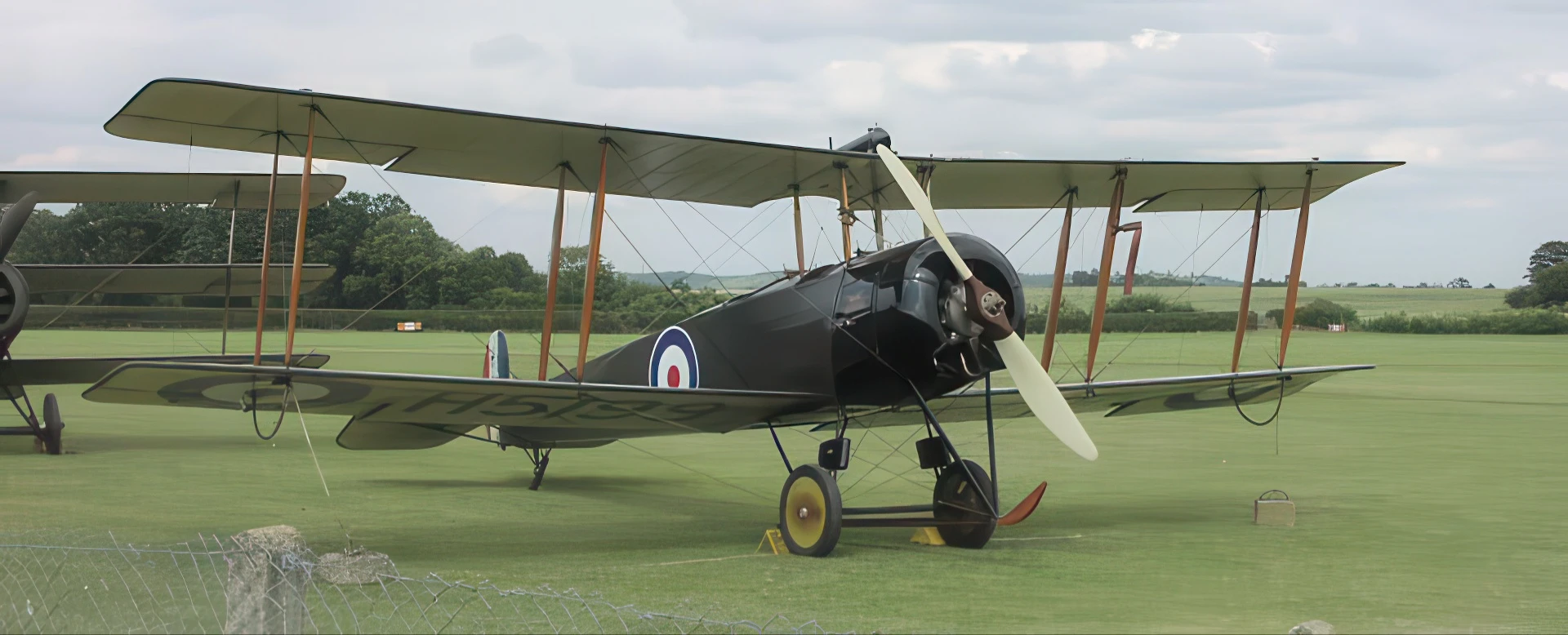

Avro 504 K Walk Around
Fotograf	Unbekannter
Lokalisierung	Unbekannter
Fotos	36

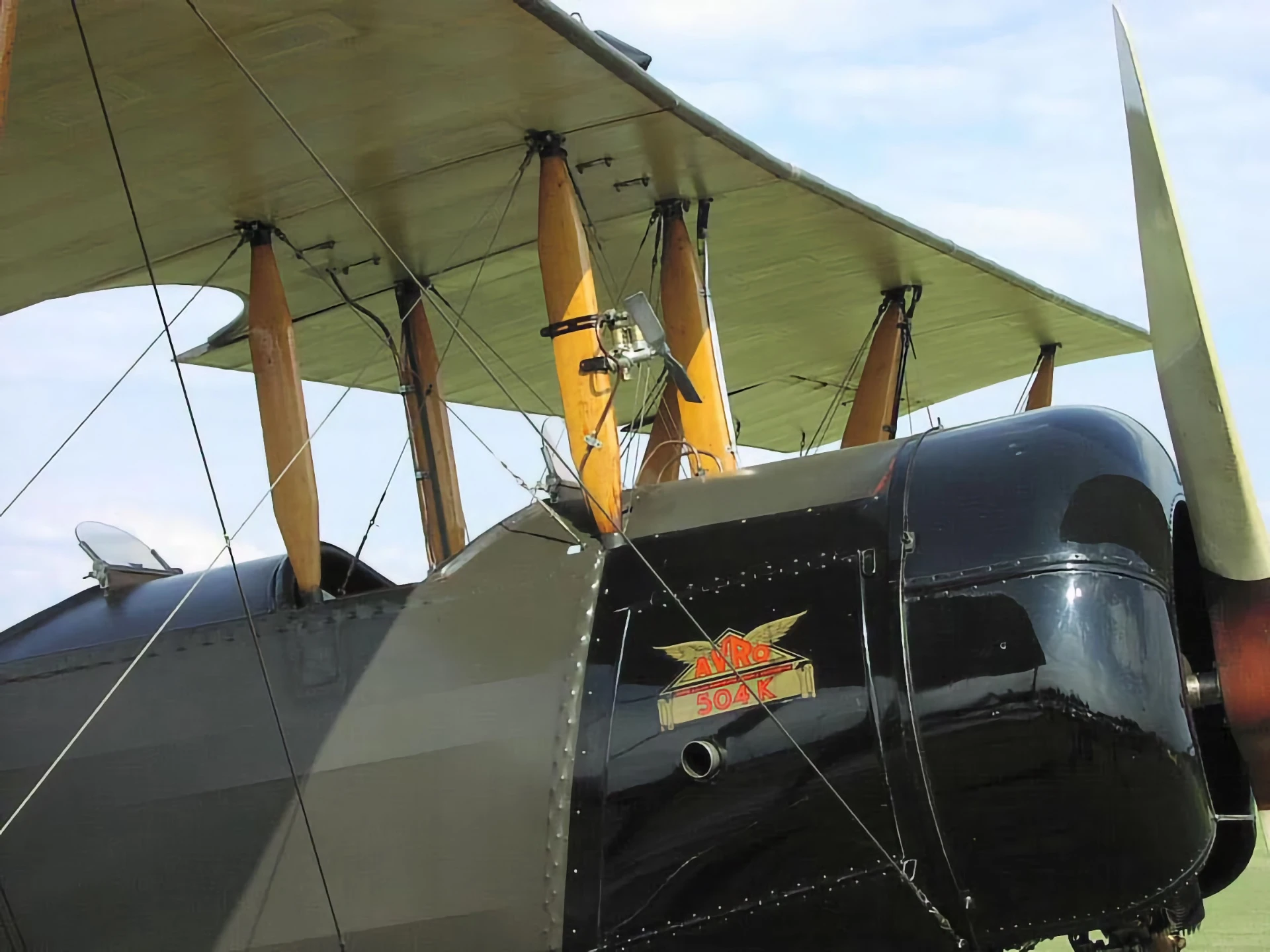

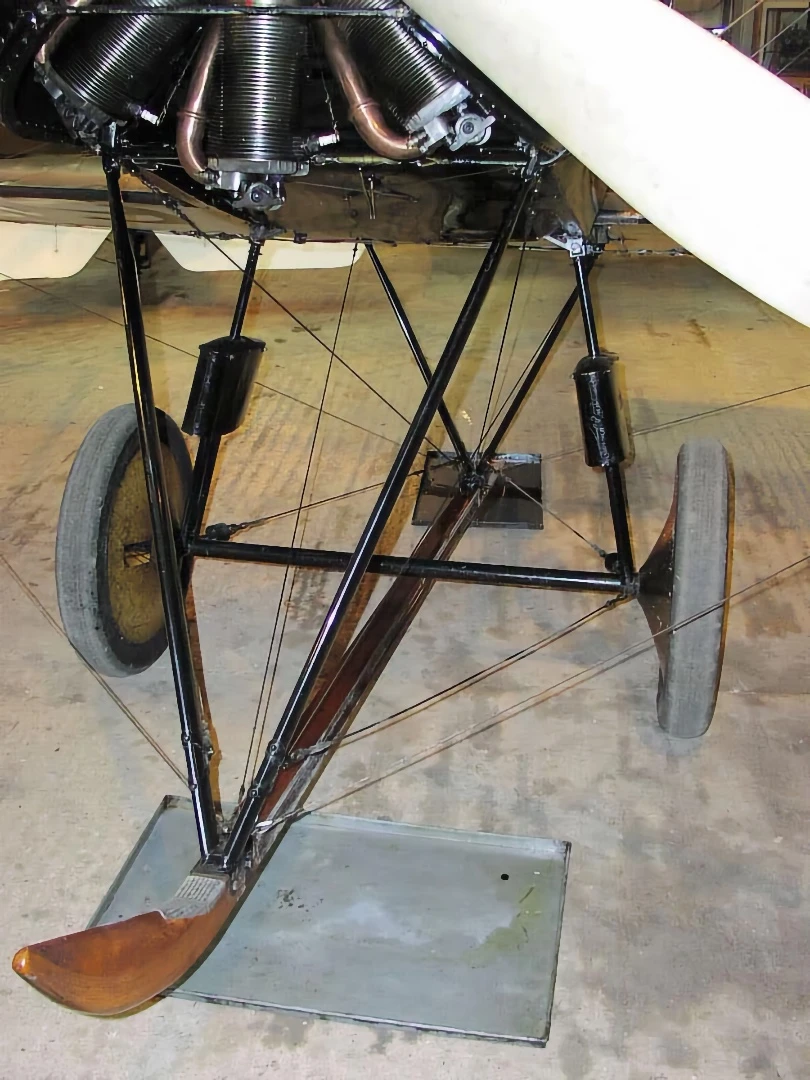

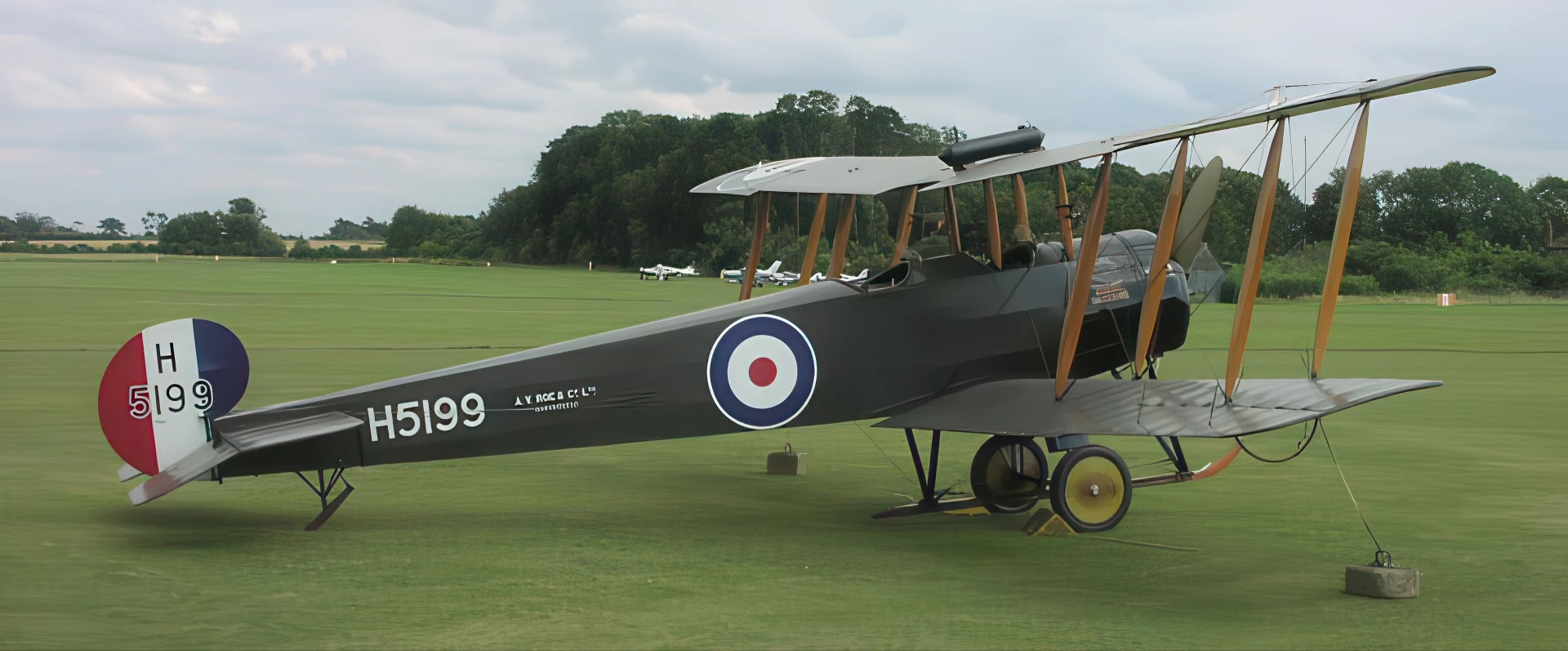

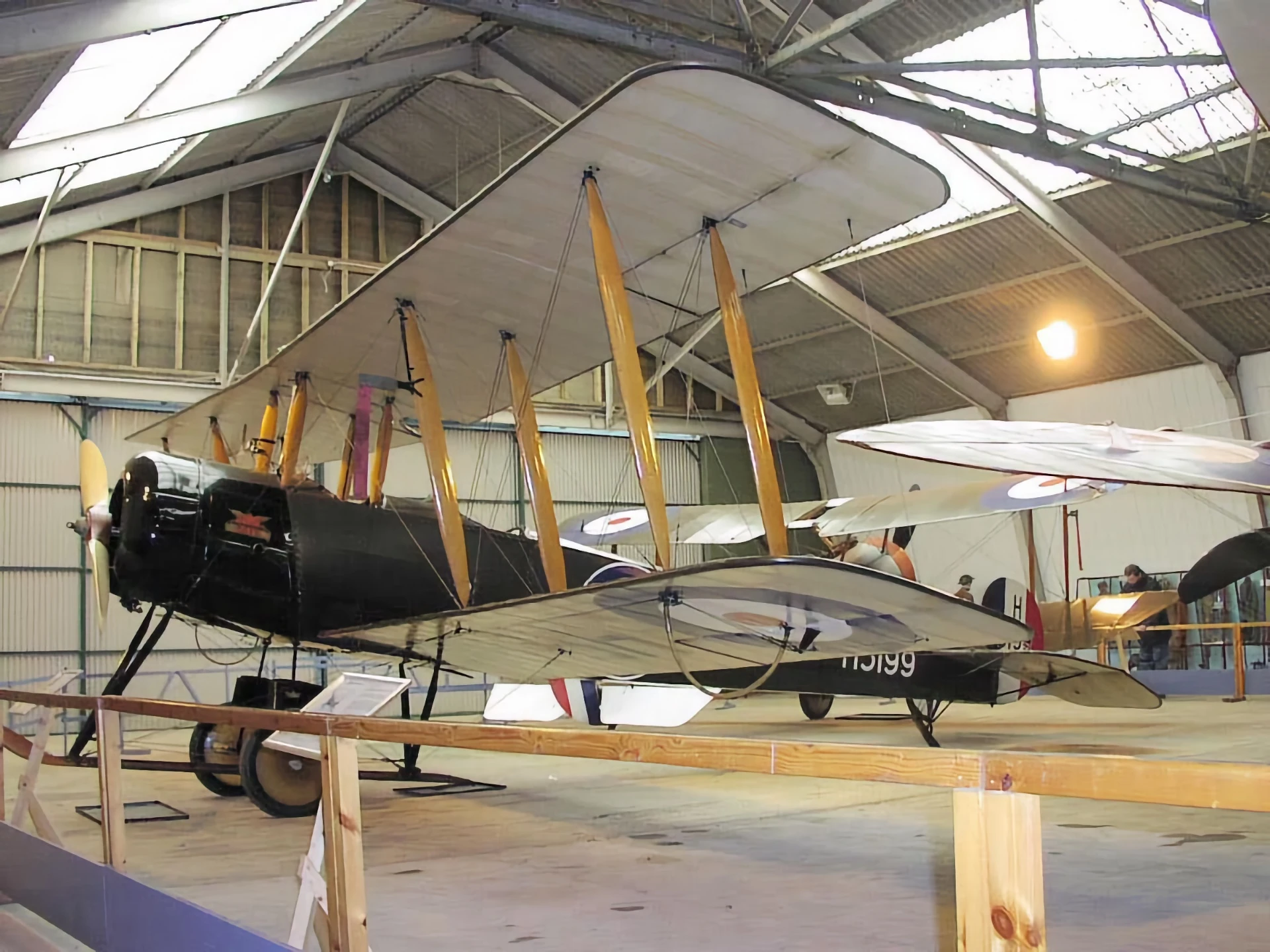

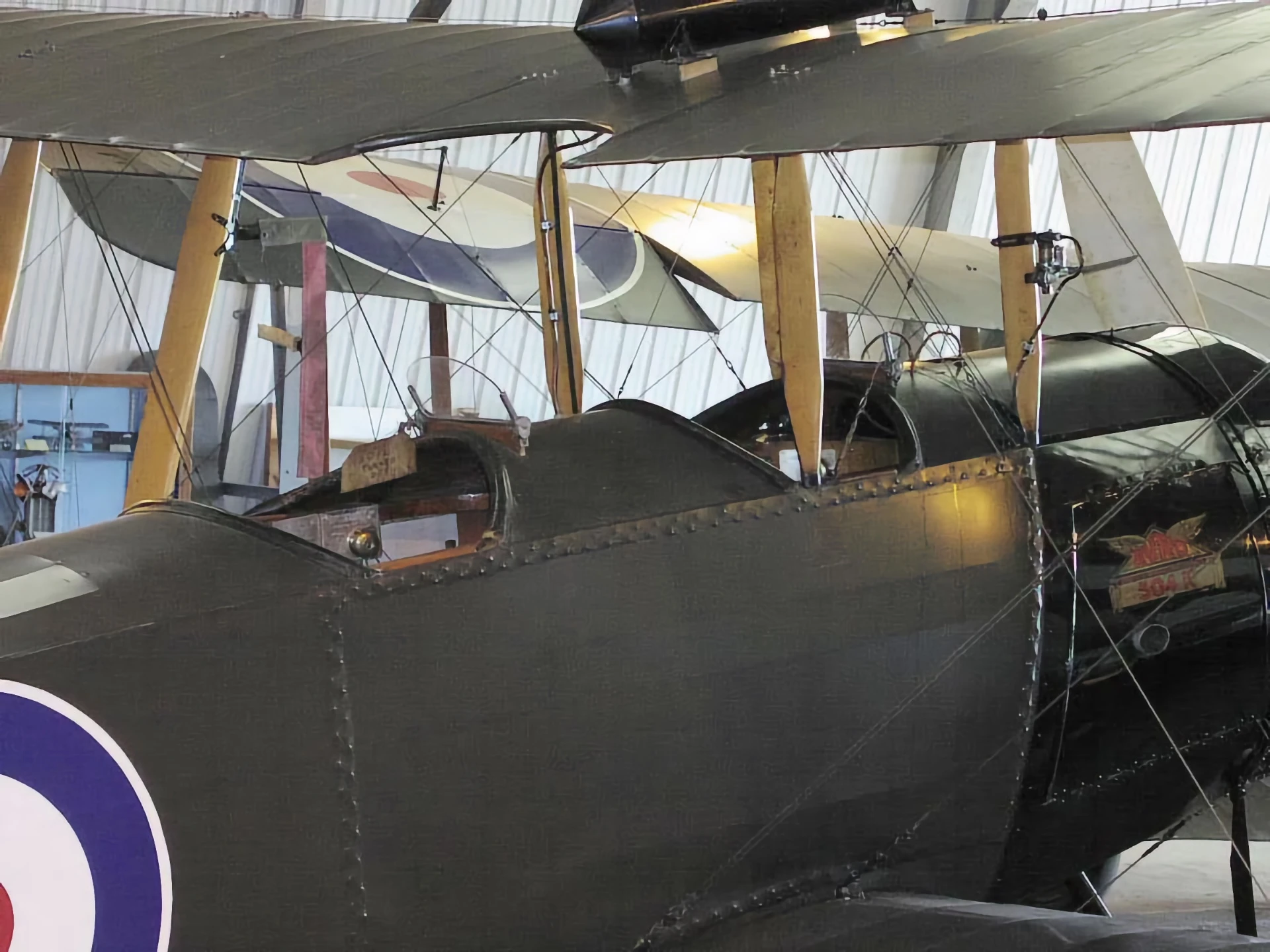

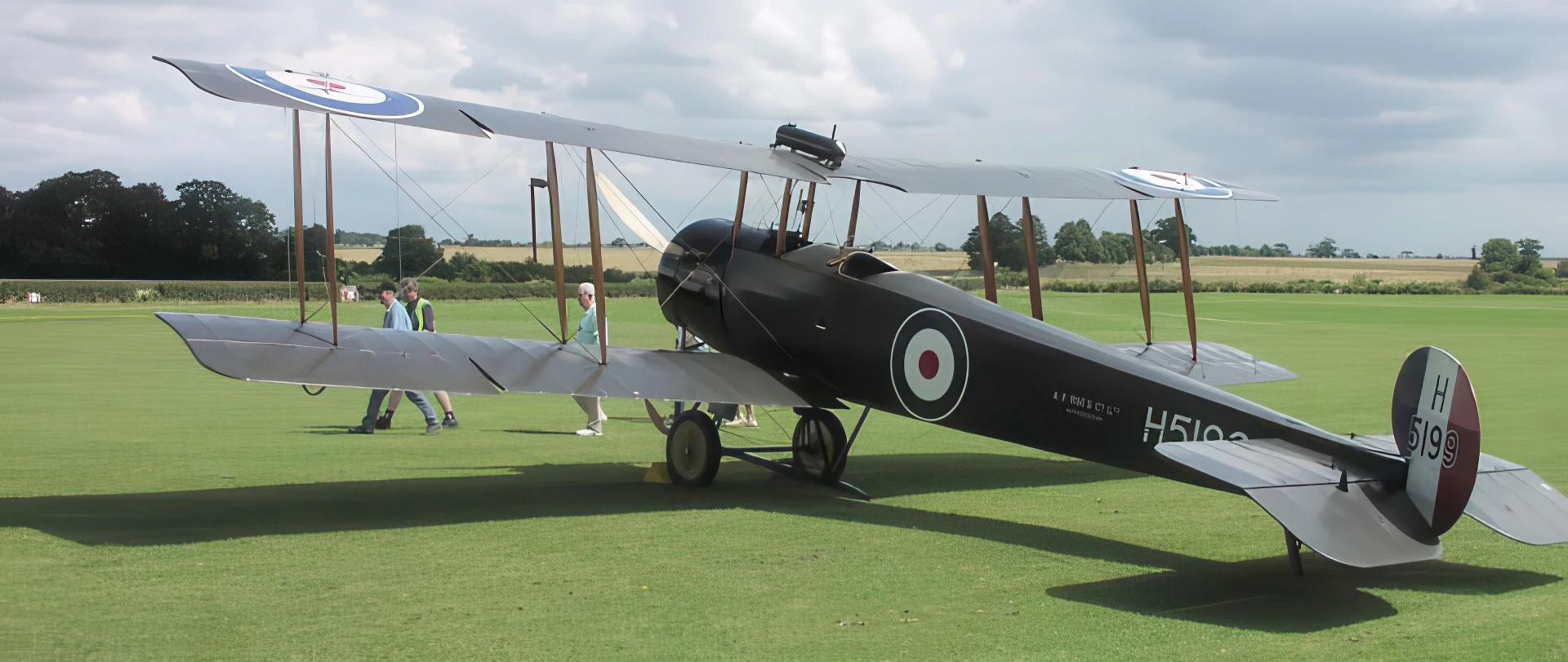

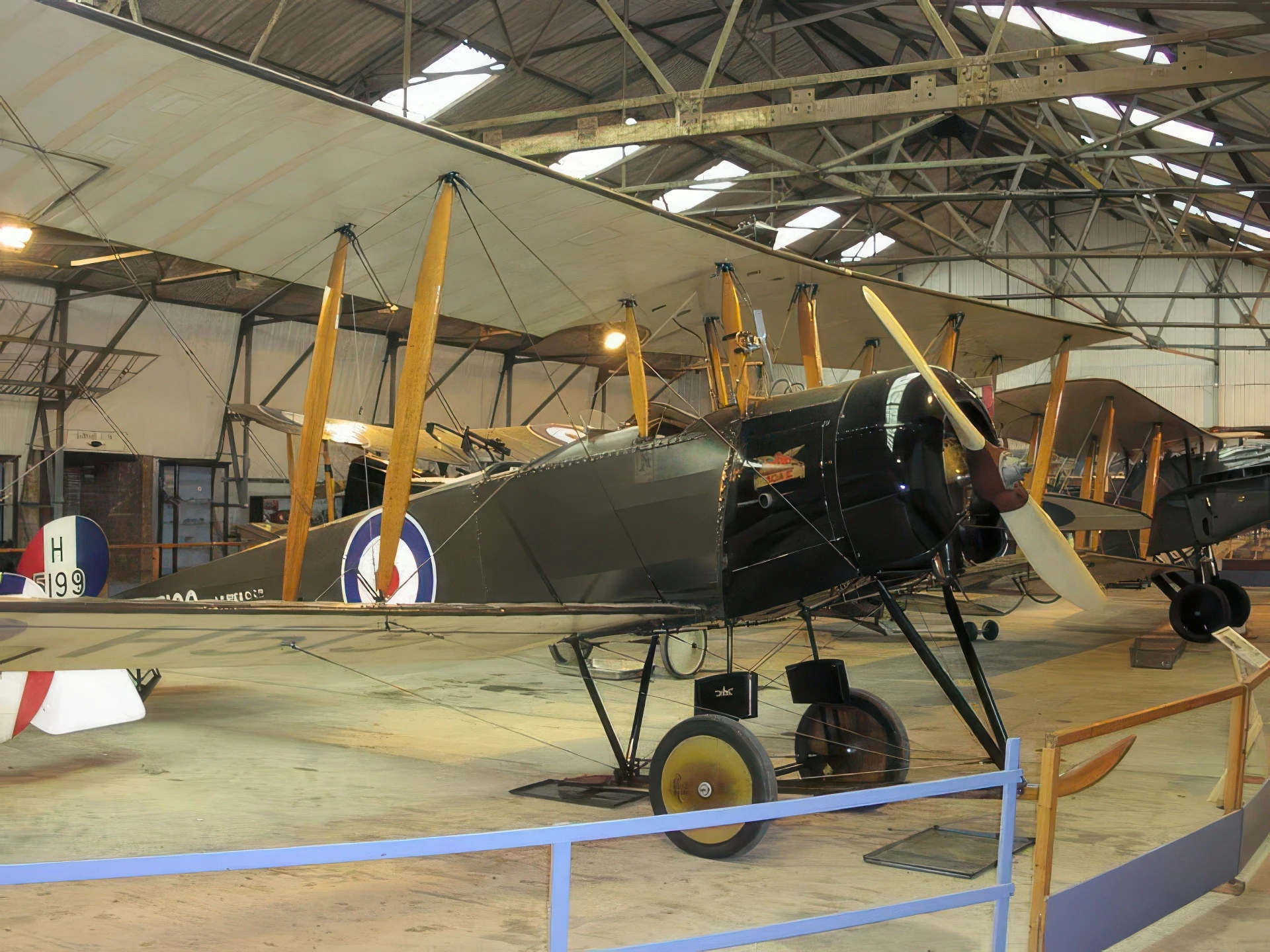

Avro 504 K 1

Avro 504 K 2

Avro 504 K 3

Avro 504 K 4

Avro 504 K 5

Avro 504 K 6

Avro 504 K 7

Avro 504 K 8

Avro 504 K 9

Click on a photo and use the mouse scroll to view all photos

Warten Sie, Suche Avro 504 für Sie...

General Characteristics

The Avro 504 is one of the most famous and longest-serving aircraft in British aviation history. First flown in 1913, the Avro 504K became the definitive production variant, introduced during World War I primarily as the standard military trainer for the Royal Flying Corps (RFC) and Royal Naval Air Service (RNAS). The ‘K’ designation signifies its unique universal engine mount, which allowed it to be fitted with various types of rotary engines (like the Le Rhône, Clerget, or Gnome Monosoupape) to cope with wartime engine shortages. Over 8,000 were built during the war, and it continued to serve as the RAF’s primary trainer well into the 1920s, with surplus models used globally for joyriding and civilian training for decades.

Property	Typical Value (Avro 504K with Le Rhône 9J)
Rolle	Primary and Advanced Trainer, Home Defence Fighter
National Origin	Vereinigtes Königreich
Hersteller	A.V. Roe and Company (Avro) and 18 subcontractors
Production Years	1913–1932 (K variant from 1917)
No. Built (Total 504)	Over 11,000 (including overseas license production)
Crew	2 (Pilot and Student/Observer)
Länge	8.97 m (29 ft 5 in)
Flügelspannweite	10.97 m (36 ft 0 in)
Max Takeoff Weight	830 kg (1,829 lb)

Powerplant and Performance

Engine: 1 x Le Rhône 9J 9-cylinder air-cooled rotary engine (common fitment).
Power Output: 82 kW (110 hp).
Propeller: 2-bladed fixed-pitch wooden propeller.
Maximum Speed: 153 km/h (95 mph).
Cruise Speed: 121 km/h (75 mph).
Range: 402 km (250 mi).
Service Ceiling: 4,877 m (16,000 ft).
Handling Note: The powerful rotary engine’s gyroscopic effect significantly influenced handling, particularly in turns, making it a demanding but excellent advanced trainer.

Armament and Roles

Primary Role: Standardized training, often utilizing the Gosport System of systematic flying instruction developed by Major Robert Smith-Barry.
Wartime Fighter Role: Converted single-seater versions (sometimes called the “Comic” fighter) were used for Home Defence against German Zeppelin and Gotha raids.
- Armament (Fighter): 1 x 7.7 mm (.303 in) Lewis machine gun mounted above the upper wing on a Foster mounting, allowing the pilot to fire upwards and reload easily.
Post-War Use: Became immensely popular on the civilian market for barnstorming, aerial advertising, and joyriding, often modified to carry two passengers in the front cockpit.
