Panhard SPHINX | |
| Land | Frankrig |
| Type | Pansret rekognosceringskøretøj |
| Bygget | Unknow |
Den SFINKS (Secret Project for High Intensity and New Conflicts) blev udviklet af Panhard som et privat foretagende for at opfylde et krav fra den franske hærs EBCR (Engine Blinde de Reconnaissance et de Combat). EBRC står for pansret køretøj til rekognoscering og kamp. Et nyt pansret køretøj er beregnet til at erstatte den aldrende AMX-10RC og ERC-90 Sagaie.
Kilde: Panhard SPHINX på #
| Panhard Sphinx Walk Around | |
|---|---|
| Fotograf | Unknow |
| Lokalisering | Unknow |
| Billeder | 13 |
Panhard Sphinx 1
Panhard Sphinx 2
Panhard Sphinx 3
Panhard Sphinx 4
Panhard Sphinx 5
Panhard Sphinx 6
Panhard Sphinx 7
Panhard Sphinx 8
Panhard Sphinx 9
Vent, søger EBRC Jaguar fotos til dig ...

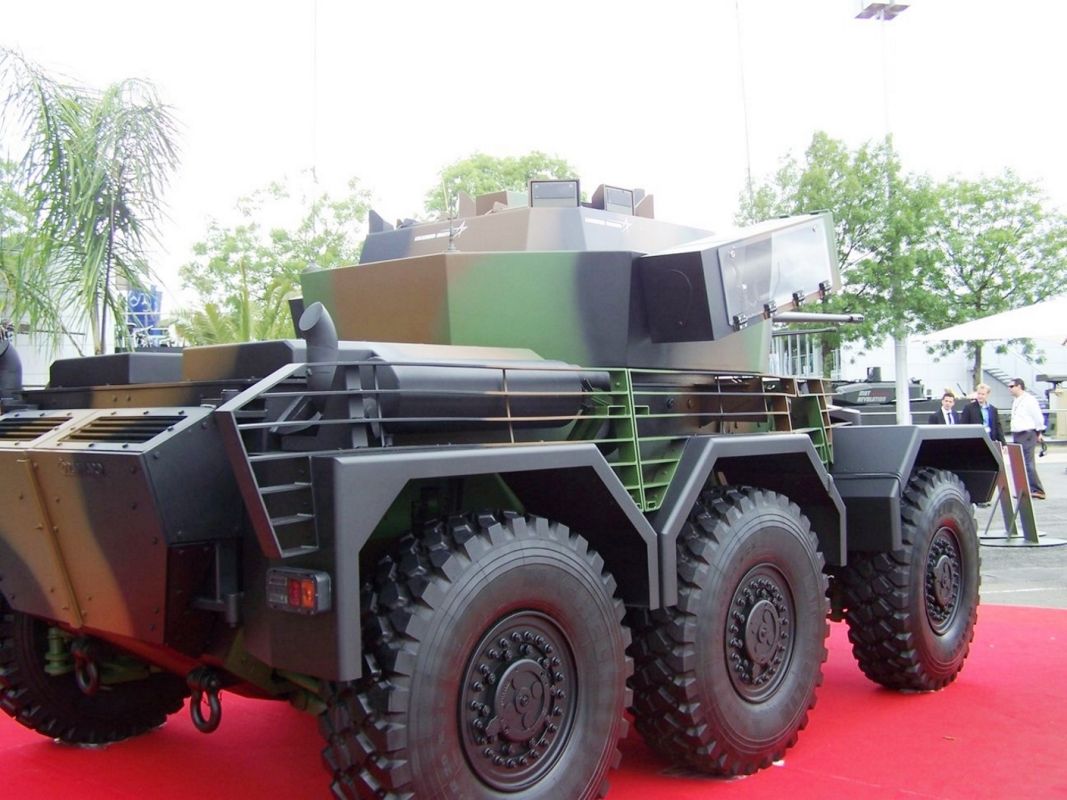

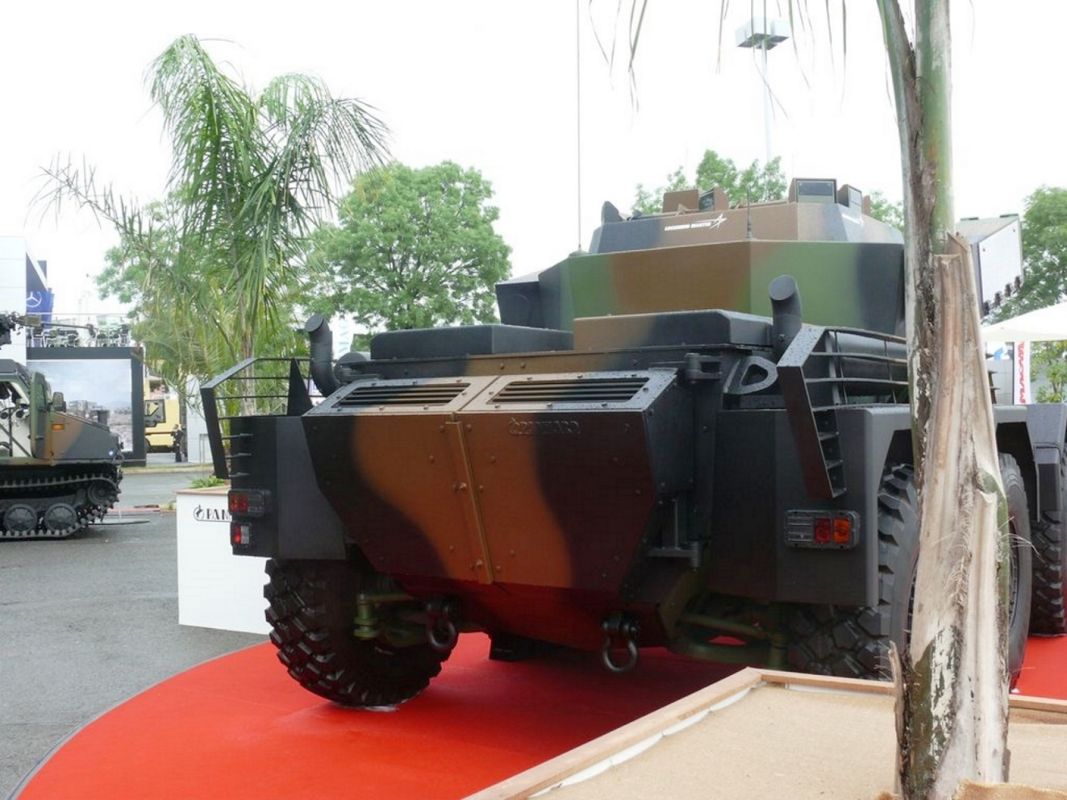

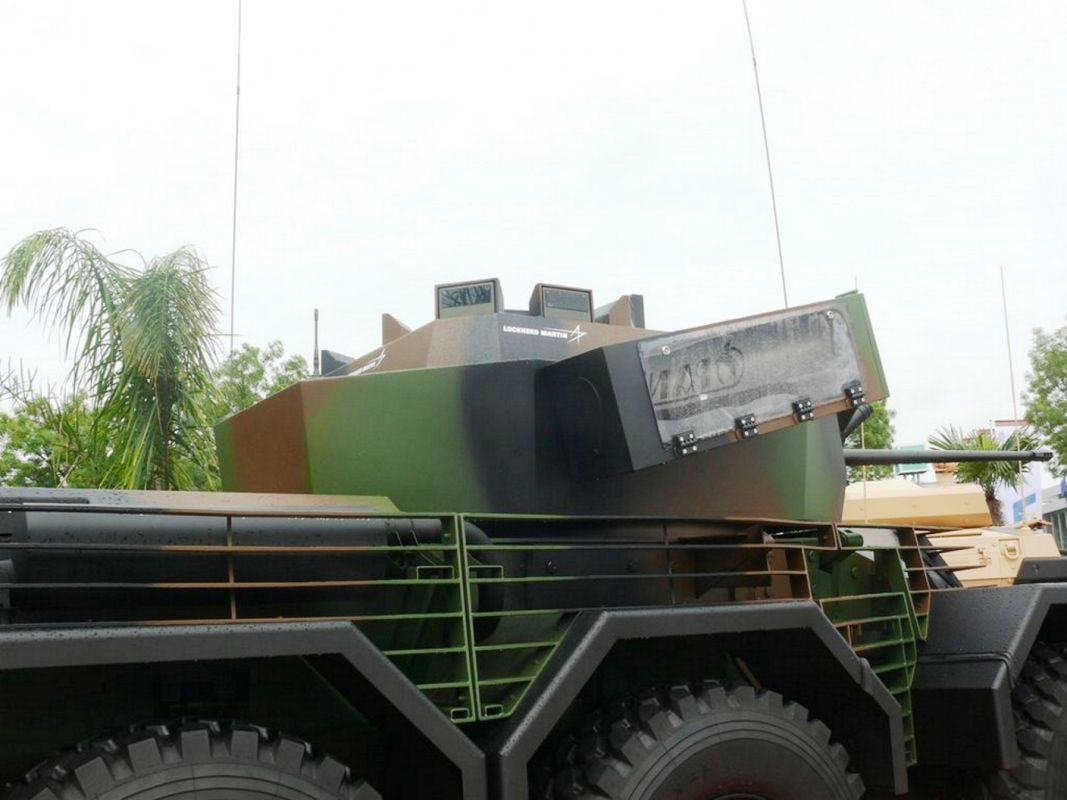

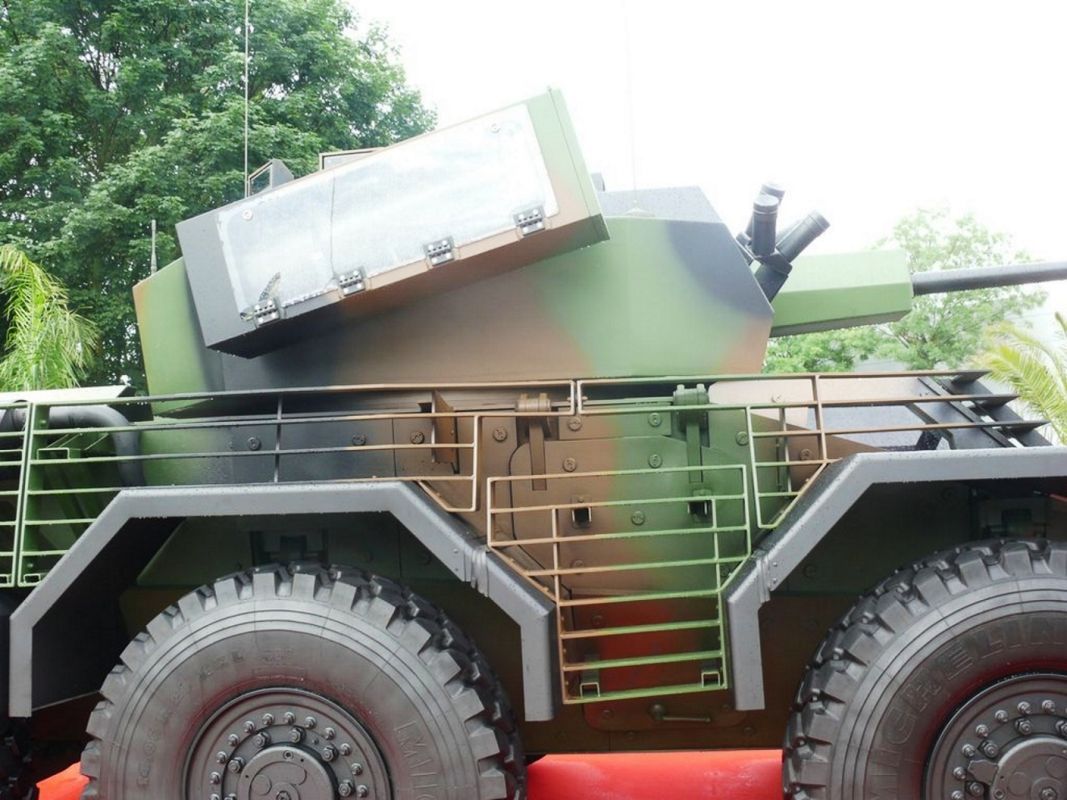

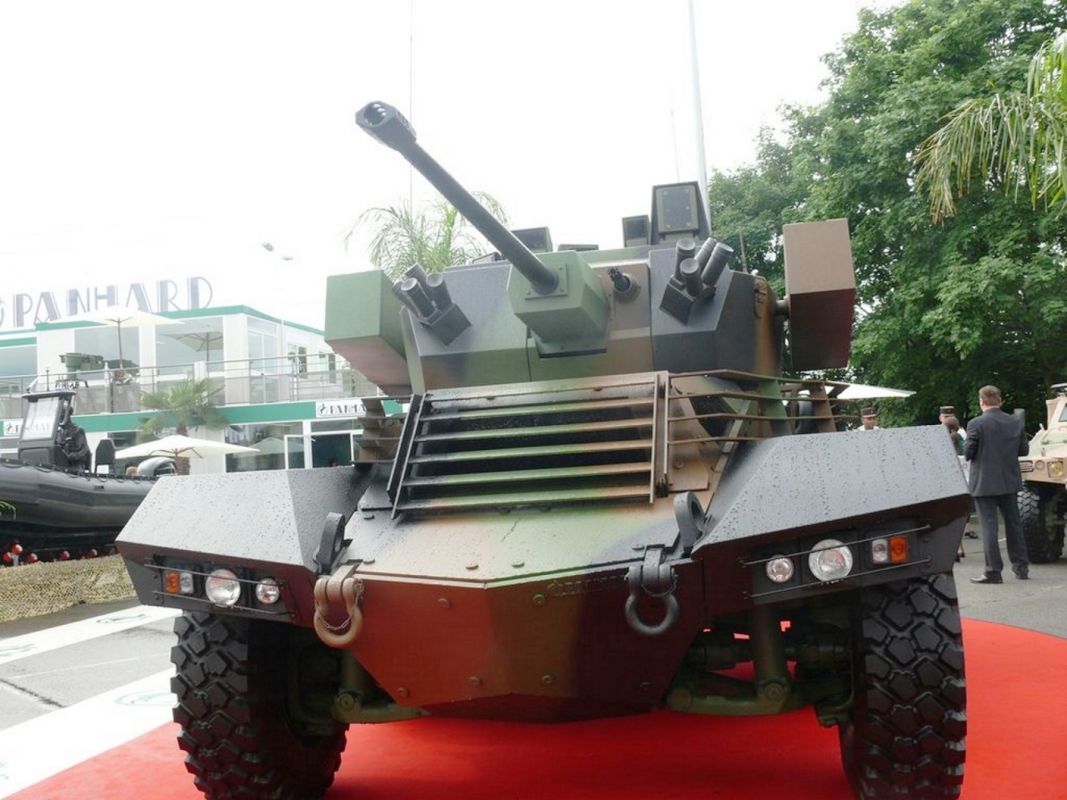

| Panhard Sphinx Tourelle CTAI 40mm Walk Around | |
|---|---|
| Fotograf | Unknow |
| Lokalisering | Unknow |
| Billeder | 13 |
Vent, søger rekognosceringskøretøj til dig ...
Se også:
General Characteristics (EBRC Program Submission)
The SPHINX was a 6×6 armored vehicle concept developed by Panhard (now Arquus) as a private venture and a candidate for the French Army’s EBRC (Armoured Vehicle for Reconnaissance and Combat) program, aimed at replacing the older ERC-90 Sagaie.
| Property | Value (Concept Specifications) |
|---|---|
| Rolle | Armored Reconnaissance, Fire Support, Rapid Intervention |
| Producent | Panhard General Defence (Arquus) |
| Unveiled | Eurosatory 2010 |
| Konfiguration | 6×6 Wheeled Vehicle |
| Besætning | 3 (kommandør, skytte, chauffør) |
| Combat Weight | Approx. 17 tonnes (Maximum 18 t) |
Armament and Protection
- Main Armament: One 40 mm CTA (Case Telescoped Ammunition) Automatic Cannon.
- Secondary Armament:
- One 7.62 mm coaxial machine gun.
- Two launchers for long-range Anti-Tank Guided Missiles (ATGM), typically MBDA MMP or MLP.
- Ballistic Protection: Designed to meet STANAG 4569 Level 4, with potential for upgrade to Level 5 (protection against 25 mm APDS-T rounds).
- Mine Protection: Features a V-shaped hull design for enhanced resistance against mines and Improvised Explosive Devices (IEDs), achieving STANAG Level 3a/3b protection.
- Air Transport: Designed to be transportable by air in a C-130 or Airbus A400M.
Powerplant and Mobility
- Engine: Turbocharged V12 diesel engine (e.g., Mercedes or Steyr unit).
- Power Output: Approx. 600 hp (447 kW).
- Power-to-Weight Ratio: Over 35 hp/ton, offering high acceleration and off-road capability.
- Maximum Road Speed: Up to 110 km/h (68 mph).
- Steering: All six wheels are steerable for superior maneuverability.
- Operational Range: Approximately 600 km (370 miles).
