IS-4 tank | |
|---|---|
| 国家 | 苏联 |
| 作用 | 重型坦克 |
| 产生 | 1947-1949 |
| 建立 | 200+ |
这 IS-4，也称为 对象 701是苏联的重型坦克，于1943年开始研制，1946年开始生产。源自IS-2和IS坦克家族的一部分，IS-4具有更长的船体和增加的装甲。随着IS-3已经投入生产，以及对坦克（特别是重型坦克）的需求减少和机动性缓慢，许多人被派往俄罗斯远东地区，其中一些最终在1960年代成为中国边境的碉堡。生产不到250辆。
源： 维基百科上的IS-4坦克

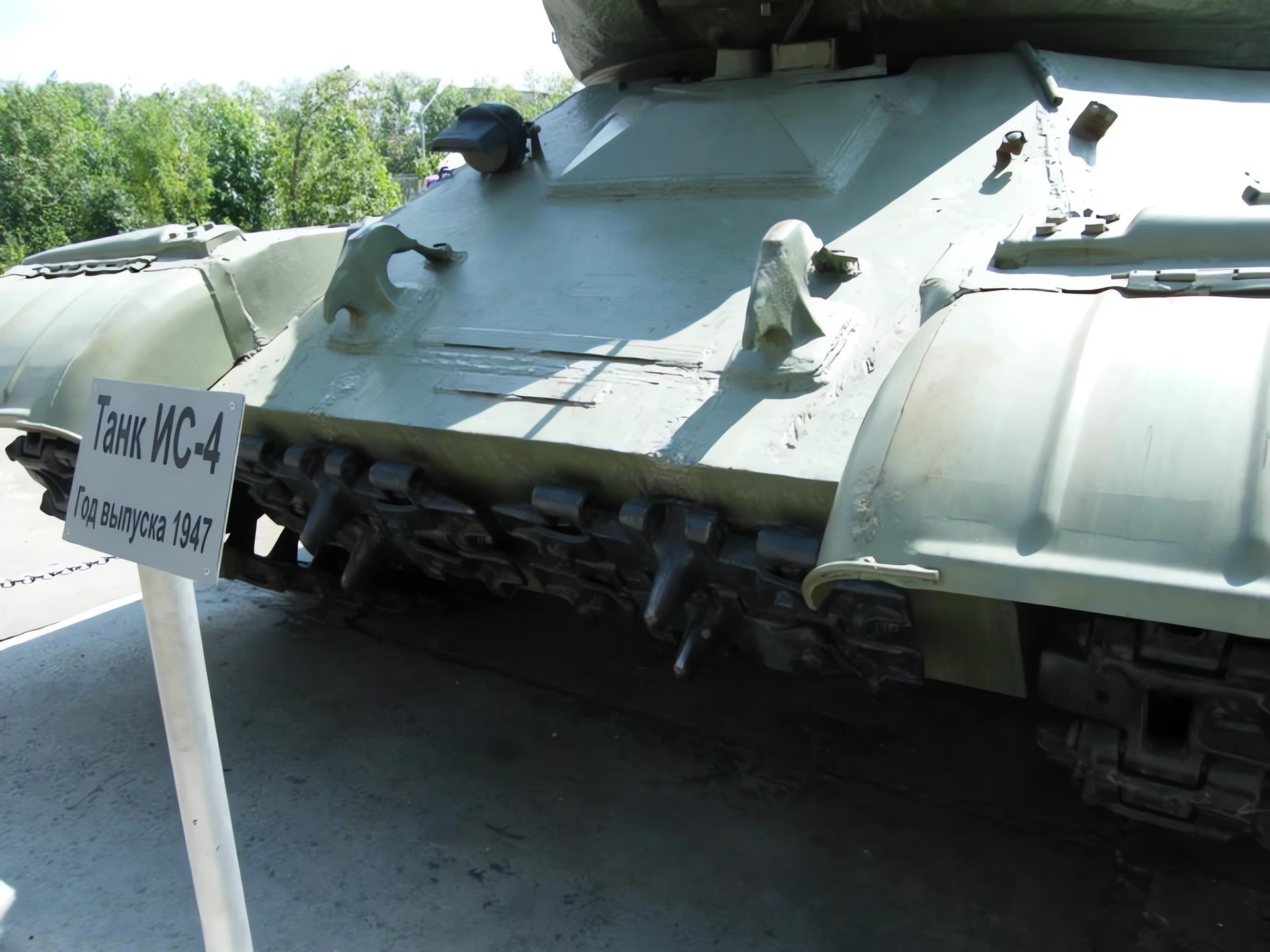

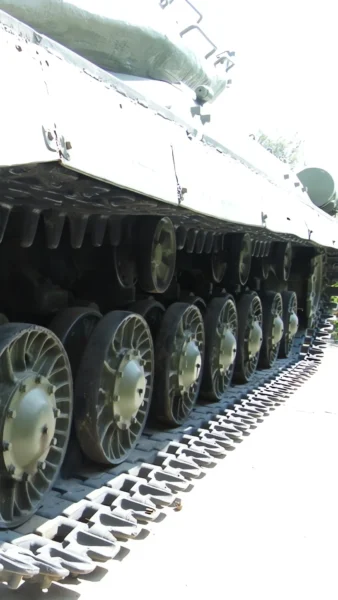

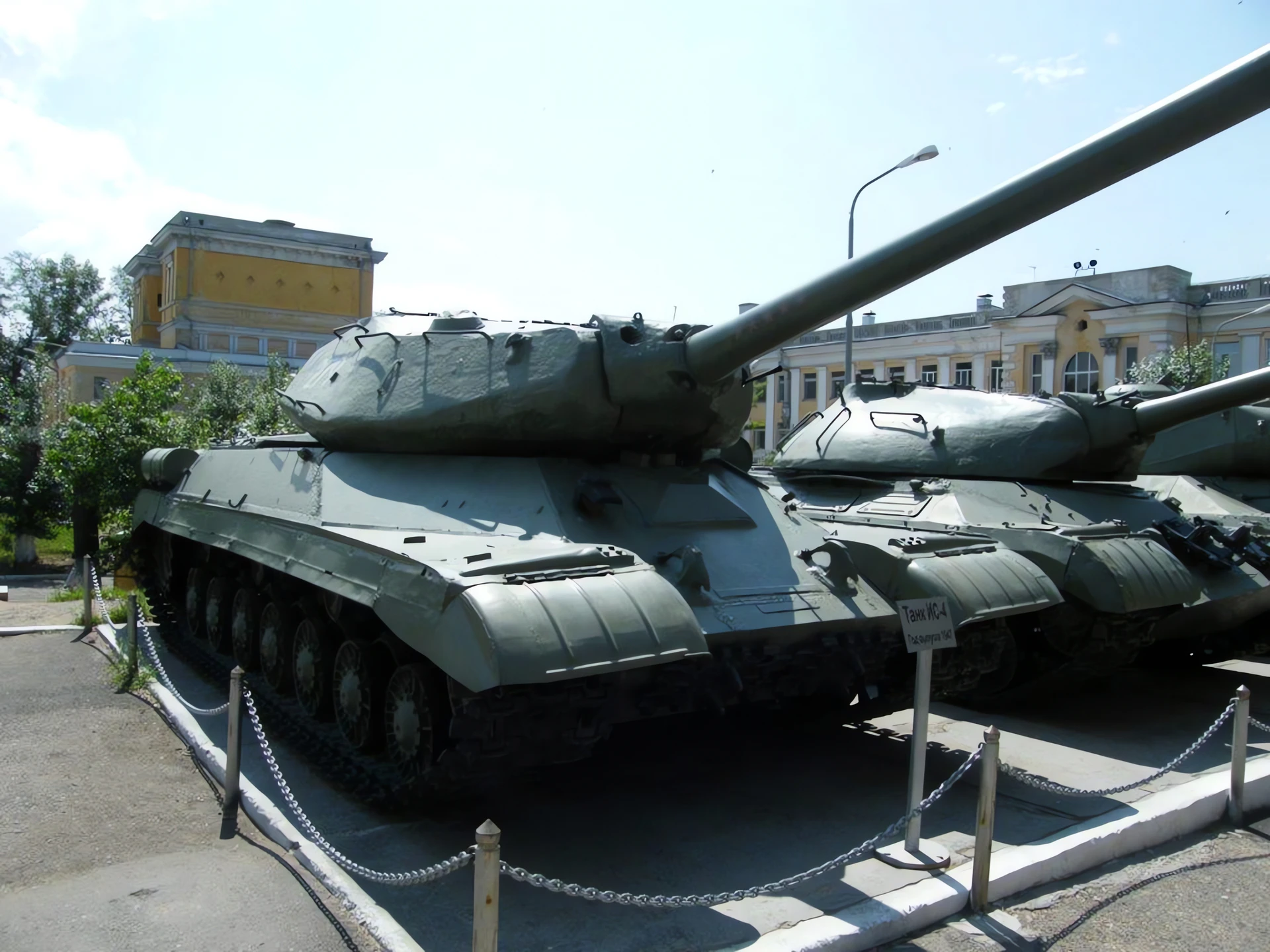

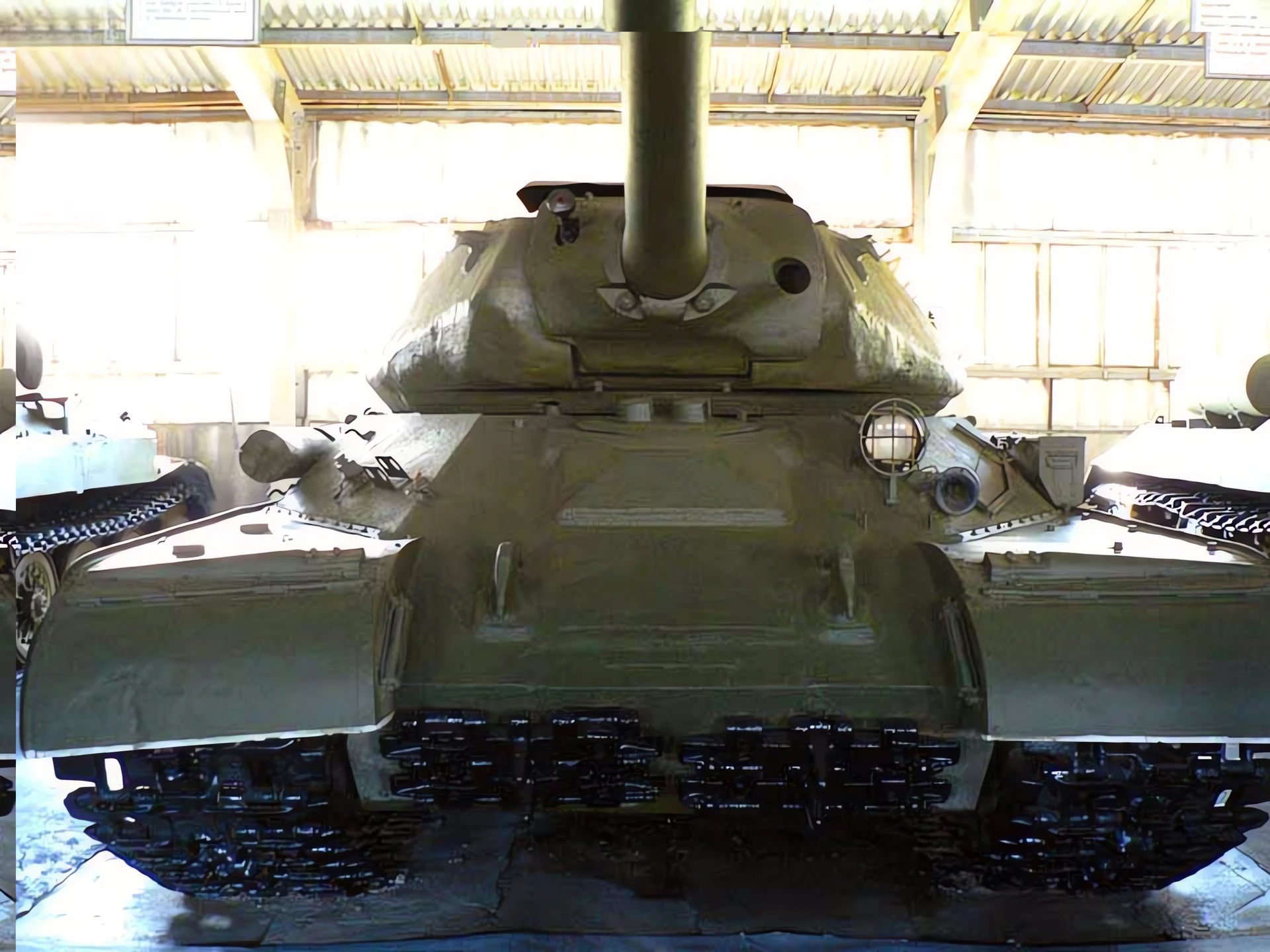

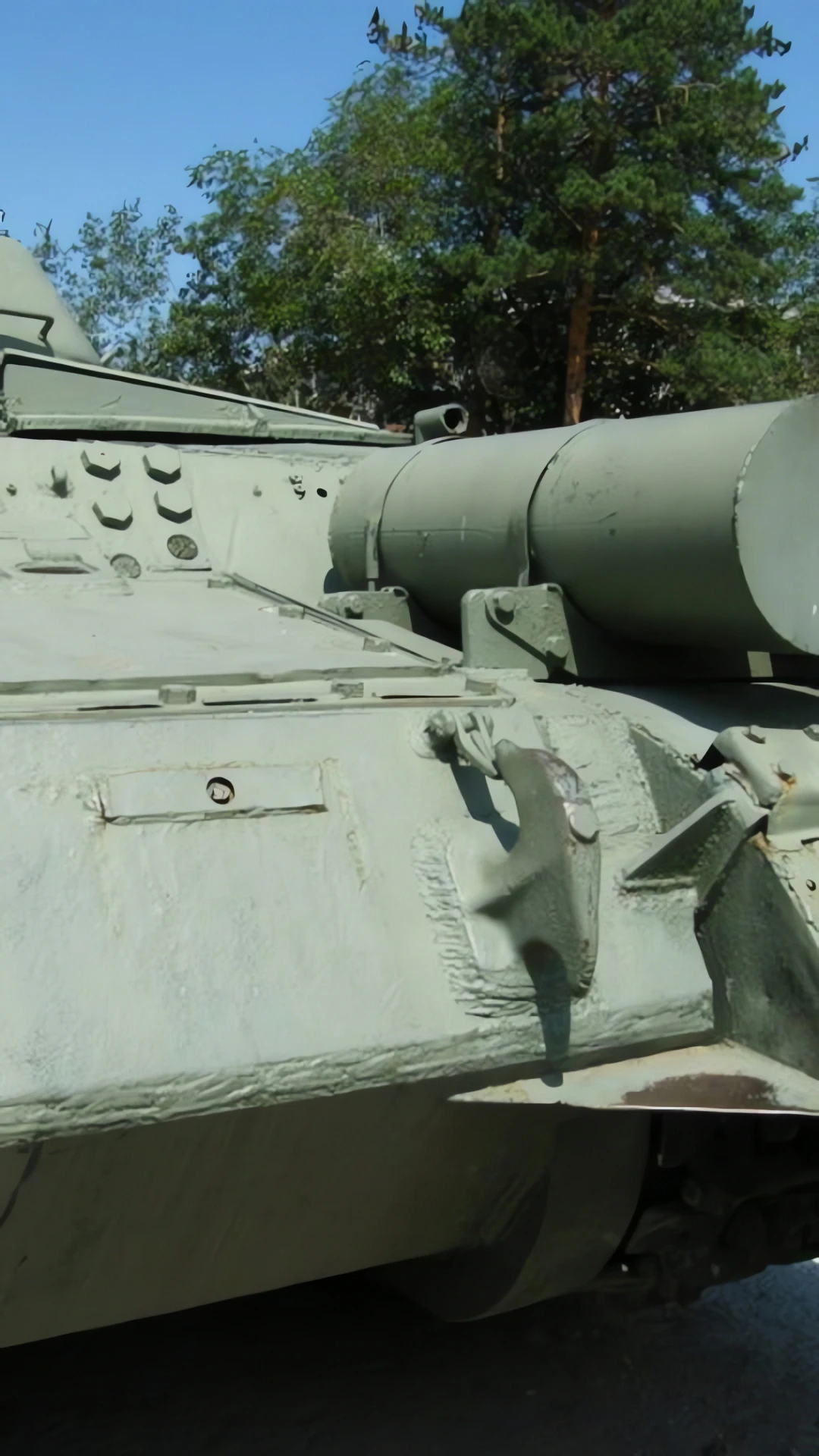

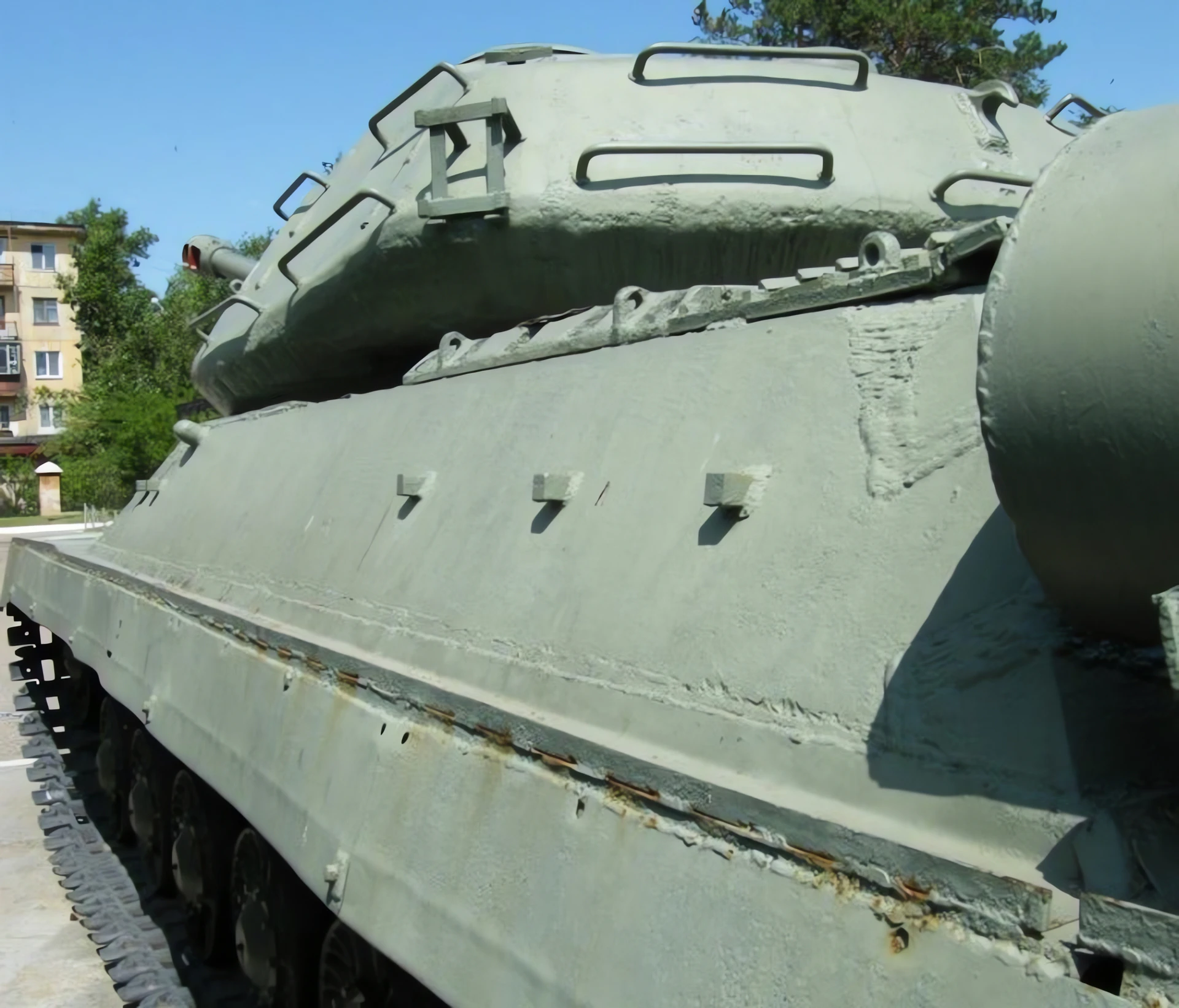

| JS-4 Walk Around | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 27 |
等等，为你搜索IS-4坦克...
另请参阅：
The “Object 701” Evolution
这 IS-4 (JS-4) was developed at the end of WWII as a successor to the IS-2 and a more reliable alternative to the radical IS-3. While the IS-3 used the famous “Pike Nose” to save weight, the IS-4 went in the opposite direction: pure mass. It was built with incredibly thick, traditional sloped armor, making it practically invulnerable to most anti-tank guns of the late 1940s. However, this came at a cost of 60 tons, making it too heavy for many Soviet bridges and rail lines.
| Attribute | Technical Specification (IS-4) |
|---|---|
| 作用 | Heavy Tank / Breakthrough Tank |
| 船员 | 4 (Commander, Gunner, Loader, Driver) |
| 主要武器装备 | 122 mm D-25T Rifled Gun |
| 次要武器 | 2 × 12.7 mm DShK Machine Guns (Coaxial & AA) |
| Turret Armor | 250 mm (Frontal) / 160 mm (Sides) |
| Hull Armor | 160 mm (Frontal upper glacis) / 160 mm (Sides) |
| 动力装置 | V-12 Diesel (750 hp) |
| Max Road Speed | 43 km/h (27 mph) |
| Combat Weight | 60 metric tons |
Armor and Reliability

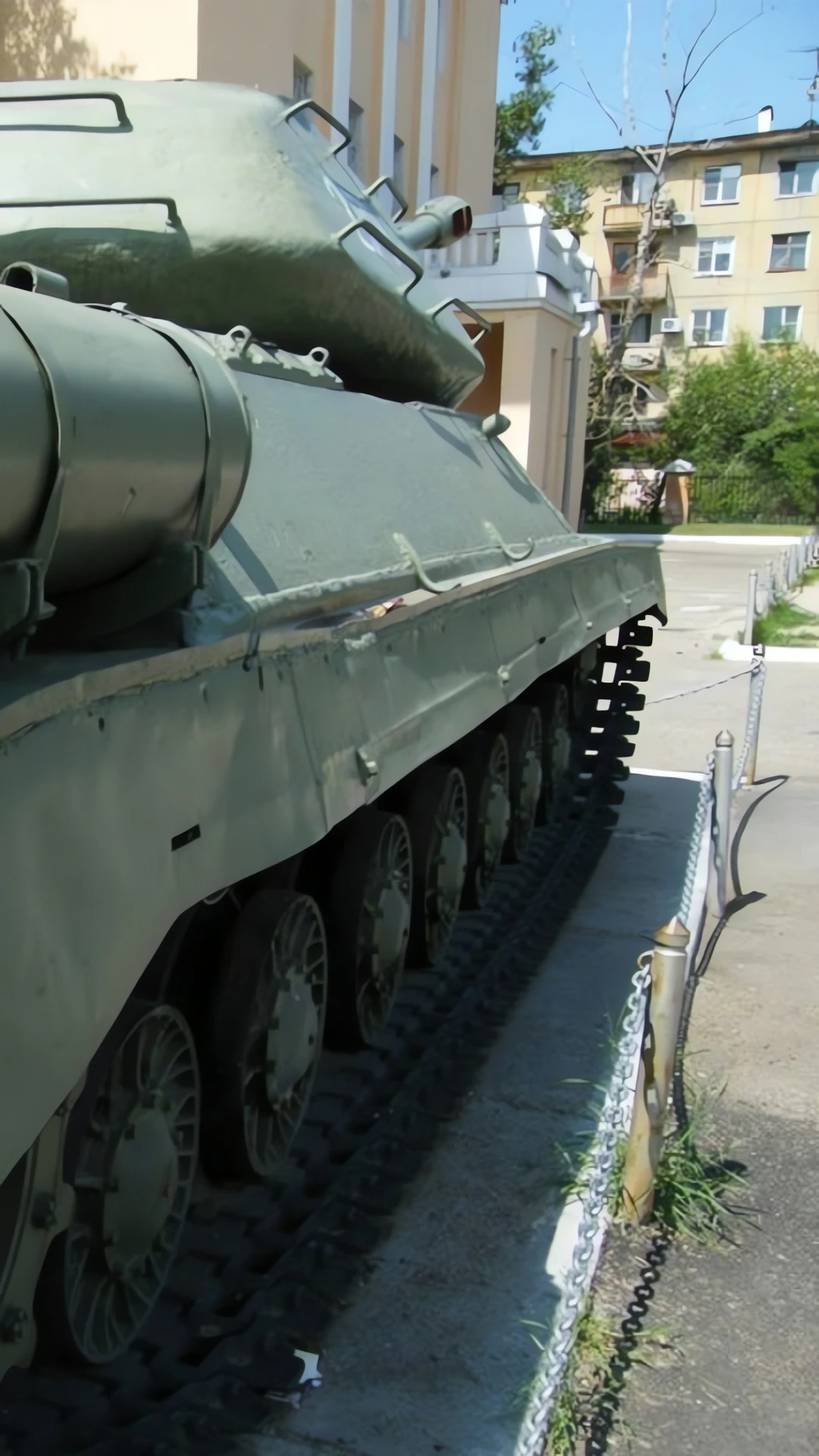

- Side Armor Dominance: One of the IS-4’s most unique traits was its 160mm side armor. This was thicker than the frontal armor of most contemporary tanks, allowing it to “side-scrape” and absorb hits that would destroy any other vehicle.
- Advanced Transmission: Unlike the crude gearboxes of earlier Soviet tanks, the IS-4 featured a sophisticated planetary transmission with a steering mechanism that allowed for much easier driving, though it was complex to maintain.

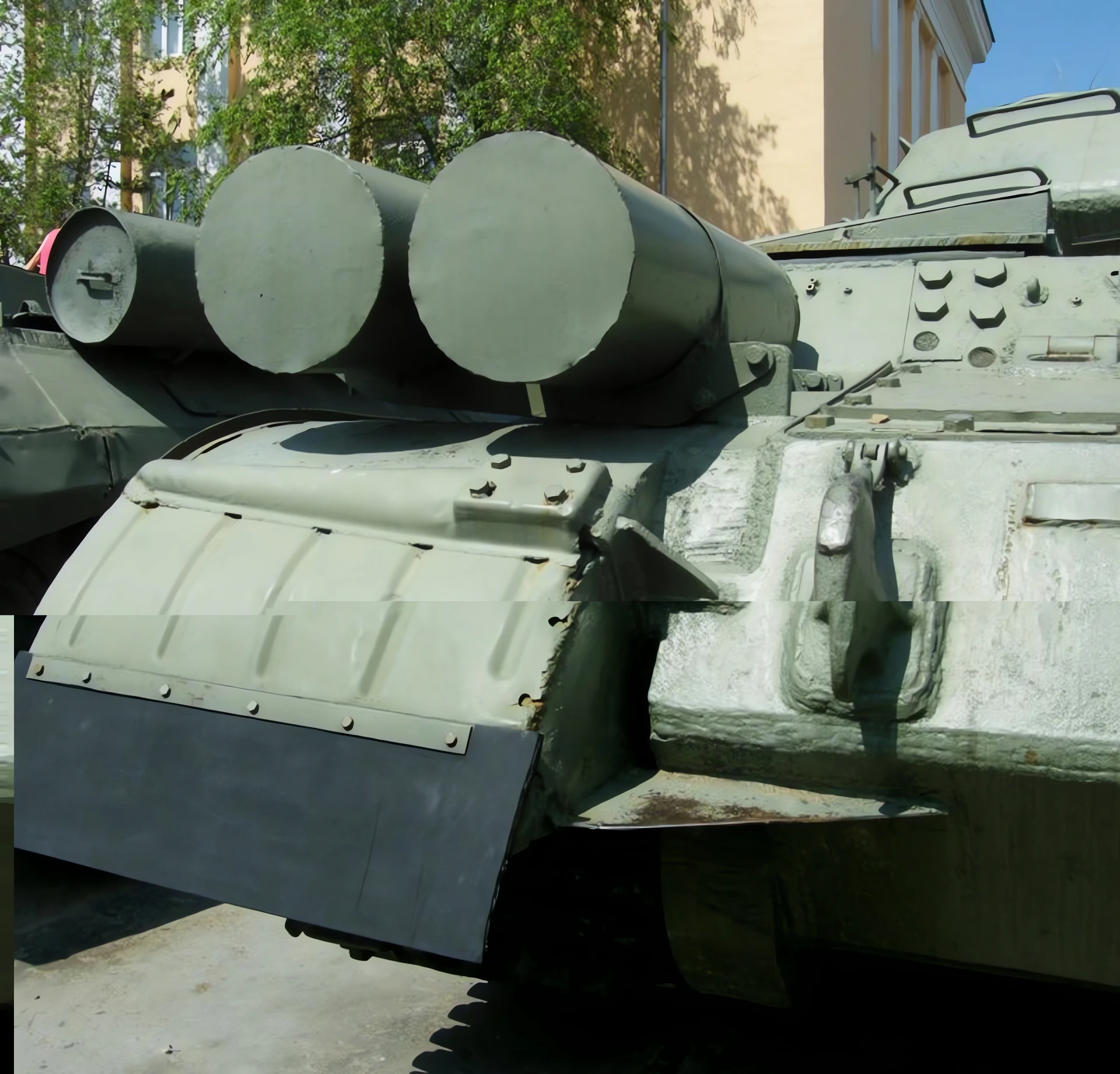

- Rear Radiator Design: The engine cooling system was inspired by German designs (specifically the Panther), utilizing two large fans at the rear to draw air through radiators, which was more efficient than previous Soviet layouts.
- The D-25T Gun: While powerful, the 122mm gun used two-piece ammunition (projectile and powder charge), which resulted in a slow rate of fire (approx. 2-3 rounds per minute).
Operational History: The Far East Shield
- Production Numbers: Only about 250 units were built between 1946 and 1949. The Soviet high command eventually realized that the tank was simply too heavy for the logistics of a fast-moving European war.
- Exile to the East: Due to its weight and logistical requirements, most IS-4s were stationed in the Soviet Far East (near the borders of China and North Korea). They were seen as mobile pillboxes that could hold strategic positions against any invasion.
- Target Practice: By the 1960s, the IS-4 was considered obsolete compared to the T-54/55 and the upcoming T-62. Many were used as static fortifications or hard targets on gunnery ranges.
