T29重型坦克 | |
| 国家 | 美国 |
| 类型 | 重型坦克 |
| 设计 | 1944–1945 |
| 建立 | 8 |
这 重型坦克T29 是美国重型坦克项目，始于1944年3月，以对抗德国虎II重型坦克的出现。T29没有及时为欧洲战争做好准备，但它确实为战后工程师提供了将工程概念应用于火炮和汽车部件的机会。

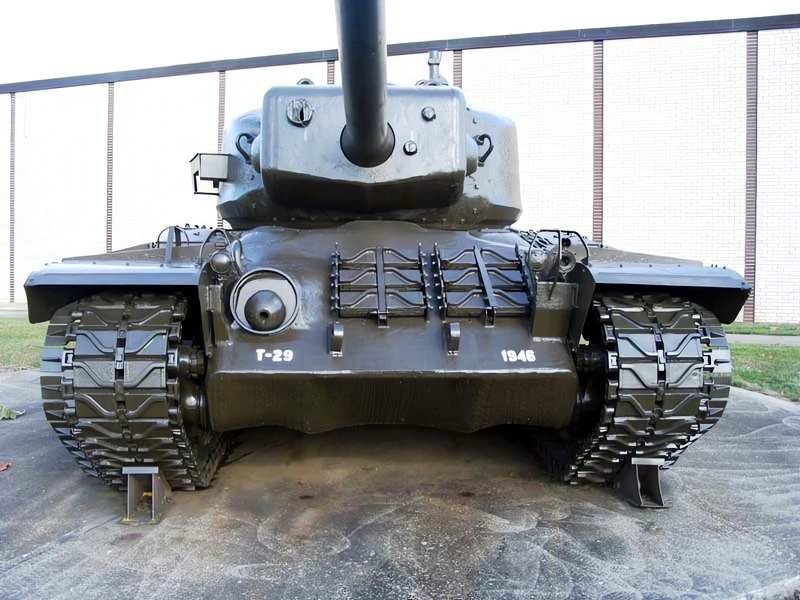

| T-29 Heavy Tank Walk Around | |
|---|---|
| 摄影师 | 马特·弗莱加尔 |
| 本地化 | 未知 |
| 照片 | 181 |
T-29 Heavy Tank 1
T-29 Heavy Tank 2
T-29 Heavy Tank 3
T-29 Heavy Tank 4
T-29 Heavy Tank 5
T-29 Heavy Tank 6
T-29 Heavy Tank 7
T-29 Heavy Tank 8
T-29 Heavy Tank 9
等等，为您搜索T29重型坦克照片...
The “Hull-Down” Master
这 T29重型坦克 was a massive experimental vehicle developed in 1944 to counter the German Tiger II (King Tiger). While the M26 Pershing was a capable machine, it lacked the raw protection and high-velocity firepower needed to reliably knock out heavy German armor from a distance. The T29 solved this by taking a lengthened Pershing chassis and mounting an enormous, heavily armored turret. Although it arrived too late to see combat in WWII, it became the foundation for American heavy tank development during the early Cold War.
| Attribute | Technical Specification (T29) |
|---|---|
| 作用 | Experimental Heavy Tank |
| 船员 | 6 (Commander, Gunner, Driver, Assistant Driver, 2 Loaders) |
| 主要武器装备 | 105 mm T5E1 High-Velocity Gun |
| 次要武器 | 2 × .50 cal M2HB (Coaxial), 1 × .50 cal (AA), 1 × .30 cal (Bow) |
| Turret Armor | 203 mm (Front) / 279 mm (Gun Mantlet) |
| Hull Armor | 102 mm (Frontal Glacis, highly sloped) |
| 动力装置 | Ford GAC V12 (750 hp) |
| Max Speed | 35 km/h (approx. 22 mph) |
| Combat Weight | 64.2 metric tons |
Design Highlights & Variants
- The “Mickey Mouse” Ears (T29E3): The T29E3 variant is famous for its massive coincidence rangefinder, which protruded from the sides of the turret like “ears.” This allowed the gunner to accurately gauge the distance to targets at extreme ranges.
- Two Loaders: Because the 105mm ammunition was so heavy and utilized a two-piece charge system, the T29 required two loaders to maintain a competitive rate of fire.
- The “Hydro-Drive” Experiment: The T29 series tested advanced transmissions and steering systems that were significantly easier to operate than contemporary tanks, paving the way for the “Cross-Drive” transmissions used in modern MBTs.
- The T30 and T34 Cousins: The T29 was developed alongside the T30 (armed with a 155mm gun) and the T34航站楼 (armed with a 120mm gun adapted from an anti-aircraft cannon), creating a family of “super-heavy” prototypes.
Post-War Legacy
- Foundation for the M103: The lessons learned from the T29 turret and the T34’s 120mm gun directly led to the development of the M103 重型坦克, the last heavy tank to serve with the U.S. Army and Marines.
- Surviving Examples: Despite only eight prototypes being built, several survive today. You can still see one at the U.S. Army Armor & Cavalry Collection at Fort Moore (formerly Fort Benning).
- A Design Dead-End: The T29 eventually proved that “bigger and heavier” had hit a ceiling; the future of American armor moved toward the more balanced Main Battle Tank (MBT) concept seen in the M48 and M60 Patton series.
