Britten-Norman BN-2 Islander

Britten-Norman BN-2 Islander
Zemlja	Velike britanije
Ulogu	Komunalni avion/putnički avion
Prvi let	13. jun 1965.
Izgradio	1280

Čaj Britten-Norman BN-2 Islander je britanski laki komunalni avion i regionalni avion dizajniran i prvobitno proizveden od strane Britten-Norman iz Velike Britanije. Još uvek u proizvodnji, Islander je jedan od najprodavanijih tipova komercijalnih aviona proizvedenih u Evropi. Iako dizajniran u 1960-ih, preko 750 su i dalje u službi sa komercijalnim operaterima širom sveta. Avion je lak prevoz sa preko 30 vojnih vazduhoplovnih operatera širom sveta.

Izvor: Britten-Norman BN-2 Islander on Wikipedia

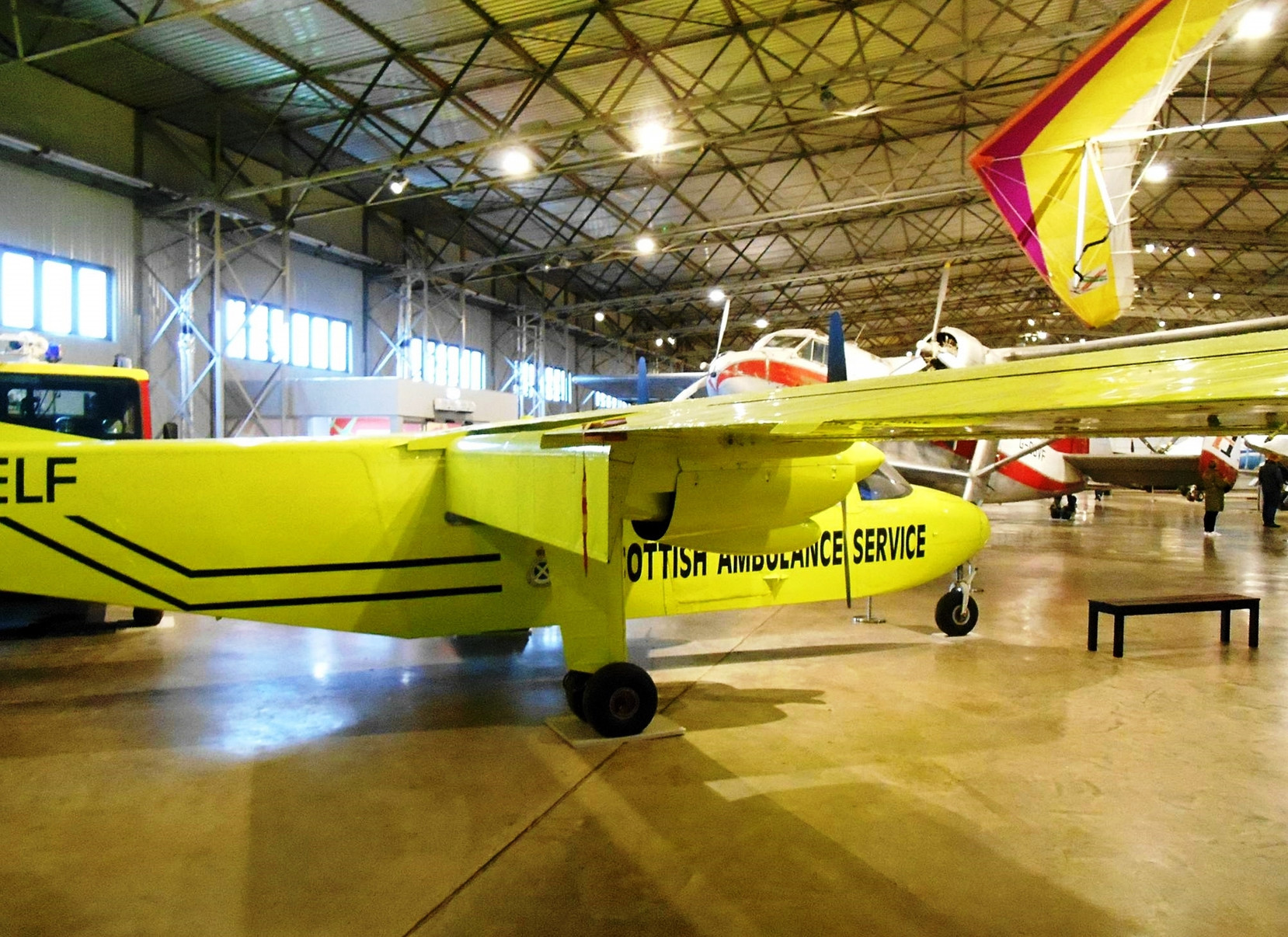

Britten-Norman BN-2A 'Islander' Šetnja okolo
Fotograf	Ondrej Skarka
Lokalizacija	Nepoznato
Fotografije	25

Britten-Norman BN-2A Islander 01

Britten-Norman BN-2A Islander 02

Britten-Norman BN-2A Islander 03

Britten-Norman BN-2A Islander 04

Britten-Norman BN-2A Islander 05

Britten-Norman BN-2A Islander 06

Britten-Norman BN-2A Islander 07

Britten-Norman BN-2A Islander 08

Britten-Norman BN-2A Islander 09

Click on a photo and use the mouse scroll to view all photos

Pogledajte i:

BN Islander Šetnja okolo
Fotograf	Unknow Unknow
Lokalizacija	Nepoznato
Fotografije	20

Čekajte, Britten-Norman BN-2 Islander za vas...

General Characteristics and Role

The Britten-Norman BN-2 Islander is one of the most successful and enduring light aircraft designs in British aviation history. Introduced in the 1960s, the BN-2A is the definitive refined production version, designed specifically for high-frequency, short-haul operations from rugged, unprepared airstrips. Its simple, robust construction and high-wing design make it an ideal bush plane for island-hopping and remote regional transport. One of its most unique features is its lack of a center aisle; passengers access their seats via three separate doors on either side of the fuselage. This design maximizes interior space for payload and allows for very rapid boarding and egress.

Property	Typical Value (BN-2A Islander)
Tip	Light Utility Transport / Commuter Airliner
National Origin	Ujedinjeno Kraljevstvo
Proizvođača	Srpskohrvatski / srpskohrvatski
Entered Service	1967 (BN-2), 1969 (BN-2A)
Posada	1 or 2
Passenger Capacity	Up to 9 passengers
Dužina	10.86 m (35 ft 8 in)
Raspon krila	14.94 m (49 ft 0 in)

Powerplant and Performance

Engines: 2 x Lycoming O-540-E4C5 or IO-540-K1B5 flat-six piston engines. The Islander is also available in a turboprop version (Defender/Turbine Islander).
Engine Power: 260 hp to 300 hp (195-225 kW) per engine.
Maximum Speed: Approx. 273 km/h (170 mph).
Service Ceiling: 4,000 m (13,200 ft).
STOL Capability: The Islander is famous for its Short Take-Off and Landing performance, requiring as little as 189 meters (620 ft) of ground roll to get airborne.
Landing Gear: Fixed tricycle landing gear with dual main wheels, designed to handle the high stress of repeated landings on grass, dirt, or gravel tracks.
Fuselage: Rectangular cross-section designed for maximum cargo volume and easy loading of bulky items.

Service History and Legacy

Longevity: The Islander has been in continuous production for over 50 years, with more than 1,200 aircraft built and delivered to operators in over 120 countries.
The Defender: A militarized version known as the BN-2 Defender features underwing hardpoints for sensors, fuel tanks, or light armament, and is used by many small air forces for maritime patrol and counter-insurgency.
Air Ambulance and Police: Its low operating costs and ability to land almost anywhere have made it a favorite for air ambulance services in remote areas and police surveillance units.
Loganair Service: The Islander famously serves the shortest scheduled airline flight in the world—the 1.7-mile hop between Westray and Papa Westray in the Orkney Islands, which takes about 90 seconds.
Trislander: The design was further developed into the three-engined BN-2A Mk III Trislander, featuring a stretched fuselage and an additional engine mounted on the vertical stabilizer.
