Ryan FR Fireball

Ryan FR Fireball
Državi	Zda
Vlogo	Borec
V službi	25. junij 1944
Zgrajena	71

V Ryan FR Fireball je bilo lovsko letalo mešane moči (batno in reaktivno), ki ga je Ryan Aeronautical zasnoval za mornarico Združenih držav med drugo svetovno vojno. To je bilo prvo letalo mornarice z reaktivnim motorjem. Pred predajo Japonske avgusta 1945 je bilo zgrajenih le 66 letal. FR-1 Fireball je pred koncem vojne opremil eno eskadrilo, vendar ni videl boja. Izkazalo se je, da letalo na koncu ni imelo strukturne trdnosti, potrebne za operacije na letalonosilkah, in je bilo umaknjeno sredi leta 1947.

Vir: Ryan FR Fireball na Wikipediji, prosta enciklopedija

Ryan FR-1 Fireball Walk Around
Fotograf	Cees Hendriks
Lokalizacijo	Neznano
Fotografije	49

Ryan FR-1 Fireball 01

Ryan FR-1 Fireball 02

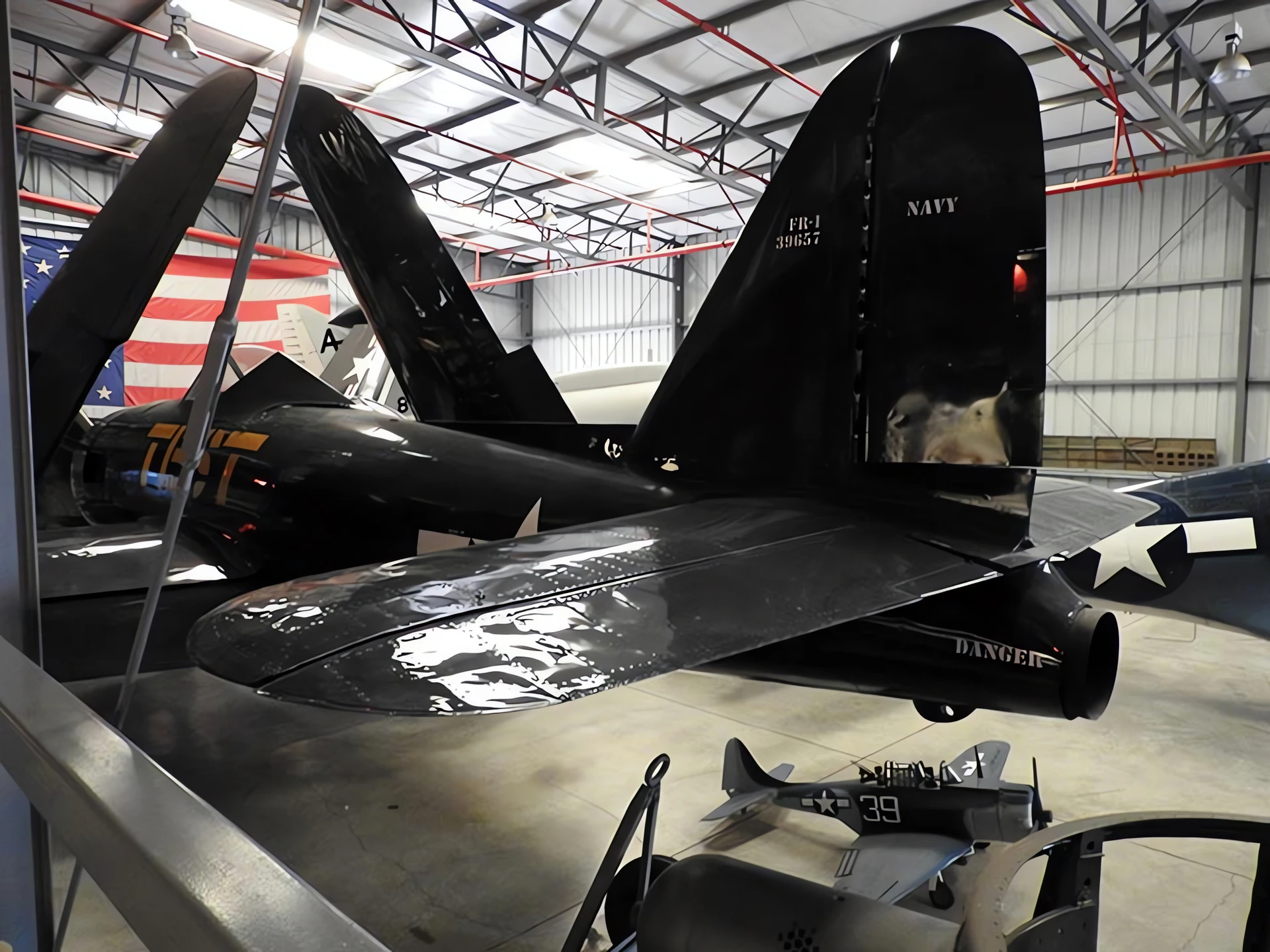

Ryan FR-1 Fireball 03

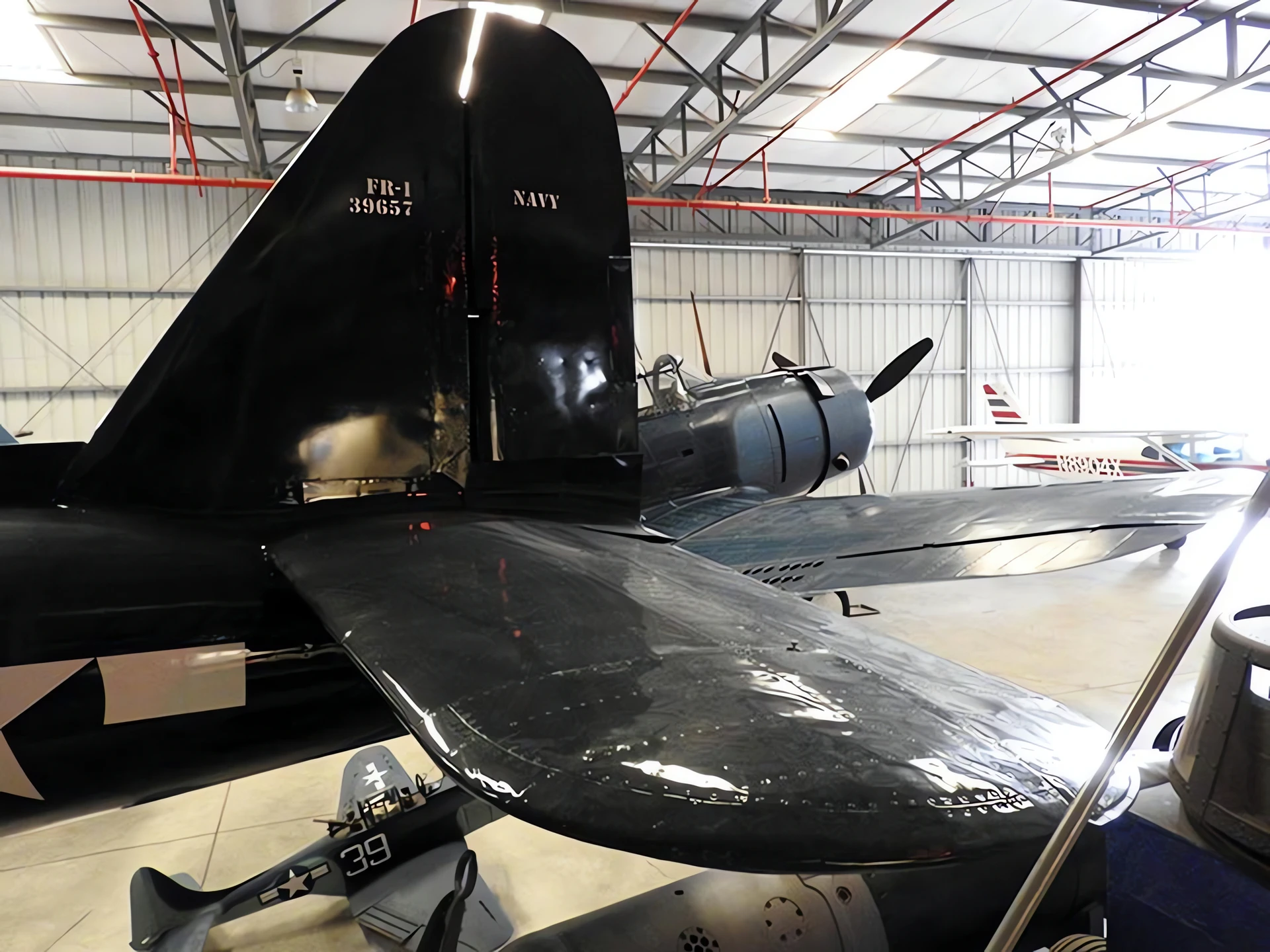

Ryan FR-1 Fireball 04

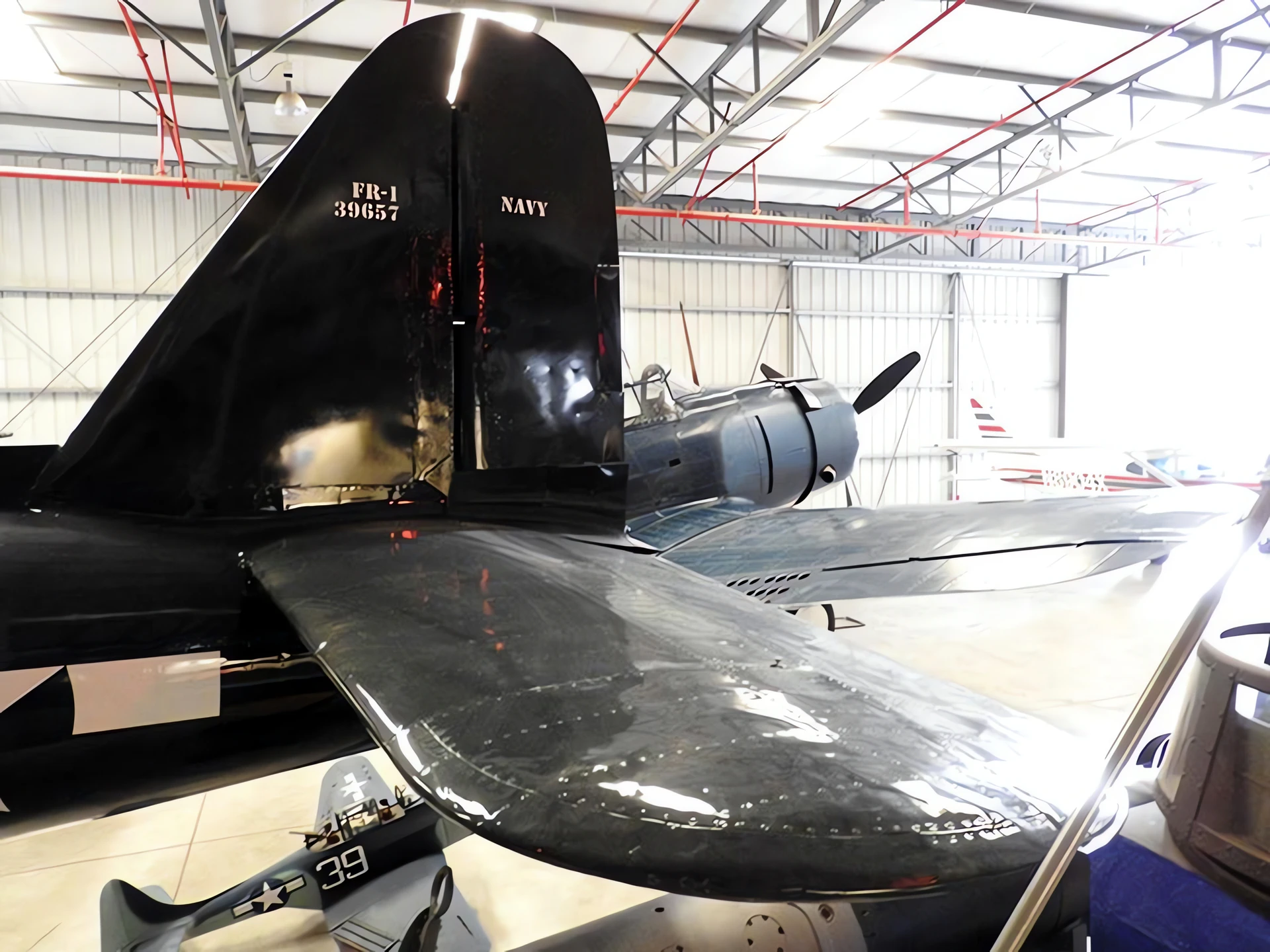

Ryan FR-1 Fireball 05

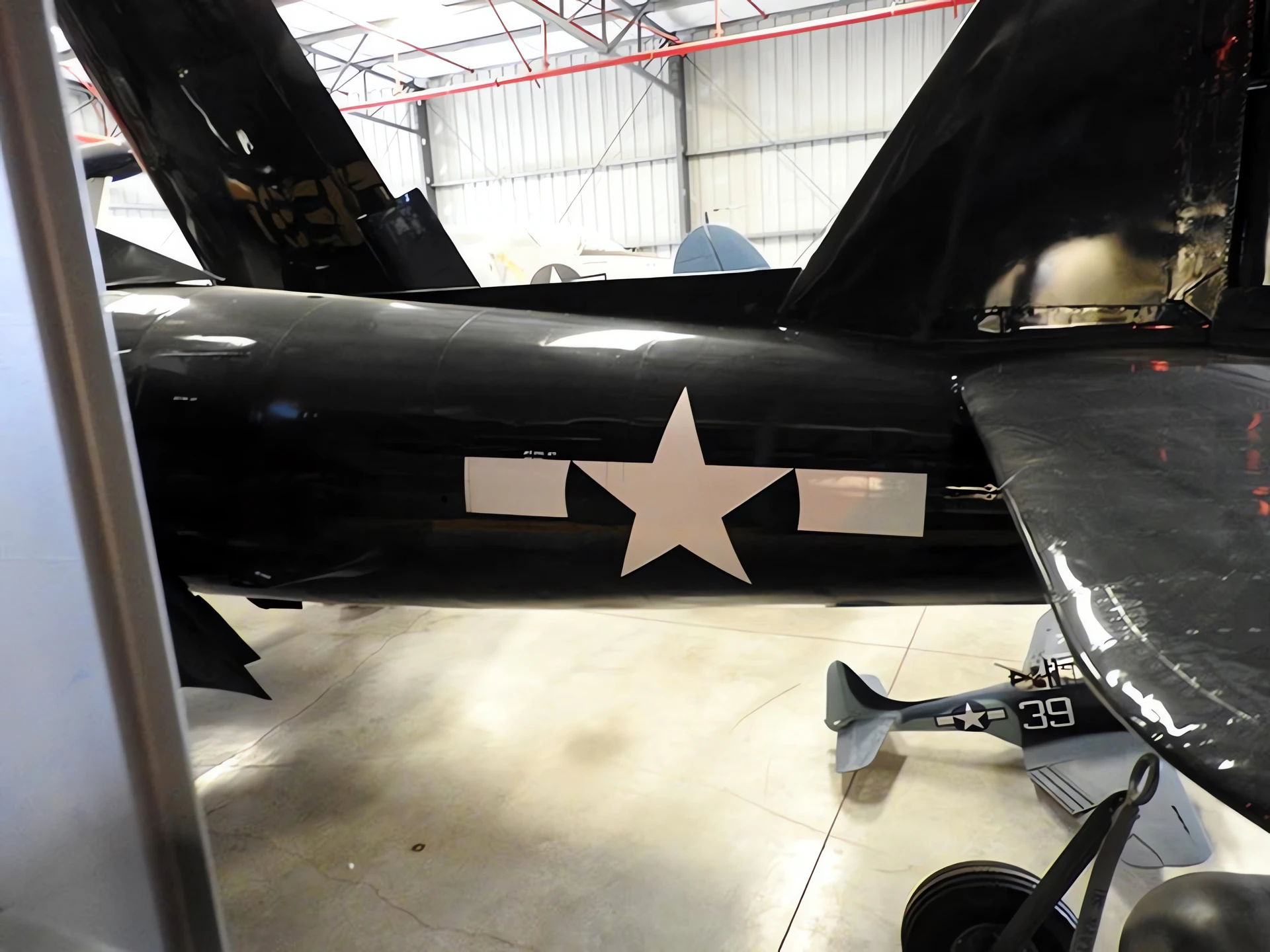

Ryan FR-1 Fireball 06

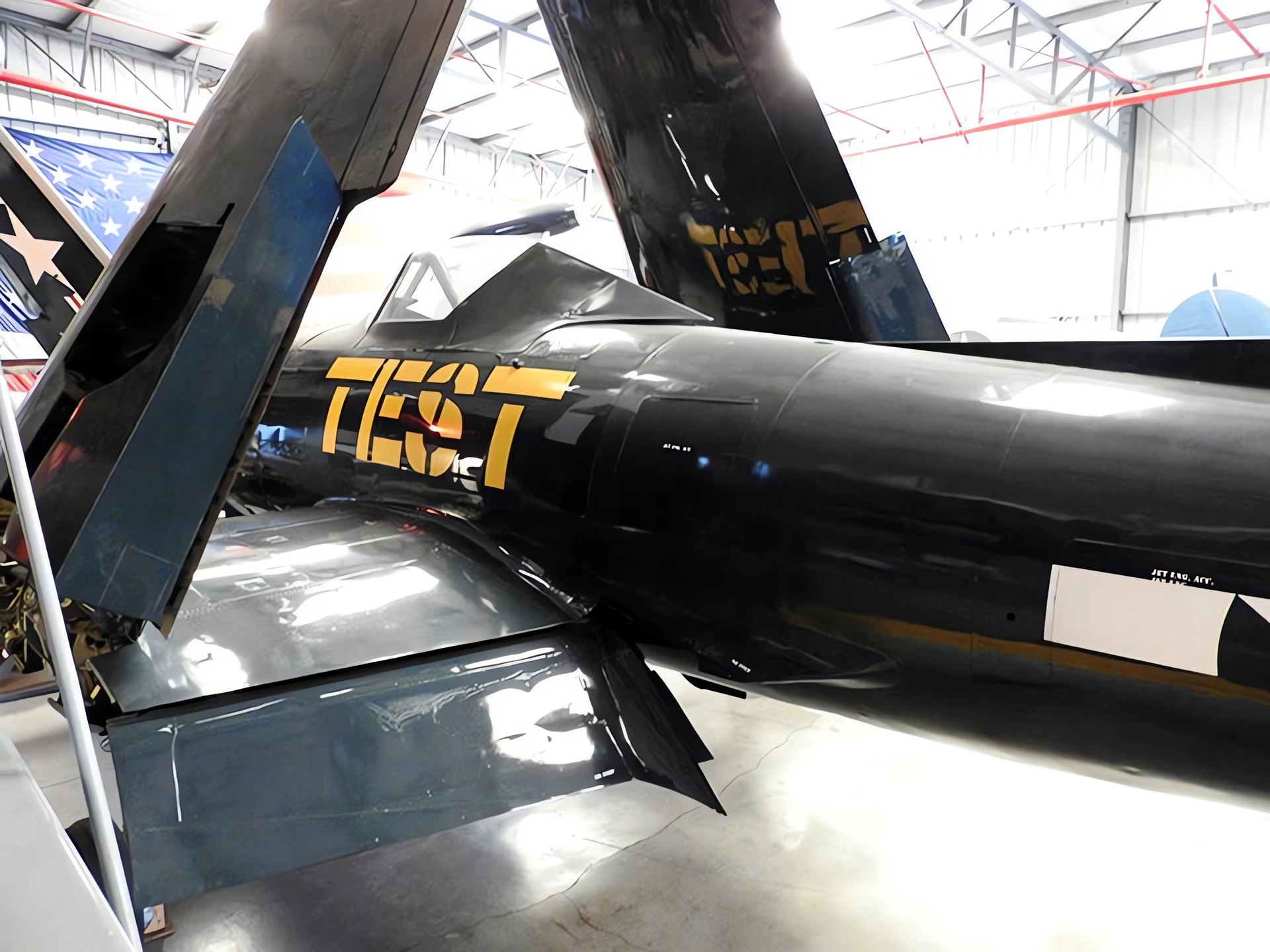

Ryan FR-1 Fireball 07

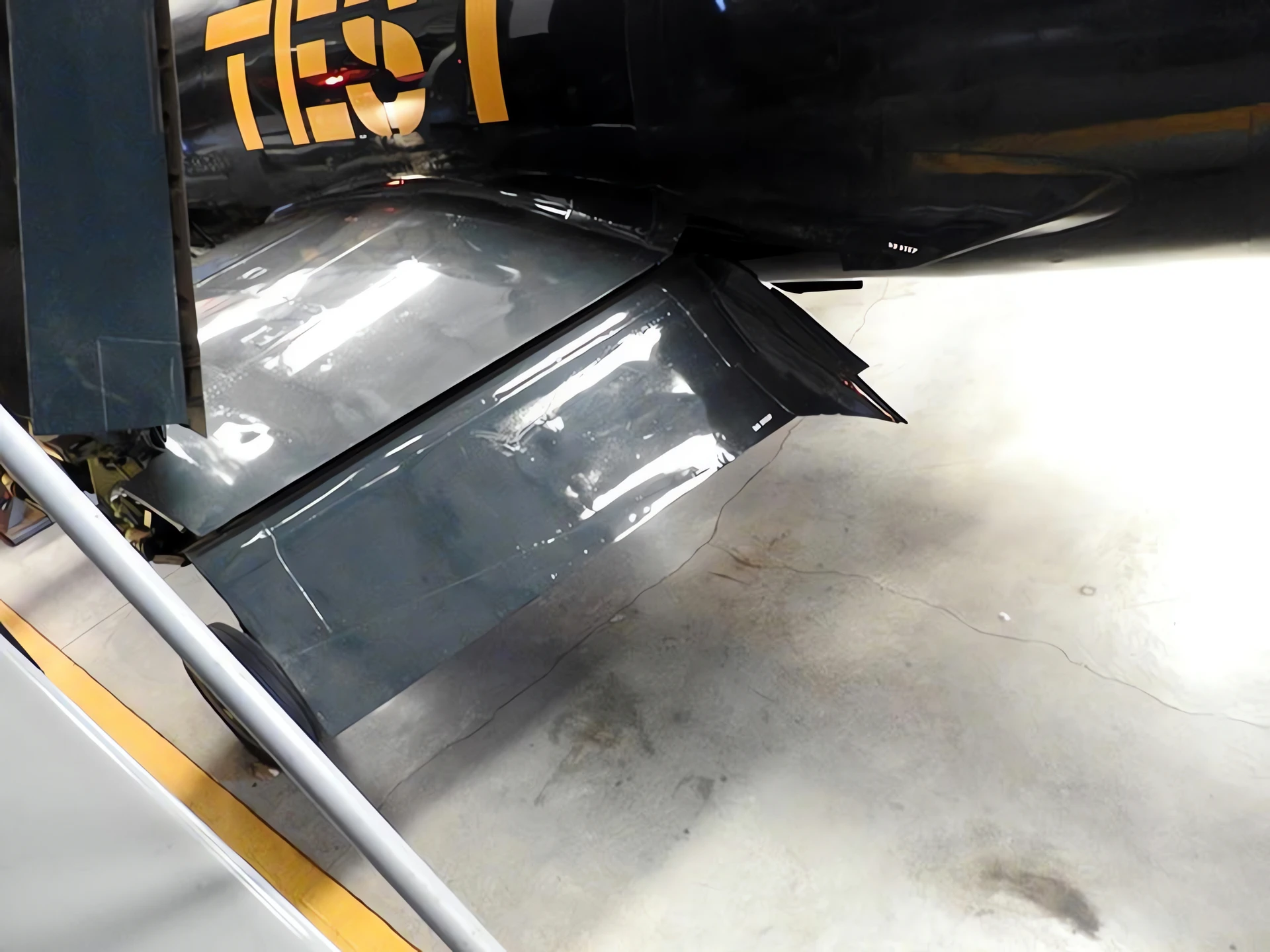

Ryan FR-1 Fireball 08

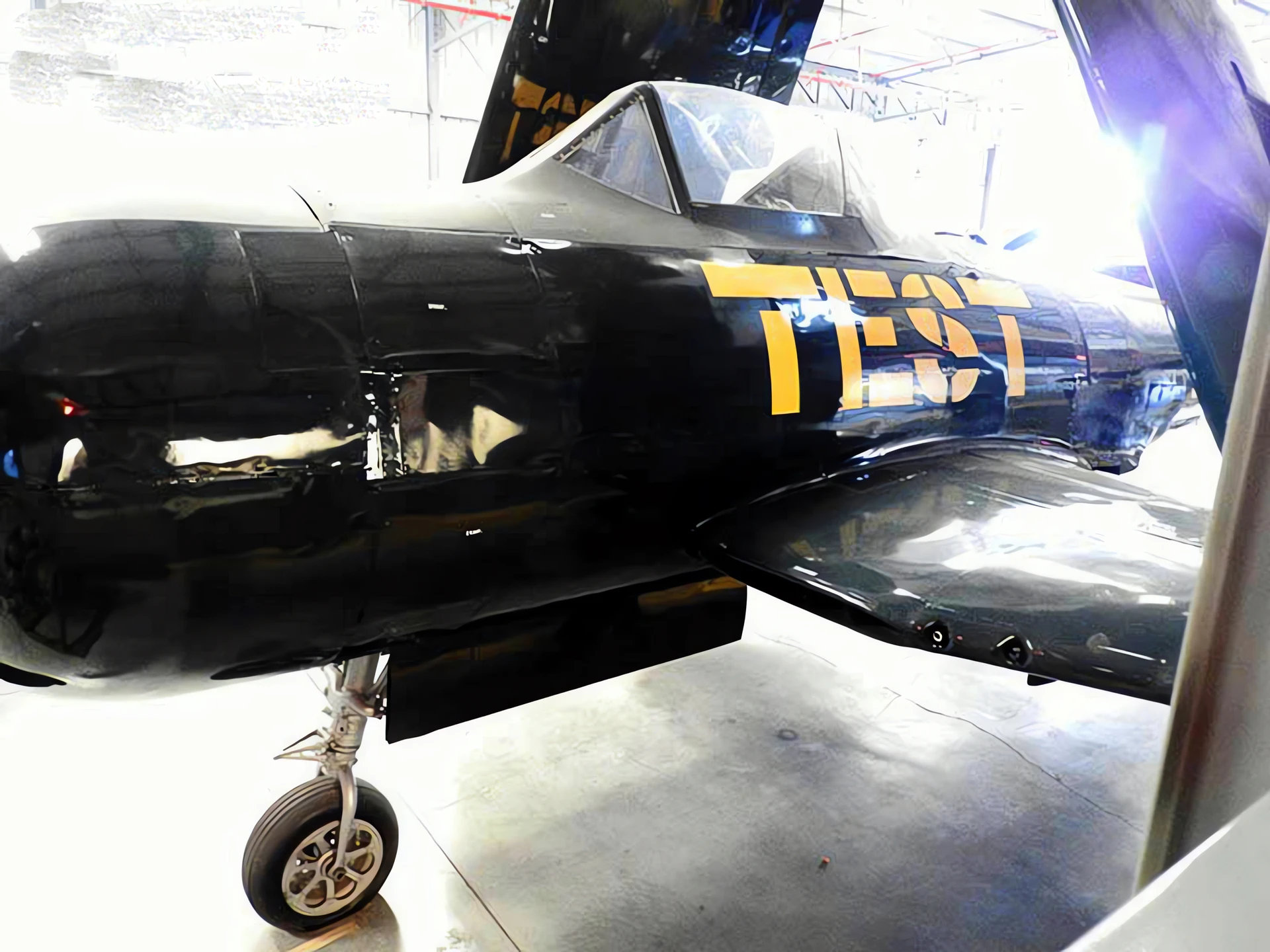

Ryan FR-1 Fireball 09

Click on a photo and use the mouse scroll to view all photos

Počakajte, poiščite Ryan FR Fireball za vas ...

Glej tudi:

The Best of Both Worlds

V Ryan FR-1 Fireball was a unique “mixed-power” fighter designed during World War II. At the time, early jet engines were notorious for poor acceleration and high fuel consumption at low altitudes, making carrier takeoffs and landings dangerous. Ryan’s solution was a hybrid: a conventional radial piston engine in the nose for reliability and takeoff, and a turbojet engine in the tail for high-speed combat. It was the first aircraft in U.S. Navy history to enter service with a jet engine.

Attribute	Technical Specification (FR-1)
Vlogo	Carrier-based Mixed-Power Fighter
Posadke	1 (Pilot)
First Flight	June 25, 1944
Piston Engine	1 × Wright R-1820-72W Cyclone radial (1,350 hp)
Jet Engine	1 × General Electric J31-GE-3 turbojet (1,600 lbf)
Maximum Speed	404 mph (650 km/h) — Both engines running
Climb Rate	4,800 ft/min (1,463 m/min)
Oborožitev	4 × .50 cal (12.7 mm) M2 Browning machine guns; 2 × 1,000 lb bombs

A Tale of Two Engines

The Hybrid Layout: The Fireball featured a Wright Cyclone radial in the nose driving a three-bladed propeller, while a GE J31 jet was tucked into the rear fuselage. The air intakes for the jet were flush-mounted in the leading edges of the wing roots.
Tricycle Landing Gear: To accommodate the jet exhaust and provide better visibility for carrier landings, the FR-1 used a tricycle gear arrangement, a significant departure from the taildraggers of the era like the Corsair or Hellcat.
Weight Distribution: The heavy radial engine in front balanced the weight of the jet engine in the rear. This allowed the aircraft to remain stable even if one engine failed or was shut down to conserve fuel during cruise.
Structural Frailty: To keep the weight down for the two engines, the FR-1 was built quite lightly. It suffered from structural weaknesses that sometimes led to the aircraft literally “breaking its back” during hard carrier landings.

Operational History: The First Jet Kill (By Accident)

The 1945 Entrance: The Fireball entered service with squadron VF-66 in March 1945. While it was being prepared for combat in the Pacific, the war ended before it could see action against Japanese aircraft.
The “Unintentional” First Landing: On November 6, 1945, an FR-1 made the first-ever jet-powered carrier landing—but by accident. The piston engine failed on final approach, and the pilot was forced to start the jet engine and land under jet power alone.
VF-1 “The Screaming Eagles”: The Fireball equipped the Navy’s first all-jet capable squadron. However, the Navy soon realized that pure-jet aircraft (like the FH Phantom) were becoming reliable enough that the complexity of maintaining two different engines was no longer worth it.
Short-Lived Career: By mid-1947, all FR-1s were retired. They were simply outpaced by the rapid development of post-war jet technology. Today, only one complete example survives at the Planes of Fame Air Museum in Chino, California.
