Sikorsky HH-52 Seaguard

Sikorsky HH-52 Seaguard
Kraju	Stany Zjednoczone Ameryki
Roli	SAR/śmigłowiec użytkowy
Uruchomiony	22 maja 1958
Zbudowany	175

Tthe Sikorsky HH-52 Straż Morska (oznaczenie firmowe S-62) był pojedynczym silnikiem turbinowym, trójłopatowym śmigłowcem amfibijnym. Pierwotnie opracowany jako przedsięwzięcie komercyjne przez Sikorsky Aircraft Corporation z Stratford w stanie Connecticut, był używany przez Straż Przybrzeżną Stanów Zjednoczonych głównie do ratownictwa powietrzno-morskiego. HH-52 został zastąpiony przez typy nie amfibie, takie jak HH-65 Dolphin, które polegają wyłącznie na użyciu wciągarki z niskiego zawisu do prowadzenia operacji ratowniczych.

Źródła: Sikorsky HH-52 Seaguard na Wikipedii

Sikorsky HH-52 Seaguard Helicopter Walk Around
Photographer	Bill Maloney
Localisation	Unknow
Photos	24

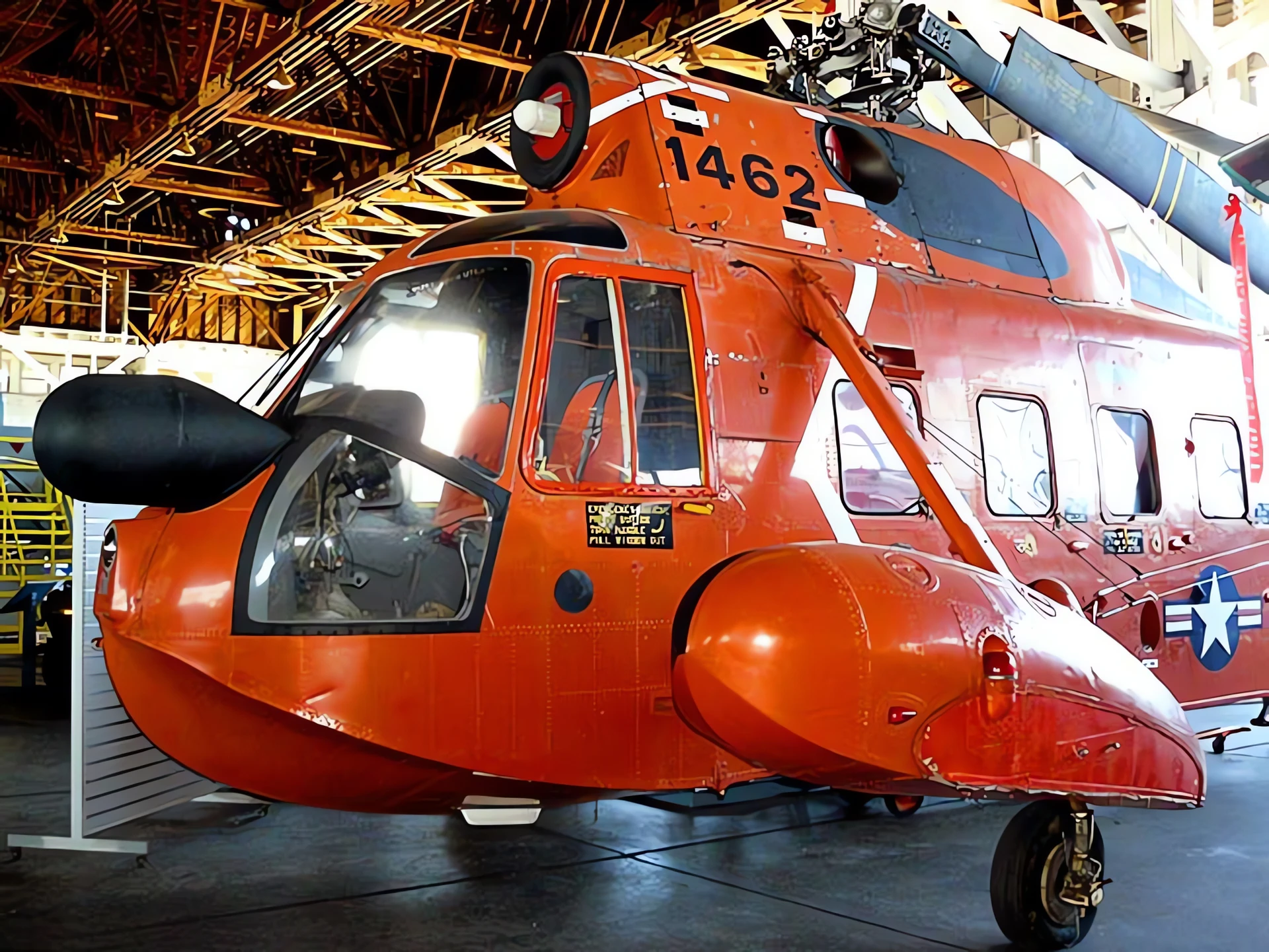

Sikorsky HH-52 Seaguard 01

Sikorsky HH-52 Seaguard 02

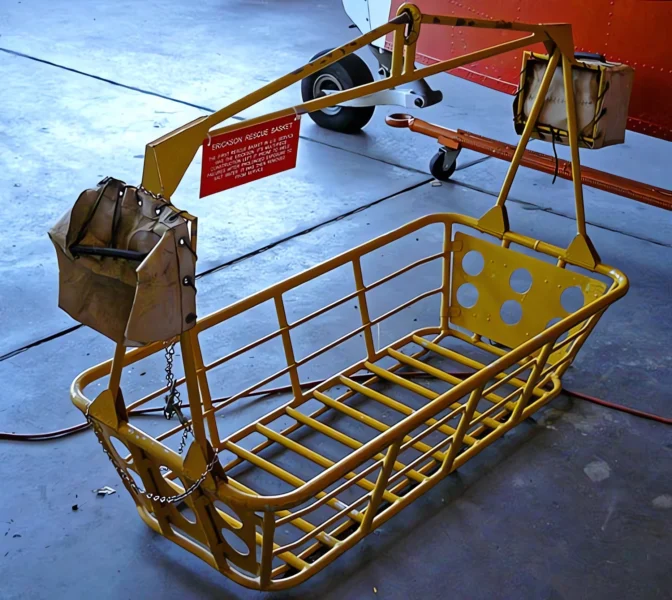

Sikorsky HH-52 Seaguard 03

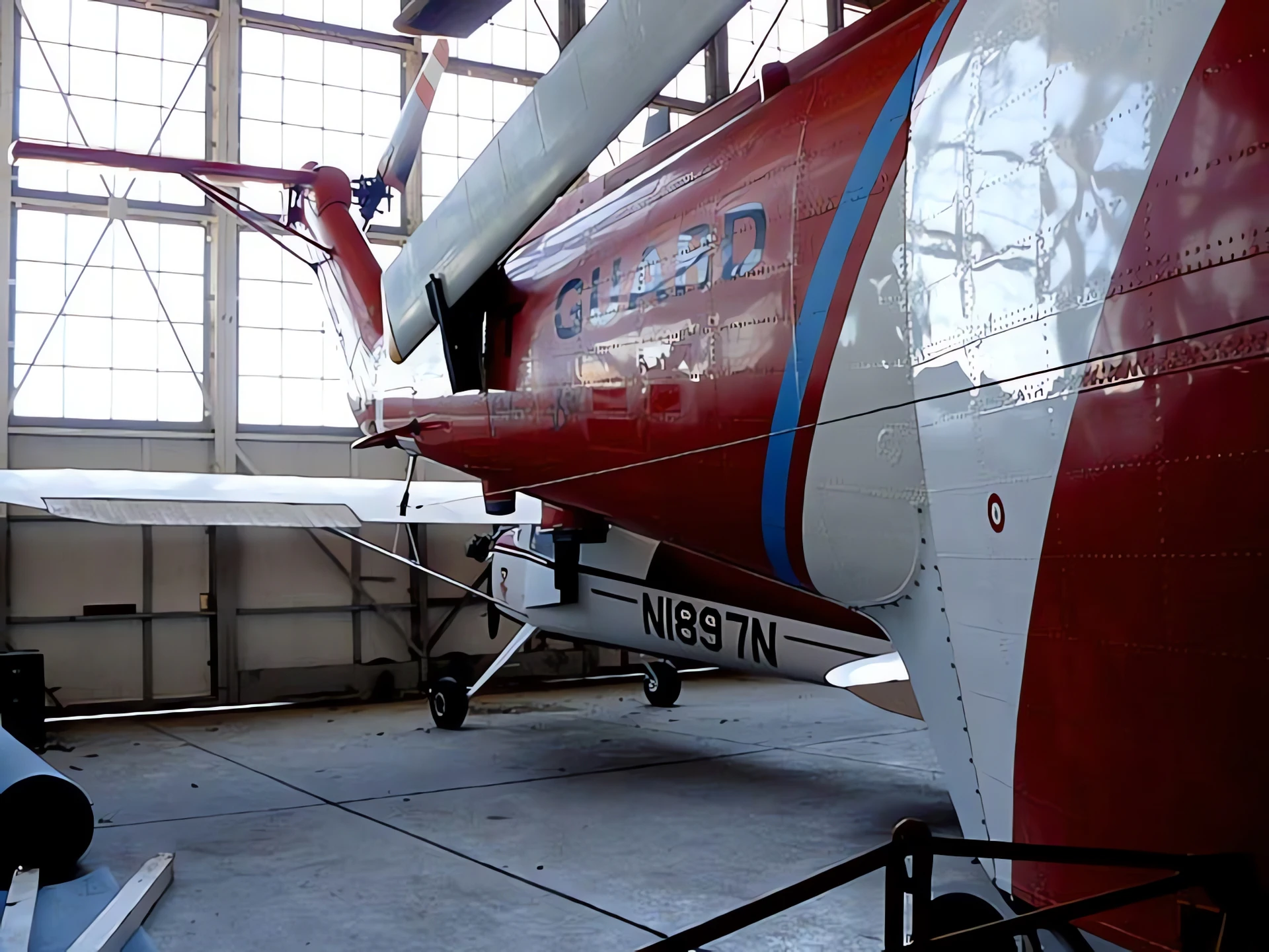

Sikorsky HH-52 Seaguard 04

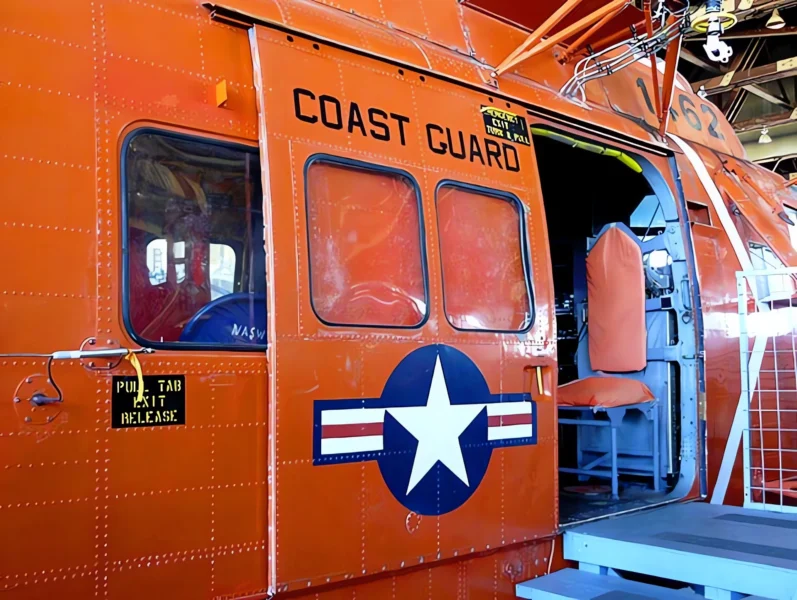

Sikorsky HH-52 Seaguard 05

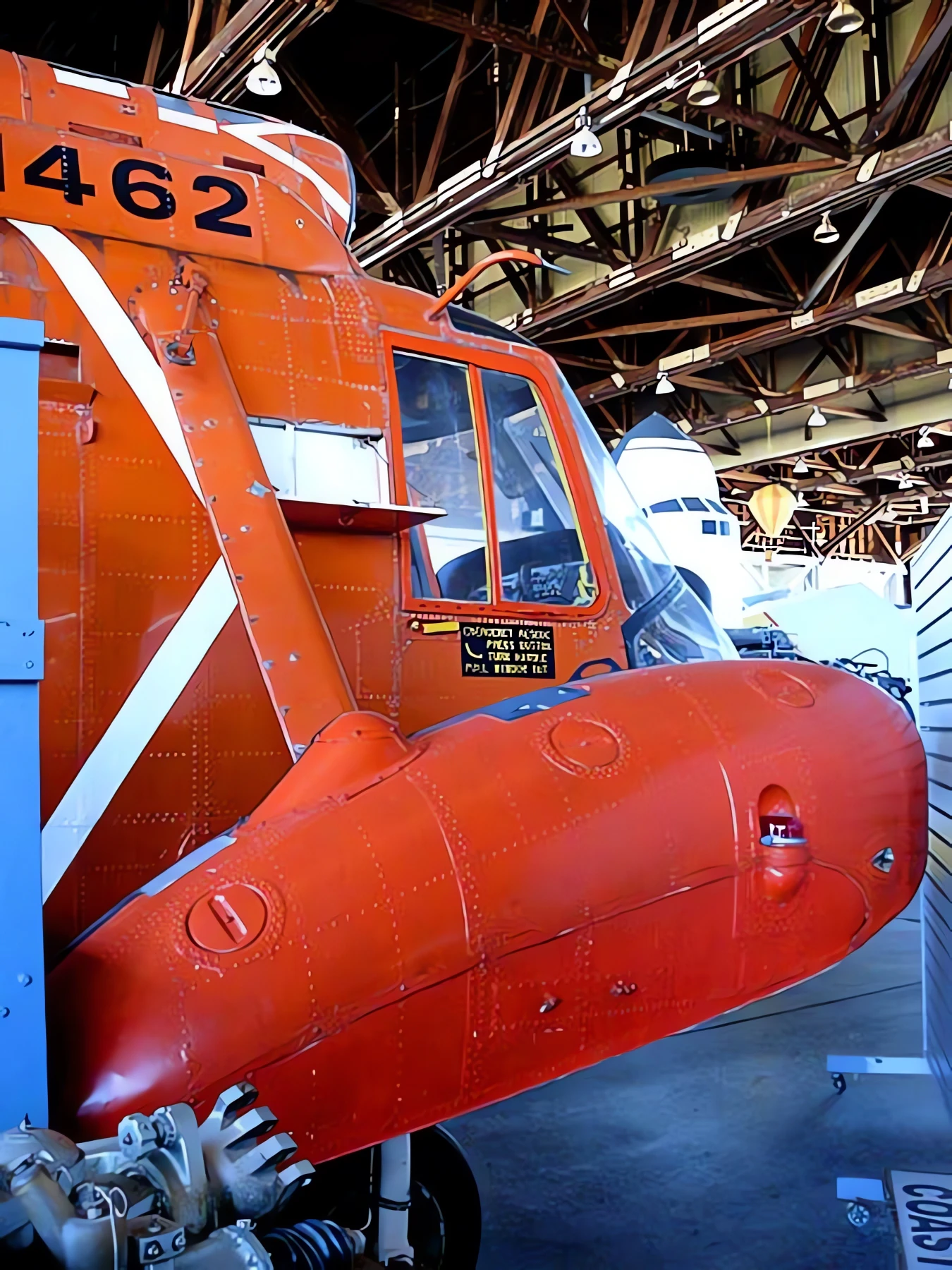

Sikorsky HH-52 Seaguard 06

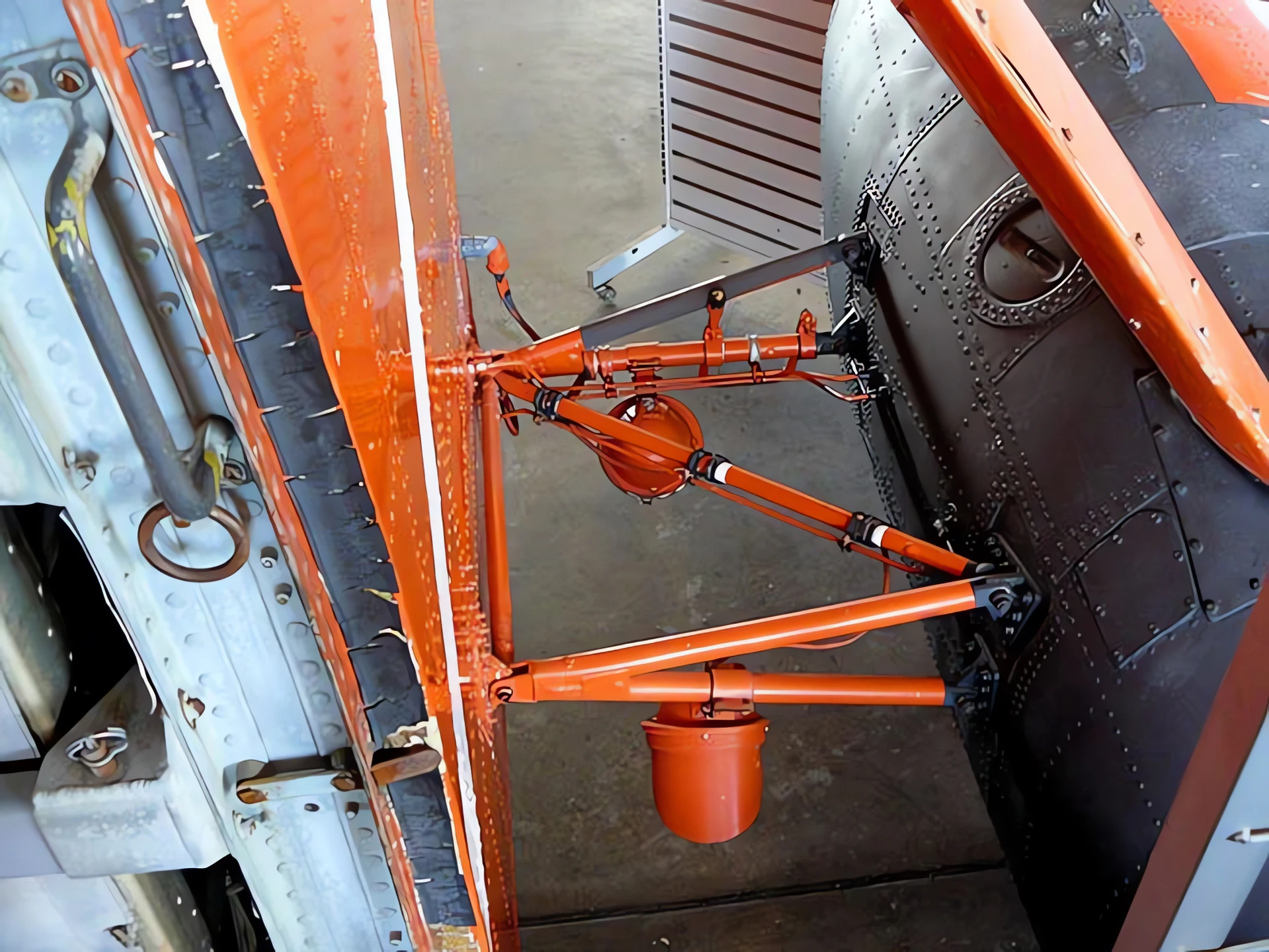

Sikorsky HH-52 Seaguard 07

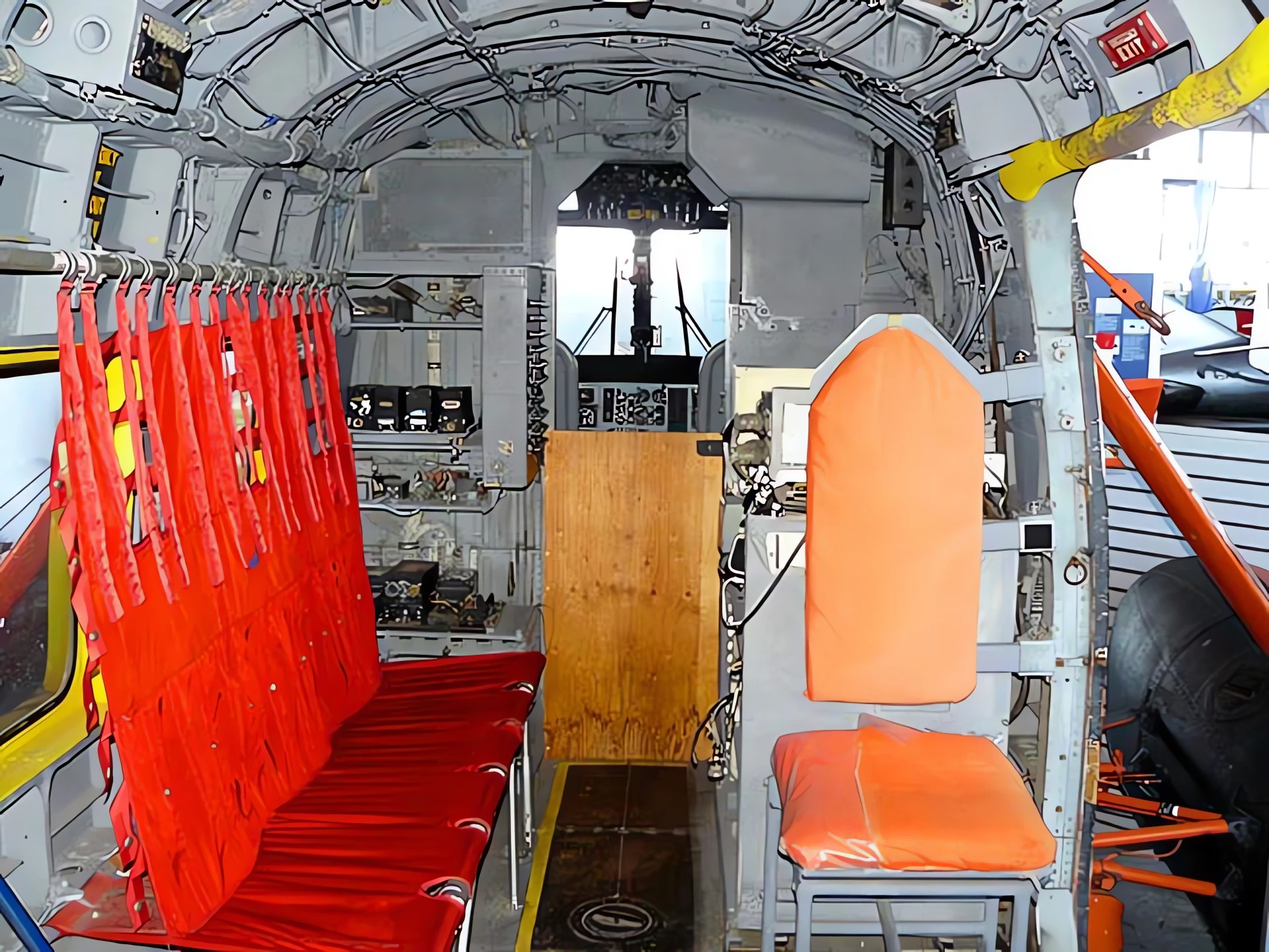

Sikorsky HH-52 Seaguard 08

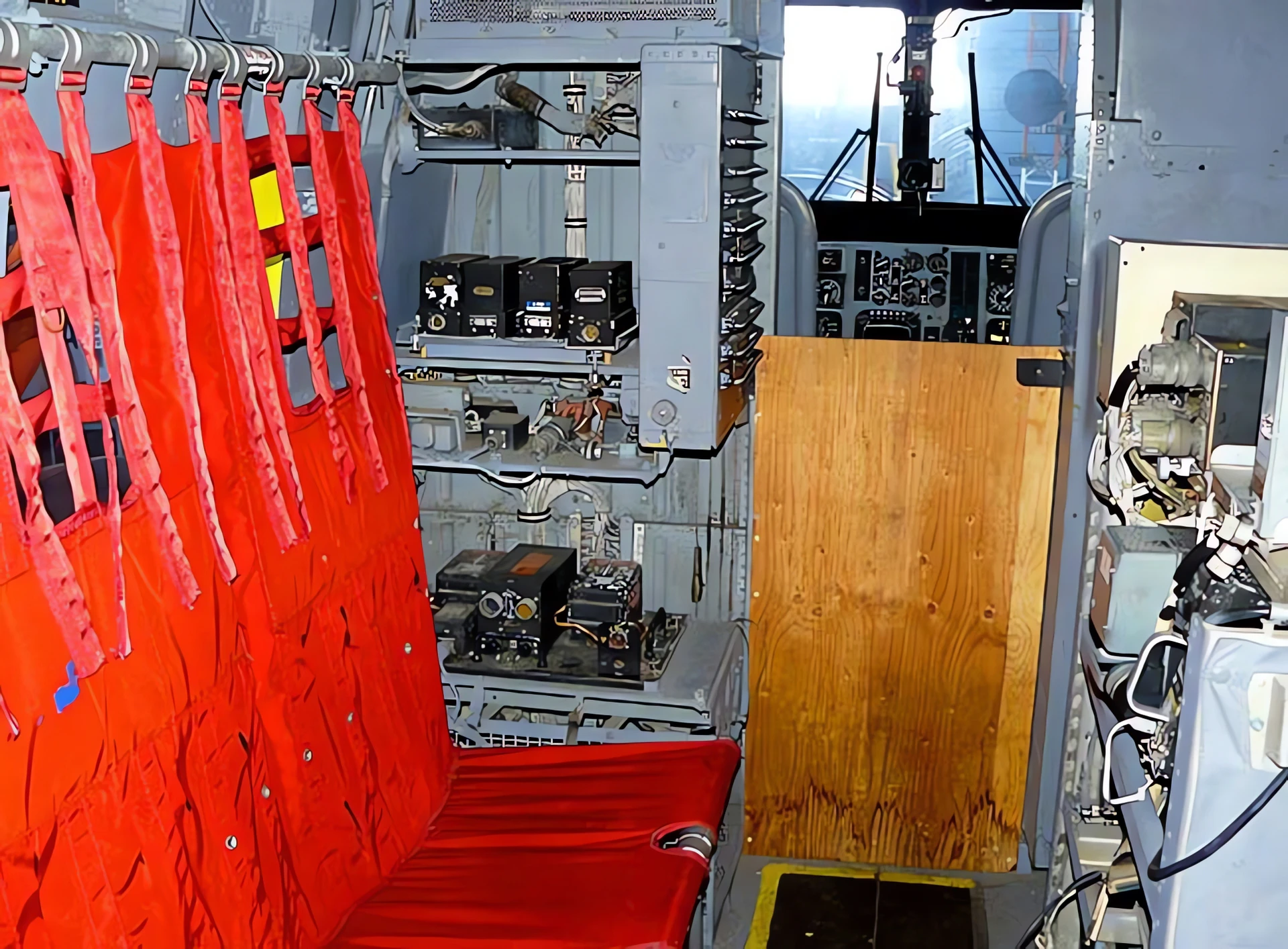

Sikorsky HH-52 Seaguard 09

Click on a photo and use the mouse scroll to view all photos

Czekaj, Wyszukiwanie Sikorsky HH-52 Seaguard dla Ciebie...

Zobacz też:

General Characteristics and Role

The Sikorsky HH-52 Seaguard was a crucial amphibious helicopter used primarily by the United States Coast Guard (USCG) for shipboard and shore-based search and rescue (SAR) operations, as well as law enforcement missions. It was based on the S-62 commercial helicopter and was the world’s first amphibious helicopter in large-scale production, a key feature that defined its service. The HH-52’s ability to land directly on water, thanks to its boat-like hull and outrigger pontoons, gave the USCG a major advantage in maritime rescue operations. Its service spanned over 26 years, making it one of the most reliable and successful assets in the Coast Guard’s history, credited with saving thousands of lives.

Property	Typical Value (HH-52A Seaguard)
Roli	Search and Rescue (SAR), Utility, Shipboard Operations
National Origin	Stany Zjednoczone
Producent	Sikorsky Aircraft
Service Entry (USCG)	1963
Załogi	3 (Pilot, Co-pilot, Crewman/Hoist Operator)
Pojemność	Up to 10 passengers or 3 stretchers and medical attendant
Rotor Diameter	16.16 m (53 ft 0 in)
Length (Fuselage)	13.57 m (44 ft 6 in)
Wysokość	4.77 m (15 ft 8 in)
Max Takeoff Weight	3,992 kg (8,800 lb)

Powerplant and Performance

Engine: 1 x General Electric T58-GE-8B turboshaft engine.
Power Output: 932 kW (1,250 shp) (derated for reliability).
Maximum Speed: 175 km/h (109 mph; 94 kn).
Cruise Speed: 155 km/h (96 mph; 84 kn).
Range: 760 km (470 mi; 410 nmi).
Amphibious Capability: Features a fully watertight hull and lateral pontoons for flotation and stability, allowing water landings.

Operational Features and Legacy

Rescue Hoist: Equipped with an electrically powered rescue hoist, essential for lifting people and cargo from the water or confined spaces.
Rotor System: Utilizes the highly reliable rotor and transmission system from the older H-34 (S-58) piston-engine helicopter.
Nickname: Known as the “Hovering Lifeboat” due to its amphibious capability and primary SAR role.
Retirement: The HH-52A was retired from Coast Guard service in 1989, being replaced by the Aerospatiale HH-65 Dolphin.
