Curtiss F11C Goshawk | |
|---|---|
| 국가 | 미국 |
| 역할 | Carrier borne Fighter & Fighter-Bomber |
| 첫 비행 | 1932년 9월 |
| 부일리 | 30 |
Tthe 커티스 F11C 고스호크 1930 년대 미국 해군 복엽기 전투기는 제한된 성공을 거두었지만 Curtiss Aeroplane and Motor Company가 미군을 위해 제작 한 Curtiss Hawk 비행기의 긴 라인의 일부였습니다.
소스: RCurtiss F11C Goshawk on Wikipedia

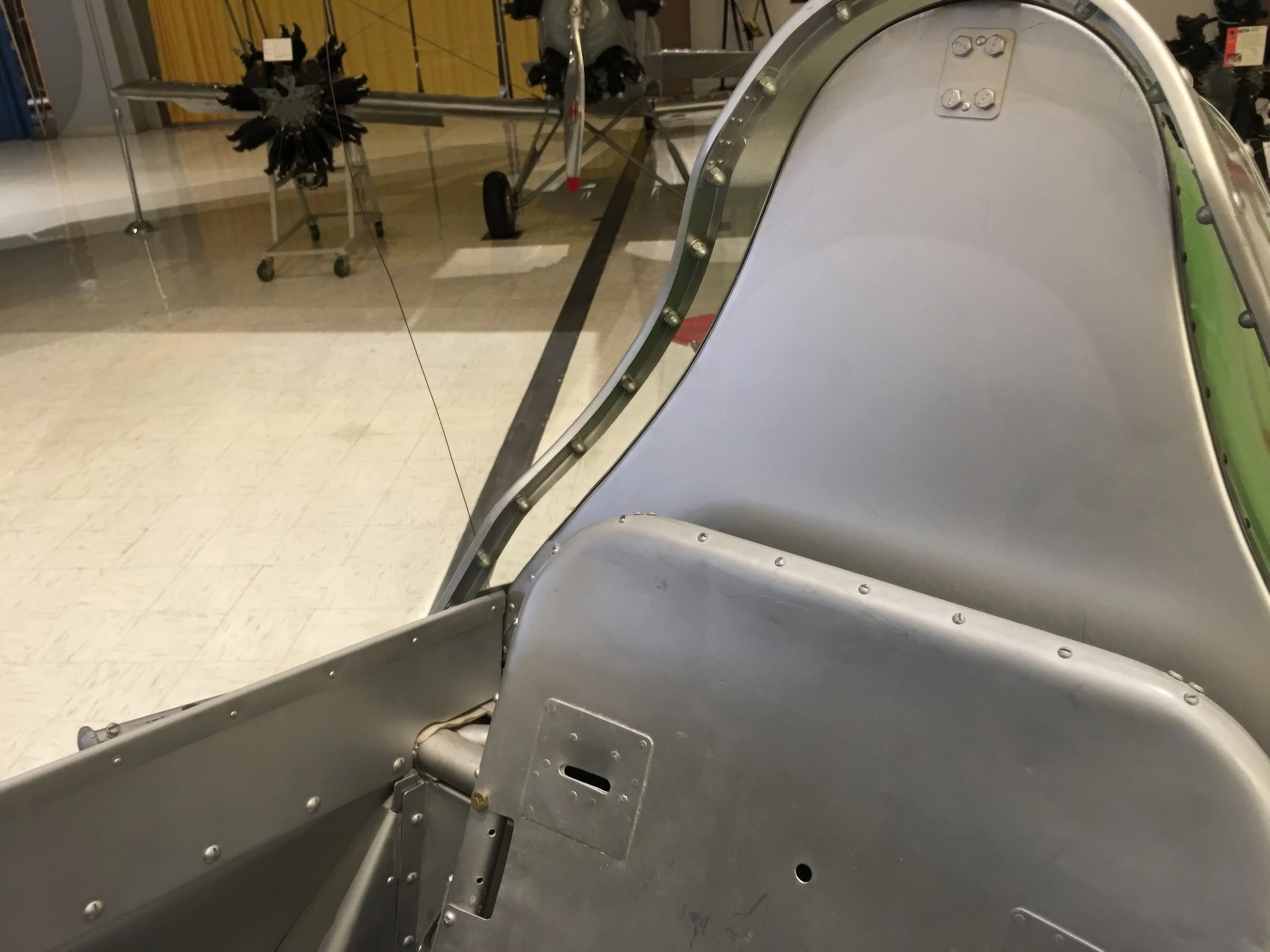

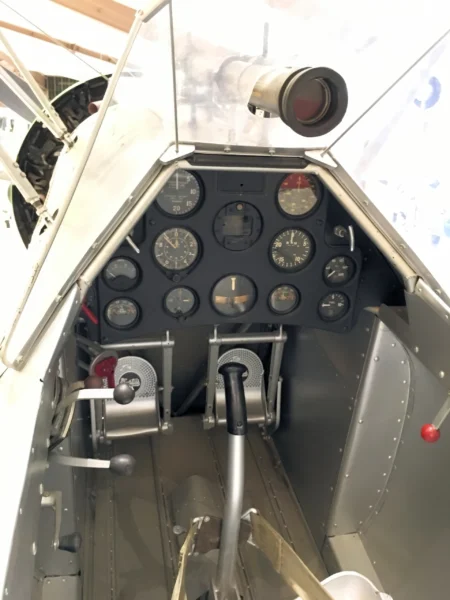

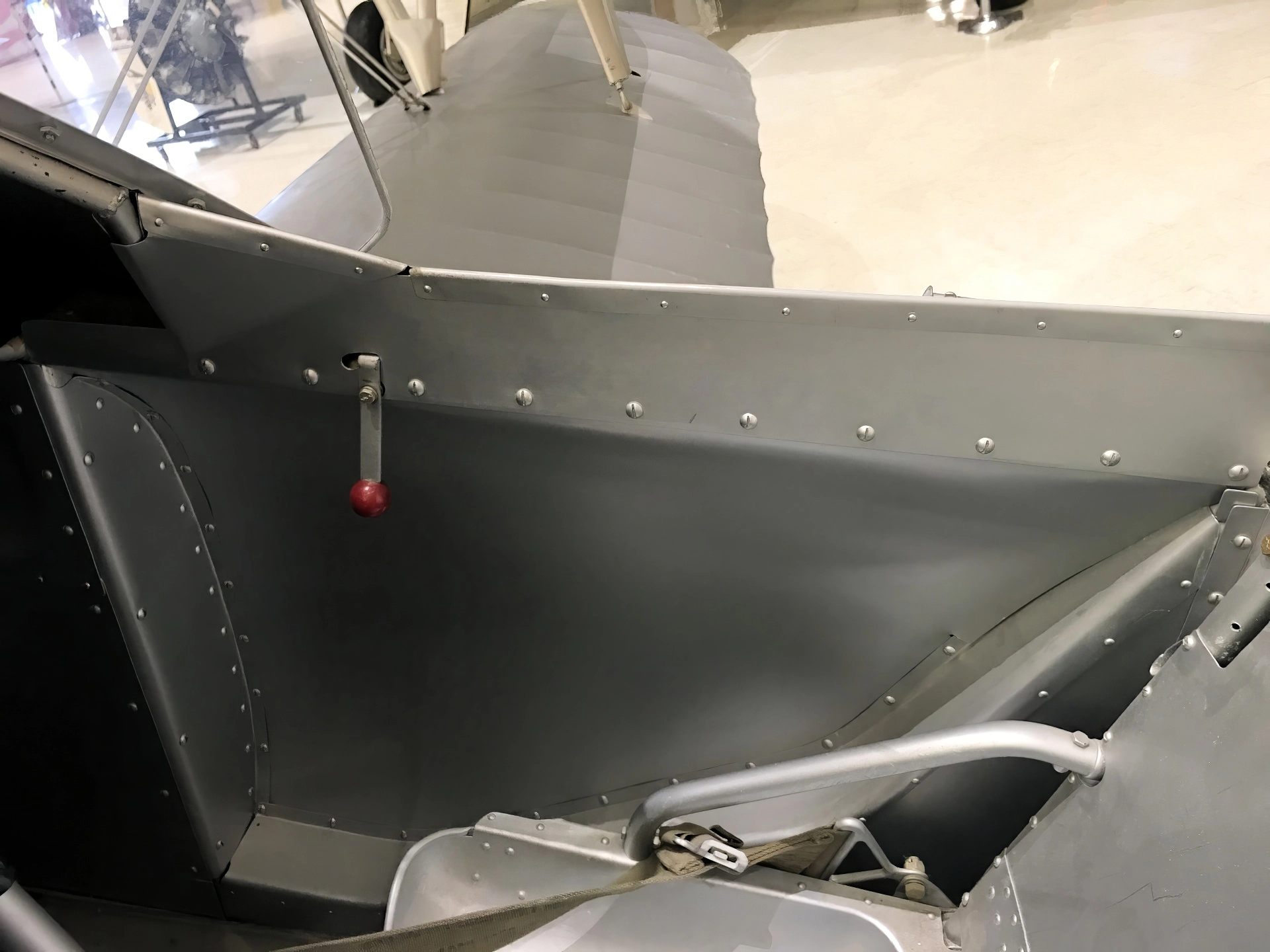

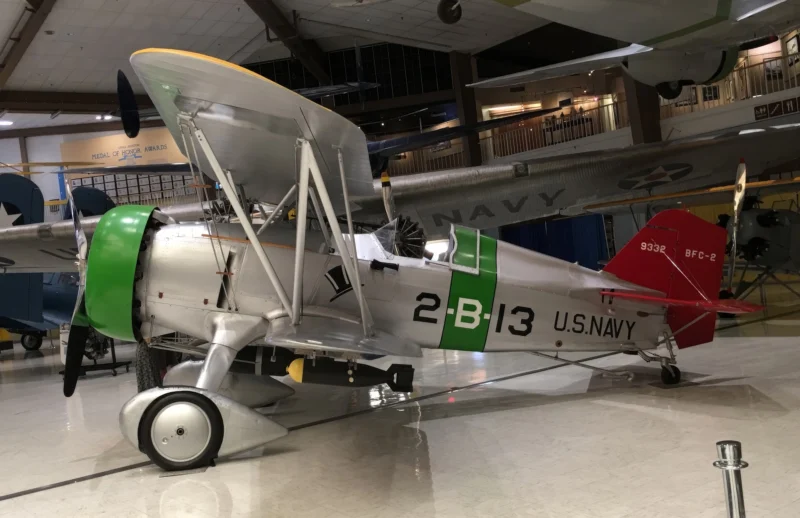

| BFC-2 Walk Around | |
|---|---|
| 사진 작가 | 포티오스 루치 |
| 로컬라이제이션 | Unknow |
| 사진 | 22 |
참고 항목:
마이클 샤프
324 페이지 · 2000
General Characteristics and Role
The Curtiss F11C Goshawk was a single-seat biplane fighter and dive bomber developed for the United States Navy in the early 1930s. It was the last in the line of Curtiss biplane fighters, evolved from the Curtiss Hawk family. Although initially designated as a fighter (F11C), its role quickly expanded, and the production version was re-designated as a two-seat fighter-bomber/scout (BFC-2). The Goshawk was a highly maneuverable aircraft, serving briefly as a primary fighter aboard US Navy aircraft carriers before being quickly superseded by the shift to monoplane designs in the mid-1930s.
| Property | Typical Value (F11C-2 / BFC-2) |
|---|---|
| 역할 | Carrier-Based Fighter / Scout-Bomber |
| National Origin | 미국 |
| 제조업체 | 커티스 비행기 및 모터 회사 |
| First Flight | March 1932 |
| 승무원 | 1 (Pilot) or 2 (BFC-2/BF2C-1) |
| 길이 | 7.62 m (25 ft 0 in) |
| 윙스 팬 | 9.60 m (31 ft 6 in) |
| 높이 | 3.35 m (11 ft 0 in) |
| Empty Weight | 1,217 kg (2,683 lb) |
| Gross Weight | 1,739 kg (3,835 lb) |
Powerplant and Performance

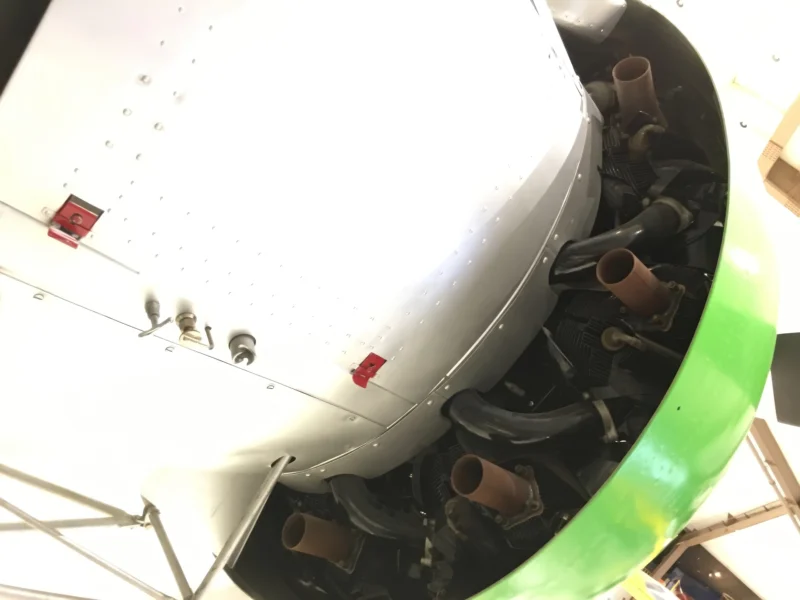

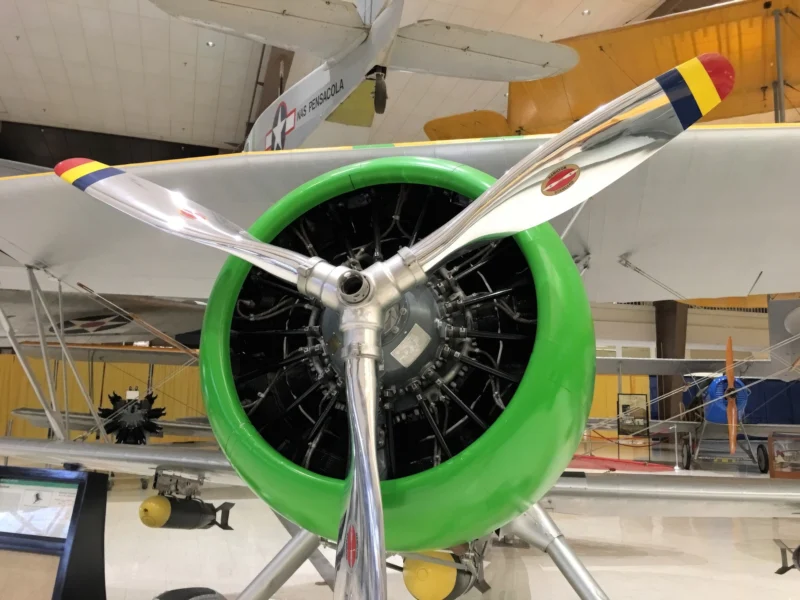

- Engine: One Wright R-1820-78 Cyclone nine-cylinder, air-cooled radial engine.
- Power Output: 522 kW (700 hp).
- Maximum Speed: 331 km/h (206 mph; 179 kn) at 1,370 m (4,500 ft).
- Cruise Speed: Approx. 257 km/h (160 mph; 140 kn).
- Range: 868 km (539 mi; 469 nmi).
- Service Ceiling: 7,830 m (25,700 ft).
- Retractable Landing Gear: Later variants (like the BF2C-1) introduced a fully retractable undercarriage, a crucial step toward monoplane design adoption.
Armament and Variants
- Fixed Armament: 2 x .30 in (7.62 mm) forward-firing Browning machine guns mounted above the engine cowling.
- Bomb Load: 1 x 474 lb (215 kg) bomb carried under the fuselage.
- Dive Bomber Role: The aircraft was equipped with a trapeze mechanism under the fuselage that swung the bomb clear of the propeller arc during a vertical dive.
- Major Variants:
- F11C-2: Initial fighter version.
- BFC-2: Redesignated production model focusing on the fighter-bomber/scout role.
- BF2C-1: Final variant with a fully retractable landing gear, quickly withdrawn due to structural failures caused by the new gear mechanism.
- Export: F11C-2s were sold to the Chinese Nationalist Air Force and the Turkish Air Force.
