P-51D Mustang | |
|---|---|
| 国 | 米国 |
| 型 | 単発戦闘機 |
P-51Dマスタング戦闘機のフォトギャラリー、 P-51 マスタング ●第二次世界大戦中に使用された北米航空が設計したアメリカの戦闘機です。これは、英国の戦いの間に1940年に追加の英国の戦闘機のための緊急の必要性を満たすために開発されました。高い空力フィネスのおかげで低高度で性能を発揮するが、スーパーチャージャーシステムが非常に高度ではないアリソンエンジンは、当初、空気優位戦闘機としての使用を制限した。優れた英国ロールスロイスマーリンエンジンの適応に続いて、 P-51D 米国はドイツ上空の戦略爆撃機の大規模な昼間の襲撃に同行するために必要な護衛機となりました。1944年の初めに、彼はヨーロッパの侵略を可能にする空気の優位性を得る上で決定的な役割を果たしました。これは、数で第二次世界大戦の3偉大なアメリカのハンターの一つであり、15,586部が2を生産しました。その主な資産は、その速度と何よりもアクションの非常に広い範囲です。多くの人が彼を史上最高のプロペラ戦闘機と考えています。名前 マスタング 航空機のイギリス人によって与えられた、アメリカ人は最初に英国の名前を採用する前にApacheと命名しました。
ソース： P-51D マスタングオンウィキペディア

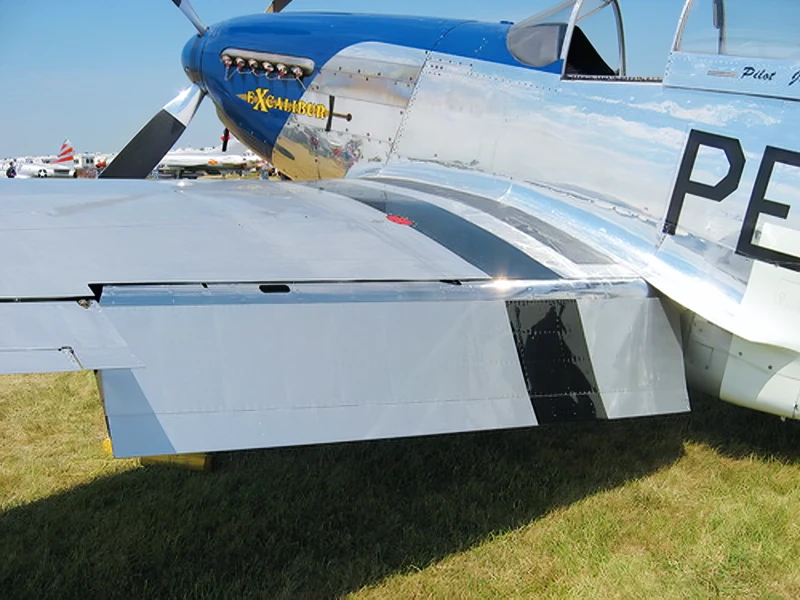

| P-51D Mustang | |
|---|---|
| カメラマン | 知りません |
| ローカライズ | 知りません |
| 写真 | 28 |
| 北アメリカP-51Dマスタングウォークアラウンド | |
|---|---|
| カメラマン | セルゲイ・アルカコフ |
| ローカライズ | ヘンドンのイギリス空軍博物館 |
| 写真 | 33 |
関連項目:
| North American P-51D Mustang Walk Around | |
|---|---|
| カメラマン | セス・ヘンドリックス |
| ローカライズ | 知りません |
| 写真 | 210 |
The Sky Cleanser of Western Europe
ザ 北アメリカのP-51Dマスタング is universally celebrated as one of the most influential and iconic fighter aircraft of World War II. Originally designed for a British procurement contract in record time, early models were hampered by poor high-altitude performance. However, by mating this aerodynamically advanced American airframe with the legendary British Rolls-Royce Merlin engine, engineers created an absolute masterpiece. The definitive “D” model, featuring its signature bubble canopy and heavy armament, possessed an unprecedented combination of high-speed agility and massive range. This allowed it to escort Allied heavy bombers deep into the heart of Germany, permanently breaking the back of the Luftwaffe and securing absolute air supremacy over Europe.
| Attribute | Technical Specification (P-51D Baseline) |
|---|---|
| 役割 | Long-Range Escort Fighter / Fighter-Bomber |
| 乗組員 | 1 (Pilot) |
| エンジン | 1 × Packard V-1650-7 liquid-cooled V12 engine (1,490 hp baseline, up to 1,720 hp with war emergency power) |
| 最高速度 | 708 km/h (440 mph) at 7,600 m (25,000 ft) |
| Combat Range | ~1,525 km (950 miles) internal fuel; up to 2,655 km (1,650 miles) with external drop tanks |
| Service Ceiling | 12,800 m (41,900 ft) |
| Primary Armament | 6 × .50 caliber (12.7mm) AN/M2 Browning heavy machine guns (Mounted inside the wings) |
| Ordnance Capacity | Up to 2 × 1,000 lb bombs OR 6 to 10 × 5-inch High Velocity Aircraft Rockets (HVAR) |
Design Engineering: Laminar Flow and Packard-Merlin Integration
- Revolutionary Laminar Flow Wing: The Mustang was the first production aircraft to utilize a laminar flow wing. Designed with its thickest point much further back than traditional wings, this geometry dramatically reduced aerodynamic drag by maintaining a smooth, non-turbulent boundary layer of air across the wing surface. This fundamental breakthrough allowed the Mustang to achieve incredible speeds even with lower-horsepower early engines.
- The Meredith Effect Radiator: To cool its massive V12 engine without creating a massive aerodynamic penalty, engineers placed the radiator under the rear fuselage inside a specialized aerodynamic duct. The heat generated by the radiator expanded the incoming air before it exited a rear flap, creating a small amount of jet-like physical thrust. This phenomenon, known as the Meredith Effect, effectively neutralized the cooling system’s drag.
- The Packard V-1650 Transmutation: The Mustang’s transformation from an average low-altitude plane into a world-class interceptor came when the US built the Rolls-Royce Merlin under license as the Packard V-1650. Equipped with a two-stage, two-speed supercharger, this engine delivered massive horsepower at high altitudes, perfectly matching the Mustang’s clean airframe design.
- The Bubble Canopy and Gun Realignment: The P-51D variant introduced a fully transparent, molded plastic bubble canopy that eliminated the heavy framing and blind spots of earlier versions, granting pilots unmatched 360-degree battlefield vision. Additionally, engineers redesigned the internal wing structure to mount six .50 caliber machine guns vertically, solving the chronic gun-jamming issues that plagued the angled mountings of earlier P-51B variants.
Operational History: Escorting the Fortresses and the Great Jet Intercepts
- Saving the Eighth Air Force: By late 1943, Allied heavy bomber raids into Germany were suffering unsustainable losses from Luftwaffe fighters because escort planes lacked the range to defend them the entire way. The arrival of the P-51D changed the war entirely; fitted with cheap, paper-mache external drop tanks, Mustang squadrons could escort B-17 and B-24 bombers all the way to Berlin and back, aggressively hunting down interceptors before they could strike the bomber formations.
- Unleashing “Ultimate Pursuit” Tactics: General Jimmy Doolittle ordered Mustang pilots to stop flying in tight defensive formations with the bombers and instead cut them loose to aggressively hunt German airfields. Mustangs began strafing Luftwaffe planes on the ground, destroying Germany’s highly trained pilot pool and grinding their fuel infrastructure to absolute zero.
- Duels Against the First Jets: As Germany deployed the revolutionary twin-jet Messerschmitt Me 262, P-51D pilots adapted their tactics to counter the jet’s immense speed advantage. By diving from high altitudes to gain speed or ambushing the fuel-hungry jets as they slowed down to land at their airfields, Mustang pilots successfully destroyed dozens of the high-tech German jet fighters.
- The Global Afterlife: Following WWII, the Mustang served as a vital frontline asset during the Korean War, primarily acting as a rugged, low-level ground-attack fighter-bomber throwing down rockets and napalm. The design was so incredibly sound that it remained in active military service with international air forces well into the 1980s, eventually transitioning into the hands of civilian racers to become the ultimate kings of unlimited air racing.
