Obice da 75/18 modello 35 | |
|---|---|
| 国 | イタリア |
| 役割 | 榴弾 砲 |
| サービス中 | 1934-1945 |
| 構築 | 知りません |
The borders of Italy are mountainous terrain, so the Italian army has always had an interest in mountain artillery. However, by the 1930s much of Italy’s mountain artillery was obsolescent and overdue for replacement. In 1934, the Italian firm of Ansaldo produced a new mountain howitzer design, the Obice da 75/18 modello 34、イタリアの大砲に仕えたセルジオ・ベルレーゼ中佐によって設計されました。ザ モデロ 34 輸送のために8つの負荷に分割できます。標準化と兵站のために、75/18のバージョンであるmodello 35は、通常のフィールドバッテリーの軽榴弾砲コンポーネントとしても使用されました。modello 35は小さな負荷に分解されず、ボックスではなくスプリットトレイルがありました

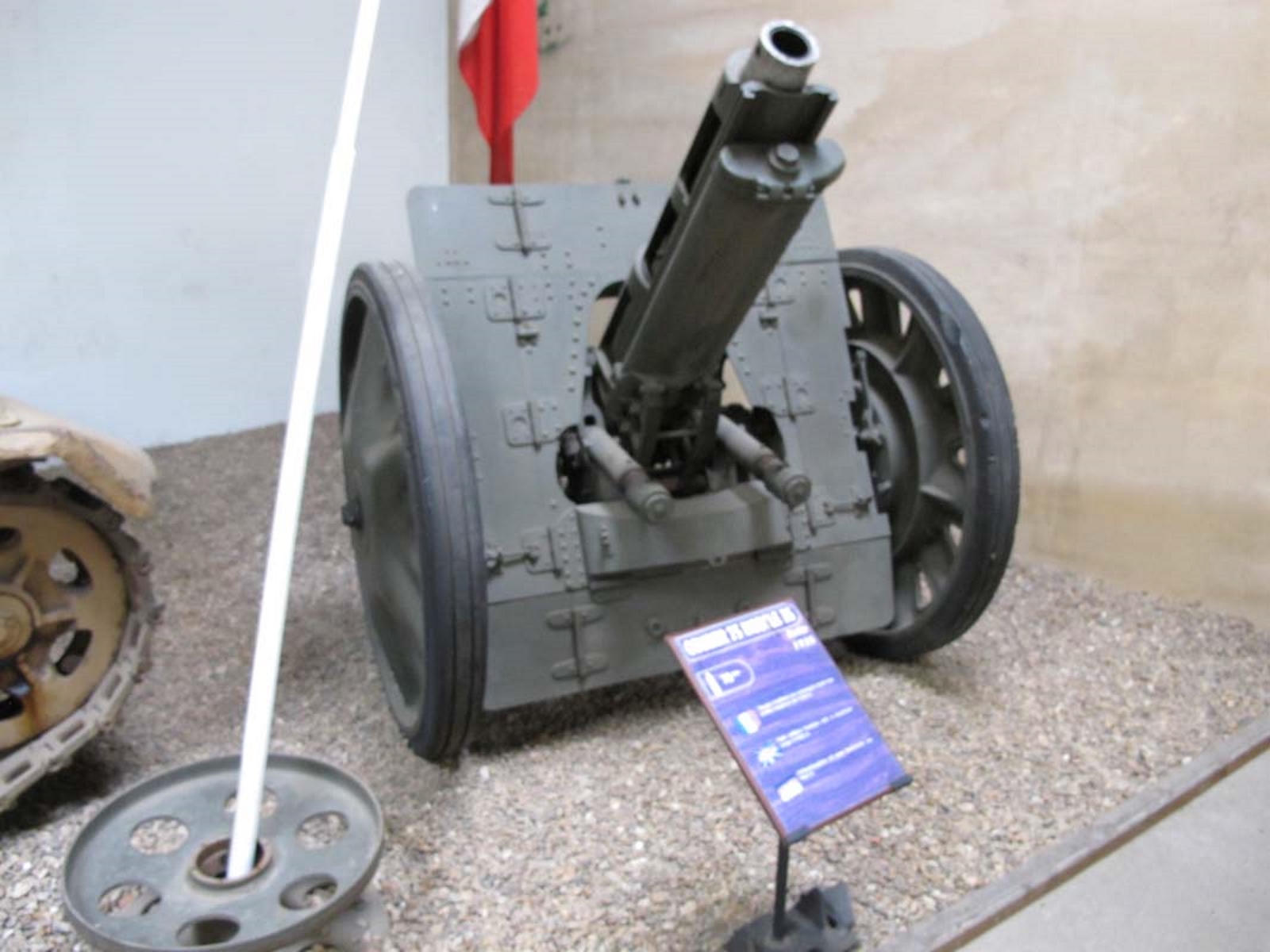

| イタリアンオビセダ75mm / 18モデロ35ウォークアラウンド | |
|---|---|
| カメラマン | ウラジーミル・ヤクボフ |
| ローカライズ | ムゼー・デ・ブラインド |
| 写真 | 42 |
関連項目:
The “Pack Howitzer” of the Alps
ザ Obice da 75/18 Modello 35 was an Italian howitzer designed by the Ansaldo company. While primarily intended for mountain warfare (Alpini divisions), it became one of the most successful Italian artillery pieces of World War II. It was famous for its modularity; the gun could be broken down into eight separate loads for transport by pack animals across rugged terrain. Its design was so effective that it was later adapted to become the main armament for the Semovente 75/18 tank destroyer.
| Attribute | Technical Specification |
|---|---|
| 型 | Mountain Howitzer / Field Gun |
| 口径 | 75 mm |
| Barrel Length | L/18 (1.35 meters) |
| Maximum Range | 9,570 meters (approx. 5.9 miles) |
| Elevation | -10° to +45° |
| Traverse | 50° |
| Weight (In Action) | 1,050 kg (2,315 lbs) |
| Rate of Fire | 6–8 rounds per minute |
Design Philosophy and Engineering
- The Split-Trail Carriage: The Modello 35 used a split-trail design, which allowed for a much wider horizontal traverse than older box-trail guns. This made it far easier to track moving targets, such as tanks, without repositioning the entire carriage.
- High-Explosive Anti-Tank (HEAT) Capability: Despite being a howitzer with a low muzzle velocity, it was highly effective against Allied armor. This was due to the “Effetto Pronto” (EP) and “Special Effetto Pronto” (EPS) shells—some of the earliest successful HEAT rounds used in combat.
- Modular Breakdown: For mountain service, the gun could be disassembled into 8 loads. The heaviest component was the barrel, which weighed roughly 150 kg. This allowed the 75/18 to be deployed in high-altitude positions where traditional wheeled artillery could never reach.
- Modernized Wheels: While early versions featured wooden-spoked wheels for horse traction, later models were fitted with pressed steel wheels and pneumatic tires for high-speed towing by trucks and tractors.
From Towed Gun to Tank Destroyer
- The Semovente 75/18: Recognizing the gun’s effectiveness against tanks like the British Crusader and American M3 Grant, Italian engineers mounted the 75/18 inside a low-profile armored hull on the M13/40 chassis. This created Italy’s most feared armored vehicle of the North African campaign.
- North African Service: In the desert, the 75/18 often acted as “tank snipers,” using their EPS shells to knock out heavier Allied tanks at ranges where their own armor would have been vulnerable.
- German Use: After the Italian armistice in 1943, the German Wehrmacht pressed hundreds of these guns into service, designating them as the 7.5 cm le.F.H.255(i).
- Post-War Service: The Modello 35 was so reliable that it remained in service with the Italian Army well into the 1950s as a training and reserve weapon.
