Hiller HJ-1 Hornet

Hiller HJ-1 Hornet
Pays	Usa
Rôle	Hélicoptère expérimental
Premier vol	1950
Construit	18

Lla Hiller YH-32 Hornet (company designation HJ-1) was an American ultralight helicopter built by Hiller Aircraft in the early 1950s. It was a small and unique design because it was powered by two Hiller 8RJ2B ramjet engines mounted on the rotor blade tips which weigh 13lbs each and deliver an equivalent of 45 h.p. for a total of 90 h.p. Versions of the HJ-1 Hornet were built for the United States Army and the United States Navy in the early 1950s. The Hiller Museum identifies the YH-32A, named the Sally Rand, as the first helicopter gunship.

Source: Hiller HJ-1 Hornet sur Wikipedia

Hiller HJ-1 Hornet Walk Around
Photographer	Vladimir Yakubov
Localisation	Hiller Aviation Museum, San Carlos
Photos	36

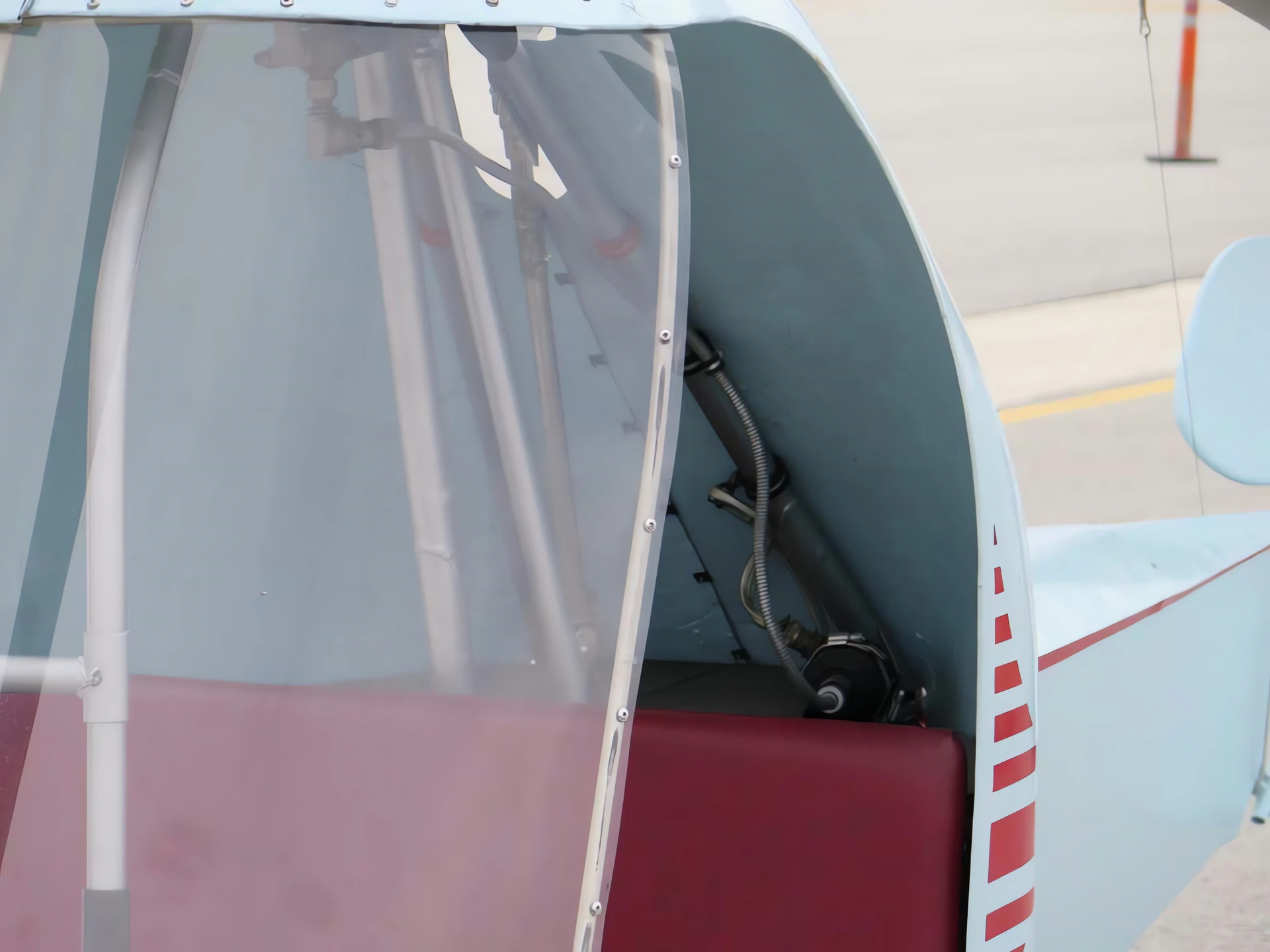

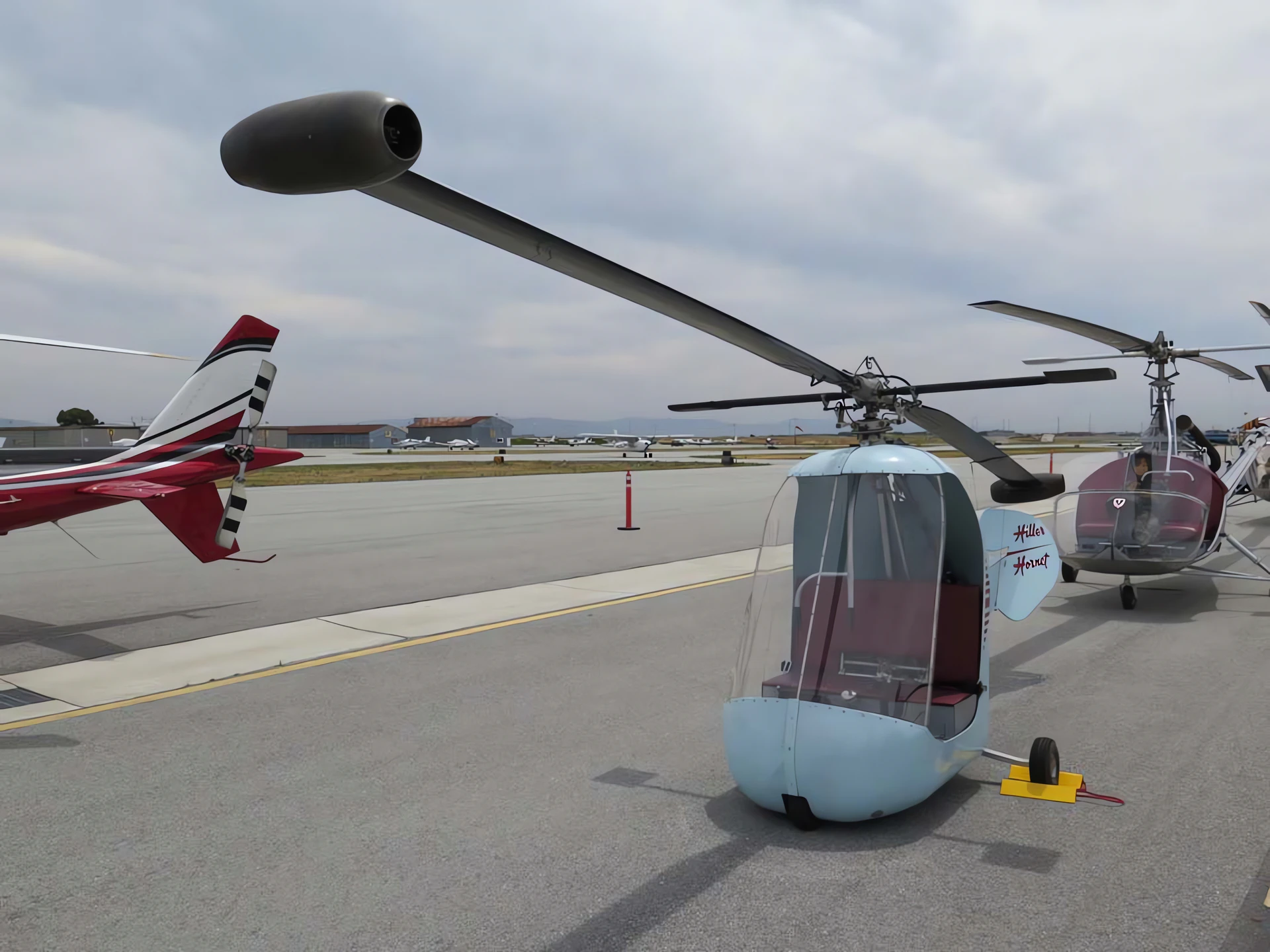

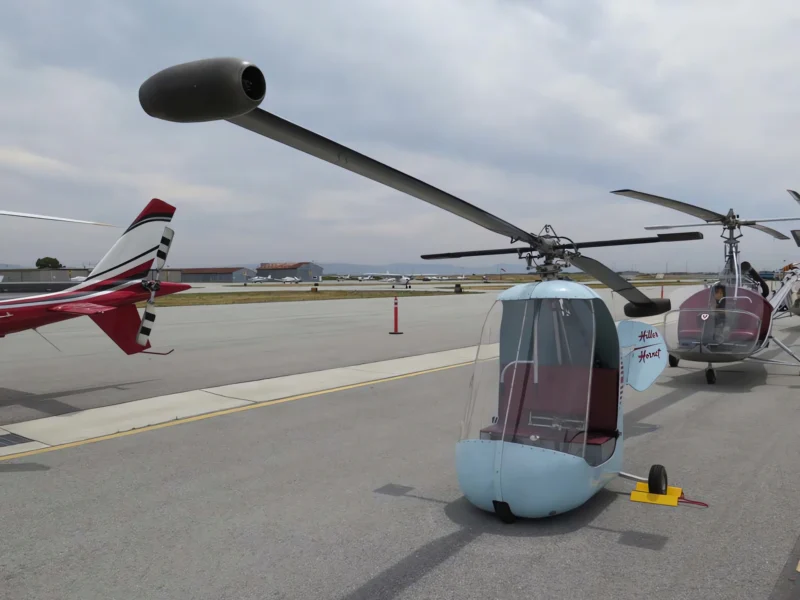

Hiller HJ-1 Hornet 01

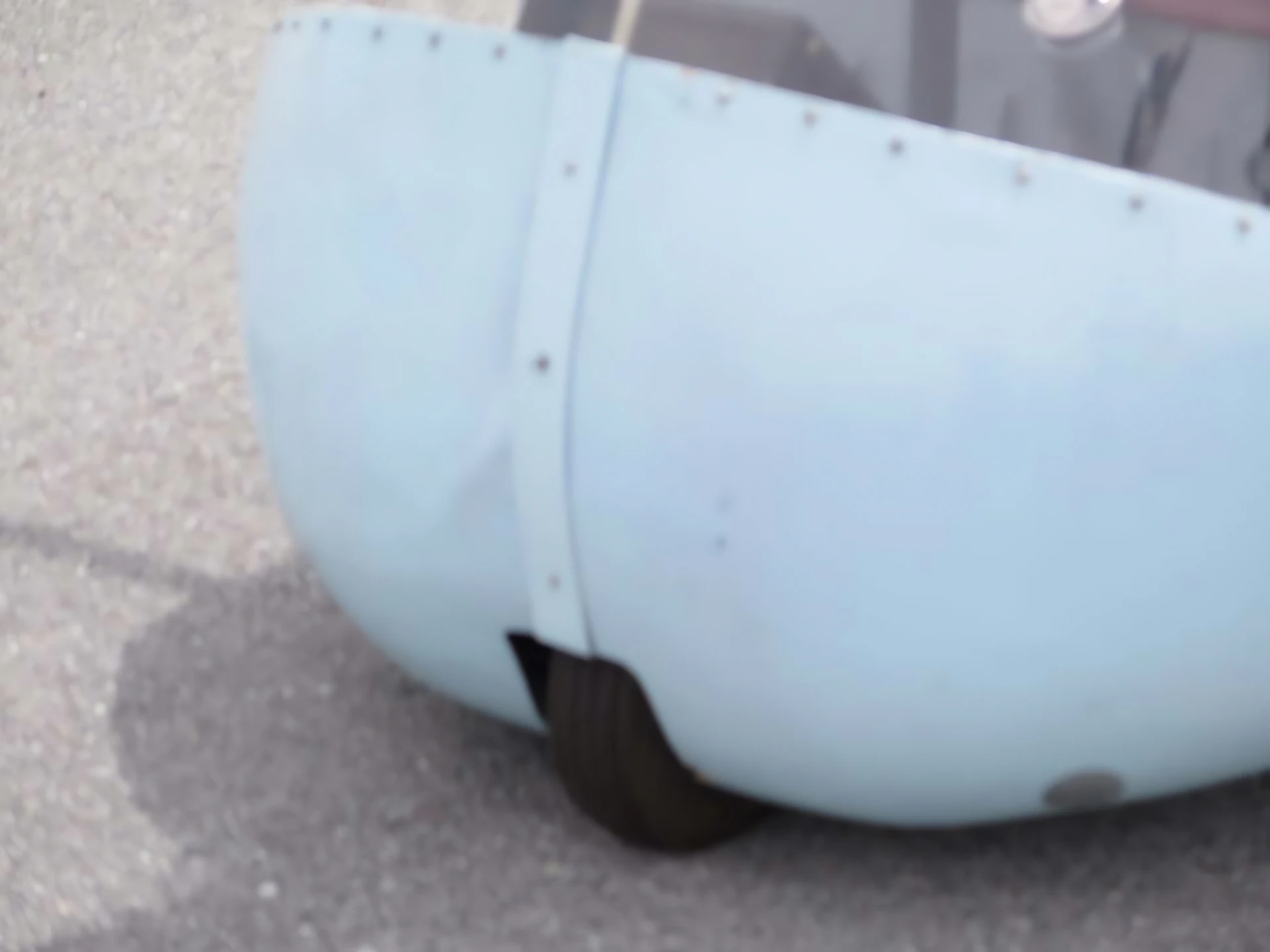

Hiller HJ-1 Hornet 02

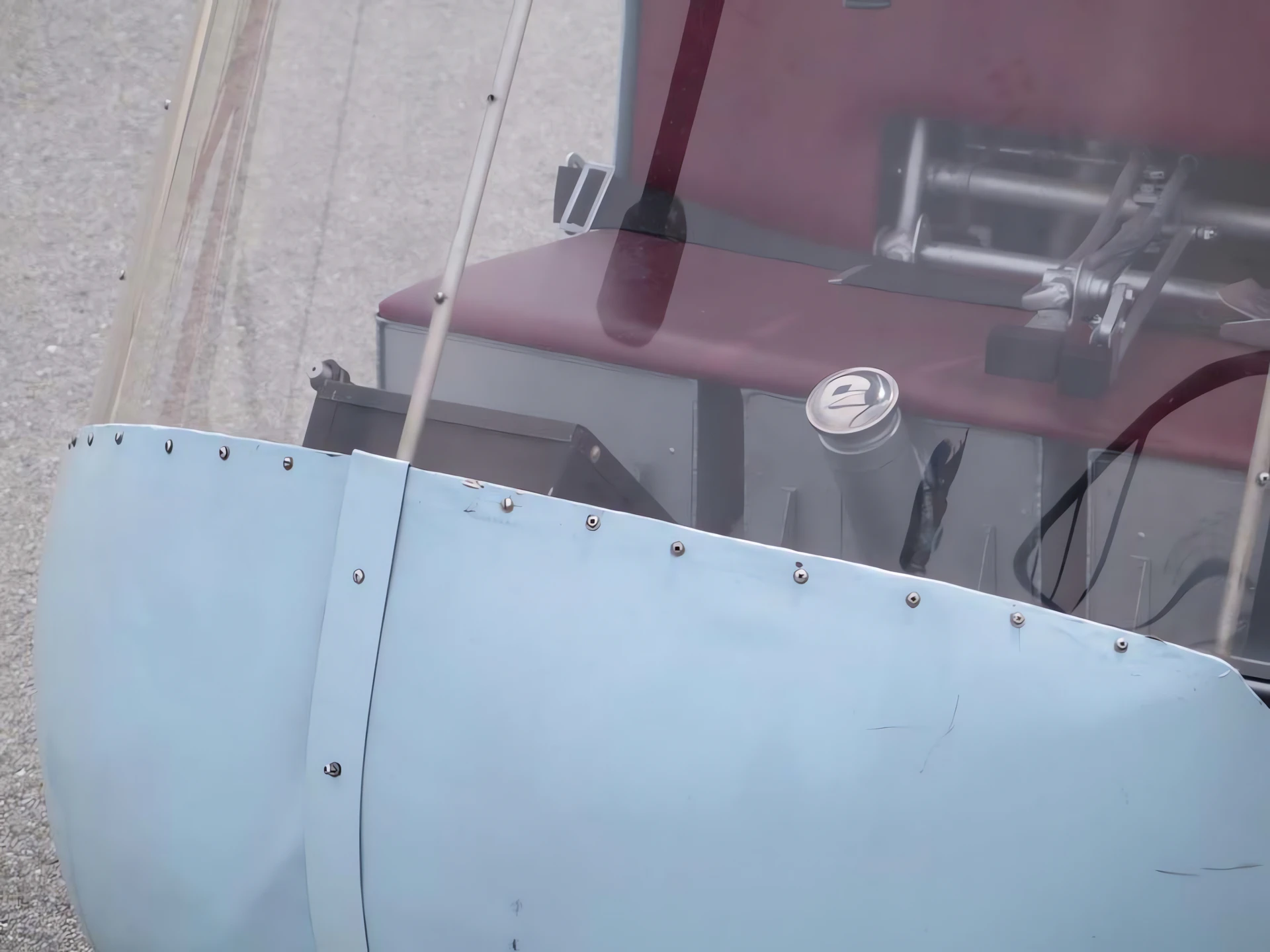

Hiller HJ-1 Hornet 03

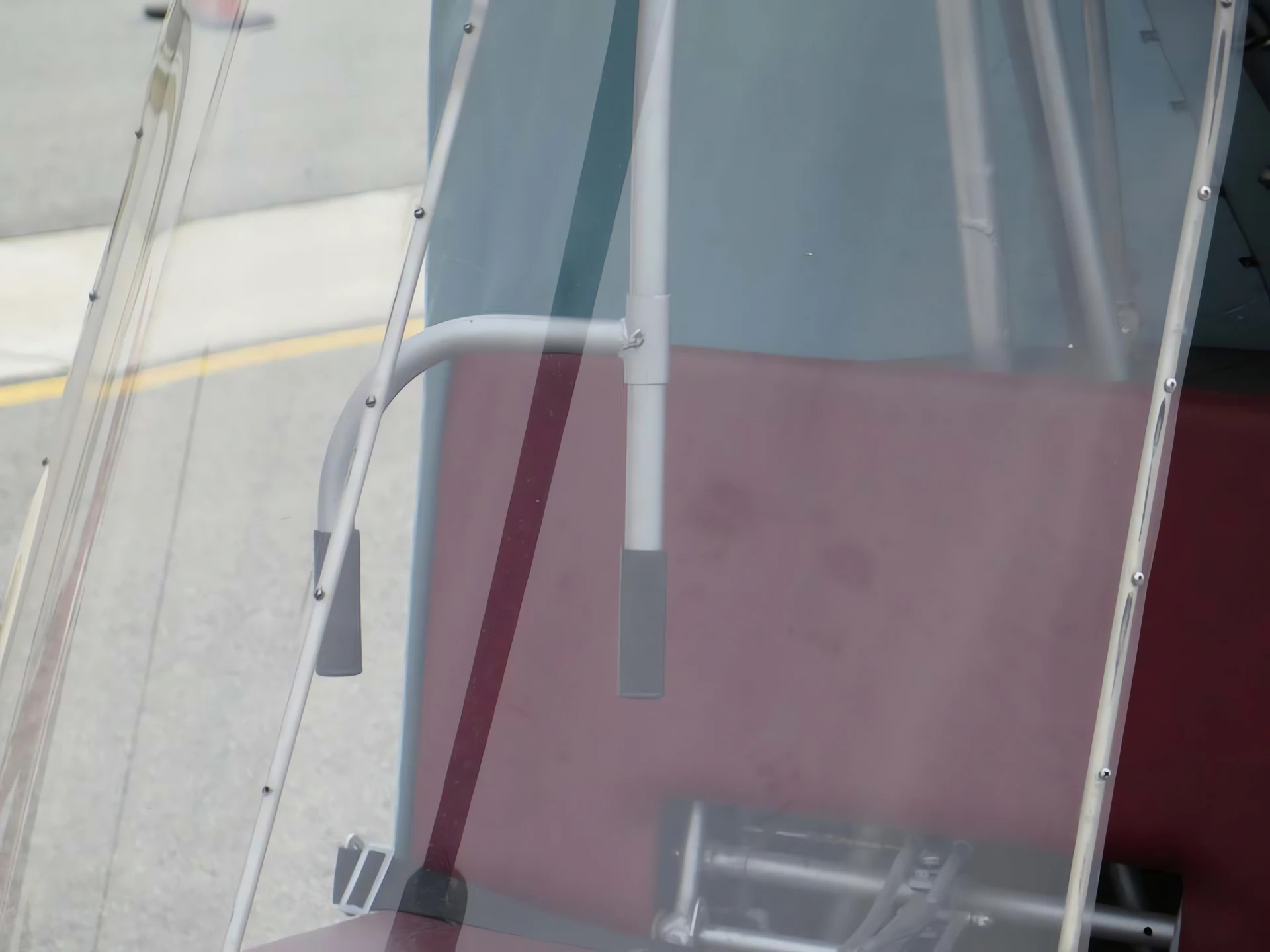

Hiller HJ-1 Hornet 04

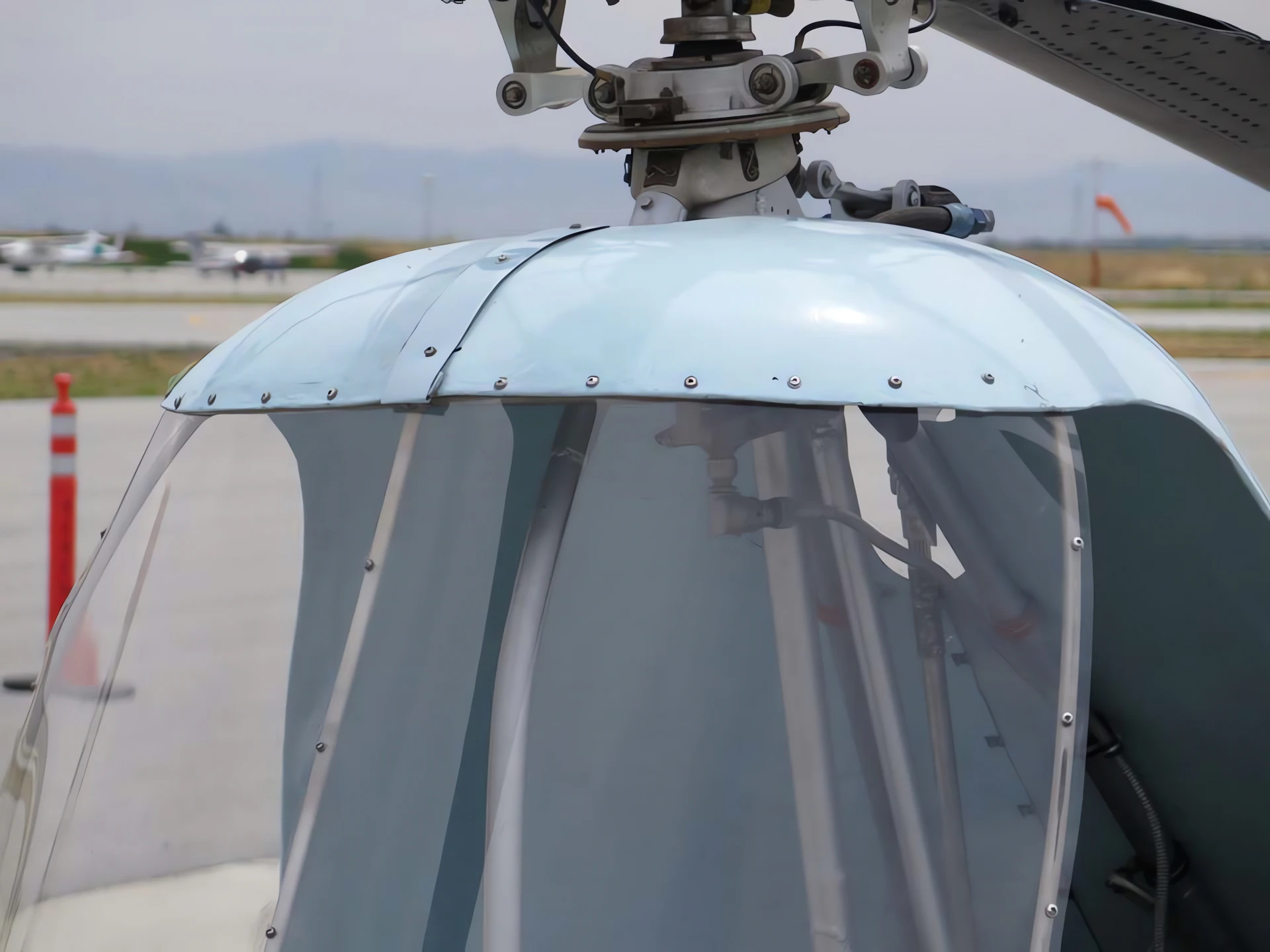

Hiller HJ-1 Hornet 05

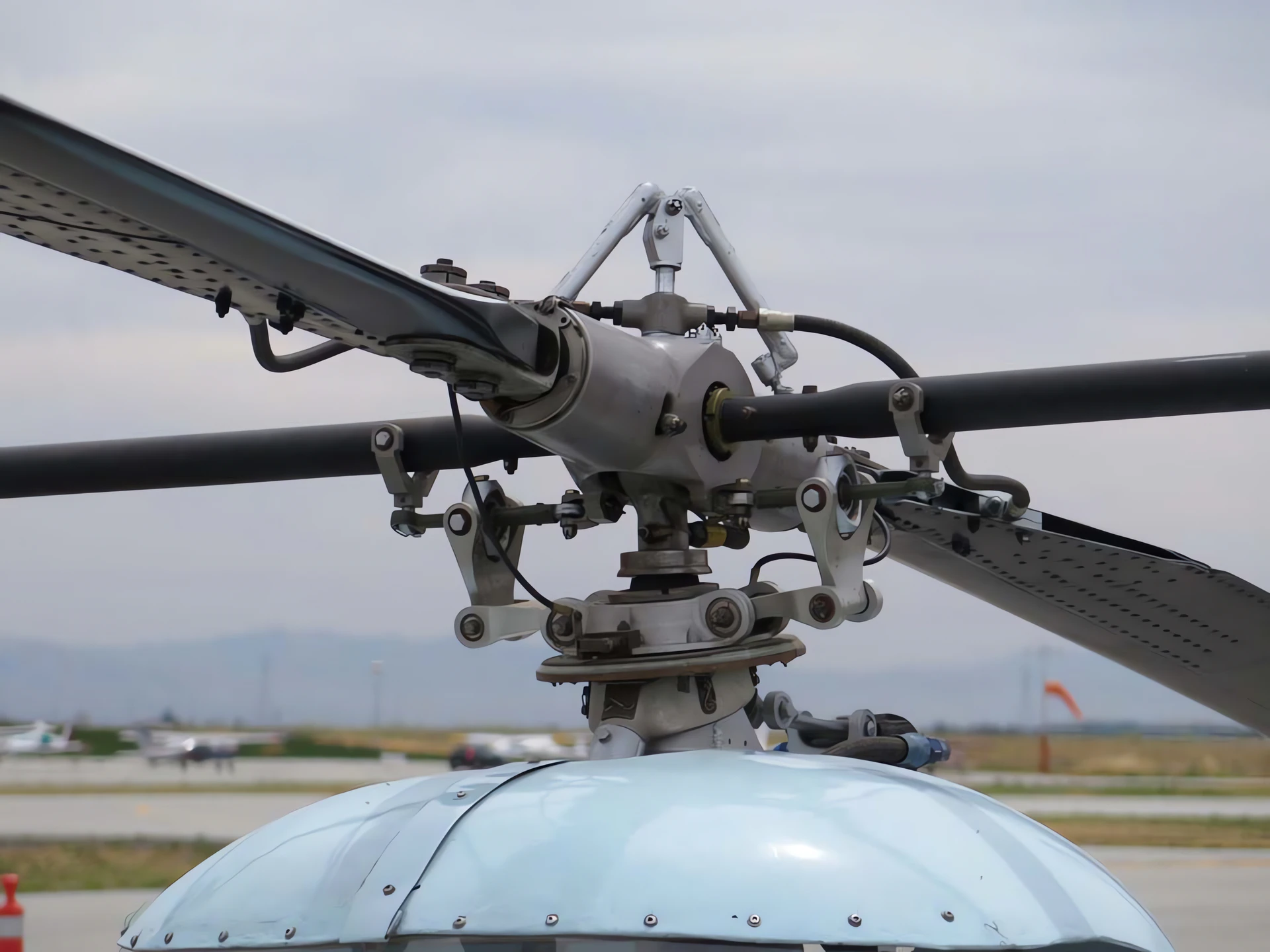

Hiller HJ-1 Hornet 06

Hiller HJ-1 Hornet 07

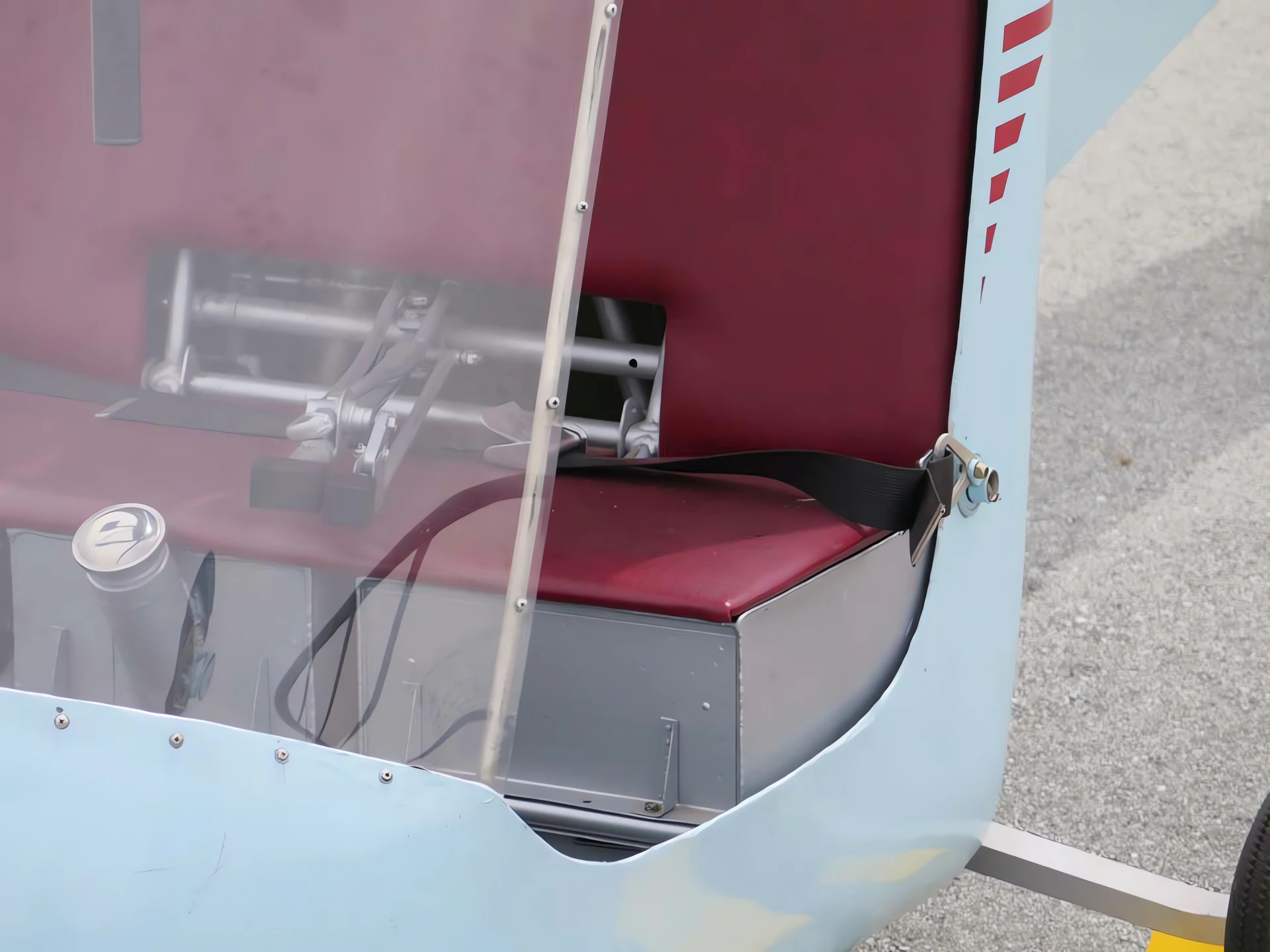

Hiller HJ-1 Hornet 08

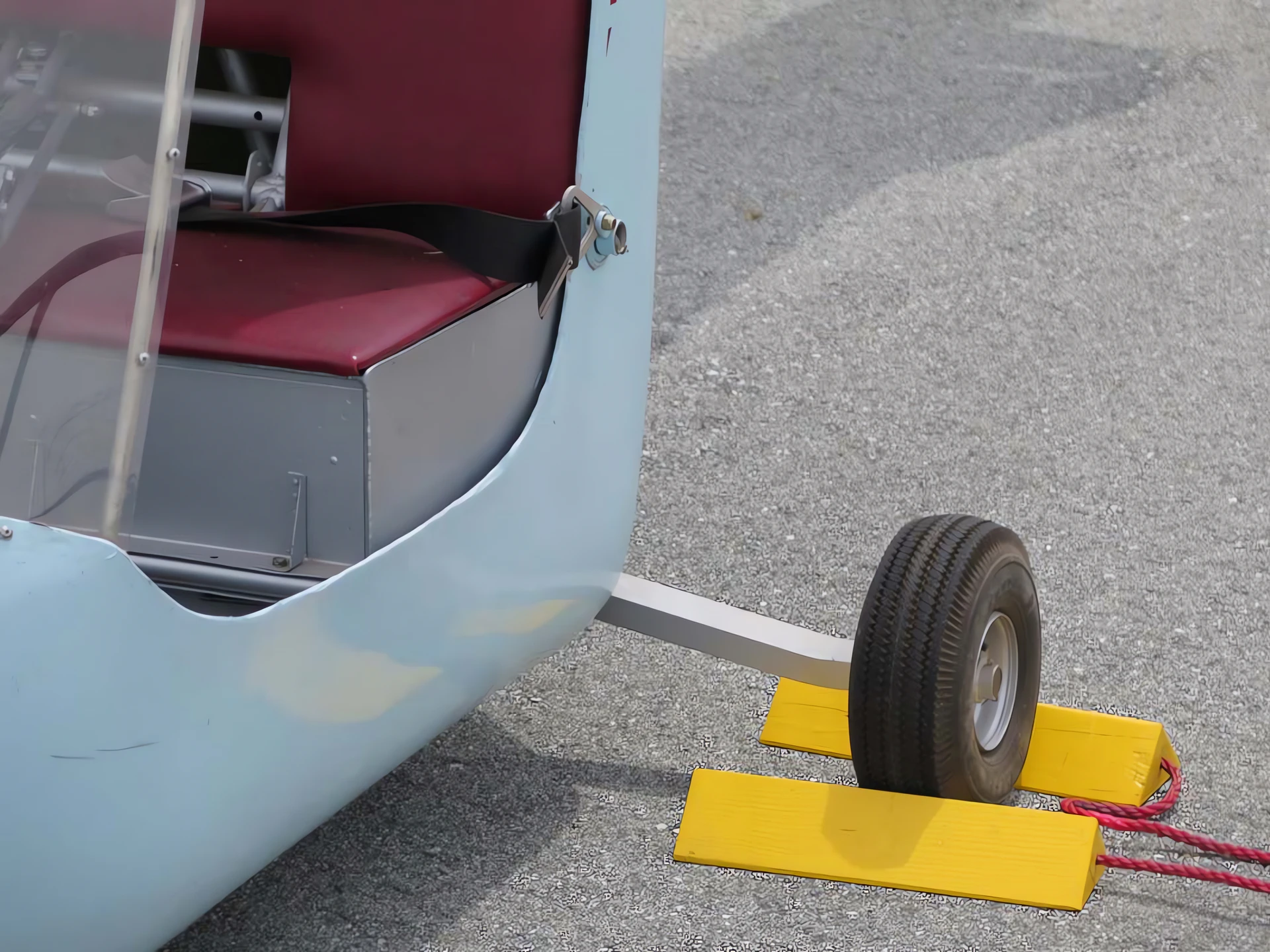

Hiller HJ-1 Hornet 09

Click on a photo and use the mouse scroll to view all photos

Attendez, à la recherche de Hiller HJ-1 Hornet pour vous...

Voir aussi :

General Characteristics and Role

The Hiller HJ-1 Hornet (military designation YH-32) was an American experimental ultralight helicopter developed in the early 1950s. Its design was revolutionary for its time, featuring a unique **tip-jet propulsion system**. Instead of a conventional engine and heavy transmission system, the main rotor blades were powered by two small ramjet engines mounted at the tips of the blades. This design eliminated the need for a complex gearbox and a tail rotor (as there was no torque generated on the fuselage). The Hornet was initially intended for the civilian market as an affordable commuter helicopter but was primarily evaluated by the United States Army (YH-32) and United States Navy (XHOE-1) for roles such as reconnaissance, artillery spotting, and light transport.

Property	Typical Value (YH-32 Variant)
Rôle	Experimental, Ultralight Helicopter, Reconnaissance
National Origin	États-Unis
Fabricant	Hiller Aircraft
First Flight	August 1950
Crew	1 (Pilot)
Capacité	1 passenger or 243 kg (536 lb) payload
Length	7.21 m (23 ft 8 in)
Main Rotor Diameter	7.00 m (23 ft 0 in)
Empty Weight	247 kg (544 lb)
Gross Weight	490 kg (1,080 lb)

Powerplant and Limitations

Engine: 2 x Hiller 8RJ2B ramjet engines, one on each rotor tip.
Total Equivalent Power: Approximately 67 kW (90 hp).
Maximum Speed: 111 km/h (69 mph; 60 kn).
Range: Extremely limited due to high fuel consumption—typically only 45 km (28 mi) in still air.
Endurance: About 25-30 minutes.
Key Problem: Ramjets are inefficient at subsonic speeds, leading to excessive fuel burn (up to 600 pounds per hour) and the distinctive high noise and visible glow of the tip jets at night, which hampered military use.
Autorotation: Difficult due to the significant drag caused by the ramjet nacelles at the blade tips.

Design Features and Legacy

Propulsion: The ramjet system was mechanically simple, having no moving parts other than a small gasoline engine used solely for starting the rotor to the required 50 RPM for ramjet ignition.
Structure: The aircraft utilized a lightweight structure of reinforced steel tubing with fiberglass and plastic laminate skins.
Military Trials: Although deemed unsuitable for mass production due to its poor range and high visibility/noise, two YH-32s were modified in 1957 as the YH-32A for armed trials, carrying weapons like rockets and recoilless rifles.
Historical Significance: The Hornet was the first production tip-jet powered helicopter in history and represents a unique but ultimately unsuccessful attempt to radically simplify helicopter mechanics.
