República F-84 Thunderjet | |
|---|---|
| País | E.e.u.u |
| Papel | Cazabombarderos |
| Primer vuelo | 28 de febrero de 1946 |
| Construido | 7524 |
Galería de fotos de un República F-84 Thunderjet, The Republic F-84 Thunderjet was an American turbojet fighter-bomber aircraft. Originating as a 1944 United States Army Air Forces (USAAF) proposal for a “day fighter”, the F-84 first flew in 1946. Although it entered service in 1947, the Thunderjet was plagued by so many structural and engine problems that a 1948 U.S. Air Force review declared it unable to execute any aspect of its intended mission and considered canceling the program. The aircraft was not considered fully operational until the 1949 F-84D model and the design matured only with the definitive F-84G introduced in 1951. In 1954, the straight-wing Thunderjet was joined by the swept-wing F-84F Thunderstreak fighter and RF-84F Thunderflash photo reconnaissance aircraft.
| Republic F-84 Thunderjet | |
|---|---|
| Fotógrafo | Vladimir Yakubov |
| Localización | Museo del Aire de los Yanquis |
| Fotos | 99 |
| Republic F-84F Thunderstreak Caminar alrededor | |
|---|---|
| Fotógrafo | Allex |
| Localización | Unknow |
| Fotos | 24 |

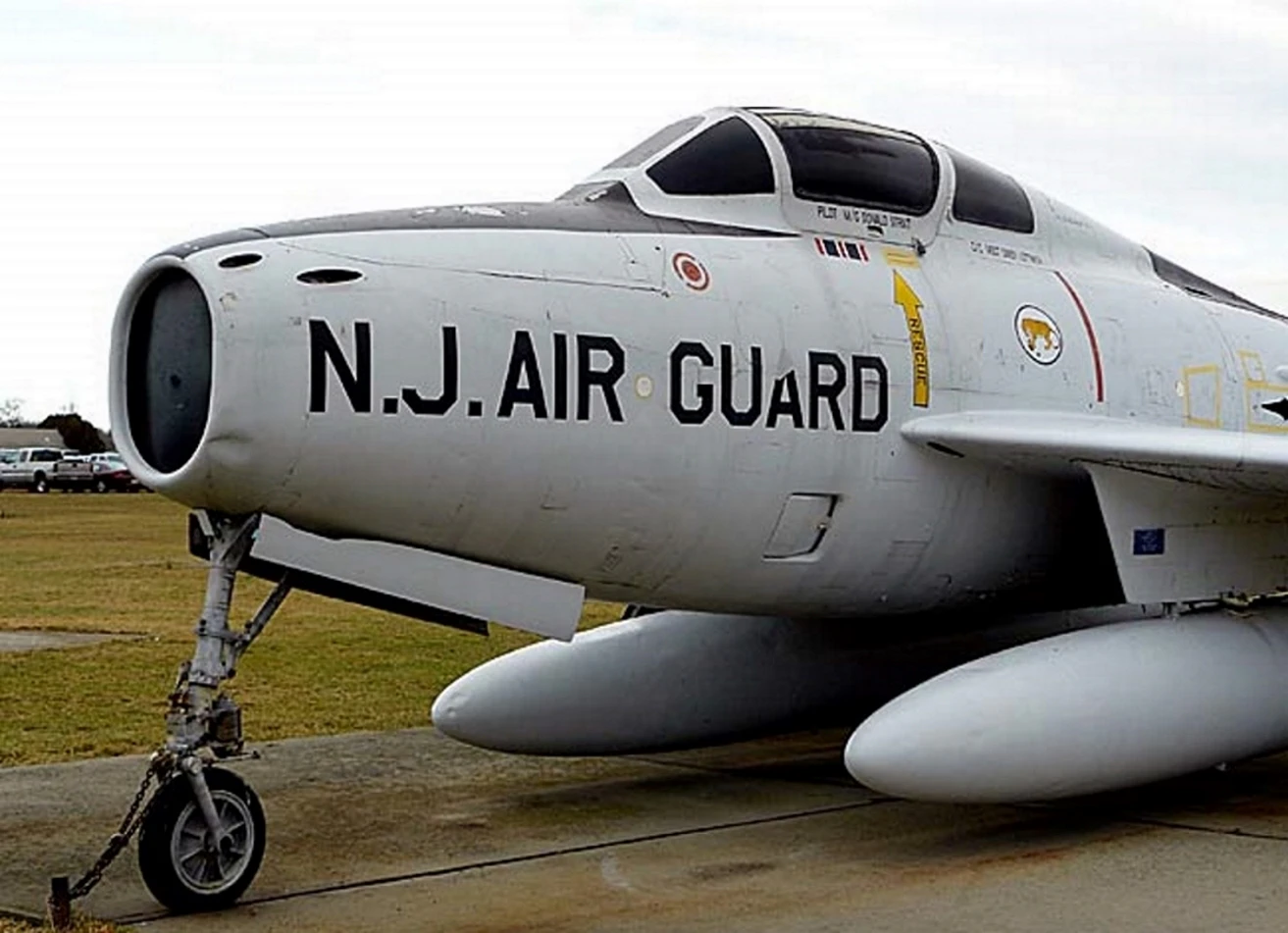

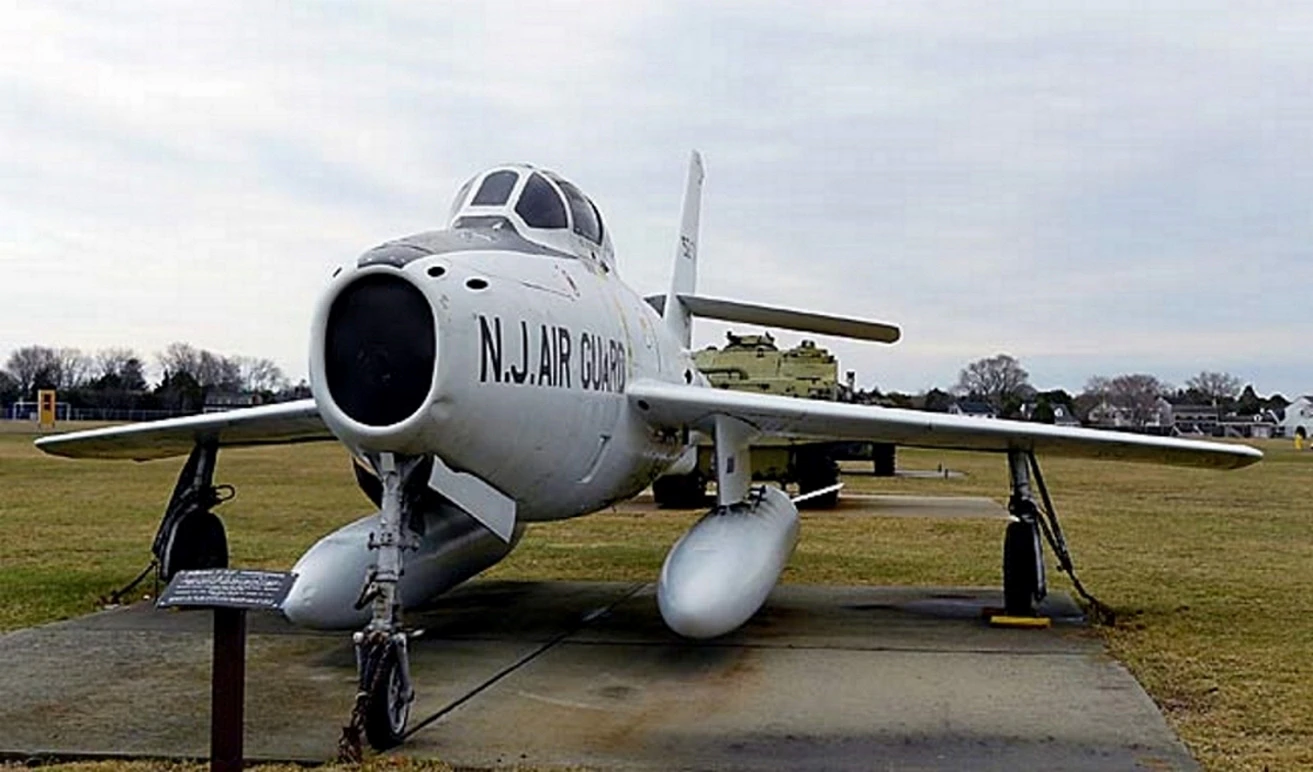

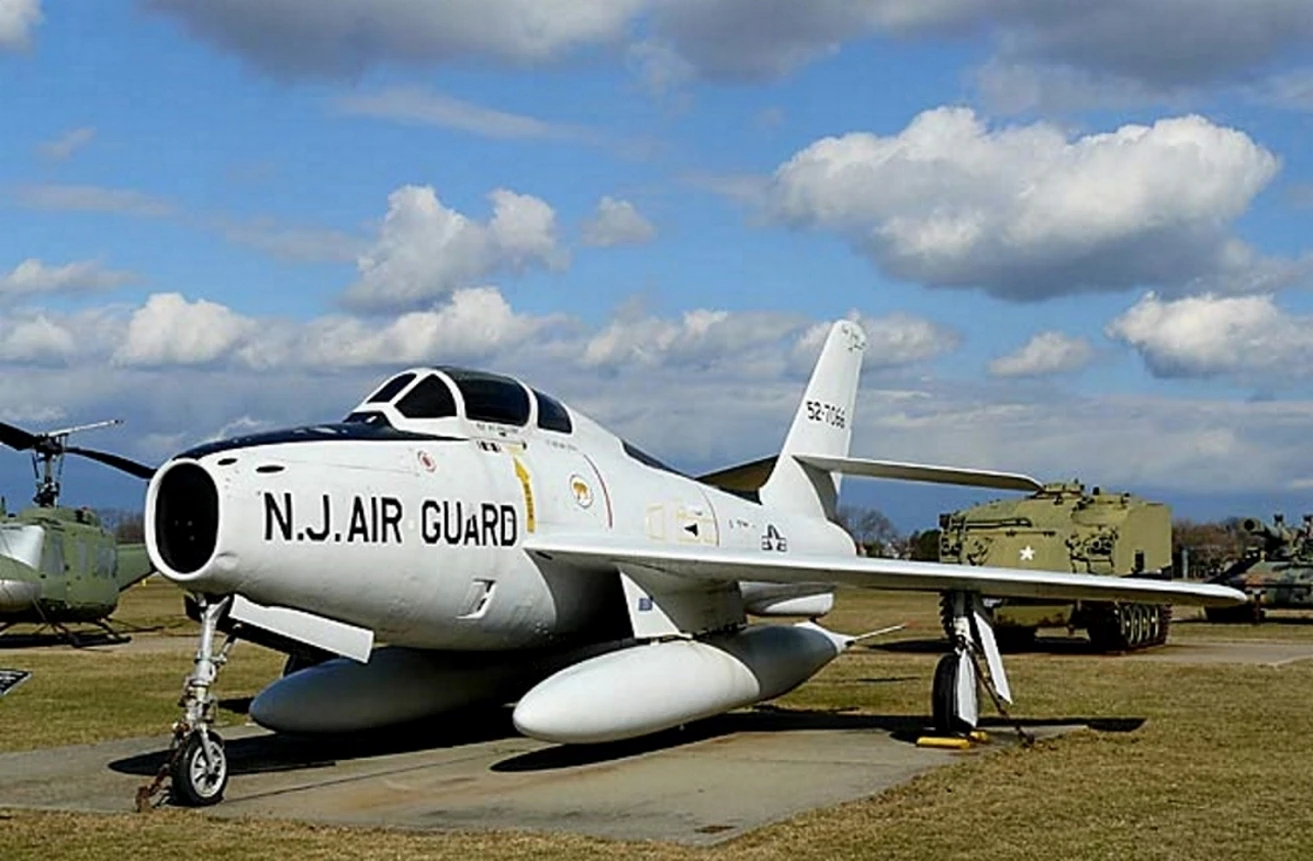

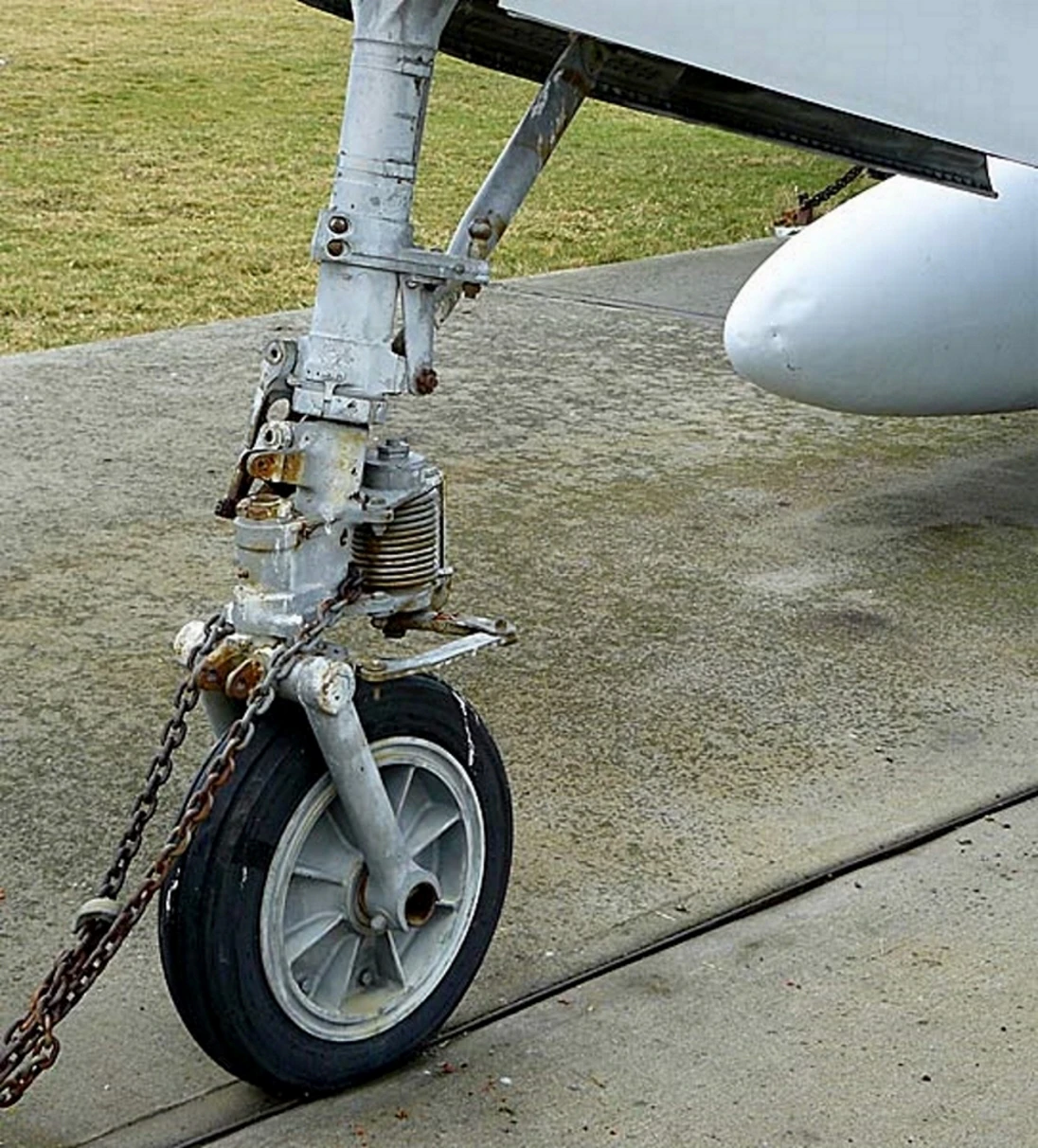

Cómprame un café| Republic F-84F Thunder Streak Walk Around | |
|---|---|
| Fotógrafo | Bill Maloney |
| Localización | Museo miliciano de Nueva Jersey |
| Fotos | 17 |
Ver también:
The Blue-Collar Jet
el República F-84 Thunderjet was the United States’ primary strike fighter during the early Cold War. While the F-86 Sabre grabbed the headlines for dogfighting MiGs, the Thunderjet did the heavy lifting on the ground. It was the first “second-generation” American jet, designed to replace the P-47 Thunderbolt’s rugged legacy. Known for its massive fuel capacity and ability to carry heavy ordnance, it became a cornerstone of NATO’s early defense and the first jet fighter capable of carrying a nuclear weapon.
| Attribute | Technical Specification (F-84E) |
|---|---|
| Papel | Fighter-Bomber / Escort Fighter |
| Equipo | 1 (Pilot) |
| Planta motriz | 1 × Allison J35-A-17 turbojet |
| Thrust | 4,900 lbf (21.8 kN) |
| Velocidad máxima | 1,001 km/h (622 mph / Mach 0.82) |
| Combat Radius | 1,370 km (850 miles) with external tanks |
| Armamento | 6 × .50 cal (12.7mm) M3 Browning machine guns |
| Artillería | Up to 2,020 kg (4,450 lb) of bombs and rockets |
Design Engineering: Straight Wings and Tip Tanks
- The “Lead Sled”: Pilots gave it this nickname because the F-84 required enormous amounts of runway to take off when fully loaded. Its straight-wing design provided excellent stability for ground attack but made it sluggish to climb compared to swept-wing aircraft.
- Integrated Tip Tanks: To solve the short range of early jet engines, Republic added permanent fuel tanks to the wingtips. This increased range significantly but also acted as “end plates,” actually improving the aerodynamic efficiency of the wings at certain speeds.

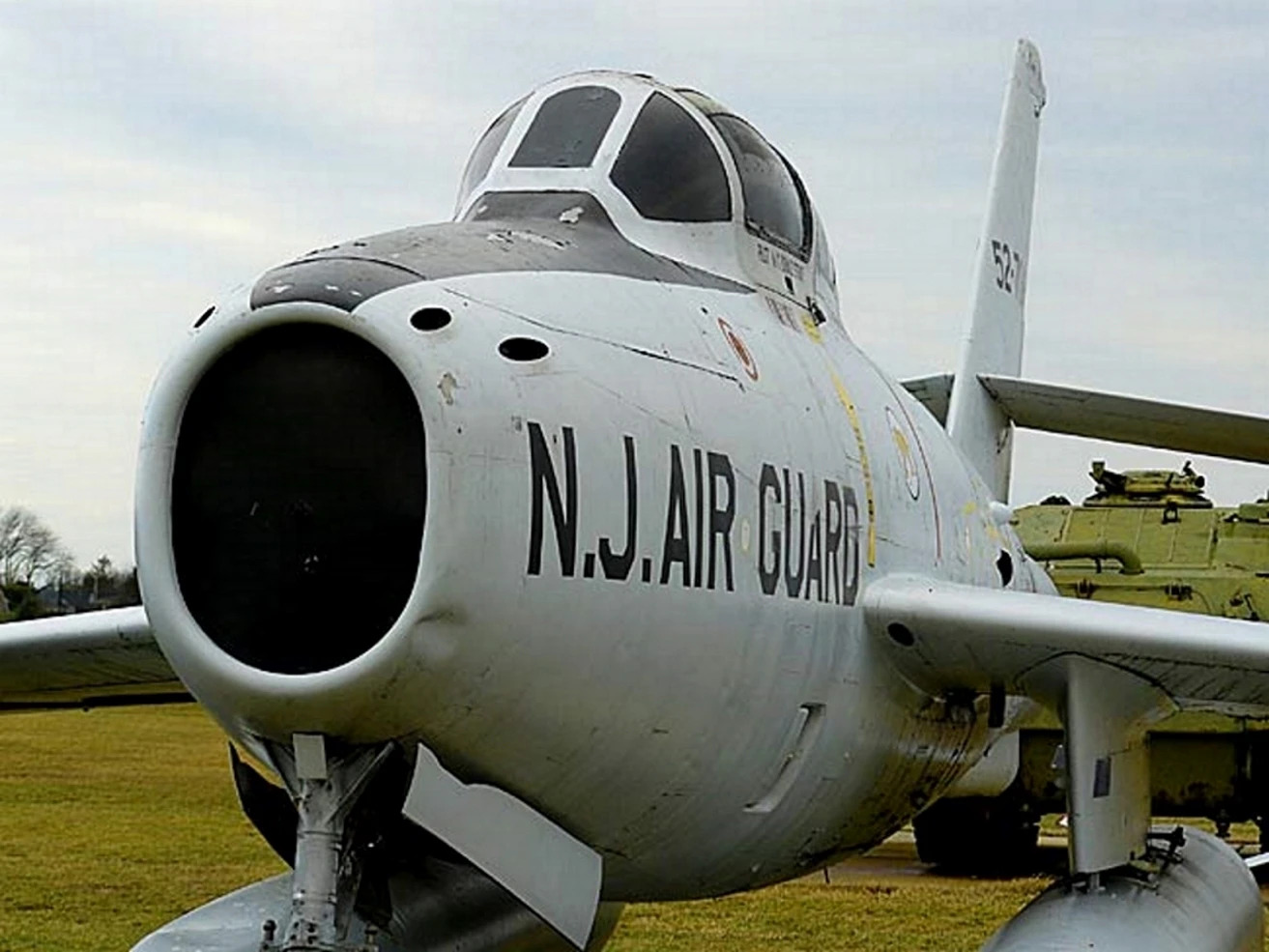

- Nose Intake: The J35 engine breathed through a simple, direct nose intake. This design was efficient for air intake but meant the pilot sat high above a long air duct, giving the fuselage its deep, tubular appearance.
- Nuclear Strike Modification: The F-84G model introduced the LABS (Low-Altitude Bombing System), which allowed the pilot to perform a “toss bombing” maneuver to deliver a Mark 7 nuclear bomb while escaping the blast radius.
Combat History: Korea and the Cold War
- The Korean War: The F-84 flew over 86,000 sorties in Korea. While it couldn’t match the MiG-15 in a dogfight, it was devastatingly effective at destroying bridges, dams, and supply lines. It was responsible for 60% of all ground targets destroyed by the Air Force during the conflict.
- The “Thunderscreech”: One of the most famous (and painful) offshoots was the XF-84H, a turboprop version. Its propeller tips moved at supersonic speeds even while idling, creating a noise so intense it made ground crews physically ill.
- Parasite Experiment (FICON): The F-84 was used in the FICON project, where it was carried under a B-36 Peacemaker and launched mid-flight to act as a high-speed scout or escort, then “re-docked” to the bomber’s trapeze.
- NATO Proliferation: The F-84 was the “standard” fighter for many early NATO air forces, including France, Italy, Belgium, and Turkey, helping to rebuild European airpower in the late 1940s and 50s.
