Rockwell B-1 Lancer

Rockwell B-1 Lancer
Land	Usa
Rolle	Supersonisk strategisk tungt bombefly
Første flyvning	23. december 1974
Bygget	104

Den Rockwell B-1 Lancer is a supersonic variable-sweep wing, heavy bomber used by the United States Air Force. It is commonly called the “Bone” (from “B-One”). It is one of three strategic bombers in the U.S. Air Force fleet as of 2018, the other two being the B-2 Spirit and the B-52 Stratofortress. The B-1 was first envisioned in the 1960s as a platform that would combine the Mach 2 speed of the B-58 Hustler with the range and payload of the B-52, and would ultimately replace both bombers. After a long series of studies, Rockwell International (now part of Boeing) won the design contest for what emerged as the B-1A. This version had a top speed of Mach 2.2 at high altitude and the capability of flying for long distances at Mach 0.85 at very low altitudes. The combination of the high cost of the aircraft, the introduction of the AGM-86 cruise missile that flew the same basic profile, and early work on the stealth bomber all significantly affected the need for the B-1. This led to the program being canceled in 1977, after the B-1A prototypes had been built.

Kilde: Rockwell B-1 Lancer på Wikipedia

Boeing (Rockwell) B-1B Lancer Walk Around
Photographer	Vladimir Yakubov
Localisation	Unknow
Photos	99

Rockwell B-1B Lancer 01

Rockwell B-1B Lancer 02

Rockwell B-1B Lancer 03

Rockwell B-1B Lancer 04

Rockwell B-1B Lancer 05

Rockwell B-1B Lancer 06

Rockwell B-1B Lancer 07

Rockwell B-1B Lancer 08

Rockwell B-1B Lancer 09

Click on a photo and use the mouse scroll to view all photos

Vent, søger Rockwell B-1 Lancer for dig ...

B-1B Lancer Walk Around
Fotograf	Michael Benolkin
Lokalisering	Unknow
Billeder	40

Se også:

Rockwell B-1B Walk Around
Fotograf	Mario Scaramuzza
Lokalisering	Unknow
Billeder	279

Se hele annoncen 26. okt 1.500 kr.

Indlæs mere...

A Master of Low-Level Penetration

Den Rockwell B-1B Lancer is a long-range, multi-mission, supersonic strategic bomber. Originally envisioned in the 1970s as a high-altitude Mach 2 interceptor (the B-1A), the redesigned B-1B shifted its focus to low-level, high-speed penetration. By flying “under the radar” at near-sonic speeds, the Lancer was designed to slip through Soviet air defenses during the Cold War. Today, it has evolved from a nuclear deterrent into the premier conventional heavy-payload platform for the U.S. Air Force.

Attribute	Technical Specification (B-1B Lancer)
Rolle	Heavy Multi-Role Strategic Bomber
Besætning	4 (Commander, Copilot, and two Weapon Systems Officers)

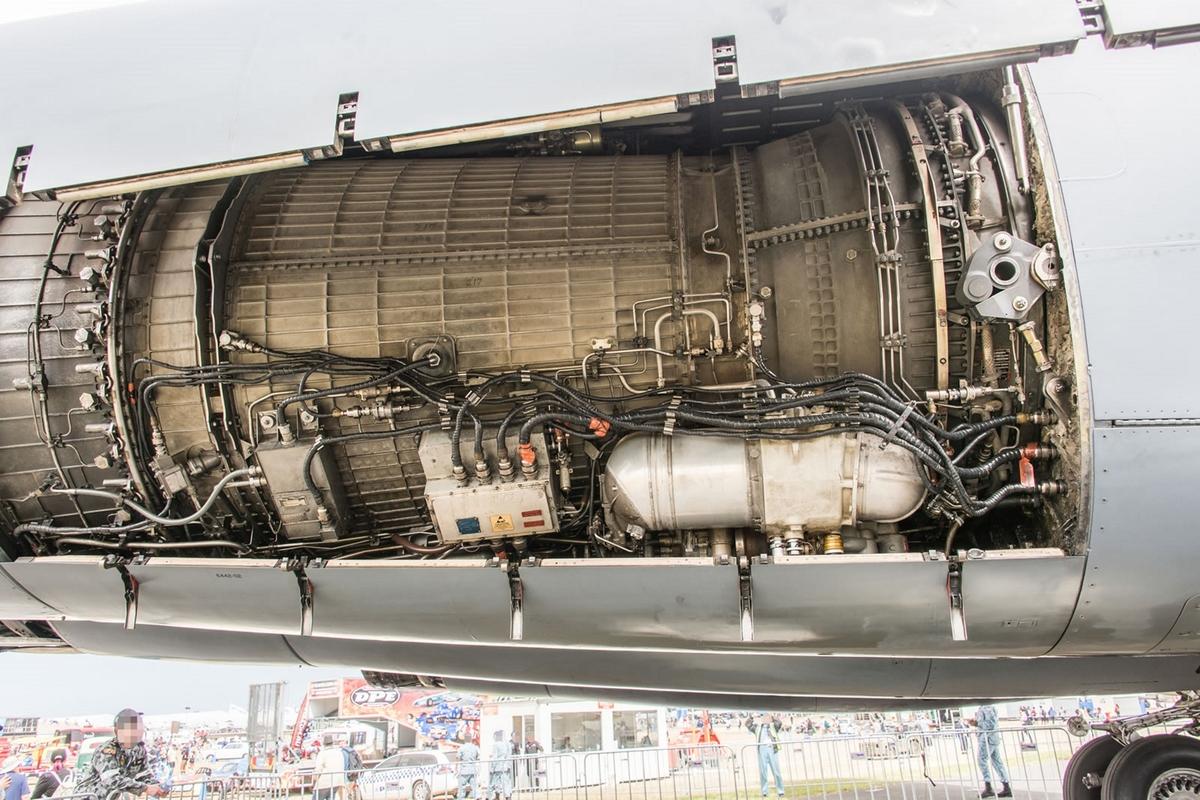

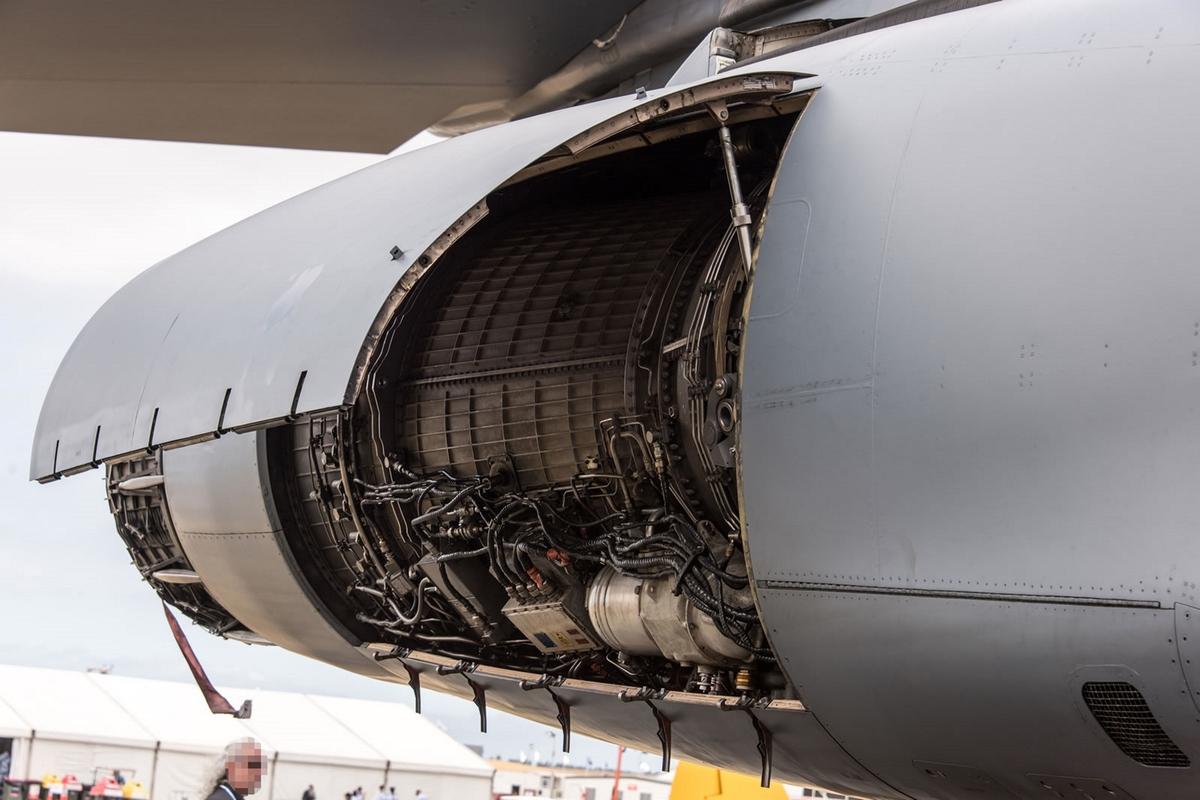

Kraftværk	4 × General Electric F101-GE-102 afterburning turbofans
Thrust	30,000+ lbf (133 kN) per engine with afterburner
Maximum Speed	Mach 1.25 (approx. 950 mph / 1,530 km/h)
Nyttelast	75,000 lbs (34,000 kg) internal; 50,000 lbs (23,000 kg) external
Interval	Intercontinental (5,900+ miles unrefueled)
Service Ceiling	Over 60,000 feet (18,000 m)

Design Features: Swing-Wings and Stealth

Variable-Sweep Wings: The B-1B uses “swing wings” to optimize performance. For takeoffs and landings, the wings sweep forward for maximum lift; for high-speed flight and low-level penetration, they sweep back to 67.5 degrees to minimize drag and radar signature.
Radar Cross-Section (RCS) Reduction: While not a “stealth” aircraft like the B-2, the B-1B’s blended wing-body configuration and radar-absorbent materials (RAM) give it a radar signature roughly 1/100th that of a B-52.
Low-Altitude Ride Control (LARC): To handle the violent turbulence of high-speed flight at tree-top levels, the B-1B features small vanes near the nose (the SMCS) that automatically adjust to stabilize the aircraft, reducing crew fatigue and airframe stress.
The “Bone” Nickname: The name is derived from its designation “B-One,” which sounds like “Bone.”

Payload and Combat Versatility

Triple Internal Bomb Bays: The B-1B features three internal bays capable of carrying a massive variety of ordnance, from 84 Mark 82 bombs to 24 Joint Direct Attack Munitions (JDAMs) or Long Range Anti-Ship Missiles (LRASMs).
Conventional Shift: Following the START treaties, the B-1B was physically modified to ensure it could no longer carry nuclear weapons, cementing its role as a purely conventional strike asset.
Sniper Pod: In recent decades, the addition of the Sniper Advanced Targeting Pod has allowed B-1B crews to perform precision strikes and provide “close air support” for ground troops, a role never imagined during its initial design.
