Panhard SPHINX

Panhard SPHINX
Kraju	Francja
Typu	Opancerzony pojazd rozpoznawczy
Zbudowany	Niewiedzy

Tthe SFINKS (Secret Project for High Intensity and New Conflicts) został opracowany przez Panharda jako prywatne przedsięwzięcie w celu spełnienia wymagań francuskiej armii EBCR (Engine Blinde de Reconnaissance et de Combat). EBRC oznacza pojazd opancerzony do rozpoznania i walki. Nowy pojazd opancerzony ma zastąpić starzejące się AMX-10RC i ERC-90 Sagaie.

Źródła: Panhard SPHINX na #

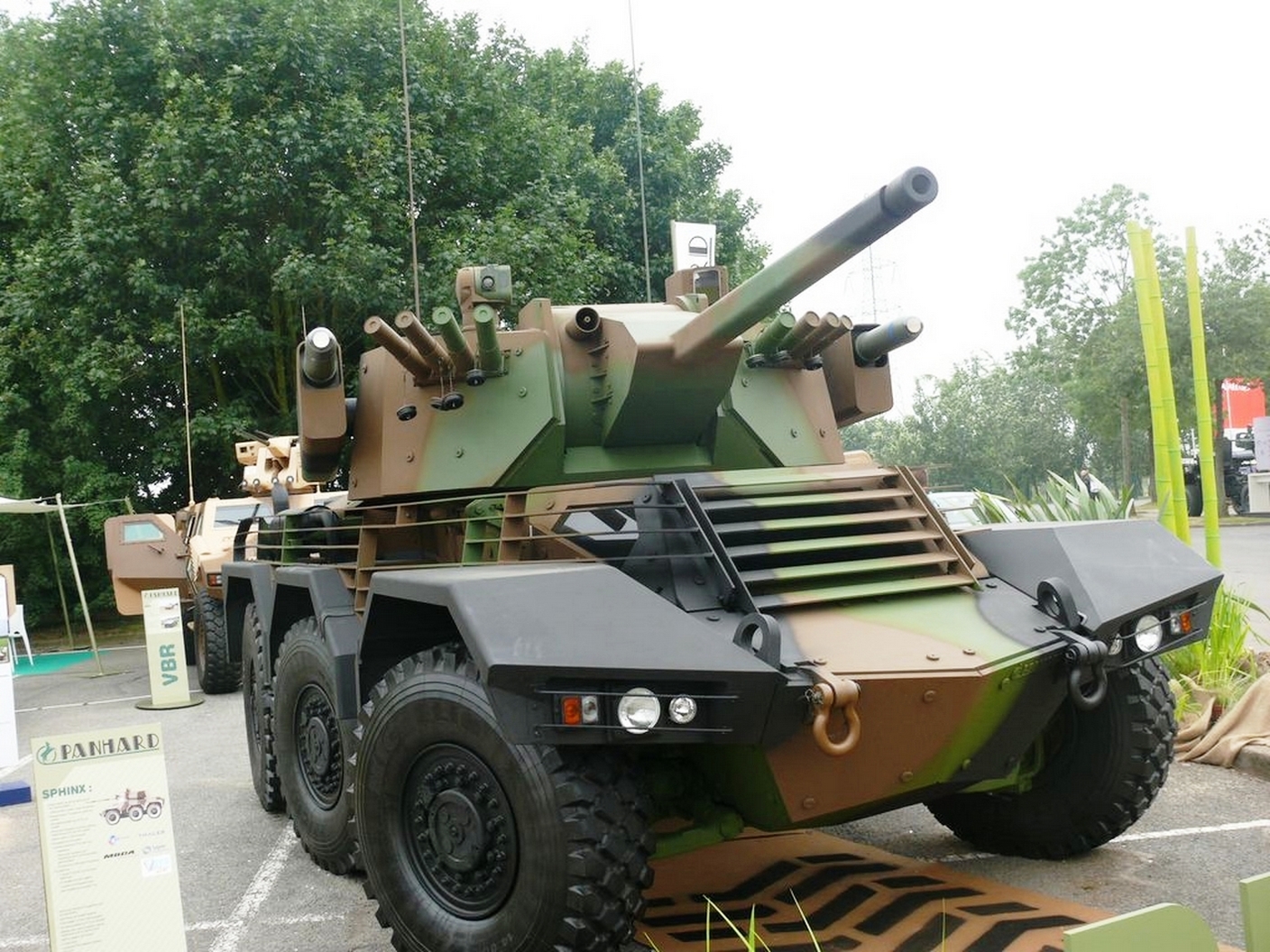

Panhard Sphinx Walk Around
Fotograf	Niewiedzy
Lokalizacja	Niewiedzy
Zdjęcia	13

Panhard Sphinx 1

Panhard Sphinx 2

Panhard Sphinx 3

Panhard Sphinx 4

Panhard Sphinx 5

Panhard Sphinx 6

Panhard Sphinx 7

Panhard Sphinx 8

Panhard Sphinx 9

Click on a photo and use the mouse scroll to view all photos

Czekać, wyszukiwanie zdjęć EBRC Jaguar dla ciebie...

Panhard Sphinx Tourelle CTAI 40mm Walk Around
Fotograf	Niewiedzy
Lokalizacja	Niewiedzy
Zdjęcia	13

Panhard Sphinx Wieża CTAI 40mm

Załaduj więcej...

Czekaj, szukam dla ciebie pojazdu zwiadowczego...

Zobacz też:

General Characteristics (EBRC Program Submission)

The SPHINX was a 6×6 armored vehicle concept developed by Panhard (now Arquus) as a private venture and a candidate for the French Army’s EBRC (Armoured Vehicle for Reconnaissance and Combat) program, aimed at replacing the older ERC-90 Sagaie.

Property	Value (Concept Specifications)
Roli	Armored Reconnaissance, Fire Support, Rapid Intervention
Producent	Panhard General Defence (Arquus)
Unveiled	Eurosatory 2010
Konfiguracja	6×6 Wheeled Vehicle
Załogi	3 (dowódca, strzelec, kierowca)
Combat Weight	Approx. 17 tonnes (Maximum 18 t)

Armament and Protection

Main Armament: One 40 mm CTA (Case Telescoped Ammunition) Automatic Cannon.
Secondary Armament:
- One 7.62 mm coaxial machine gun.
- Two launchers for long-range Anti-Tank Guided Missiles (ATGM), typically MBDA MMP or MLP.
Ballistic Protection: Designed to meet STANAG 4569 Level 4, with potential for upgrade to Level 5 (protection against 25 mm APDS-T rounds).
Mine Protection: Features a V-shaped hull design for enhanced resistance against mines and Improvised Explosive Devices (IEDs), achieving STANAG Level 3a/3b protection.
Air Transport: Designed to be transportable by air in a C-130 or Airbus A400M.

Powerplant and Mobility

Engine: Turbocharged V12 diesel engine (e.g., Mercedes or Steyr unit).
Power Output: Approx. 600 hp (447 kW).
Power-to-Weight Ratio: Over 35 hp/ton, offering high acceleration and off-road capability.
Maximum Road Speed: Up to 110 km/h (68 mph).
Steering: All six wheels are steerable for superior maneuverability.
Operational Range: Approximately 600 km (370 miles).
