Piasecki HU-21

Piasecki HU-21
Country	USA
Type	Cargo helicopter
Period	1952-1967
Manufacturer	Piasecki Helicopter

The Piasecki H-21 Workhorse/Shawnee is an American helicopter, the fourth of a line of tandem rotor helicopters designed and built by Piasecki Helicopter (later Boeing Vertol). Commonly called “the flying banana”, it was a multi-mission helicopter, utilizing wheels, skis, or floats. The H-21 was originally developed by Piasecki as an Arctic rescue helicopter. The H-21 had winterization features permitting operation at temperatures as low as −65 °F (−54 °C), and could be routinely maintained in severe cold weather environments.

Source: Piasecki HU-21 on Wiki

Piasecki HU-21B Walk Around
Photographer	Cees Hendriks
Localisation	Unknow
Photos	73

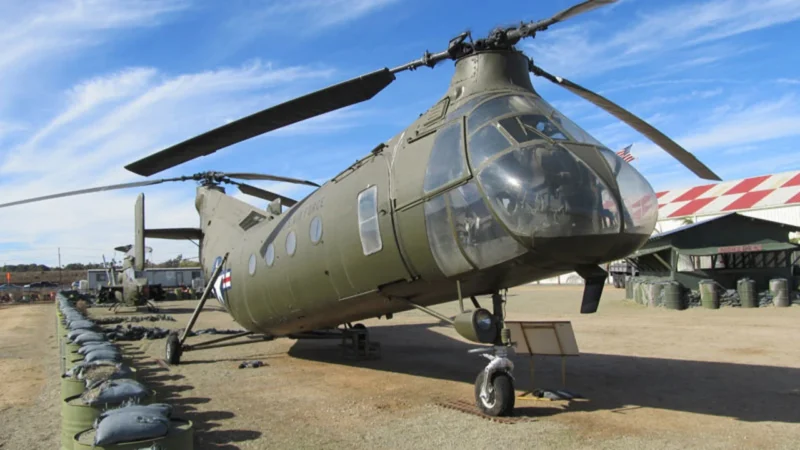

Piasecki HU-21B 01

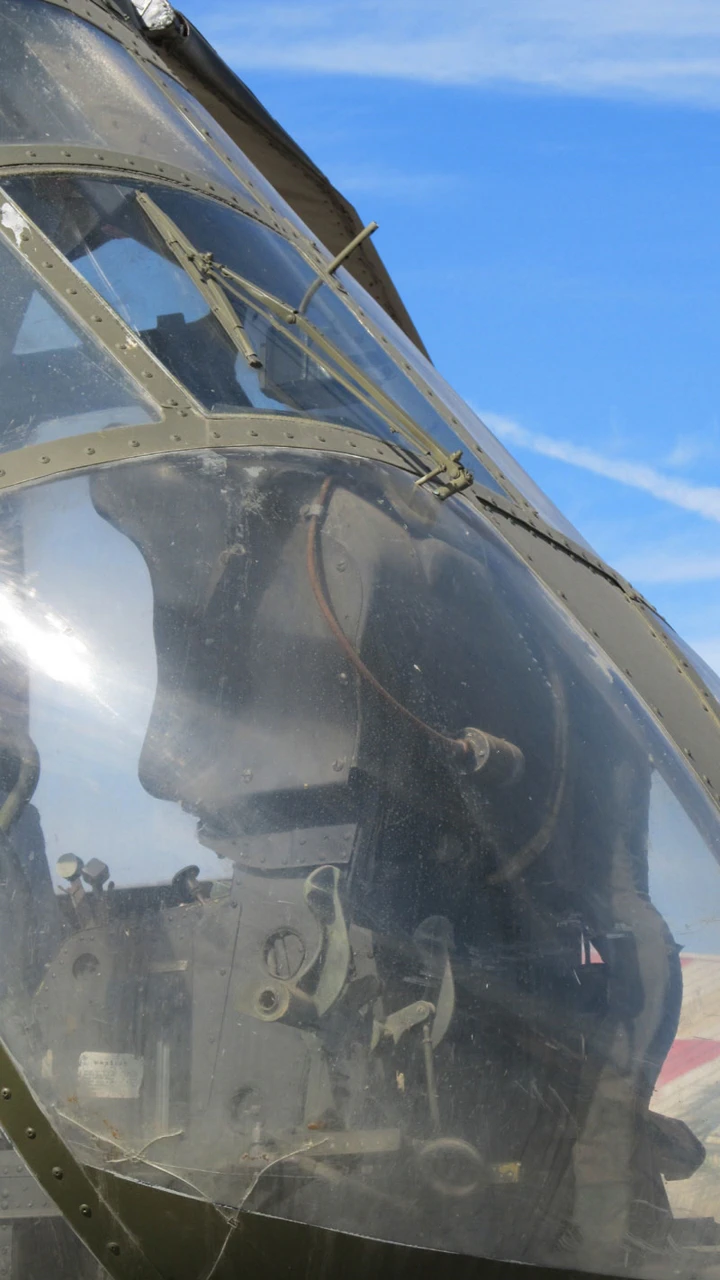

Piasecki HU-21B 02

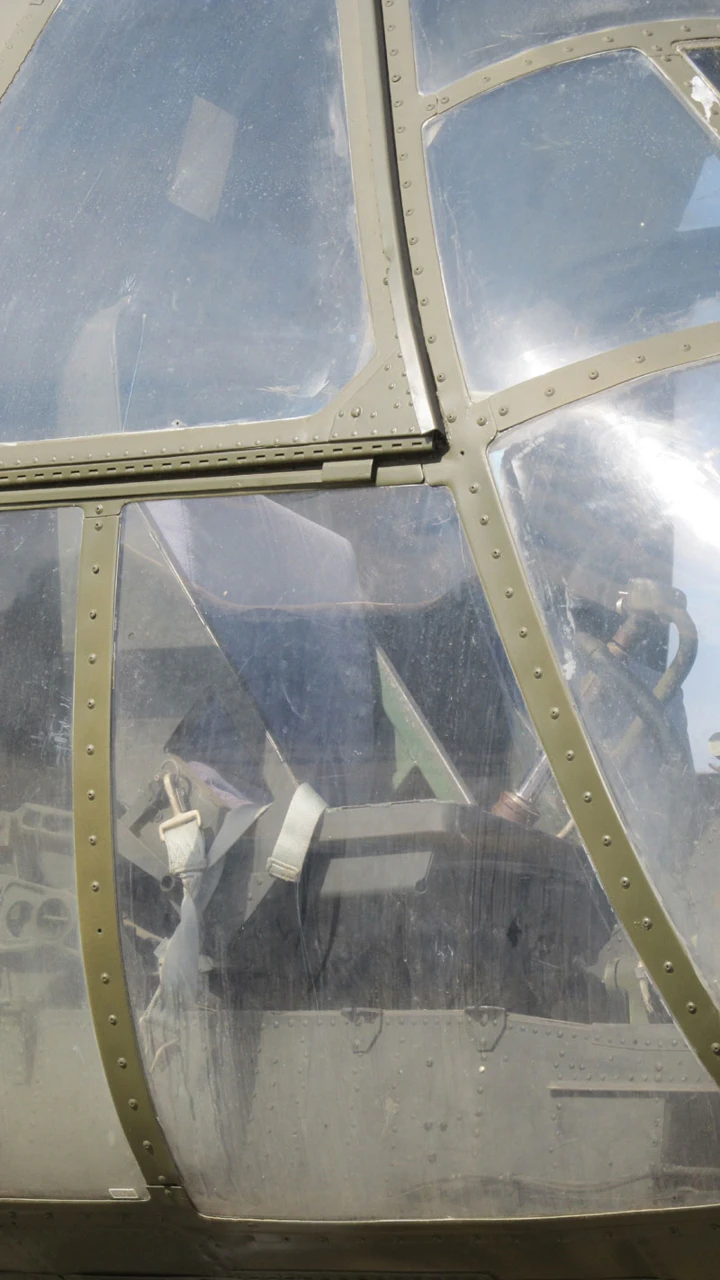

Piasecki HU-21B 03

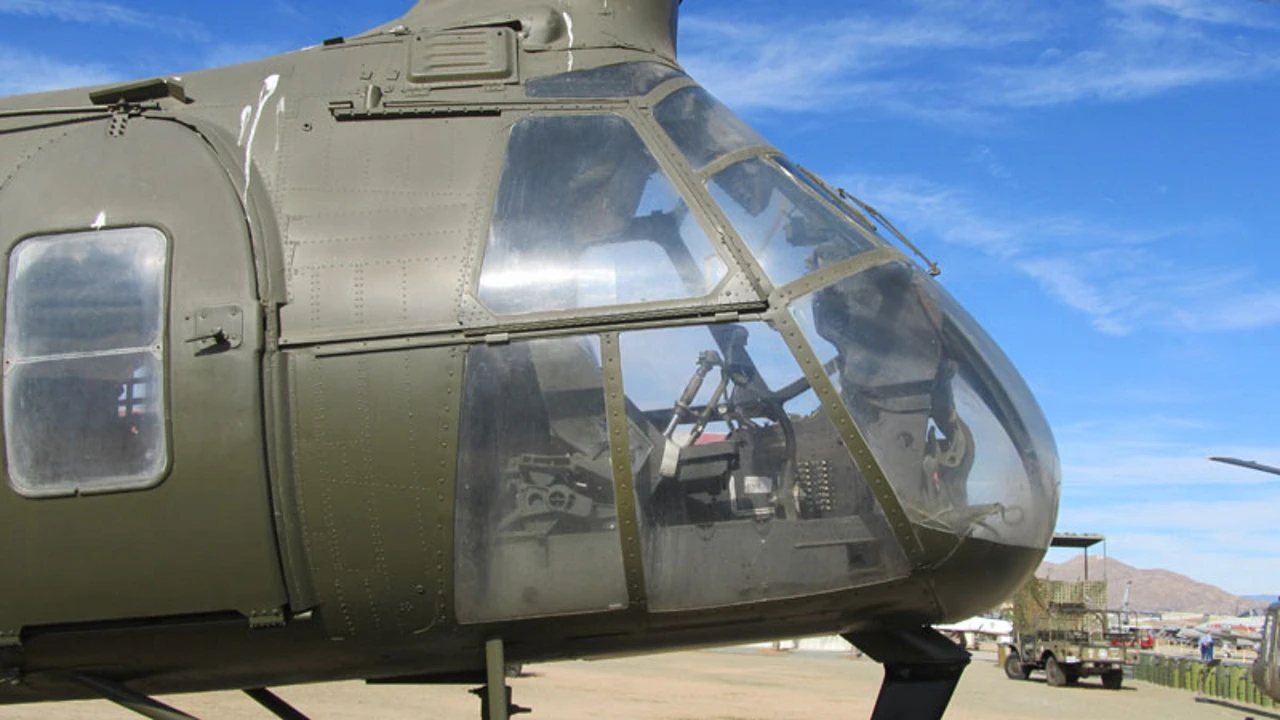

Piasecki HU-21B 04

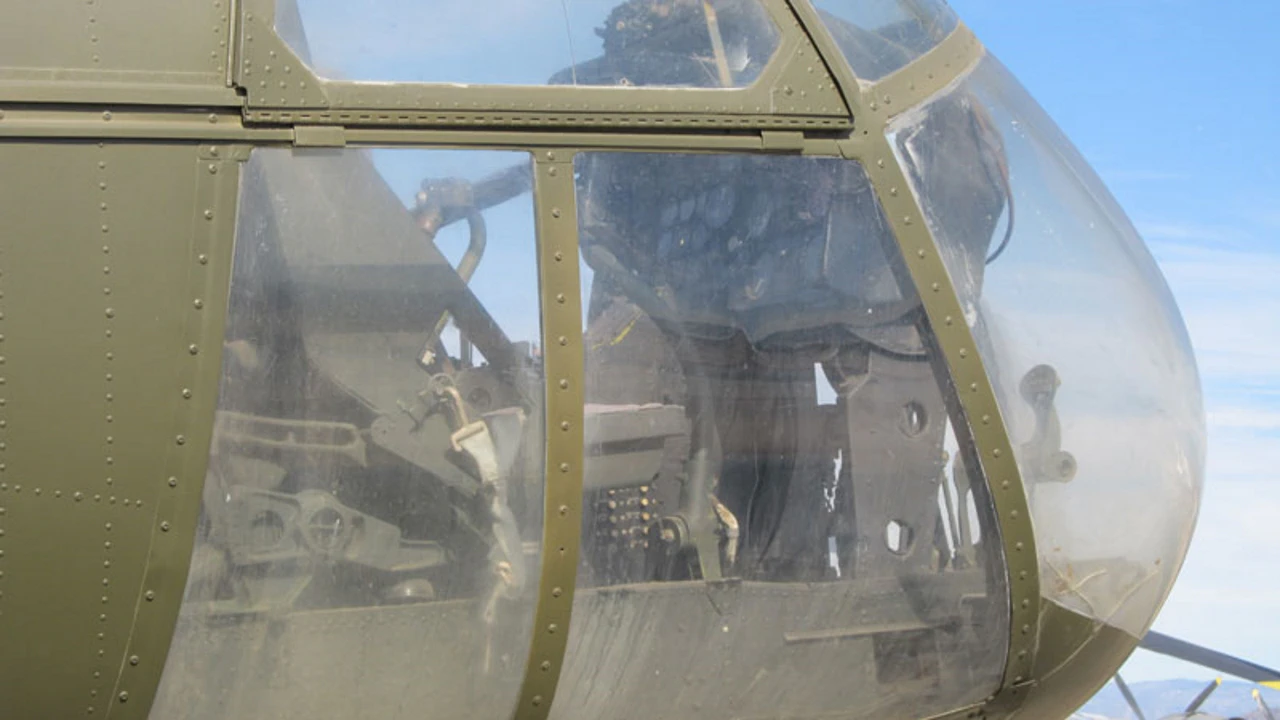

Piasecki HU-21B 05

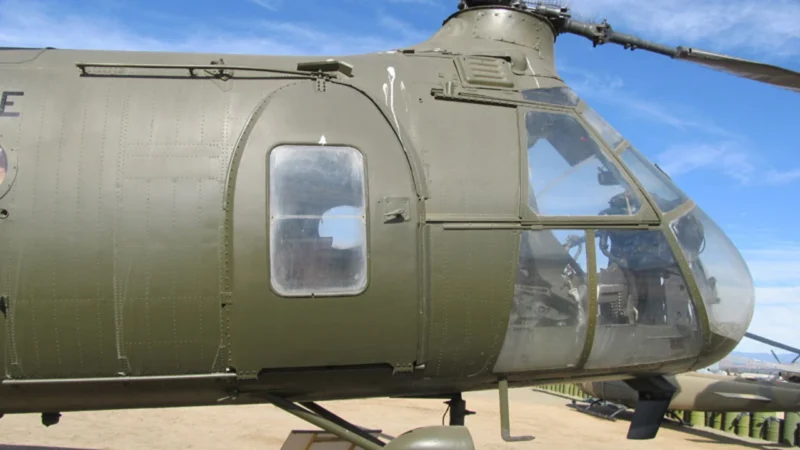

Piasecki HU-21B 06

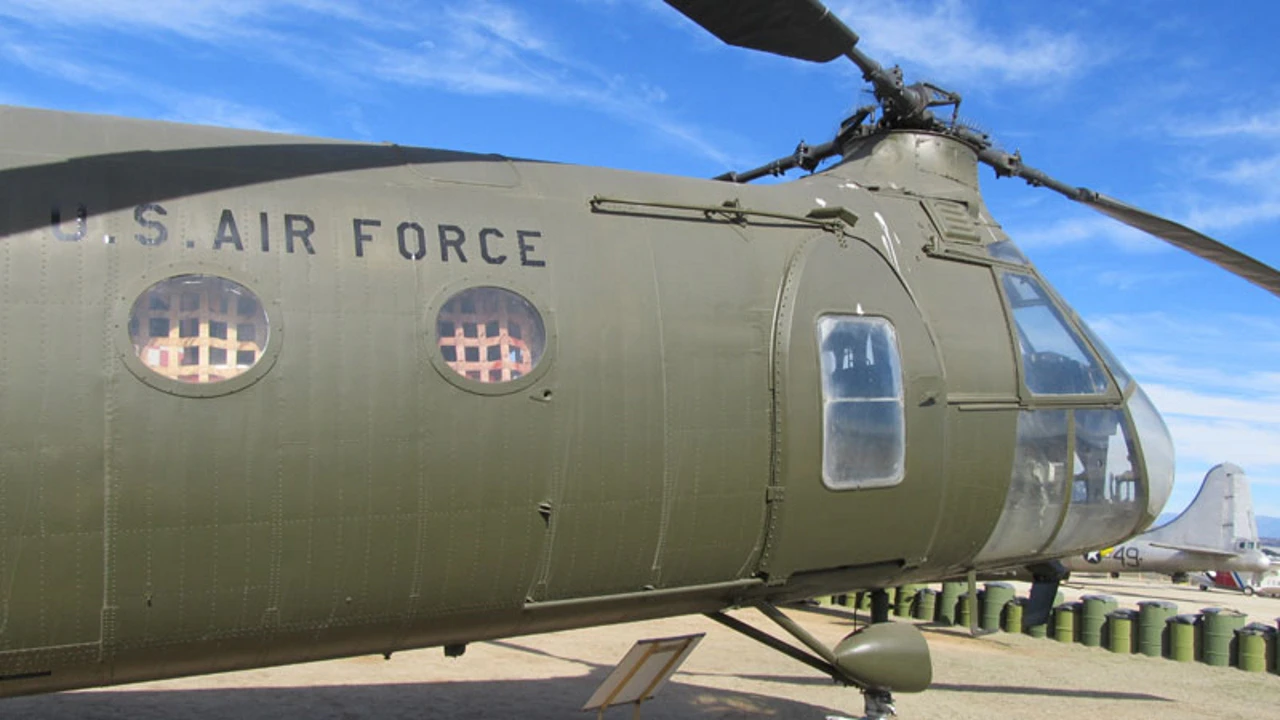

Piasecki HU-21B 08

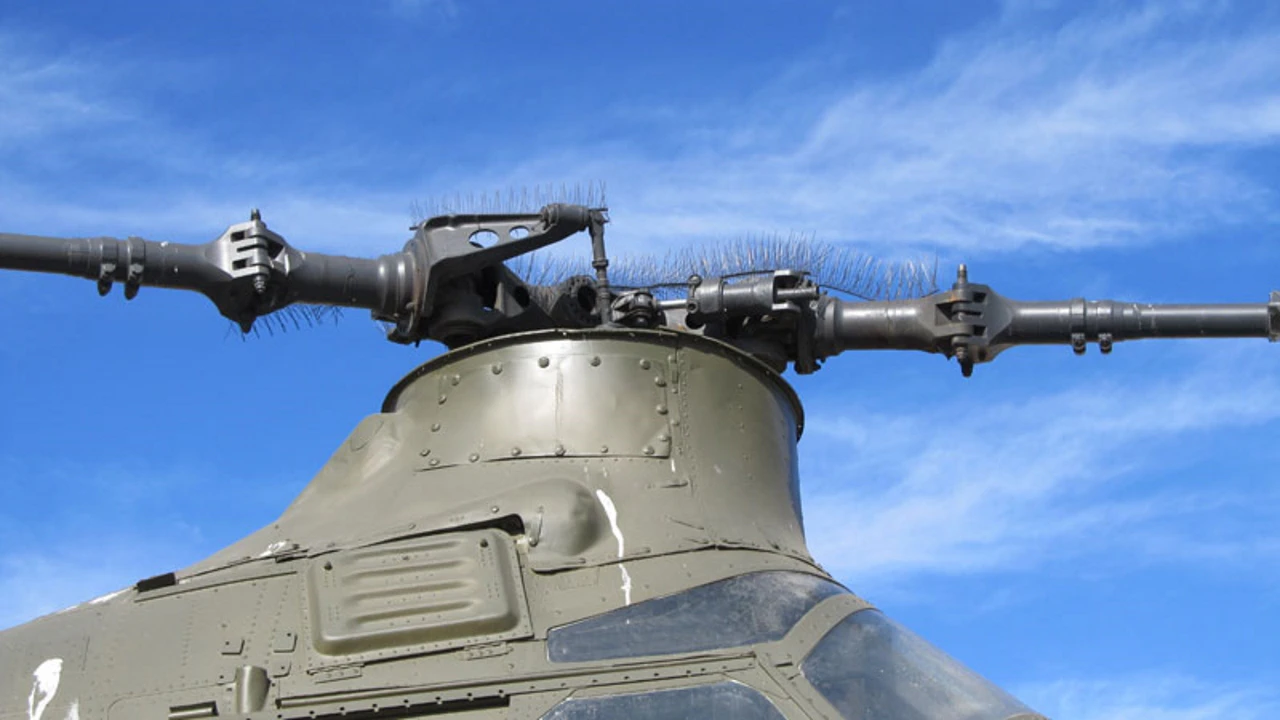

Piasecki HU-21B 07

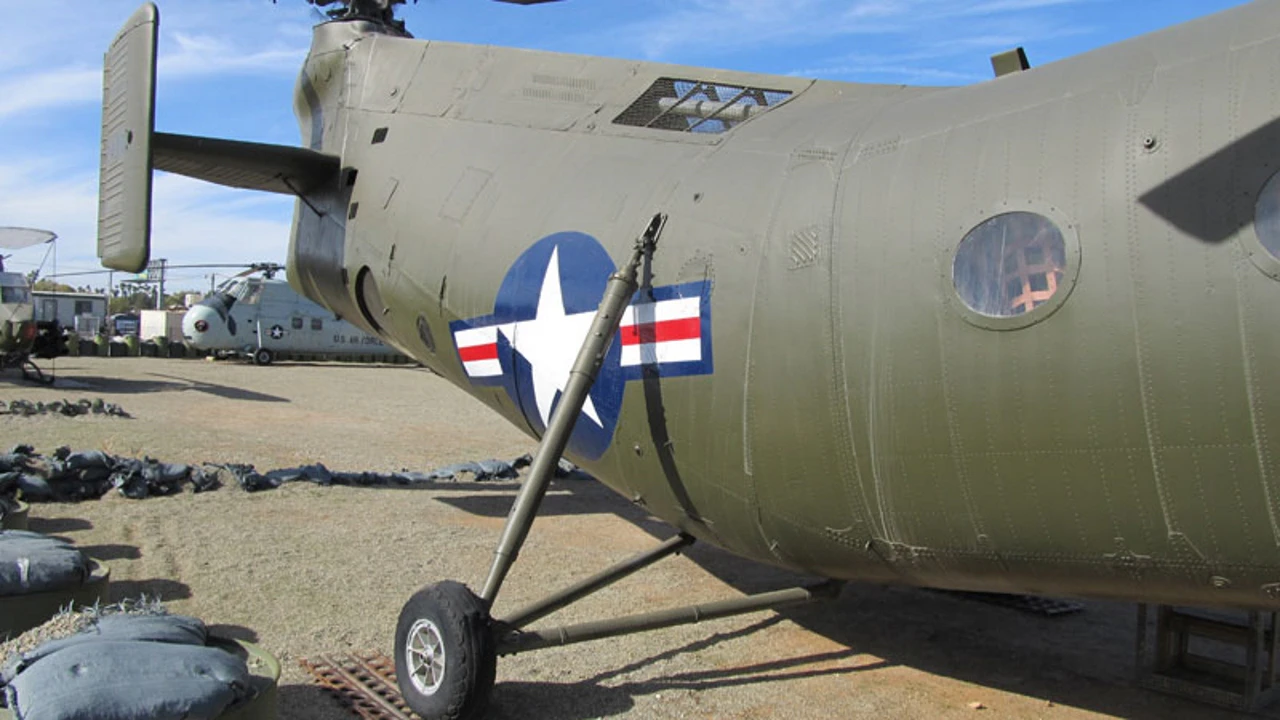

Piasecki HU-21B 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching Piasecki HU-21 photos for you…

Piasecki HH-21B Workhorse
Photographer	Vladimir Yakubov
Localisation	Travis Air Force Base Museum
Photos	182

Piasecki HH-21B Workhorse

Wait, Searching Piasecki HU-21 photos for you…

CH-21B Shawnee Walk Around
Photographer	Michael Supko
Localisation	American Helicopter Museum in West Chester, PA
Photos	22

CH-21B Shawnee

Piasecki H-21C Workhorse Walk Around
Photographer	Randy Ray
Localisation	Pima Air and Space Museum
Photos	34

Piasecki H-21C Shawnee (Vertol V-43A) Walk Around
Photographer	Burhand Donke
Localisation	Unknow
Photos	59

The Kinked Workhorse

The Piasecki HU-21 (later redesignated the H-21 Workhorse/Shawnee) was a revolutionary tandem-rotor helicopter that solved a major early problem in aviation: center-of-gravity limits. By placing a rotor at each end of the fuselage, Frank Piasecki created an aircraft that could carry heavy loads anywhere in its cabin without becoming unstable. Its distinctive “kinked” fuselage was designed to prevent the two massive rotors from striking each other. Though it looked awkward, it was the first helicopter capable of carrying significant numbers of troops, making it a vital asset in the early days of air assault and Arctic rescue.

Attribute	Technical Specification (H-21C / CH-21C)
Role	Multi-mission Transport / SAR
Crew	2 (Pilot and Co-pilot)
Capacity	20 troops or 12 stretchers
First Flight	April 11, 1952
Powerplant	1 × Wright R-1820-103 Cyclone radial engine
Horsepower	1,425 hp (1,063 kW)
Maximum Speed	127 mph (204 km/h)
Range	265 miles (426 km)

Design Highlights: Tandem Power

The “Banana” Bend: The fuselage was curved upward in the rear to ensure that the rear rotor sat higher than the front rotor. This prevented the rear blades from catching the turbulent “wash” of the front blades and, more importantly, prevented the two sets of blades from colliding during flight maneuvers.
Single Engine, Dual Rotors: Despite having two rotors, the H-21 only had one engine. It was mounted in the middle/rear of the fuselage, with long driveshafts running to the front and rear gearboxes. If the engine failed, both rotors would continue to spin together for a safe autorotation.
Arctic Adaptability: The H-21 was often equipped with large “snowshoe” floats over its wheels, allowing it to land in deep snow or marshy tundra without sinking. This made it the primary support aircraft for the Distant Early Warning (DEW) Line in the Arctic.
All-Metal Strength: Unlike many helicopters of the 1940s that used fabric-covered frames, the H-21 was a fully stressed-skin metal design, making it durable enough for frontline combat operations.

Combat and Legacy

The First “Gunships”: In the early stages of the Vietnam War, the U.S. Army experimented with arming the H-21 Shawnee. They mounted .30 and .50 caliber machine guns in the doors and even experimented with fixed forward-firing rockets, paving the way for the dedicated attack helicopters that followed.
French Action in Algeria: The French Air Force used the H-21 extensively during the Algerian War. They were among the first to prove that helicopters could be used to rapidly deploy troops directly into the middle of a battle (vertical envelopment).
Heavy Metal Vibrations: The H-21 was notorious for its vibration. Because of the long driveshafts and massive moving parts, pilots often joked that if the “Banana” stopped shaking, it meant the engine had died.
Successor to the Crown: The H-21 proved that the tandem-rotor concept was superior for heavy lifting. This design lineage led directly to the Boeing CH-46 Sea Knight and the legendary CH-47 Chinook, which still dominates the heavy-lift world today.
